Allen-Bradley 25B-D010N104 PowerFlex 525 — 5 HP 480V Drive Review

By Abdullah Zahid
16 min read

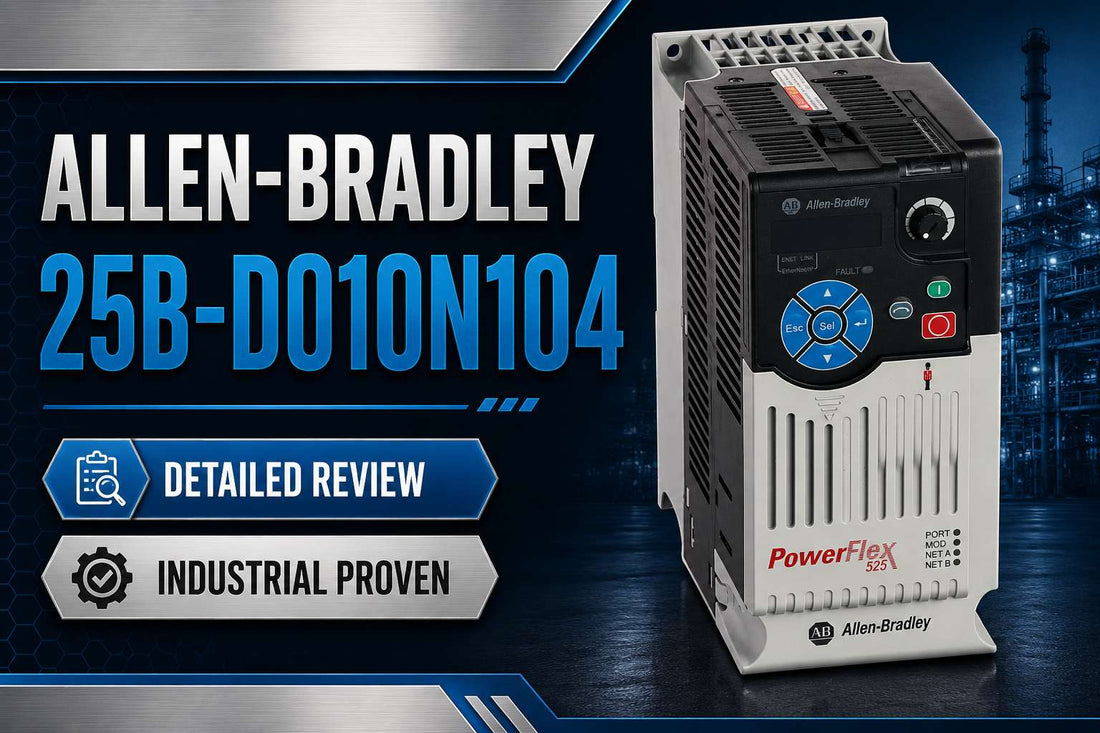

Allen-Bradley 25B-D010N104 PowerFlex 525 AC Drive Frame B IP20 480V 5HP EtherNet/IP variable frequency drive for industrial motor control

Allen-Bradley 25B-D010N104 PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3-Phase, 10.5 A, 5 HP (4 kW), Frame B, IP20 NEMA / Open Type, No Filter — Specs, Review & Buying Guide

Controls engineers evaluating a compact 480 V drive for conveyors, pumps, or OEM machinery already standardized on Allen-Bradley often reach this exact decision point: is the 25B-D010N104 the correct PowerFlex 525 variant, or is a different HP, voltage, or enclosure rating the right call? This article answers that directly. The Allen-Bradley 25B-D010N104 is a 380–480 V AC, 3-phase, 10.5 A, 5 HP (4 kW) variable frequency drive from the PowerFlex 525 family, offered in Frame B, IP20 open-type housing, with embedded EtherNet/IP and integrated Safe Torque-Off — and no integral EMC filter.

If you have already confirmed this is the correct part number for your application, check current pricing and availability at LeadTime.ca — we ship worldwide.

Who Should Buy the 25B-D010N104 — and Who Shouldn't

This drive is the right choice for engineers and procurement teams who can confirm all of the following criteria:

  • Line voltage is 380–480 V AC, 3-phase, and motor full-load amps do not exceed 10.5 A under the application duty
  • Motor power requirement is at or below 5 HP (4 kW) for both normal and heavy duty ratings
  • The installation environment accepts an IP20 NEMA open-type drive, with a suitable enclosure and cooling provided externally
  • Embedded EtherNet/IP networking and integrated Safe Torque-Off are required — either for Logix PLC integration, safety compliance, or both
  • The project is standardized on Allen-Bradley or Rockwell Automation control hardware and the associated parameter and software ecosystem

If your motor draws more than 10.5 A, if your voltage class is 200–240 V, or if you need a higher IP/NEMA rating without adding an external enclosure, a different PowerFlex 525 variant or family is the correct specification. Specific alternatives are covered in the comparison section below.

On this page:

What the 25B-D010N104 Actually Does in a System

The Allen-Bradley 25B-D010N104 is an adjustable frequency AC drive — a VFD — that takes 380–480 V, 3-phase power from your distribution panel and delivers precisely controlled voltage and frequency to a three-phase AC motor. Its job is speed, torque, and start/stop control, replacing across-the-line starters or older fixed-speed arrangements and adding the ability to ramp, jog, and vary speed in response to process demand or PLC commands.

What separates the 25B-D010N104 from lower-spec drives at the same HP is what is built in from the factory. Embedded EtherNet/IP means the drive appears as a node on your plant network and communicates status, speed, current, and fault data directly to a CompactLogix or ControlLogix PLC without an additional communication module. The integrated Safe Torque-Off (STO) function satisfies safety requirements for safe-stop scenarios without the cost and wiring complexity of an external safety relay in many architectures. All of this is delivered in a Frame B housing rated IP20 NEMA open type — compact enough for multi-drive panel layouts, but requiring a proper enclosure for protection against contamination.

The "N104" suffix in the catalog number is meaningful: it specifies no integral EMC filter. Engineers working in electrically noisy environments or where EMC compliance requires attenuation will need to plan for an external line filter or line reactor. This is not a deficiency — it is the correct catalog choice when the filter is handled externally or is not required by the installation standard.

Typical System Architecture for Frame B PowerFlex 525 Deployments

The 25B-D010N104 sits between your power distribution and motor terminals, with its EtherNet/IP port connecting it laterally into the plant control layer. Here is where it fits in a typical installation:

  • Upstream: 380–480 V, 3-phase supply from MCC or distribution panel, through a branch circuit disconnect and overload/short-circuit protection device
  • Optional: External EMC line filter or line reactor installed between supply and drive input terminals when required by site or regulatory standards
  • The 25B-D010N104: receives supply at L1/L2/L3, outputs controlled frequency and voltage at T1/T2/T3 to the motor
  • Control layer: EtherNet/IP port connects to a managed switch and back to a CompactLogix or ControlLogix PLC; start/stop, speed reference, and status exchange over the network or via hardwired control terminals
  • Safety circuit: Safe Torque-Off terminals wired into the machine safety architecture for safe-stop commands without full power removal from the drive
  • Downstream: Three-phase AC motor (up to 5 HP / 4 kW, within 10.5 A FLA) driving the mechanical load — conveyor, pump, fan, or similar

Typical Applications: Where the 25B-D010N104 Belongs

In packaging and assembly environments, the 25B-D010N104 is a natural fit for 480 V conveyor drives where centralized PLC diagnostics and precise speed control are needed. The embedded EtherNet/IP port allows the PLC to monitor motor current, detect jams, and issue speed changes without dedicated analog wiring runs.

Pump control — both constant and variable torque — is another strong application. Industrial water systems, HVAC chilled water pumps, and process dosing applications benefit from the drive's speed regulation and network visibility, with energy savings available when the process allows reduced-speed operation.

Fan and blower applications in manufacturing and building systems gain the same energy and monitoring benefits. The compact Frame B footprint makes it practical to install multiple units in a single MCC or control panel serving several fan motors simultaneously.

OEM machine builders standardized on Allen-Bradley frequently specify the PowerFlex 525 as their default 480 V drive precisely because the pre-defined add-on profiles and tag structures in Studio 5000 reduce engineering time per machine build. The 25B-D010N104 is also a practical retrofit candidate for older machines using earlier drive generations, where adding Ethernet connectivity and safety functions without major panel redesign is a project requirement.

Application Typical Deployment
Packaging conveyor Speed-controlled 480 V conveyor motor, start/stop and speed reference via EtherNet/IP from CompactLogix PLC
Industrial pump Variable torque pump drive in process or HVAC system, network monitoring of current and run status
Fan and blower Multi-drive panel with Frame B units serving several fan motors; energy-saving variable speed operation
OEM machine auxiliary axis Auxiliary motion axis synchronized over EtherNet/IP in a standardized Allen-Bradley machine platform
Legacy drive retrofit Replacement of older VFD to add Ethernet connectivity and Safe Torque-Off without panel rewire
Material handling Sortation and indexing drives in warehousing and distribution, integrated into plant-wide Logix control

Key Specifications for Purchase Decision

Parameter Value
Input Voltage 380…480 V AC, 3-phase
Output Current 10.5 A
Motor Power Rating 4 kW (5 HP) — normal and heavy duty
Frame Size Frame B
Enclosure Rating IP20 / NEMA Open Type
Integrated Communications Embedded EtherNet/IP
Safety Function Integrated Safe Torque-Off (STO)
EMC Filter No integral filter (N104 designation)
Product Family PowerFlex 525 (PowerFlex 520-series)
Catalog Number 25B-D010N104

Full technical specifications are available on the product page at LeadTime.ca.

25B-D010N104 vs Other PowerFlex 525 Variants — Which One Do You Need?

Model / Family Voltage Class Power Rating Key Differentiator Best For
25B-D010N104 (this unit) 380–480 V, 3-phase 4 kW / 5 HP, 10.5 A EtherNet/IP + STO, no filter, Frame B, IP20 Standard 480 V OEM and plant applications with Rockwell PLC integration
PowerFlex 525 — lower current 25B variant 380–480 V, 3-phase Below 4 kW Smaller frame, lower output current Motors below 5 HP FLA on the same 480 V system
PowerFlex 525 — higher current 25B variant 380–480 V, 3-phase Above 4 kW Larger frame to handle higher motor FLA Motors above 10.5 A FLA on 480 V systems
PowerFlex 525 — 200–240 V variant 200–240 V, 3-phase Equivalent HP range Lower voltage class, different catalog suffix Sites with 208 V or 240 V 3-phase distribution
PowerFlex 523 Multiple voltage classes Comparable HP range No embedded EtherNet/IP or integrated safety Cost-sensitive applications where Ethernet and STO are not required
PowerFlex 753 Multiple voltage classes Higher HP range Higher power, expanded I/O, advanced motor control modes Demanding or higher-power applications exceeding PowerFlex 525 capabilities

If your motor's full-load amps exceed 10.5 A, the next-higher current PowerFlex 525 variant is the correct choice — check current availability and confirm the right part number at LeadTime.ca.

Expert Verdict: Is the 25B-D010N104 the Right Drive for Your Project?

For controls engineers and OEM machine designers working within a Rockwell Automation ecosystem, the Allen-Bradley 25B-D010N104 is a dependable, well-documented choice for 480 V, 5 HP applications where embedded EtherNet/IP and Safe Torque-Off are project requirements. The combination of 10.5 A output, Frame B compactness, and native Logix integration through pre-defined add-on profiles makes this drive a practical default specification for conveyors, pumps, fans, and auxiliary machine axes. The proof is in the adoption: Rockwell officially positions the PowerFlex 525 bulletin as its compact, feature-rich VFD for general motor control across exactly these application categories, and engineers who have standardized on it report consistent integration behavior across machine builds.

This drive is not the right answer in every situation, and being clear about that is more useful than overselling it. If your site does not use Rockwell PLCs or EtherNet/IP, the embedded networking and safety features represent cost you are not using — a PowerFlex 523 or a simpler VFD is more economical. If your environment requires IP54, NEMA 12, or washdown ratings without the addition of a suitable external enclosure, you need either a higher-rated enclosure variant or a different product family entirely. And if your motor draws above 10.5 A, the 25B-D010N104 is under-specified — move to the next current rating in the 25B series rather than overshooting into the PowerFlex 753, unless your application genuinely demands the capabilities of that family.

From a procurement standpoint, the PowerFlex 525 family is generally well-stocked, but supply availability can shift under broader industrial demand cycles, and confirming regional inventory before committing to a build schedule is always worth the few minutes it takes. A specialist automation distributor does more than pull inventory — they can cross-check the 25B-D010N104 catalog number against your motor data and control architecture before the PO is issued, flagging potential mis-specifications that generic catalog channels will not catch. View current availability and pricing for the 25B-D010N104 at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Report After Working With the PowerFlex 525 25B Series

Across forums including Reddit's r/PLC and r/industrialautomation, PLCTalk, PLCS.net, MrPLC, and Rockwell's own knowledgebase, the PowerFlex 525 family consistently earns positive sentiment from engineers who have used it in Allen-Bradley environments. The recurring theme is integration efficiency: users report that CompactLogix and ControlLogix add-on profiles for the PowerFlex 525 reduce the per-drive engineering effort significantly, with tag structures that align cleanly with Logix programming conventions. For OEM builders standardizing across multiple machines, this predictability is cited as a genuine productivity advantage. The compact Frame B footprint also draws consistent praise from technicians working in tight multi-drive panels, where physical size directly affects cabinet cost and layout time.

The complaints that appear repeatedly are worth taking seriously before commissioning. Parameter complexity is the most common friction point — the PowerFlex 525 parameter set is extensive, and users with less VFD experience report that non-intuitive naming conventions lead to misconfiguration and nuisance trips. Overcurrent and overvoltage faults tied to aggressive acceleration/deceleration settings are a close second, and both issues are almost always resolved by slowing the ramp times and confirming the motor data entry is accurate. A third pain point involves the intersection of hard-wired control and EtherNet/IP control modes — engineers who have not fully planned their control source logic before wiring report time-consuming rework when the PLC program and drive parameter source settings conflict.

Ordering mistakes at the family level mirror what the data in this brief flags. The most commonly reported mis-purchase is selecting the 200–240 V voltage class when 380–480 V is required, or vice versa — a mistake that is entirely preventable by confirming the catalog suffix before submission. Selecting an insufficient current rating for the actual motor FLA, especially in heavy-duty cycle applications, is the second most reported issue and often surfaces only after the drive has tripped in service. A third and easily overlooked mistake is assuming that the "N104" no-filter catalog variant includes a brake chopper or EMC filter — it does not, and projects that need either of those features must account for them separately in the BOM.

Wiring and Installation Overview

The following points summarize the key installation requirements for the 25B-D010N104. Full wiring procedures, terminal assignments, and compliance requirements are documented in the official Rockwell Automation PowerFlex 525 user manual, which should be the primary reference for all installation work.

  • Line power connections feed 380–480 V AC, 3-phase into the designated L1/L2/L3 input terminals; motor leads connect to T1/T2/T3 output terminals with proper protective earth ground at the designated grounding point on the drive chassis
  • External branch circuit protection and a disconnect device are required upstream of the drive — the 25B-D010N104 does not include integral short-circuit protection, and sizing of external protection must comply with applicable electrical codes and Rockwell's published guidelines for Frame B
  • Control wiring to digital input, analog input, and relay output terminals supports hardwired start/stop and speed reference; the embedded EtherNet/IP port connects via standard Cat5e or Cat6 cabling to a managed switch in the plant network — confirm IP address assignment and I/O connection configuration in the PLC project before power-up
  • Safe Torque-Off terminals must be wired according to the safety circuit design and verified per the safety function documentation; leaving STO terminals in a non-commissioned state will prevent the drive from enabling — this is a common source of initial power-up confusion
  • Because the 25B-D010N104 carries no integral EMC filter, installations where line noise or EMC compliance is a concern require an external line filter or line reactor installed between the supply disconnect and the drive's L1/L2/L3 terminals; confirm with the applicable installation standard and Rockwell's filter selection guidance

Compatible Modules and System Expansion

The PowerFlex 525 family supports optional expansion and accessory modules that extend its capability beyond the base feature set of the 25B-D010N104. Engineers planning a full system build should evaluate the following against their application requirements:

  • External dynamic braking resistors — the 25B-D010N104 does not include an integral brake chopper; where fast deceleration or overhauling loads require active braking, an external braking resistor and compatible chopper arrangement must be evaluated per Rockwell's published application notes for the PowerFlex 525 family
  • External EMC line filters — selected and sized per Rockwell's filter selection guide for Frame B, 380–480 V class drives; required when the installation standard mandates conducted emission limits not met by the drive alone
  • Line reactors — used to reduce input harmonic distortion and provide additional protection against line voltage transients, particularly in installations with weak or noisy supply networks
  • Studio 5000 / Connected Components Workbench add-on profiles — Rockwell publishes PowerFlex 525 add-on profiles for direct integration into ControlLogix and CompactLogix projects, enabling tag-based drive control and diagnostics without custom programming

Wrong-Part Prevention Checklist Before You Issue the PO

Before finalizing any purchase order for the Allen-Bradley 25B-D010N104, work through each of the following checks. This checklist is drawn directly from the product's technical requirements and the most common ordering errors reported in the field:

  1. Confirm line voltage is 380–480 V, 3-phase and motor FLA does not exceed 10.5 A at the application duty (normal vs heavy duty).
  2. Verify motor HP (up to 5 HP at 480 V) and overload requirements match this frame and duty rating.
  3. Check that an IP20 open-type drive is acceptable for the panel/environment and that an external EMC filter/enclosure is provided if required.
  4. Ensure the need for embedded EtherNet/IP and integrated safety matches project networking and safety architecture; if not needed, a simpler part may be more economical.
  5. Confirm regional catalog number 25B-D010N104 is correct for North American standards and that no OEM-specific variant is required.
  6. Check control I/O, analog inputs, relay outputs, and braking option needs against the drive's base feature set (no brake chopper or filter implied by "N104").
  7. Verify physical space and mounting clearances for Frame B in the control panel.
  8. Confirm firmware compatibility with existing PowerFlex 525 fleet and Rockwell software versions used on site.

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — we can validate the part number against your application before the PO is submitted.

Frequently Asked Questions

Is the 25B-D010N104 rated for both normal and heavy duty at 5 HP, or does the duty rating change the current limit?

According to Rockwell Automation's official product data, the 25B-D010N104 is rated at 4 kW (5 HP) and 10.5 A output current for both normal and heavy duty operation. Engineers specifying for applications with higher inertia loads or frequent start/stop cycles should confirm that the drive's thermal model and overload response meet the specific duty cycle requirements of the application — the published duty ratings from Rockwell's documentation are the authoritative reference.

How does the embedded EtherNet/IP port work for start/stop control — does it replace hardwired inputs entirely?

The embedded EtherNet/IP port on the 25B-D010N104 supports full speed reference and start/stop command exchange with a Rockwell Logix PLC over the network, and in many Allen-Bradley system architectures this replaces hardwired analog and discrete control wiring. However, the drive's control source parameters must be explicitly configured to direct commands from the network rather than from the physical control terminals — the default state depends on the parameter configuration. Engineers integrating this drive into a new or existing Logix project should confirm the control source and reference source parameters are set correctly in both the drive and the PLC I/O tree before commissioning.

Does the Safe Torque-Off function require a dedicated safety PLC, or can it be wired to a standard safety relay?

The integrated Safe Torque-Off function on the PowerFlex 525 is designed to work with both dedicated safety PLCs and standard hardwired safety relay architectures, depending on the safety integrity level and architecture required by the machine safety design. The STO terminals must be wired and verified according to Rockwell's published safety function documentation for the PowerFlex 525 and the requirements of the applicable machinery safety standard. The safety circuit design and proof test responsibility remains with the machine builder or system integrator — the drive provides the STO hardware function, not the complete safety system.

Does the 25B-D010N104 need an external EMC filter, and what happens if one is not used?

The "N104" designation in the catalog number explicitly indicates no integral EMC filter is included. Whether an external filter is required depends on the applicable EMC standard for the installation, the supply network characteristics, and the sensitivity of nearby equipment to conducted emissions. In installations where EMC compliance is a formal requirement or where line noise has caused problems with other equipment, Rockwell's published filter selection guide for the PowerFlex 525 Frame B should be consulted and an appropriate external filter specified. Operating without a filter in a noisy supply environment will not damage the drive but may affect compliance and can contribute to interference with other devices on the same supply.

Can the 25B-D010N104 directly replace an older PowerFlex drive in an existing panel without rewiring?

The PowerFlex 525 is positioned by Rockwell as a retrofit candidate for older Allen-Bradley VFDs, and in many cases the power terminal layout and mounting pattern are compatible enough to simplify the swap. However, parameter structures, default behaviors, and control terminal assignments can differ between generations — a direct panel swap should always be preceded by a comparison of the original drive's parameter set against the PowerFlex 525 equivalent parameters, and firmware compatibility with the existing Rockwell software version on site should be confirmed before the replacement drive is put into service.

What are the most common fault conditions to expect during initial commissioning of the 25B-D010N104?

The most frequently reported commissioning faults in the PowerFlex 525 family involve incorrect motor nameplate data entry (leading to overcurrent or thermal trips), STO terminals that have not been properly wired or enabled (preventing the drive from running), and control source or reference source parameter mismatches between the drive configuration and the PLC program. Overvoltage faults on the DC bus are common when deceleration times are set too short for the load inertia. In all cases, verifying motor data entry, confirming STO circuit continuity, and setting conservative ramp times as a starting point will resolve the majority of first-run fault conditions.

Why Order the 25B-D010N104 Through LeadTime.ca

  • Global shipping — LeadTime.ca fulfills orders worldwide, not just within a single region
  • Part number validation — our team can cross-check the 25B-D010N104 catalog number against your motor data and application requirements before the order ships
  • Inventory visibility — we provide current stock status and realistic lead time expectations, including during periods of supply constraint across the PowerFlex 525 family
  • Volume and project pricing — contact us for pricing on multi-unit builds or ongoing MRO requirements
  • Specialist sourcing — hard-to-locate variants and accessory items within the Allen-Bradley ecosystem are our area of focus

At-a-Glance Summary

  • Catalog number: Allen-Bradley 25B-D010N104, PowerFlex 525 family
  • Input voltage: 380…480 V AC, 3-phase
  • Output current: 10.5 A
  • Motor power: 4 kW (5 HP), normal and heavy duty
  • Frame: Frame B, IP20 NEMA Open Type — requires suitable enclosure
  • Communications: Embedded EtherNet/IP — native Logix PLC integration via add-on profiles
  • Safety: Integrated Safe Torque-Off (STO) — must be wired and commissioned per Rockwell safety documentation
  • Filter: No integral EMC filter (N104) — external filter or line reactor required where EMC compliance demands it
  • Primary applications: 480 V conveyors, pumps, fans, OEM machine axes, legacy drive retrofits
  • Key ordering risk: Voltage class, motor FLA, IP rating, and filter/brake chopper requirements must all be confirmed before issuing the PO
