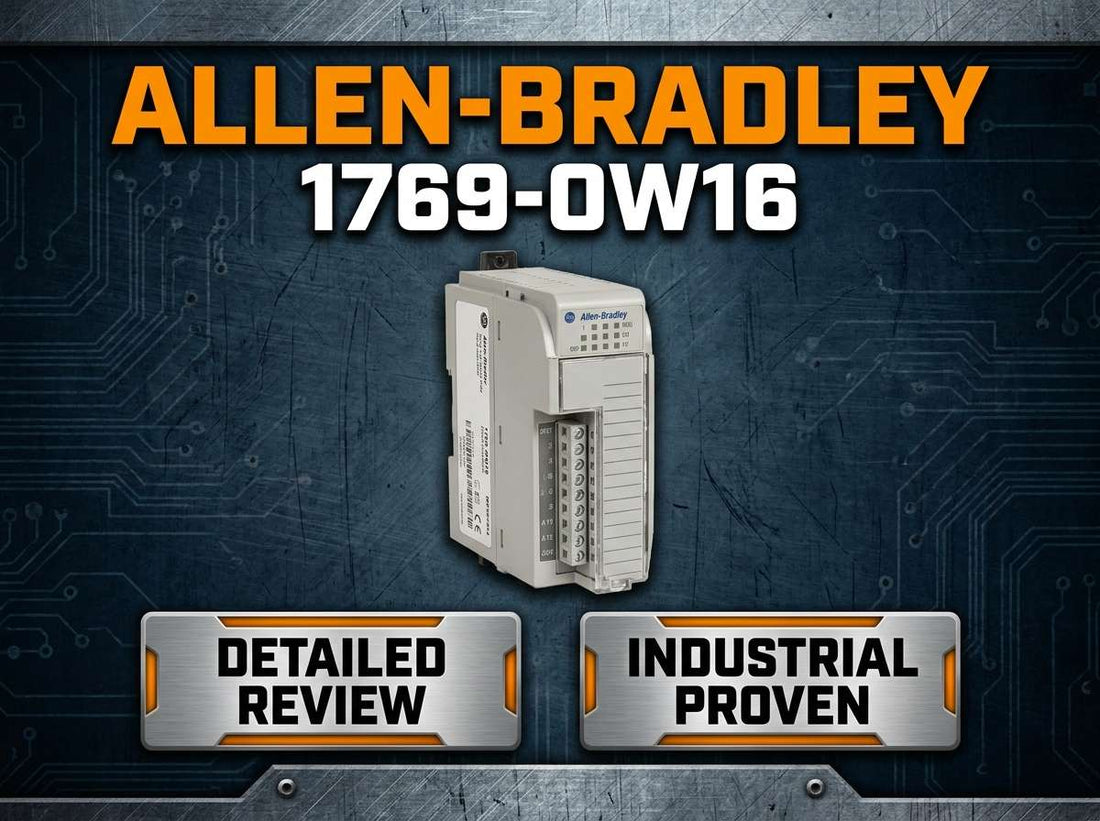

Allen-Bradley 1769-OW16 Compact I/O 16-point AC/DC relay output module for CompactLogix and MicroLogix 1500 systems

Allen-Bradley 1769-OW16 Compact 16-Point AC/DC Relay Output Module: Specs, Pricing and Best Alternatives

Controls engineers specifying or replacing output modules for CompactLogix and MicroLogix 1500 systems arrive at the Allen-Bradley 1769-OW16 for one clear reason: they need to switch both AC and DC field loads from a single 16-point relay output module without sacrificing group isolation. The 1769-OW16 is a digital relay output module in the 1769 Compact I/O family, delivering 16 normally open relay contacts organized into two isolated groups of 8 points each, with an operating voltage range of 5 to 265 VAC and 5 to 125 VDC. If you are in downtime recovery mode or finalizing a BOM, the specs below will confirm whether this is the right pull.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 1769-OW16 — and Who Shouldn't

The Allen-Bradley 1769-OW16 is the right choice for engineers running CompactLogix or MicroLogix 1500 hardware who need flexible, isolated relay outputs that can handle both AC and DC loads on the same module. Buy it if all of the following apply:

  • Your controller is a CompactLogix system or a MicroLogix 1500 using 1769 expansion I/O — not ControlLogix 1756 or Micro800.
  • You need relay contacts, not transistor outputs — specifically because your loads mix AC and DC voltages, or because zero off-state leakage is a requirement.
  • Your field loads operate within 5 to 265 VAC or 5 to 125 VDC and fall within the module's rated current per point and per group.
  • You need exactly 16 outputs and can work within the two isolated groups of 8 points for your field power segmentation.
  • Your panel environment falls within the 0 to 60 °C operating temperature range and the module's vibration and humidity ratings.
  • You can provide external overcurrent protection — fuses or breakers — for each output group, as the module contains no integrated breakers.

If you need high-speed switching, very high cycle counts, or an all-DC transistor output module, the 1769-OB16 is the more appropriate choice. If your loads are exclusively AC and a solid-state output is acceptable, evaluate the 1769-OA16 instead.

On this page:

What the 1769-OW16 Actually Does in a Control System

The Allen-Bradley 1769-OW16 is a 16-point digital output module that provides electrically isolated, normally open relay contacts for switching field loads under the command of a CompactLogix or MicroLogix 1500 CPU. Unlike solid-state output modules, the relay contacts provide true galvanic isolation and zero off-state leakage current — characteristics that matter when driving loads sensitive to leakage, such as certain pilot devices, or when field circuits must be physically open when the output is commanded off.

The module's 16 outputs are divided into two groups of 8 points each, with each group independently isolated. This structure is the key hardware feature that allows engineers to power one group from a 24 VDC source and the other from a 120 VAC panel supply on the same module, without cross-contamination between voltage domains. The module connects to the 1769 backplane, draws power from the system's backplane rails, and communicates with the CPU through the standard 1769 I/O bus — no separate communication hardware is required.

Status LEDs on the module face provide a point-by-point output state indication, and the removable terminal block allows field wiring to be pre-landed and removed independently from the module body — a practical advantage during module replacement without disturbing field conductors.

Typical System Architecture for the 1769-OW16

The 1769-OW16 sits directly on the 1769 I/O bus, one or more slots away from the CompactLogix CPU or MicroLogix 1500 base unit, and bridges the controller's logic output commands to the AC or DC field devices in the panel or on the machine.

  • CompactLogix or MicroLogix 1500 CPU on the left end of the 1769 I/O bank, generating output commands.
  • 1769 backplane connecting the CPU to all adjacent I/O modules, including the 1769-OW16, via the bus connector and locking lever mechanism.
  • 1769-OW16 relay contacts switching field supply voltage — either AC or DC, depending on which group — to connected loads.
  • Field loads (contactors, solenoid valves, pilot lights, small actuators) wired to the removable terminal block, receiving switched voltage from the relay contacts.
  • External fuses or circuit breakers on each group's field supply, providing overcurrent protection that the module itself does not include.

Typical Applications and Deployment Scenarios

In discrete manufacturing environments — packaging lines, material handling conveyors, automotive assembly fixtures — the 1769-OW16 is commonly used to energize motor starter contactors, interposing relays, and small actuator coils directly from the CompactLogix rack. The relay contact's ability to handle both AC coil voltages common in legacy devices and 24 VDC signals used in modern pneumatic valves on the same module makes it a natural fit for brownfield panel retrofits where load types are mixed.

OEM machine builders using CompactLogix as their standard platform frequently specify the 1769-OW16 for solenoid valve manifolds on pneumatic and hydraulic circuits. Where valve coils are a mix of 24 VDC and 120 VAC — which is common when integrating components from multiple suppliers — the two isolated output groups allow both voltage levels to coexist on a single module rather than requiring two separate output modules.

Water and wastewater applications using CompactLogix for pump and valve control benefit from the zero-leakage characteristic of relay outputs, particularly where valve control circuits use pilot relays that can be falsely triggered by leakage current from triac or transistor modules. Food and beverage facilities expanding existing MicroLogix 1500 systems with 1769 expansion I/O use the 1769-OW16 to add relay output capacity without replacing the base controller.

Maintenance teams replacing failed output modules in running plant panels particularly value the removable terminal block format, which allows the replacement module to be swapped in without re-terminating field wiring under time pressure.

Application Typical Deployment
Motor starter and contactor control CompactLogix rack switching 120 VAC coils via relay group 1
Mixed pneumatic/hydraulic solenoid control 24 VDC valves on group 2, 120 VAC valves on group 1, single module
Pilot lights, stack lights, and alarms Zero-leakage relay contacts preventing false illumination in 24 VDC indicator circuits
MicroLogix 1500 I/O expansion 1769-OW16 added as expansion I/O to increase relay output count on existing base unit
Mixed-voltage I/O zone isolation Two isolated groups separating 24 VDC and 240 VAC domains in the same panel
Brownfield retrofit Drop-in replacement or capacity expansion in existing CompactLogix panel without redesign

Specifications, Ratings, and How the 1769-OW16 Compares to Other 1769 Output Modules

Parameter Value
Catalog Number 1769-OW16
Product Family 1769 Compact I/O
Output Technology Relay, normally open contacts
Number of Outputs 16 points
Output Groups / Isolation 2 isolated groups of 8 points each
Operating Voltage — AC 5 to 265 VAC (50/60 Hz)
Operating Voltage — DC 5 to 125 VDC
Off-State Leakage 0 mA (relay isolation)
Compatible Controllers CompactLogix controllers; expansion I/O for MicroLogix 1500
Operating Temperature 0 to 60 °C

Full technical specifications are available on the product page at LeadTime.ca.

Module Output Type Voltage Range Points Best For
1769-OW16 Relay (NO contacts) 5–265 VAC / 5–125 VDC 16 Mixed AC/DC loads, zero leakage, isolation required
1769-OW8 Relay (NO contacts) AC/DC relay 8 Smaller relay output count, same relay contact advantages
1769-OB16 DC transistor (sourcing) DC only 16 High-speed DC switching, high cycle life, all-DC loads
1769-OA16 AC triac (solid-state) AC only 16 Pure AC loads, faster than relay, no contact wear
1769-OX8I Relay — isolated contacts AC/DC relay 8 Applications requiring individually isolated relay outputs

If your application is exclusively high-speed DC switching or your relay contact cycle counts will be very high, the 1769-OB16 is the correct module to specify — check current availability of the 1769-OW16 at LeadTime.ca and contact the team to confirm the right variant for your load profile.

Expert Verdict: Is the 1769-OW16 the Right Module for Your Project?

The Allen-Bradley 1769-OW16 is the dependable, workhorse relay output module that controls engineers reach for when a CompactLogix or MicroLogix 1500 system needs to switch a genuinely mixed field load population. Its two isolated groups of 8 outputs each — spanning 5 to 265 VAC and 5 to 125 VDC — solve a real panel design problem: the ability to run 24 VDC solenoid coils and 120 VAC contactor coils from the same output module without adding a second module type or adding interposing relays purely for voltage segregation. Zero off-state leakage is a genuine technical advantage in applications with pilot devices or indicators that can be falsely triggered by solid-state output leakage. For MRO teams managing running CompactLogix panels, the removable terminal block means a verified failed module can be replaced in minutes without re-terminating 16 conductors under plant pressure.

Where the 1769-OW16 has real limits, be honest with yourself about the application. Relay contacts wear mechanically — in high-cycle applications such as a solenoid valve being commanded at a rate of many operations per hour across a long production run, contact life becomes a maintenance planning factor, not just a footnote. For those applications, the 1769-OB16 solid-state transistor module eliminates contact wear entirely and switches faster. Similarly, if your entire output population is 24 VDC and the system is a new build rather than a brownfield retrofit, standardizing on the 1769-OB16 may reduce module variety in the panel and simplify your spare-parts inventory. If all loads are 120 VAC and you can accept minimal leakage current, the 1769-OA16 triac module is worth evaluating. The 1769-OX8I is the right call when you need individually isolated relay contacts rather than group isolation.

From a procurement standpoint, the 1769-OW16 is a mature product in the 1769 Compact I/O family with broad market availability through authorized distributors and established MRO channels worldwide. Verify current lifecycle status and lead time before locking in your project schedule — mature platform products can see supply variability, and confirmed stock from a specialist distributor is worth the confirmation call before committing. View current pricing and stock status for the 1769-OW16 at LeadTime.ca, where the team can confirm platform compatibility and advise on relay load handling before the order is placed.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 1769-OW16

Community feedback from engineers working with the 1769-OW16 and broader 1769 relay output modules on forums including PLCTalk, PLCS.net, MrPLC, and Reddit communities such as r/PLC and r/IndustrialAutomation is consistently positive on reliability — provided the module is applied correctly. The recurring message is that these modules run for years in well-maintained CompactLogix panels when loads are sized within the contact ratings and field wiring follows the installation manual. Engineers specifically note the flexibility of using the two isolated output groups to mix AC and DC loads, calling it a practical feature that reduces module count in brownfield retrofits where legacy AC devices coexist with modern 24 VDC field components.

Where the community is equally consistent is in flagging the failure modes that come from misapplication. Premature relay contact failure is almost always traced to one of two sources: driving high-current or highly inductive loads — large contactor coils, motor starters, solenoid valves without surge suppression — directly through the relay contacts without interposing relays or arc suppression, or running outputs at high cycle rates over extended periods without accounting for mechanical contact life. Engineers report that outputs failing in the energized state are the signature fault of a welded contact after an overload event, while outputs failing open after many cycles are the signature of normal contact wear. In both cases the fix is the same at the design stage: respect the make/break ratings, add suppression across inductive loads, and use an interposing relay when the load is at the edge of the rating.

The ordering mistake the community flags most persistently is the relay-versus-solid-state confusion at the catalog number level. Engineers ordering spare parts under time pressure report receiving a 1769-OB16 or 1769-OA16 when a 1769-OW16 was needed, because the "O" prefix signals output module and the second letter — W for relay, B for DC transistor, A for AC triac — gets overlooked in a hurry. A second common error is assuming the 1769-OW16 works in any Allen-Bradley rack and discovering at installation that the module is specific to the 1769 Compact I/O bus used by CompactLogix and MicroLogix 1500, not the 1756 ControlLogix backplane or Micro800 platform. When community resources are sparse or the application is unusual, a specialist distributor who knows the 1769 family is the fastest path to a confirmed part number before the order goes in.

Wiring and Installation Overview for the 1769-OW16

  • Mount the module on a DIN rail or panel, align it with adjacent 1769 modules on the backplane, and engage the locking lever fully to ensure the backplane connector mates correctly; always install the 1769 end cap on the last module in the bank to prevent controller faults.
  • The 16 outputs are organized into two isolated groups of 8 points each — connect the field supply for AC loads to one group's common terminals and the DC supply to the other group's common terminals, keeping the two voltage domains physically and electrically separate.
  • Provide external overcurrent protection — fuses or circuit breakers — for each output group and each individual high-risk circuit; the 1769-OW16 does not include integrated circuit breakers, and external protection is required by both the manufacturer and applicable electrical codes.
  • Add surge suppression (RC snubbers or transient voltage suppressors) across inductive loads such as contactor coils, solenoid valves, and relay coils to protect the relay contacts and extend contact life; for large or frequently switching inductive loads, use an interposing relay to keep the actual switched current within the module's make/break rating.
  • Separate high-voltage and low-voltage wiring in the panel, use conductors appropriate for the terminal torque specifications in the installation manual, and verify that the removable terminal block is fully seated before applying power; confirm module recognition in the controller software before enabling outputs.

Compatible Modules and System Expansion Options

The 1769-OW16 operates as part of the broader 1769 Compact I/O family, and the following modules are directly compatible and commonly deployed alongside it in CompactLogix and MicroLogix 1500 systems:

  • 1769-OB16 — 16-point DC transistor sourcing output module, for high-speed DC load switching on the same 1769 backplane.
  • 1769-OA16 — 16-point AC triac output module, for pure AC load applications requiring solid-state output switching.
  • 1769-OX8I — 8-point isolated relay output module, for applications requiring individually isolated relay contacts rather than group isolation.
  • 1769-OW8 — 8-point relay output module, for systems needing a smaller relay output count in a narrower module footprint.
  • 1769-IQ16 — 16-point DC input module, the commonly paired digital input module in mixed-signal CompactLogix panels.
  • 1769-IA16 — 16-point AC input module, for panels where AC input signals accompany the relay output loads switched by the 1769-OW16.
  • 1769-ECR / 1769-ECL — right and left end caps, required to terminate the 1769 I/O bus at the end of a module bank; omitting these causes controller faults.

Wrong-Part Prevention Checklist Before Ordering the 1769-OW16

Run through every item on this checklist before placing your order. Most field problems and return shipments trace back to a single unchecked item here:

  1. Confirm controller family: 1769-OW16 is for CompactLogix controllers and as expansion I/O for MicroLogix 1500, not for ControlLogix 1756 or Micro800.
  2. Confirm output technology: relay contacts (not transistor). If you need high-speed or very high switching frequency, this is not the right choice.
  3. Verify load voltage and current: loads must be within 5–265 VAC or 5–125 VDC and within the rated current per point and per module.
  4. Check that you need 16 outputs and that 2 isolated groups of 8 points match your field power segmentation plan.
  5. Ensure mechanical form factor (1769 Compact I/O) and mounting (DIN rail or panel with 1769 backplane) match the existing rack layout.
  6. Check environmental specs (0–60 °C, vibration/shock) against panel location and site conditions.
  7. Verify that external protection (fuses or breakers) is provided as required; the module does not include integrated circuit breakers.
  8. Check lifecycle / product status and confirm preferred source (new vs refurbished) based on plant standards.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — confirming the right catalog number takes minutes and avoids days of delay at installation.

Frequently Asked Questions

Can I mix AC and DC loads on a single 1769-OW16, and how do I allocate them between the two groups?

Yes — mixing AC and DC loads on the same module is one of the primary reasons engineers choose the 1769-OW16. The module provides two electrically isolated groups of 8 outputs each. Connect your AC field supply to the common terminals of one group and your DC supply to the common terminals of the other group. The two groups are isolated from each other, so the voltage domains do not interact as long as field wiring is routed and terminated correctly according to the installation manual.

Why is my 1769-OW16 output LED showing on, but the field device is not energizing?

An output LED indicates the controller has commanded the point on — it reflects the logic state, not confirmation that the relay contact has closed or that field voltage is present. If the LED is on but the load is not energizing, check field power continuity, fusing on the output circuit, wiring integrity at the terminal block, and whether the relay contact itself has failed open due to contact wear or a prior overload event. Use a voltmeter at the output terminals with the LED on to confirm whether switched voltage is present; if it is not, the relay contact is the likely failed component and module replacement is the next step.

Which CompactLogix and MicroLogix 1500 controllers are compatible with the 1769-OW16?

The 1769-OW16 is compatible with the CompactLogix controller family and functions as expansion I/O for MicroLogix 1500 systems that support 1769 expansion modules. It is not compatible with ControlLogix 1756-series racks, Micro800 series controllers, or any non-1769 backplane. Confirm the available 1769 I/O slots and backplane power budget in your specific controller configuration before adding the module.

What is the recommended approach to replacing a failed 1769-OW16 without faulting the controller?

The 1769-OW16's removable terminal block allows field wiring to stay in place during module swap. De-energize field power to the affected output group before working on the module, remove the terminal block, unlatch and remove the failed module, install the replacement, re-engage the terminal block, and restore power. The controller will recognize the module on the 1769 bus when power is restored. Refer to the Rockwell installation instructions for the exact procedure for your controller version, as hot-swap capability varies by system configuration.

What are the best alternatives if the 1769-OW16 is unavailable or not suitable for my application?

Within the 1769 family: the 1769-OW8 provides 8 relay outputs in a smaller module if point count can be reduced; the 1769-OB16 is the correct choice for all-DC, high-speed, or high-cycle applications; and the 1769-OA16 suits pure AC load applications. If the entire platform is being reconsidered, newer CompactLogix I/O generations and Allen-Bradley POINT I/O are system-level migration paths, but these require controller and programming changes rather than a direct module swap. Contact LeadTime.ca to confirm current availability and lead times before making a platform decision based on supply alone.

Why Order the 1769-OW16 Through LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships 1769 Compact I/O modules worldwide, not limited to any single region.
  • Specialist knowledge — the team can confirm 1769-OW16 platform compatibility, check current lifecycle status, and advise on relay load handling before the order is placed.
  • Hard-to-find and MRO stock — access to both new authorized stock and verified refurbished units for plant maintenance and emergency replacement situations.
  • Volume and project pricing — contact for current pricing on multi-unit orders or project BOMs; pricing is always confirmed current, never estimated.
  • Fast response on lead time — get a realistic stock and lead time answer before committing your project schedule, not after.

At-a-Glance Summary: Allen-Bradley 1769-OW16

  • 16 normally open relay output points in the 1769 Compact I/O family.
  • Two electrically isolated output groups of 8 points each — supports mixed AC and DC field loads on a single module.
  • Operating voltage range: 5 to 265 VAC (50/60 Hz) and 5 to 125 VDC.
  • Zero off-state leakage current — relay contacts provide true galvanic isolation.
  • Compatible with CompactLogix controllers and MicroLogix 1500 with 1769 expansion I/O — not for ControlLogix 1756 or Micro800.
  • Operating temperature range: 0 to 60 °C.
  • Removable terminal block for field wiring — enables fast module swap without re-terminating conductors.
  • No integrated overcurrent protection — external fuses or breakers required for each output group.
  • Primary alternatives within the 1769 family: 1769-OB16 for high-speed DC transistor outputs; 1769-OA16 for solid-state AC outputs; 1769-OW8 for 8-point relay configuration.
  • Pricing available on the product page; contact LeadTime.ca for volume and project pricing.
