1769-OW16
1769-OW16
Manufacturer: ALLEN BRADLEY
Condition: New and Unused, Surplus.
Overview of 1769-OW16 by Allen-Bradley

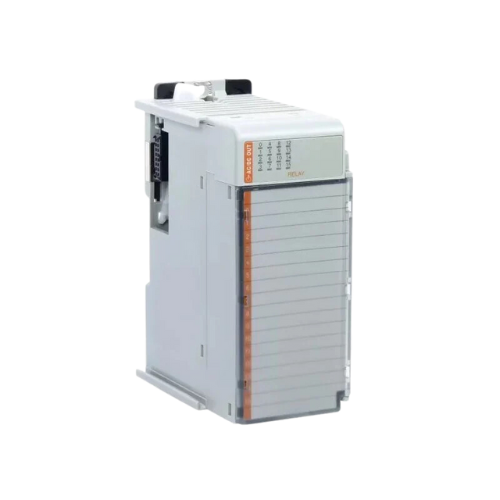

The Allen-Bradley 1769-OW16 is a CompactLogix 16-point relay output module designed for flexible control of AC and DC loads in industrial automation systems. This relay output module supports sixteen normally open contacts grouped into two isolated groups for mixed voltage applications, providing versatility and reliable operation with MicroLogix 1500 and CompactLogix controllers.
Key Features of Allen-Bradley - 1769-OW16
- Sixteen (16) relay output points with normally open contacts, organized in two isolated groups of eight points each
- Operating voltage range from 5 to 265V AC and 5 to 125V DC, supporting a wide variety of loads
- Compact size for space-efficient installation within CompactLogix or MicroLogix systems
- Compatible with MicroLogix 1500 and CompactLogix controllers for seamless integration
- Signal delay of 10 milliseconds for both turn-on and turn-off states, ensuring quick response times
- Supports up to 2.5A current per output point and 20A maximum current per module, suitable for driving inductive and resistive loads
- Non-condensing operating humidity range from 5% to 95% and an operating temperature range of 0 to 60°C
- Durable relay contact outputs designed for long life and system reliability
Technical Specs of 1769-OW16
| Model | 1769-OW16 |
| Product Family | Compact I/O |
| Number of Outputs | 16 Normally Open Relay Outputs |
| Output Groups | 2 groups of 8 points (isolated) |
| Operating Voltage | 5 to 265 V AC, 5 to 125 V DC |
| Current per Output | 2.5 A max |
| Current per Module | 20 A max |
| Signal Delay | 10 ms on/off |
| Operating Temperature | 0 to 60 °C |
| Humidity | 5 to 95% (non-condensing) |
| Mounting | DIN rail or panel |
| Compatible Controllers | MicroLogix 1500, CompactLogix |
| Dimensions (HxWxD) | 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) |
| Weight | Approx. 270 g (0.60 lb) |
Applications / Use Case
The Allen-Bradley 1769-OW16 relay output module is ideal for controlling discrete AC/DC loads in manufacturing automation, process control, and machine control applications. It provides reliable relay outputs for switching solenoids, indicator lights, and other industrial devices. Backed by Allen-Bradley’s trusted quality and a 2-year warranty, it ensures system durability and performance.
Price Matching / Price on Inquiry
Price Matching / Price on Inquiry
If this item is readily available at a lower price through any valid distributor, please contact us for price matching. Leadtime is committed to providing you with the best value for your purchase.
Warranty
Warranty
Leadtime offers a 1-year warranty for all products sold and repaired, providing a dependable and reliable investment in your company's future.
