Allen-Bradley 1769-OB16 — CompactLogix Output Module Review

By Abdullah Zahid
15 min read

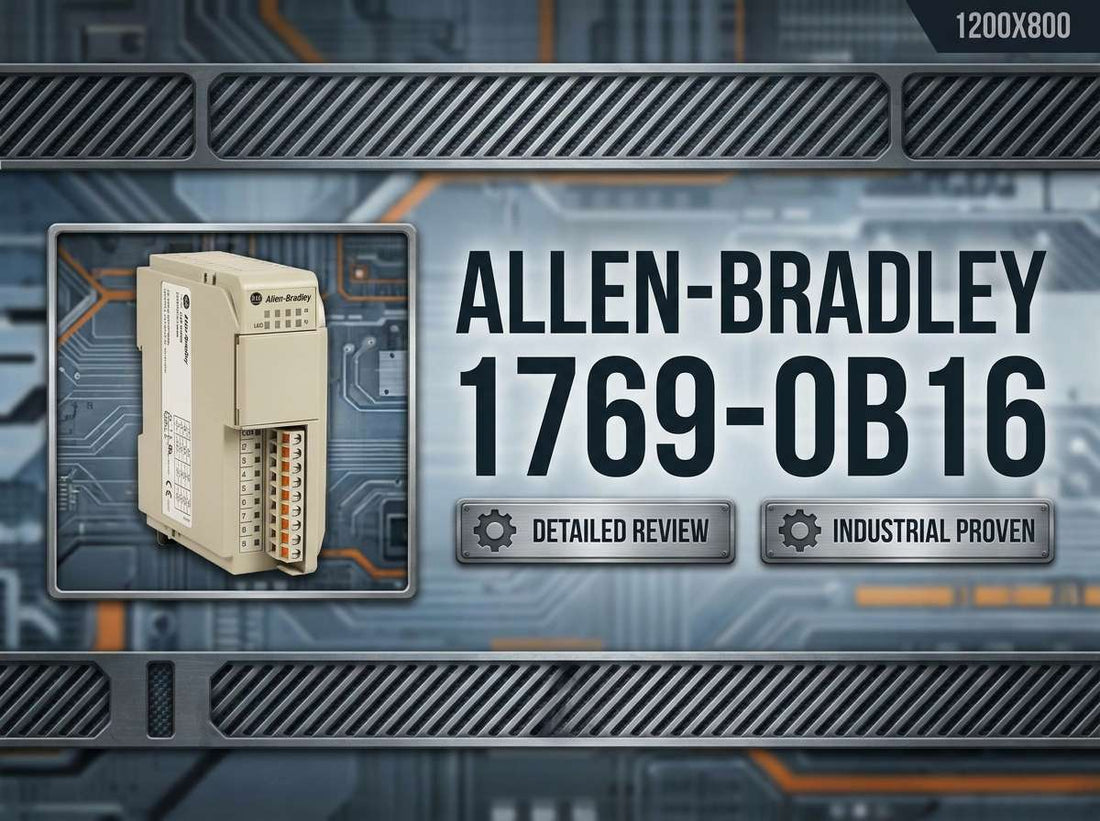

Allen-Bradley 1769-OB16 CompactLogix 16-point 24V DC sourcing digital output module for industrial panel installation

Allen-Bradley 1769-OB16 CompactLogix 16-Point 24V DC Sourcing Output Module: Specs, Pricing and Best Alternatives

Controls engineers specifying discrete output I/O for a CompactLogix or MicroLogix 1500 system frequently arrive at the Allen-Bradley 1769-OB16 as the default 16-point 24 V DC sourcing output choice — and for good reason. This Compact I/O module switches 24 V DC loads across 16 transistor outputs, operates over a voltage range of 20.4 to 26.4 V DC, and draws approximately 200 mA from the 5 V backplane bus in a compact open-style housing that mounts to DIN rail or a back panel. Whether you are adding output capacity to an existing CompactLogix system, stocking a direct replacement for a failed card, or sizing a new MicroLogix 1500 expansion bank, the decision comes down to confirming output type, current limits, and thermal derating before you commit to a purchase order.

If you have already confirmed this is the right part, check current pricing and availability for the 1769-OB16 at LeadTime.ca — we ship worldwide.

Who Should Buy the 1769-OB16 — and Who Shouldn't

The 1769-OB16 is the right module for engineers and maintenance teams already running a 1769 Compact I/O-based CompactLogix or MicroLogix 1500 system who need a straightforward, proven 16-point 24 V DC sourcing digital output module. Order this part when all of the following apply:

  • Your controller is a CompactLogix family PLC or a MicroLogix 1500 with a 1769 expansion base, and at least one free 1769 I/O slot is available.
  • Your field wiring and connected devices are configured for a 24 V DC sourcing output — not sinking or relay contact.
  • 16 output points per module is sufficient for the zone or machine section, and the per-point current requirement does not exceed 1.0 A at 30 °C or 0.5 A per point at 60 °C ambient.
  • Your total module current demand and I/O bank layout are within the power supply distance rating for the 1769 bank.
  • You have planned for the correct removable terminal block (such as the 1769-RTBN18) and external protection devices for the output circuits.

If your application requires 24 V DC sinking outputs, relay contact outputs, higher point density per slot, or a module with integrated output protection, you should instead evaluate the 1769-IQ16, 1769-OW16, 1769-OB32, or 1769-OB16P depending on your specific load and wiring requirements.

On this page:

What the 1769-OB16 Actually Does in a Running System

The 1769-OB16 is a 16-point digital output module that sits in the 1769 Compact I/O bank and takes switching commands from a CompactLogix or MicroLogix 1500 controller, translating them into 24 V DC sourcing signals that energize field devices. Each output is a solid-state transistor that sources current from the module's 24 V DC supply to the connected load — solenoid valves, interposing relays, indicator lamps, contactors, and similar discrete actuators are all typical targets. The module organizes all 16 outputs into a single group sharing a common return, which simplifies panel wiring for zones where all devices share the same 24 V DC common reference.

The sourcing architecture means the module supplies positive voltage to the load when the output is commanded on, and the load's return path connects to a negative common. This is the standard wiring convention for most 24 V DC solenoid valves and signal devices used in North American and European panel practice, but it is not universal — which is why verifying the field device's input type before ordering is the single most important pre-purchase step. A sourcing module connected to a sinking-only input device will not operate correctly and creates a troubleshooting trap during commissioning.

With a backplane current draw of approximately 200 mA at the 5 V bus and a heat dissipation figure of around 2 W, the 1769-OB16 is a relatively low-overhead module from a power supply sizing perspective. However, the per-module current rating and temperature derating rules govern how heavily you can load the output group in practice, and those limits must be respected at every ambient condition the panel will see in service.

Typical System Architecture for the 1769-OB16

The 1769-OB16 occupies one slot in the 1769 Compact I/O bank, sitting downstream of the CompactLogix processor or MicroLogix 1500 base in the data and power chain and upstream of the field loads it switches.

  • CompactLogix controller or MicroLogix 1500 base — executes logic and communicates over the 1769 backplane
  • 1769 power supply module (such as the 1769-PA or 1769-PB series) — provides 5 V backplane power and must be placed within the distance rating for the bank
  • 1769-OB16 in its assigned slot — receives output data over the backplane and switches 24 V DC sourcing signals to field terminals
  • External 24 V DC power supply — provides field-side voltage and current for the output loads, with fusing or circuit breaker protection at the supply or per output group
  • Field devices (solenoid valves, relays, lamps, contactors) — connected between the output terminals and the 24 V DC common return on the terminal block

Where the 1769-OB16 Gets Used: Industries and Machine Types

Packaging machine builders rely on the 1769-OB16 to control pneumatic solenoid valves and manifold actuators, where a single module can handle an entire station's discrete outputs. The 16-point density is well matched to a typical filling, sealing, or labeling zone without requiring an additional slot.

In material handling and conveyor systems, the module drives interposing relays for motor starters, gate actuators, and diverter solenoids. Using interposing relays between the 1769-OB16 and higher-power loads also protects the module's transistor outputs from inductive spikes and simplifies troubleshooting by isolating the field circuits from the I/O module.

Automotive assembly and general manufacturing cells use the 1769-OB16 to switch indicator lamps, stack lights, and panel annunciators alongside relay-switched motor circuits. The module's straightforward slot-based architecture makes it easy to duplicate across identical machine cells and maintain a single spare type in the plant storeroom.

Water and wastewater facilities and food and beverage plants running CompactLogix-based process skids use the 1769-OB16 for discrete valve control and status signaling where the output counts fit the 16-point form factor and the 24 V DC sourcing standard matches the plant's instrument wiring practice.

MicroLogix 1500 expansion applications benefit from the 1769-OB16 where a compact skid or panel needs additional 24 V DC output capacity beyond the base unit's onboard I/O, and the 1769 Compact I/O platform is already established in the design.

Application Typical Deployment
Packaging and filling lines Solenoid valve and pneumatic manifold control, one module per station
Conveyor and material handling Interposing relays for motor starters, diverter solenoids, gate actuators
Automotive and general manufacturing cells Indicator lamps, stack lights, signal outputs alongside relay-switched devices
Water and wastewater process skids Discrete valve control and status output on CompactLogix skid panels
MicroLogix 1500 expansion panels Additional 24 V DC sourcing output capacity in compact control enclosures
Food and beverage processing 24 V DC actuator and solenoid control on CompactLogix-standardized lines

Specifications That Drive the Purchase Decision

Specification Value
Catalog Number 1769-OB16
Product Family / Platform Compact I/O / CompactLogix, MicroLogix 1500 expansion
Output Type Digital, 24 V DC sourcing (transistor)
Number of Output Points 16
Operating Voltage Range 20.4 to 26.4 V DC
Current per Point at 30 °C 1.0 A
Current per Point at 60 °C 0.5 A
Backplane Current Draw (5 V bus) Approximately 200 mA
Heat Dissipation Approximately 2 W
Mounting DIN rail or panel mount, open-style module

Full technical specifications are available on the product page at LeadTime.ca.

1769-OB16 vs 1769-OB16P vs 1769-OB32: Which Variant Do You Actually Need?

Model Output Type Points Key Differentiator Best For
1769-OB16 24 V DC Sourcing 16 Standard sourcing transistor output Most CompactLogix and MicroLogix 1500 applications with 24 V DC loads
1769-OB16P 24 V DC Sourcing (Protected) 16 Integrated electronic output protection Applications with higher inrush loads or where protected outputs reduce external component count
1769-OB32 24 V DC Sourcing 32 Higher density — 32 points per slot Dense output zones where slot count is constrained and loads are lighter
1769-OB8 24 V DC Sourcing 8 Lower point count per slot Small zones or applications where only 8 outputs are needed and slot space is available
1769-OW16 Relay (dry contact) 16 Relay outputs for AC or DC loads Applications requiring voltage isolation, AC loads, or mixed-voltage output switching

If your application requires integrated output protection for inductive or high-inrush loads, the 1769-OB16P is the more appropriate choice and avoids adding external protection devices at each channel. For higher-density panels where slot real estate is limited, the 1769-OB32 doubles the point count in the same footprint. Check current availability for the 1769-OB16 and related variants at LeadTime.ca.

Expert Verdict: Is the 1769-OB16 Still a Good Buy Today?

The 1769-OB16 earns its place as a standard stocking item for any plant running CompactLogix or MicroLogix 1500 on the 1769 Compact I/O platform. The 16-point 24 V DC sourcing configuration matches the most common discrete output requirement in industrial panels — solenoid valve control, relay driving, and lamp switching — and the module's straightforward design means replacement is fast, documentation is thorough, and spares can be shared across multiple machine types. Controls engineers who have standardized on CompactLogix will find this module low-risk to specify, and maintenance teams appreciate that a terminal block swap during a replacement takes minutes rather than a full rewiring cycle. The proof points from real installations — a verified operating voltage range of 20.4 to 26.4 V DC, 1.0 A per point at 30 °C derated to 0.5 A per point at 60 °C — are well suited to the majority of 24 V DC discrete loads found in manufacturing and process environments.

The 1769-OB16 has real limits that are worth stating plainly. If your project is moving to a newer-generation I/O platform, standardizing on 1769 hardware introduces a long-term compatibility question. If your loads are heavily inductive, have high inrush, or if you want to avoid per-channel external fusing complexity, the 1769-OB16P offers integrated protection that the standard 1769-OB16 does not. If you are working outside a 1769 Compact I/O environment — a newer CompactLogix that uses a different I/O family, for example — the 1769-OB16 will not be the right module regardless of how familiar it looks. Buyers on non-Rockwell platforms or those requiring relay contact outputs should look at the 1769-OW16 or equivalent relay output modules rather than forcing a sourcing transistor module into the wrong application.

From a procurement standpoint, the 1769-OB16 benefits from strong distributor availability and a well-documented supply chain through Rockwell Automation channels. Lead times from distributor stock are typically short, though factory lead times apply when stock is depleted during high-demand periods — making it worthwhile to verify current stock before committing a shutdown window to a module swap. A specialist distributor that understands 1769 Compact I/O adds real value here: they can confirm compatibility, flag potential sourcing versus sinking mismatches before the order ships, and advise on whether the 1769-OB16P or an alternate variant better fits your specific load profile. View current pricing and availability for the 1769-OB16 at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build or scheduled maintenance, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Are Saying About the 1769-OB16

Across PLC forums including PLCTalk, PLCS.net, MrPLC, and Reddit communities such as r/PLC and r/automation, the 1769-OB16 and the broader 1769 Compact I/O digital output family consistently draw positive assessments from working engineers. The dominant description is that these modules are dependable "workhorse" outputs — hardware that gets installed, does its job quietly for years, and causes headaches mainly when it is overloaded or mis-specified rather than due to any inherent reliability weakness. Users who have replaced failed modules frequently comment that the terminal block can stay in place during a swap, which reduces downtime to the time it takes to physically seat a new module and update the configuration — a practical advantage during unplanned production stops.

Cost is the most consistently cited complaint. Engineers on forums note that genuine Allen-Bradley 1769 modules carry a price premium compared to some competing PLC I/O options, and this creates pressure from purchasing teams to consider alternatives. However, the community response to this is almost always the same: for plants already standardized on CompactLogix, the compatibility, documentation, and support network justify the cost, and switching platforms introduces far more risk than the savings on I/O cards. A second recurring issue is sourcing versus sinking confusion. Several forum threads describe situations where a sinking or relay module was ordered instead of the 1769-OB16 because the buyer did not verify output type before purchasing, leading to wiring rework during commissioning. The distinction between sourcing and sinking is simple once understood, but it is the single most common ordering mistake in this product family.

Experienced users also warn about thermal derating and current overloading, particularly in densely packed panels where ambient temperature rises above 30 °C. Output points that are loaded close to the 1.0 A per point limit at 30 °C must be derated to 0.5 A per point at 60 °C, and panels that ignore this during design have reported premature output failures after sustained operation. A third ordering mistake that comes up repeatedly is failing to include the correct terminal block — the 1769-OB16 does not ship with an RTB, and buyers who do not plan for the 1769-RTBN18 or equivalent discover the gap only when the module arrives. Confirming the terminal block part number before submitting a purchase order eliminates this delay entirely.

Wiring and Installation: What to Verify Before You Connect Field Loads

  • Confirm the 1769 I/O bank is de-energized and the controller project is in a safe state before mounting or wiring the 1769-OB16; mechanically latch the module to adjacent 1769 modules according to the manufacturer's installation sequence.
  • Attach the correct removable terminal block (such as the 1769-RTBN18) and wire field conductors using the specified wire gauge and torque values; the 1769-OB16 supports both solid and stranded conductors within the published wire size range.
  • Connect the external 24 V DC power supply to the terminal block and wire each load between its assigned output terminal and the common return; verify polarity on every circuit before energizing.
  • Install external fuses or circuit breakers for the output circuits as required — the 1769-OB16 does not include internal output protection, and external protection is mandatory for reliable, safe operation.
  • Before re-energizing, verify that the module slot assignment and module type (1769-OB16) match the controller project configuration in the programming software, and check that electronic keying settings are consistent with the deployed hardware.

Compatible Terminal Blocks and System Accessories

The 1769-OB16 requires a separately ordered removable terminal block and is used within the 1769 Compact I/O ecosystem alongside compatible power supplies and adjacent I/O modules. Key accessories to plan for at the time of purchase include:

  • 1769-RTBN18 — 18-position removable terminal block compatible with the 1769-OB16 for field wiring connections
  • 1769-PA and 1769-PB series power supply modules — provide 5 V backplane power for the 1769 I/O bank; must be positioned within the distance rating applicable to the 1769-OB16
  • CompactLogix controller families supporting 1769 Compact I/O — confirm your specific CompactLogix model accepts 1769 I/O in the system configuration documentation before ordering
  • MicroLogix 1500 with 1769 expansion base — valid host platform for the 1769-OB16 as expansion I/O beyond the base unit's onboard outputs

Wrong-Part Prevention Checklist Before You Order

Before submitting a purchase order for the 1769-OB16, work through each item on this checklist. These are the most common points where ordering errors occur in the 1769 Compact I/O output module selection process:

  1. Confirm the controller supports 1769 Compact I/O (CompactLogix or MicroLogix 1500 expansion) and has a free 1769 slot.
  2. Verify that the application requires 24 V DC sourcing outputs; do not use this module where 24 V DC sinking outputs are required.
  3. Check that 16 outputs are sufficient and that current per point and per module ratings are adequate for the planned loads.
  4. Confirm temperature conditions; high ambient temperature reduces allowed current per point/module.
  5. Ensure the 1769 I/O bank will not exceed its power supply distance rating (this module has a specified distance rating within the bank).
  6. Verify that the correct terminal block/RTB (such as 1769-RTBN18) and appropriate wire size are planned.
  7. Confirm firmware/project I/O configuration matches the slot and module type (1769-OB16) before commissioning.
  8. Check availability of external protection devices (fuses or breakers) for the output circuits, as the module requires external protection.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — confirming the right part at the selection stage is faster and less costly than a return or a wiring rework during commissioning.

Frequently Asked Questions

Which controllers are actually compatible with the 1769-OB16?

The 1769-OB16 is designed for use with CompactLogix controllers that support 1769 Compact I/O and as expansion I/O for MicroLogix 1500 systems using a 1769 expansion base. Not all CompactLogix models accept 1769 I/O — some newer CompactLogix platforms use a different I/O family — so confirming your specific controller model against the 1769 Compact I/O compatibility documentation before ordering is essential.

How much current can each output safely handle, and how does temperature change that?

Each output on the 1769-OB16 is rated at up to 1.0 A per point at 30 °C ambient. At 60 °C ambient, this derate to 0.5 A per point. Designing to the worst-case ambient temperature your panel will reach in service — not the 30 °C rating — is the correct approach to avoid nuisance faults or premature output failures under sustained load.

Is the 1769-OB16 a sourcing or sinking module, and how does that affect field wiring?

The 1769-OB16 is a 24 V DC sourcing output module, meaning each output provides positive voltage to the load when commanded on, and the load's return connects to a negative common. Field devices and their input circuits must be compatible with a sourcing driver. If your field wiring and devices are configured for a sinking output, you need a different module — ordering the wrong type is the most common mistake in this product family.

What should I check first if a 1769-OB16 channel is not switching the load even though the PLC logic looks correct?

Start by verifying that the external 24 V DC field supply is present and within the 20.4 to 26.4 V DC operating range. Next, check that the output channel is not in a fault state due to overcurrent or a wiring fault, and confirm that the module type and slot assignment in the controller project match the physical hardware. If those checks are clear, inspect the field wiring for open circuits, incorrect terminal connections, or a failed load device before concluding the module itself is at fault.

Can the 1769-OB16 directly drive inductive loads like solenoid valves, or should I always use interposing relays?

The 1769-OB16 can directly drive most 24 V DC solenoid valves and inductive loads within its current and surge ratings, provided the load's rated current falls within the module's per-point limit at the operating temperature. For high-inrush or higher-power loads, interposing relays are a common and recommended practice that protects the transistor outputs from transients and simplifies field circuit isolation. If integrated protection for inductive loads is a design requirement, the 1769-OB16P is the variant to evaluate.

Is the terminal block included with the 1769-OB16?

No. The removable terminal block is a separate accessory and must be ordered independently. The 1769-RTBN18 is the commonly specified RTB for this module. Failing to order the terminal block at the same time as the module is one of the most frequently reported ordering delays in the 1769 Compact I/O family.

Why Order the 1769-OB16 From LeadTime.ca

  • LeadTime.ca ships worldwide — no geographic restriction on orders, including urgent replacements and volume purchases.
  • Specialist distributor knowledge of 1769 Compact I/O means we can validate compatibility, flag sourcing versus sinking mismatches, and advise on distance rating issues before your order ships.
  • Access to current stock status and lead time information before you commit a maintenance window or production schedule to a delivery date.
  • Volume pricing available for OEM panel builders and MRO stocking programs — contact the team to discuss.
  • Hard-to-source Allen-Bradley parts including legacy and less common 1769 I/O variants sourced through established channels.

At-a-Glance Summary

  • 16 digital 24 V DC sourcing transistor outputs per module — one output group with shared common return.
  • Operating voltage range: 20.4 to 26.4 V DC.
  • Current per point: 1.0 A at 30 °C, derated to 0.5 A at 60 °C.
  • Backplane current draw approximately 200 mA at the 5 V bus; heat dissipation approximately 2 W.
  • Compatible with CompactLogix controllers supporting 1769 Compact I/O and MicroLogix 1500 expansion bases.
  • Requires separately ordered removable terminal block (such as 1769-RTBN18) — not included with the module.
  • External output protection (fuses or circuit breakers) is required — the module does not include internal output protection.
  • Key ordering verification: confirm 24 V DC sourcing (not sinking or relay) and check distance rating before positioning in the 1769 I/O bank.
  • Nearest protected alternative: 1769-OB16P; higher-density alternative: 1769-OB32; relay output alternative: 1769-OW16.
