Allen-Bradley 1766-L32BWAA — MicroLogix 1400 Buyer's Guide

By Abdullah Zahid
14 min read

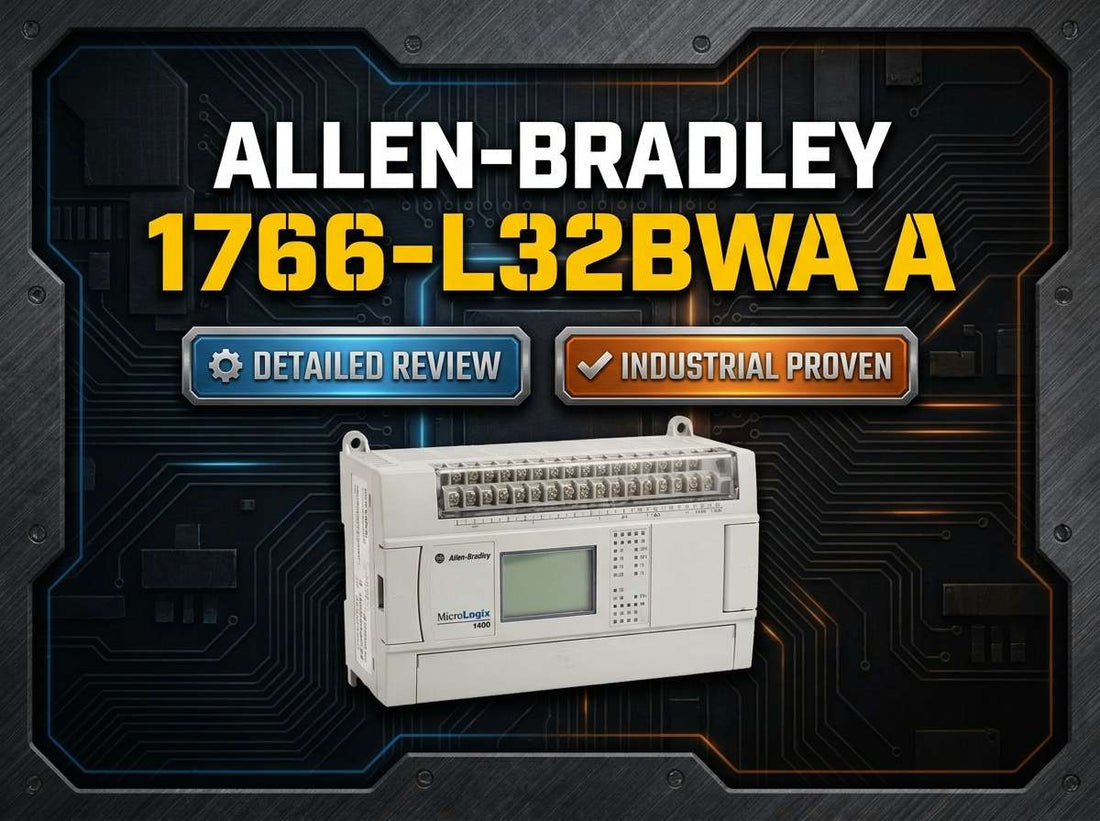

Allen-Bradley 1766-L32BWAA MicroLogix 1400 32-Point Controller compact brick PLC for small machine and OEM panel control

Allen-Bradley 1766-L32BWAA MicroLogix 1400 32-Point Controller: Specs, Variants, and Purchase Guidance

Controls engineers replacing a failed unit or standardizing a machine design around the Allen-Bradley 1766-L32BWAA MicroLogix 1400 32-Point Controller face one critical decision before clicking buy: confirming that every character in the catalog suffix matches the panel's power type, I/O mix, and analog requirements. A single character difference — BWAA versus BWA, or BWAA versus BXBA — changes the supply voltage, output type, or analog capability entirely. The 1766-L32BWAA is a compact brick PLC with a 100…240 V AC supply, DC digital inputs, relay outputs, embedded analog I/O, a built-in Ethernet port, and dual serial ports supporting EtherNet/IP, DF1, DH-485, Modbus RTU, DNP3, and ASCII — all in a single base unit that accepts up to seven 1762 expansion I/O modules.

If you have already confirmed this is the correct part, check current pricing and availability for the Allen-Bradley 1766-L32BWAA at LeadTime.ca — ships worldwide.

Who Should Buy the Allen-Bradley 1766-L32BWAA — and Who Shouldn't

This controller is the right fit when all of the following are true for your application:

  • Your panel supplies 100…240 V AC to the controller — not 24 V DC
  • Your field wiring uses DC digital input devices (sensors, proximity switches, DC-sourcing field hardware)
  • You need relay outputs on the base unit
  • You require embedded analog I/O on the base unit, not via an external expansion module
  • Your system integration requires EtherNet/IP plus at least one serial protocol (DF1, DH-485, Modbus RTU, DNP3, or ASCII)
  • Your facility already uses RSLogix 500 and has MicroLogix 1400 hardware in service

If your control panel is 24 V DC-powered, look at the 1766-L32BXB or 1766-L32BXBA instead. If your field wiring uses AC input devices, the 1766-L32AWAA is the correct variant. For greenfield projects where lifecycle horizon and modern software environment matter, evaluate the Micro800 or CompactLogix families before specifying MicroLogix 1400.

On this page:

Where the 1766-L32BWAA Fits in a Real Control System

The Allen-Bradley 1766-L32BWAA belongs to the MicroLogix 1400 family under Bulletin 1766 — a line of compact brick PLCs positioned between the simpler MicroLogix 1100 and the more scalable CompactLogix platform. The catalog number encodes the hardware configuration directly: 1766 identifies the MicroLogix 1400 family, L32 specifies the 32-point base I/O count, B indicates DC digital inputs, W indicates AC power supply, and the double-A suffix designates embedded analog I/O on the base unit. Understanding this encoding is not just trivia — it is the fastest way to avoid a costly ordering error when reading a parts list or a panel nameplate.

As the primary CPU and I/O platform, the 1766-L32BWAA handles logic execution, on-board I/O interfacing, basic data logging with up to 128 KB of log storage, recipe storage with up to 64 KB capacity, and Ethernet plus serial networking — all without requiring a separate rack, backplane, or communication module. The built-in LCD provides local status and IP address management without a laptop present on the floor. For small and mid-sized machines where panel footprint, installation cost, and MRO simplicity matter, that integration in a single housing is the primary engineering argument for this controller over rack-based alternatives.

Typical System Architecture for the 1766-L32BWAA

The 1766-L32BWAA typically sits at the machine-level control layer, connecting field devices directly to its base I/O and communicating upstream to SCADA, HMI, or a supervisory network via its Ethernet port. A representative deployment looks like this:

  • Plant Ethernet network or SCADA server connects to the 1766-L32BWAA via its embedded EtherNet/IP port using standard star or linear topology
  • Local HMI panel (PanelView or third-party) connects via Ethernet or one of the two serial ports using DF1 or Modbus RTU
  • Base unit handles DC digital inputs from sensors, proximity switches, and pushbuttons, plus relay outputs to contactors, solenoids, and indicating devices
  • Embedded analog channels connect directly to pressure transmitters, flow meters, temperature sensors, or analog actuators without a separate module
  • Up to seven 1762 expansion I/O modules extend the base I/O count for larger machine configurations, connected directly to the right side of the base unit

Typical Applications and Deployment Scenarios

The 1766-L32BWAA is most commonly found as the main controller on compact OEM machines where the designer needs digital and analog I/O, Ethernet connectivity, and a familiar programming environment in a single housing. Packaging machines, indexing systems, labelling equipment, and pick-and-place devices are natural fits — the embedded analog channels handle process variables like pressure and temperature without adding a separate analog module to the BOM.

Utilities and building services applications use the 1766-L32BWAA in small pump stations, booster sets, HVAC control panels, and filter systems. In these deployments, the dual serial ports are often used for Modbus RTU communication with drives, meters, or instruments, while the Ethernet port feeds data to a SCADA or building management system using EtherNet/IP or the built-in web server.

Brownfield replacement and incremental expansion represent the largest volume use case in practice. When a 1766-L32BWAA already exists on a machine, replacing it with an identical catalog number preserves wiring, program compatibility, and expansion module configuration — provided the firmware revision and program backup are handled correctly. Food and beverage skids and water treatment remote stations also appear frequently in this controller's application history, where Modbus RTU, DNP3, or ASCII serial communication provides the integration path to older SCADA systems.

Application Typical Deployment
OEM packaging machine Base controller with embedded analog for pressure/tension, relay outputs to pneumatic valves, Ethernet to local HMI
Small pump or booster station Discrete and analog I/O for level and pressure, Modbus RTU to VFD, Ethernet SCADA uplink
Brownfield like-for-like replacement Direct drop-in for failed 1766-L32BWAA with same wiring, program restore, and expansion modules
Food and beverage skid control Analog temperature and flow monitoring, relay outputs to solenoids, Ethernet to plant historian
Training rig or test stand Compact Rockwell-standard controller with Ethernet for RSLogix 500 programming and remote monitoring
HVAC and building services panel Mixed analog and digital I/O, serial integration with third-party equipment via Modbus RTU or DF1

Purchase-Decision Specifications and Variant Comparison

Parameter Value / Description
Brand Allen-Bradley (Rockwell Automation)
Catalog Number 1766-L32BWAA
Product Family MicroLogix 1400, Bulletin 1766
Controller Type 32-point compact brick PLC with embedded I/O
Power Supply 100…240 V AC, 47…63 Hz — requires external overcurrent protection
Digital Input Type DC digital inputs
Output Type Relay outputs
Embedded Analog I/O Yes — analog channels on base unit (confirm exact counts and ranges in manufacturer manual)
Communication Ports 1x Ethernet (EtherNet/IP, web server, email), 2x serial (DF1, DH-485, Modbus RTU, DNP3, ASCII)
Expansion Capacity Up to 7x 1762 expansion I/O modules

Full technical specifications are available on the product page at LeadTime.ca.

1766-L32BWAA vs Nearby MicroLogix 1400 Variants

Catalog Number Power Supply Digital Inputs Outputs Embedded Analog Typical Use Case
1766-L32BWAA 100…240 V AC DC inputs Relay Yes AC-powered panels needing digital and analog I/O on the base unit
1766-L32BWA 100…240 V AC DC inputs Relay Typically no AC-powered panels where analog is handled via 1762 expansion module
1766-L32BXBA 24 V DC DC inputs Relay + transistor Yes 24 V DC systems needing mixed outputs and embedded analog
1766-L32BXB 24 V DC DC inputs Relay + transistor Typically no Cost-sensitive DC-powered designs without analog requirement
1766-L32AWAA 100…240 V AC AC inputs Relay Yes Applications using AC input field wiring — not a drop-in for DC-input systems

If your panel is wired for 24 V DC or your field devices are AC-input types, this table identifies the correct variant to specify instead — check current availability for all MicroLogix 1400 variants at LeadTime.ca.

Expert Verdict: Is the Allen-Bradley 1766-L32BWAA Still a Safe Buy?

The 1766-L32BWAA is the right controller for a specific and well-defined buyer: facilities and OEMs that already have MicroLogix 1400 hardware in service and need like-for-like replacements, incremental machines built to an existing standard, or small stand-alone systems where RSLogix 500 skills and licenses are already paid for and in use. The combination of embedded Ethernet, dual serial ports supporting five protocols, relay outputs, DC inputs, and embedded analog I/O in a single compact housing is genuinely useful — it eliminates the need for separate analog modules or communication adapters in small panel designs, and the built-in LCD makes field diagnostics faster for maintenance teams who already know the platform.

The honest limits of this controller are equally clear. The MicroLogix 1400 family is in a mature lifecycle phase, which means buyers specifying it for brand-new, long-horizon applications are making a deliberate trade-off against future support, software tooling, and parts availability. RSLogix 500, while deeply familiar to experienced Rockwell users, is an aging environment compared with Studio 5000 or Connected Components Workbench. For greenfield projects where the full lifecycle cost and software ecosystem can be chosen freely, the Micro800 family or CompactLogix are the more forward-compatible choices. For applications needing advanced motion coordination, high-speed counter features beyond what MicroLogix 1400 provides, or deep integration with newer EtherNet/IP device profiles, the 1766-L32BWAA will hit ceilings. In those scenarios, moving to CompactLogix from the start avoids a costly mid-life migration.

From a procurement standpoint, MicroLogix 1400 stock is still available through specialist distributors, but specific variants — including the 1766-L32BWAA — can face extended lead times or limited new inventory depending on the cycle. Buying through a specialist industrial automation distributor rather than a generic marketplace means someone checks real stock across multiple warehouses, can flag when a surplus unit or a stocked alternative is the faster path, and can confirm catalog compatibility before the order ships. For a controller where a single-character error in the part number means a mismatched unit arrives at a machine that cannot accept it, that verification step is worth more than the few dollars a grey-channel listing might save. View current stock and pricing for the Allen-Bradley 1766-L32BWAA at LeadTime.ca.

For volume pricing, lead time confirmation before committing to a build schedule, or help identifying available alternatives if the 1766-L32BWAA is constrained, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 1766-L32BWAA

Community discussion across forums including r/PLC, PLCTalk, PLCS.net, and MrPLC is consistent on one point: the MicroLogix 1400 is considered a reliable and long-lived controller in small machine applications, but catalog-number confusion causes a disproportionate share of ordering problems. Engineers who have worked with the platform for years describe it as dependable and difficult to kill under normal industrial conditions. The built-in Ethernet port and front-panel LCD get specific praise for making IP address management and basic diagnostics accessible without pulling out a laptop — a detail that matters on a production floor at 2 AM. The familiarity of RSLogix 500 ladder logic remains a practical advantage in plants where that knowledge is deeply embedded in the maintenance team.

The recurring frustrations are equally consistent. RSLogix 500 licensing costs and the aging feel of the development environment come up regularly in comparison to newer Rockwell tools. Concerns about lifecycle status and the difficulty of finding specific variants on short notice appear in multiple threads — particularly for buyers who need a replacement unit quickly after a field failure. Several community members describe the experience of ordering what they believed was the correct MicroLogix 1400 model, only to receive a unit with AC inputs instead of DC, or without embedded analog, because the suffix was misread or not checked. That specific failure mode — a one- or two-character difference in the catalog number producing a hardware-incompatible unit — is the single most avoidable and most commonly mentioned mistake in community discussion.

The practical advice that surfaces consistently: read the nameplate on the existing controller character by character, confirm whether the installed machine uses the embedded analog channels or only digital I/O, and verify the power supply type from the panel drawings before placing the order. When community feedback is sparse for a specific SKU and the stakes of an incorrect substitution are high, that is exactly the scenario where consulting a specialist distributor before ordering — rather than after — saves the most time and cost. LeadTime.ca's team can cross-reference catalog numbers, check what is physically in stock, and flag lifecycle or substitution concerns before the order is committed.

Wiring and Installation Overview for the 1766-L32BWAA

The following points summarize key installation requirements. Full wiring diagrams, terminal assignments, and clearance specifications are in the Allen-Bradley MicroLogix 1400 installation instructions — consult that document before wiring any unit in the field.

  • Mount on DIN rail or panel surface per the manufacturer's mechanical drawings; maintain minimum clearances on all sides for ventilation and thermal performance in the installed enclosure
  • Wire the 100…240 V AC supply with appropriate external overcurrent protection and a disconnect device as required by the local electrical code and panel design; connect protective earth to the designated terminal
  • Wire DC digital inputs and relay output commons following the manufacturer's terminal diagram; verify polarity and segregate low-voltage DC wiring from AC supply conductors
  • Route analog signal wiring separately from digital and power circuits; use shielded cable and connect shields at one end only to minimize noise coupling into analog channels
  • Connect the Ethernet port to a control network switch using a standard CAT-5e or better patch cable; configure serial ports for the correct protocol (DF1, DH-485, Modbus RTU, DNP3, or ASCII) and match signal levels and grounding to the connected device

Compatible Expansion Modules: Scaling Beyond 32 Points

The 1766-L32BWAA accepts up to seven 1762 expansion I/O modules connected directly to the right side of the base unit, extending total system I/O well beyond the 32-point base count. Common expansion options from the 1762 family include:

  • 1762-IQ8 — 8-point DC digital input module for adding discrete inputs
  • 1762-OW8 — 8-point relay output module for adding relay-switched outputs
  • 1762-IF4 — 4-channel analog input module for additional analog signal acquisition
  • 1762-OF4 — 4-channel analog output module for additional analog control outputs
  • 1762-IQ16 — 16-point DC digital input module for higher-density discrete input expansion
  • 1762-OB16 — 16-point DC transistor output module for higher-density discrete output expansion

Confirm module compatibility and slot addressing against the current Rockwell Automation selection guide before ordering expansion modules for an existing system.

Wrong-Part Prevention Checklist Before Ordering the 1766-L32BWAA

Use this checklist character by character against your panel drawings, nameplate, and design documents before placing an order. These are the checks that prevent the most common and most costly ordering mistakes on this family:

  1. Confirm catalog number character-by-character: 1766-L32BWAA (the final "A" indicates embedded analog I/O vs 1766-L32BWA).
  2. Verify expected input type (DC inputs) and output type (relay outputs) against machine drawings and field devices; do not mix with AC-input or transistor-output variants.
  3. Check power supply requirement (100…240 V AC) matches panel design; do not substitute with 24 V DC-supplied "X" models without redesign.
  4. Check if embedded analog I/O is required; if not, a non-analog model (e.g., 1766-L32BWA) may be more cost-effective.
  5. Confirm required communication protocols (EtherNet/IP plus DF1/DH-485/Modbus RTU/DNP3/ASCII) match host PLC/SCADA, HMI, and remote equipment expectations.
  6. Verify lifecycle status and delivery expectations with the distributor; MicroLogix 1400 is in a mature phase and some variants face longer lead times or constrained stock (market-typical pattern).

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — confirming the part number before the order ships is always faster than returning an incompatible unit.

Frequently Asked Questions

Can I replace a failed 1766-L32BWA with a 1766-L32BWAA, or are they interchangeable?

These two catalog numbers are not identical substitutes. The 1766-L32BWAA includes embedded analog I/O on the base unit, while the 1766-L32BWA typically does not. If the existing machine program and wiring do not use the embedded analog channels, the BWAA can replace a BWA unit, but you must verify the I/O configuration in RSLogix 500 and confirm no hardware mismatch faults occur at startup. If the original installation used separate 1762 analog expansion modules to handle analog signals, both models can coexist in that role — but the program and hardware configuration must be checked regardless. Never substitute based on I/O point count alone.

What software and license do I need to program the 1766-L32BWAA?

The 1766-L32BWAA is programmed using RSLogix 500, Rockwell Automation's ladder logic development environment for MicroLogix and SLC 500 family controllers. A valid RSLogix 500 license is required for offline programming and online monitoring; RSLinx Classic is used for communication between the programming PC and the controller. Connected Components Workbench does not support MicroLogix 1400. Ensure your organization has current RSLogix 500 licensing in place before specifying this controller for a new project — this is a non-trivial cost consideration if licenses are not already owned.

How many 1762 expansion modules can I connect, and is there a total I/O limit?

The 1766-L32BWAA supports up to seven 1762 expansion I/O modules connected directly to the right side of the base unit. This expansion capacity allows the total system I/O to scale significantly beyond the 32-point base count, covering a broad range of small machine and panel applications. The exact maximum total I/O point count depends on the specific expansion modules selected and their channel densities — consult the MicroLogix 1400 user manual for the current expansion rules and I/O configuration limits before finalizing a system design.

How do I recover communication or reset the IP address if I lose contact with the controller?

The 1766-L32BWAA includes a front-panel LCD that can be used to view and set the IP address, subnet mask, and gateway without a programming PC connected. If Ethernet communication is lost, connecting via one of the two serial ports using RSLogix 500 and RSLinx Classic is the standard recovery path — use the RS-232 channel 0 port with a 1756-CP3 or compatible cable. For a completely locked-out controller, refer to the manufacturer's communication recovery procedure in the MicroLogix 1400 user manual, which covers factory default restoration steps.

Is the MicroLogix 1400 still in active support, and what is the recommended migration path?

The MicroLogix 1400 family, including the 1766-L32BWAA, is in a mature lifecycle phase. Rockwell Automation continues to support the platform but recommends evaluating migration to newer platforms for new designs. The Micro800 family is the most commonly cited migration target for simple machine-level applications, while CompactLogix is the path for applications needing more processing power, advanced communications, or motion capability. For existing installations, the practical advice is to maintain a documented spare strategy, keep RSLogix 500 licenses current, and plan a migration timeline for any long-horizon assets. Confirm the current lifecycle status directly with your distributor, as it can affect stock availability and repair support timelines.

Why Order the Allen-Bradley 1766-L32BWAA Through LeadTime.ca

  • Global shipping from North American distribution — LeadTime.ca sources and ships the 1766-L32BWAA worldwide, not limited to any single region or market
  • Catalog number verification before the order ships — specialist distributors catch suffix errors that generic channels do not
  • Real stock visibility across multiple warehouses — critical for MicroLogix 1400 variants that may have constrained availability in a mature lifecycle phase
  • Volume and project pricing available — contact the team directly for multi-unit orders or scheduled blanket releases
  • Alternative and migration sourcing — if the 1766-L32BWAA lead time is unacceptable, LeadTime.ca can identify stocked alternatives or expansion module combinations that meet the project timeline

Allen-Bradley 1766-L32BWAA — At-a-Glance Summary

  • Catalog number: 1766-L32BWAA — MicroLogix 1400 32-Point Controller, Bulletin 1766
  • Power supply: 100…240 V AC, 47…63 Hz — external overcurrent protection required
  • I/O type: DC digital inputs, relay outputs, and embedded analog I/O on the base unit
  • Communications: 1x Ethernet (EtherNet/IP, web server, email) plus 2x serial ports (DF1, DH-485, Modbus RTU, DNP3, ASCII)
  • Expansion: up to 7x 1762 expansion I/O modules connected to the base unit
  • Data logging: up to 128 KB onboard; recipe storage up to 64 KB (family-level specification)
  • Programming: RSLogix 500 required — verify license availability before specifying for new projects
  • Lifecycle: mature phase — appropriate for replacements and incremental machines in existing MicroLogix 1400 installations; evaluate Micro800 or CompactLogix for greenfield designs
  • Key ordering risk: a single suffix character (BWAA vs BWA, BWAA vs BXBA) changes power type, output type, or analog capability — verify the full catalog number against panel drawings before ordering
