Allen-Bradley 1766-L32BWA MicroLogix 1400 — Specs & Buyer Guide

By Abdullah Zahid
15 min read

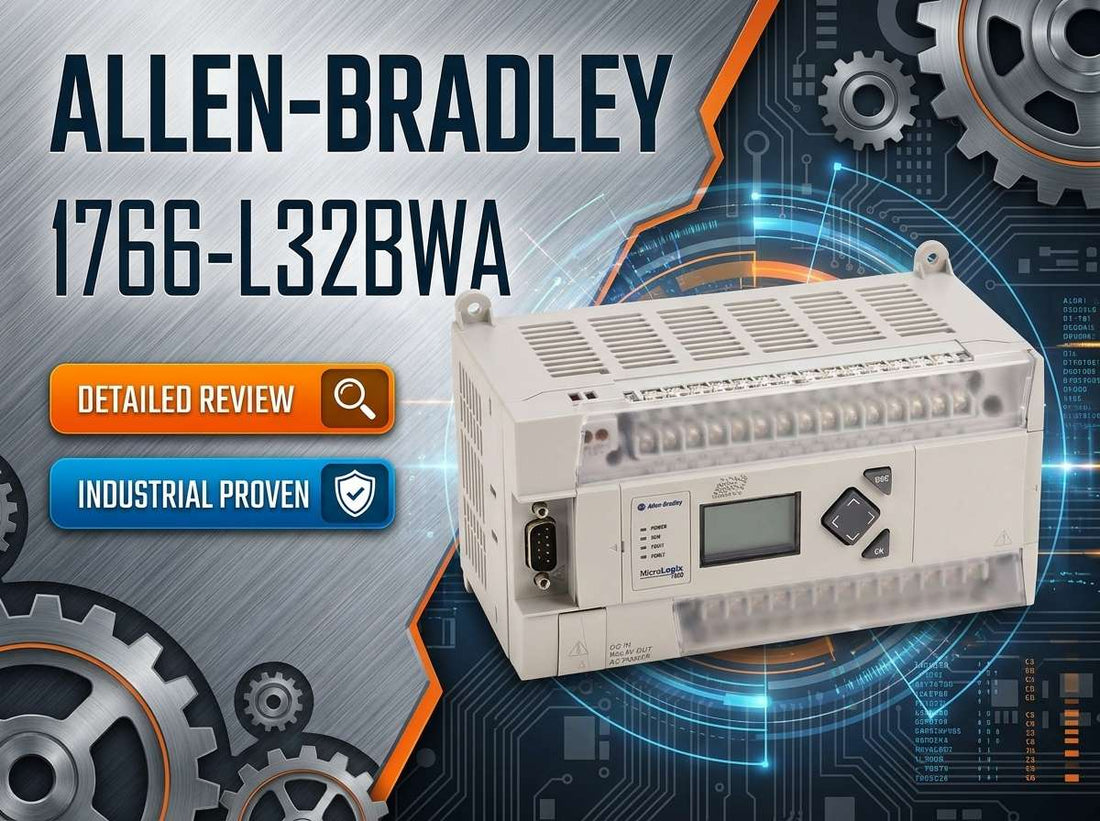

Allen-Bradley 1766-L32BWA MicroLogix 1400 32-point PLC controller with relay outputs and Ethernet for industrial panel applications

Allen-Bradley 1766-L32BWA MicroLogix 1400 32 Point Controller — Specs, Price Context and Best Alternatives

Controls engineers and maintenance buyers searching for the Allen-Bradley 1766-L32BWA are almost always doing one of two things: sourcing a direct replacement for a unit that has failed in an active machine, or cross-checking the catalog number before committing to a panel BOM. Either way, the decision comes down to three hard facts — this controller runs on 110/240V AC, delivers 20 digital inputs (12 fast 24V DC, 8 normal 24V DC) and 12 relay outputs, and connects to your network via built-in Ethernet and dual serial ports. If those three facts match your panel design, you are in the right place.

If you have already confirmed this is the correct part, check current pricing and availability for the Allen-Bradley 1766-L32BWA at LeadTime.ca — ships worldwide.

Who Should Buy the Allen-Bradley 1766-L32BWA — and Who Shouldn't

The 1766-L32BWA is the right controller if all of the following are true for your application:

  • Your panel or machine requires a 110/240V AC powered PLC base — not a 24V DC supply
  • You need relay outputs, not transistor outputs, for your load types
  • Your discrete I/O requirement fits within 20 digital inputs and 12 digital outputs on-board, with expansion via 1762 modules
  • You need Ethernet/IP plus serial communications (RS-232 and/or RS-485) on the MicroLogix platform
  • You are maintaining or standardizing an existing MicroLogix 1400 installed base and the lifecycle status of this platform is acceptable for your application horizon

If your design calls for a DC-powered base, transistor outputs for high-speed switching, or you are starting a greenfield project that requires a long support horizon, the 1766-L32BXB, 1766-L32BXBA, or a newer platform such as the Micro 800 or CompactLogix family is the more appropriate choice — details in the variant comparison section below.

On this page:

What the Allen-Bradley 1766-L32BWA Actually Does in a Running System

The Allen-Bradley 1766-L32BWA is a compact base controller in the MicroLogix 1400 family (Bulletin 1766). It acts as the primary logic controller for small to mid-size machines and OEM panels, handling discrete I/O, expansion analog via 1762 modules, basic PID functionality, and Ethernet/serial communications to HMIs, variable-frequency drives, and SCADA systems. The base unit brings 32 built-in digital I/O points to the panel — 12 fast 24V DC inputs suited for pulse counting or encoder feedback, 8 normal 24V DC inputs, and 12 relay outputs capable of switching both AC and DC loads.

What separates the 1766-L32BWA from older MicroLogix models is the combination of a built-in Ethernet port, two serial channels, and a front-panel LCD with keypad. The LCD is not cosmetic — technicians use it to read IP address, controller mode, and basic fault status without connecting a laptop, which is a genuine time-saver during commissioning and fault-finding. The AC power supply makes this variant a direct fit for panels already wired for 110/240V AC rail power, eliminating the need for a separate 24V DC power supply for the controller itself. A real-time clock and data logging capability round out the feature set for applications that require time-stamped events or recipe management.

The MicroLogix 1400 family is currently in an Active Mature lifecycle status. This means the product remains available through authorized channels, but Rockwell Automation no longer actively develops new features for the platform and is directing new designs toward the Micro 800 and CompactLogix families. For replacement and maintenance purposes, the 1766-L32BWA remains a fully supported and orderable catalog number. For new greenfield designs, the lifecycle status is a real factor that deserves honest weight in your platform decision.

Typical System Architecture for the 1766-L32BWA

The 1766-L32BWA sits at the controller layer of the system, sitting between the plant network or SCADA and the field devices it controls directly. A typical deployment looks like this:

  • Plant Ethernet network or SCADA system connects to the 1766-L32BWA Ethernet port via Ethernet/IP or Modbus TCP
  • PanelView or third-party HMI connects to the Ethernet port or serial channel 0 (RS-232) for operator interface
  • Variable-frequency drives or other serial field devices connect via the RS-232/RS-485 serial channel using DF1 or Modbus RTU protocols
  • 1762 expansion I/O modules mount directly to the right side of the base unit to add analog inputs/outputs or additional discrete points
  • Field wiring — sensors, pushbuttons, solenoids, and motor starters — terminate directly on the base unit's 20 digital input and 12 relay output terminals

Industries and Applications Where the 1766-L32BWA Is Deployed

OEM machine builders represent the largest user base for the 1766-L32BWA. Packaging lines, small conveyors, assembly fixtures, and material handling equipment are natural fits because the AC-powered base with relay outputs maps directly to the control panel architecture these machines use — 120V AC coil contactors and solenoids wired directly to relay outputs, with the controller powered from the same AC rail.

Water and wastewater applications are a second strong segment. Small pump stations, lift stations, and chemical dosing skids running two to four pumps fit comfortably within the onboard I/O count, and the Ethernet port provides the SCADA connectivity that municipalities and utilities increasingly require. The PID functionality built into the MicroLogix 1400 family handles pressure and level control loops without requiring an additional module.

HVAC and environmental control panels — air handling units, cooling towers, environmental chambers — use the 1766-L32BWA for the same reasons: AC power availability, relay output compatibility with standard HVAC actuators and contactors, Ethernet for building management system integration, and onboard PID for temperature and pressure loops.

Retrofit projects are a particularly common scenario. When an older SLC 500 or first-generation MicroLogix unit fails in a live machine, the 1766-L32BWA offers a familiar programming environment and Rockwell ecosystem compatibility that reduces reprogramming effort and avoids wholesale rewiring of the control panel. In time-critical downtime situations, the combination of RSLogix 500 familiarity and the ability to source the unit from distributor stock is often the deciding factor.

Application Typical Deployment
Packaging and conveyor OEM machines Base controller with relay outputs driving AC contactors and solenoids, Ethernet to PanelView HMI
Small pump station / lift station Discrete I/O for pump run/stop and level switches, Ethernet to SCADA, PID for pressure control via analog expansion
HVAC air handling unit Relay outputs for damper actuators and fan starters, serial or Ethernet to BMS, PID for temperature control
Food and beverage small-line control Discrete I/O for machine states, Modbus RTU to VFDs on serial port, Ethernet for plant network visibility
MicroLogix 1400 replacement / retrofit Direct swap for failed 1766-L32BWA in existing panel, program restore from backup, minimal wiring change
Environmental test chambers Analog expansion modules for temperature/humidity inputs, PID control loops, Ethernet to monitoring system

Key Specifications for Purchase Decision

Parameter Value / Detail Notes
Catalog Number 1766-L32BWA Confirm series (A or B) on nameplate — capabilities differ
Product Family MicroLogix 1400 (Bulletin 1766) Active Mature lifecycle status
Power Supply Input 110/240V AC Not suitable where 24V DC base power is required
Digital Inputs (total) 20 (12 fast 24V DC + 8 normal 24V DC) Fast inputs support high-speed counter functions
Digital Outputs (total) 12 relay outputs Not suitable for high-speed transistor output applications
Built-in Ethernet 10/100Base-T Ethernet port Supports Ethernet/IP, Modbus TCP, programming connection
Serial Ports Two serial channels (RS-232/RS-485 combo + isolated RS-232 on Series B) Supports DF1, Modbus RTU, DNP3, ASCII protocols
Built-in Analog I/O None on base unit Requires 1762 expansion modules for analog I/O
Expansion Support 1762 I/O expansion modules supported Verify maximum module count from current Rockwell documentation
Additional Features Built-in LCD with keypad, real-time clock, data logging LCD enables IP/mode/fault checking without laptop

Full technical specifications are available on the product page at LeadTime.ca.

1766-L32BWA vs Other MicroLogix 1400 Variants — Which One Do You Actually Need?

Catalog Number Power Type Output Type Key Differences vs 1766-L32BWA When to Choose
1766-L32BWA (baseline) 110/240V AC Relay Baseline: AC power, relay outputs, dual serial + Ethernet AC-powered panels with relay output loads; standard OEM and replacement use
1766-L32BWAA 110/240V AC Relay Variant with differences in regional approvals or supply; verify exact specification against your regional requirement Where specific regional certification variants are required; confirm with distributor
1766-L32AWA 110/240V AC AC output (triac) AC triac outputs instead of relay; different output load profile AC-powered panels requiring AC switching outputs; not relay-based loads
1766-L32BXB / L32BXBA 24V DC Transistor (DC) DC-powered base; transistor outputs for higher-speed switching and DC loads DC-powered enclosures; applications needing fast transistor outputs or PWM; modern panel designs standardizing on 24V DC PLCs

If your machine design requires a 24V DC powered base or transistor outputs for high-speed or PWM applications, the 1766-L32BXB or 1766-L32BXBA is the correct choice — not the 1766-L32BWA. Check current availability for the 1766-L32BWA at LeadTime.ca or contact the team if you need to confirm the right variant for your panel.

Expert Verdict: Is the 1766-L32BWA Still the Right Buy in the Current Market?

The Allen-Bradley 1766-L32BWA earns its place as a go-to replacement part for a specific and well-defined buyer: plants and OEMs running an established MicroLogix 1400 installed base, maintenance teams who stock RSLogix 500 expertise on the floor, and panel shops building to a customer-specified Allen-Bradley standard. The combination of AC power input, relay outputs, built-in Ethernet with Ethernet/IP support, dual serial channels, and the front-panel LCD creates a genuinely practical package for small-to-mid-size discrete machine control. The fact that the 1766-L32BWA provides 32 built-in digital I/O points on the base unit, with Ethernet and serial networking in the same compact footprint, explains why this catalog number has been specified in so many panels over the years and why replacement demand stays consistent.

Where the recommendation changes is on new designs. The MicroLogix 1400 family carries an Active Mature lifecycle designation, which means engineering resources are no longer being invested in new features or extended support commitments for this platform. If your project has a ten-year or longer horizon, requires integrated safety functions, higher analog I/O density, advanced motion control, or a platform with a clear long-term support roadmap, the Micro 800 family or CompactLogix is the more defensible specification. For buyers standardizing on DC-powered bases or needing transistor outputs for servo drive interfacing or PWM outputs, the 1766-L32BXB or 1766-L32BXBA resolves the problem within the same family. These are not criticisms of the 1766-L32BWA — they are honest constraints of any mature platform.

On the procurement side, sourcing the 1766-L32BWA through a specialist industrial automation distributor rather than a generic channel matters more than it might seem. Series differences between Series A and Series B units affect communication capabilities and firmware support for certain features — a mismatch between the series on the shelf and the series in your installed base can introduce issues that are invisible at the order stage and painful at commissioning. A specialist distributor can confirm series, validate the catalog number against your panel drawings, check North American and international warehouse stock, and advise on whether a direct swap or a migration path is the lower-risk option for your timeline. View current stock and pricing for the Allen-Bradley 1766-L32BWA at LeadTime.ca — available to buyers worldwide.

For volume pricing, stocking agreements, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Report After Living With the 1766-L32BWA

Across discussions on PLCTalk, MrPLC, Reddit r/PLC, and Rockwell's own support knowledgebase, the 1766-L32BWA consistently earns a reputation as a reliable workhorse. Technicians who have run these units for years describe them as machines that simply keep running, often through decades of service in demanding industrial environments. The built-in Ethernet port and front-panel LCD are frequently cited as meaningful improvements over earlier MicroLogix models — veterans of the original MicroLogix 1000 and 1100 platforms especially appreciate being able to pull an IP address and fault status from the LCD without carrying a laptop to the panel.

The RSLogix 500 programming environment draws consistent praise for a different reason: familiarity. Many plant technicians and controls engineers already know the ladder logic environment from SLC 500 and earlier MicroLogix work, which shortens both the commissioning timeline and the troubleshooting cycle when something goes wrong at 2 a.m. That said, the community is candid about where the platform requires careful attention. PID loop tuning on the MicroLogix 1400 is a recurring topic — users report that temperature control loops in particular can oscillate or respond unexpectedly until loop update times and tuning constants are dialed in correctly, and the standard advice across forums is to read the PID configuration section of the user manual carefully rather than relying on auto-tune alone. Modbus RTU communication setup on the serial port is a second area where forum threads stack up: baud rate, parity, node address, and physical termination all need to be correct simultaneously, and skipping any one of them produces silent failures that are hard to diagnose without a serial monitor.

The ordering mistakes that appear repeatedly in community discussions are worth highlighting. The most common is ordering the wrong MicroLogix 1400 variant because the suffix differences — L32BWA versus L32BXB, for example — look minor but represent entirely different power supply and output types. A second recurring mistake is overlooking the Series A versus Series B distinction, which affects available serial port count and firmware-level feature support. A third is assuming that all MicroLogix 1400 units share the same I/O mix when the fast input count and output type differ across variants. These are avoidable errors, and the wrong-part checklist below is the fastest way to prevent them before the order is placed.

Wiring and Installation Overview

  • AC power wiring requires line, neutral, and protective earth connections per the installation manual and applicable local electrical codes; overcurrent and short-circuit protection must be provided externally and sized per Rockwell's installation instructions
  • Digital inputs are wired as 24V DC sink or source configurations — verify the commons and sink/source jumper settings against your sensor wiring before applying power
  • Relay outputs can switch both AC and DC loads; inductive loads such as solenoids and motor coils require suppression devices (RC snubbers or flyback diodes) wired at the load, not at the controller terminal
  • The Ethernet port connects to a standard 10/100Base-T network switch or directly to a programming PC; assign a static IP address via the programming software utility and confirm communication with a ping test before going online
  • DIN rail mounting should follow the orientation and spacing requirements in the installation manual, and expansion 1762 modules must be seated and latched firmly on the right side of the base unit before power is applied

For complete wiring diagrams, terminal assignments, and full commissioning procedures, refer to the Rockwell Automation installation instructions and user manual for the 1766-L32BWA.

Wrong-Part Prevention Checklist Before You Order

Before placing an order for the Allen-Bradley 1766-L32BWA, verify each of the following against your panel drawings and machine nameplate:

  1. Confirm power supply requirement: this model is 110/240V AC powered; do not use where 24V DC base power is required.
  2. Confirm output type: 1766-L32BWA has relay outputs; do not select if high-speed transistor outputs are needed.
  3. Verify required I/O count: 20 digital inputs / 12 digital outputs on-board; ensure expansion capacity is sufficient.
  4. Check required analog I/O: base unit has no built-in analog I/O; external analog modules may be required.
  5. Validate environmental ratings (temperature, panel space, approvals) against the project/site requirements.
  6. Check lifecycle/migration plan: MicroLogix 1400 is Active Mature; verify that long-term support and spare strategy are acceptable.

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — our team can confirm the correct catalog number, series, and availability before you commit to a purchase.

Frequently Asked Questions

Why did my 1766-L32BWA download successfully but the program isn't running?

This is one of the most commonly reported issues on MicroLogix 1400 forums. The most frequent cause is that the controller mode is not set to RUN or REM RUN — check both the front-panel keyswitch position and the mode indicator on the LCD. The second thing to verify is whether any major faults are active and unacknowledged; the LCD and programming software will display active fault codes, and the controller will not run logic until faults are cleared. Confirm both before assuming a hardware problem.

Why isn't the 1766-L32BWA responding to Modbus RTU commands from my field device?

Modbus RTU on the MicroLogix 1400 serial port requires that baud rate, parity, stop bits, node address, and physical termination all match between the controller and the field device — any single mismatch produces a communication failure with no obvious error indication. Also confirm that the correct serial channel is configured for Modbus RTU mode in the software, and verify that the RS-485 bus termination resistor is in place at the physical ends of the bus. Work through each parameter methodically against the user manual rather than relying on default settings.

Can the 1766-L32BWA control a servo or stepper drive, and what is the realistic approach?

The 1766-L32BWA can interface with servo or stepper drives via relay or serial outputs for simple speed/direction control, and the 12 fast 24V DC inputs support pulse counting for basic position feedback. However, the relay output type on this specific variant limits high-speed pulse output capability — for demanding motion applications requiring high-frequency pulse trains, the transistor-output variants (1766-L32BXB or L32BXBA) or a dedicated motion controller within the Rockwell ecosystem are more appropriate. For simple VFD speed reference over Modbus RTU, the 1766-L32BWA handles the task reliably through its serial port.

How many expansion modules can I connect to the 1766-L32BWA?

The MicroLogix 1400 base unit supports expansion via 1762 I/O modules mounted directly to the right side of the controller. The exact maximum module count should be confirmed against the current Rockwell documentation for your series, as it determines the total available I/O and the power budget for the expansion bus. If your I/O requirements approach or exceed the expansion limit, a CompactLogix or Micro 800 platform offers a larger expansion envelope and a longer support horizon.

What is the difference between Series A and Series B on the 1766-L32BWA, and does it matter when ordering a replacement?

Series A and Series B units differ in their serial port configuration and firmware-level feature support — Series B units on certain variants include an additional isolated RS-232 channel and updated protocol support compared to Series A. When ordering a replacement for an existing installation, confirm the series of the unit being replaced from the nameplate and match it to avoid unexpected differences in communication setup or program behavior. A specialist distributor can confirm which series is in stock and whether a cross-series substitution requires any configuration changes.

Is the MicroLogix 1400 platform still a valid choice for new panel designs in the current market?

The MicroLogix 1400 is classified as Active Mature by Rockwell Automation, meaning it is orderable and supported but not receiving new feature development. For replacement applications and OEM designs already based on this platform, it remains a valid and practical choice. For new greenfield designs with a long lifecycle requirement, Rockwell's current guidance directs new projects toward the Micro 800 and CompactLogix families, which offer broader feature sets, longer-term support commitments, and clearer migration paths as the installed base evolves.

Why Order the Allen-Bradley 1766-L32BWA Through LeadTime.ca

  • Global shipping — LeadTime.ca fulfills orders for the 1766-L32BWA to buyers worldwide, not limited to any single country or region
  • Catalog number validation — our team can confirm series, firmware compatibility, and variant differences before your order ships, reducing the risk of a mismatched replacement part arriving on a downed machine
  • Hard-to-source parts — for Active Mature and discontinued catalog numbers, LeadTime.ca maintains sourcing relationships across North American distribution networks to locate stock others cannot
  • Volume and stocking pricing — for MRO planners and OEMs building multiple panels, contact us for volume pricing and spare inventory discussions
  • Fast response — contact the team with a catalog number and quantity and get a direct answer on availability and lead time

At-a-Glance Summary

  • Catalog number: Allen-Bradley 1766-L32BWA — MicroLogix 1400 32-point base controller
  • Power input: 110/240V AC — not suitable for 24V DC panel rails
  • Digital I/O: 20 inputs (12 fast 24V DC, 8 normal 24V DC) and 12 relay outputs on the base unit
  • No built-in analog I/O — analog capability requires 1762 expansion modules
  • Communications: 10/100Base-T Ethernet (Ethernet/IP, Modbus TCP) plus two serial channels (DF1, Modbus RTU, DNP3, ASCII)
  • Front-panel LCD and keypad for local IP address, mode, and fault status visibility without a programming laptop
  • Lifecycle status: Active Mature — orderable and supported, not recommended for new long-horizon designs
  • Primary use cases: replacement controller for existing 1766-L32BWA installations, OEM machine panels, small pump systems, HVAC controls, Ethernet-connected SCADA applications
  • Key ordering check: confirm AC power requirement, relay output type, and Series A vs B before placing order
  • Programming environment: RSLogix 500 / Studio 5000 Logix Designer (MicroLogix mode)
