Allen-Bradley 1766-L32BXB — MicroLogix 1400 Buyer Review

By Abdullah Zahid
14 min read

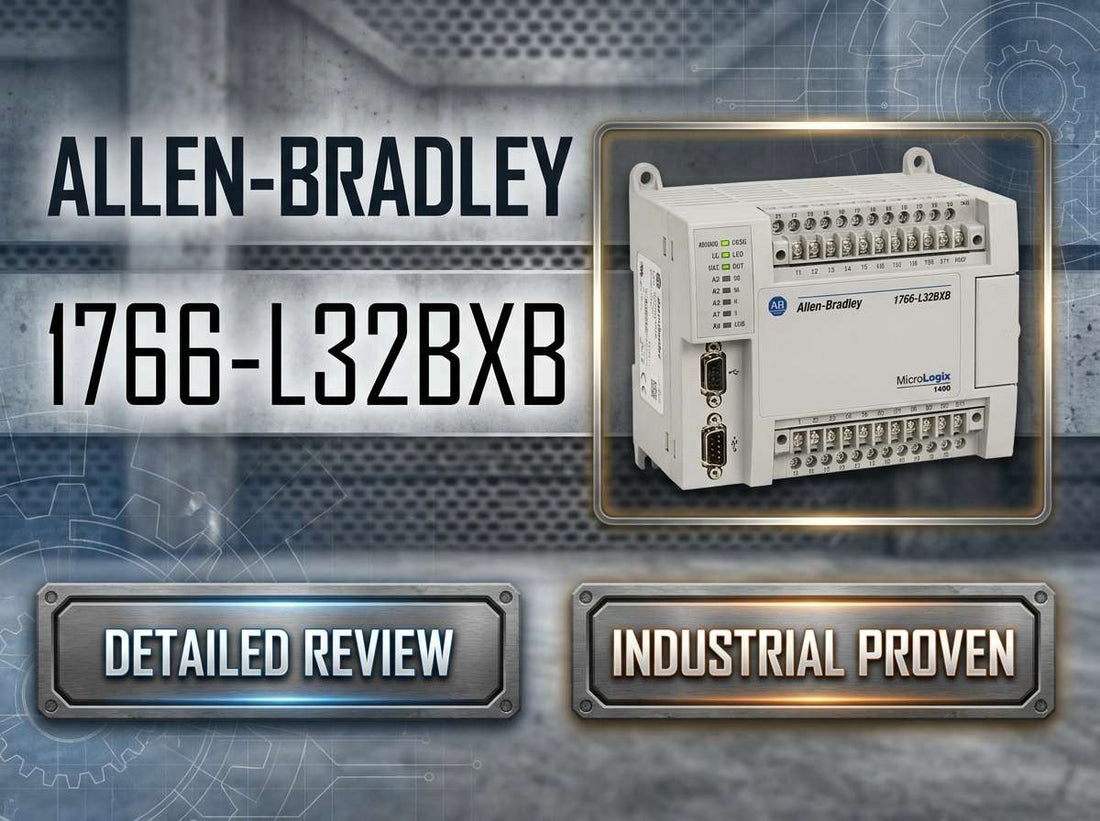

Allen-Bradley 1766-L32BXB MicroLogix 1400 32-point PLC controller front view for discrete machine control

Allen-Bradley 1766-L32BXB MicroLogix 1400 32-point Controller: Specs, Price and Selection Guide

Controls engineers replacing a failed controller in a legacy panel, or OEM designers building a new small machine around an existing Rockwell toolchain, typically arrive at the Allen-Bradley 1766-L32BXB after confirming three things: their panel runs on 24V DC, they need a mix of relay and transistor digital outputs, and they need on-board Ethernet alongside dual serial ports — all in a compact MicroLogix 1400 footprint. This controller delivers exactly that combination, with 20 built-in 24V DC digital inputs, 12 digital outputs (6 relay, 6 transistor), a full Ethernet port supporting EtherNet/IP messaging, Modbus TCP/IP, and DNP3 over IP, and 10 KB each of user program and data memory.

If you have already confirmed the 1766-L32BXB is the right part for your panel, check current pricing and availability at LeadTime.ca — we source and ship worldwide.

Who Should Buy the 1766-L32BXB — and Who Shouldn't

This controller is the right choice when all of the following are true for your application:

  • Your panel power supply delivers 24V DC — the 1766-L32BXB does not accept 120V or 240V AC input directly.
  • You need 20 built-in 24V DC digital inputs (12 fast, 8 standard) and 12 digital outputs split between 6 relay and 6 DC transistor outputs (3 fast, 3 standard).
  • On-board Ethernet is required for EtherNet/IP messaging, Modbus TCP/IP, or DNP3 over IP communications with SCADA, HMIs, or drives.
  • You are working within the RSLogix 500 and Rockwell Automation toolchain, either supporting an existing installed base or an OEM platform already standardized on MicroLogix 1400.
  • Built-in analog I/O is not required — this model has no embedded analog channels.

If your power source is 120V or 240V AC, the correct variant is the 1766-L32AWA or 1766-L32BWA. If you need on-board analog I/O, the 1766-L32BXBA adds embedded analog channels. For new greenfield projects with long lifecycle requirements, review whether the Micro800 or CompactLogix family better fits your roadmap before committing.

On this page:

What the 1766-L32BXB Actually Does in a Running System

The Allen-Bradley 1766-L32BXB is the main controller in a MicroLogix 1400 panel — it executes ladder logic, reads 24V DC field sensor signals, drives relay and transistor outputs to solenoids and actuators, handles high-speed counting on fast input channels, and manages all communications traffic between the machine and the plant network or HMI. It is not a remote I/O node, a safety controller, or a motion axis controller. Its role is discrete and utility control at the machine or skid level, with enough communication capability to tie into wider plant systems.

The front panel LCD and keypad are not decorative — they provide real-time status, allow operators to read fault codes without connecting a laptop, and support initial IP address configuration without a BOOTP server. The built-in real-time clock supports time-stamped data logging up to 128 KB, and a separate 64 KB recipe storage area is available for parameter set management. These features make the 1766-L32BXB a more capable data node than many users expect from a compact PLC.

Typical System Architecture for a MicroLogix 1400 Panel

In most deployments, the 1766-L32BXB sits between the plant Ethernet network and the field wiring terminal blocks, receiving commands from SCADA or an HMI and driving field devices directly.

  • Plant Ethernet switch or SCADA host connects to the 1766-L32BXB Ethernet port via EtherNet/IP messaging, Modbus TCP/IP, or DNP3 over IP.
  • PanelView or third-party HMI connects over Ethernet or Channel 0 serial for operator interface and status display.
  • 24V DC digital inputs wire directly to proximity sensors, push buttons, flow switches, and limit switches — 12 fast input channels handle high-speed counting signals.
  • Relay outputs drive 24V DC or AC loads such as solenoid valves and contactor coils; DC transistor outputs handle faster-switching devices and PTO/PWM-based applications.
  • Up to seven 1762 expansion I/O modules connect via the right-side bus connector, adding analog, additional digital, or specialty I/O to the same base controller.

Typical Applications and Deployment Scenarios

The 1766-L32BXB is most at home in small to mid-size discrete machine control and utility automation. Packaging and converting OEMs use it to sequence conveyors, actuate pneumatic cylinders, and interface with reject mechanisms, taking advantage of the mixed relay and transistor output structure. The relay outputs handle power switching for contactors and solenoids, while the fast transistor outputs manage encoder-referenced positioning or PTO-driven stepper axes.

Water and wastewater operators deploy this controller at small pump stations and lift stations where Modbus TCP/IP or DNP3 over IP connects the local panel directly to a SCADA host over the plant network, eliminating the need for a separate communications gateway. The on-board data logging capability supports historical trending without additional hardware.

Material handling integrators use it on conveyor subsystems and sorter stations where 24V DC sensor density is high and Ethernet HMI connectivity is expected as standard. The 12 fast input channels accommodate shaft encoders and photoeye pulse counting without external counter modules.

The 1766-L32BXB also appears frequently in training rigs and educational lab setups at facilities standardized on the Rockwell Automation ecosystem, where technicians learn RSLogix 500 programming on the same platform they will encounter in the plant.

Application Typical Deployment
Small packaging line Main sequencing controller with PanelView HMI over Ethernet, relay outputs driving pneumatics and contactors
Municipal pump station Standalone panel controller with DNP3 over IP or Modbus TCP/IP to SCADA host, data logging enabled
Conveyor and sorter subsystem Discrete I/O controller for sensor-dense 24V DC field wiring, fast inputs for encoder pulse counting
Legacy MicroLogix 1400 retrofit Like-for-like controller swap with no wiring or code changes when replacing a failed 1766-L32BXB unit
HVAC and building services panel Mixed relay/transistor output controller for fan, valve, and damper sequencing with serial or Ethernet integration
Chemical dosing or filtration skid Small process skid controller with 1762 analog expansion modules added for flow and level signals

Purchase-Decision Specifications and Variant Comparison

Parameter Value Notes
Catalog Number 1766-L32BXB Verify exact suffix against nameplate before ordering
Product Family MicroLogix 1400 Programmed with RSLogix 500
Power Supply 24V DC AC-powered variants are 1766-L32AWA and 1766-L32BWA
Digital Inputs 20 x 24V DC (12 fast, 8 standard) Fast inputs used for high-speed counting
Digital Outputs 6 relay + 6 DC transistor (3 fast, 3 standard) Fast transistor outputs support PTO/PWM
User Program Memory 10 KB Plus 10 KB user data memory
Data Logging / Recipe Storage 128 KB data logging, 64 KB recipe Requires Ethernet port for web-based access
Ethernet Port 1 x 10/100 Mbps — EtherNet/IP messaging, Modbus TCP/IP, DNP3 over IP, web server, email Full protocol stack included
Serial Ports 2 — DF1, DH-485, Modbus RTU, ASCII, DNP3 Channel 0 and Channel 1; isolated
Expansion I/O Up to 7 x 1762 modules, up to 256 total I/O points Analog, digital, and specialty modules available

Full technical specifications are available on the product page at LeadTime.ca.

Catalog Number Power Supply Input Type Output Type Analog On-Board
1766-L32BXB 24V DC 24V DC digital 6 relay + 6 DC transistor No
1766-L32BXBA 24V DC 24V DC digital 6 relay + 6 DC transistor Yes — embedded analog I/O
1766-L32BWA 24V DC inputs / AC power 24V DC digital Relay outputs No
1766-L32AWA 120/240V AC 120V AC digital Relay outputs No

If your application requires on-board analog I/O, the 1766-L32BXBA is the correct variant — contact LeadTime.ca to confirm availability of all MicroLogix 1400 variants.

Expert Verdict: When to Buy the 1766-L32BXB and When to Walk Away

The Allen-Bradley 1766-L32BXB earns its place in the panel when you are supporting an existing MicroLogix 1400 installed base or building a machine for a plant where the Rockwell toolchain is already entrenched. Its integrated Ethernet with a genuine multi-protocol stack — covering EtherNet/IP messaging, Modbus TCP/IP, and DNP3 over IP simultaneously — is a meaningful capability in a compact controller, and the combination of relay and DC transistor outputs with high-speed input channels covers the majority of small-machine discrete control scenarios without additional hardware. For maintenance and reliability teams who have been running RSLogix 500 for years, the zero-retraining cost of a like-for-like swap is a real operational advantage that is easy to undervalue until you are looking at a production stoppage.

Where the honest assessment gets more cautious is on new designs. The MicroLogix 1400 is a mature platform, and engineers starting a greenfield project with a multi-year lifecycle horizon should seriously evaluate the Micro800 family for cost-driven smaller applications or CompactLogix for systems that will grow in scope or need deeper Studio 5000 integration. If analog I/O is required on the base unit rather than through expansion modules, the 1766-L32BXBA is the immediate answer within the same family. For teams considering a move away from the Rockwell ecosystem entirely, this is a point at which the investment in retraining and retooling may be justified by long-term platform support windows.

From a procurement standpoint, the 1766-L32BXB is available through both authorized distribution and the surplus market, and lead times on new units can range from same-day to several weeks depending on channel and current stock levels — a variable that matters enormously when the unit is a replacement for a failed controller in a live production line. Buying through a specialist automation distributor means the catalog number gets validated before the order ships, lifecycle context is part of the conversation, and both new and sourced surplus units are accessible through a single channel. Check current stock and pricing for the 1766-L32BXB at LeadTime.ca — we ship to facilities worldwide.

For volume orders or time-sensitive replacements where lead time confirmation matters before you commit to a build schedule, contact the LeadTime.ca team directly — we source globally and ship worldwide.

What the PLC Community Says About the 1766-L32BXB

Across forums including PLCTalk, PLCS.net, MrPLC, Reddit r/PLC, and the Rockwell Automation support forum, the 1766-L32BXB carries a consistent reputation as a controller that simply runs. Experienced technicians and controls engineers describe it as a reliable workhorse that holds up in challenging plant environments — dusty conveyor lines, outdoor utility panels, and food-processing washdown-adjacent locations (within its IP20 enclosure rating) — when properly installed. The built-in Ethernet with web server capability and the dual-serial-port flexibility are frequently cited as features that made SCADA and HMI integration straightforward at a time when those capabilities required external gateways on competing compact PLCs. In Rockwell-standardized plants, the familiarity argument is real: technicians who have been reading RSLogix 500 ladder for a decade can diagnose a 1766-L32BXB fault quickly without reaching for documentation.

The recurring criticisms are equally consistent and worth taking seriously. A significant thread of community discussion focuses on the platform's maturity and the question of how long MicroLogix 1400 spares will remain readily available at current pricing. Engineers designing new equipment cite this as the primary reason they are moving to Micro800 or CompactLogix even when the 1766-L32BXB would technically meet the functional requirements. RSLogix 500 licensing is a secondary but genuine friction point — smaller shops and occasional users find the paid license structure a barrier, particularly when only one or two of these controllers exist in a facility. Community members also note that the number of simultaneous EtherNet/IP connections is constrained compared with more current platforms, which can become a real architectural limit in more connected plant environments.

The ordering mistake that appears most often in community threads is purchasing a 1766-L32BXB expecting on-board analog I/O, then discovering the unit has no embedded analog channels. This is a direct consequence of the 1766-L32BXBA variant existing with a nearly identical catalog number that does include analog. The second most common confusion is between DC-powered BXB units and AC-powered BWA and AWA variants — a mistake that is immediately apparent when the unit arrives and the panel power supply does not match. A smaller but notable set of posts describes buyers purchasing MicroLogix 1100 or 1200 units thinking they were equivalent, then finding missing features such as the web server, data logging capability, or the full communication protocol suite. All three of these mistakes are preventable by reading the catalog suffix carefully and confirming power type and I/O type against the actual application requirements before the order is placed.

Wiring and Installation Overview

  • Mount on DIN rail or panel surface per Rockwell's orientation and minimum clearance requirements to ensure adequate airflow and thermal performance within the IP20 enclosure rating.
  • Wire 24V DC power and protective earth to the designated power terminals with external overcurrent protection and a disconnect device installed per local electrical code — do not apply AC supply voltage to this controller.
  • Wire 24V DC digital inputs observing sourcing and sinking configuration at the common terminals; fast input terminals (used for high-speed counter and interrupt functions) must be wired to the appropriate terminal group identified in the Rockwell installation instructions.
  • Wire relay outputs and DC transistor outputs to separate terminal groups — add external protection (snubbers or diodes) on inductive loads connected to relay outputs, and confirm that fast transistor output terminals are used for any PTO or PWM-driven devices.
  • Install up to seven 1762 expansion modules on the right-side bus connector before powering up; verify that bus connectors are fully seated and plan I/O module addressing in RSLogix 500 before commissioning.

For complete wiring diagrams, terminal identification, and code-compliant installation guidance, refer to Rockwell Automation's official MicroLogix 1400 installation instructions document.

Compatible Expansion Modules

The 1766-L32BXB supports up to seven 1762 expansion I/O modules connected via the right-side bus, expanding the system to as many as 256 total I/O points. The following module types are commonly used with this controller:

  • 1762-IQ8 — 8-point 24V DC digital input module for additional discrete field devices
  • 1762-OB8 — 8-point 24V DC transistor output module for additional switching capacity
  • 1762-OW8 — 8-point relay output module for additional AC or DC load switching
  • 1762-IF4 — 4-channel analog input module for 4-20 mA or 0-10V process signals when the base unit's lack of on-board analog is a constraint
  • 1762-OF4 — 4-channel analog output module for signal conditioning and drive reference outputs
  • 1762-IQ16 — 16-point 24V DC digital input module for high-density sensor wiring

Wrong-Part Prevention Checklist Before Ordering the 1766-L32BXB

Before placing your order, verify every item on this checklist against your actual application and existing equipment. Each point corresponds to a real ordering mistake that has caused project delays.

  1. Confirm plant power: 24V DC only — do not order this unit if only 120/240V AC is available without a DC supply.
  2. Verify that on-board I/O (20 DC inputs, 6 relay outputs, 6 DC transistor outputs) is sufficient, or plan for 1762 expansion modules.
  3. Check whether built-in analog I/O is required; 1766-L32BXB has no embedded analog channels.
  4. Confirm Ethernet is required (this model has Ethernet; do not mistakenly order MicroLogix 1200/1100 without needed comms).
  5. Validate that the application can work within MicroLogix 1400 memory and performance limits.
  6. Ensure RSLogix 500 / RSLinx licenses and support for MicroLogix 1400 are available in-house before committing.
  7. Check product lifecycle guidance from Rockwell if designing new equipment vs. supporting installed base.
  8. Match catalog suffix exactly (1766-L32BXB vs 1766-L32BXBA, BWA, BWAA, etc.) to avoid wrong power or I/O type.

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — we can validate the catalog number against your application before the order ships.

Frequently Asked Questions

Does the 1766-L32BXB have built-in analog inputs or outputs?

No. The 1766-L32BXB has only digital I/O — 20 x 24V DC digital inputs and 12 digital outputs. If your application requires analog signal handling, you will need to add 1762 analog expansion modules such as the 1762-IF4 for inputs or the 1762-OF4 for outputs, or specify the 1766-L32BXBA variant which includes embedded analog I/O on the base unit.

How do I set the IP address on the 1766-L32BXB without a BOOTP server?

The 1766-L32BXB LCD and front-panel keypad can be used to enter an IP address, subnet mask, and gateway directly on the controller without a laptop or BOOTP utility. Alternatively, the BOOTP/DHCP utility included with Rockwell software can assign an address at initial commissioning. Once set, the address can be made static through RSLogix 500 channel configuration to prevent reassignment on subsequent power cycles.

What software is required to program the 1766-L32BXB, and is there a no-cost option?

RSLogix 500 is the programming environment for all MicroLogix 1400 controllers including the 1766-L32BXB, and RSLinx Classic is required for communications. Rockwell provides RSLogix 500 Starter Edition at no charge, which supports MicroLogix 1000 and 1100 but not the full MicroLogix 1400 feature set — a paid RSLogix 500 Standard or Professional license is required to access all 1766-L32BXB functionality. Confirm license availability before committing to this platform, particularly for small shops or occasional-use scenarios.

How many 1762 expansion modules can I connect to a 1766-L32BXB?

The 1766-L32BXB supports a maximum of seven 1762 expansion I/O modules, expanding the total system I/O count to as many as 256 points. Modules address sequentially from the base unit. Plan module selection and addressing before commissioning to avoid I/O mapping conflicts in RSLogix 500.

Can the 1766-L32BXB run Modbus TCP/IP and EtherNet/IP messaging at the same time?

Yes. The 1766-L32BXB Ethernet port supports EtherNet/IP messaging, Modbus TCP/IP, DNP3 over IP, web server, and email functions — multiple protocols can be active concurrently. However, the total number of simultaneous EtherNet/IP connections is constrained compared with current-generation Rockwell platforms, which can become an architectural consideration in highly connected systems. For specific connection count limits, refer to the current Rockwell MicroLogix 1400 technical documentation.

What are the most common causes of a FAULT condition on the 1766-L32BXB and how do I clear them?

Common fault causes include program execution errors, configuration faults (mismatched I/O expansion configuration vs. installed modules), and communications faults from incorrect IP or subnet settings. The front-panel LCD displays a fault code and brief description that can be read without a laptop. To clear a fault, connect with RSLogix 500, read the controller status file for the specific error code, correct the underlying cause — wiring, configuration, or program logic — then clear the fault via the software controller properties or use the LCD to switch from PROG to RUN mode after the correction.

Why Order From LeadTime.ca

  • LeadTime.ca sources both new and surplus industrial automation components worldwide, including MicroLogix 1400 variants that are difficult to locate through standard distribution channels.
  • Catalog number validation is part of the ordering process — reducing the risk of receiving the wrong power type or I/O variant on a time-sensitive replacement.
  • Volume pricing and lead time confirmation are available before you commit to a purchase order or a build schedule.
  • Global shipping is standard — orders are fulfilled to facilities worldwide, not limited to any single region.

At-a-Glance Summary

  • Catalog number: 1766-L32BXB — MicroLogix 1400 32-point controller, 24V DC power supply
  • 20 built-in 24V DC digital inputs: 12 fast (high-speed counter capable), 8 standard
  • 12 digital outputs: 6 relay, 6 DC transistor (3 fast / PTO-PWM capable, 3 standard)
  • No on-board analog I/O — analog requires 1762 expansion modules or the 1766-L32BXBA variant
  • Ethernet port: EtherNet/IP messaging, Modbus TCP/IP, DNP3 over IP, web server, email
  • Dual serial ports: DF1, DH-485, Modbus RTU, ASCII, DNP3 — Channel 0 and Channel 1
  • 10 KB user program memory, 10 KB user data memory, 128 KB data logging, 64 KB recipe storage
  • Expansion: up to 7 x 1762 modules, maximum 256 total I/O points
  • Programmed with RSLogix 500 — paid license required for full MicroLogix 1400 functionality
  • IP20 enclosure rating — DIN rail or panel mount, operating range -20 to 60 °C
  • Best fit: drop-in replacement for existing MicroLogix 1400 installations and Rockwell-standardized plants
  • Pricing available on the product page — contact LeadTime.ca for lead time confirmation before committing to a build
