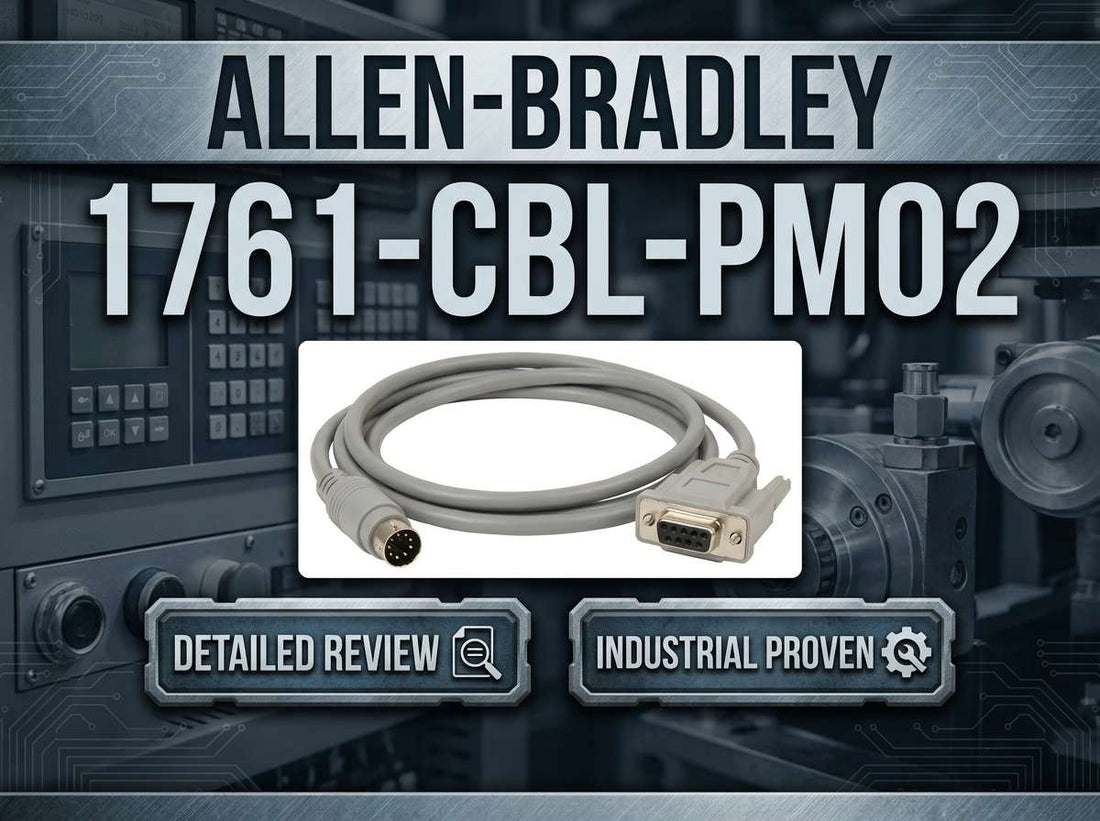

Allen-Bradley 1761-CBL-PM02 MicroLogix RS-232 programming cable with Mini-DIN connector for MicroLogix 1000 PLC

Allen-Bradley 1761-CBL-PM02 MicroLogix Cable — Specs, Compatibility, and the Right Way to Source It

When a MicroLogix controller goes offline and the clock is ticking, the first question most controls engineers ask is whether they have the right cable. The Allen-Bradley 1761-CBL-PM02 — officially described by Rockwell Automation as the Cable: MicroLogix 1000 To Personal Computer — is the factory RS-232 programming and communication cable that connects a PC's serial interface to the round Mini-DIN programming port on MicroLogix controllers, enabling program downloads, online monitoring, and DF1 or DH-485 serial communication. At approximately 2 m in length, it is a passive signal cable with no integrated power circuitry, and its role in the system is straightforward: provide a reliable, documented physical link between RSLinx on the PC and the MicroLogix CPU in the panel.

If you have already confirmed this is the right part for your MicroLogix installation, check current pricing and availability at LeadTime.ca — we ship worldwide.

Is the Allen-Bradley 1761-CBL-PM02 the Right Cable for Your Application?

This cable is the correct choice for engineers and technicians who need a genuine, documented RS-232 programming cable for MicroLogix controllers using the 8-pin round Mini-DIN serial port. It is right for you if all of the following apply:

  • Your controller is a MicroLogix model with a round Mini-DIN serial programming port — not Ethernet-only or a 9-pin D-sub port
  • Your application requires DF1 point-to-point or DH-485 serial communication between the PLC and a PC or modem
  • Approximately 2 m of cable reach is sufficient between the PC or laptop and the panel during programming or maintenance
  • You prefer a genuine Allen-Bradley cable with Rockwell-documented compatibility and official tech support backing
  • Your environment is a standard control panel or industrial cabinet setting; if hazardous location ratings are needed, you have verified the applicable cable Series meets your site's certification requirements

If your MicroLogix has been upgraded to Ethernet/IP and you are programming exclusively over the network, or if you need a USB-integrated cable with no DB9 interface at all, this cable is not the correct starting point — see the variant and alternatives comparison section below for specific options including USB-integrated MicroLogix cables and the 1747-UIC DH-485/USB interface.

On this page:

What the 1761-CBL-PM02 Actually Does in a MicroLogix System

The 1761-CBL-PM02 is a passive RS-232 serial cable — no active circuitry, no external power required. Its sole purpose is to carry serial data between the MicroLogix controller's 8-pin round Mini-DIN programming port and a PC serial port, providing the physical layer over which Rockwell software communicates with the PLC. This is not a converter, not a communication module, and not a network interface. It is the cable that makes everything else possible when working on MicroLogix hardware.

On the PC side, RSLinx Classic handles the communication layer using either a DF1 Full-Duplex, DF1 Half-Duplex Master, or DH-485 driver, depending on how the MicroLogix's serial channel is configured. The cable carries those signals without modification. Once the RSLinx driver is correctly configured to the COM port and the PLC's serial settings are aligned, RSLogix 500 can go online, upload programs, push downloads, monitor live data, or execute forced I/O operations — all through this single cable. Rockwell's official product descriptor confirms this use case: "Cable: MicroLogix 1000 To Personal Computer."

It is worth stating clearly that the 1761-CBL-PM02 is an accessory in the MicroLogix product family, not a controller or communication expansion module. Its value is precision: it is the documented, tested cable that Rockwell's own manuals and training material reference when explaining how to connect a PC to these controllers.

Typical System Architecture: Where This Cable Sits in the Signal Chain

Understanding where the 1761-CBL-PM02 fits in the overall signal path helps avoid misidentifying the cause of connection problems. In a typical MicroLogix programming session, this cable occupies the link between the PC and the PLC's serial port — a single physical hop that all software communication must traverse.

  • PC or laptop running RSLogix 500 and RSLinx Classic — PC's DB9 serial port (or USB-to-serial adapter presenting a virtual COM port) is the starting point
  • 1761-CBL-PM02 cable — DB9 connector mates with the PC serial port; the 8-pin round Mini-DIN connector mates with the MicroLogix programming port
  • MicroLogix CPU serial/programming port — the Mini-DIN port on MicroLogix 1000 and other MicroLogix controllers that share this port type
  • MicroLogix CPU — executes the ladder logic program; RSLinx communicates with it via the DF1 or DH-485 protocol layer configured in the software driver
  • Downstream I/O modules or network nodes — if the cable is being used for DH-485 access, other nodes on that serial network can be reached through the connected MicroLogix

Typical Applications and Industries Using the 1761-CBL-PM02

The most common scenario is a maintenance technician or controls engineer arriving at a machine running a MicroLogix controller — whether for a fault call, a program update, or a scheduled backup — and plugging in a laptop with this cable to go online and investigate. Because MicroLogix PLCs have been installed in manufacturing, packaging, water treatment, and building automation systems for decades, the installed base is enormous, and this cable sees regular use wherever that hardware exists.

OEM machinery builders and panel shops also rely on the 1761-CBL-PM02 during the commissioning phase of new MicroLogix-based machines, programming the controller on the bench before shipment. In water and wastewater facilities, it is frequently used during retrofit and migration planning sessions where the existing MicroLogix program must be uploaded and documented before new hardware is specified. Educational labs and training facilities running MicroLogix PLCs keep at least one of these cables available at each workstation.

For DF1 master-slave networks and DH-485 serial networks, this cable serves as the access point: a technician connects through the MicroLogix's Mini-DIN port to reach the controller directly, or — in a DH-485 topology — to browse the network nodes through RSLinx. Legacy MicroLogix installations supporting modem-based remote access also use this serial connection path.

Application Typical Deployment
OEM machine commissioning Bench programming of MicroLogix before factory acceptance; cable used at the programming port during build and test
Plant maintenance and fault diagnostics Technician connects laptop to installed MicroLogix in panel to go online and monitor PLC status during a fault
Program backup and documentation Controls engineer uploads ladder logic from legacy MicroLogix prior to retrofit or migration planning
Water and wastewater legacy systems Remote site visit where MicroLogix controls a pump or treatment process; cable used for periodic maintenance downloads
Training and lab environments Instructor workstations with MicroLogix demonstration hardware; cable provides reliable repeated connect/disconnect cycles
DH-485 serial network access Technician uses Mini-DIN port on one MicroLogix node as the entry point to browse or program multiple network nodes via RSLinx DH-485 driver

Core Specifications, Variant Comparison, and What the Specs Mean for Your Order

The specifications table below covers only the data points that matter at the purchase decision stage. Inventions are not included — every figure here is drawn directly from distributor datasheets and Rockwell Automation's official product documentation.

Specification Value
Manufacturer Allen-Bradley (Rockwell Automation)
Catalog Number 1761-CBL-PM02
Product Type MicroLogix to PC programming and communication cable
Cable Length Approx. 2 m (approximately 6.5 ft)
Interface / Protocol RS-232; supports DF1 and DH-485 usage
PLC Connector 8-pin round Mini-DIN (controller side)
PC Connector PC serial connector (DB9 side)
Typical PLC Compatibility MicroLogix 1000 and other MicroLogix models with round Mini-DIN serial port
Power Requirement None — passive signal cable only
Environmental / Application Control panels and industrial environments; verify cable Series for hazardous area suitability

Full technical specifications are available on the product page at LeadTime.ca.

The comparison table below positions the 1761-CBL-PM02 against the connectivity options engineers most commonly evaluate alongside it. The right column is the deciding factor for most buyers.

Option Interface PLC Side Connector Best For Key Limitation
Allen-Bradley 1761-CBL-PM02 (genuine) RS-232 / DB9 8-pin round Mini-DIN Genuine Rockwell cable; critical installations; full documentation and support Requires DB9 port or USB-to-serial adapter on PC; approx. 2 m fixed length
Third-party 1761-CBL-PM02 equivalent RS-232 / DB9 8-pin round Mini-DIN Cost-sensitive one-off connections where downtime risk is low Variable component quality; no Rockwell support; intermittent connection risk reported
USB-integrated MicroLogix programming cable USB (presents virtual COM) 8-pin round Mini-DIN Laptops with no native DB9 serial port; cleaner single-cable setup Requires USB driver installation; not a genuine Allen-Bradley catalog item
1747-UIC (DH-485/USB interface) USB to DH-485 network RJ12 DH-485 connector SLC 500 and MicroLogix DH-485 network access from USB; multi-node browsing Different port type — does not connect to Mini-DIN programming port; not a direct 1761-CBL-PM02 substitute
1747-CP3 (SLC 500 cable) RS-232 9-pin D-sub (SLC 5/0x) SLC 500 family programming port Wrong connector for MicroLogix Mini-DIN — will not physically connect

If your MicroLogix installation has moved to Ethernet/IP or USB-based programming and no Mini-DIN serial port is in scope, the 1761-CBL-PM02 does not apply to your project — check the product page at LeadTime.ca or contact us to confirm the right solution for your specific controller version.

Expert Verdict: Who Should Buy This Cable and Who Shouldn't

The Allen-Bradley 1761-CBL-PM02 is the right purchase for any maintenance team, controls engineer, or system integrator who regularly works with MicroLogix PLCs in the field. Plants carrying a significant MicroLogix installed base — discrete manufacturing, packaging lines, water treatment facilities — should have at least one of these cables available as standard tooling. The cable's value is not novelty; it is certainty. When you are standing in front of a faulted machine and you reach for your programming cable, you want to know that the cable is aligned with Rockwell's own documentation, tested against the Mini-DIN port, and supported if something unexpectedly goes wrong. That is what the genuine 1761-CBL-PM02 delivers: a predictable, documented connection that eliminates the cable as a variable in any troubleshooting session.

The 1761-CBL-PM02 is not the right starting point if you are specifying a new greenfield project using modern Ethernet/IP or USB-based controllers where MicroLogix serial communication is not in scope. Equally, if you need a strictly one-off connection, are highly cost-sensitive, and are prepared to carefully vet the quality of a third-party cable, an equivalent from a reputable supplier may be acceptable — but understand that the community has reported intermittent connection failures with low-cost generics and that troubleshooting those failures costs more in time than the cable saves in cost. If you need a USB-native solution with no DB9 adapter in the chain, a USB-integrated MicroLogix cable or the 1747-UIC for DH-485 networks are the more appropriate choices.

From a procurement standpoint, the 1761-CBL-PM02 is widely listed as in stock or on short lead time by North American distributors, making it one of the more accessible genuine Rockwell accessories for legacy support. Pricing for genuine new units is in the low-to-mid three-digit CAD and USD range — contact for current pricing before committing to a build or maintenance budget. Buying through a specialist automation distributor matters here because they can verify the cable Series against your environmental requirements, confirm compatibility with your specific MicroLogix catalog number, advise on USB-to-serial adapter choices, and check real-time availability across both Canadian and North American channels. View current availability and pricing for the 1761-CBL-PM02 at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Report About the 1761-CBL-PM02 in the Field

Across communities including PLCTalk, PLCS.net, MrPLC, Reddit's r/PLC and r/automation, and Rockwell Automation user forums, the 1761-CBL-PM02 carries a consistent reputation as the standard, almost mandatory cable for anyone regularly servicing MicroLogix hardware. The recurring theme from working technicians is practical: MicroLogix is everywhere in the field, the Mini-DIN serial port is how you get into it, and this is the cable you use. Many contributors mention keeping one permanently in their tool bag rather than treating it as shared shop equipment — because the moment you need it and it is not there, you have a problem. That attitude speaks to how central this cable is to MicroLogix maintenance work.

The most frequently raised frustration is not with the cable itself but with the surrounding technology: modern laptops lack native DB9 serial ports, which means every user of this cable eventually has to deal with a USB-to-serial adapter. The community is generally accepting of this reality, but there is a strong recurring warning that adapter quality matters enormously. Low-cost adapters are disproportionately represented in connection failure reports, while users who invest in better-quality adapters report years of trouble-free operation. A second recurring complaint is the price of genuine Rockwell cables compared with third-party equivalents. The consensus, however, is that for critical production lines or regulated processes, the genuine cable is worth the premium — third-party cables with poor component quality have caused intermittent connection dropouts that wasted more diagnostic time than the cost difference justified.

A notable pattern in community discussions is that connection failures are far more likely to stem from RSLinx driver misconfiguration, wrong COM port selection, or adapter issues than from a physical fault in the cable. Experienced users consistently advise checking software settings first. One of the most practical pieces of field advice repeated across forums: once you get a reliable setup working — the right adapter, the right COM port, the right RSLinx driver settings — label the cable, store it properly, and treat it as a dedicated tool. The combination of a genuine 1761-CBL-PM02 and a verified USB-to-serial adapter, once confirmed working, is typically stable for many years of regular use.

Connection and Installation Overview

The following overview covers the key steps and requirements for getting the 1761-CBL-PM02 connected and operational. Engineers needing full wiring diagrams, pinout tables, or detailed step-by-step commissioning procedures should refer to the relevant Rockwell Automation MicroLogix hardware installation manual and RSLinx Classic user documentation.

  • Identify the MicroLogix controller's 8-pin round Mini-DIN serial port on the CPU faceplate — this is the correct port for the 1761-CBL-PM02; do not force the connector onto a port of a different shape or pin count
  • Connect the DB9 end to the PC's native serial port, or to a quality USB-to-serial adapter presenting a virtual COM port; confirm the COM port number assigned by the operating system before opening RSLinx
  • Align the Mini-DIN connector with the key on the MicroLogix port and seat it fully; the connector is keyed to prevent incorrect insertion, but inspect both sides for bent or damaged pins before connecting
  • In RSLinx Classic, add a DF1 driver (or DH-485 driver if the PLC's serial channel is configured for DH-485), select the correct COM port, and use the auto-configure function to detect baud rate and protocol settings; verify a green status in RSWho before proceeding to RSLogix 500
  • Route the cable away from high-voltage power conductors and avoid sharp bends, panel door pinch points, and areas of high vibration; provide strain relief at both connector ends if the cable will remain connected during panel operation

Wrong-Part Prevention: Six Checks Before You Order the 1761-CBL-PM02

The most expensive cable mistake is the one that arrives on site, does not fit, and adds days to a downtime event. Run through this checklist — drawn verbatim from field-verified ordering criteria — before placing your order:

  1. Confirm your controller is a MicroLogix model with the 8-pin round Mini-DIN programming port (not only Ethernet or 9-pin D-sub).
  2. Verify your application uses DF1 or DH-485 serial communications to a PC or modem; do not confuse with Ethernet or USB cables.
  3. Check that you are not actually needing a different Allen-Bradley cable (e.g., 1747-CP3 for SLC 5/0x, PanelView-specific cable, or DH-485 interface like 1747-UIC).
  4. Confirm the 2 m cable length is sufficient for your panel and maintenance workflow; plan for USB-to-serial adapters if the PC has no native DB9 port.
  5. If installed in or near hazardous locations, confirm the cable Series and rating meet your site's certification requirements.
  6. Validate that your Rockwell software (RSLinx, RSLogix 500 / Studio 5000 where applicable) is licensed and supports DF1 / DH-485 drivers.

If any of these checks raise a question you cannot answer from the controller nameplate or plant documentation, contact the LeadTime.ca team before ordering — confirming the right cable before shipment is faster and cheaper than returning the wrong one.

Frequently Asked Questions

Which MicroLogix models are compatible with the 1761-CBL-PM02?

The 1761-CBL-PM02 is compatible with MicroLogix controllers that have the 8-pin round Mini-DIN serial programming port, with the MicroLogix 1000 being the primary documented application per Rockwell Automation's official product descriptor. Other MicroLogix models sharing this port type — including variants of MicroLogix 1100, 1200, 1400, and 1500 families — are frequently referenced alongside this cable, but you must confirm against your specific controller's hardware manual and the current Rockwell compatibility documentation before ordering, as port configurations can vary by CPU series.

Do I need a USB-to-serial adapter to use the 1761-CBL-PM02 with a modern laptop?

Yes, if your laptop does not have a native DB9 RS-232 serial port — which is the case for virtually all modern business and field laptops. The 1761-CBL-PM02 terminates in a DB9 connector on the PC side, so a USB-to-serial adapter is required to bridge between a USB port and that DB9 connection. Adapter quality matters significantly: the community consistently reports that low-cost adapters are a frequent source of intermittent communication failures, while better-quality adapters produce stable, repeatable connections over many years.

What is the difference between the 1761-CBL-PM02 and the 1747-CP3 or 1747-UIC?

These are cables and interfaces for different controller families and port types. The 1761-CBL-PM02 connects to the MicroLogix Mini-DIN programming port via RS-232. The 1747-CP3 is an RS-232 programming cable for the SLC 500 family's 9-pin D-sub port — it will not physically connect to a MicroLogix Mini-DIN port. The 1747-UIC is a USB-to-DH-485 network interface with an RJ12 connector for SLC and MicroLogix DH-485 networks, not a direct programming port cable. Ordering the wrong catalog number from this group is one of the most common purchasing mistakes reported in the field.

Can I extend the 1761-CBL-PM02 beyond its approximately 2 m length?

The cable is a fixed-length RS-232 assembly of approximately 2 m (about 6.5 ft). RS-232 as a standard does have distance limitations, and adding extension cables or couplers increases the risk of signal degradation and intermittent communication — this is particularly relevant when the connection is already marginal due to adapter quality or noisy electrical environments. If the 2 m reach is insufficient for your panel layout, plan the connection path carefully and test communication reliability before commissioning; for longer distances, consider alternative communication architectures.

Is a generic RS-232 Mini-DIN cable a safe substitute for the genuine 1761-CBL-PM02?

A third-party cable that accurately replicates the 1761-CBL-PM02's wiring and uses quality components can work for non-critical or one-off connections, and some reputable suppliers offer equivalents. However, the community clearly documents that low-cost generics are a recurring source of intermittent connection failures that are time-consuming to diagnose. For regular maintenance on production equipment, regulated applications, or any situation where uptime is critical, the genuine Allen-Bradley 1761-CBL-PM02 removes cable quality as a variable and aligns with Rockwell's own documentation and support — the cost premium is generally recovered quickly when you avoid a single avoidable diagnostic call.

Is the 1761-CBL-PM02 still available new, or only as surplus?

Multiple North American distributors list the 1761-CBL-PM02 as a current stocked item or on short lead time for new units. While the MicroLogix platform represents legacy technology and Rockwell's lifecycle status for the broader MicroLogix family should be verified directly, the cable itself is widely available through specialist distributors. Availability can vary by distributor and supply conditions, so confirming real-time stock before committing to a project timeline is always advisable — pricing is available on the product page or by contacting your distributor directly.

Why Order the Allen-Bradley 1761-CBL-PM02 Through LeadTime.ca

  • Global shipping on genuine Allen-Bradley accessories including legacy MicroLogix cables and communication hardware
  • Specialist team that can confirm cable compatibility against your specific MicroLogix CPU model and Series before the order ships
  • Real-time stock and lead time checks across North American channels so you are not surprised by availability gaps
  • Volume pricing available for maintenance departments and OEMs ordering multiple cables — contact for current pricing
  • Hard-to-find and legacy Rockwell parts sourced for industrial teams worldwide, not just a single region

At-a-Glance Summary: Allen-Bradley 1761-CBL-PM02

  • Catalog number: 1761-CBL-PM02 — genuine Allen-Bradley (Rockwell Automation) MicroLogix programming and communication cable
  • Official descriptor: Cable: MicroLogix 1000 To Personal Computer
  • Cable length: approximately 2 m (about 6.5 ft); fixed length, passive signal cable — no external power required
  • Interface: RS-232; supports DF1 point-to-point and DH-485 serial communication depending on PLC and RSLinx driver configuration
  • Connectors: PC serial DB9 connector on one end; 8-pin round Mini-DIN on the MicroLogix controller end
  • Compatible with MicroLogix controllers using the round Mini-DIN serial programming port — verify against your specific controller model and series
  • Not interchangeable with 1747-CP3 (SLC 500), 1747-UIC (DH-485/USB interface), or PanelView-specific cables — port types differ
  • Widely listed as in-stock or short lead time by North American distributors; pricing available on the product page
  • Modern laptops without native DB9 ports require a quality USB-to-serial adapter — adapter quality directly affects communication reliability
  • For hazardous locations, verify the cable Series and certification rating against your site requirements before ordering
