Allen-Bradley 1761-CBL-PM02 — MicroLogix Cable Buyer Review

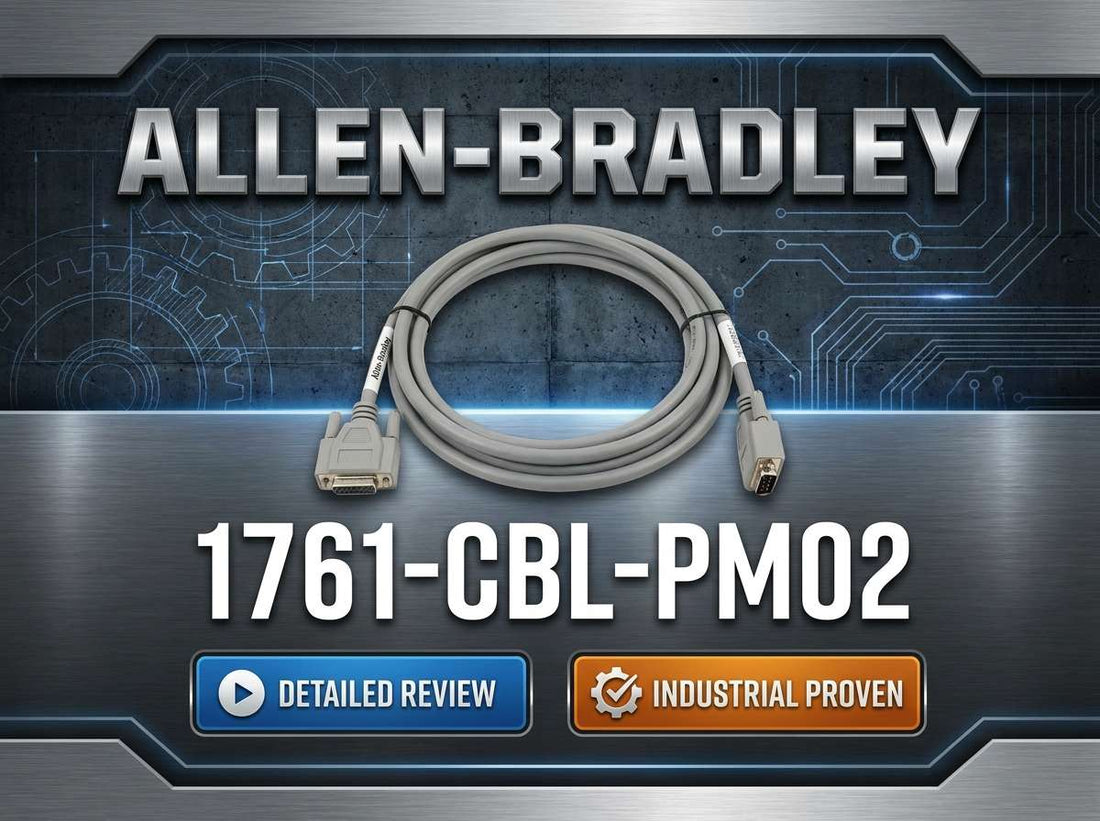

Allen-Bradley 1761-CBL-PM02 MicroLogix Cable, MicroLogix 1000 to Personal Computer — Specs, Compatibility, and Buying Guide
Controls engineers and maintenance technicians searching for the Allen-Bradley 1761-CBL-PM02 MicroLogix programming cable are typically at a decisive moment: a MicroLogix controller needs to be accessed from a PC, and the right cable has to arrive before a planned shutdown or an unplanned fault stretches into costly downtime. The 1761-CBL-PM02 is a genuine Allen-Bradley RS-232 serial cable, approximately 2 meters (about 6.5 feet) in length, terminating in an 8-pin round mini-DIN connector on the MicroLogix Channel 0 side and a DB9 female connector on the PC side — the dedicated physical link for programming, monitoring, and troubleshooting MicroLogix controllers via RSLinx Classic and RSLogix 500.
If you have already confirmed this is the correct part for your system, check current pricing and availability for the 1761-CBL-PM02 at LeadTime.ca — ships worldwide.
Who Should Buy the 1761-CBL-PM02 — and Who Shouldn't
This cable is the right choice for engineers and technicians who need a proven, documented communication link to a MicroLogix controller with an 8-pin round serial Channel 0 port.
- Your PLC is a MicroLogix model with an 8-pin round serial (mini-DIN) Channel 0 port — not a Micro800, CompactLogix, or other family that uses USB or Ethernet natively.
- You need a PC-to-PLC programming cable specifically, not an HMI-to-controller or network cable.
- A 2-meter cable length is adequate for your panel layout and laptop working distance.
- Your PC has a native DB9 RS-232 serial port, or you have a high-quality USB-to-serial adapter ready to use.
- You require a genuine Allen-Bradley part backed by Rockwell Automation documentation and distributor support — particularly for production environments where cable reliability is non-negotiable.
If you need more reach than 2 meters, the 1761-CBL-PM05 (approximately 5 meters) is the correct variant. If your MicroLogix needs to connect to a PanelView or HMI rather than a PC, the 1761-CBL-HM02 is the appropriate cable — not this one.
On this page:
- Who Should Buy the 1761-CBL-PM02 — and Who Shouldn't
- What the 1761-CBL-PM02 Actually Does in a MicroLogix System
- Where This Cable Sits in a Typical MicroLogix Architecture
- Typical Applications: Where the 1761-CBL-PM02 Gets Used Every Day
- Key Specifications and Compatible MicroLogix Controllers
- 1761-CBL-PM02 vs. Related Cables: Which One Do You Actually Need?
- Expert Verdict: Is the 1761-CBL-PM02 Still Worth Buying in 2024?
- What Engineers Are Saying About the 1761-CBL-PM02
- Physical Connection and Installation Overview
- Wrong-Part Prevention: Verify Before You Order
- Frequently Asked Questions
- Why Order the 1761-CBL-PM02 Through LeadTime.ca
- At-a-Glance Summary
What the 1761-CBL-PM02 Actually Does in a MicroLogix System
Rockwell Automation lists the 1761-CBL-PM02 officially as a "MicroLogix Cable — MicroLogix 1000 to Personal Computer," and that description is exact. This cable provides the physical RS-232 serial communication path between a MicroLogix controller's Channel 0 port and a PC running RSLinx Classic or RSLogix 500. It does not convert protocols, generate any communications on its own, or handle power. The DF1 point-to-point protocol configuration is handled entirely in RSLinx and the PLC firmware — the cable simply carries the signal.
It is equally important to understand what the 1761-CBL-PM02 does not do. It is not a power cable, not a field I/O cable, and not a network drop. It provides no surge suppression or overcurrent protection — those functions belong to the system design and panel protection hardware. If your application requires permanent HMI connectivity, a PanelView link cable, or Ethernet-based remote access to MicroLogix, this cable is not the right component. The 1761-CBL-PM02 is specifically and exclusively a temporary or semi-permanent PC programming and diagnostics cable.
Where This Cable Sits in a Typical MicroLogix Architecture
The 1761-CBL-PM02 connects directly between the engineer's laptop and the MicroLogix Channel 0 serial port, sitting at the diagnostic and configuration layer of the control system — not in the live I/O signal path.
- Engineering laptop running RSLinx Classic and RSLogix 500 (with native DB9 serial port or USB-to-serial adapter)
- 1761-CBL-PM02 DB9 female connector plugged into the PC serial port
- 1761-CBL-PM02 8-pin mini-DIN connector mated to the MicroLogix Channel 0 round serial port
- MicroLogix controller (e.g., MicroLogix 1000 or other model with the 8-pin round serial port) receiving program uploads, downloads, or live monitoring commands
- MicroLogix I/O modules and field devices continuing to run independently while the programmer is connected
Typical Applications: Where the 1761-CBL-PM02 Gets Used Every Day
OEM machine builders rely on the 1761-CBL-PM02 during bench programming of new MicroLogix units and at site commissioning, where a laptop needs to download the final program and verify I/O states before handover.
Plant maintenance teams in discrete manufacturing, food and beverage, and packaging facilities keep a 1761-CBL-PM02 in their toolkit specifically for uploading program backups or pushing modifications to legacy MicroLogix-based machines during planned shutdowns.
In water and wastewater utilities, where MicroLogix controllers continue to serve in remote pump stations and lift stations, maintenance electricians use this cable for firmware verification and troubleshooting during periodic site visits.
Educational and training environments teaching PLC programming with MicroLogix hardware depend on this cable as the standard student-to-PLC connection, making correct identification of the catalog number a routine administrative task for lab coordinators.
| Application | Typical Deployment |
|---|---|
| OEM machine commissioning | Bench programming and final site download to MicroLogix 1000 via laptop |
| Plant maintenance shutdown | Program backup upload and logic modification during scheduled downtime |
| Fault troubleshooting | Online monitoring of I/O status and ladder logic in RSLogix 500 during live diagnostics |
| Water/wastewater utility maintenance | Periodic firmware and logic verification at remote pump stations |
| PLC training labs | Standard student-to-controller programming cable for MicroLogix coursework |
Key Specifications and Compatible MicroLogix Controllers
| Parameter | Value |
|---|---|
| Brand | Allen-Bradley (Rockwell Automation) |
| Catalog Number | 1761-CBL-PM02 |
| Official Description | MicroLogix Cable, MicroLogix 1000 to Personal Computer |
| Cable Length | 2 m (approx. 6.5 ft) — fixed length |
| Interface Type | RS-232 serial |
| PLC Side Connector | 8-pin round mini-DIN (MicroLogix Channel 0 serial port) |
| PC Side Connector | DB9 female serial |
| Primary Software | RSLinx Classic, RSLogix 500 |
| Protocol | DF1 point-to-point (configured in software and PLC, not by cable) |
| Typical Operating Environment | Industrial control panels — consult official Rockwell datasheet for exact ratings |
Full technical specifications are available on the product page at LeadTime.ca.
The 1761-CBL-PM02 is documented for MicroLogix 1000 controllers and is commonly used with other MicroLogix family members that share the 8-pin round serial Channel 0 port configuration — including the MicroLogix 1100, 1200, 1400, and 1500 where that port type is present. Always verify your specific controller's port configuration against Rockwell documentation before ordering. For environmental ratings, temperature range, and any hazardous location approvals by series, consult the official Rockwell Automation product documentation directly.
1761-CBL-PM02 vs. Related Cables: Which One Do You Actually Need?
| Catalog Number | Description | When to Use | Key Consideration |
|---|---|---|---|
| 1761-CBL-PM02 | MicroLogix to PC serial cable, 2 m | PC programming and diagnostics within 2 m reach | Genuine Allen-Bradley; RS-232 DB9 to 8-pin mini-DIN |
| 1761-CBL-PM05 | MicroLogix to PC serial cable, approx. 5 m | Need greater distance between laptop and controller | Same function as PM02 but longer — confirm length from Rockwell literature |
| 1761-CBL-HM02 | MicroLogix to HMI/PanelView cable | Connecting MicroLogix to a PanelView or other HMI, not a PC | Do not substitute for PC programming — different purpose and pinout |
| USB-1761-CBL-PM02 (third-party) | USB-integrated equivalent from third-party vendors | Laptops with no native serial port; cost-sensitive applications | Not Rockwell-made; driver support and pinout reliability vary by vendor |
| Other PLC family cables | Cables for SLC, Micro800, CompactLogix, etc. | When the controller is not a MicroLogix or uses a different connector type | 1761-CBL-PM02 is not compatible with non-MicroLogix families |
If your panel layout requires more reach than 2 meters, the 1761-CBL-PM05 is the correct choice rather than daisy-chaining extension cables — check current availability and related variants at LeadTime.ca.
Expert Verdict: Is the 1761-CBL-PM02 Still Worth Buying in 2024?
The 1761-CBL-PM02 remains the reference-standard cable for any controls engineer or maintenance team actively working with MicroLogix controllers that use the 8-pin round serial Channel 0 port. Its value is not in novel technology — RS-232 serial communication is a mature standard — but in guaranteed pinout fidelity, documented compatibility with MicroLogix 1000 hardware, and the straightforward fact that Rockwell Automation stands behind it. For production environments where a programming connection failure during a shutdown translates directly into extended downtime, eliminating the compatibility variable is worth the premium over third-party alternatives. The community-documented pattern of the genuine cable simply working when RSLinx is correctly configured reflects this reliability advantage accurately.
That said, honesty demands acknowledging the real limits. The fixed 2-meter length is a practical constraint in larger panels or when a laptop must be operated from across a machine enclosure — the 1761-CBL-PM05 addresses that scenario. Teams whose MicroLogix fleet has been fully migrated to Ethernet-capable models or who have already moved to Micro800 or CompactLogix platforms have little reason to invest here; those platforms use different communication hardware entirely. Budget-constrained buyers in training environments or low-criticality applications often find that a high-quality third-party USB-integrated cable with a proven chipset performs adequately — the risk simply needs to be accepted knowingly, not discovered during a fault call.
From a procurement standpoint, the 1761-CBL-PM02 is the kind of low-cost, high-consequence accessory that is frequently overlooked until a maintenance window is already open. Stocking at least one genuine cable per MicroLogix site or machine type is a defensible inventory decision. For teams ordering globally or managing multi-site MicroLogix fleets, working through a specialist distributor who can verify the catalog number, confirm the correct variant against your controller model, and advise on current lead times is meaningfully lower risk than ordering through a generic channel. View current pricing and stock status for the 1761-CBL-PM02 at LeadTime.ca — ships worldwide.
For volume pricing on multiple cables or to confirm lead time before committing to a maintenance schedule, contact the LeadTime.ca team directly — we ship worldwide.
What Engineers Are Saying About the 1761-CBL-PM02
Across PLC communities including PLCTalk, PLCS.net, MrPLC, and Reddit forums dedicated to industrial automation, the 1761-CBL-PM02 carries a notably consistent reputation: when the hardware is genuine, the PC has a working serial connection, and RSLinx is configured correctly, this cable simply works. Experienced technicians describe years of field use from a single cable across multiple plants, and the durability in industrial environments draws consistent positive feedback. The framing that appears most often is that using the genuine Allen-Bradley cable removes the variable of connector compatibility and pinout uncertainty — a meaningful advantage when a technician arrives at a machine fault with no time to troubleshoot adapter compatibility issues.
The most common frustration expressed in community discussions is the price differential between the 1761-CBL-PM02 and third-party USB-integrated equivalents. Some technicians working in cost-sensitive environments or training labs report switching to well-regarded third-party cables and experiencing acceptable results, but the qualification is consistently added: chipset quality and driver stability matter enormously, and cheap USB-to-serial adapters have generated a significant share of the communication failure stories attributed to this cable. The community-documented pattern is clear — a low-quality USB adapter paired with a genuine 1761-CBL-PM02 produces the same intermittent errors as a low-quality clone cable, and many reported communication failures trace back to the adapter, not the cable or the PLC.
The ordering mistake that appears most frequently in forum discussions and distributor Q&A sections is the confusion between 1761-CBL-PM02 and 1761-CBL-HM02. The letter differences are subtle, the part numbers look nearly identical at a glance, and buyers who receive the HMI cable instead of the PC programming cable typically do not discover the error until they are standing in front of the machine. A second recurring mistake involves buyers assuming any DB9-to-mini-DIN serial cable will work and ordering non-Allen-Bradley cables with incompatible pinouts. Both mistakes are entirely preventable by reading the full catalog number and verifying that the cable description explicitly states connection to a personal computer.
Physical Connection and Installation Overview
- Identify and access the 8-pin round Channel 0 serial port on the MicroLogix controller; confirm the keying orientation before inserting the mini-DIN connector — do not force the connection.
- Connect the DB9 female end to your PC's native RS-232 serial port, or to a tested, industrial-grade USB-to-serial adapter; confirm the adapter's COM port number in Windows Device Manager before opening RSLinx.
- Route the cable clear of high-voltage conductors and moving parts inside the panel; apply appropriate strain relief at both ends to prevent connector damage during repeated connections and disconnections.
- In RSLinx Classic, configure an RS-232 DF1 Devices driver, select the correct COM port, set device type to match your MicroLogix model, and use Auto-Configure to detect baud rate and parity settings.
- Verify the MicroLogix appears under RSWho in RSLinx before opening RSLogix 500 — always observe applicable site permits and lockout/tagout procedures before beginning any programming work on a live machine.
Wrong-Part Prevention: Verify Before You Order
The similarity between 1761-series cable catalog numbers causes ordering errors more often than almost any other issue reported by buyers of this product. Verify every point on this checklist before placing your order:
- Confirm the PLC is a MicroLogix model with an 8-pin round serial (mini-DIN) Channel 0 port, not Micro800 or other families with USB/Ethernet only.
- Verify you need a PC-to-MicroLogix programming cable, not a MicroLogix-to-PanelView or network cable (similar part numbers exist).
- Check that 2 m cable length is adequate for your panel layout and laptop location; if not, consider a longer variant or relocation of connection points.
- Confirm your PC has a native DB9 serial port, or you have a high-quality, supported USB-to-serial adapter.
- Verify the catalog number and series (1761-CBL-PM02, correct dashes and letters) before ordering to avoid mix-ups with 1761-CBL-HM02 or other similar cables.
- If your site requires hazardous location approvals, verify the series and ratings in the official Rockwell documentation before deployment.
If you have worked through this checklist and confirmed the 1761-CBL-PM02 is the correct part, view current stock and pricing at LeadTime.ca — or contact us if you need help verifying compatibility before ordering.
Frequently Asked Questions
Will the 1761-CBL-PM02 work with MicroLogix models other than the 1000 — including the 1100, 1200, 1400, and 1500?
The 1761-CBL-PM02 is officially documented as a MicroLogix 1000 to Personal Computer cable, and it is commonly used with other MicroLogix family members that share the 8-pin round serial Channel 0 port. Whether a specific model is explicitly documented as compatible should be verified against Rockwell Automation's official product literature for that controller, as port configurations vary across MicroLogix variants and series revisions.
Can I use this cable reliably with a USB-to-serial adapter on a laptop that has no native DB9 port?
Yes, but adapter selection is critical. Community experience strongly indicates that cheap USB-to-serial adapters with low-quality chipsets produce intermittent or failed DF1 communications that are commonly misdiagnosed as cable or PLC faults. Industrial-grade adapters with well-supported chipsets, fixed COM port assignments, and up-to-date drivers consistently outperform budget alternatives in Rockwell software environments. Testing the adapter with a known-good serial device before relying on it during a maintenance window is good practice.
What is the practical difference between the 1761-CBL-PM02 and the 1761-CBL-HM02 — can I substitute one for the other?
No. The 1761-CBL-PM02 is a PC programming cable — its DB9 end connects to a computer serial port for use with RSLinx Classic and RSLogix 500. The 1761-CBL-HM02 is intended for connecting a MicroLogix controller to a PanelView or compatible HMI, not to a PC. The connectors may appear similar and the part numbers differ by only two letters, which is precisely why ordering mistakes happen — always read the full catalog number and description before purchasing.
What causes RSLinx to fail to communicate through the 1761-CBL-PM02, and how do I resolve it?
The most common causes are an incorrect COM port selected in the RSLinx DF1 driver configuration, a USB-to-serial adapter that has changed COM port assignment after a Windows update, or a conflicting application holding the COM port open. Re-running Auto-Configure in RSLinx after confirming the COM port in Windows Device Manager resolves the majority of these issues. If communication still fails after correct driver configuration, substituting a known-good cable or testing from a different PC helps isolate whether the fault is in the cable, adapter, PLC Channel 0, or software configuration.
Is the 1761-CBL-PM02 the correct cable for connecting a MicroLogix controller to a PanelView HMI for runtime communications?
No. The 1761-CBL-PM02 is specifically for PC-to-MicroLogix programming and monitoring connections. Runtime HMI communication between a MicroLogix and a PanelView terminal requires a different cable — typically the 1761-CBL-HM02 or another cable appropriate to the HMI port and communication configuration. Using the wrong cable type will result in a physical mismatch or communication failure.
Why Order the 1761-CBL-PM02 Through LeadTime.ca
- Ships worldwide — LeadTime.ca supplies controls engineers and procurement teams across North America and internationally, not limited to any single region.
- Specialist verification — our team can cross-check your MicroLogix model against the correct cable variant and flag ordering errors before shipment, not after.
- Hard-to-source parts — when standard channels show extended lead times, LeadTime.ca works to locate stock for legacy Allen-Bradley accessories that are difficult to find quickly.
- Volume pricing available — contact us directly for multi-unit pricing on cable orders for MRO stock or fleet-wide MicroLogix maintenance programs.
- Fast response — distributor-level response times for quote requests, stock confirmation, and technical questions before you commit to a maintenance window.
- View the 1761-CBL-PM02 product page at LeadTime.ca
- Contact LeadTime.ca for a quote or compatibility verification
At-a-Glance Summary
- Catalog number: 1761-CBL-PM02 — verify exact dashes and letters; do not confuse with 1761-CBL-HM02 (HMI cable) or 1761-CBL-PM05 (5 m version).
- Official designation: MicroLogix Cable, MicroLogix 1000 to Personal Computer — the only Allen-Bradley cable described specifically for PC programming of MicroLogix controllers with the 8-pin round serial port.
- Fixed cable length of 2 meters (approx. 6.5 feet) — if more reach is required, the 1761-CBL-PM05 is the correct variant.
- RS-232 serial interface: 8-pin round mini-DIN on the MicroLogix Channel 0 side, DB9 female on the PC side — requires a native serial port or a high-quality USB-to-serial adapter.
- Primary software: RSLinx Classic with RS-232 DF1 Devices driver and RSLogix 500 — protocol configuration is handled in software, not by the cable.
- Genuine Allen-Bradley part backed by Rockwell Automation documentation — removes pinout and compatibility uncertainty versus third-party clones.
- Most common ordering mistake: receiving 1761-CBL-HM02 or a different 1761-series cable due to similar part numbers — always verify the full catalog number before purchasing.
- Not compatible with Micro800, CompactLogix, SLC, or any PLC family using USB or Ethernet-only programming ports.
