Allen-Bradley 1756-IF16 — ControlLogix Analog Input Buyer Review

By Abdullah Zahid
14 min read

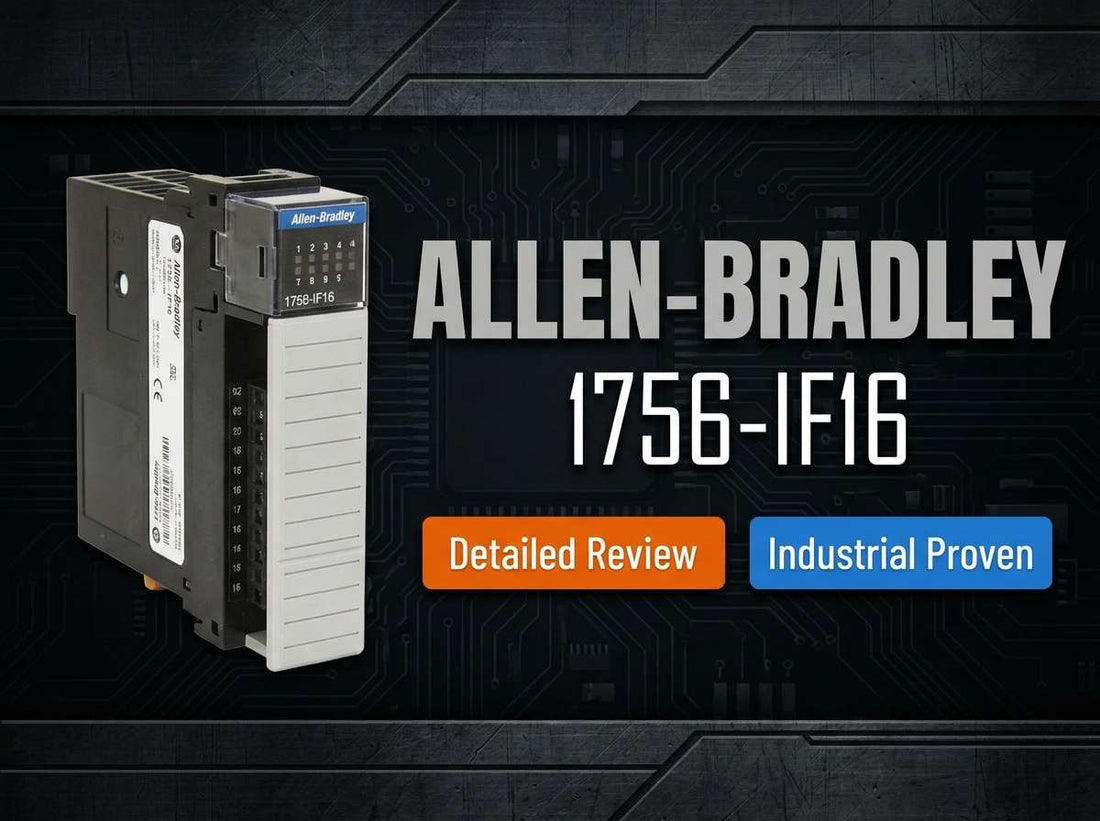

Allen-Bradley 1756-IF16 ControlLogix 16-point analog input module for 4-20mA and voltage process signals

Allen-Bradley 1756-IF16 ControlLogix 16 Point A/I (Analog Input) Module — Specs, Pricing and Alternatives

Controls engineers specifying analog I/O for a ControlLogix system typically arrive at the Allen-Bradley 1756-IF16 after narrowing down channel density, signal type, and platform fit. This is the ControlLogix 16 Point A/I (Analog Input) Module — a non-isolated, high-density module supporting up to 16 single-ended or 8 differential channels across common voltage and current ranges including 0–10.25 V, ±10.25 V, 0–5.125 V, and 0–20.5 mA. If your chassis, signal types, and wiring environment line up, this module is a straightforward add to the BOM.

If you have already confirmed this is the right part, check current pricing and availability for the 1756-IF16 at LeadTime.ca — we ship worldwide.

Who Should Buy the 1756-IF16 — and Who Shouldn't

The Allen-Bradley 1756-IF16 is the right choice for engineers and procurement teams running a 1756 ControlLogix chassis who need flexible, high-density analog input coverage for standard process and machine signals. Confirm all of the following before ordering:

  • Your control platform is ControlLogix using a 1756 chassis — not CompactLogix, Flex I/O, or any other Rockwell family.
  • Your required signal ranges (0–10 V, ±10 V, 0–5 V, 0/4–20 mA) are all covered by the 1756-IF16's supported inputs.
  • Your channel count fits within 16 single-ended, 8 differential, or 4 high-speed differential inputs in a single slot.
  • Your installation environment operates within 0…60 °C and does not require channel-to-channel isolation or intrinsic safety.
  • You have identified and budgeted for the correct Removable Terminal Block — either the 1756-TBCH (36-pin cage-clamp) or 1756-TBS6H (spring-clamp) — which is ordered separately.
  • Required agency approvals (UL, CSA, CE, Marine, KC, RCM, NRTL) match your site and project specification.

If your application requires channel-to-channel isolation, HART diagnostics, safety-rated I/O, or fewer than 16 channels at lower cost, a different ControlLogix analog input variant is the better fit — reviewed in detail below.

On this page:

What the 1756-IF16 Actually Does in a ControlLogix System

The Allen-Bradley 1756-IF16 occupies a single slot in a 1756 ControlLogix chassis and converts field analog signals — voltage outputs from sensors and transmitters, or 4–20 mA current loops — into digital values that the Logix controller reads and acts on. It is classified as a non-isolated, open-style module, meaning all channels share a common reference on the input side, and the module itself must be housed in a suitable control panel enclosure.

The module supports three distinct wiring configurations selectable per channel group in software: single-ended mode (up to 16 inputs), differential mode (up to 8 inputs), and high-speed differential mode (up to 4 inputs). Resolution is 16-bit for unipolar ranges and 15-bit plus sign for bipolar ranges, using Sigma-Delta analog-to-digital conversion. Backplane power draw is approximately 150 mA at 5.1 V DC and 65 mA at 24 V DC, both of which must be verified against the chassis power budget when populating a rack.

Unlike a fieldbus or remote I/O drop, the 1756-IF16 communicates directly over the ControlLogix backplane to whichever Logix controller owns the chassis. Configuration, scaling, and fault management are all handled in Studio 5000 Logix Designer (formerly RSLogix 5000), making it a natural fit for plants already standardized on that software environment.

Typical System Architecture for the 1756-IF16

The 1756-IF16 sits between the field instrument layer and the Logix controller, digitizing analog signals at the backplane and making them immediately available to controller tags. A representative signal chain looks like this:

  • Field instruments (pressure transmitters, flow meters, temperature transmitters, VFD analog outputs) wired to the 1756-TBCH or 1756-TBS6H Removable Terminal Block.
  • RTB connected to the 1756-IF16 module seated in a 1756 ControlLogix chassis slot.
  • 1756-IF16 communicating digital process values over the ControlLogix backplane to the resident Logix controller (ControlLogix 5580, 5570, or compatible).
  • Logix controller using digitized analog values for PID control loops, process monitoring, alarming, and data logging in Studio 5000.
  • Optional: EtherNet/IP communication card in the same chassis forwarding data upstream to SCADA, historian, or DCS systems.

Typical Applications and Deployment Scenarios

The 1756-IF16 is most at home in process industries where 4–20 mA transmitters are the dominant signal type. Water and wastewater plants, chemical processing facilities, oil and gas skids, food and beverage lines, and power generation all routinely use ControlLogix as their standard PLC platform, and the 1756-IF16 provides the channel density needed to consolidate multiple analog loops without filling the chassis with low-density modules.

In general manufacturing and machine control, the module handles ±10 V or 0–10 V analog outputs from variable frequency drives, tension controllers, position encoders, and load cells. Its 16-channel capacity per slot makes it practical for mid-to-large panels where skid I/O consolidation is a design priority.

Modernization projects — replacing older ControlLogix analog input hardware while keeping existing field wiring intact — are another common use case. Because the 1756-IF16 supports both current and voltage ranges in the same module, engineers can accommodate a mixed instrument list without splitting signals across multiple module types.

Multi-loop analog data acquisition for PID control, process monitoring, and historian logging is a fourth core scenario. Sixteen channels of simultaneous Sigma-Delta conversion in one slot reduces rack space consumption and simplifies chassis power planning.

Application Typical Deployment
Water and wastewater treatment Reading 4–20 mA flow, level, and pressure transmitters into a ControlLogix PLC for process control and SCADA
Chemical and oil and gas skids Consolidating 16 transmitter loops per slot in a packaged skid panel; mixed current and voltage signals
Food and beverage processing Temperature and pressure monitoring for CIP, pasteurization, and filling lines using ControlLogix as standard platform
Variable frequency drive feedback Monitoring ±10 V or 0–10 V speed and torque feedback from VFDs into a ControlLogix motion or process controller
Analog I/O panel modernization Replacing legacy ControlLogix analog input modules while preserving existing 4–20 mA field wiring and RTB layouts
Multi-loop PID and historian systems High-density analog acquisition for simultaneous PID loops, alarming, and data logging in a single chassis slot

Purchase-Decision Specs and Variant Comparison

Parameter 1756-IF16 Value Notes
Catalog number 1756-IF16 ControlLogix 16 Point A/I (Analog Input) Module
Number of channels Up to 16 single-ended, 8 differential, or 4 high-speed differential Mode configured per channel group in Studio 5000
Supported input ranges 0–10.25 V, ±10.25 V, 0–5.125 V, 0–20.5 mA Covers 0–10 V, ±10 V, 0–5 V, and 0/4–20 mA loops
Resolution 16-bit (unipolar); 15-bit + sign (bipolar) Sigma-Delta A/D conversion
Isolation No channel-to-channel isolation in single-ended mode Isolation to backplane per Rockwell Automation specs; grounding critical
Backplane power draw Approx. 150 mA @ 5.1 V DC, 65 mA @ 24 V DC Verify chassis power budget before installing
Operating temperature 0…60 °C (32…140 °F) Standard ControlLogix I/O range
Certifications UL, CSA, CE, Marine, KC, RCM, NRTL Verify against current Rockwell Automation datasheet for project compliance
RTB options 1756-TBCH (36-pin cage-clamp) or 1756-TBS6H (spring-clamp) Ordered separately — must be included on BOM
Enclosure style Open-style, chassis-mounted (1756 slot) Requires installation in suitable industrial control panel

Full technical specifications are available on the product page at LeadTime.ca.

Understanding where the 1756-IF16 sits relative to the broader ControlLogix analog input lineup is important before committing to a BOM. The table below covers the most common comparison points engineers raise when evaluating this module.

Feature 1756-IF16 (Standard) Lower-Density Variant (e.g., 8-channel) Isolated or HART Variant Safety-Rated Analog Input
Channels per slot 16 SE / 8 DIFF / 4 HSDIFF Fewer channels, lower cost per module Typically fewer channels per slot Application-specific, reduced density
Channel-to-channel isolation No No (standard variants) Yes — per-channel or group isolation Yes, with SIL-rated circuitry
HART support No No (standard variants) Available on HART-capable variants Variant-dependent
Typical use case Mixed 4–20 mA and ±10 V, standard panels Smaller I/O requirements, cost-driven High-noise, long-run, or HART instrument loops SIL-rated or safety-critical loops
Cost relative to 1756-IF16 Baseline Lower Higher Significantly higher

If your signal environment requires channel-to-channel isolation, HART instrument diagnostics, or safety-rated I/O, the 1756-IF16 is not the correct selection — check available ControlLogix analog input options at LeadTime.ca or contact us to confirm the right variant for your application.

Expert Verdict on the Allen-Bradley 1756-IF16

The Allen-Bradley 1756-IF16 earns its place as the default analog input module in a large number of ControlLogix installations, and that status is well-deserved for a specific buyer profile. Controls and instrumentation teams running 1756 ControlLogix chassis who need to terminate mixed 4–20 mA and ±10 V signals in volume — process skids, water treatment panels, food and beverage lines, and similar applications — will find this module covers the common cases without unnecessary complexity. Sixteen single-ended channels in one slot, support for all the standard process ranges, 16-bit resolution via Sigma-Delta conversion, and native Studio 5000 integration mean that engineers can focus on application design rather than I/O hardware troubleshooting. The 0…60 °C operating range and broad certification list (UL, CSA, CE, Marine, KC, RCM, NRTL) make it suitable for most standard industrial panel installations worldwide.

The 1756-IF16 has real limits that should not be glossed over. It offers no channel-to-channel isolation in single-ended mode, which makes it poorly matched to high-noise environments, long cable runs where ground loops are a risk, or any application involving intrinsic safety barriers as the primary protection strategy. If your project includes HART-enabled field devices requiring diagnostic communication, you will need a HART-capable ControlLogix analog input variant instead. Projects with SIL-rated loop requirements or redundancy mandates are outside this module's scope entirely. For applications where channel density is not a priority and cost per channel matters more than flexibility, a lower-density variant in the ControlLogix analog input family may be the better commercial decision.

From a procurement standpoint, the 1756-IF16 benefits from Rockwell Automation's well-established distribution network, with Rockwell's own listing indicating a typical lead time of around 10 days — though real availability can vary by region, project volume, and market conditions. One consistent sourcing risk is the RTB: either the 1756-TBCH or 1756-TBS6H must be ordered separately, and missing it from the BOM delays commissioning more often than any other single oversight on this module. Ordering through a specialist distributor who actively verifies catalog numbers, RTB selection, chassis compatibility, and real-time stock before the purchase order is released removes the most common sources of delay and mismatch. View current pricing and availability for the 1756-IF16 at LeadTime.ca — we ship worldwide and can confirm fit against your chassis and firmware revision before you commit.

For volume pricing, lead time confirmation on project quantities, or assistance selecting the correct RTB and variant, contact the LeadTime.ca team directly — we ship worldwide and respond fast to quote requests.

What Engineers Need to Know Before Ordering the 1756-IF16

Because model-specific community discussion for the Allen-Bradley 1756-IF16 is sparse across the forums and communities where ControlLogix users congregate — including r/PLC, r/automation, PLCTalk, PLCS.net, MrPLC, and Rockwell's own support community — the most useful pre-order guidance comes from recurring patterns in how engineers get this class of module wrong, rather than from specific reported defects. The absence of prominent complaint threads is consistent with the 1756-IF16 being treated as standard, accepted hardware when installed and configured correctly. The issues that do surface in ControlLogix analog I/O discussions are almost always about wiring choices, grounding practices, and catalog number mix-ups — not module failures.

The single most common ordering error for ControlLogix analog input modules is failing to add the matching RTB to the purchase order. The 1756-TBCH (36-pin cage-clamp) and 1756-TBS6H (spring-clamp) are both ordered separately from the module itself, and neither is included by default. Engineers who have been through a commissioning delay caused by a missing RTB universally add it to the wrong-part checklist after the fact. Related to this, confusion between the 1756-IF16 and visually or numerically similar catalog numbers — particularly isolated and HART-capable variants — has caused project teams to receive and partially install the wrong module before catching the mismatch. Verifying the exact catalog number 1756-IF16 against the project specification and against what is actually quoted is a step worth doing twice.

On the configuration side, the most consequential pre-commissioning decision is wiring mode: single-ended, differential, or high-speed differential. Single-ended mode gives the maximum 16-channel density but shares a common reference across channels, which creates noise and crosstalk risk in environments with poor grounding, long cable runs, or high-power equipment nearby. Differential wiring reduces the channel count to 8 but significantly improves common-mode noise rejection. Engineers specifying the module in a mixed environment — some short runs in a clean panel, some longer runs to field instruments — benefit from making this decision channel-by-channel during the I/O design phase rather than defaulting to single-ended for all channels and troubleshooting noise issues during commissioning. LeadTime.ca's team can assist in confirming the right variant and configuration approach before you place the order.

Wiring and Installation Overview

The following points cover the key requirements for physically installing and wiring the 1756-IF16. Engineers requiring full wiring diagrams, terminal assignments, and detailed procedures should refer to the Rockwell Automation installation instructions and user manual for the 1756-IF16.

  • The 1756-IF16 requires a separately ordered RTB — either the 1756-TBCH (36-pin cage-clamp) or 1756-TBS6H (spring-clamp) — before any field wiring can be terminated; confirm the RTB is on the BOM before the panel build begins.
  • Wire each channel according to the configured mode: single-ended wiring connects the signal and common reference per Rockwell terminal assignments; differential wiring connects positive and negative signal lines to the designated differential pair terminals.
  • Maintain correct polarity on all current loop connections (0/4–20 mA); reverse polarity will produce underrange faults and incorrect readings from day one.
  • Terminate cable shields at one end only per Rockwell Automation grounding guidelines; run analog signal cables separated from high-voltage power and switching wiring to minimize induced noise.
  • After seating the module in the 1756 chassis slot and re-energizing, verify that module status LEDs indicate normal operation and that no overrange, underrange, or configuration fault bits are active before performing loop checks.

Wrong-Part Prevention Checklist

Before releasing a purchase order for the Allen-Bradley 1756-IF16, work through each item on this checklist. These checks reflect the most common sources of ordering errors and commissioning delays on this module:

  1. Confirm the control platform is ControlLogix (1756 chassis), not CompactLogix or Flex I/O.
  2. Verify catalog number is 1756-IF16 (standard analog input) and not a high-speed, isolated, or HART variant.
  3. Check that required ranges (±10 V, 0–10 V, 0–5 V, 0/4–20 mA) are supported for all planned instruments.
  4. Confirm wiring style (single-ended vs differential vs high-speed differential) matches application and noise environment.
  5. Ensure the correct Removable Terminal Block (RTB) is ordered (1756-TBCH or 1756-TBS6H) and that the panel layout has space for the 36-pin RTB.
  6. Verify operating temperature (0…60 °C) and required agency approvals (UL, CSA, CE, marine) match the site and project specification.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — catching a catalog number mismatch before shipment is significantly faster than an exchange after the fact.

Frequently Asked Questions

Can I mix voltage and current inputs on the same 1756-IF16, and are there any constraints?

Yes — the 1756-IF16 supports both voltage (0–10.25 V, ±10.25 V, 0–5.125 V) and current (0–20.5 mA) input ranges, covering standard 0–10 V, ±10 V, 0–5 V, and 0/4–20 mA loops. Input type and range are configured per channel in Studio 5000, so a single module can serve mixed instrument lists. Verify that each channel's configured range matches the physical signal type wired to it — a current signal configured as voltage (or vice versa) will produce incorrect readings or faults without generating an obvious hardware alarm.

What RTB do I need for the 1756-IF16, and does it come included?

The RTB is ordered separately — it is not included with the 1756-IF16 module. The two compatible options are the 1756-TBCH (36-pin cage-clamp terminal block) and the 1756-TBS6H (36-pin spring-clamp terminal block). Both use a 36-pin connection and must be explicitly added to the BOM. Forgetting the RTB is one of the most frequently reported commissioning delays on ControlLogix analog I/O modules.

When should I use differential wiring instead of single-ended on the 1756-IF16?

Single-ended mode provides up to 16 channels but shares a common reference, making it more susceptible to noise and ground loop interference. Differential mode reduces channel count to 8 but rejects common-mode noise on each channel individually, making it the better choice for longer cable runs, environments with heavy switching equipment nearby, or any application where signal quality cannot be guaranteed by panel grounding alone. The wiring mode is selected per channel group in Studio 5000 and must match the physical wiring at the RTB.

Does the 1756-IF16 support HART communication or provide channel-to-channel isolation?

No — the standard 1756-IF16 does not support HART communication and does not provide channel-to-channel isolation in single-ended mode. If either feature is required by the project specification, a different ControlLogix analog input variant with HART capability or per-channel isolation must be selected. Attempting to use the 1756-IF16 in an application requiring intrinsic safety or SIL-rated I/O is outside this module's specification.

What is the typical lead time for the 1756-IF16 and how do I confirm real-time availability?

Rockwell Automation's product listing indicates a typical lead time of around 10 days, and the module is generally stocked by major North American distributors. However, lead times for project quantities, specific firmware revisions, or during periods of supply constraint can vary. The most reliable way to confirm real-time stock and lead time is to contact a specialist distributor directly. Contact LeadTime.ca for current availability before committing to a project schedule.

Is the 1756-IF16 a direct replacement for an older ControlLogix analog input module without rewiring?

In most cases, the 1756-IF16 can replace earlier ControlLogix analog input modules of the same form factor without changes to field wiring, provided the RTB pinout is compatible and the replacement module supports the same input ranges. However, firmware revision compatibility between the module and the resident Logix controller must be verified before installation, and the Studio 5000 I/O configuration tree must be updated to reflect the replacement module's revision. Consult the Rockwell Automation migration or release notes documentation for the specific module generations involved.

Why Order the 1756-IF16 from LeadTime.ca

  • LeadTime.ca ships the Allen-Bradley 1756-IF16 worldwide — no geographic restrictions on quoting or fulfillment.
  • Our team verifies catalog numbers, RTB selection (1756-TBCH or 1756-TBS6H), and chassis compatibility before releasing orders, catching mix-ups before they become delays.
  • Real-time stock and lead time confirmation is available on request — contact us before committing to a project schedule or releasing a PO.
  • Volume pricing is available for project quantities and MRO spares programs — contact the team directly for a fast quote.
  • We source hard-to-find and long-lead ControlLogix I/O parts and can advise on suitable alternatives when supply is constrained.

At-a-Glance Summary

  • Catalog number: Allen-Bradley 1756-IF16 — ControlLogix 16 Point A/I (Analog Input) Module, 1756 series.
  • Up to 16 single-ended, 8 differential, or 4 high-speed differential analog input channels in a single ControlLogix slot.
  • Supported input ranges: 0–10.25 V, ±10.25 V, 0–5.125 V, and 0–20.5 mA — covers all standard 4–20 mA and ±10 V process instrument loops.
  • Resolution: 16-bit (unipolar) and 15-bit plus sign (bipolar) via Sigma-Delta A/D conversion.
  • Backplane power: approximately 150 mA at 5.1 V DC and 65 mA at 24 V DC — verify chassis power budget before installing.
  • Operating temperature: 0…60 °C (32…140 °F); open-style enclosure requires suitable industrial control panel.
  • Certifications: UL, CSA, CE, Marine, KC, RCM, NRTL — verify against current Rockwell Automation datasheet for project compliance.
  • RTB ordered separately: 1756-TBCH (cage-clamp) or 1756-TBS6H (spring-clamp), 36-pin — must be on the BOM.
  • No channel-to-channel isolation and no HART support — choose a different ControlLogix analog input variant if either is required.
  • Typical manufacturer-indicated lead time: around 10 days from Rockwell Automation listing — confirm real-time availability with LeadTime.ca before scheduling.
