Allen-Bradley 1203-USB — DPI/DSI/SCANport Converter Buying Guide

By Abdullah Zahid
15 min read

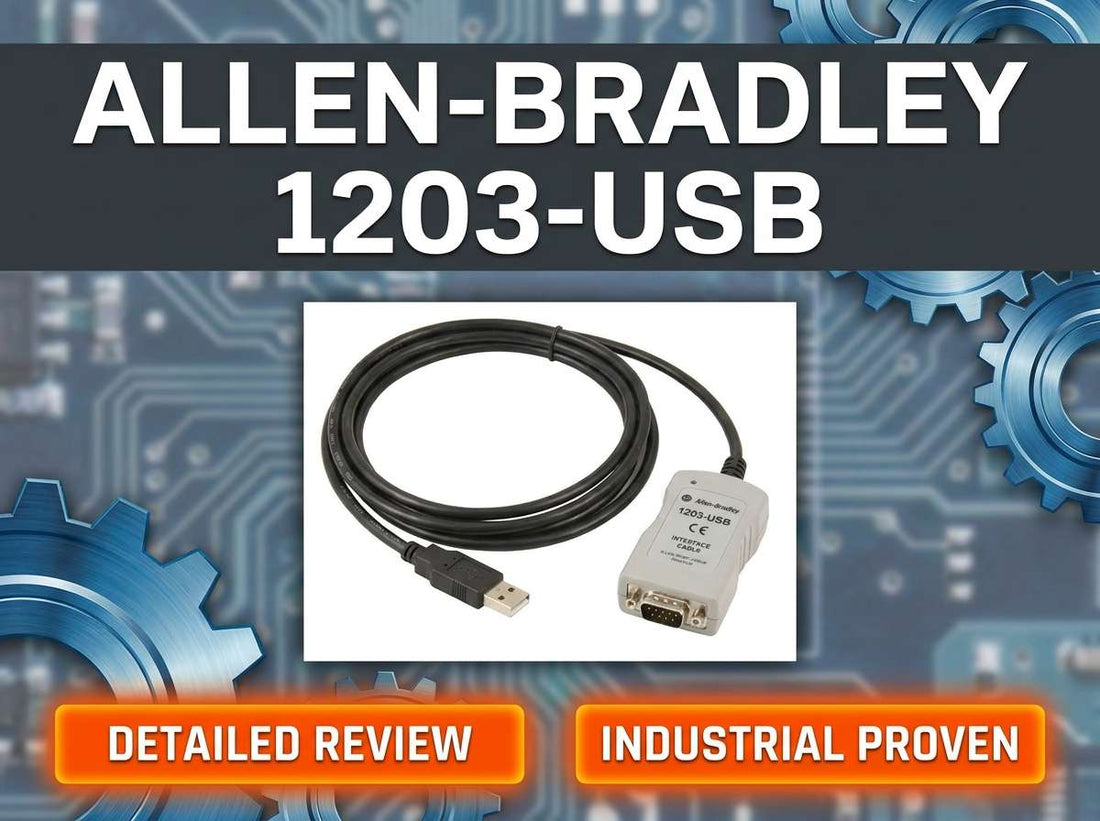

Allen-Bradley 1203-USB SCANport DPI DSI USB Converter for PowerFlex drive commissioning and diagnostics

Allen-Bradley 1203-USB SCANport/DPI/DSI USB Converter – Specs, Compatible Drives, and Selection Guide

If you are a controls engineer or maintenance technician standing in front of a PowerFlex drive with a modern laptop and no serial port, the Allen-Bradley 1203-USB SCANport/DPI/DSI USB Converter is the part that closes that gap. It provides a direct USB communication interface between your PC and any Allen-Bradley drive or device supporting DPI, DSI, or SCANport — covering everything from legacy 1336-family drives to current PowerFlex 750-Series. The converter operates using full-duplex RS-232 DF1 protocol on the drive side and autobauds to the drive's communication data rate automatically, making it a practical universal connection tool for mixed-generation Allen-Bradley drive fleets.

If you have already confirmed the 1203-USB is the correct part for your drive and software environment, check current pricing and availability at LeadTime.ca — we ship worldwide.

Who Should Buy the Allen-Bradley 1203-USB — and Who Shouldn't

The 1203-USB is the right tool if your situation matches the following criteria:

  • Your drive or device is on the official Allen-Bradley compatible products list and supports DPI, DSI, or SCANport communication.
  • You need to commission, configure, back up parameters, or troubleshoot drives from a Windows laptop without a native serial port.
  • You are working with PowerFlex 4/4M/40/40P/400/520-Series, PowerFlex 70/700/753/755, or legacy SCANport drives such as the 1305 or 1336 family.
  • You have access to Rockwell configuration software — Connected Components Workbench, DriveExecutive, or RSLinx — and can confirm OS driver compatibility.
  • You can source or already have the correct interface cable: 20-HIM-H10 for DPI and SCANport drives, 22-HIM-H10 or the 2090-CCMUSDS-48AA0x series for DSI and Kinetix 3 applications.
  • You want a single portable tool that works across multiple Allen-Bradley drive families rather than separate adapters per product line.

If your drives are already connected to an Ethernet/IP plant network, or if you are looking for a generic USB-to-RS485 adapter that works across multiple brands, the 1203-USB is not the correct choice. In those situations, a permanent communication module such as a 20-COMM Ethernet adapter, or the drive's existing network port, is the more appropriate path.

On this page:

What the Allen-Bradley 1203-USB Actually Does in a Drive System

The 1203-USB is a PC-to-drive communication converter, not a fieldbus adapter and not a continuous network module. Its specific role is to bridge the USB port on a Windows laptop to the DPI, DSI, or SCANport communication port on an Allen-Bradley drive or compatible device. On the PC side, the converter presents as a standard COM port in Windows Device Manager after driver installation. On the drive side, it communicates using full-duplex RS-232 DF1 protocol and automatically adapts to the drive's communication data rate through autobaud — the engineer does not manually set baud rates on the converter itself.

This is a point-to-point configuration and diagnostic tool. It is the hardware that makes Rockwell software — Connected Components Workbench, DriveExecutive, RSLinx with an RS-232 DF1 driver — able to read parameters, write parameter changes, perform backups and restores, and monitor drive status. The converter draws its power from the connected drive through the interface port, so no separate power supply is required, but the drive must be powered for the converter to function. For facilities maintaining PowerFlex or legacy Allen-Bradley drives without built-in Ethernet connectivity, the 1203-USB represents the most direct and broadly supported path from laptop to drive.

Typical System Architecture: Where the 1203-USB Sits in the Signal Chain

The 1203-USB sits between the engineer's laptop and the drive's onboard communication port, acting as a protocol translator in a temporary point-to-point connection during commissioning or maintenance work.

  • Windows laptop running CCW, DriveExecutive, or RSLinx with an RS-232 DF1 driver configured
  • Standard USB cable from laptop to the 1203-USB converter
  • Interface cable (20-HIM-H10, 22-HIM-H10, or 2090-CCMUSDS-48AA0x depending on drive interface type) from the 1203-USB to the drive's DPI, DSI, or SCANport port
  • Allen-Bradley drive (PowerFlex 4/520/700/750-Series, SMC Flex, legacy 1336/1305/1394/1397, or other compatible device) powered and ready to communicate
  • Downstream motor or load connected to the drive — drive does not need to be running for parameter access

Applications and Deployment Scenarios

The most common use case is initial commissioning of a new PowerFlex drive directly from a laptop on the plant floor. A controls engineer connects via the 1203-USB through CCW or DriveExecutive to set motor nameplate parameters, configure control mode, and verify basic operation before handing off to production. This is particularly valuable for drives on machinery shipped without a pre-configured Ethernet module, where the 1203-USB provides the only available programming interface at installation.

Parameter backup and restore is another high-frequency application. Before a scheduled maintenance shutdown, a technician connects via the 1203-USB and saves the complete drive parameter file. If a drive is replaced, the saved file is restored to the new unit, reducing reconfiguration time significantly. This workflow is standard practice at facilities running multiple generations of PowerFlex drives.

Fault diagnosis and drive monitoring are equally important. When a drive trips or behaves unexpectedly, the 1203-USB allows a technician to connect and read fault history, view live parameter values, and assess the drive's operating state without requiring network infrastructure at the panel. For older SCANport drives — 1305, 1336 family, 1394, 1397 — that have no Ethernet option, this is often the only available remote access method.

OEM machine builders and field service organizations frequently include one or two 1203-USB units in their startup toolkits to cover the range of drive types found across customer sites. A single 1203-USB with the appropriate cable set handles PowerFlex 4-class, 750-Series, and legacy SCANport drives without carrying separate adapters for each product family.

Application Typical Deployment
New drive commissioning Controls engineer connects laptop via 1203-USB to PowerFlex 755 at panel during machine startup; configures motor data and control mode in CCW
Parameter backup before maintenance Technician saves full parameter file from PowerFlex 40P or 520-Series via DriveExecutive before scheduled replacement or firmware update
Fault diagnosis on legacy drives Field technician connects to 1336-family SCANport drive via 1203-USB and 20-HIM-H10 cable to read fault log and live parameters at the panel
Mixed-fleet facility service Maintenance team carries one 1203-USB with both 20-HIM-H10 and 22-HIM-H10 cables to access DPI, DSI, and SCANport drives across the plant floor
OEM startup kit Machine builder includes 1203-USB in the commissioning toolkit shipped with equipment containing PowerFlex 4M or PowerFlex 525 drives

Specifications and Compatibility at a Glance

Parameter Value
Brand Allen-Bradley (Rockwell Automation)
Catalog Number 1203-USB
Product Description SCANport/DPI/DSI USB Converter
PC-Side Interface USB (appears as COM port in Windows Device Manager)
Drive-Side Protocol Full-duplex RS-232 DF1; autobauds to drive communication rate
Supported Drive Interfaces DPI, DSI, SCANport
DPI-Compatible Products PowerFlex 70/700/700H/700S/700L/753/755, Digital DC, 7000, SMC Flex, SMC-50, select safety relays
DSI-Compatible Products PowerFlex 4/4M/40/40P/400, 520-Series (noted limitations on some application groups), Kinetix 3 (point-to-point only)
SCANport-Compatible Products 1305, 1336 family, 1394, 1397, selected medium-voltage and legacy controllers
Power Source Powered from connected drive through interface port; no external supply required

Full technical specifications are available on the product page at LeadTime.ca.

1203-USB vs. Alternatives: Which Connection Method Do You Actually Need?

Connection Method Best For Limitations Drive Interface Required
Allen-Bradley 1203-USB Commissioning, parameter backup, diagnostics on DPI/DSI/SCANport drives; mixed-generation fleets; no existing network access Point-to-point only; requires correct cable per interface type; driver setup on Windows required; not a permanent fieldbus DPI, DSI, or SCANport port on drive
20-COMM Ethernet/IP adapter Permanent network integration, ongoing remote monitoring, PLC integration via EtherNet/IP Higher cost per drive; requires network infrastructure; overkill for occasional commissioning-only access DPI port (PowerFlex 70/700/750-Series and others)
Embedded Ethernet port (drive built-in) PowerFlex 525/527/753/755 with embedded EtherNet/IP; plant-network-connected commissioning and diagnostics Only available on newer drive series; requires switch/network access at panel location Built-in — no add-on required
Serial/RS-232 direct connection (legacy) Older PC platforms with native RS-232 or RS-485 ports; niche legacy scenarios Modern laptops lack serial ports; requires additional interface modules; not practical for field service Varies by drive and interface module

For drives that already have an active EtherNet/IP port or a 20-COMM network module installed, the plant network is the more efficient and permanent access path — the 1203-USB is an unnecessary addition in that context. For everything else — legacy SCANport drives, drives without network modules, or quick field access where no network drop exists at the panel — the 1203-USB is the direct answer. Check current availability of the Allen-Bradley 1203-USB at LeadTime.ca.

Expert Verdict: Is the 1203-USB Worth It for Your Operation?

The Allen-Bradley 1203-USB is, in practical terms, the standard laptop-to-drive connection tool for any facility running a mix of PowerFlex 4/520/700/750-Series and legacy SCANport drives. It earns that position because one unit genuinely covers DPI, DSI, and SCANport interfaces — the three communication interfaces spanning Allen-Bradley drives from the earliest 1305 and 1336-family units through the current PowerFlex 755 — without requiring a separate specialized cable or converter for each product family. Controls engineers and field technicians who regularly commission, tune, and troubleshoot Allen-Bradley drives will find the 1203-USB a near-essential part of their toolkit. OEMs and service organizations supporting varied customer sites benefit most: carrying one 1203-USB with both a 20-HIM-H10 and a 22-HIM-H10 cable covers the overwhelming majority of Allen-Bradley drive port types encountered in the field.

Where the 1203-USB does have real limits: it is a point-to-point, temporary connection tool, not a substitute for permanent network integration. Sites that have standardized on EtherNet/IP — running 20-COMM adapters on every drive or specifying only PowerFlex 525/755 drives with embedded Ethernet — have no practical need for a 1203-USB for day-to-day operations. Similarly, anyone expecting this converter to work as a generic USB-to-RS485 or USB-to-serial adapter for non-Allen-Bradley equipment will be disappointed; the 1203-USB is specific to Allen-Bradley's DPI/DSI/SCANport ecosystem using DF1 protocol. For those scenarios, alternatives such as the drive's embedded Ethernet port, a 20-COMM module, or a different USB adapter appropriate to the non-Rockwell device are the correct choices. The single most important step before ordering is confirming your specific drive model is on Rockwell's official compatible products list and identifying the correct cable catalog number alongside the converter.

From a procurement standpoint, the 1203-USB is typically stocked by North American specialist distributors and is not a long-lead custom item under normal supply conditions, though lead times should always be confirmed before committing to a project schedule. Buying through a distributor with Rockwell Automation product expertise matters here: the cable requirement, OS driver considerations, and compatible software versions are not always obvious from a generic product listing, and a specialist can confirm the complete order before it ships rather than after. View current pricing and lead time for the Allen-Bradley 1203-USB at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Experience When Working With the 1203-USB

Across the controls engineering community — including discussions on PLCTalk, r/PLC, PLCS.net, MrPLC, and distributor Q&A forums — sentiment toward the Allen-Bradley 1203-USB is broadly positive once users have it working correctly. The recurring theme from experienced technicians is that one 1203-USB handles a remarkably wide span of Allen-Bradley drives without needing separate tools, and that once the drivers are installed properly and the COM port is confirmed in Windows Device Manager, the converter is reliable and consistent in day-to-day use with CCW, DriveExecutive, and RSLinx. Field technicians particularly value the compact form factor and the simple USB connection, which eliminates the need for older laptops with native serial ports — a meaningful practical advantage for anyone doing plant floor commissioning with modern hardware.

The frustrations are specific and recurring. Driver and operating system compatibility issues appear consistently as the top complaint. On newer Windows versions, engineers report driver signing conflicts, the need for manual driver installation sequences, and COM port assignment confusion that makes the device appear in Device Manager but fail to communicate properly in RSLinx or CCW. The fix in most documented cases is methodical: install the Rockwell-provided 1203-USB driver and USB serial port driver in the correct order before connecting the hardware, confirm the COM port number assigned in Device Manager, and use that exact COM port when configuring the RS-232 DF1 driver in RSLinx. Blaming the converter hardware for what is actually a driver or OS configuration issue is a documented community mistake. The 1203-USB status LEDs are the first diagnostic tool — confirming normal operation on those indicators before troubleshooting software eliminates a common false-fault scenario.

Cable confusion is the second most common source of field frustration and ordering delays. A significant number of community posts describe receiving the 1203-USB and only then discovering that the required interface cable — the 20-HIM-H10 for DPI and SCANport, the 22-HIM-H10 for DSI drives, or the 2090-CCMUSDS-48AA0x series for Kinetix 3 — was not included and must be ordered separately. The converter does not ship with interface cables. Community consensus is equally clear on one other point: the 1203-USB is not a generic USB-to-RS485 or USB-to-serial adapter. Attempting to use it with non-Allen-Bradley devices or RS-485 networks outside the DPI/DSI/SCANport ecosystem does not work, and this misunderstanding generates a predictable pattern of frustrated posts from users who purchased the converter for the wrong application.

Physical Connection and Installation Overview

  • Identify the drive's communication interface type (DPI, DSI, or SCANport) before ordering or connecting; each interface requires a specific cable — 20-HIM-H10 for DPI and SCANport drives, 22-HIM-H10 for DSI drives, and the 2090-CCMUSDS-48AA0x series for Kinetix 3 applications.
  • Connect the appropriate interface cable between the drive's communication port and the 1203-USB converter; then connect a standard USB cable between the 1203-USB and the PC's USB port — the converter is powered through the drive interface, so the drive must be powered.
  • Install the Rockwell-provided 1203-USB converter driver and USB serial port driver on the PC before first connection; after connecting, confirm the device appears as Allen-Bradley 1203-USB (COMx) in Windows Device Manager and note the assigned COM port number.
  • In RSLinx, create a new RS-232 DF1 driver using the confirmed COM port number and use the auto-configure or scan function to verify communication with the drive; in Connected Components Workbench, use the Discover function to detect the drive through the 1203-USB.
  • The 1203-USB provides no integrated circuit protection — external protection requirements are governed by the drive manufacturer's installation documentation; observe cable routing guidelines to avoid electrical noise interference near high-voltage drive cabling.

Wrong-Part Prevention Checklist Before You Order

Before placing your order for the Allen-Bradley 1203-USB, work through this checklist drawn from the most common field mistakes and ordering errors reported by engineers and technicians:

  1. Confirm the drive or device is on the official 1203-USB compatible products list (DPI, DSI, or SCANport supported product).
  2. Verify which interface it uses (DPI vs DSI vs SCANport) and order the correct cable type (20-HIM-H10 for DPI/SCANport; 22-HIM-H10 or 2090 cable for DSI/Kinetix).
  3. Check your PC OS version against Rockwell's supported driver list for 1203-USB.
  4. Make sure you are not expecting 1203-USB to work as a generic USB-to-RS485 adapter for non-Allen-Bradley devices.
  5. Verify you have the right Rockwell configuration software (CCW, DriveExecutive, or equivalent) available and licensed.
  6. Check whether a built-in Ethernet or existing communication module can meet your needs instead (to avoid buying an unnecessary converter).

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — confirming compatibility upfront prevents project delays and return shipping costs.

Frequently Asked Questions

Will the 1203-USB work with my specific PowerFlex model — 525, 753, 755, or an older SCANport drive?

Compatibility depends on the drive's communication interface type, not just the product family name. The 1203-USB supports DPI (PowerFlex 70/700/753/755, SMC Flex, SMC-50, and others), DSI (PowerFlex 4/4M/40/40P/400 and 520-Series with noted limitations on some application groups), and SCANport (1305, 1336 family, 1394, 1397, and selected legacy controllers). Always verify your specific drive model and firmware version against the official Rockwell compatible products list before ordering — the list is definitive and more specific than the product family name alone.

Which cable do I need for DPI, DSI, or SCANport with the 1203-USB?

The cable is not included with the 1203-USB and must be ordered separately. Use the 20-HIM-H10 cable for DPI and SCANport drives. Use the 22-HIM-H10 for DSI drives such as the PowerFlex 4/40/400/520-Series. For Kinetix 3 applications (point-to-point DSI only), the 2090-CCMUSDS-48AA0x series cable is required. Ordering the wrong cable is one of the most common field mistakes — confirm your drive's interface port type before specifying the cable.

Do I still need a 1203-USB if my PowerFlex drive has a built-in Ethernet/IP port or a 20-COMM adapter installed?

No. If your drive has an active EtherNet/IP connection — either through an embedded port on drives like the PowerFlex 525 or 755, or through a 20-COMM Ethernet adapter — you can access the drive over the plant network using CCW or RSLinx without the 1203-USB. The 1203-USB is most valuable where no network access exists at the panel or for legacy drives with no Ethernet option. Purchasing a 1203-USB for a drive already on EtherNet/IP is redundant for most applications.

How do I get the 1203-USB to appear correctly in Windows and communicate in RSLinx or CCW on Windows 10 or newer?

Install the Rockwell-provided 1203-USB converter driver and USB serial port driver on the PC before connecting the hardware for the first time. After connecting, open Windows Device Manager and confirm the device is listed as Allen-Bradley 1203-USB (COMx) without errors. In RSLinx, create a new RS-232 DF1 driver and enter the exact COM port number shown in Device Manager. If the device shows errors in Device Manager, reinstall the drivers in the correct sequence and verify USB cable integrity before suspecting hardware failure. Driver installation order and OS-level driver signing settings are the most frequent root causes of initial connection failures — not a faulty converter.

Why does the 1203-USB keep dropping connection or fail to auto-configure in RSLinx?

Intermittent drops are most commonly caused by USB cable quality, routing near electrical noise sources such as drive output cabling, or COM port conflicts in Windows. Confirm the USB cable is rated for reliable data transfer rather than a charge-only cable. In RSLinx, verify the correct COM port is assigned and try the auto-configure function again with the drive powered and the interface cable fully seated. If the 1203-USB status indicators show abnormal state, consult the user manual's LED diagnostic table to determine whether the fault points to a cable, drive power, or converter issue before attempting further software troubleshooting.

Why Order the Allen-Bradley 1203-USB Through LeadTime.ca

  • LeadTime.ca ships the Allen-Bradley 1203-USB worldwide — no regional restriction on orders.
  • Specialist distributor knowledge means staff can confirm drive compatibility, correct cable catalog numbers, and software requirements before your order ships — reducing the risk of receiving a converter that cannot connect to your specific drive.
  • Current pricing and live availability are displayed on the product page; contact the team directly for volume pricing or to confirm lead time before committing to a project schedule.
  • Hard-to-find and time-sensitive Rockwell Automation accessories are a core focus — the 1203-USB and its associated cables are sourced through verified channels.

At-a-Glance Summary

  • The Allen-Bradley 1203-USB is a SCANport/DPI/DSI USB Converter that bridges a Windows laptop to Allen-Bradley drives via USB, using full-duplex RS-232 DF1 protocol with autobaud on the drive side.
  • Compatible interfaces: DPI (PowerFlex 70/700/753/755, SMC Flex, SMC-50, Digital DC), DSI (PowerFlex 4/4M/40/40P/400, 520-Series with noted limitations, Kinetix 3 point-to-point), and SCANport (1305, 1336 family, 1394, 1397, and selected legacy controllers).
  • The converter is powered through the drive interface port — no external power supply required, but the drive must be powered.
  • Three cable options cover the full compatibility range: 20-HIM-H10 for DPI and SCANport, 22-HIM-H10 for DSI, and 2090-CCMUSDS-48AA0x series for Kinetix 3 — none are included with the converter.
  • Supported configuration software includes Connected Components Workbench, DriveExecutive, and RSLinx with RS-232 DF1 driver; OS driver compatibility must be confirmed against current Rockwell documentation before ordering.
  • Not a generic USB-to-RS485 adapter — designed exclusively for Allen-Bradley DPI/DSI/SCANport ecosystems using Rockwell's DF1 protocol.
  • Pricing is available on the product page; contact LeadTime.ca to confirm lead time and volume pricing before committing to a project schedule.
  • Ships worldwide through LeadTime.ca — view current availability here.
