Allen-Bradley 100-C09EJ10 — 9A 24V DC IEC Contactor Review

By Abdullah Zahid
14 min read

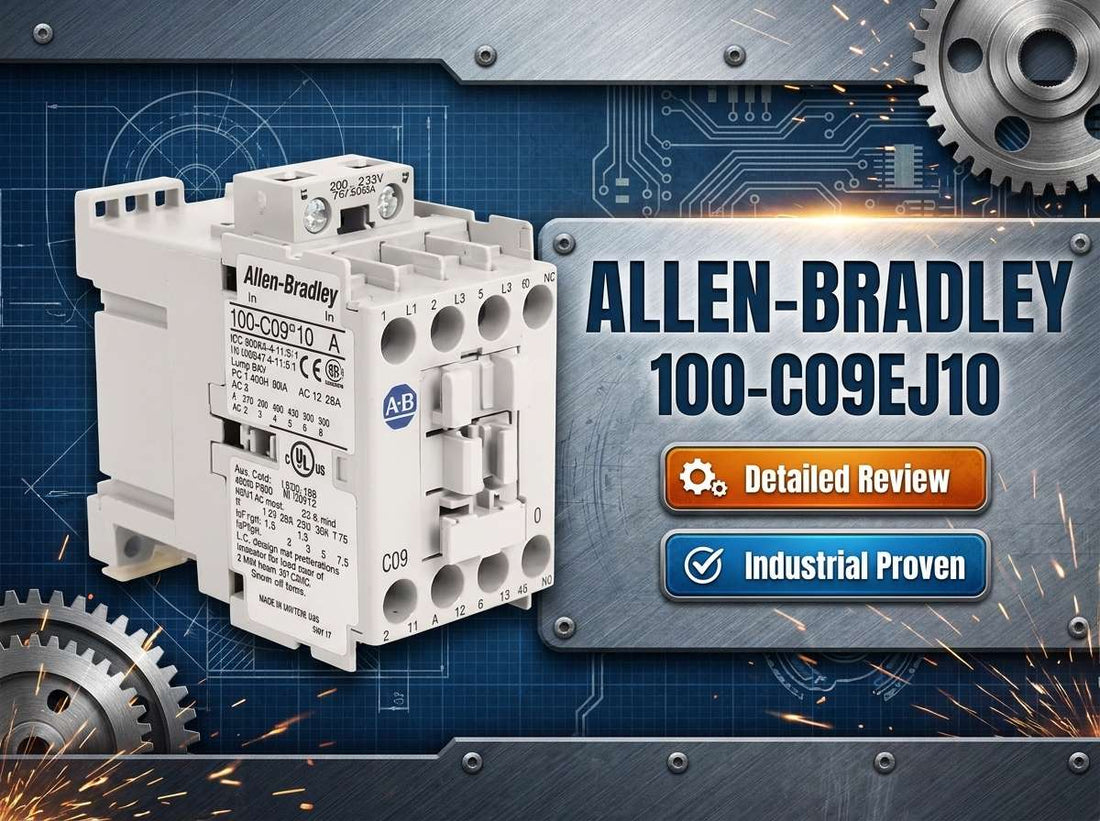

Allen-Bradley 100-C09EJ10 3-pole 9A 24V DC electronic coil IEC contactor for motor starter panels

Allen-Bradley 100-C09EJ10 — 100-C IEC Contactor, 24V DC Electronic Coil, Screw Terminals, Line Side, 9A, 1 N.O. 0 N.C. Auxiliary Contact Configuration, Single Pack

If you are finalizing a BOM for a small motor starter, replacing a failed contactor in an existing panel, or specifying an Allen-Bradley 100-C motor control assembly from scratch, the Allen-Bradley 100-C09EJ10 is a specific answer to a specific question: you need a 3-pole, 9A AC-3 IEC contactor with a 24V DC electronic coil, a single integrated N.O. auxiliary contact, and screw terminals in a footprint that mates directly with the Allen-Bradley 100-C accessory and overload relay ecosystem. Get those details right and this part does exactly what the datasheet says. Get any one of them wrong and you will have a commissioning problem on your hands before the motor turns a single revolution.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — we ship worldwide.

Who Should Buy the Allen-Bradley 100-C09EJ10 — and Who Shouldn't

This contactor is the correct choice when all of the following are true for your application:

  • Your control system supplies 24V DC and you need an electronic DC coil interface — not an AC coil, not a different DC voltage level
  • Your motor or load requires no more than 9A in AC-3 duty, corresponding to up to 4 kW at 400/415V three-phase
  • You need 3 main poles and can work with 1 N.O. built-in auxiliary contact (adding clip-on auxiliaries if your control scheme requires more contacts)
  • Your wiring practice uses screw terminals and the line-side terminal orientation fits your panel layout
  • Your project requires IEC/EN 60947 compliance with UL and CSA approvals, and you are building within an Allen-Bradley 100-C motor control architecture

If your available control voltage is 120V AC, 230V AC, or any DC level other than 24V, you need a different catalog number within the 100-C09 family. If your motor exceeds 9A AC-3 or 4 kW at 400/415V, move up to the 100-C12 or 100-C16 frame. If you need fewer or more auxiliary contacts, there are variants in the same family that cover those configurations.

On this page:

What the Allen-Bradley 100-C09EJ10 Actually Does in Your System

The Allen-Bradley 100-C09EJ10 is a 3-pole IEC contactor from the Bulletin 100-C family. Its job is straightforward: it is the main power switching element in a motor starter, opening and closing the three-phase supply to a motor or other load under the command of a 24V DC control signal. At 9A AC-3 and 4 kW at 400/415V three-phase, it covers the range of small induction motors that appear constantly in conveyors, pumps, fans, blowers, and OEM machinery panels.

The 24V DC electronic coil is the detail that defines this catalog number. It is not a standard AC coil, and it is not a conventional DC coil — it is an electronic interface designed for direct connection to PLC output cards and low-voltage DC control circuits, which is why it is widely specified in modern machine control panels where 24V DC is the dominant control voltage. The integrated 1 N.O. auxiliary contact provides one status or seal-in signal path without requiring an add-on module, though additional auxiliary contacts are available as clip-on accessories when the control scheme demands more.

The screw terminal design with line-side orientation positions this part as a practical panel-building component — not a push-in or spring-cage variant — and the footprint is the standard 100-C frame that aligns mechanically with Allen-Bradley thermal overload relays and the full range of Bulletin 100-C accessories. Standards coverage includes IEC/EN 60947-4-1 and 60947-5-1, with UL, CSA, CE, CCC, C-Tick, GOST, and KC approvals cited across manufacturer and distributor documentation, which matters for projects that need to meet North American and international code requirements simultaneously.

Typical Motor Starter System Architecture

The 100-C09EJ10 sits between the upstream protection device and the motor terminals, switching the main power circuit on command from the 24V DC control circuit. Here is how a typical direct-on-line motor starter chain looks around this contactor:

  • Upstream branch circuit protection (fuses or motor circuit protector) — provides short-circuit and overcurrent protection that the contactor itself does not supply
  • Allen-Bradley 100-C09EJ10 contactor — main 3-pole switching element, controlled by 24V DC signal at the A1/A2 coil terminals
  • Allen-Bradley thermal overload relay (direct-mount, matched to 100-C frame) — provides motor overload protection and feeds a trip signal back to the control circuit
  • Three-phase induction motor up to 4 kW at 400/415V — the downstream load being protected and switched
  • PLC digital output or control relay supplying the 24V DC coil signal — the originating command from the control system

Where the 100-C09EJ10 Gets Deployed: Applications and Industries

The 9A AC-3 rating and 4 kW motor power rating place the Allen-Bradley 100-C09EJ10 squarely in the range of small three-phase motors that appear across virtually every sector of manufacturing and commercial facilities. Conveyor drives, pump motors for HVAC and water systems, fan and blower starters, and packaging machine axes are the recurring use cases. OEM machine builders standardized on Allen-Bradley motor control hardware specify this part because the 100-C footprint and accessory ecosystem mean that overload relays, auxiliary contact blocks, and mechanical interlocks all clip on without adapter hardware.

In maintenance and MRO scenarios, the 100-C09EJ10 is frequently the exact replacement for a failed contactor in an existing Allen-Bradley motor control center or legacy OEM panel — provided the failed unit was also a 24V DC electronic coil variant. Verifying that detail before ordering is the single most important step in an MRO replacement scenario.

Food and beverage, water and wastewater, light process, and building services panels all use contactors in this current class regularly. The combination of IEC/EN 60947 compliance with concurrent UL and CSA approvals means this part can satisfy both North American and international project requirements from a single catalog number.

Application Typical Deployment
Conveyor drive starter Direct-on-line motor starter with overload relay, 24V DC PLC output control
Pump motor control HVAC or water system pump up to 4 kW, panel-mounted starter assembly
Fan and blower starter Ventilation or process fan in manufacturing or building services panel
OEM machinery control panel Compact motor starter integrated into machine control enclosure, 100-C accessory ecosystem
MRO replacement Like-for-like swap of failed 100-C09EJ10 in existing Allen-Bradley motor control center
General three-phase load switching Resistive or slightly inductive three-phase loads within AC-3 and AC-1 rated limits

Purchase-Decision Specs: What You Need to Confirm Before Ordering

Specification Value / Detail
Catalog Number 100-C09EJ10
Product Family Allen-Bradley Bulletin 100-C IEC Contactors
Rated Operational Current (AC-3) 9A at 400/415V three-phase
Motor Power Rating Up to 4 kW at 400/415V three-phase
Main Poles 3
Coil Voltage / Type 24V DC electronic coil
Auxiliary Contacts (Integrated) 1 N.O., 0 N.C.
Terminal Type Screw terminals, line-side orientation
Standards and Approvals IEC/EN 60947-4-1 / 60947-5-1, UL, CSA, CE, CCC, C-Tick, GOST, KC
Mounting DIN rail or panel mount

Full technical specifications are available on the product page at LeadTime.ca.

100-C09EJ10 vs Other 100-C Variants: Which One Do You Actually Need?

The 100-C09 designation fixes the frame size and current rating at 9A AC-3 and 4 kW at 400/415V. Everything after that in the catalog number defines coil voltage, coil type, and auxiliary contact configuration. Selecting the wrong suffix is the most common ordering mistake in this family.

Catalog Number Frame / Current Coil Voltage / Type Aux Contacts Choose When
100-C09EJ10 9A AC-3, 4 kW 24V DC electronic coil 1 N.O., 0 N.C. 24V DC control system, PLC output, standard aux
Other 100-C09 variants (AC coil codes) 9A AC-3, 4 kW 120V AC or 230V AC coil (per catalog code) Varies by suffix AC control voltage systems where DC electronic coil is not suitable
100-C07 family Smaller frame, lower current Various coil options Varies Motor or load current falls below the 9A frame threshold
100-C12 family 12A AC-3, higher kW Various coil options Varies Motor current or power exceeds 9A / 4 kW at 400/415V
100-C16 family 16A AC-3, higher kW Various coil options Varies Larger motor loads that exceed the 100-C12 frame rating
100-C09 with different aux suffix 9A AC-3, 4 kW 24V DC or other coil 1 N.O. + 1 N.C. or other Control scheme requires N.C. auxiliary contact built in

If your motor load is approaching or exceeding 9A in AC-3 duty, the 100-C12 is the correct next step — check current availability for the right frame at LeadTime.ca.

Expert Verdict on the Allen-Bradley 100-C09EJ10

The Allen-Bradley 100-C09EJ10 is the right part for a well-defined buyer: a controls engineer or panel builder who is working within an Allen-Bradley motor control architecture, has 24V DC control power available, and needs to switch a small three-phase motor or load up to 4 kW at 400/415V. The 24V DC electronic coil interface makes it a natural fit for direct connection to PLC digital output cards without an interposing relay, and the standard 100-C footprint means overload relay selection, accessory mounting, and panel layout follow a well-established and widely supported pattern. For OEM machine builders and Canadian plants that have standardized on Allen-Bradley hardware, the serviceability argument is real — field technicians recognise the part, spares are consistent across the installed base, and approvals cover both North American and international project requirements from one catalog number.

Where this part is not the right answer: if your control voltage is anything other than 24V DC, you need a different suffix in the 100-C09 family — an AC coil variant or a different DC voltage code. If your motor or load current exceeds 9A in AC-3 service, move to the 100-C12 or 100-C16 frame rather than trying to derate this one. And if cost pressure is the dominant constraint and Allen-Bradley ecosystem compatibility is not a hard requirement, 9A IEC contactors from other manufacturers with equivalent ratings and approvals exist and may be sourced faster or at lower unit cost — that is an honest tradeoff worth evaluating on a project-by-project basis.

From a procurement standpoint, the 100-C09EJ10 is a common catalog item, but availability varies meaningfully by channel and timing. Some distributors carry stock; others list it as a special order with lead times that can range from days to several weeks depending on current supply chain conditions. Working through a specialist distributor that understands Rockwell Automation catalog structures means you get the coil voltage and auxiliary configuration verified before the order ships, not after the panel is wired. Check current stock and pricing for the 100-C09EJ10 at LeadTime.ca — we ship worldwide and can advise on safe alternates when this exact catalog number has extended lead times.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 100-C09EJ10

Model-specific forum discussion on the 100-C09EJ10 is sparse — searches across Reddit r/PLC, Reddit r/automation, PLCTalk, PLCS.net, MrPLC, and distributor Q&A sections return family-level commentary on Allen-Bradley IEC contactors rather than threads tied to this exact catalog number. That is not unusual for a well-understood commodity component, but it does mean that the validation work that forum communities sometimes do for buyers falls on the engineer and the distributor rather than on a body of accumulated field reports. What follows is drawn from the wrong-part and ordering-mistake patterns that surface consistently at a 100-C family level and are directly relevant to the 100-C09EJ10.

The single most reported confusion in the 100-C family is ordering the wrong coil voltage. The catalog suffix structure is specific — the EJ designation in 100-C09EJ10 identifies the 24V DC electronic coil — but buyers working from memory, copying from a similar project, or specifying under time pressure regularly order AC coil variants when the control system is DC, or vice versa. A contactor with the wrong coil voltage will not pull in on the available control supply and the resulting fault can consume significant commissioning time to diagnose if the error is not caught at goods receipt. Verifying the coil voltage against the control schematic before placing the order is not optional; it is the highest-value check in the selection process.

The second common error is underestimating auxiliary contact requirements. The 100-C09EJ10 ships with one integrated N.O. auxiliary contact. Control schemes that require a seal-in contact plus a status feedback signal, or any configuration that needs an N.C. contact, will need additional clip-on auxiliary modules. Discovering this after the panel is wired requires either retrofitting accessory modules or re-ordering a different base contactor variant. Mapping all required control signals during the design phase — before finalizing the catalog number — avoids this entirely. For any situation where the selection is non-standard or the lead time on this specific catalog is uncertain, the LeadTime.ca team can validate requirements and identify the correct variant or accessory combination before the order is placed.

Wiring and Installation Overview

The following points cover the key requirements for installing the 100-C09EJ10. For full wiring diagrams, conductor sizing tables, and torque specifications, refer to the Allen-Bradley 100-C series installation instructions and the product datasheet.

  • Mount on DIN rail or panel per manufacturer guidance, ensuring clearances for ventilation and conductor routing are maintained around the contactor body
  • Connect three-phase main power conductors to the main power terminals and the 24V DC coil supply to coil terminals A1 and A2, observing polarity as specified in the datasheet
  • Wire the integrated N.O. auxiliary contact into the control circuit for seal-in, status feedback, or interlock functions as required by the control scheme
  • Tighten all screw terminals to the torque values specified in the manufacturer datasheet — under-torqued connections are a primary cause of terminal overheating and premature contact wear
  • Confirm that upstream branch circuit protection (fuses or motor circuit protector) is correctly coordinated for this contactor — the 100-C09EJ10 does not include a circuit breaker or short-circuit protection device

Compatible Accessories and System Expansion

The 100-C09EJ10 is designed to work within the Allen-Bradley Bulletin 100-C accessory ecosystem. The following accessory types are compatible with this contactor frame, allowing the base unit to be configured for a wide range of motor starter and control applications:

  • Clip-on auxiliary contact blocks — add N.O. or N.C. contact paths beyond the integrated 1 N.O. auxiliary, required when the control scheme needs seal-in plus status feedback or interlocking functions
  • Allen-Bradley thermal overload relays (direct-mount to 100-C frame) — provide motor overload protection and trip signal output, coordinated with the 9A contactor frame rating
  • Mechanical interlocking accessories — used in reversing or star-delta starter configurations to prevent simultaneous closure of two contactors
  • Surge suppression modules — may be used on the coil circuit per manufacturer recommendations for DC electronic coil applications

Wrong-Part Prevention Checklist

Before placing an order for the Allen-Bradley 100-C09EJ10, work through the following checks. Skipping any one of them is the source of the most common costly ordering mistakes in this product family.

  1. Confirm control system voltage is 24 V DC and that a DC electronic coil interface is acceptable (do not use this catalog if you need an AC coil).
  2. Check motor full-load current and duty so the 9 A AC-3 rating and 4 kW power rating are adequate at your supply voltage.
  3. Verify you need 3 main poles and that 1 N.O. / 0 N.C. built-in auxiliary contact is sufficient; add clip-on auxiliaries if more contacts are required.
  4. Make sure the contactor matches your chosen Allen-Bradley overload relay frame size and mounting style (direct-mount or adapter as per datasheet).
  5. Confirm terminal type (screw terminals, line-side) matches your wiring practice and space constraints in the panel.
  6. Check local standards and approvals (IEC/EN 60947, UL, CSA, etc.) are acceptable for your project and jurisdiction.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — confirming the right catalog number takes minutes; correcting a wrong-coil shipment takes days.

Frequently Asked Questions

Can I swap a different 100-C09 variant for the 100-C09EJ10 if the current rating is the same but the coil voltage is different?

No — the current rating being identical does not make two 100-C09 variants interchangeable. The coil circuit must match the available control voltage exactly. A 120V AC coil variant will not pull in on a 24V DC supply, and a 24V DC electronic coil contactor will not operate correctly on an AC control circuit. Confirm the coil voltage on the schematic and match it to the catalog suffix before ordering a replacement.

What Allen-Bradley overload relay should I pair with the 100-C09EJ10 for a complete motor starter?

The 100-C09EJ10 is designed to accept Allen-Bradley overload relays that are dimensioned and rated for the 100-C frame at the 9A current class. The correct overload relay selection depends on motor full-load current, trip class, and reset method required for your application. Refer to the Allen-Bradley motor starter selection guide or contact a specialist distributor to confirm the correct overload catalog number for your motor data.

How do I confirm from the catalog number that this contactor has a 24V DC electronic coil and not a standard coil?

In the Allen-Bradley 100-C catalog structure, the suffix following the frame size designates coil voltage and type. The EJ designation in 100-C09EJ10 specifically identifies the 24V DC electronic coil. Reading the full catalog number rather than just the frame code is the only reliable way to confirm coil type — this is the most frequent source of ordering errors in the 100-C family.

What are typical lead times for the 100-C09EJ10, and how should I plan for spares?

The 100-C09EJ10 is a common catalog item, but availability varies by distributor and current demand. When stock is available, shipment can occur within days. When listed as a special order item, lead times can extend to several weeks. For critical applications or installations with multiple units, carrying at least one spare on-site is a practical risk management measure. Contacting a specialist distributor for a current availability and lead time check before committing to a build schedule is the most reliable approach.

Does the 100-C09EJ10 provide short-circuit or overload protection on its own?

No. The 100-C09EJ10 is a contactor — it switches the main circuit but does not provide short-circuit protection or overload protection independently. A properly coordinated upstream branch circuit protective device (fuses or motor circuit protector) and a separate thermal overload relay are required to achieve full motor protection. This is standard IEC motor starter practice and is not a limitation specific to this contactor.

What is the correct process for identifying a failed 100-C09EJ10 vs another 100-C09 variant during an MRO replacement?

Check the nameplate on the failed contactor for the full catalog number, including all suffix characters. The catalog number on the nameplate is the authoritative source — do not rely on the panel schematic alone if there is any possibility the original part was substituted at a previous maintenance event. Confirm the coil voltage marking on the nameplate matches 24V DC before ordering the 100-C09EJ10 as a replacement.

Why Order From LeadTime.ca

  • Ships worldwide — whether your project is in Canada, the US, or anywhere internationally, LeadTime.ca fulfills orders globally
  • Specialist knowledge of Allen-Bradley catalog structures means coil voltage, auxiliary configuration, and frame size are verified before the order ships
  • Hard-to-find and short-lead-time parts sourced through established channels — contact the team when availability on a specific catalog number is uncertain
  • Volume pricing available for panel builders, OEMs, and MRO buyers — contact LeadTime.ca directly for quantity quotes
  • View current pricing and stock status for the 100-C09EJ10 at LeadTime.ca

At-a-Glance Summary: Allen-Bradley 100-C09EJ10

  • 3-pole IEC contactor, Bulletin 100-C family, rated 9A AC-3 at 400/415V three-phase
  • Motor power rating: up to 4 kW at 400/415V three-phase
  • Coil: 24V DC electronic coil — direct PLC output interface, not compatible with AC control systems
  • Integrated auxiliary contacts: 1 N.O., 0 N.C. — add clip-on modules for additional contact paths
  • Terminal style: screw terminals, line-side orientation
  • Standards and approvals: IEC/EN 60947-4-1 / 60947-5-1, UL, CSA, CE, CCC, C-Tick, GOST, KC
  • Fits directly with Allen-Bradley 100-C overload relays, auxiliary blocks, and interlocking accessories
  • Does not include short-circuit protection — upstream protective device required
  • Most common ordering mistake: wrong coil voltage or wrong auxiliary contact suffix — verify both before ordering
