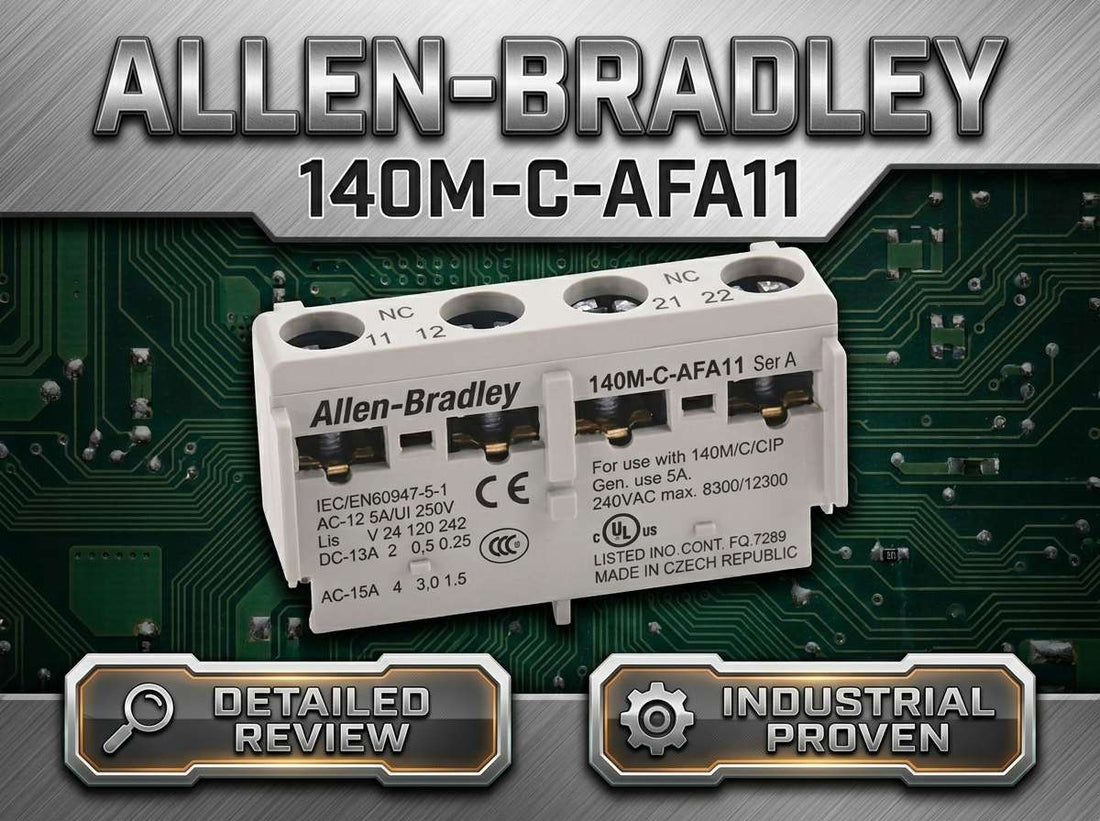

Allen-Bradley 140M-C-AFA11 Internal Auxiliary Contact, 1 NO 1 NC, Front Mounted, No Additional Width — Complete Buyer's Guide for 140M Motor Protection Breakers

Controls engineers and panel builders specifying status feedback for Allen-Bradley 140M motor protection circuit breakers regularly land on the 140M-C-AFA11 — the front-mounted internal auxiliary contact that delivers a 1 NO and 1 NC signal contact without adding a single millimeter to the breaker's width profile. If you are running 140M-C, 140M-D, or 140M-F frame breakers and need clean run or trip indication to a PLC input or interlock circuit, this accessory is the manufacturer-specified solution for that exact job. The decision comes down to confirming frame compatibility and verifying that one NO and one NC contact covers every signal your design requires.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 140M-C-AFA11 — and Who Shouldn't

This accessory is the correct choice for engineers and panel builders who meet all of the following criteria:

  • The main device is a confirmed 140M-C, 140M-D, or 140M-F motor protection circuit breaker — not a 140M-K, 140MP, 140MT, or any other Rockwell motor protection family.
  • The application requires status or trip indication using a 1 NO plus 1 NC contact configuration — no more, no less.
  • Panel or MCC layout demands a front-mounted, internal accessory that adds no additional width to the breaker assembly.
  • Control circuit voltage and current requirements fall within the auxiliary contact ratings published in the official Rockwell 140M literature.
  • The breaker's internal accessory mounting slot is unoccupied by a conflicting accessory such as a shunt trip or undervoltage release.

If you need more than 1 NO and 1 NC — for example, a second independent indication circuit or a separate fault alarm output — this part is not sufficient. Consult the broader 140M accessory selection table or contact LeadTime.ca to identify the correct multi-contact auxiliary block for your application.

On this page:

What the 140M-C-AFA11 Does in a Real Motor Control System

The Allen-Bradley 140M-C-AFA11 is an internal auxiliary contact block belonging to the Bulletin 140M Motor Protection Circuit Breaker accessory family, confirmed by Rockwell Automation's official 140M accessory literature. Its sole function is to mirror the mechanical state of the parent breaker — ON, OFF, or TRIP — into electrical signal contacts that control systems, PLCs, and interlock circuits can act on.

What separates this accessory from an add-on block mounted externally is the front-mounted, internal installation method. The 140M-C-AFA11 snaps into the designated front accessory interface of the 140M-C, 140M-D, or 140M-F breaker frame and stays entirely within the existing device footprint. In motor control centers where bucket width is fixed and every millimeter counts, this no-additional-width characteristic is not a marketing note — it is a genuine mechanical constraint that determines whether the accessory can be used at all.

The 140M motor protection circuit breaker family carries UL listing as a manual motor controller, and auxiliary contacts such as the 140M-C-AFA11 are used exclusively for signal and control purposes according to Rockwell technical data. This means the accessory is not a current-carrying protective device — it provides the status visibility your control system needs while the breaker itself handles motor protection.

Where the 140M-C-AFA11 Sits in a Typical Motor Starter Architecture

The 140M-C-AFA11 sits at the breaker level of the motor protection and control hierarchy, converting a mechanical switching event into an electrical signal that travels upstream to the control system. It occupies the signal layer between the breaker mechanism and the PLC or relay logic that acts on it.

  • CompactLogix or ControlLogix PLC receives the 1 NO or 1 NC contact state as a discrete input channel reflecting breaker status.
  • The 140M-C/D/F motor protection circuit breaker is the parent device — the 140M-C-AFA11 mounts directly to its front accessory interface.
  • Downstream of the breaker, the motor starter contactor and overload (if separate) handle the motor load switching.
  • The NO contact typically reports RUN or CLOSED state; the NC contact is used for trip or fault indication to alarm circuits or HMI.
  • Interlock wiring from the NC contact can prevent a second motor feeder from starting while the first is in a trip condition.

Typical Applications and Deployment Scenarios for the 140M-C-AFA11

In manufacturing plants standardized on Rockwell Automation motor protection equipment — automotive assembly, food and beverage, packaging, and material handling being the most common — the 140M-C-AFA11 is the routine answer when a 140M breaker needs to report its state. A pump panel feeding a conveyor wash system, for example, uses the NO contact to confirm the breaker is closed before a PLC sequence advances to the next step, and the NC contact to latch a fault alarm on the HMI if the breaker trips on a motor fault.

OEM machine builders who standardize their motor protection designs on 140M-C frame breakers fit the 140M-C-AFA11 as a default accessory because it occupies no additional panel width, allowing consistent MCC bucket templates across machine variants. The front-mounted access also supports faster commissioning when the panel builder is populating a row of identical buckets.

In water and wastewater treatment plants, the NC contact from a 140M-C-AFA11 feeds directly into SCADA alarm lists for pump motor trip events. In HVAC mechanical rooms, it provides fan motor status back to building management controllers. Mining and aggregate facilities use the interlocking capability to prevent conveyor sequences from starting when one motor feeder has tripped.

Retrofit installations — adding status visibility to 140M breakers already mounted in panels — are one of the more common ordering scenarios, and the no-additional-width design makes it possible to add the 140M-C-AFA11 to an existing installation without modifying the enclosure or panel layout.

Application Typical Deployment
Conveyor motor starter, manufacturing NO contact to PLC discrete input for run status confirmation in sequence logic
Pump panel, water and wastewater NC contact to SCADA alarm input for motor trip event notification
Fan starter, HVAC or process ventilation NO contact to building management controller for fan running status
MCC bucket, OEM machinery Internal front-mounted fit preserves standard bucket width across all motor positions
Retrofit to existing 140M installation Added to in-service 140M-C/D/F without panel modification due to no-additional-width design
Interlock between motor feeders NC contact wired into permissive circuit to block second motor start on upstream trip

Specs That Drive the Purchase Decision for the 140M-C-AFA11

Parameter Value
Brand Allen-Bradley (Rockwell Automation)
Catalog Number 140M-C-AFA11
Product Type Internal auxiliary contact block — accessory for 140M motor protection circuit breakers
Compatible Breaker Families 140M-C, 140M-D, 140M-F motor protection circuit breakers
Contact Configuration 1 NO + 1 NC
Mounting Position Front-mounted, internal — no additional width
Function Status indication (ON/OFF/TRIP) and interlocking for control circuits and PLC inputs
Product Family Bulletin 140M Motor Protection Circuit Breakers and accessories
Standards Alignment Part of UL-listed 140M motor controller family; auxiliary for signal and control use per Rockwell technical data
Accessory Slot Requirement Front internal accessory slot must be unoccupied on the target breaker

Full technical specifications are available on the product page at LeadTime.ca.

140M-C-AFA11 vs Other 140M Auxiliary Contact Options — Which One Do You Actually Need?

The 140M-C-AFA11 is one configuration within a broader family of auxiliary contact accessories for 140M breakers. The differences between variants come down to contact arrangement, mounting location, and which breaker frames they support. Choosing the wrong configuration at the BOM stage is the most common ordering error for this part family.

Parameter 140M-C-AFA11 Alternative 140M Auxiliary (Different Contact Arrangement) Side-Mounted / External 140M Auxiliary
Compatible Breaker Families 140M-C, 140M-D, 140M-F 140M-C/D/F (verify per Rockwell literature) 140M family variants (verify per Rockwell literature)
Contact Configuration 1 NO + 1 NC Different arrangement (e.g., 2 NO or 2 NC) Varies by catalog selection
Mounting Style Front-mounted, internal Front-mounted, internal Side-mounted, external
Additional Width Added None None Yes — adds width to the device assembly
Best For Single run/trip indication, tight MCC layouts Applications needing more independent signal contacts Easier retrofit wiring access, where width is not constrained

If your application requires more than one NO and one NC contact — for example, separate outputs for run indication, trip alarm, and remote reset permissive — the 140M-C-AFA11 alone will not cover all signals. Review the full 140M accessory selection at LeadTime.ca or contact the team to confirm which combination meets your design requirements.

Expert Verdict: Is the 140M-C-AFA11 the Right Call for Your Panel?

The 140M-C-AFA11 earns its place as the default auxiliary contact selection for engineers and OEM designers whose motor protection infrastructure is built around Allen-Bradley 140M-C, 140M-D, or 140M-F frame breakers. It delivers exactly what the majority of motor control panels require: a 1 NO and 1 NC signal contact that reflects breaker state without consuming any additional panel width. For Rockwell-centric plants, MCC builders, and machine OEMs standardizing on this breaker family, this is the low-risk, no-surprises choice — verified compatible, straightforward to wire to CompactLogix or ControlLogix PLC inputs, and clean to document in a BOM.

The limits are real and worth stating plainly. If the main device is anything other than a 140M-C, 140M-D, or 140M-F — a 140MP, 140MT, or 140M-K, for example — this accessory will not fit and should not be ordered. If the application demands more than one NO and one NC contact, a different 140M auxiliary configuration is required, and ordering the 140M-C-AFA11 in this scenario means a return and delay. Projects moving away from the Rockwell ecosystem entirely, or those where cost pressure favors a competitor motor protection platform, will find that the equivalent Schneider GV2 auxiliary or Siemens 3RV2 auxiliary contact serves the same system-level function — but these are not cross-compatible at the device level and require matching their own breaker families.

From a procurement standpoint, the 140M-C-AFA11 is widely carried by Rockwell-authorized North American distributors and is generally available with short lead times. That said, project demand spikes and factory allocation cycles can affect stock without notice. Buying through a specialist distributor who understands the 140M accessory ecosystem means you get a compatibility check before the order is placed — not after the accessory arrives on-site. Check current availability and pricing at LeadTime.ca and confirm the part is matched to your exact breaker catalog number before committing to your BOM.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 140M-C-AFA11

Community-level discussion for this specific catalog number is sparse — most forum conversations about 140M auxiliary contacts happen at the breaker family level rather than by individual accessory part number. What engineers across r/PLC, PLCTalk, PLCS.net, and Rockwell's own user forums consistently flag, however, is directly relevant to anyone ordering the 140M-C-AFA11: part-number confusion within the 140M accessory range is the single most common source of ordering errors. Controls engineers report receiving the wrong contact arrangement or mounting style because the part number differences between 140M auxiliary variants are subtle and easy to misread in a BOM or distributor catalog. Verifying the exact catalog number against the breaker frame before placing the order eliminates this risk entirely.

The broader 140M breaker and accessory ecosystem draws consistent praise from controls professionals for integrating cleanly into Rockwell PLC architectures. Engineers working with CompactLogix and ControlLogix systems note that commissioning the auxiliary contact signals into discrete input channels is straightforward, and OEM designers appreciate that standardizing on 140M accessories simplifies machine documentation and spares stocking across product lines. The internal front-mounted design in particular gets recognition for keeping MCC layouts clean — a point that matters when a panel builder is populating a row of identical motor starter buckets.

Two cautions come up repeatedly in technical communities and are worth treating as standing rules for this product category. First, 140M accessories are not forward-compatible with newer or different Rockwell motor protection families such as 140MP or 140MT — buyers who upgrade their breaker platform cannot carry over existing 140M-C-AFA11 units. Second, forgetting to include auxiliary contacts in the initial BOM and adding them as rush items late in the project is a recurring pain point that creates unnecessary cost and schedule pressure. If your 140M installation requires PLC feedback at any point in its lifecycle — and most do — specifying the 140M-C-AFA11 at the initial BOM stage, not as an afterthought, is the professional practice. When community data is limited and the part-number stakes are high, consulting a specialist distributor before ordering is the step that separates projects that commission cleanly from those that don't.

Wiring and Installation Overview for the 140M-C-AFA11

  • Always de-energize and lock out the 140M breaker in accordance with site lockout/tagout procedures before installing or wiring any accessory.
  • Align the 140M-C-AFA11 with the front internal accessory interface on the 140M-C/D/F breaker and snap it firmly into place; perform a firm pull test to confirm the accessory is fully latched and mechanically interlocked with the breaker mechanism.
  • Identify the NO and NC terminals using the terminal numbering scheme in the official Rockwell 140M documentation; observe conductor size limits and tightening torques specified in the datasheet to ensure reliable, maintenance-proof terminations.
  • Wire the NO contact to the PLC discrete input channel designated for run or closed status, and the NC contact to the input or relay circuit designated for trip or fault indication; keep control wiring segregated from power conductors.
  • After installation, perform continuity checks on both the NO and NC signal paths with the breaker in each state — OFF, ON, and TRIP — before powering the control circuit; verify state changes are correctly reflected in PLC I/O status and update panel documentation accordingly.

Wrong-Part Prevention Checklist Before Ordering the 140M-C-AFA11

Run through every item on this checklist before placing your order. Skipping even one check is how wrong-part returns happen on motor protection accessories.

  1. Confirm the main device is a 140M-C, 140M-D, or 140M-F frame motor protection circuit breaker (not 140M-K or other families).
  2. Verify that a 1 NO + 1 NC contact arrangement is sufficient for all required indication and interlock functions.
  3. Check that a front-mounted internal contact is acceptable for your panel layout and service access (versus side-mounted).
  4. Ensure control circuit voltage/current fits within the auxiliary contact ratings in the official 140M datasheet.
  5. Verify the breaker already has available mounting provision for this internal auxiliary (not already occupied by a conflicting accessory).
  6. Match quantity per breaker (one or more) as allowed in the accessory configuration rules in the Rockwell literature.

If any item on this checklist raises a question, review the full product details at LeadTime.ca or contact the team before ordering — we can verify compatibility against your breaker catalog number before anything ships.

Frequently Asked Questions

Will the 140M-C-AFA11 fit a 140M-D or 140M-F breaker, or only the 140M-C frame?

The 140M-C-AFA11 is specified by Rockwell Automation as compatible with 140M-C, 140M-D, and 140M-F motor protection circuit breaker frames. It is not specified for 140M-K or other frame designations outside this group. Always confirm the exact breaker catalog number before ordering.

Does adding the 140M-C-AFA11 increase the width of the breaker assembly in the panel?

No. The 140M-C-AFA11 is explicitly described in Rockwell's 140M accessory literature as a front-mounted internal auxiliary contact with no additional width. It installs entirely within the existing breaker profile, making it suitable for fixed-width MCC buckets and tight panel layouts where side clearance is not available.

Are the 140M-C-AFA11 contacts rated for direct connection to PLC input cards, or do I need interposing relays?

The auxiliary contacts in the 140M-C-AFA11 are used for signal and control circuit purposes according to Rockwell technical data. Whether interposing relays are required depends on the specific voltage, current, and minimum switching load ratings of both the auxiliary contact and your PLC input module. Verify the contact ratings from the official 140M datasheet against your PLC input specifications before wiring directly.

Can I reuse this auxiliary contact if I upgrade from a 140M-C breaker to a 140MP or 140MT in the future?

No. The 140M-C-AFA11 is compatible with 140M-C/D/F frames only and is not interchangeable with accessories designed for the 140MP or 140MT motor protection families. If you migrate to a different breaker family, the correct matching auxiliary for that family must be specified separately.

Can I mount more than one 140M-C-AFA11 on the same breaker for additional signal contacts?

The number of auxiliary accessories permitted per breaker depends on available mounting positions and the accessory configuration rules documented in Rockwell's 140M literature. Attempting to install more accessories than the breaker's interface supports can result in mechanical interference or incomplete engagement. Consult the official accessory selection guide or contact LeadTime.ca to confirm the correct combination for your breaker and signaling requirements.

What is the correct BOM line item description for the 140M-C-AFA11?

The manufacturer description is: Internal auxiliary contact, 1 NO / 1 NC, front mounted, no additional width, for 140M-C/D/F motor protection circuit breakers — Bulletin 140M accessory. Include the catalog number 140M-C-AFA11 alongside the parent breaker catalog number in the BOM and note the mounting location in the panel drawing to guide the panel builder.

Why Order the 140M-C-AFA11 Through LeadTime.ca

  • LeadTime.ca ships worldwide — no geographic restriction on order origin or delivery.
  • Specialist distributor familiar with Allen-Bradley 140M motor protection accessories — can verify compatibility against your specific breaker catalog number before the order ships.
  • Able to flag when the 140M-C-AFA11 is not the correct fit and identify the right 140M auxiliary variant for your contact arrangement or mounting requirement.
  • Realistic lead-time guidance based on current stock and factory allocation status, not generic estimates.
  • Volume pricing available for OEM and project BOMs — contact for current terms.

At-a-Glance Summary: Allen-Bradley 140M-C-AFA11

  • Catalog number: 140M-C-AFA11 — internal auxiliary contact block for Bulletin 140M motor protection circuit breakers.
  • Contact configuration: 1 NO + 1 NC — for status indication, trip signaling, and interlocking in motor control circuits.
  • Compatible with 140M-C, 140M-D, and 140M-F motor protection circuit breaker frames only — not 140M-K, 140MP, or 140MT.
  • Front-mounted, internal installation — adds no additional width to the breaker assembly, confirmed in Rockwell 140M accessory literature.
  • Part of the UL-listed 140M motor controller family; auxiliary contacts used exclusively for signal and control purposes per Rockwell technical data.
  • Most common ordering error: specifying for the wrong breaker family or underestimating required contact count before BOM is finalized.
  • Generally stocked by North American Rockwell-authorized distributors; lead time can vary with project demand and factory allocation cycles.
  • Pricing available on the product page — contact LeadTime.ca for volume or project pricing.
