Standard POINT I/O Layouts for Packaging & Skids

By Abdullah Zahid
20 min read

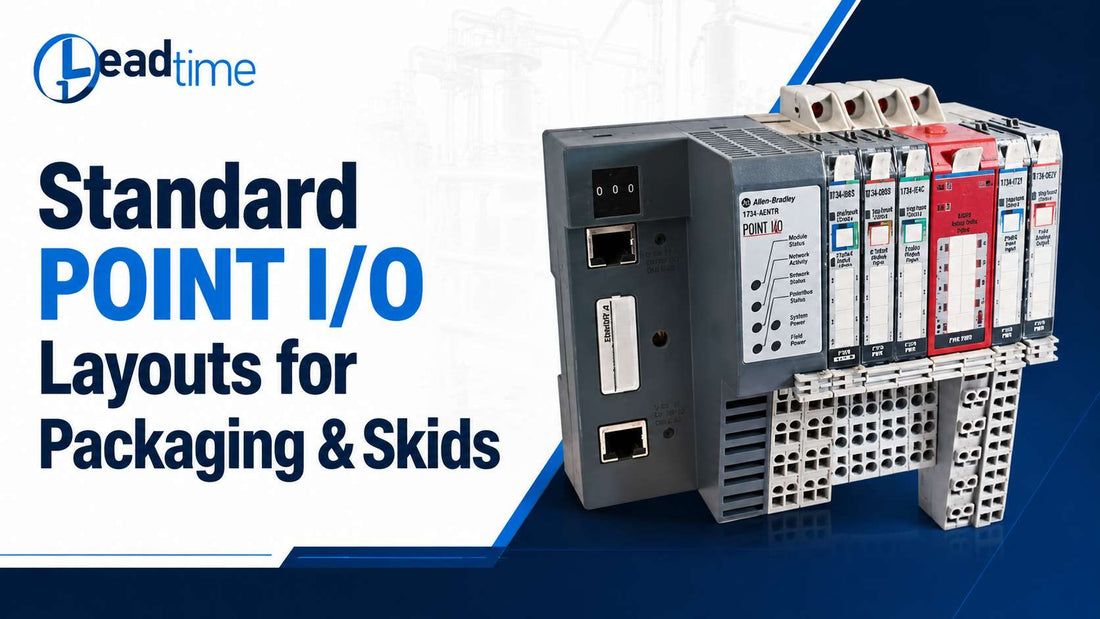

Allen-Bradley 1734 POINT I/O modules assembled on DIN rail for packaging machine and process skid distributed I/O layout

POINT I/O Selection Guide for Packaging Machines and Skid Systems

Controls engineers specifying distributed I/O for packaging lines and skid-mounted process packages face a recurring problem: every machine gets designed from scratch, panels vary across a product family, and spare parts strategies fall apart when a new project uses a slightly different module mix. The Allen-Bradley POINT I/O family — catalog prefix 1734 — is a modular DIN-rail-mounted distributed I/O system that mounts mix-and-match modules on a common backplane, making it well suited to the repeatable, compact layouts that packaging cells and process skids demand. This guide helps you build standard layout tiers, choose the right module groups, and avoid the most common specification mistakes before you commit hardware to a bill of materials.

If you have already confirmed which POINT I/O modules you need and want to check current pricing and availability, visit the product page at LeadTime.ca — ships worldwide.

Who Should Use This Guide — and What It Will Not Do for You

This guide is written for controls engineers and OEM designers who are either defining a standard machine template or specifying a skid I/O layout for the first time. It is the right resource if:

  • You are working with CompactLogix, ControlLogix or another Logix-family controller and need distributed I/O at the machine or skid level via EtherNet/IP, DeviceNet or ControlNet.
  • Your packaging cell or skid requires a mix of digital, analog, temperature or safety signals and you want a single I/O family that handles all of them.
  • You are building two or more identical or similar machines and want a standard module mix that reduces design time on repeat builds.
  • You need safety-rated I/O for guard doors, light curtains or emergency stops and want to integrate that within the same panel architecture.
  • You are migrating from panel-mounted hardwired I/O to distributed POINT I/O and need a structured approach to the transition.

This guide does not replace manufacturer datasheets. Exact numeric limits for adapter module counts, backplane power consumption, per-channel current ratings and safety category certifications are module-specific and must be confirmed against current Rockwell Automation documentation before finalizing any bill of materials. Where specific limits are required, refer to the relevant 1734-series user manual or contact LeadTime.ca for assistance.

On this page:

Where POINT I/O Sits in a Packaging or Skid System

The Allen-Bradley POINT I/O system connects field devices — sensors, actuators, transmitters, safety devices — back to a Logix-family controller over an industrial network. The adapter module is the first component in the chain: it provides the network interface and backplane connection that all downstream POINT I/O modules share. From there, each module in the assembly handles a specific signal type and writes its data to the controller via the adapter.

  • Logix controller (CompactLogix or ControlLogix) communicates over EtherNet/IP, DeviceNet or ControlNet to the POINT I/O adapter.
  • The network adapter (e.g., 1734-AENTR for EtherNet/IP with ring topology support) manages backplane communication and module addressing for the entire I/O assembly.
  • Digital input modules (e.g., 1734-IB8, 1734-IB16) connect proximity sensors, photoeyes, limit switches and machine status contacts directly on the DIN rail.
  • Analog and temperature modules (e.g., 1734-IE2C, 1734-IT2I) connect transmitters, load cells and temperature sensors for skid process measurements.
  • Safety modules (e.g., 1734-IB8S, 1734-OB8S) connect safety-rated devices such as guard door switches and emergency stops, integrating with GuardLogix or other safety-capable controllers.

POINT I/O Module Groups for Packaging and Skid Applications

The 1734 POINT I/O family covers every signal category found on a typical packaging machine or process skid. Understanding which module group handles which signal type is the foundation of any standard layout.

Network adapters are the starting point for every POINT I/O assembly. The 1734-AENT and 1734-AENTR serve EtherNet/IP networks, with the 1734-AENTR adding Device Level Ring topology support for resilient network architectures. The 1734-ADN covers DeviceNet and the 1734-ACNR covers ControlNet. The adapter you choose must match your controller's network and your plant's infrastructure, and its capacity limits — maximum module count and backplane power — must be verified against manufacturer documentation before finalizing the assembly length.

Digital input modules are the highest-volume module type on packaging machines. The 1734-IB8 provides 8-channel 24 VDC sinking input and the 1734-IB16 provides 16 channels on the same DIN rail footprint, which helps condense sensor-heavy layouts. The 1734-IV8 covers sourcing input configurations. Matching the module to sensor voltage type and sink/source wiring is essential before ordering.

Digital output modules drive solenoids, contactor coils and indicator lights. The 1734-OB8 and 1734-OB8E cover transistor sourcing outputs, with the 1734-OB8E adding electronic fusing and diagnostic feedback useful for packaging machines where solenoid faults need to be surfaced to the controller. The 1734-OW4 provides relay outputs for loads that require isolation or AC switching, such as pilot relays in skid panels. Per-channel current limits are module-specific and must be checked against actuator load requirements.

Analog input modules handle the transmitter signals that drive process control on skids — pressure, flow, level and temperature via 4–20 mA or voltage signals. The 1734-IE2C covers current input and the 1734-IE2V covers voltage input; the 1734-IF2I adds isolation for environments with significant ground potential differences. Analog output modules 1734-OE2C (current) and 1734-OE2V (voltage) provide setpoint signals to variable speed drives and control valves.

Temperature input modules — 1734-IT2I for thermocouples and 1734-IR2 for RTDs — connect directly to thermal sensors in packaging tunnels, seal bars, oven zones and thermal fluid skids. These modules handle linearization internally, reducing the signal conditioning hardware needed in the panel.

Safety POINT Guard I/O modules, including 1734-IB8S and 1734-OB8S, provide safety-rated digital inputs and outputs for emergency stops, guard door switches, light curtains and safe motion interlocks. These modules must be paired with an appropriate safety controller such as GuardLogix, and their safety category, PL and SIL ratings must be verified against the specific application's safety requirements using Rockwell Automation's safety documentation.

IO-Link and specialty modules round out the family. The 1734-IOL IO-Link master module enables connection of smart sensors and actuators that communicate device-level diagnostics back to the controller — valuable in packaging applications where sensor parameterization and predictive maintenance data matter. The 1734-VHSC high-speed counter module handles encoder feedback and registration sensor inputs in packaging machines where standard digital input filters would miss fast pulse trains.

Module Variant Reference: Signal Types, Catalog Numbers and Typical Uses

Module Group Example Catalog Numbers Signal Type Typical Use on Packaging Typical Use on Skids Channel Count Range Key Selection Note
Network adapters 1734-AENT, 1734-AENTR, 1734-ADN, 1734-ACNR EtherNet/IP, DeviceNet, ControlNet Controller communication gateway for entire machine I/O node Controller communication gateway for entire skid I/O node N/A — one per node Match to controller network; verify adapter module count and backplane power limits in datasheet
Digital inputs 1734-IB8, 1734-IB16, 1734-IV8 24 VDC sinking / sourcing Proximity sensors, photoeyes, machine status contacts Limit switches, flow switches, status contacts Low to medium (8–16 ch) Confirm sink/source type and sensor voltage before ordering
Digital outputs 1734-OB8, 1734-OB8E, 1734-OW4 24 VDC transistor sourcing / relay Solenoids, indicator lights, drive run commands Valve solenoids, pump starters via interposing relays Low to medium (4–8 ch) Use OB8E where electronic fusing and diagnostics are needed; use OW4 for relay-isolated or AC loads
Analog inputs 1734-IE2C, 1734-IE2V, 1734-IF2I 4–20 mA / voltage Load cells, pressure transducers on packaging utilities Pressure, flow, level transmitters Low (2 ch per module) Choose IE2C for current loop; IE2V for voltage; IF2I where isolation is needed
Analog outputs 1734-OE2C, 1734-OE2V 4–20 mA / voltage VFD speed reference signals Control valve positioners, dosing pump setpoints Low (2 ch per module) Confirm output range and load resistance against driven device specifications
Temperature inputs 1734-IT2I, 1734-IR2 Thermocouple / RTD Packaging tunnels, seal bars, oven zones Thermal fluid skids, steam systems, CIP units Low (2 ch per module) Match module to sensor type; 1734-IT2I for TC, 1734-IR2 for RTD
Safety I/O 1734-IB8S, 1734-OB8S Safety DI / Safety DO E-stops, guard door switches, light curtains Skid safety trips, safety-rated valve shutoff Low to medium Must pair with safety-capable controller; verify PL/SIL ratings per Rockwell safety documentation
IO-Link master 1734-IOL IO-Link Smart sensors, parameterizable actuators Smart valves, intelligent field instruments Several IO-Link ports per module Use where device-level diagnostics and parameterization justify added complexity
High-speed counter 1734-VHSC High-speed pulse / encoder Registration sensors, encoder feedback on packers Flow meter pulse inputs on metering skids Low Required when standard DI input filters cannot capture fast pulse trains

Full technical specifications for each module are available on the product page at LeadTime.ca.

How to Build Standard POINT I/O Layout Tiers for Repeatable Machines

The most effective use of the Allen-Bradley POINT I/O family on repeatable machines and skids is through a small number of well-defined standard layout tiers. Rather than designing the I/O assembly from scratch on every project, define three to four templates — each with a fixed adapter, a standard module mix and reserved expansion slots — and treat specialty modules such as analog, temperature, safety and IO-Link as controlled options that plug into those templates.

For packaging machines, useful tier bands are roughly: a small cell tier covering around 20–40 digital inputs and 10–20 digital outputs with minimal or no analog; a mid-size machine tier covering 40–60 digital inputs, 20–40 digital outputs and a small number of analog channels; and a large machine tier for 60 or more digital I/O points, multiple analog channels and specialty modules for drives, registration and safety zones. Each tier should be assigned a specific adapter model, a defined power distribution strategy and a maximum module count that stays within the adapter's documented limits.

For process skids, the tier structure is better organized around signal mix rather than pure channel count. A utility skid tier — pump and valve control — is heavily digital with a small number of analog inputs for transmitter feedback and possibly one analog output for a VFD setpoint. An instrumentation-heavy skid tier flips this: it leads with multiple analog input and temperature modules and uses only a few digital I/O modules for status and control. A safety-critical skid or zone tier adds safety-rated modules and a safety-capable adapter, keeping safety signals architecturally separate from the standard I/O node.

The key discipline in maintaining useful standard layouts is version control: when a specific project requires a module that falls outside the standard tier, document it as a controlled variant rather than silently modifying the template. This preserves the spare parts and wiring benefits of standardization while accommodating legitimate project-specific requirements.

Five Standard POINT I/O Layout Examples for Real Applications

Scenario 1: Small packaging cell with basic conveyors and sensors. A single infeed and outfeed conveyor with photoeyes, proximity sensors and small actuators and no analog signals. A single 1734-AENTR adapter provides EtherNet/IP connectivity and ring topology support. Two digital input modules sized to the sensor count — 1734-IB8 or 1734-IB16 depending on density — handle all sensors. Two digital output modules cover solenoids and actuators. One empty slot is reserved for a future DI or DO module to accommodate machine options. This is the highest-reuse template in a packaging portfolio: it can be replicated across many similar cells with minimal wiring variation.

Scenario 2: Mid-size case packer with drives and analog feedback. Multiple conveyors and servo or VFD-driven stations, registration sensors and two to four analog signals from a load cell and pressure transducer. One adapter, three to four digital input modules for sensors and status, three digital output modules for solenoids and drive run commands, one to two analog input modules for feedback signals, and one analog output module for VFD speed reference. All machine I/O stays on a single node while one to two additional module positions are left open for options. Analog modules are grouped together on one end of the assembly for cleaner wiring separation.

Scenario 3: Utility pump skid for a process line. Two to four pumps, multiple motorized or solenoid valves, level switches, pressure transmitters and a VFD-controlled booster pump. One adapter on the preferred controller network. Two digital output modules for pumps and valves. Two digital input modules for limit switches and status. One to two analog input modules for pressure and level transmitters. One analog output module for VFD speed setpoint if required. This template can be reused across multiple plant sites by adjusting analog channel count only, which makes it a strong candidate for a corporate skid standard.

Scenario 4: Instrument-heavy filtration or dosing skid. Many analog transmitters measuring flow, pressure, conductivity and level; limited discrete outputs for valves and dosing pumps. One adapter, possibly dedicated to this skid rather than shared. Two to three analog input modules for transmitters. One temperature module — 1734-IT2I or 1734-IR2 depending on sensor type — if thermal measurement is required. One analog output module for valve positioners and dosing setpoints. One to two small digital input and output modules for status contacts and control outputs only. Analog module placement and shielded wiring routing are the primary panel design concerns on this tier.

Scenario 5: Safety-critical packaging zone with guards and emergency stops. Guard door switches, light curtains and multiple e-stops integrated with a GuardLogix controller. One safety-capable adapter with the appropriate network and controller pairing. One to two 1734-IB8S safety input modules for guard switches and e-stops. One 1734-OB8S safety output module for contactor and safe-stop commands. A separate standard POINT I/O node handles all non-safety machine I/O, keeping the safety architecture clean and auditable. Safety module selection must be validated against the required Performance Level or SIL using Rockwell Automation's safety documentation before finalizing the layout.

Application and Deployment Scenarios at a Glance

Application Typical Deployment
Small packaging cell (conveyor, sensors, small actuators) 1 EtherNet/IP adapter, 2 DI modules, 2 DO modules, 1–2 open expansion slots
Mid-size case packer or cartoner with drives 1 adapter, 3–4 DI, 3 DO, 1–2 AI, 1 AO, 1 high-speed counter module
Utility pump and valve skid 1 adapter, 2 DO, 2 DI, 1–2 AI, 1 AO for VFD setpoint
Instrument-heavy filtration or dosing skid 1 dedicated adapter, 2–3 AI, 1 temperature module, 1 AO, 1–2 DI/DO modules
Safety-critical packaging zone Safety-capable adapter, 1–2 safety DI, 1 safety DO, separate standard node for non-safety I/O
Thermal packaging tunnel or seal bar system 1 adapter, temperature modules (1734-IT2I or 1734-IR2), 1–2 AO, standard DI/DO for machine control

Expert Selection Guidance: When POINT I/O Works and When to Rethink the Layout

Allen-Bradley POINT I/O is genuinely well suited to OEM packaging machines and skid-mounted process packages. Its DIN-rail mounting, mix-and-match module backplane and tight integration with Studio 5000 Logix Designer via Add-On Profiles make it a natural fit for controls engineers who maintain repeatable designs across a machine family. The family's coverage of digital, analog, temperature, safety and IO-Link signals in a single mounting system means a packaging cell or process skid can typically be served by one coherent I/O assembly rather than multiple incompatible I/O platforms. Engineers building three to five similar machines per year — case packers, cartoners, pump skids or CIP units — will see the clearest return on the effort of defining standard layout tiers, because every subsequent machine reuses the wiring standard, the spare parts list and the Studio 5000 project template simultaneously.

The limits of a standard POINT I/O layout strategy appear at the extremes. Very large machines with more than 100 digital I/O points and multiple drive nodes often benefit from multiple POINT I/O nodes grouped by machine section — infeed, filling, outfeed — rather than a single oversized assembly, both because of adapter capacity limits and because section-by-section organization simplifies commissioning and fault-finding. At the small extreme, a machine with only 10 to 15 I/O points may be better served by a compact I/O solution integrated directly into the controller. Safety layouts require the most care: safety input and output modules must be correctly paired with a safety-capable controller and adapter, and the safety architecture must be documented and validated against the required PL or SIL before the panel is wired — this is not a step that can be deferred to commissioning. If your project involves safety requirements and you are uncertain about the correct module and controller pairing, the Rockwell Automation safety application guides and a qualified safety engineer are the right starting points.

From a procurement standpoint, the POINT I/O family's breadth creates a sourcing discipline requirement: because so many catalog numbers exist, it is easy to order the wrong module variant — the wrong voltage type, the wrong sink/source orientation, or a non-isolated analog module where isolation was required. Buying through a distributor that can cross-check your module list against your I/O schedule before the order ships is a meaningful risk reduction on any build. LeadTime.ca stocks and sources 1734-series POINT I/O modules for OEMs and plants worldwide — check current pricing and availability for your specific module list on the product page at LeadTime.ca, or contact the team directly to validate a bill of materials before committing to a build.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Get Wrong When Specifying POINT I/O for Packaging and Skids

Community discussions on PLCTalk, Reddit r/PLC and the Rockwell Automation user forums reveal a consistent pattern: engineers who have used POINT I/O on packaging machines and skids are generally positive about its compact size and Logix integration, but the same three or four mistakes recur across projects of different sizes and industries.

The most frequently reported source of confusion is adapter and power distribution limits. Engineers add modules late in a project — often to accommodate late scope additions or option packages — without checking whether the adapter's documented module count and backplane power budget can support the expanded assembly. The result is either a redesigned panel close to delivery or a field problem during commissioning. The prevention is straightforward: document the adapter's limits from the manufacturer datasheet at the start of the project, maintain a running module count and estimated backplane power draw, and build margin into the standard template from the beginning rather than filling every available slot.

The second recurring problem is the mixing of safety and standard I/O without a clear architecture. Engineers sometimes route safety-related signals — emergency stop chains, guard door contacts — through standard digital input modules because they are available in the assembly, then discover during a safety review or machine CE marking process that the safety architecture is non-compliant. Safety signals require safety-rated modules such as the 1734-IB8S, a safety-capable adapter, and a controller that supports safety functions such as GuardLogix. These requirements are not interchangeable with standard I/O, and retrofitting a safety architecture into a nearly complete panel is significantly more expensive than designing it correctly from the start. Keeping safety I/O on a dedicated, clearly labeled node — separate from the standard machine I/O node — is the most reliable way to maintain architectural clarity across a machine family.

A third area that generates ongoing forum discussion is the question of whether to place analog and temperature modules on the same node as digital I/O or on a dedicated node. Engineers on skid projects with many transmitters frequently report that grouping analog and temperature modules together — both in the physical panel layout and in the Studio 5000 project organization — simplifies shielded cable routing, reduces noise coupling from digital switching, and makes maintenance easier when technicians need to trace a signal. This is a wiring and panel organization discipline rather than a hard architectural rule, but it is worth building into a standard layout template from the beginning.

Wiring and Installation Considerations for Standard POINT I/O Layouts

  • Each POINT I/O module mounts to a base unit on the DIN rail; the base unit determines the terminal type — TOP (wiring arm) or TB (terminal block) — and must be selected to match your standard wiring practice before modules are ordered, since the base and module must be compatible.
  • For digital I/O serving 24 VDC sensors and solenoids, maintain consistent polarity and common wiring conventions across all modules in the standard layout; inconsistencies in how commons are distributed are a frequent source of wiring errors on repeat builds.
  • Analog and temperature signal wiring should use twisted-pair shielded cable, with shields grounded at one end only; route analog cables away from 24 VDC digital wiring runs and completely separate from any AC power or VFD output cables to minimize noise coupling.
  • Thermocouple extension wiring to 1734-IT2I modules must use the correct thermocouple extension cable type matched to the sensor type; substituting standard copper wire introduces thermoelectric errors at the connection points.
  • Before installation, verify that the planned module assembly — adapter plus all modules — stays within the adapter's documented backplane power limits; consult the specific adapter datasheet for the correct calculation method and leave margin for future expansion modules.

Capacity Planning and Expansion Strategy

Planning for expansion is one of the most important — and most frequently skipped — steps in defining a standard POINT I/O layout. Every standard layout tier should include a documented expansion reserve: a defined number of empty module positions, a power budget margin, and unused I/O channels on existing modules where practical.

  • Reserve at least one to two open module positions in each standard layout tier to accommodate option packages, customer-specific add-ons and late scope changes without requiring a panel re-layout.
  • Document the adapter's maximum module count and keep a running total during design; the adapter's backplane power capacity is a hard limit that cannot be exceeded by adding a larger power supply — it is an architecture decision.
  • For machine families with multiple conveyor or process sections, consider segmenting the layout into multiple POINT I/O nodes — one per machine section — rather than one large assembly; this simplifies both commissioning and fault isolation, and it allows each section to be debugged independently.
  • Use Studio 5000 Add-On Profiles and standardized tag naming from the beginning of the project; when modules are added to expand a standard layout, consistent naming conventions ensure the new tags integrate cleanly into the existing program structure without manual renaming.
  • When planning multi-skid installations on a single controller, verify that the total EtherNet/IP connection count across all POINT I/O nodes stays within the controller's documented connection limit before finalizing the network architecture.

Wrong-Part and Wrong-Layout Prevention Checklist

Before finalizing any POINT I/O bill of materials for a packaging machine or process skid, work through each item on this checklist:

  1. Confirm exact channel counts with margin before fixing a standard layout.
  2. Check adapter module and power distribution limits against projected module count.
  3. Verify that selected modules match sensor/actuator voltage and signal types.
  4. Ensure safety I/O is kept on appropriate safety-rated modules and controllers.
  5. Reserve physical space and backplane power for future options and expansion.
  6. Align module choice with standard wiring practices (terminal type, labeling).
  7. Validate standard layouts against typical fault scenarios and maintenance needs.

If any item on this checklist raises a question about the correct module selection, contact the LeadTime.ca team before ordering — it is faster to resolve a specification question before the hardware ships than after it arrives on site. Reach the LeadTime.ca team here — we ship worldwide.

Frequently Asked Questions

How many POINT I/O modules should I plan per packaging cell, and how do I know when I need a second node?

The right number depends on the specific adapter's documented module count limit, which varies by adapter catalog number and must be confirmed in the relevant 1734-series user manual. As a practical guideline, once your module count approaches the adapter's limit or your projected backplane power draw leaves less than 20 percent margin, splitting into two nodes — one per machine section — is typically the cleaner architectural choice. Two smaller, well-organized nodes are easier to commission and troubleshoot than one heavily loaded assembly.

Can I put safety POINT Guard I/O modules and standard POINT I/O modules on the same node?

This depends on the adapter and controller combination. Safety POINT Guard I/O modules such as the 1734-IB8S and 1734-OB8S require a safety-capable adapter and a compatible safety controller such as GuardLogix. Whether safety and standard modules can coexist on the same node is determined by the specific adapter's documentation and the safety architecture requirements for your application. When in doubt, keeping safety I/O on a dedicated, separately documented node is the conservative and architecturally clearest approach, and it simplifies safety validation and third-party audits.

Should my process skid have a dedicated POINT I/O adapter or share one with adjacent equipment?

For skids that will be commissioned, moved or maintained independently — which describes most OEM skid packages — a dedicated adapter per skid is the strongly preferred approach. It allows the skid to be tested as a standalone unit before integration, simplifies troubleshooting in the field, and means that a network event on one skid does not disrupt I/O communication on adjacent equipment. Shared adapters can reduce hardware cost on simple utility skids but introduce maintenance and operational dependencies that complicate fault isolation.

What is the correct way to handle late scope changes in a standard POINT I/O layout — signals added after the panel is ordered?

If expansion slots were reserved in the standard layout tier, late additions can often be handled by populating a reserved position with the correct module type. If the assembly is already at its module count or power limit, options include adding a second POINT I/O node for the additional signals or, in some cases, replacing a lower-density module with a higher-channel-count variant of the same type. Documenting adapter and power limits at the start of the project — and treating the reserved expansion margin as non-negotiable — is the most effective way to avoid this situation entirely.

Is the 1734-AENTR always the right EtherNet/IP adapter choice, or are there cases where the 1734-AENT is sufficient?

The 1734-AENTR adds Device Level Ring topology support, which provides network resilience by allowing the EtherNet/IP ring to maintain communication if a single cable segment fails. For packaging lines where network availability directly affects production uptime and where the ring infrastructure is in place, the 1734-AENTR is the better choice. For standalone machines, test cells or skids where a simple linear EtherNet/IP connection is sufficient and ring topology is not implemented, the 1734-AENT is adequate. Confirm the adapter variant against your plant's or customer's network architecture specification before ordering.

Why Order POINT I/O Through LeadTime.ca

  • LeadTime.ca sources 1734-series POINT I/O modules including adapters, digital, analog, temperature, safety and IO-Link variants for OEMs, system integrators and plant engineering teams worldwide.
  • The team can assist with bill of materials cross-checks — confirming that module catalog numbers match the signal types, terminal types and adapter compatibility in your standard layout before the order ships.
  • Global shipping is available; LeadTime.ca serves customers across North America and internationally with the same level of service.
  • Volume pricing and lead-time verification for repeat builds are available — contact the team before committing to a production schedule.
  • Hard-to-find and short-lead-time modules for ongoing OEM production runs are a core sourcing capability.

At-a-Glance Summary

  • Allen-Bradley POINT I/O (1734 series) is a modular, DIN-rail-mounted distributed I/O system compatible with EtherNet/IP (1734-AENT / 1734-AENTR), DeviceNet (1734-ADN) and ControlNet (1734-ACNR) networks.
  • Module coverage spans digital inputs (1734-IB8, 1734-IB16), digital outputs (1734-OB8, 1734-OB8E, 1734-OW4), analog inputs (1734-IE2C, 1734-IE2V, 1734-IF2I), analog outputs (1734-OE2C, 1734-OE2V), temperature inputs (1734-IT2I for TC, 1734-IR2 for RTD), safety I/O (1734-IB8S, 1734-OB8S), IO-Link (1734-IOL) and high-speed counting (1734-VHSC).
  • Standard layout tiers — small cell, mid-size machine, large machine, utility skid, instrumentation skid, safety zone — reduce design time and enable repeatable BOM and wiring standards across machine families.
  • Adapter module count and backplane power limits are hard constraints that must be verified from the specific adapter datasheet before finalizing any layout.
  • Safety POINT Guard I/O modules require a safety-capable adapter and a compatible safety controller; safety and standard I/O must be architecturally separated and documented.
  • Analog and temperature modules benefit from dedicated wiring routing with shielded twisted-pair cable, separated from digital and AC wiring runs.
  • Reserving one to two open module positions and a power budget margin in every standard layout tier is the most effective way to manage late scope changes without panel redesign.
  • Pricing and availability for specific catalog numbers should be verified with LeadTime.ca before finalizing any BOM for production or repeat builds.
