Common POINT I/O Wiring & Config Mistakes

By Abdullah Zahid
13 min read

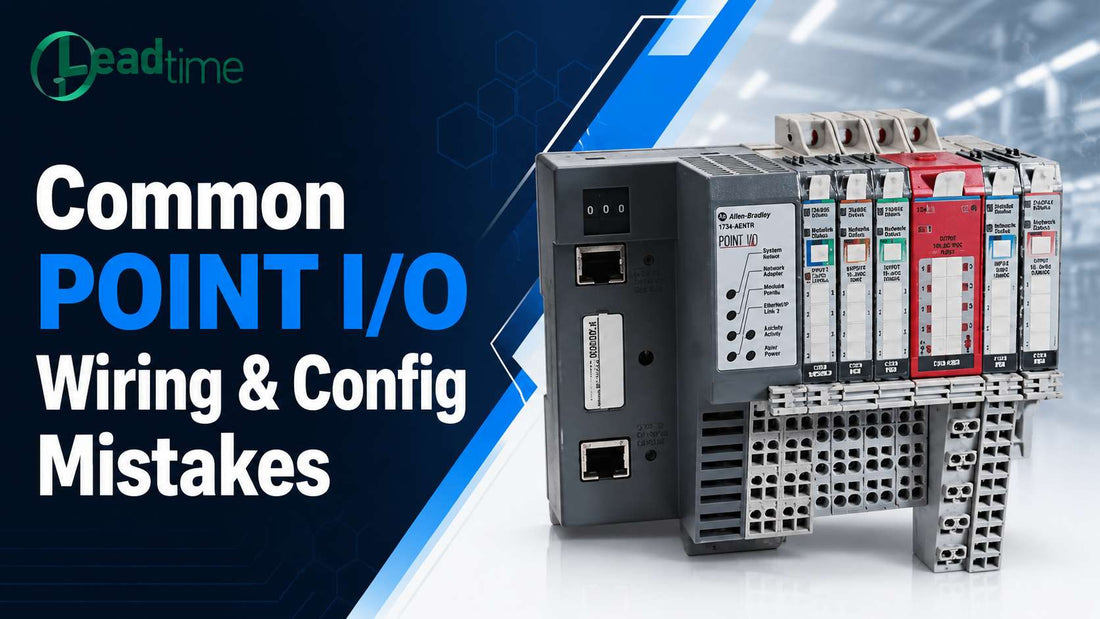

Allen-Bradley 1734 POINT I/O modular I/O system mounted on DIN rail in industrial control panel

Common Allen-Bradley POINT I/O Wiring and Configuration Mistakes: Troubleshooting Guide

Controls engineers and technicians working with the Allen-Bradley POINT I/O Modular I/O System frequently encounter dead inputs, faulted outputs, or modules dropping offline because of wiring errors, power problems, or configuration mismatches rather than defective hardware. This guide covers common faults in 1734-series POINT I/O systems, including sink/source mismatches, missing COM references, POINTBus power overloads, incorrect terminal bases, EtherNet/IP issues, and I/O tree mismatches in Studio 5000.

Safety comes first. Checks involving open panels or energized conductors require qualified personnel, lockout/tagout, appropriate PPE, and compliance with site and local electrical safety procedures.

If troubleshooting has already identified a replacement module, power expansion unit, or adapter, check current availability and pricing for Allen-Bradley POINT I/O components at LeadTime.ca — contact the team for sourcing support, ships worldwide.

Who This Guide Is For — and What It Covers

This guide is for controls engineers, panel builders, systems integrators, and maintenance electricians working with 1734 POINT I/O installations on CompactLogix or ControlLogix systems. It covers wiring, field power, POINTBus power, Studio 5000 and RSLogix 5000 configuration, EtherNet/IP communication, and LED diagnostics.

  • You are troubleshooting a POINT I/O system showing unexpected behaviour
  • You need a structured sequence for checking power, wiring, configuration, and networking
  • You need to distinguish field-power faults from POINTBus-power faults
  • You are investigating dead inputs, faulted outputs, or communication loss
  • You need to determine whether hardware should be replaced or the installation corrected

This guide does not replace Rockwell Automation installation instructions, module manuals, or formal safety documentation. Escalate safety-related faults to a qualified safety specialist.

On this page:

Safety and Pre-Diagnostic Requirements

Before opening a POINT I/O panel, apply lockout/tagout to all relevant energy sources and verify absence of voltage with appropriately rated test equipment. Only qualified personnel should perform industrial control-panel wiring checks or live measurements.

Do not work on energized circuits simply to check wiring faster. If energized measurements are required, follow the site's formal live-work procedure and PPE requirements. Rockwell installation instructions and user manuals for the exact 1734 module, terminal base, power module, or adapter remain the primary reference.

Stop work and escalate if you find burned components, repeated hardware failures, damaged safety circuits, unclear drawings, or undocumented wiring modifications. Never bypass safety circuits to restore production.

How POINT I/O Architecture Affects Troubleshooting

POINT I/O faults are easier to diagnose when the system is separated into its main hardware layers:

  • EtherNet/IP adapters such as 1734-AENT and 1734-AENTR connect the node to a Logix controller and supply POINTBus power downstream.
  • Terminal bases provide mechanical mounting and electrical field connections for the I/O modules.
  • Digital, analog, safety, and specialty 1734 modules draw logic power from POINTBus while field circuits use a separate supply.
  • 1734-FPD field power distribution modules segment field power where required.
  • 1734-EP24DC expansion power modules extend POINTBus power when the adapter's current capacity is insufficient.

POINTBus power and field power are separate. Confusing them is one of the most common troubleshooting errors.

Grouping Your Symptoms Before Opening the Panel

Define the scope of the fault before changing wiring or software.

  • No I/O across the assembly: check adapter communication and POINTBus power first.
  • One module faulted: check that module's wiring, terminal base, seating, and configuration.
  • One or more channels stuck: check COM wiring, sensor polarity, channel settings, and terminals.
  • Multiple modules fault when loads energize: investigate field voltage, POINTBus load, grounding, and voltage collapse.
  • Adapter communication fault: investigate IP addressing, Ethernet cabling, adapter power, and controller configuration.

Also identify what changed immediately before the fault: new hardware, rewiring, a project download, network changes, or additional I/O modules. This often points directly to the cause.

Power and Grounding Checks: Field Power vs POINTBus Power

Field power is the supply that powers sensors and output loads. If field power is missing, a module may remain visible to the PLC while connected devices fail to operate. Measure voltage at the appropriate module and load terminals, then check fuses, field power distribution, cable sizing, and wiring.

POINTBus power powers the logic electronics inside the 1734 modules. Each module draws current from the bus, and every adapter has a defined current limit. Adding modules without recalculating total current can cause intermittent faults, modules dropping offline, or unstable operation.

Use the current draw from each module's Rockwell datasheet and calculate the complete node load. The POINT I/O rack power budget, module count, and network requirements should be checked whenever a node is expanded. If the adapter cannot support the load, add a 1734-EP24DC expansion power module or split the assembly.

Grounding and shielding: poor grounding or cable routing can create intermittent inputs, module resets, or noise-induced state changes. Keep sensitive signal wiring away from VFD output and motor cables and follow Rockwell shielding and grounding instructions for the specific modules used.

Wiring and Terminal Checks: Sink, Source, and COM Errors

Wiring errors are among the most common causes of POINT I/O commissioning faults.

Sourcing vs sinking inputs: verify that the sensor output type matches the input module. A sourcing sensor and an incompatible input circuit will not operate correctly even if the sensor LED indicates that the sensor itself is switching.

COM terminal wiring: an input requires the correct common reference. A missing or incorrectly wired COM can leave a channel permanently OFF even when the field sensor operates correctly.

Mixed sensor logic: do not mix incompatible PNP and NPN wiring arrangements on common groups unless the module and circuit are specifically designed for that arrangement. Standardize sensor logic by module or panel segment where practical.

Terminal condition: inspect for loose conductors, incorrect stripping length, damaged wire, poor ferrule installation, and partially seated modules. Tighten terminals according to the installation instructions rather than relying on feel.

Hardware Compatibility — Getting the Right Base for the Right Module

POINT I/O terminal bases are not universally interchangeable. Digital, analog, safety, and specialty modules can require different terminal base arrangements.

  • Verify the terminal base catalog number against the installation instructions for the exact I/O module.
  • Do not assume compatibility simply because a module appears to fit mechanically.
  • After replacement, confirm that the module is fully seated and the terminal base is correctly attached to the DIN rail.
  • Check base compatibility again when changing module type, catalog suffix, or hardware revision.

If your installed hardware specifically uses a 1734-TBS base, the 1734-TBS POINT I/O terminal base guide provides additional product-level reference information.

Configuration Checks in Studio 5000 and RSLogix 5000

Only move into software troubleshooting after wiring and power have been verified.

  • Confirm the catalog number and module series in the I/O tree match the installed hardware.
  • Verify physical module order against configured slot assignments.
  • Check channel settings such as input filtering, analog range, output mode, and diagnostic functions.
  • Verify program tags point to the correct module and channel.
  • After configuration changes, download the project and confirm healthy I/O connections before operating loads.

The 1734-OB8E is a useful example. Diagnostic functions such as no-load detection can cause unused output channels to report faults. Check module properties and the relevant Rockwell manual before assuming the hardware has failed.

EtherNet/IP Adapter and Network Checks

For communication-loss faults, investigate the network layer before changing field wiring.

  • Verify the adapter IP address, subnet mask, and gateway against the Logix I/O tree.
  • Check for duplicate IP addresses.
  • Confirm the adapter is online and the controller reports an established I/O connection.
  • If the adapter responds to ping but the Logix connection fails, inspect I/O configuration, RPI, unicast or multicast settings, managed-switch configuration, and IGMP behaviour.
  • Inspect Ethernet cables and switch port error counters.
  • After adding modules, recalculate both POINTBus current and adapter connection use.

For deeper product-specific information on the dual-port adapter, see the Allen-Bradley 1734-AENTR guide.

Reading POINT I/O LED Diagnostics and Logix Fault Messages

Adapter and module LEDs help identify whether a fault is related to network communication, module status, field power, or an individual channel.

Start with the adapter LEDs, then move downstream through the affected modules. A network or module-status fault should send you toward communication and configuration checks. A channel-specific indication usually points toward field wiring, load condition, or channel configuration.

LED patterns vary by catalog number and revision, so use the Rockwell documentation for the exact device. In Studio 5000 or RSLogix 5000, use module connection errors, channel diagnostics, and fault information to narrow the physical checks.

Symptom-Cause-Action Reference Tables

Wiring Faults

Symptom Likely Cause What to Check Corrective Action
Digital input never turns on Missing COM, wrong polarity, sensor/module mismatch Sensor voltage, COM wiring, input type Correct COM and polarity; match sensor to module
Multiple inputs stuck ON or OFF Incorrect commons or mixed sensor logic Common wiring and module documentation Separate or correct commons and standardize wiring
PLC output changes but field device does not No field power or incorrect load wiring Voltage at module and device Restore field power and correct load wiring
Intermittent channel behaviour Loose terminals, EMC, poor grounding Connections, cable routing, shielding Correct terminals, routing, shielding, and grounding

Configuration Faults

Symptom Likely Cause What to Check Corrective Action
Healthy module but tags never change Wrong slot or tag mapping I/O tree and program tags Correct configuration and tag references
Analog channel reads zero or full scale Wrong range or signal type Channel settings and sensor wiring Match configuration to field signal
Unused output channels fault No-load diagnostics enabled Module diagnostic properties Configure supported diagnostics correctly
I/O faults after replacement Different catalog number or series Installed hardware vs I/O tree Install matching hardware or update configuration

Communication Faults

Symptom Likely Cause What to Check Corrective Action
Entire node shows communication loss Adapter offline, bad cable, wrong IP Adapter status, Ethernet cable, IP settings Restore network connection and correct addressing
Intermittent I/O connection Poor cabling, network errors, unstable adapter power Switch statistics, cable quality, supply voltage Correct cabling, network, or adapter power
Adapter responds to ping but Logix connection fails I/O connection or switch configuration problem RPI, unicast/multicast, switch settings Correct controller and network configuration
Faults appear after expanding node Connection or power limits reached Connection use, POINTBus current, I/O tree Reconfigure or add adapter/power capacity

Power Faults

Symptom Likely Cause What to Check Corrective Action
Modules drop offline after expansion POINTBus current exceeded Total module bus-current calculation Add expansion power or redistribute modules
Output module healthy but load has no voltage Field supply missing Field voltage and fuses Restore field supply
Modules reset randomly Weak supply or loose power wiring Supply capacity and terminal condition Correct supply sizing and wiring
Adapter powered but downstream modules lose power Power-distribution wiring issue 1734-FPD and 1734-EP24DC installation Correct orientation and wiring per manual

Structured Diagnostic Workflow: The Right Sequence

  • 1. Prepare safely: lock out relevant energy sources, verify absence of voltage, and obtain current drawings and Rockwell documentation.
  • 2. Define the fault: identify whether the problem affects one channel, one module, a group of modules, or the entire node.
  • 3. Verify power: check field voltage, fuses, adapter supply, and POINTBus load.
  • 4. Inspect wiring: verify COM, polarity, sensor type, terminal condition, module seating, and terminal base compatibility.
  • 5. Review software: compare installed catalog numbers and physical order with the Studio 5000 I/O tree.
  • 6. Check networking: verify adapter addressing, cabling, switches, and controller connection status.
  • 7. Read diagnostics: use adapter LEDs, module LEDs, channel indicators, and Logix fault data together.
  • 8. Make one correction at a time: retest before moving to another possible cause.
  • 9. Document the fix: update drawings, project notes, and hardware records.

Six Troubleshooting Mistakes That Make Faults Worse

1. Working live without proper controls. This creates unnecessary personnel and equipment risk. Follow lockout/tagout and formal live-work procedures.

2. Changing Studio 5000 configuration before checking power and wiring. Software changes can hide the original problem and add new variables.

3. Ignoring POINTBus power calculations. Adding modules without checking current demand can create intermittent faults across an otherwise healthy node.

4. Mixing incompatible PNP and NPN arrangements. This commonly creates stuck or unpredictable inputs.

5. Swapping hardware without updating the I/O tree. A different catalog number or revision can create connection faults even when the replacement appears physically similar.

6. Bypassing safety functions. Never bypass safety circuits to restore operation. Escalate the fault to qualified safety personnel.

Expert Verdict: When to Fix, When to Replace, When to Escalate

Most POINT I/O faults should be approached in the same order: power, wiring, terminal base and module compatibility, configuration, then network diagnostics. Starting with software before proving the physical system is correct usually increases troubleshooting time.

Replace hardware only after wiring, power, configuration, and communication checks confirm the installation is correct and the device continues to fault, behaves unpredictably, or shows physical damage.

Repeated failures in the same position can indicate power quality, grounding, EMC, temperature, contamination, or another system-level problem. Replacing the module repeatedly without correcting the underlying cause will not provide a permanent fix.

Safety I/O problems, repeated overheating, widespread EMC problems, or any condition requiring deviation from Rockwell installation instructions should be escalated immediately.

Once troubleshooting identifies the failed component, replacement hardware may include a 1734-OB8E output module, 1734-EP24DC expansion power module, 1734-AENTR adapter, or 1734-FPD POINT I/O field power distributor. Confirm the exact catalog number before ordering.

What Engineers Need to Know Before Assuming a Module Is Faulty

One of the most frequently misdiagnosed POINT I/O problems is a digital input that appears dead even though the sensor is operating. Missing COM wiring and incorrect sensor/module sink-source combinations can produce exactly this symptom.

The 1734-OB8E also illustrates why a fault indication does not automatically mean hardware failure. Missing output field power or enabled diagnostics on unused channels can generate multiple output faults. Verify field voltage and module settings before replacing it.

POINTBus overloads are another source of misleading symptoms. A system may operate normally until more modules are added, then begin showing intermittent dropouts and connection faults. Recalculate the complete bus current whenever hardware is added rather than assuming the adapter still has sufficient capacity.

Prevention: Good Design and Commissioning Practices

  • Standardize sensor logic style by cabinet or panel segment where practical.
  • Include POINTBus calculations in the design documents for every node.
  • Plan expansion power before a node reaches its adapter's current limit.
  • Label modules, terminal bases, commons, and field wiring to match drawings and PLC tags.
  • Verify module/base compatibility during panel design, not after commissioning.
  • Include field-power, POINTBus-power, wiring, I/O tree, and network checks in FAT and SAT procedures.
  • Recheck wiring assumptions when replacing hardwired I/O with modular POINT I/O.

Sourcing Replacement POINT I/O Hardware

Once troubleshooting identifies the hardware required, verify every catalog number before purchasing. The replacement module, terminal base, adapter, or power module must match the application and existing Logix configuration.

  1. Confirm the full physical catalog number and series of the part being replaced.
  2. Verify terminal base compatibility for the replacement module.
  3. For expansion power, confirm 1734-EP24DC placement and wiring against Rockwell instructions.
  4. For an adapter replacement, confirm required EtherNet/IP topology, connection capacity, and POINTBus capacity.
  5. Verify revision and firmware compatibility with the installed controller project.

Allen-Bradley POINT I/O modules, adapters, bases, and power accessories are available from LeadTime.ca for buyers worldwide. Contact LeadTime.ca for current pricing and lead time confirmation.

Frequently Asked Questions

Why do my POINT I/O digital inputs never turn on even though the sensor LED is lit?

Check COM wiring and the sensor/module sink-source combination first. A sensor can indicate correctly at the device while the PLC input remains OFF if the module does not have the correct current path or common reference.

Why did all outputs on a 1734-OB8E fault at the same time?

Check output field power first. Then review supported diagnostic functions such as no-load detection in the module configuration. Multiple simultaneous faults do not necessarily mean the module has failed.

What is the difference between POINTBus power and field power?

POINTBus power supplies the electronics inside the POINT I/O modules. Field power supplies sensors and output loads. A node can have healthy POINTBus communication while field devices remain inactive because field power is missing.

Can I mix PNP and NPN sensors on one POINT I/O module?

Only if the specific module and wiring arrangement explicitly support it. Do not mix incompatible sensor logic on shared commons. Verify the module wiring diagram and keep different circuit types separated where required.

How do I know whether my assembly needs a 1734-EP24DC?

Add the POINTBus current draw of every installed module and compare it with the adapter's rated capacity. If the required current exceeds the available bus current, add expansion power or redesign the node.

Can I replace a POINT I/O module with another series or suffix that looks similar?

Do not assume interchangeability. Verify catalog number, series, terminal base compatibility, firmware requirements, and Studio 5000 configuration before substitution.

What should I check first when a 1734-AENTR node goes offline?

Check adapter power, Ethernet cabling, IP configuration, duplicate addresses, adapter LEDs, and the Logix I/O connection before investigating individual module wiring.

Why Source From LeadTime.ca

  • Allen-Bradley POINT I/O modules, adapters, terminal bases, and power distribution hardware are available with worldwide shipping.
  • Catalog-number verification helps reduce incorrect replacement orders.
  • Support is available for replacement, expansion, and multi-node requirements.
  • Volume pricing and lead time confirmation are available before panel builds or retrofit schedules are finalized.
  • Contact LeadTime.ca for sourcing support

At-a-Glance Summary

  • POINTBus power and field power are separate and must be checked independently.
  • Missing COM wiring and sink/source mismatches are common causes of dead digital inputs.
  • POINTBus current must be calculated whenever modules are added.
  • 1734-EP24DC extends POINTBus power when required.
  • 1734-FPD is used for field-power distribution and segmentation.
  • Diagnostic settings on modules such as 1734-OB8E can create faults without hardware failure.
  • Terminal base compatibility must be checked against the exact module catalog number.
  • Verify wiring and power before changing Studio 5000 configuration.
  • For EtherNet/IP faults, check addressing, cables, adapter status, and Logix connection settings before replacing hardware.
  • Follow lockout/tagout and qualified-person requirements before performing industrial panel troubleshooting.
