Allen-Bradley 1734-IE2C — POINT I/O Analog Input Buyer Guide

By Abdullah Zahid
12 min read

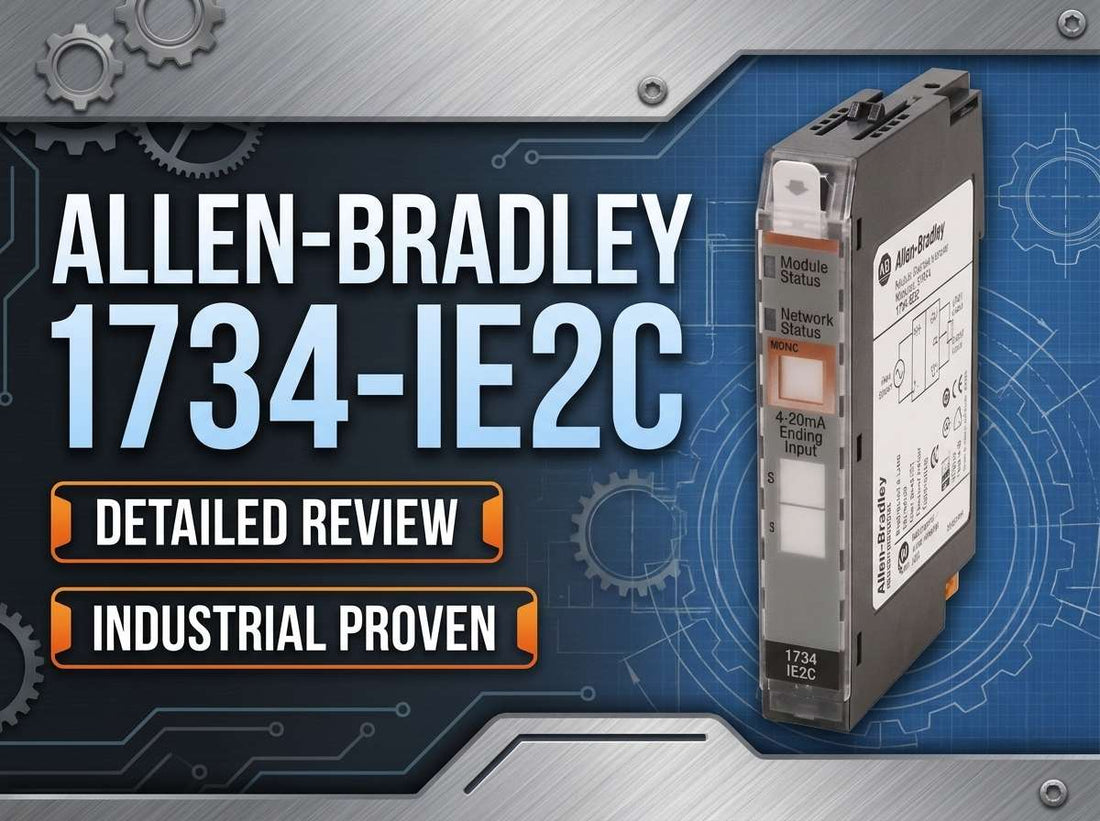

Allen-Bradley 1734-IE2C POINT I/O 2 Point Analog Input Module for 4-20 mA current loops in distributed I/O panels

Allen-Bradley 1734-IE2C POINT I/O 2 Point Analog Input Module — Specs, Variants, and Buying Guide

If you are specifying a 2-channel current input module for a POINT I/O node and your field devices output 0–20 mA or 4–20 mA signals, the Allen-Bradley 1734-IE2C is the catalog number to evaluate. This POINT I/O 2 Point Analog Input Module delivers 16-bit signed resolution over a 0–21 mA operating range, runs on 24 V DC, and slots directly into any standard POINT I/O terminal base alongside your existing Logix infrastructure. The decision usually comes down to three fast checks: signal type (current, not voltage), environment (standard vs. conformal-coated), and channel count (2 per module).

If you have already confirmed this is the right part, check current pricing and availability for the 1734-IE2C at LeadTime.ca — ships worldwide.

Who Should Buy the 1734-IE2C — and Who Should Not

The Allen-Bradley 1734-IE2C is the right module when all of the following apply to your project:

  • Your field devices produce current signals in the 0–20 mA or 4–20 mA range — not voltage, thermocouple, or RTD signals.
  • You need exactly 2 single-ended, non-isolated analog input channels per module location.
  • Your control architecture is already built around POINT I/O with a compatible network adapter (EtherNet/IP, ControlNet, DeviceNet, or similar) feeding a Logix family controller.
  • Your installation environment stays within -20 to 55 °C and the module will be housed inside a protective enclosure (open-style rating — no built-in IP enclosure).
  • Your panel power budget and terminal base inventory are already accounted for within the POINT I/O node design.

If your field signals are voltage rather than current, the 1734-IE2V is the correct selection. If your installation environment involves corrosive atmospheres or sustained high humidity requiring conformal coating, specify 1734-IE2CK instead of 1734-IE2C.

On this page:

How the 1734-IE2C Fits Into a Rockwell Automation System

The Allen-Bradley 1734-IE2C sits at the field edge of a distributed I/O architecture. It mounts on a POINT I/O terminal base installed on DIN rail inside a control enclosure, and connects upstream through a POINT I/O network adapter — EtherNet/IP, ControlNet, or DeviceNet — to a Logix family controller such as CompactLogix or ControlLogix. The module converts two analog current loop signals into 16-bit digital values that the controller reads as process data over that network link.

  • Logix family controller (CompactLogix, ControlLogix) at the top of the data chain
  • POINT I/O network adapter bridging the controller backplane or EtherNet/IP network to the I/O rail
  • POINT I/O terminal base providing the mechanical and electrical connection point for the 1734-IE2C module
  • 1734-IE2C module converting field current signals to digital data in real time
  • Field devices — pressure transmitters, flow meters, level sensors, proportional valves — wired to the module terminals via current loops

Typical Applications: Where This Module Gets Deployed

Discrete manufacturing lines that use 4–20 mA pressure or flow transmitters to monitor process conditions are the most common home for the 1734-IE2C. A packaging machine that tracks fill-level feedback from a capacitive level sensor, or a conveyor system monitoring belt tension via a load cell transmitter, both represent straightforward single-node deployments where two current channels per location is sufficient.

Small process skids — water treatment dosing systems, food and beverage batching panels, HVAC control enclosures — frequently use POINT I/O for distributed analog collection over EtherNet/IP. The 1734-IE2C slots cleanly into these designs when the analog count per panel is low and the signals are all current-based.

Retrofit projects represent another strong use case. Replacing legacy analog input cards with POINT I/O modules reduces panel footprint and wiring complexity. The 1734-IE2C makes it straightforward to add one or two 4–20 mA channels to an existing POINT I/O node without redesigning the entire rack or adding a new network segment.

Machine tool builders and OEMs standardizing on Rockwell Automation frequently specify the 1734-IE2C for proportional valve feedback or drive speed reference loops where 4–20 mA is the interface standard and channel count per location is modest.

Application Typical Deployment
Process skid monitoring Pressure and flow transmitters (4–20 mA) feeding CompactLogix via POINT I/O over EtherNet/IP
Packaging machine analog feedback Level or position transmitter wired to 1734-IE2C at machine cabinet, integrated into line PLC
Retrofit of legacy analog I/O Replacing older analog input cards with POINT I/O modules to reduce wiring and panel space
Water/wastewater distributed panels Remote POINT I/O nodes collecting 4–20 mA sensor signals from field instruments
OEM machine tool builds Proportional valve or drive feedback using 0–20 mA or 4–20 mA current loops

Key Specifications for Purchase Decision

Parameter Value Notes
Catalog number 1734-IE2C POINT I/O analog current input module
Product family POINT I/O (Bulletin 1734) For distributed I/O on Logix systems
I/O type Analog current input only No voltage measurement capability
Number of channels 2 single-ended, non-isolated All channels share a common reference
Signal ranges 0–20 mA, 4–20 mA (per channel) Individually configurable; supports over/under-range detection
Resolution 16-bit signed Over 0–21 mA operating range
System voltage 24 V DC Supplied via POINT I/O system power; verify node power budget
Operating temperature -20 to 55 °C Ensure panel conditions stay within this range
Relative humidity Up to 95% non-condensing Check datasheet for derating if needed
Certifications CE, UL, C-TICK, marine, and others See Rockwell documentation for full approvals list

Full technical specifications are available on the product page at LeadTime.ca.

1734-IE2C vs. 1734-IE2CK, 1734-IE2V, and 1734-IE2VK

Selecting the wrong catalog number is the single most common ordering error in the POINT I/O analog family. The table below captures the critical differentiators:

Model Signal Type Channels Conformal Coating Typical Use Case
1734-IE2C Current (0–20 mA / 4–20 mA) 2 single-ended No Standard current input in protected cabinet
1734-IE2CK Current (0–20 mA / 4–20 mA) 2 single-ended Yes Current input in corrosive or high-humidity environments
1734-IE2V Voltage 2 single-ended No Voltage signal input in standard environment
1734-IE2VK Voltage 2 single-ended Yes Voltage signal input in harsh or corrosive environment

If your field devices output voltage signals rather than current, the 1734-IE2V is the correct selection — the 1734-IE2C will not read voltage. If your cabinet environment involves chemical exposure, condensation risk, or sustained high humidity beyond the standard rating, specify 1734-IE2CK. Confirm your exact catalog number before ordering — check current availability for the 1734-IE2C at LeadTime.ca.

Expert Verdict: Is the 1734-IE2C Worth Specifying?

The Allen-Bradley 1734-IE2C earns its place in a Rockwell-centric bill of materials when the requirement is straightforward: one or two 4–20 mA field signals per distributed panel location, integrated into a CompactLogix or ControlLogix system over an existing POINT I/O network. The 16-bit signed resolution over a 0–21 mA span gives process control applications the granularity they need without overcomplicating the hardware. On-board features — per-channel range configuration, scaling, input filters, and over/under-range detection — reduce the engineering burden at the controller level. For OEMs who standardize on POINT I/O and controls engineers managing distributed panels, this module does exactly what it promises with no surprises. It is not a niche part; it is a workhorse catalog number that belongs in any Rockwell-aligned spares inventory.

Where the 1734-IE2C falls short is equally clear. If your signals are voltage rather than current, you need the 1734-IE2V or 1734-IE2VK — full stop. If your installation environment is corrosive, chemically aggressive, or subject to condensation beyond the standard humidity rating, the 1734-IE2CK with conformal coating is the correct choice. And if your application demands high analog channel density per node — more than two current inputs at a single location — you will need to plan for multiple 1734-IE2C modules or evaluate other POINT I/O analog options. None of these are criticisms of the module; they are selection constraints the brief is clear about and buyers should resolve before committing a catalog number to a purchase order.

On the procurement side, the 1734-IE2C is generally a well-distributed part within the Rockwell supply chain, though availability fluctuates with broader industrial component cycles and series revisions. Verifying current stock, series compatibility, and required accessories — terminal bases, end caps, network adapter — before committing to a build schedule is not optional. A specialist distributor who can cross-check series compatibility with your Studio 5000 version and confirm that accessories are co-available saves you the downtime cost of a partial delivery. View current stock and pricing for the 1734-IE2C at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 1734-IE2C

Because model-specific community discussion for the 1734-IE2C is sparse — searches across Reddit r/PLC, PLCTalk, PLCS.net, MrPLC, and Rockwell user forums returned no meaningful threads targeting this exact catalog number — the most useful pre-order intelligence comes from the engineering constraints the module itself imposes rather than from accumulated forum wisdom. The absence of model-specific complaints is itself informative: it suggests the hardware behaves as documented and that problems, when they occur, trace to selection or wiring errors rather than inherent hardware defects.

What does surface at the POINT I/O analog family level is a consistent pattern: the ordering errors engineers regret most involve signal type confusion (current vs. voltage) and overlooking the conformal coating variants. These are not subtle mistakes — they result in a module that physically installs but produces no useful data, or one that begins degrading in an environment it was never rated for. A second recurring theme is underestimating the accessory requirement: the 1734-IE2C requires a compatible POINT I/O terminal base and an appropriate network adapter, and these must be specified and ordered alongside the module itself to avoid a delayed commissioning.

The practical guidance here is that when community data is thin, the manufacturer documentation and a knowledgeable distributor become more important, not less. LeadTime.ca can confirm series compatibility with your controller firmware, verify that the accessories you need are co-available, and flag if a newer series revision changes any ordering considerations. That specialist check is particularly valuable when you are working against a commissioning deadline and cannot afford a wrong-part delivery.

Wiring and Installation Overview

  • Mount the POINT I/O terminal base on DIN rail with correct keying set for an analog input module before snapping the 1734-IE2C into place; confirm the locking mechanism is fully engaged.
  • Wire each 4–20 mA or 0–20 mA current loop to the designated channel terminals, observing polarity for each of the two single-ended channels; route cable shields to the designated ground point per Rockwell installation instructions.
  • The 1734-IE2C is open-style and requires installation inside a suitable protective enclosure; do not operate it in an unprotected environment.
  • External overcurrent and short-circuit protection is required by local electrical codes and Rockwell recommendations — the module itself does not incorporate circuit breakers.
  • After energizing, confirm module status LEDs indicate normal operation before proceeding to Studio 5000 configuration; verify that each channel's input range (0–20 mA or 4–20 mA) is configured to match the connected field device.

For full wiring diagrams, terminal assignments, and commissioning procedures, refer to the Rockwell Automation installation manual for the 1734-IE2C.

Wrong-Part Prevention Checklist

Before submitting your purchase order for the Allen-Bradley 1734-IE2C, work through each item on this checklist:

  1. Confirm you need current inputs only (0–20 mA / 4–20 mA), not voltage or thermocouple/RTD signals.
  2. Verify 2 channels are sufficient; if more channels are required, plan multiple modules or a different POINT I/O analog module.
  3. Check if your environment requires conformal coating; if yes, specify 1734-IE2CK instead of 1734-IE2C.
  4. Ensure you have compatible POINT I/O terminal bases and a suitable POINT I/O network adapter already specified.
  5. Confirm power budget and field wiring scheme match a 24 V DC open-style I/O system.
  6. Verify controller platform (e.g., CompactLogix/ControlLogix) and Studio 5000 Logix Designer version support this catalog and series (e.g., Series C).

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — we can cross-check your configuration and confirm the right catalog number before your order is placed.

Frequently Asked Questions

Can the 1734-IE2C accept voltage signals if I configure it differently in Studio 5000?

No. The 1734-IE2C is a current input module only, supporting 0–20 mA and 4–20 mA ranges. It has no voltage measurement capability regardless of software configuration. If your field devices output voltage signals, the correct module is the 1734-IE2V (standard) or 1734-IE2VK (conformal coated).

Can I mix the 1734-IE2C with voltage input modules and other POINT I/O modules on the same node?

Yes. Different POINT I/O module types — current input, voltage input, digital I/O, and others — can coexist on the same POINT I/O node under the same network adapter. Each module occupies its own terminal base slot and is configured independently in Studio 5000. Verify that your network adapter and power supply support the combined node configuration.

What is the difference between 1734-IE2C and 1734-IE2CK, and when does conformal coating actually matter?

The 1734-IE2CK is the conformal-coated version of the 1734-IE2C; all electrical and functional specifications are identical. Conformal coating matters in environments where the module may be exposed to corrosive chemicals, condensation, or sustained high humidity that exceeds standard ratings. If your enclosure is climate-controlled and the cabinet interior stays clean and dry, the standard 1734-IE2C is appropriate. When in doubt about your environment, the 1734-IE2CK is the lower-risk choice.

What happens if a current loop opens and there is no signal on a 1734-IE2C channel?

When a current loop is broken or a connected transmitter loses power, the channel will report an under-range condition. The 1734-IE2C supports over-range and under-range detection, and the diagnostic status is visible in the controller tags. This allows your control logic to detect a lost transmitter and take appropriate action rather than acting on a false zero reading.

Is the 1734-IE2C compatible with 2-wire and 4-wire 4–20 mA transmitters?

The 1734-IE2C supports standard current loop wiring configurations. Both 2-wire (loop-powered) and 4-wire (separately powered) transmitters can be wired to the module. For 2-wire transmitters, the loop supply must be provided externally, as the module does not supply loop power to field devices. Refer to the Rockwell installation manual for terminal assignments and loop supply wiring guidance for each configuration.

Does the 1734-IE2C require a specific Series revision for compatibility with newer CompactLogix controllers?

Rockwell Automation periodically releases series revisions for POINT I/O modules, and compatibility with a specific controller firmware or Studio 5000 version can vary by series. The brief confirms Series C is a current revision. Before ordering, verify that your Studio 5000 Logix Designer version and controller firmware recognize the catalog number and series you are purchasing. A specialist distributor can cross-check this before the order ships.

Why Order the 1734-IE2C From LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships POINT I/O modules worldwide, not limited to any single region.
  • Series and compatibility verification — our team can confirm that the series revision you receive is compatible with your controller firmware and Studio 5000 version before the order is placed.
  • Accessory co-availability — we can confirm that terminal bases, end caps, and network adapters are available alongside the 1734-IE2C so your delivery is complete.
  • Volume and project pricing — contact us directly for multi-module or project-level pricing on POINT I/O assemblies.
  • Hard-to-find parts sourcing — if the 1734-IE2C is showing extended lead time through standard channels, contact our team for alternative sourcing options.

At-a-Glance Summary

  • Catalog number: Allen-Bradley 1734-IE2C — POINT I/O 2 Point Analog Input Module
  • 2 single-ended, non-isolated analog current input channels per module
  • Supported signal ranges: 0–20 mA and 4–20 mA, individually configurable per channel
  • 16-bit signed resolution over a 0–21 mA operating range
  • 24 V DC system voltage supplied via POINT I/O node power
  • Operating temperature: -20 to 55 °C; relative humidity: up to 95% non-condensing
  • Open-style enclosure rating — must be installed inside a suitable protective cabinet
  • Certifications include CE, UL, C-TICK, and marine approvals
  • For conformal coating: order 1734-IE2CK; for voltage inputs: order 1734-IE2V or 1734-IE2VK
  • Compatible with CompactLogix, ControlLogix, and other Logix family controllers via POINT I/O network adapter
  • Pricing available on the product page; contact LeadTime.ca for current lead time and volume pricing
