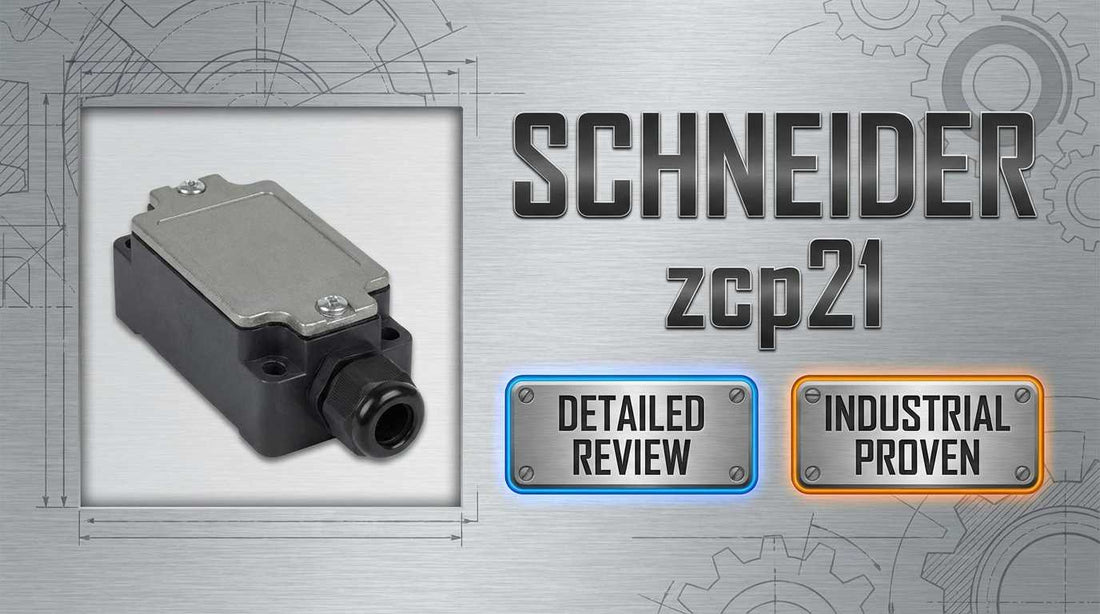

Telemecanique ZCP21 compact limit switch body 1NC+1NO snap-action IP67 for industrial automation position sensing

Telemecanique ZCP21 Limit Switch Body — Complete Specifications, Pricing, and Selection Guide for Industrial Automation

Controls engineers and maintenance technicians searching for ZCP21 limit switch specifications are typically at the same decision point: they have a machine that needs a compact snap-action body with 1NC+1NO contacts, and they need to confirm the ZCP21 is the correct SKU before committing to an order. This article answers that question directly. The Telemecanique ZCP21 is a compact plastic limit switch body rated at 10A, 300VAC, with a 5 million cycle mechanical life and IP67 protection — a capable and cost-effective choice for position sensing and safety interlocking in tight machine spaces, provided you are working within the XCKP head ecosystem.

If you have already confirmed this is the correct part, check current pricing and availability for the ZCP21 at LeadTime.ca — ships worldwide.

Who Should Buy the ZCP21 — and Who Shouldn't

The Telemecanique ZCP21 is the right choice when your application meets the following criteria:

  • Your control circuit requires exactly 1NC + 1NO contact configuration — not 2NC, 2NO, or any other arrangement
  • Circuit voltage does not exceed 300VAC and load current stays at or below 10A continuous
  • Mechanical cycle demand falls within 5 million cycles over the equipment service life
  • IP67 dust and water protection is sufficient for your installation environment
  • Your actuator head is XCKP series — or you are sourcing an XCKP head as part of the same order
  • Application is position detection, end-of-travel sensing, or safety interlocking — not direct motor control duty (AC-13)

If your circuit exceeds 10A, requires AC-13 motor control contacts, demands more than 5 million cycles, or uses non-XCKP actuator heads already installed on the machine, the ZCP21 is not the correct body — review the variant comparison table below before ordering.

On this page:

What the ZCP21 Does in a Real Machine

The Telemecanique ZCP21 is the electrical switching core of a limit switch assembly — not a complete switch. It is a compact plastic body housing silver-plated snap-action contacts in a 1NC + 1NO configuration, designed to be paired with an XCKP series actuator head (roller, plunger, or lever type) to form a functional position sensor. On its own, the ZCP21 body does nothing; in combination with a compatible XCKP head, it converts mechanical motion into a clean, chatter-free electrical transition that a PLC, safety relay, or drive interprets as a position or limit event.

The snap-action mechanism is the critical performance feature here. Unlike slow-break designs where contact travel speed depends on how fast the machine part approaches, the ZCP21's snap-action fires the contact opening or closing at a consistent speed regardless of actuation velocity — down to 0.01 m/s. This means the 1NC contact opens cleanly and the 1NO contact closes cleanly even during slow manual actuation or gradual machine deceleration. The result is a noise-free electrical transition with no contact bounce or intermediate resistance states, which is exactly what PLC digital inputs and safety relays require to avoid false triggering.

The positive opening mechanism built into the ZCP21 adds an additional safety dimension. In IEC 60947-5-1 terms, positive opening means the NC contact is mechanically forced open by the actuator regardless of contact welding or spring failure — the contact cannot remain closed due to a component defect when the actuator is physically depressed. This makes the ZCP21 suitable for safety interlock circuits where a stuck-closed contact would create a hazard.

Typical System Architecture for ZCP21 Deployments

The ZCP21 body sits between the mechanical actuator head and the control system — converting physical position into a discrete electrical signal. Here is where it fits in a typical motion control or safety circuit chain:

  • PLC or safety controller (digital input card, 24VDC or 120VAC) receives the contact state signal from the ZCP21
  • Control voltage supply (230VAC or 24VDC depending on circuit design) is wired through the ZCP21 terminals to the PLC input or safety relay
  • ZCP21 body (1NC + 1NO contacts, screw-clamp terminals) mounted to fixed machine frame via clevis holes or bolts
  • XCKP series actuator head (roller lever, plunger, or adjustable lever) attached to the ZCP21 body and positioned to intercept the moving machine element
  • Moving machine component (press arm, conveyor belt stop plate, guard door, gripper) contacts the XCKP actuator head at the defined travel limit or position

Typical Applications and Deployment Scenarios

End-of-travel detection on hydraulic press arms and robot grippers is one of the most common deployment scenarios for the ZCP21. The compact 31mm width fits in the confined spaces around press tooling and gripper brackets where larger industrial limit switches cannot be mounted without redesigning the fixture.

Safety interlocking on guard doors and access hatches is another high-frequency application. The NC contact's positive opening mechanism meets the IEC 60947-5-1 requirement for safety-rated switching — when the door opens, the NC circuit breaks with certainty, signaling the safety relay to inhibit machine motion. This application drives significant replacement demand in food and beverage processing and packaging machinery where guards are opened frequently during product changeovers.

Position feedback on filling lines — detecting bottle cap presence, label alignment confirmation, or container height — uses the NO contact, which closes when the machine element reaches the defined position and energizes a PLC input to advance the process step. Conveyor jam detection and emergency stop triggering follow the same logic: a blocked or overtravel condition actuates the ZCP21 head, opening the NC circuit and triggering the stop response.

Rotation limit sensing on rotating machinery, including indexing tables and turntables in automotive and metalworking, is well-suited to the ZCP21's 5 million cycle rating. At a typical indexing rate of 100 cycles per day, that rating represents decades of service life in most applications.

Application Typical Deployment
End-of-travel detection Hydraulic press arms, robot grippers — NC contact wired to drive inhibit input
Safety guard interlocking Access hatches and guard doors on industrial enclosures — NC positive opening contact to safety relay
Filling line position feedback Bottle cap or label alignment detection — NO contact wired to PLC digital input
Conveyor jam and emergency stop Belt overtravel or jam detection — NC contact in series with E-stop circuit
Rotation and angular limit sensing Indexing tables, turntables in automotive and metalworking — NO contact to PLC counter or position register
HVAC and water treatment actuation Valve position confirmation, actuator end-stop detection — NO or NC depending on fail-safe logic

Key Specifications and Electrical Ratings for the ZCP21

Parameter Value Notes
Contact Configuration 1NC + 1NO Fixed — cannot be reconfigured; order different body for 2NC or 2NO
Rated Current (AC-15, 230V) 1.5A Maximum recommended continuous current at AC-15 duty; 10A is the hard contact limit
Contact Rating Maximum 10A at 300VAC Hard limit — exceeding this causes contact degradation and premature failure
Rated Voltage AC / DC 300VAC / 250VDC DC-13 rated for low-voltage DC switching; verify DC application requirements
Impulse Withstand Voltage 6kV (IEC 60664 / IEC 60947-1) Handles most inverter and soft-starter transients; external surge protection required if spikes exceed 6kV
Mechanical / Electrical Durability 5,000,000 cycles At rated load, duty cycle below 60 cycles per minute, load factor 0.5 per IEC 60947-5-1
Protection Rating IP67 Dust-tight and water-resistant; suitable for washdown and humid environments
Operating Temperature -25 to +70°C Covers cold storage to moderate thermal environments; storage range extends to -40°C
Dimensions (W x H x D) 31mm x 65mm x 30mm Compact footprint; significantly smaller than comparable Siemens 3SE5000 (45x45x32mm)
Wire Gauge Capacity 0.34 to 2.0mm² (AWG 22 to 14) Stranded wire above 1.5mm² requires tin ferrule; do not force oversized cable into terminals

Full technical specifications are available on the product page at LeadTime.ca.

ZCP21 vs. Alternative Limit Switch Bodies: Which One Do You Actually Need?

The ZCP21 is a strong fit for the majority of compact limit switch applications — but three scenarios push buyers toward different hardware. Understanding where the ZCP21 reaches its limits before ordering saves significant rework time.

Model Contact Rating Cycle Rating Head Compatibility Best Suited For
Telemecanique ZCP21 AC-15, 10A at 300VAC 5,000,000 cycles XCKP series only Position sensing, safety interlocking, OEM retrofits in ZCP ecosystem
Eaton M22 Series AC-13 rated versions available Higher cycle versions in premium range M22 head ecosystem Motor control duty, high-inrush circuits, applications needing AC-13 contacts
Siemens 3SE5000 Higher impulse withstand Industrial-grade durability 3SE head ecosystem (45x45x32mm body) Heavy industrial environments with known high transient exposure, larger enclosure space available

If your circuit requires AC-13 motor control contacts or your load regularly produces inrush currents above 10A, the Eaton M22 series is the correct direction — contact the LeadTime.ca team to confirm the right alternative for your specific load parameters.

Expert Verdict: Is the ZCP21 the Right Choice for Your System?

The Telemecanique ZCP21 delivers exactly what a compact OEM limit switch body should: a clean snap-action contact transition, IP67 environmental protection in a 31mm x 65mm x 30mm envelope, and a 5 million cycle rating that matches the service life of most production equipment without requiring mid-life replacement. It carries UL 508, CSA C22.2 No 14, and IEC 60947-1 certifications simultaneously, which means a single SKU covers North American and European compliance requirements without regional variants. For OEM integrators replacing ZCP series bodies in machinery built within the XCKP ecosystem, retrofit technicians working in tight panel spaces, and controls engineers specifying position sensing or safety interlocking at moderate current levels, the ZCP21 is a well-proven, cost-appropriate choice.

The ZCP21 has real limits that matter in specific applications. It is AC-15 rated at 1.5A continuous at 230V — not AC-13. That distinction is significant: if your circuit involves motor control duty with high inrush current, the ZCP21 will not hold up to repeated inrush cycles and contact wear will accelerate well before the 5 million cycle rating is reached. For those applications, the Eaton M22 series (AC-13 rated versions) or the Siemens 3SE5000 industrial grade are the appropriate alternatives. If your facility has known high-transient switching environments — inverter-heavy lines where surges regularly push above 6kV — external surge protection is required since the ZCP21's impulse withstand ceiling is 6kV per IEC 60664. And if your machine currently uses Eaton M22 or Siemens 3SE actuator heads, the ZCP21 body will not mount to them — XCKP compatibility is non-negotiable and must be confirmed before any purchase order is placed.

From a procurement standpoint, the ZCP21 is generally in stock at authorized distributors with typical lead times under 5 business days for standard stock. Canadian buyers should note that Ontario and Quebec distribution centres typically carry inventory, while Western Canada may see 3–7 day lead times depending on regional stock levels. Because this is a body-only SKU, the single most common procurement error is receiving the part and discovering the XCKP head was not included in the order — a mistake that delays commissioning and creates emergency sourcing pressure. Buying through a specialist distributor rather than a generic channel provides the one check that matters most: confirmation that what ships is exactly what you specified, body and head together if required, with someone on the other end who understands the ZCP ecosystem. Check current availability and pricing for the ZCP21 at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ZCP21

Because indexed community discussions specific to the ZCP21 are virtually absent from English-language automation forums, buyers sourcing this part for the first time are largely navigating from manufacturer documentation alone — without the benefit of peer field experience to flag common traps. That gap is where ordering mistakes happen. Based on the specification data and procurement patterns documented for this product family, three recurring issues stand out as the most consequential.

The most expensive mistake engineers make with the ZCP21 is ordering it without simultaneously confirming the XCKP head. The ZCP21 is the electrical core of the limit switch — it has no actuator of its own. Procurement teams unfamiliar with the ZCP series sometimes search for "ZCP21" expecting a complete switch assembly (body plus head), receive only the body, and discover the omission only when the part arrives on-site. The fix requires a separate expedited order for an XCKP head, which adds cost and delays commissioning. Before submitting any purchase order for the ZCP21, explicitly confirm with your distributor: is this a body-only shipment, and is an XCKP head included or separately sourced?

The second issue is wire gauge. Industrial control panels in retrofit environments often have existing cable runs in 2.5mm² or larger stranded conductors — gauges that exceed the ZCP21 screw-clamp terminal maximum of 2.0mm². Attempting to force oversized wire into a terminal rated for maximum 2.0mm² crushes the conductor strands, creates high contact resistance, and produces the most frustrating failure mode in field electronics: a connection that reads correct on a continuity check but fails intermittently under load. The solution is a tin ferrule adapter, which is inexpensive and universally stocked — but it must be specified before the cable is pulled. Verify your wire gauge against the 0.34 to 2.0mm² terminal capacity before installation begins. The third issue — applying loads above 10A — is covered in detail in the wrong-part checklist below.

Wiring and Installation Overview

The following points summarize the key requirements for wiring and mounting the ZCP21. Engineers requiring full wiring procedures should refer to the Telemecanique official installation documentation for the ZCP series.

  • NC terminals are designated 21-22; NO terminals are designated 13-14 — verify your schematic maps the correct circuit logic to each terminal pair before wiring
  • Wire gauge must be 0.34 to 2.0mm² (AWG 22 to 14 stranded); for stranded wire above 1.5mm², attach a tin ferrule to the conductor end before insertion into the screw-clamp terminal
  • Screw-clamp torque is finger-tight plus approximately half a turn with a standard flathead screwdriver — overtightening damages the terminal block and undertightening produces intermittent connections; verify each wire does not rotate or pull free when tugged gently after termination
  • The ZCP21 body mounts to a fixed machine frame via the clevis holes or bolt points on the body housing; confirm the XCKP head is oriented correctly relative to the moving machine element and that the head actuates freely through its full travel range without binding
  • Before powering the circuit, verify with a multimeter in resistance mode that each terminal connection reads below 0.1 ohm across the clamped conductor — a reading above this threshold indicates a poor termination that must be corrected before commissioning

Wrong-Part Prevention Checklist Before Ordering the ZCP21

Run through every item on this checklist before submitting a purchase order. Each point corresponds to a documented procurement or installation failure mode for compact limit switch bodies in this category.

  1. Verify contact configuration required: This is 1NC + 1NO — if you need 2NC or 2NO, order a different body type (not ZCP21)
  2. Check maximum circuit voltage: ZCP21 is rated 300VAC — if your circuit runs 600VAC or higher, this body is undersized
  3. Confirm maximum load current: At 10A rated current, if your circuit load exceeds 10A, ZCP21 will fail prematurely
  4. Verify mechanical cycle count needed: At 5 million cycles rated, if you need 20+ million cycles, consider upgraded models
  5. Check head compatibility: ZCP21 body accepts XCKP series heads only — confirm your actuator head is XCKP-compatible
  6. Confirm screw-terminal capacity: Wire size must be 0.34 to 2.0mm² — larger industrial cables (>2mm²) require ferrules or different terminal types
  7. Verify operating temperature: At -25 to +70°C, confirm ambient at machine location falls within this range
  8. Check impulse withstand voltage: At 6kV IEC 60947-1, if system has known transient spikes >6kV, external surge protection is required

If every item above checks out, you are ready to order. View current stock and pricing for the ZCP21 at LeadTime.ca — ships worldwide.

Frequently Asked Questions

Is the ZCP21 a complete limit switch, or do I need to order an actuator head separately?

The ZCP21 is a switch body only — the electrical core with 1NC + 1NO snap-action contacts, screw-clamp terminals, and mounting hardware. It requires a separately sourced XCKP series actuator head (roller, plunger, or lever type) to function as a complete limit switch. Confirm with your distributor that your order includes both the ZCP21 body and a compatible XCKP head before placing the purchase order.

Can I use the ZCP21 with Eaton M22 or Siemens 3SE actuator heads already installed on my machine?

No. The ZCP21 body is designed for XCKP series heads only. Eaton M22, Siemens 3SE, and other non-XCKP family heads are not dimensionally or mechanically compatible with the ZCP21 body. If your machine uses a different head family, you need a switch body from the same ecosystem as your existing heads. Contact LeadTime.ca to identify the correct replacement body for your actuator family.

What wire gauge can I use with the ZCP21 screw-clamp terminals?

The ZCP21 screw-clamp terminals accept wire from 0.34mm² to 2.0mm² (AWG 22 to 14 stranded). For stranded wire above 1.5mm², use a tin ferrule on the conductor end before insertion — this prevents strand damage and ensures a reliable low-resistance connection. Wire larger than 2.0mm² cannot be used without ferrule adapters; attempting to force oversized cable into the terminal block will result in intermittent connections and difficult troubleshooting.

Is the ZCP21 suitable for motor control circuits?

The ZCP21 is AC-15 rated, with a continuous rating of 1.5A at 230V AC. It is not rated for AC-13 motor control duty, which requires contacts capable of handling higher inrush currents associated with motor loads and contactor coil switching. If your application involves direct motor control, contactor coil switching with high inrush, or similar AC-13 duty cycles, the ZCP21 will experience accelerated contact wear. For those applications, consider the Eaton M22 series in AC-13 rated configurations.

How long will the ZCP21 last in a high-cycle production environment?

The ZCP21 is rated for 5,000,000 electrical cycles at rated load, with a duty cycle below 60 cycles per minute and load factor 0.5 per IEC 60947-5-1. At 100 cycles per day in typical production, this rating equates to approximately 5–8 years of service life — consistent with most industrial equipment maintenance intervals. For applications running significantly above 60 cycles per minute on a sustained basis, or where the load factor exceeds the rated specification, durability will be reduced and a higher-cycle-rated alternative should be considered.

Does the ZCP21 meet both North American and European certification requirements?

Yes. The ZCP21 carries UL 508, CSA C22.2 No 14, and IEC 60947-1 / EN 60947-5-1 certification markings simultaneously. A single ZCP21 SKU satisfies compliance requirements for North American (UL/CSA) and European (IEC) markets without regional variants or product modifications. This dual certification is a practical advantage for OEM machinery builders who ship equipment to multiple markets.

Why Order the ZCP21 From LeadTime.ca

  • Ships worldwide — no restriction to a single country or region; international orders handled directly
  • Specialist distributor with ZCP series product knowledge — can confirm XCKP head compatibility and body-only vs. complete-switch configuration before the order ships
  • Canadian stock access for Ontario, Quebec, and Western Canada with real-time availability confirmation
  • Volume pricing available for 50+ unit orders — contact the team for current volume pricing
  • Hard-to-find parts and low-volume OEM replacements sourced from authorized Telemecanique Sensors / Schneider Electric supply chain

ZCP21 At-a-Glance Summary

  • Contact configuration: 1NC + 1NO snap-action with positive opening mechanism — fixed, cannot be reconfigured
  • Maximum contact rating: 10A at 300VAC hard limit; AC-15 rated at 1.5A continuous at 230V
  • Rated DC voltage: 250VDC (DC-13 rated) — lower than AC rating; verify DC applications specifically
  • Impulse withstand: 6kV per IEC 60664 and IEC 60947-1 — external surge protection required if facility transients exceed 6kV
  • Mechanical and electrical durability: 5,000,000 cycles at rated load, below 60 cycles per minute, load factor 0.5
  • Environmental protection: IP67 — dust-tight and water-resistant, suitable for washdown environments
  • Operating temperature: -25 to +70°C; storage to -40°C
  • Dimensions: 31mm W x 65mm H x 30mm D; net weight 0.07kg
  • Terminal wire capacity: 0.34 to 2.0mm² (AWG 22 to 14); ferrules required for stranded wire above 1.5mm²
  • Head compatibility: XCKP series only — roller, plunger, and lever variants available; no cross-family compatibility
  • Certifications: UL 508, CSA C22.2 No 14, IEC 60947-1, EN 60947-5-1 — single SKU for North American and European compliance
  • Brand: Telemecanique Sensors (Schneider Electric); manufacturer part number ZCP21
