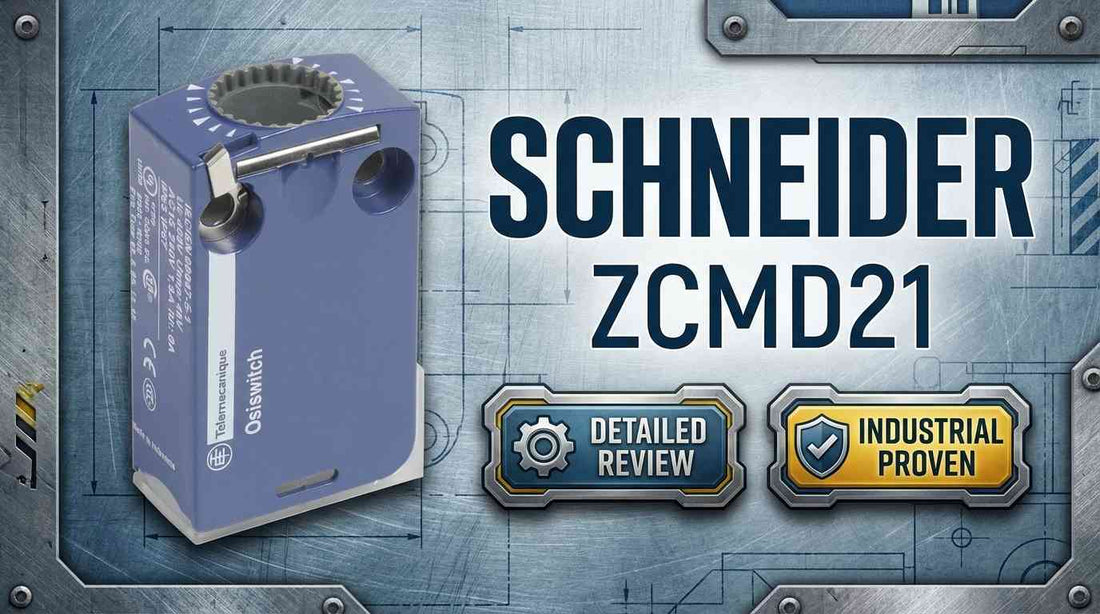

Schneider ZCMD21 miniature limit switch body for Telemecanique XCMD series conveyor and interlock applications

Schneider ZCMD21 Miniature Limit Switch Body for XCMD Series: Specifications, Compatibility and Buying Guide

If you have a part number in hand and a machine waiting to run, you are already past the research phase. The Schneider ZCMD21 is a plug-in modular miniature limit switch body for the Telemecanique XCMD series — rated 240VAC / 1.5A AC-15 with a 1NC+1NO snap-action contact pair in a Zamak alloy housing. The single most important thing to verify before ordering is whether your existing switch head is labeled XCMD. Everything else follows from that one confirmation.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the ZCMD21 — and Who Shouldn't

The ZCMD21 is the right choice for any plant or integrator already operating Telemecanique XCMD series switch heads. It is a direct plug-in replacement body that eliminates pre-cabled wiring complexity and restores snap-action switching without modifying the mounted head assembly.

  • Your existing switch head is explicitly labeled XCMD (not XC, not a legacy or competing series)
  • Your application requires a 1NC + 1NO contact configuration — one normally closed, one normally open
  • Your control circuit operates at or below 240VAC / 1.5A AC-15 or 250VDC / 0.1A DC-13
  • Your installation environment allows plug-in modular connection (no sealed or pre-cabled hard-wire requirement)
  • IP66 protection is sufficient — dusty environments and light washdown are covered; submersion or caustic immersion are not
  • Your maintenance window accommodates a typical 6 to 8 week delivery timeline

If your circuit exceeds 1.5A, if you need a 2NO or 2NC contact configuration, or if your switch heads are XC legacy series rather than XCMD, the ZCMD21 is not the correct part. Contact the LeadTime.ca team to identify the correct Telemecanique body variant for your specific equipment.

On this page:

What the ZCMD21 Does in a Modular Limit Switch System

The ZCMD21 is not a complete limit switch — it is the switching body half of a two-piece modular system. In a Telemecanique XCMD installation, the actuator head mounts permanently on the machine structure and remains in place throughout the service life of the equipment. The ZCMD21 body is the component that contains the electrical contacts, and it is designed to be swapped out in the field without disturbing the head mount, the wiring terminal, or the machine alignment. This is the core value proposition of the XCMD modular architecture: separate the mechanical wear surface from the electrical contact surface so that each can be serviced independently.

When the XCMD head actuator is pressed by a cam, door, or position target, the ZCMD21 body responds with snap-action switching. Snap-action means the contacts transition rapidly and decisively from one state to the other regardless of how slowly or quickly the actuator is pressed. This eliminates contact bounce and signal chatter, which matters in conveyor control and safety interlock circuits where clean, repeatable switching is required. The contact pair delivers one normally closed output and one normally open output simultaneously. The positive opening mechanism is a critical safety feature: the NC contact is forced open by a spring mechanism rather than simply released, which prevents stuck contacts from occurring under physical shock or high vibration conditions.

The housing is Zamak alloy — a zinc-based die-cast material that is lightweight, corrosion-resistant, and dimensionally stable in factory floor temperature cycles. Silver-plated contacts reduce arcing at each switching event and extend contact life compared to bare copper contacts under repetitive duty. The body measures 40mm x 65mm, a compact form factor that fits standard DIN-compatible XCMD frame mounting in vertical or horizontal orientation.

Typical System Architecture: Where the ZCMD21 Sits

The ZCMD21 sits between the mechanical actuator head and the control circuit terminal — it is the contact interface that converts physical position or movement into an electrical signal the PLC or relay logic can act on.

  • PLC input card or relay logic panel — receives the 1NC or 1NO signal from the ZCMD21 contacts
  • Control wiring — terminated at the XCMD head frame plug-in receptacle that the ZCMD21 body seats into
  • ZCMD21 body — provides snap-action 1NC + 1NO switching, rated 240VAC / 1.5A, IP66 protected
  • XCMD series actuator head — the mechanical trigger mounted on the machine; stays fixed when the body is replaced
  • Cam, door, or position target — the physical element that actuates the XCMD head on the machine

Industries and Applications That Use the ZCMD21

The ZCMD21 is at home anywhere a Telemecanique XCMD switch is already installed and a reliable, repeatable position signal is needed. Conveyor systems are the most common deployment: the NO contact triggers a downstream solenoid or starter, and the NC contact feeds the emergency stop or fault circuit. The snap-action mechanism handles the repetitive duty cycle of conveyor position detection without contact fatigue over normal service intervals.

Food and beverage processing lines rely on the IP66 protection rating to survive routine washdown cycles. The Zamak alloy housing and sealed body construction keep moisture and cleaning agents away from the contact surfaces. Packaging machinery uses the ZCMD21 for door interlock and guard position sensing, where positive opening is a functional safety requirement rather than a preference.

Material handling equipment in automotive sub-assembly and warehouse logistics uses ZCMD21 bodies for gate, stop, and diverter position sensing. Plant engineers running preventive maintenance programs stock ZCMD21 bodies as standard spare parts, enabling fast field swap during scheduled downtime rather than waiting on a parts order during an unplanned failure.

Application Typical Deployment
Conveyor start/stop control NO contact triggers solenoid; NC contact feeds E-stop circuit
Machine guard / door interlock NC contact breaks safety relay when guard is opened; positive opening enforced
Position detection feedback NO contact signals PLC input when cam or target reaches set point
Food and beverage washdown lines IP66 body survives routine washdown; body replaced during scheduled PM
Spare parts stocking program Bulk ZCMD21 bodies held on-site to enable emergency swap without ordering delay
OEM machine build standardization Integrators specify XCMD + ZCMD21 across fleet to simplify service parts

ZCMD21 Specifications: What Engineers Need to Confirm Before Ordering

Parameter Value Notes
Voltage Rating (AC) 240V Per IEC 60947-5-1 Appendix A
Voltage Rating (DC) 250V Per IEC 60947-5-1 Appendix A
Current Rating (AC-15) 1.5A Maximum — do not exceed in any control circuit
Current Rating (DC-13) 0.1A DC control circuits including PLC inputs
Contact Configuration 1NC + 1NO One normally closed, one normally open
Contact Resistance 25 mOhm Per IEC 60255-7 Category 3
Protection Rating IP66 Dust-tight; resistant to powerful water jets
Housing Material Zamak alloy Corrosion-resistant zinc-based die-cast
Dimensions (W x H) 40mm x 65mm Compact; fits XCMD DIN-compatible frame
Series Compatibility XCMD only Not compatible with XC legacy series

Full technical specifications are available on the product page at LeadTime.ca.

ZCMD21 vs. Other ZCMD Variants: Which Contact Configuration Do You Need?

Model Contact Configuration Connection Type Best For
ZCMD21 1NC + 1NO Plug-in modular Standard conveyor, interlock, position sensing on XCMD heads
ZCMD11 1NC only (verify with datasheet) Plug-in modular Applications requiring single break contact only
ZCMD22 2NC + 2NO (verify with datasheet) Plug-in modular Applications requiring expanded contact output per switch
Sealed / pre-cabled variants Varies Hard-wired / sealed Extremely wet, caustic, or hermetically sealed environments

If your application requires more than 1.5A switching capacity or a contact configuration other than 1NC+1NO, the ZCMD21 is not the correct variant — check current availability at LeadTime.ca and contact the team to confirm the right body for your circuit requirements.

Expert Verdict: Is the ZCMD21 the Right Call for Your System?

For any maintenance technician, plant engineer, or integrator working within the Telemecanique XCMD ecosystem, the ZCMD21 is the default correct answer. It delivers snap-action 1NC+1NO switching with silver-plated contacts and a 25 mOhm contact resistance, packaged in a Zamak alloy housing that meets IP66 — all compliant with IEC 60947-5-1. The plug-in modular architecture means field replacement takes minutes rather than the half-hour re-wiring job a legacy hard-wired switch requires. If your machine runs conveyor control, position sensing, or guard interlocks and the head is labeled XCMD, this is a proven, low-risk procurement decision.

The honest limits are worth naming. The 1.5A AC-15 rating is a hard ceiling, not a conservative guideline. If your control circuit switches loads above that threshold — say, a pump starter pulling 3A or 5A — the ZCMD21 will overheat, trip intermittently, or fail. In that case, you either need a higher-rated body variant or an intermediate relay to drop the load seen at the switch contacts. Similarly, if your existing equipment uses XC legacy series heads rather than XCMD, the ZCMD21 will not fit mechanically and must not be ordered. Buyers who need a hermetically sealed or pre-cabled connection variant will find those in the broader Telemecanique family, but they are different SKUs with different order numbers.

On the procurement side, the 6 to 8 week typical lead time is the most important planning factor for this part. This is not a shelf item at most distributors, and an emergency order during production downtime is a painful position to be in. The practical recommendation is to stock ZCMD21 bodies on-site as part of a preventive maintenance inventory — one or two units per machine type is usually enough to eliminate lead time as a downtime risk. Ordering through a specialist industrial distributor rather than a general marketplace reduces the risk of receiving incorrect variants, counterfeit parts, or shipments with undisclosed delays. View current pricing and lead time for the ZCMD21 at LeadTime.ca — we ship worldwide and can advise on stocking quantities for your application.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ZCMD21

Because community discussion on the ZCMD21 is sparse — this is a specialist modular component within a specific Telemecanique product family rather than a broadly discussed consumer or prosumer part — the most useful guidance comes from documented ordering patterns and the compatibility issues that regularly surface in pre-sale technical consultations. The patterns are consistent enough to be worth treating as field intelligence.

The single most common ordering error is confusing the XCMD series with the XC legacy series. Both names appear on Telemecanique equipment, and both contain the letters XC — which is enough to create ambiguity when a technician is working quickly from a machine label photograph or a handwritten maintenance note. The mechanical interface between the two series is different, and a ZCMD21 body ordered for an XC legacy head will not seat. The fix is simple: read the full label on the switch head before ordering. If it says XCMD, proceed. If it says XC without the MD designator, stop and consult a Schneider-authorized distributor for the correct body. Spending sixty seconds on that verification prevents a return shipment and three to four weeks of additional lead time.

The second pattern is electrical rating misapplication. The 1.5A AC-15 rating is the IEC-specified maximum for this contact category — it is not a nominal value with headroom above it. Technicians occasionally assume that because the number appears conservative for industrial use, operating at 3A or higher will simply reduce service life rather than create an immediate hazard. That assumption is incorrect. Exceeding the rated current voids the warranty and introduces overheating and fire risk at the contact surface. Any control circuit that switches loads above 1.5A requires either a different body variant or an intermediate relay to isolate the high-current load from the ZCMD21 contacts. If there is any doubt about the load in your circuit, measure it before ordering.

Third: not all XCMD heads accept all ZCMD bodies interchangeably. Telemecanique publishes compatibility matrices that cross-reference specific XCMD head model numbers with compatible body variants. Confirming the head model number — not just the series name — before placing an order eliminates mechanical fit surprises on the day of installation. When in doubt, a specialist distributor with pre-sale technical support can run that cross-reference for you before the order is placed, which is one of the concrete advantages of ordering through a channel partner rather than an anonymous marketplace listing.

Wiring and Installation Overview

  • De-energize the control circuit completely and verify zero voltage at switch terminals with a multimeter before handling the body — the ZCMD21 is a plug-in component but the XCMD head terminal pins remain live until power is removed
  • Slide the ZCMD21 body into the XCMD head frame with steady, even pressure — the body seats fully when you feel or hear a positive click; if it does not seat without forcing, stop and verify head model compatibility before proceeding
  • Confirm the NC contact shows continuity (less than 25 mOhm target) and the NO contact shows open circuit with the actuator in the resting position before applying power — use a multimeter in continuity or resistance mode
  • After powering the circuit, actuate the switch head manually three to five times and verify that the NO contact energizes the connected relay or PLC input and the NC contact breaks cleanly on each actuation — inconsistent switching indicates incomplete body seating or damaged contact pins
  • For full installation procedures, terminal assignments, and relay logic wiring diagrams, refer to the Telemecanique XCMD series installation documentation published by Schneider Electric — field wiring must be performed by a qualified electrician in compliance with local electrical codes

Wrong-Part Prevention Checklist

Before submitting your order for the ZCMD21, work through each item on this checklist. These are the specific verification steps that prevent the most common ordering mistakes and return shipments.

  1. Verify the existing switch HEAD being replaced is labeled XCMD (not XC, not other series) - incompatible heads will not accept this body
  2. Confirm the existing frame/mounting on machine is designed for plug-in bodies (not hard-wired pre-cabled type)
  3. Check current application contact requirement: confirm 1NC+1NO is the correct configuration needed (some conveyors need 2NO only)
  4. Review electrical nameplate on machine or control panel: confirm 240VAC and 1.5A rating matches application loads (do not use in circuits exceeding these ratings)
  5. Verify incoming inspection: check Zamak alloy housing for damage, and test contacts with continuity meter before installation
  6. Confirm lead time: RSP Supply lists 6-week typical delivery; confirm maintenance window supports this timeline
  7. Cross-check part number: ensure invoice shows ZCMD21 (not ZCMD or ZCMD22 or XC variants)
  8. Verify distributor region: confirm order is from North American source to avoid customs delays

If any item on this checklist raises a question you cannot resolve from the machine documentation alone, contact the LeadTime.ca team before placing your order — we can cross-reference your XCMD head model and confirm the correct body variant before shipment.

Frequently Asked Questions

Does the ZCMD21 fit XC legacy series switch heads, or only XCMD series?

The ZCMD21 is compatible with XCMD series switch heads only. The XC legacy series uses a different mechanical interface and requires a different body family. Check the label on your switch head: if it reads XCMD, the ZCMD21 is the correct body. If it reads XC without the MD designator, contact your Schneider-authorized distributor to identify the correct component for your equipment.

My control circuit switches a 5A load — can I use the ZCMD21, or do I need a different body?

The ZCMD21 is rated 1.5A AC-15 maximum per IEC 60947-5-1. A 5A load exceeds this rating and must not be switched directly through the ZCMD21 contacts. You have two options: specify a higher-current body variant from the Telemecanique family, or wire an intermediate relay so the ZCMD21 contacts switch a low-current coil circuit and the relay contacts handle the 5A load. Do not operate above stated ratings.

What does the positive opening mechanism do and why does it matter for safety circuits?

Positive opening means the NC contact is physically forced open by a spring mechanism rather than simply released. This is important in emergency stop and guard interlock circuits because a spring-release design can fail to open if contacts weld together under shock or vibration. Positive opening guarantees contact separation regardless of contact condition. This feature is part of the IEC 60947-5-1 compliance for the ZCMD21.

What is the typical lead time for the ZCMD21 and can it be expedited?

Typical lead time from major distributors is 6 to 8 weeks. Expedited orders are possible through some distributors at a premium cost, but availability varies by region and current stock position. The most reliable way to eliminate lead time risk is to stock ZCMD21 bodies on-site as part of a preventive maintenance inventory program. Contact LeadTime.ca to check current availability and lead time before committing to a maintenance schedule.

How do I confirm I need a ZCMD21 and not a ZCMD11 or ZCMD22?

The difference is contact configuration. The ZCMD21 provides 1 normally closed and 1 normally open contact. If your relay logic or PLC circuit requires two make contacts, two break contacts, or a different combination, you need a different ZCMD variant. Review the control circuit schematic for your machine to confirm the required contact configuration before ordering. When in doubt, a distributor with pre-sale technical support can help you match the correct variant to your circuit drawing.

Is the IP66 rating on the ZCMD21 sufficient for food and beverage washdown environments?

IP66 provides protection against dust ingress and powerful water jets, which covers most food and beverage washdown cycles. It does not cover submersion or immersion in liquid, and it is not rated for caustic chemical exposure at high concentration. For environments involving direct chemical immersion or continuous submersion, a sealed or hermetically protected variant in the Telemecanique family would be the appropriate specification. For standard hose-down and steam cleaning, IP66 is adequate.

Why Order the ZCMD21 from LeadTime.ca

  • Global shipping — LeadTime.ca fulfills orders worldwide; no geographic restriction on sourcing
  • Pre-sale technical support — compatibility verification for XCMD head model cross-reference before shipment, reducing wrong-part return risk
  • Transparent lead time communication — current availability and realistic delivery windows confirmed before order commitment
  • Volume pricing available — stocking orders for preventive maintenance programs qualify for quantity pricing; contact team for details
  • Specialist industrial focus — no generic marketplace risk; orders are verified against part number and series compatibility by staff familiar with Telemecanique modular switch architecture

ZCMD21 At-a-Glance Summary

  • Plug-in modular miniature limit switch body for Telemecanique XCMD series heads — not a standalone switch
  • Contact configuration: 1NC + 1NO snap-action switching with positive opening mechanism
  • Electrical rating: 240VAC / 1.5A AC-15 and 250VDC / 0.1A DC-13 per IEC 60947-5-1
  • Contact resistance: 25 mOhm per IEC 60255-7 Category 3
  • Housing: Zamak alloy, gray, 40mm x 65mm; silver-plated contacts
  • Protection: IP66 — dust-tight and resistant to powerful water jets
  • Connection: plug-in modular; no pre-cabled wires; direct contact to XCMD head frame
  • Series compatibility: XCMD only — not compatible with XC legacy series or any other manufacturer's heads
  • Typical lead time: 6 to 8 weeks — stock on-site for maintenance programs to avoid production downtime
  • Primary applications: conveyor control, machine guard interlocks, position detection, packaging machinery, food and beverage washdown lines
