Schneider Electric SR3B261FU — Smart Relay Buyer's Guide

By Abdullah Zahid
14 min read

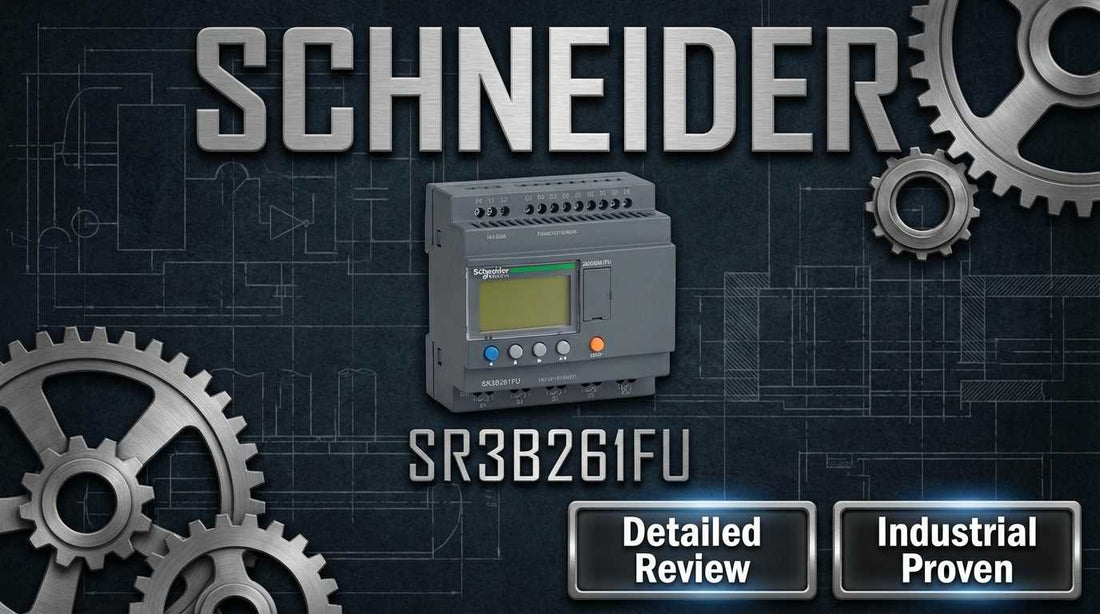

Schneider Electric SR3B261FU modular smart relay with LCD display mounted on DIN rail in industrial control panel

Schneider Electric SR3B261FU Modular Smart Relay — Complete Specifications, Pricing and Installation Guide

When a controls engineer or maintenance supervisor is replacing a failed relay panel or designing a compact sequential control system, the SR3B261FU specifications are usually the first thing they verify. This Modular Smart Relay from Schneider Electric's Zelio Logic SR2/SR3 Series packages 16 discrete inputs and 10 relay outputs into a single DIN rail-mounted unit, powered directly from a 100–240V AC supply — no voltage conditioning, no external programming console, no external software required. The built-in LCD display and keypad handle ladder logic programming on-device, making it one of the most self-contained compact relay solutions available for small machine and building automation applications.

If you have already confirmed this is the right part for your application, check current pricing and availability for the SR3B261FU at LeadTime.ca — ships worldwide.

Who Should Buy the SR3B261FU — and Who Shouldn't

The SR3B261FU is the right choice for small automation and retrofit control where simplicity, cabinet space, and on-device programming drive the specification. It is right for you if all of the following apply:

  • Your application requires exactly 16 discrete inputs — not more, not configurable from a larger pool
  • 10 relay outputs are sufficient for all switching loads in your sequence
  • A 100–240V AC supply is available at your installation point
  • Your peak load per output does not exceed 5A on the two lighter-rated outputs or 8A on the eight standard outputs
  • Ladder logic programming is acceptable — this is the only programming method available on this device
  • Your installation is indoors with DIN rail space available and an ambient temperature between -20 and 55°C

If your application requires more than 10 relay outputs, consider the SR3B262F. If your loads consistently exceed 8A per output or if your team requires graphical or function-block programming, a compact PLC platform will be a better long-term fit despite higher initial cost.

On this page:

What the SR3B261FU Does in a Real Control System

The SR3B261FU occupies the space between a hardwired relay panel and a full PLC — positioned deliberately for applications where a traditional relay cabinet wastes panel space and costs more in labour than the control logic warrants, but where a full PLC platform would be technically over-specified and cost-prohibitive. As part of the Zelio Logic SR2/SR3 Series, it is Schneider Electric's answer to the very common industrial requirement of simple sequential control: start a motor, interlock two sensors, run a timer, open a valve, stop on a fault.

The "26 I/O" in the product name is a marketing total — 16 inputs plus 10 outputs — not a pool of freely configurable general-purpose I/O points. This distinction matters at specification time. All 16 inputs are discrete (digital) with 350 kOhm input impedance, meaning they are designed for dry-contact switches, pushbuttons, and standard 24V logic signals. All 10 outputs are relay contacts — switchable only, no analog output capability. Two of those outputs are rated at 5A maximum, and the remaining eight at 8A maximum. These are hard electrical limits, not guidelines.

The built-in LCD backlit display and integrated keypad are a genuine operational advantage in field environments. Ladder logic programs can be entered, modified, and diagnosed directly on the device without connecting a laptop, loading any software, or carrying a programming cable. This makes the SR3B261FU particularly valuable for retrofit applications where the maintenance technician working at 2:00 AM needs to modify a timer value without specialized tools.

Typical System Architecture for the SR3B261FU

The SR3B261FU sits at the logic-processing layer of a compact control system, sitting between field sensing devices upstream and switched loads or motor contactors downstream. A typical signal chain looks like this:

  • Field sensing layer: pushbuttons, limit switches, pressure switches, float switches, or 24V proximity sensors — all wired to the 16 discrete input terminals
  • SR3B261FU: processes ladder logic rungs on-device, activates relay output contacts based on input state and programmed logic
  • Relay output layer: motor contactors, solenoid valve coils, pilot lights, audible alarms — connected to the 10 relay output terminals (5A or 8A rated)
  • Power distribution: 100–240V AC supply connected to the module power terminals through a fused disconnect upstream
  • DIN rail enclosure: compact modular format mounts alongside terminal blocks and circuit protection in a standard control panel

Typical Applications and Deployment Scenarios

Motor start/stop sequencing is one of the most common SR3B261FU applications — using discrete inputs from start/stop pushbuttons and overload contacts to control motor contactor outputs through timed and interlocked ladder rungs. The on-device timer functions handle delay-start, run-time limiting, and restart inhibit without any additional hardware.

HVAC building automation is a strong fit where the application involves fan start/stop, damper interlocking based on multiple sensor inputs, and ventilation sequencing across a single air handling unit. The 16-input capacity handles a meaningful number of room sensors, differential pressure switches, and status contacts within one module.

Pump station control is another natural deployment — level sensor inputs triggering pump output relays with alternation logic, high-level alarms, and dry-run protection interlocks. The wide 100–240V AC supply range means the same device can be installed in pump houses across different regional power standards without re-specifying.

Conveyor and packaging line sequencing at the smaller end of the scale — simple start, run, stop, and fault-handling sequences with photoelectric sensors and position switches — fits within the 16-input, 10-output boundary for most single-zone applications.

Retrofit and temporary control replacement scenarios are where the SR3B261FU earns particular loyalty from maintenance teams. When a hardwired relay panel fails and production cannot wait for a full PLC retrofit, a single SR3B261FU can replicate the logic of a multi-relay cabinet quickly, with the added benefit of modifiable ladder logic stored in non-volatile memory.

Application Typical Deployment
Motor start/stop sequencing SR3B261FU controlling motor contactor coil via relay output; pushbutton and overload inputs on discrete input terminals
HVAC fan and damper control Room sensors, pressure switches on 16 inputs; fan contactors and damper actuators on relay outputs
Pump station level control Float switch and pressure switch inputs triggering pump relay outputs with run-alternation and alarm logic
Conveyor line sequencing Photoelectric and position switch inputs; conveyor drive contactor and gate solenoid on relay outputs
Relay panel retrofit Replacing failed multi-relay hardwired panel with single SR3B261FU; ladder logic replicating original hardwired sequence
Temporary maintenance control On-device ladder programming during PLC upgrade period; no external software dependency for field modifications

SR3B261FU Specifications: What to Verify Before Ordering

Parameter Value
Power Supply Voltage 100–240V AC, 50/60 Hz
Discrete Input Count 16
Input Impedance 350 kOhm
Relay Output Count 10 (relay contacts only, no analog)
Relay Output Amperage 5A (2 outputs), 8A (8 outputs)
Relay Output Voltage — DC 5–30V DC
Relay Output Voltage — AC 24–250V AC (normally open contacts)
Relay Output Contact Type Normally Open (NO) only
Operating Temperature -20 to 55°C
IP Protection Rating IP20
Programming Method Ladder logic via integrated keypad and LCD display
Display LCD backlit — diagnostics and navigation
Mounting Modular DIN rail mount
Terminal Type Screw-clamp

Full technical specifications are available on the product page at LeadTime.ca.

SR3B261FU vs. SR3B262F and Alternatives: Which Model Do You Actually Need?

Model Input Count Output Count Supply Voltage Programming Best For
SR3B261FU 16 10 relay 100–240V AC Ladder via keypad Small sequences, space-constrained, no external software
SR3B262F 20 10 relay 100–240V AC Ladder via keypad Same family, more sensing points required

If your sensing point count reaches 20 or you anticipate adding inputs during a system expansion, the SR3B262F provides four additional discrete inputs within the same Zelio Logic family and supply voltage range. For applications requiring graphical or function-block programming, a compact PLC will reduce project risk more than retraining a team on ladder logic. Check current availability of the SR3B261FU at LeadTime.ca — or contact us if you need help confirming which Zelio variant fits your I/O count.

Expert Verdict: Is the SR3B261FU the Right Relay for Your Project?

The SR3B261FU delivers dependable compact logic control for the buyer profile it was built for: OEM machine builders designing single-zone sequential control, maintenance teams replacing failed relay panels under production pressure, building automation contractors handling HVAC interlocking and pump run logic, and industrial integrators serving facilities where cabinet space and total installed cost are the primary constraints. The combination of 16 inputs, 10 relay outputs, and a 100–240V AC supply range covers the majority of small machine and building automation requirements in a single modular unit. The fact that ladder logic programming is accessible directly on-device — with no external PC, no software licence, and no programming cable — is not a marketing point but a genuine field advantage for technicians working in environments where connectivity is limited or tools are scarce.

The limitations are real and worth stating plainly. If your team's programming background is Siemens LOGO! or any graphical function-block environment, the ladder-only constraint on the SR3B261FU will slow your first projects and create friction on every subsequent modification. That is not a training gap that disappears quickly. Similarly, if any single output in your application carries a load above 8A — or if any two of your lighter loads share one of the two 5A-rated outputs — you need to either restructure your output assignment, add an interposing relay, or step up to a device with higher contact ratings. Exceeding these limits does not necessarily cause immediate failure, but relay contact life degrades sharply under sustained overload, and intermittent contact chatter under high current is a difficult fault to diagnose post-installation. For applications with mixed analog and discrete sensing, or for systems requiring remote diagnostics, cloud monitoring, or redundancy, this module is the wrong tool regardless of how attractive the price point looks.

From a procurement standpoint, the SR3B261FU sits in a product category with moderate lead time risk when ordered through generic e-commerce channels — primarily because specification mismatches (wrong I/O count, misunderstood supply voltage, programming method incompatibility) drive higher return and reorder rates than for simpler passive components. Ordering through a specialist industrial automation distributor with Zelio Logic inventory depth gives you pre-sale application validation, the ability to pivot quickly to SR3B262F or another variant if your I/O count shifts, and commissioning support during installation. View current pricing and stock status for the SR3B261FU at LeadTime.ca — available for worldwide shipment.

For volume pricing, lead time confirmation before committing to a build schedule, or technical pre-sale support, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the SR3B261FU

The SR3B261FU operates with strong field reliability across its documented use cases, but it has limited public forum presence compared to larger PLC platforms. That gap is not unusual for a compact relay module in a specialist product family — it reflects the fact that most buyers who specify correctly experience straightforward installations without needing community support. What it does mean is that pre-sale specification discipline matters more here than for heavily-documented PLC platforms where a community thread will catch your error before it reaches the installation stage.

The specification errors that create the most costly project delays with the SR3B261FU cluster around three areas. The first is the I/O count interpretation: the "26 I/O" in the product name combines 16 inputs and 10 outputs — these are fixed allocations, not a configurable pool. Engineers who count sensing points against the total 26 figure rather than the 16-input figure arrive at installation short of the inputs they need. The second error is output amperage — the two lighter-duty outputs at 5A and the eight standard outputs at 8A are absolute contact ratings, and connecting a load that draws above those limits under peak conditions degrades contact life even if the relay does not fail outright on the first cycle. The third error is programming method: teams with graphical block-diagram experience frequently discover the ladder-only constraint after the device arrives, which converts a clean installation into a retraining project.

Because authoritative community data for this specific model is sparse, the right pre-purchase step is direct consultation with a distributor who carries Zelio Logic inventory across multiple variants and can validate your application against the fixed specification boundaries before you commit. LeadTime.ca's technical team provides exactly that support — and maintains inventory depth across the SR3 family so that pivoting to an adjacent variant does not extend your project timeline. When public forum guidance is absent, a knowledgeable distributor is the practical substitute.

Wiring and Installation Overview

The following points cover the key requirements for mounting and connecting the SR3B261FU. For complete wiring diagrams, terminal assignments, and step-by-step procedures, refer to the Schneider Electric Zelio Logic installation and user manual available from Schneider Electric's documentation portal.

  • Mount on standard DIN rail inside an enclosure rated for the installation environment; the SR3B261FU itself carries an IP20 protection rating, meaning terminal areas are exposed and the enclosure must provide external environmental protection
  • Connect 100–240V AC supply line and neutral to the designated power input terminals; install a fused disconnect upstream per local electrical code before applying power
  • Wire discrete input signals (dry contacts, pushbuttons, 24V logic signals) to the 16 input terminals; confirm input signal type is compatible with the 350 kOhm input impedance specification
  • Connect load circuits to relay output terminals; verify peak load amperage against the 5A limit on outputs 1–2 and the 8A limit on outputs 3–10 before applying power — relay output contacts are normally open only
  • Use screw-clamp terminals throughout; confirm wire gauge and cable type are compatible with the terminal specification in the manufacturer datasheet before terminating

Wrong-Part Prevention Checklist

Before finalizing your order for the SR3B261FU, work through each of the following verification steps. These represent the most common specification errors for this model:

  1. Confirm you need 16 inputs (not confusing with 26 total I/O count)
  2. Verify 10 relay outputs are sufficient for your application
  3. Check that 100-240V AC supply is available on-site (not 24V DC only)
  4. Calculate peak load amperage per output and total across all outputs (do not exceed 5A for 2 outputs, 8A for 8 outputs)
  5. Confirm ladder logic programming is acceptable (this is the only programming method available)
  6. Verify DIN rail mounting space is available in your control cabinet
  7. Ensure operating temperature range (-20 to 55°C) matches your installation environment
  8. Check screw-clamp terminal compatibility with your wire gauges and cable types

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we can validate your application fit and recommend the correct Zelio Logic variant if the SR3B261FU does not match your requirements.

Frequently Asked Questions

What is the actual difference between the SR3B261FU and the SR3B262F — are they interchangeable?

The SR3B262F provides 20 discrete inputs compared to the SR3B261FU's 16, while both models share the same 10-relay output count and 100–240V AC supply range within the Zelio Logic SR3 family. They are not interchangeable if your design depends on the specific I/O count or terminal mapping — verify your wiring layout and ladder logic program against the exact model before substituting one for the other. If you are close to 16 sensing points and anticipate adding inputs, the SR3B262F is the natural step up.

Can the SR3B261FU be used in a 24V DC-only facility with no AC supply available?

No. The SR3B261FU requires a 100–240V AC supply — it does not operate on 24V DC. If your facility or machine panel supplies only 24V DC for the logic controller, this is the wrong model. Review alternative Zelio Logic variants that support DC supply, or consult LeadTime.ca to confirm the correct part number for a DC-supply application.

How quickly can a technician without PLC experience program a basic start/stop sequence on this device?

A basic start/stop sequence with a run interlock can typically be entered using the integrated keypad and LCD display within one to two hours for a technician who understands relay logic concepts but is new to the Zelio Logic interface. The ladder logic programming method on this device is designed for field use without external software. For teams with no relay logic background at all, Schneider Electric's Zelio Logic user manual and quick-start guide provide the most direct path to first-program commissioning.

What do I do if a relay output stops responding to its programmed logic condition?

First, navigate through the LCD display diagnostics to check for active fault codes or I/O status indicators — the built-in display will show the current state of each input and output, which isolates whether the issue is in the input signal, the ladder logic rung, or the physical relay contact. If the output contact has been operating at or above its rated amperage (5A for outputs 1–2, 8A for outputs 3–10), contact wear is a likely cause. Refer to the Schneider Electric troubleshooting section in the Zelio Logic manual and contact your distributor's technical support if the fault persists.

Is the SR3B261FU still an active product, or is it approaching end-of-life?

Active product status and lifecycle stage should be confirmed directly with Schneider Electric or your authorized distributor at time of purchase — product lifecycle information changes and is not reliably maintained in third-party sources. LeadTime.ca maintains current inventory status and can flag any discontinuation or replacement signals before you commit to a design that depends on long-term availability.

Why Order the SR3B261FU From LeadTime.ca

  • LeadTime.ca ships worldwide — your location does not limit access to Zelio Logic inventory or technical support
  • Pre-sale application validation available: confirm I/O count, supply voltage, and amperage fit before the order ships
  • Specialist industrial automation inventory depth across Zelio Logic variants reduces risk if your specification needs to shift to SR3B262F or another model
  • Volume pricing and project-quantity quotes available on request — contact the team directly for build schedules
  • Hard-to-source parts and low-stock models sourced through established distributor networks

SR3B261FU At-a-Glance Summary

  • Schneider Electric SR3B261FU is a Zelio Logic SR2/SR3 Series modular smart relay with 16 discrete inputs and 10 relay outputs — 26 I/O total is the combined count, not a configurable pool
  • Power supply: 100–240V AC, 50/60 Hz — directly compatible with North American and European facility power without voltage conditioning
  • Relay output ratings: 5A maximum on 2 outputs, 8A maximum on 8 outputs — confirm peak load amperage before ordering
  • Relay output contacts are normally open (NO) only — no change-over or normally closed contacts available
  • Relay output voltage range: 5–30V DC or 24–250V AC depending on load circuit
  • Input impedance: 350 kOhm across all 16 discrete inputs
  • Programming: ladder logic only via integrated keypad and backlit LCD display — no external software, no PC required
  • Operating temperature: -20 to 55°C; IP20 protection rating requires enclosure for environmental protection
  • Mounting: modular DIN rail; terminals: screw-clamp
  • Strongest applications: motor start/stop sequencing, HVAC interlocking, pump station control, relay panel retrofit
  • Not suitable for: loads above 8A per output, graphical programming requirements, analog I/O, or safety-critical redundancy applications
