Schneider Electric SR3B261BD — 26 I/O Smart Relay Buyer's Guide

By Abdullah Zahid
14 min read

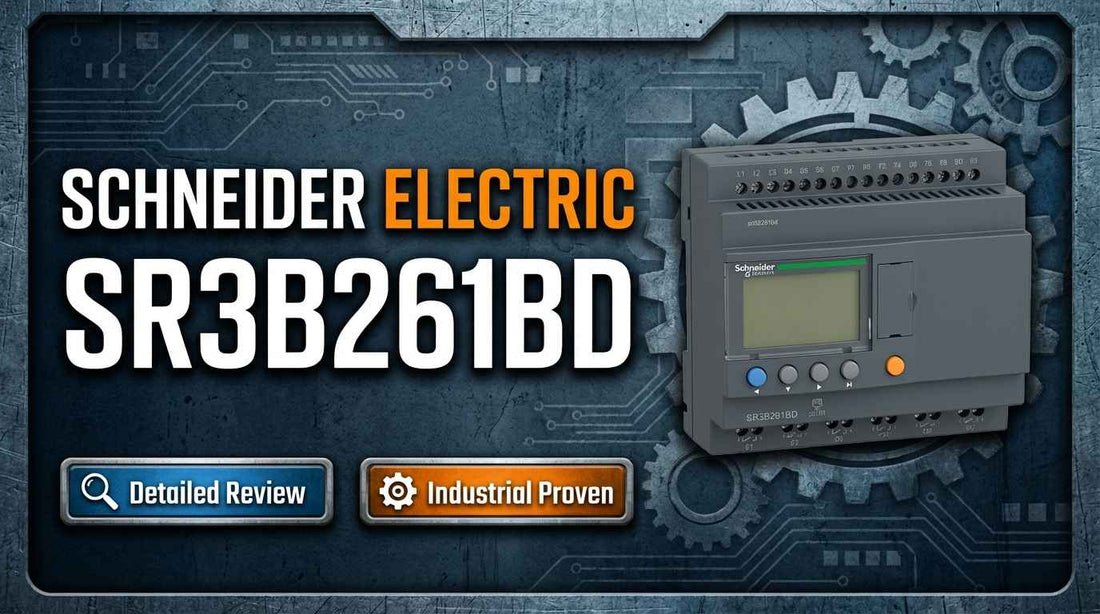

Schneider Electric SR3B261BD modular smart relay 26 I/O 24V DC DIN rail mount industrial control panel

Schneider Electric SR3B261BD Modular Smart Relay, Zelio Logic SR2 SR3, 26 I/O, 24V DC — Complete Specs, Pricing and Buyer's Guide

If you have a part number in hand and a panel build on the schedule, the decision usually comes down to one question: does the SR3B261BD actually fit this job? This guide answers that directly. The Schneider Electric SR3B261BD is a 24V DC modular smart relay in the Zelio Logic SR2 SR3 family, offering 26 total I/O — 16 digital inputs, 6 analog inputs, and 10 relay outputs — in a DIN rail-mounted form factor suited to compact industrial control panels. It is programmed using Zelio Soft ladder logic software and retains its program for up to 10 years via built-in EEPROM flash memory, even through extended power loss.

If you have already confirmed this is the right part, check current pricing and availability for the SR3B261BD at LeadTime.ca — ships worldwide.

Who Should Buy the SR3B261BD — and Who Shouldn't

The Schneider Electric SR3B261BD is the right choice for automation engineers and panel builders whose application fits neatly within the following profile:

  • Facility power supply is a stable, regulated 24V DC — this is a hard requirement, not a preference
  • Total field device count does not exceed 26 I/O (16 digital inputs, 6 analog inputs, 10 relay outputs), with no expansion path needed
  • Output loads are compatible with relay contacts rated at 8A or 5A — verify each load's inrush and steady-state draw before ordering
  • DIN rail space is available in the enclosure for a compact but non-trivial footprint
  • Logic complexity fits simple ladder — timers, counters, conditional sequences — without requiring advanced function blocks or state machine structures
  • No Ethernet, Modbus, or network communication is required; this model supports analog I/O only with no built-in networking

If your project needs more than 26 I/O, requires network connectivity, or involves analog output control, the SR3B261BD is not the right device. The larger Zelio Logic variants or the Twido series are the appropriate next step — both are discussed in the variant comparison section below.

On this page:

What the SR3B261BD Actually Does in a Control Panel

The Schneider Electric SR3B261BD replaces hardwired relay logic — the rows of individual timers, counters, and control relays that consume DIN rail space and multiply wiring hours — with a single programmable device. It accepts 16 digital inputs from field devices such as limit switches and push buttons, plus 6 analog inputs for sensors transmitting pressure, temperature, or level signals. Its 10 relay output contacts switch loads directly at up to 8A per output, meaning solenoid valves, contactors, pilot lights, and small motors connect without intermediate switching hardware in most cases.

What separates the SR3B261BD from a full PLC is not capability — it is scope. Zelio Soft's ladder logic interface is adapted specifically for users who understand control logic but are not full-time programmers. The built-in keypad and display allow basic programming and diagnostics without a laptop on site. The 10-year EEPROM flash retention means that a panel powered down for months — a seasonal machine, a backup pump station, a gate controller — comes back online with its program intact. That single feature eliminates a category of commissioning risk that hardwired relay panels and some entry-level PLCs cannot match.

Where the SR3B261BD Sits in a Typical Control System

The SR3B261BD operates as a standalone logic node — it does not sit downstream of a PLC in a normal deployment. It is the controller. Here is the typical component chain:

  • 24V DC regulated power supply feeds the SR3B261BD directly; a stable, isolated supply is a hard requirement
  • Field sensors (limit switches, proximity sensors, pushbuttons, analog transmitters) connect to the 16 digital and 6 analog input terminals
  • The SR3B261BD executes ladder logic stored in EEPROM and drives its 10 relay output contacts based on program conditions
  • Relay outputs connect directly to loads: contactors, solenoids, pilot lamps, small motors — within the 8A or 5A per-relay rating
  • The built-in display and keypad provide local status monitoring and allow basic program edits without a connected PC

Industries and Applications Where This Relay Earns Its Place

The SR3B261BD is most productive in applications where the I/O count is fixed, the logic is sequential rather than complex, and the budget does not justify a full PLC platform. Small OEM machine builders use it to replace relay panels in equipment that ships with a documented, repeatable function — batch timers, conveyor interlocks, pump sequencers. Panel builders in water treatment and irrigation favor it for pump and valve logic where 24V DC infrastructure already exists and no SCADA integration is required at the local node level.

Facility maintenance teams operating HVAC staging, compressed air sequencing, or lighting load management find the Zelio Soft programming approachable enough that in-house technicians can modify logic without calling an integrator. In food and beverage applications, it handles wash-down-adjacent control logic as long as the relay itself is mounted in a sealed IP-rated enclosure — the SR3B261BD carries an IP20 rating and must be housed in a cabinet.

Security gate and access control applications use the timed relay and counter functions to manage entry sequencing without over-engineering the control system. These are all applications where 26 I/O is genuinely sufficient and network connectivity is not required at the controller level.

Application Typical Deployment
Pump / motor start-stop control Standalone relay node with timer and counter logic; direct relay output to contactor coil
OEM machine control panel Replaces hardwired relay logic; up to 16 digital sensor inputs, 10 relay-switched outputs
HVAC staging and utility sequencing Conditional ladder logic for fan, compressor, and damper sequencing; 24V DC from existing BMS supply
Irrigation and water treatment Valve and pump sequencing with analog level input; IP20 device housed in sealed field enclosure
Batch process timer control Production line sequencing up to 26 I/O; EEPROM retention critical for scheduled shutdown cycles
Security gate and access control Entry sequence logic using timed relay and counter functions; no network integration required

SR3B261BD Specifications Engineers Actually Need

Specification Value
Power Supply Voltage 24V DC (regulated, stable supply required)
Power Consumption 6.2 W
Digital Inputs 16
Analog Inputs 6
Relay Outputs 10
Output Rating (DC) 24V DC at 8A or 5A per output
Output Rating (AC) 240V AC at 8A or 5A per output
Total I/O Count 26 (fixed — no expansion modules available)
Operating Temperature -20 to +55°C
IP Rating IP20 (control cabinet installation required)

Full technical specifications are available on the product page at LeadTime.ca.

SR3B261BD vs. SR3B2016 vs. Siemens LOGO 8 vs. Twido: Which One Do You Need?

Feature SR3B261BD SR3B2016 Siemens LOGO 8 Twido LC
I/O Count 26 20 16 32
Programming Software Zelio Soft (ladder) Zelio Soft (ladder) Ladder / Block diagram TwidoSoft (ladder)
Ethernet / Network No No Optional module Optional module
Power Supply 24V DC 24V DC 24V DC or AC option 24V DC
EEPROM Retention 10 years Not specified in brief Not specified in brief Not specified in brief
Typical Lead Time Weeks Weeks Weeks Weeks

If your sensor and actuator count exceeds 26 total I/O, or if your application requires Ethernet or Modbus connectivity, the Twido LC series or the LOGO 8 with a communication module are the appropriate step up — check current availability and discuss your I/O requirements with the LeadTime.ca team.

Expert Verdict: Is the SR3B261BD the Right Relay for Your Project?

The Schneider Electric SR3B261BD delivers exactly what it promises for the right buyer: a compact, 24V DC modular smart relay with 26 fixed I/O, simple Zelio Soft ladder programming, and a 10-year EEPROM retention specification that removes one of the most common sources of field commissioning anxiety. The buyer profile it fits precisely is a small OEM machine builder, a panel builder replacing hardwired relay logic, or a maintenance team managing utility sequencing in a facility that already runs 24V DC infrastructure. If you are in that profile and your I/O count is confirmed at or below 26 total, the SR3B261BD is a well-matched, low-risk selection. The 6.2W power consumption is modest, the -20 to +55°C operating range covers most industrial enclosure environments, and the IP20 rating is appropriate for any standard control cabinet installation.

Where the SR3B261BD reaches its honest limits is equally clear. It carries no Ethernet or Modbus capability — this is not a software configuration gap, it is a hardware architecture decision. If your application requires network integration at the controller level, the SR3B261BD is the wrong device regardless of I/O fit. Similarly, the 26-point I/O ceiling is fixed; there is no expansion module path. Applications that start at 22 I/O and grow to 30 over a production season will require a device swap, not an upgrade. Buyers with analog output requirements should note that all 10 outputs on this model are relay contacts, not analog — digital relay switching only. For those scenarios, the Twido LC series or a larger Zelio variant with analog output capability are the correct paths, and the LeadTime.ca team can confirm current lead times and pricing on those alternatives.

From a procurement standpoint, the SR3B261BD is a stocked product in mainstream industrial distribution, and lead times are typically measured in weeks rather than months for standard orders. Ordering through a specialist distributor rather than a generic channel matters here for a specific reason: the most common source of project delay with this product is not availability — it is ordering a model that does not match the application's I/O count or output rating. A specialist can verify your requirements against the datasheet before the order ships. Review current pricing and stock status for the SR3B261BD at LeadTime.ca and use the contact form to confirm fit before committing to your panel build timeline.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the SR3B261BD

Because the SR3B261BD does not have a strong presence in public automation forums or community discussion platforms, the practical knowledge that usually circulates in Reddit threads or PLC talk boards has to come from somewhere else. In this case, the right source is the technical documentation and the distributor conversation — both of which surface the same category of ordering mistakes repeatedly.

The single most consequential mistake buyers make with the SR3B261BD is conflating I/O count with I/O flexibility. The 26-point total is not a configurable allocation. You receive 16 digital inputs, 6 analog inputs, and 10 relay outputs — those categories are fixed in hardware. An engineer who counts 12 outputs in their design and assumes the unused inputs can be reassigned to outputs will receive a device that does not fit the application. Count your inputs and outputs separately, verify against the fixed I/O breakdown, and confirm before the purchase order is placed.

The second practical concern is the relay output current rating. The SR3B261BD is available in 8A and 5A output variants. A motor or solenoid that draws within steady-state ratings may still exceed the 8A contact rating on inrush. If your load includes anything with a significant startup current, calculate inrush before selecting this relay as the direct switching device. Where inrush exceeds the relay rating, the correct solution is to wire the SR3B261BD relay output to an external contactor coil — not to assume the relay will tolerate occasional overloads. Contacts that have been welded by overcurrent do not recover. This is the type of application-specific validation that a specialist distributor can walk through with you before the order is confirmed, and it is the reason that sourcing through LeadTime.ca rather than an anonymous online channel adds real value to the procurement step.

Wiring and Installation: What to Verify Before You Connect Power

  • Confirm the facility supply is regulated 24V DC — not 24V AC and not an unregulated or fluctuating DC source; verify polarity at the terminal with a multimeter before connecting the SR3B261BD
  • Mount on standard DIN rail inside a control cabinet rated for IP20 or better; the SR3B261BD itself is IP20 and requires an enclosed, dry installation environment
  • Connect analog sensor cables using shielded cable where the installation environment includes variable-frequency drives, contactors, or other sources of electrical noise
  • Verify that each relay output load — including startup inrush current — does not exceed the per-contact rating (8A or 5A depending on variant ordered); use an external contactor for loads that approach or exceed this limit
  • Use screw-clamp terminal connections with appropriately sized conductors; refer to the Schneider Electric wiring diagram for terminal assignments before making any connections

Programming the SR3B261BD with Zelio Soft

  • Zelio Soft is the dedicated ladder logic programming interface for the Zelio Logic SR2 SR3 series; it is available from Schneider Electric and is suited for users with basic ladder logic familiarity, not just full-time PLC programmers
  • Create a new project in Zelio Soft, select the SR3B261BD as the device type, then assign physical input terminals to logical symbols named for your application before writing any logic
  • Write logic as simple ladder rungs — timers, counters, and conditional contact logic are the primary building blocks; complex state machine structures with more than a few hundred rungs become difficult to manage in this platform and signal a need for a more capable controller
  • Download the completed program to the SR3B261BD via programming cable; the built-in display confirms programming mode and upload completion
  • Use the built-in keypad and display for on-site status monitoring and basic diagnostics; train operators to recognize fault and power-loss indicators on the display before commissioning is complete

Wrong-Part Prevention: Verify These 7 Points Before You Order

Before placing your order for the SR3B261BD, work through this checklist item by item. A single missed item is the most common cause of returns, project delays, and expedited freight charges.

  1. Confirm facility power is stable 24V DC (not 24V AC)
  2. Verify output relay current rating (8A or 5A) matches load requirements
  3. Check that application fits simple ladder logic (not complex state machine logic)
  4. Confirm all field devices are 24V/AC compatible with relay output voltage class
  5. Ensure DIN rail space available (compact footprint, but still requires space)
  6. Verify that analog input count (6 analog) is sufficient; no upgrade path if more needed
  7. Confirm no requirement for ethernet/Modbus networking before purchase

If any item on this checklist raises a question about fit, contact the LeadTime.ca team before ordering — confirming the right part at this stage costs nothing; ordering the wrong one costs time and freight.

Frequently Asked Questions

Can the SR3B261BD be expanded with additional I/O modules if my application grows?

No. The SR3B261BD has a fixed I/O architecture of 26 total points — 16 digital inputs, 6 analog inputs, and 10 relay outputs. There is no expansion module path for this model. If your application requires more than 26 total I/O now or in the near future, the correct decision is to select a larger Zelio Logic variant or move to the Twido series before your panel is built, not after.

What happens if a relay output load exceeds the 8A contact rating?

Relay contacts subjected to sustained or repetitive overcurrent will weld closed or burn open, causing loss of control function. The device will require repair or replacement. The correct approach for loads approaching or exceeding the rated current — particularly motors with startup inrush — is to wire the SR3B261BD relay output to an external contactor coil and use the contactor to switch the high-current load. This is standard practice and is not a workaround; it is the intended application architecture for higher-power loads.

Is the Zelio Soft programming software included with the SR3B261BD, or is it a separate purchase?

Zelio Soft is the dedicated programming environment for the Zelio Logic SR2 SR3 series and is available through Schneider Electric. Confirm the current software delivery method — bundled, downloadable, or separately licensed — with your distributor at the time of purchase. The SR3B261BD also supports basic program entry and review through its built-in keypad and display without a PC connection.

Does the SR3B261BD retain its program through a power outage, and for how long?

Yes. The SR3B261BD uses built-in EEPROM flash memory with a data retention specification of up to 10 years without power. This means seasonal machines, backup control nodes, and panels that experience extended power interruptions will retain their full program and configuration when power is restored — no reprogramming required after an outage.

Is the SR3B261BD suitable for washdown or outdoor environments?

No. The SR3B261BD carries an IP20 protection rating, which is appropriate for installation inside a dry, enclosed control cabinet. It is not suitable for direct exposure to moisture, washdown, or outdoor ambient conditions. For installations in those environments, the SR3B261BD must be housed in an enclosure with a suitable IP rating for the installation location.

What is the operating temperature range, and does it cover typical industrial cabinet environments?

The SR3B261BD is rated for operation between -20 and +55°C. This range covers most standard industrial control cabinet environments. Installations in high-ambient locations — near heat sources, in non-air-conditioned outdoor enclosures in hot climates, or adjacent to high-wattage drives — should have cabinet thermal calculations reviewed to confirm the internal temperature does not exceed +55°C at worst-case ambient.

Why Order the SR3B261BD Through LeadTime.ca

  • Global shipping — LeadTime.ca ships the SR3B261BD worldwide; no geographic restriction on orders
  • Pre-purchase application verification — the team can confirm I/O count fit and relay output rating match before your purchase order is placed, eliminating the most common source of returns on this model
  • Hard-to-find and short-lead-time sourcing — specialist distributors maintain stock positions and supplier relationships that generic online channels cannot offer
  • Volume pricing available — contact directly for project quantities or repeat OEM orders

At-a-Glance Summary

  • Model: Schneider Electric SR3B261BD — Modular Smart Relay, Zelio Logic SR2 SR3 series
  • Power supply: 24V DC regulated, 6.2W consumption
  • I/O: 16 digital inputs, 6 analog inputs, 10 relay outputs — 26 total, fixed architecture with no expansion path
  • Output rating: 24V DC or 240V AC at 8A or 5A per relay contact (verify load inrush before ordering)
  • Operating temperature: -20 to +55°C; IP20 rating requires enclosed control cabinet installation
  • Program retention: EEPROM flash with up to 10-year offline data retention
  • Programming: Zelio Soft ladder logic interface, also programmable via built-in keypad and display
  • No Ethernet, Modbus, or network communication on this model — analog I/O architecture only
  • Mounting: Standard DIN rail
  • Right for: Small OEM machine builders, panel builders replacing relay logic, non-specialist programmers, isolated control nodes on existing 24V DC infrastructure
  • Not right for: Applications exceeding 26 I/O, network-connected control nodes, analog output requirements, or high-temperature and washdown environments without additional enclosure protection
