Siemens 6ES7231-4HF32-0XB0 — SM 1231 Analog Input Buying Guide

By Abdullah Zahid
13 min read

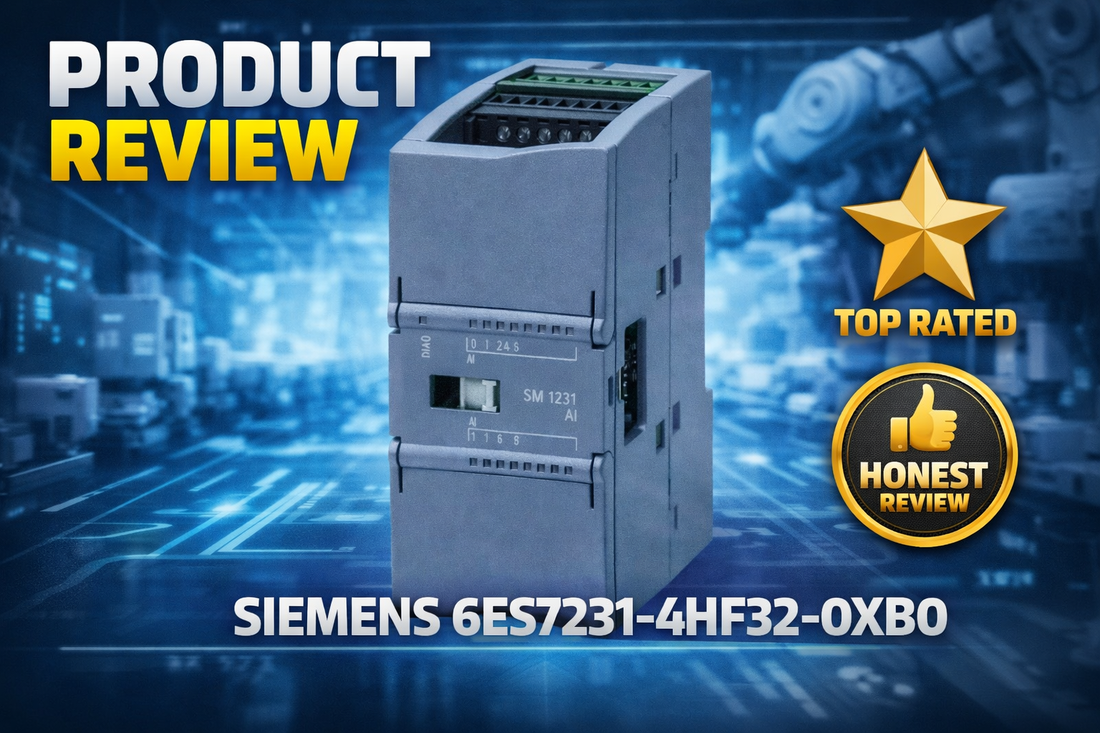

Siemens 6ES7231-4HF32-0XB0 SM 1231 8-channel analog input module for SIMATIC S7-1200 PLC industrial automation

Siemens 6ES7231-4HF32-0XB0 — SIMATIC S7-1200 Analog Input Module, SM 1231, 8 AI: Complete Specs, Selection Guide and Alternatives

Controls engineers specifying analog I/O for a SIMATIC S7-1200 build typically arrive at the 6ES7231-4HF32-0XB0 after confirming their sensor suite outputs voltage or current signals and their channel count lands at eight or fewer. This module — Siemens' SM 1231 eight-channel analog input for the S7-1200 family — reads voltage ranges of ±10V, ±5V, and ±2.5V alongside current ranges of 0–20 mA and 4–20 mA, delivering a 625 µs maximum cycle time across all eight channels with ±0.1% basic accuracy at 25°C. If you are already at the purchase stage, the key verification is confirming your sensor signal types are voltage or current only — thermocouple and RTD inputs require a different SM 1231 variant entirely.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 6ES7231-4HF32-0XB0 — and Who Shouldn't

This module is the correct choice when all five of the following conditions apply to your project:

  • Your PLC base unit is a SIMATIC S7-1200 CPU — not an S7-1500, S7-300, or any other series.
  • You need exactly eight analog input channels, or fewer — not a sixteen-channel requirement.
  • Every sensor in scope outputs voltage (±10V, ±5V, or ±2.5V) or current (0–20 mA or 4–20 mA) — no thermocouples, no RTDs, no resistance inputs.
  • A 24V DC supply is available in your control cabinet with sufficient capacity for the module's 60 mA draw plus 90 mA from the 5V backplane bus.
  • Your TIA Portal version is STEP 7 v13 or later and you have an available backplane slot on the S7-1200 chassis.

If you need sixteen channels, the 6ES7231-4HD32-0XB0 is the correct variant. If your sensors are thermocouples or RTDs, a different SM 1231 thermocouple or RTD module is required — the 6ES7231-4HF32-0XB0 does not support temperature sensor inputs.

On this page:

What the 6ES7231-4HF32-0XB0 Actually Does in a Running System

The 6ES7231-4HF32-0XB0 is the signal acquisition interface between analog field sensors and the S7-1200 CPU. It mounts directly to the S7-1200 backplane, occupies a 45mm W × 100mm H × 75mm D footprint on the DIN rail, and reads eight independent analog channels simultaneously — converting each analog sensor signal into a 12-bit signed integer value that the CPU processes in real time. The module's internal ADC operates at 13-bit resolution and delivers the converted value to the CPU's input memory in under 625 µs across all eight channels, which is fast enough for closed-loop process control applications including tension feedback, pressure regulation, and flow monitoring.

Each of the eight channels is independently configurable in TIA Portal for either voltage or current input. This per-channel flexibility means a single module can serve a mixed sensor suite — for example, four 4–20 mA pressure transmitters on channels one through four and four ±10V position sensors on channels five through eight — without requiring separate signal conditioning hardware. The module draws its operating power from the 24V DC cabinet supply (60 mA typical) and from the S7-1200 backplane 5V bus (90 mA typical).

Integrated wire-break detection operates continuously on all eight channels and reports channel-level fault conditions as diagnostic alarms to the S7-1200 CPU. This means a disconnected transmitter or broken signal cable generates an identifiable alarm rather than a silent zero-volt or zero-milliamp reading — a meaningful advantage in distributed installations with long cable runs across a plant floor.

Typical System Architecture for S7-1200 Analog Input Expansion

The 6ES7231-4HF32-0XB0 sits between the field sensor layer and the S7-1200 CPU, serving as the analog signal entry point into the control system's input memory. A typical deployment chain looks like this:

  • Field sensors (pressure transmitters, flow meters, load cells, level sensors) output 4–20 mA or ±10V signals over shielded twisted-pair cable to the control cabinet.
  • The 6ES7231-4HF32-0XB0 receives those signals at its front connector terminals — up to eight channels — and converts them to digital values at up to 625 µs cycle time.
  • Converted values are placed into the S7-1200 CPU's input memory (I-area), with each channel occupying 2 bytes for a total of approximately 16 bytes per module.
  • The S7-1200 CPU executes the control program — reading the analog values, applying SCALE or SCALE_X blocks to convert raw integers to engineering units, and driving outputs accordingly.
  • Diagnostic alarms from the module — wire-break, supply voltage fault, overrange — appear in the CPU diagnostic buffer and can trigger alarm handler logic in the user program.

Where Engineers Deploy This Module: Industries and Use Cases

In food and beverage processing, the 6ES7231-4HF32-0XB0 is frequently used for batch process control — reading eight independent analog transmitters for pH, conductivity, level, temperature (via 4–20 mA transmitters), or flow simultaneously on a single module, minimizing backplane slot consumption in compact control cabinets.

Discrete manufacturing and packaging lines use the module for multi-axis tension and load cell feedback, where ±5V or 0–20 mA load cell outputs feed directly into S7-1200 control loops managing web tension, filling weight, or press force. The 625 µs cycle time across all eight channels provides sufficient bandwidth for these applications without requiring a high-speed analog module.

Water and wastewater treatment installations rely on the module for pump station monitoring — reading pressure, flow, and vibration transmitters simultaneously. The wire-break detection is particularly valuable here because unmanned pump stations may not have an operator present to notice a disconnected sensor cable.

HVAC and building automation integrators use the 6ES7231-4HF32-0XB0 to consolidate temperature, humidity, CO2, and pressure sensor inputs into a single S7-1200 expansion slot, taking advantage of the module's ±0.1% basic accuracy at 25°C for precise environmental control.

Energy monitoring applications — including solar array output monitoring and distributed electrical cabinet sensing — benefit from the module's 40 dB interference suppression at 50/60 Hz, which rejects mains-frequency pickup on long cable runs common in electrical infrastructure environments.

Application Typical Deployment
Batch process control 8 analog transmitters (pH, level, conductivity) feeding S7-1200 recipe control logic
Tension and load cell feedback Multi-axis ±5V or 0–20 mA load cells on packaging or material processing lines
Pump station monitoring Pressure, flow, and vibration transmitter inputs with wire-break alarm at unmanned sites
HVAC and building automation Temperature, humidity, CO2, and pressure sensor consolidation in one backplane slot
Energy and power monitoring Distributed electrical cabinet analog sensing with 40 dB mains interference rejection
Predictive maintenance Vibration and pressure feedback on rotating equipment for condition monitoring

Purchase-Decision Specifications at a Glance

Specification Value
Number of analog input channels 8 (independently configurable)
Supported voltage input ranges ±10V, ±5V, ±2.5V
Supported current input ranges 0–20 mA, 4–20 mA
Resolution 12 bit + sign (13-bit ADC internally)
Cycle time (all 8 channels) 625 µs maximum
Basic error limit at 25°C ±0.1% of input range
Supply voltage 24V DC nominal
Dimensions (W × H × D) 45mm × 100mm × 75mm
Operating temperature –20°C to +60°C
Certifications CE, UL, cULus, CSA, FM, RCM (IP20)

Full technical specifications are available on the product page at LeadTime.ca.

6ES7231-4HF32-0XB0 vs. Other SM 1231 Variants: Which One Do You Actually Need?

Model Channels Input Types Resolution Best For
6ES7231-4HF32-0XB0 8 Voltage / Current 12 bit + sign Standard 8-point analog input for voltage or current sensors on S7-1200
6ES7231-4HD32-0XB0 16 Voltage / Current 12 bit + sign Applications requiring 16 analog inputs; saves backplane slots vs. two 8-channel modules
SM 1231 Thermocouple variant Varies Thermocouple — Direct thermocouple connection — required when sensors are not transmitter-converted
SM 1231 RTD variant Varies RTD / Resistance — Direct RTD or resistance input — required when sensors output resistance, not current

If your application requires exactly eight voltage or current analog inputs on an S7-1200 platform, the 6ES7231-4HF32-0XB0 is the correct choice — check current availability at LeadTime.ca.

Expert Verdict: Honest Assessment and Procurement Reality

The 6ES7231-4HF32-0XB0 earns its position as the factory-standard eight-channel analog input for S7-1200 systems through a combination of genuine technical strengths and ecosystem advantages that are hard to replicate with a non-native module. The ±0.1% basic accuracy at 25°C is competitive for process control applications — not a high-precision instrumentation module, but more than adequate for pressure, flow, level, and tension feedback in the industries this platform serves. The 625 µs cycle time across all eight channels simultaneously means this module will not be the bottleneck in any standard process control loop. The integrated wire-break detection and diagnostic alarm reporting to the CPU are features that tangibly reduce commissioning time and unplanned downtime — two costs that dwarf the module's purchase price over a machine's lifecycle. The compact 45mm footprint matters in distributed control cabinets where backplane real estate is constrained.

Where this module has real limits: it offers no galvanic isolation between channels and supply, which can be a concern in high-noise environments or where multiple ground references exist across a large plant. Engineers requiring galvanically isolated analog inputs should verify whether an isolated SM 1231 variant is available for their application. The module also does not support thermocouple or RTD direct connection — a significant constraint for applications monitoring temperature via direct sensor rather than a 4–20 mA transmitter loop. And if your sensor count exceeds eight, two modules occupy two backplane slots; the 6ES7231-4HD32-0XB0 sixteen-channel variant consolidates that into one slot at a typically lower combined cost.

On the procurement side, the 6ES7231-4HF32-0XB0 is in active lifecycle status at Siemens with no end-of-life designation. Typical availability at major authorized distributors runs at two to six weeks, though lead times can extend during supply disruptions or high-volume ordering periods. Volume pricing is available — ten or more units typically unlocks a per-unit discount worth negotiating for large machine builds or spares programs. If you are procuring for a multi-site rollout or need to lock in lead time before committing to a project schedule, view current stock and pricing at LeadTime.ca before finalizing your BOM.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Wiring and Installation Overview

  • The module inserts vertically into an available S7-1200 backplane slot with the front connector installed after seating — the DIN rail backplane mount requires the S7-1200 CPU to be powered off before insertion.
  • Each analog channel uses a dedicated terminal pair on the front connector: the positive signal wire connects to the AI channel + terminal, and the signal return connects to the corresponding – terminal; all signal commons must return to the same cabinet ground reference.
  • For current inputs (0–20 mA or 4–20 mA), the module's 280Ω input impedance must be accounted for in transmitter loop calculations — verify transmitter compliance voltage is sufficient for the total loop resistance.
  • Shielded twisted-pair cable is recommended for all cable runs exceeding 10 meters to take advantage of the module's 40 dB interference suppression at 50/60 Hz; shield should be grounded at the cabinet end only.
  • Maximum input limits are ±35V for voltage channels and 40 mA for current channels — these are the destruction thresholds; if transient overvoltage is possible in the installation, add appropriate signal protection before the module terminals.

Compatible Modules and S7-1200 System Expansion

The 6ES7231-4HF32-0XB0 is part of the SIMATIC S7-1200 signal module family and is designed to expand S7-1200 CPU systems alongside the following module types, all configured within the same TIA Portal hardware project:

  • SM 1221 Digital Input Modules — 8- and 16-channel digital input expansion for the same S7-1200 backplane
  • SM 1222 Digital Output Modules — digital output expansion modules occupying adjacent backplane slots
  • SM 1232 Analog Output Modules — analog output modules for voltage or current output signals on the same S7-1200 chassis
  • SM 1231 Thermocouple and RTD Variants — temperature input modules for the S7-1200 family when direct sensor connection is required (different catalog numbers)
  • SM 1234 Combined Analog I/O Modules — combined analog input and output modules for applications where both functions are needed in a single slot

Wrong-Part Prevention Checklist Before You Order

Before placing your order for the 6ES7231-4HF32-0XB0, work through every item on this checklist to avoid a costly wrong-part return or installation delay:

  1. Verify PLC base unit is SIMATIC S7-1200 (not S7-1500, S7-300, or other series).
  2. Confirm available backplane slot on CPU matches module DIN rail mount requirement.
  3. Check that 24V DC supply is available in cabinet and has sufficient capacity (typical 60 mA + 90 mA from backplane 5V).
  4. Verify sensor signal types are voltage or current only (not thermocouple, RTD, or resistance — not supported by this module).
  5. Confirm software supports this module in TIA Portal (STEP 7 v13 or later recommended).
  6. Check supply voltage: must be rated 24V DC nominal (not AC, not 12V, not 48V).
  7. Verify input destruction limits will not be exceeded (max ±35V input, max 40 mA).
  8. Confirm terminal/connector type required (this module uses required front connector, standard M20 approved).

If any item on this checklist raises a question about fit, contact the LeadTime.ca team before ordering — we can help confirm compatibility or identify the correct variant for your system.

Frequently Asked Questions

Can the 6ES7231-4HF32-0XB0 accept thermocouple or RTD inputs directly?

No. This module supports voltage inputs (±10V, ±5V, ±2.5V) and current inputs (0–20 mA, 4–20 mA) only. Thermocouple and RTD signals require a different SM 1231 variant — one specifically designated for temperature inputs. If your application uses thermocouples or RTDs connected through a 4–20 mA transmitter, that transmitter output is compatible with this module; a direct sensor wire is not.

What happens if I exceed the ±35V or 40 mA input limit on a channel?

The ±35V and 40 mA values stated in the brief are the destruction limits — exceeding them risks permanent damage to the channel or the module. If your installation has potential for transient overvoltage events, such as from switching inductive loads near signal cables, signal protection barriers or surge protection devices should be installed before the module input terminals.

How does wire-break detection work, and do I need to configure it?

Wire-break detection is a built-in diagnostic function that operates automatically on all eight channels. When a channel detects an open circuit — a disconnected transmitter, a broken cable, or a loose terminal — it generates a diagnostic alarm that is reported to the S7-1200 CPU diagnostic buffer. The maintenance LED on the module also activates. To act on this alarm in your control program, you configure a diagnostic alarm handler in TIA Portal and optionally link it to an HMI alarm or output action.

Is the 6ES7231-4HF32-0XB0 compatible with older S7-1200 CPU firmware versions?

The module is designed for the SIMATIC S7-1200 platform and is configured through TIA Portal. Siemens recommends STEP 7 v13 or later for full compatibility. Earlier firmware versions of the S7-1200 CPU may not support all diagnostic functions or module parameterization options available in this module. Confirm your CPU firmware version against Siemens' compatibility documentation before deploying on a legacy system.

Can I mix voltage and current inputs on the same 6ES7231-4HF32-0XB0 module?

Yes. Each of the eight channels is independently configurable in TIA Portal for either voltage or current input. You can assign, for example, channels one through four as 4–20 mA current inputs and channels five through eight as ±10V voltage inputs within the same module. The key requirement is correct TIA Portal channel configuration — the physical wiring and software assignment must match the sensor's actual output type on every channel.

What is the realistic lead time for the 6ES7231-4HF32-0XB0 in 2026?

The module is in active lifecycle status with no end-of-life designation from Siemens. Typical lead times at major authorized distributors range from two to six weeks under normal supply conditions. Lead times can extend during high-demand periods or supply chain disruptions. For projects with firm delivery requirements, confirming stock and lead time before finalizing the build schedule is strongly recommended — contact LeadTime.ca for a current lead time check.

Why Order the 6ES7231-4HF32-0XB0 from LeadTime.ca

  • LeadTime.ca ships worldwide — no geographic restrictions on orders, with global logistics support for controls engineers and procurement teams on any continent.
  • Hard-to-find and short-lead-time sourcing for SIMATIC S7-1200 modules, including the 6ES7231-4HF32-0XB0 and related SM 1231 variants.
  • Volume pricing available for orders of ten or more units — relevant for machine builders, system integrators, and spares programs.
  • Direct technical and procurement support — the team can confirm compatibility, verify current lead time, and assist with BOM review before you commit to an order.

At-a-Glance Summary

  • Official product: SIMATIC S7-1200 Analog Input Module, SM 1231, 8 AI — catalog number 6ES7231-4HF32-0XB0
  • Eight independently configurable analog input channels supporting ±10V, ±5V, ±2.5V voltage and 0–20 mA, 4–20 mA current inputs
  • 625 µs maximum cycle time across all eight channels simultaneously
  • ±0.1% basic error limit at 25°C; ±0.2% total error up to 55°C
  • 40 dB interference suppression at 50/60 Hz for long cable run immunity
  • 12 bit + sign resolution with internal 13-bit ADC; raw values scaled via TIA Portal SCALE or SCALE_X blocks
  • Compact 45mm W × 100mm H × 75mm D footprint; approximately 180 g
  • Operating temperature –20°C to +60°C; storage –40°C to +70°C; IP20 rated
  • Certifications: CE, UL, cULus, CSA, FM, RCM — compliant for North American and international industrial installations
  • Integrated wire-break detection and supply voltage monitoring with diagnostic alarm reporting to S7-1200 CPU
  • 24V DC supply required; 60 mA module current plus 90 mA from backplane 5V bus
  • Compatible with SIMATIC S7-1200 only — not backward compatible with S7-300 or S7-400 series
  • For sixteen-channel requirements: 6ES7231-4HD32-0XB0 is the correct variant
  • For thermocouple or RTD direct input: a different SM 1231 temperature variant is required
