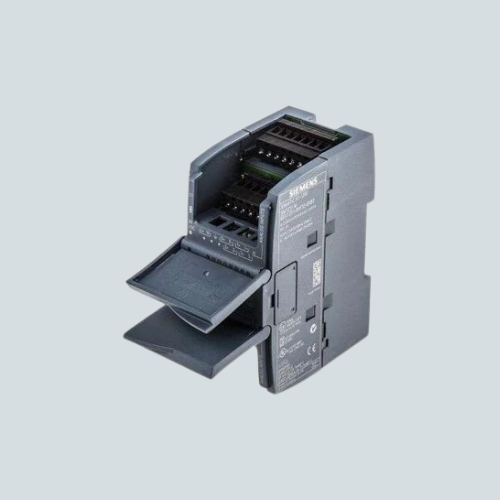

6es7231-4hf32-0xb0

Overview

The Siemens 6ES7231-4HF32-0XB0 is a high-performance analog input module designed for use with the SIMATIC S7-1200 PLC series. This module features 8 analog inputs and supports multiple input types, including ±10 V, ±5 V, ±2.5 V, and 0-20 mA / 4-20 mA. It offers 12-bit resolution with sign or 13-bit ADC, ensuring precise data acquisition for industrial automation applications.

Key Features

• 8 Analog Inputs: Supports input signals of ±10 V, ±5 V, ±2.5 V, or 0-20 mA / 4-20 mA.
• High Resolution: 12-bit resolution with a sign or 13-bit ADC for accurate data conversion.
• Compact Design: Dimensions of 100 x 45 x 75 mm, perfect for tight spaces in industrial setups.
• Wide Temperature Range: Maximum operating temperature of +60°C ensures reliability in harsh environments.
• Easy Integration: Compatible with Siemens SIMATIC S7-1200 series PLCs for seamless automation system integration.

Technical Specifications

Applications / Use Cases

This module is ideal for applications in industrial automation systems where precise analog input signals need to be acquired and processed, such as control systems, sensor data acquisition, and manufacturing process monitoring.
