Schneider ZBVM1 22mm Light Block — Specs, Wiring & Fit Guide

By Abdullah Zahid
13 min read

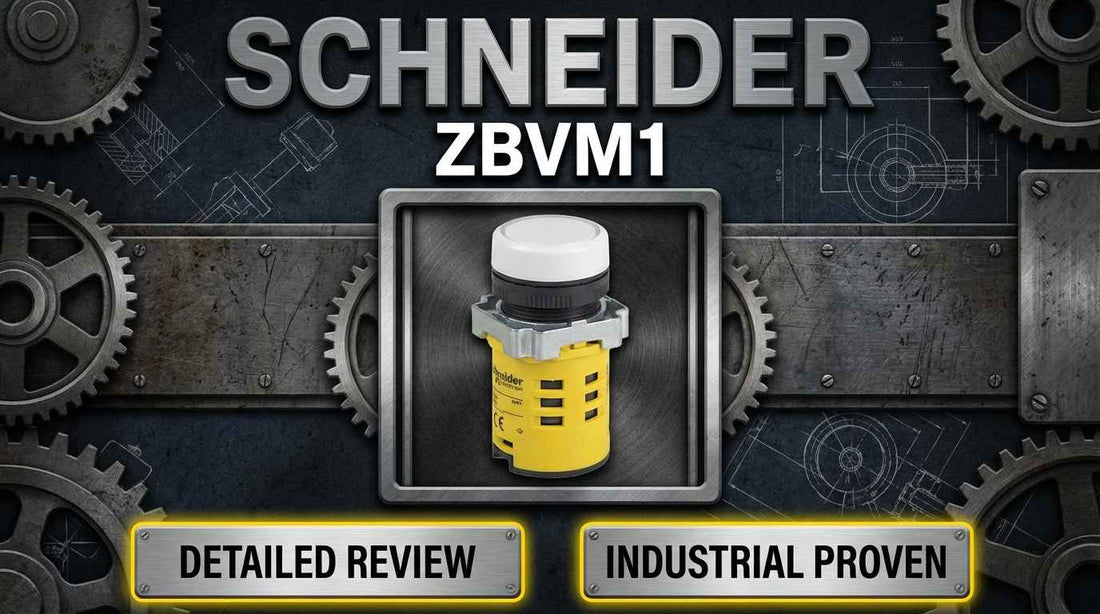

Schneider ZBVM1 white LED light block 22mm for Harmony XB4 XB5 control panel indicator

Schneider ZBVM1 Light Block, Harmony XB4, Harmony XB5, for Head 22mm, Universal LED, Screw Clamp Terminals, 230-240V AC — Specifications, Wiring and Compatibility Guide

If you are a panel builder or controls engineer specifying a white LED indicator for an existing Harmony XB4 or XB5 control station, the Schneider ZBVM1 is likely already on your BOM — the question is whether every constraint matches before you place the order. This is a 22mm front-mount light block rated at 230-240V AC with screw clamp terminals, a 100,000-hour LED lifespan, and an operating range of 195-264V AC. Get the voltage, cutout size, and terminal type confirmed, and this part is a straightforward, long-life addition to any Harmony-based panel.

If you have already verified the fit and are ready to order, check current pricing and availability for the ZBVM1 at LeadTime.ca — ships worldwide.

Who Should Buy the ZBVM1 — and Who Shouldn't

The ZBVM1 is the right choice for panel builders and controls engineers whose system already meets all five of the following constraints:

  • Your panel circuit supplies 230-240V AC (the ZBVM1 accepts 195-264V AC; it will not operate on 24V or 110V)
  • Your panel cutout is 22mm in diameter (the ZBVM1 does not adapt to 30mm cutouts)
  • White is the correct LED indication color for this signal in your control logic (red, green, amber, and blue are separate SKUs)
  • Your wiring practice uses screw clamp terminals (spring clamp is not available on this model)
  • Your application is within a Harmony XB4 or XB5 control station body (ensures mechanical fit)

If your panel runs on 24V DC or 110V AC, or if your cutout is 30mm, this is not the correct part. The 24V and 110V voltage variants are separate catalog numbers within the Harmony family, and the ZBV30 series covers 30mm head sizes.

On this page:

What the ZBVM1 Does in a Control Panel System

The Schneider ZBVM1 is a panel-mount indicator lamp — a purely visual signaling component with no switching or control function of its own. It mounts into a 22mm cutout on the face of a Harmony XB4 or XB5 control station and illuminates a white LED when voltage is applied across its screw clamp terminals. It draws between 14 and 19 mA at rated voltage, which means multiple units can share a single auxiliary circuit without significant loading concerns.

The LED lifespan of 100,000 hours at rated voltage and 25°C ambient is the specification that drives adoption in industrial panel builds. That figure equates to more than eleven years of continuous operation under rated conditions, which effectively eliminates scheduled lamp replacement as a maintenance task in most factory environments. The plastic housing is rated for operation from -25°C to +70°C, making it suitable for unheated enclosures and typical factory floor conditions without thermal management.

The ZBVM1 is part of the Harmony XB4 and XB5 modular control station family. It fits the standard 22mm head size shared across that family, accepting the same cutout diameter as pushbuttons, selector switches, and emergency stops in the same series. The 230-240V AC rating with a 195-264V AC operating window means it tolerates the normal variation found on European and North American industrial supply circuits without requiring a separate transformer or power conditioning stage. Surge protection is rated to 1 kV per IEC 61000-4-5, qualifying it for installation near variable frequency drives, soft starters, and other switching equipment common in MCC environments.

Where the ZBVM1 Sits in a Typical Panel Architecture

The ZBVM1 sits at the output end of the control signal chain, receiving a switched 230V AC signal and converting it to a visible white LED indication at the panel face. It does not process or route signals — it simply illuminates when energized.

  • Main panel supply (230V AC) feeds the distribution block or auxiliary terminal rail
  • PLC output card or control relay closes the circuit to the lamp when the target condition is true
  • The ZBVM1 receives the switched 230V AC signal across its two screw clamp terminals
  • The white LED illuminates at the 22mm panel face cutout, visible to the machine operator
  • Multiple ZBVM1 units can share a common auxiliary circuit given the 14-19 mA draw per lamp

Typical Applications and Deployment Scenarios for the ZBVM1

The ZBVM1 is most commonly deployed in PLC control panels to indicate machine run, stop, or fault states. In a standard three-lamp panel layout, white is typically assigned to power-on or standby status, with red and green covering fault and run conditions — making the ZBVM1 a standard component in any panel using that signaling convention.

On production lines, the ZBVM1 provides machine state indication at operator interface stations mounted on the line. Where the Harmony XB4 or XB5 station already houses pushbuttons or selector switches, adding a ZBVM1 light block requires no new cutout drilling — the 22mm format shares the same panel preparation as the existing controls.

In Motor Control Centers, the ZBVM1 is used as a run or alarm indicator on individual feeder sections. Its IEC 61000-4-5 surge compliance makes it suitable for the electrically noisy environment inside an MCC lineup where motor switching generates continuous transient activity.

Retrofit applications are a natural fit. Panel builders replacing failed incandescent or neon indicator lamps in Harmony XB4 or XB5 stations can swap directly to the ZBVM1 without modifying the cutout or rewiring the terminal block, provided the circuit is 230V AC and screw clamp terminals are already in use.

Application Typical Deployment
PLC control panel status indication Run/stop/fault lamp in 22mm Harmony XB4/XB5 station on 230V AC auxiliary circuit
Production line operator interface Machine state display lamp on line-side control station with PLC relay output signal
MCC motor run/alarm indicator Single lamp per feeder section; powered from 230V AC control circuit, driven by motor starter auxiliary contact
Low-voltage switchboard circuit state Panel face indicator for circuit energized or alarm condition on 230V distribution switchboard
Panel retrofit — lamp replacement Direct replacement for failed incandescent lamp in existing Harmony XB4/XB5 22mm cutout on 230V panel

ZBVM1 Key Specifications and Voltage Variant Comparison

Parameter Value Notes
Voltage Rating 230-240V AC Operating range 195-264V AC
Frequency 50/60 Hz Standard industrial frequency
Current Consumption 14-19 mA At rated voltage and 25°C; confirm exact value on official datasheet
LED Color White Red, amber, green, blue available as separate SKUs
LED Lifespan 100,000 hours At rated voltage and 25°C ambient
Head Size / Cutout 22mm 30mm alternative available as ZBV30 series
Operating Temperature -25°C to +70°C Plastic housing; verify thermal conditions above 70°C
Surge Protection 1 kV IEC 61000-4-5 rated
Terminal Type Screw clamp Spring clamp not available on this model
Series Compatibility Harmony XB4, Harmony XB5 22mm modular control station family

Full technical specifications are available on the product page at LeadTime.ca.

Voltage Variant Comparison — Harmony Light Block Family

Voltage Rating Model Variant Terminal Type Color Options Typical Application
24V DC/AC Separate SKU (confirm with Schneider catalog) Screw clamp White, Red, Green, Blue, Amber PLC logic signal panels; battery-backed control circuits
110V AC Separate SKU (confirm with Schneider catalog) Screw clamp White, Red, Green, Blue, Amber Medium-voltage control panels; North American legacy installations
230V AC ZBVM1 (this model) Screw clamp White (other colors as separate SKUs) Standard industrial 230V panels; Harmony XB4/XB5 retrofit and new builds

If your panel circuit is 24V or 110V, the ZBVM1 is not the correct part — check the Harmony light block family on the LeadTime.ca product page to confirm the right voltage variant for your circuit before ordering.

Expert Verdict: Is the ZBVM1 the Right Lamp for Your Panel?

The ZBVM1 earns its place in a Harmony-based control panel through simplicity and longevity. The 100,000-hour LED lifespan at rated conditions means a panel commissioned today is unlikely to require a lamp replacement within its operational life — a meaningful advantage over the incandescent and neon lamps it replaces in retrofit applications. The 195-264V AC operating window handles the supply voltage variation typical of both European and North American industrial installations without additional conditioning. For panel builders maintaining or expanding existing Harmony XB4 or XB5 stations at 230V, this is a direct, no-modification fit that standardizes indicator lamp maintenance across the facility.

The ZBVM1 has genuine limits that are worth stating clearly. It is a single-voltage, single-terminal-type component — there is no universal version that spans 24V to 230V, and there is no field-convertible terminal option. If your facility is migrating to spring clamp wiring for speed in panel assembly, the ZBVM1 is not compatible and a different part number is required. If any of your panels run on 24V DC PLC logic supply, ordering ZBVM1 units for those panels is the most common and most avoidable purchasing mistake in this product family. The 30mm ZBV30 series is the correct alternative for new panel builds where larger head sizes are specified.

From a procurement standpoint, the ZBVM1 is manufactured in France and available through authorized Schneider Electric distributors worldwide. Stock availability at major industrial distributors is generally reliable for standard quantities, but verifying current lead time before committing to a panel assembly schedule is always the right practice for component-level items. Buying through a specialist distributor rather than a general-purpose online channel gives you voltage and terminal confirmation before the order ships — which is the single most effective way to avoid the panel rework cost that comes from a wrong-part delivery. Check current availability and pricing for the ZBVM1 at LeadTime.ca — the team can confirm the right variant for your circuit before the order is placed.

For volume pricing or to confirm lead time before committing to a panel build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ZBVM1

Because the ZBVM1 is a component-level indicator lamp rather than a system-level device, it generates little discussion in automation forums — panel builders typically resolve specification questions through datasheets and distributor contact rather than community threads. That absence of forum noise does not mean the ordering decisions are simple. The technical constraints that trip up experienced panel builders on this part are consistent and well-documented in distributor support interactions, and they are worth addressing directly.

The most important constraint is voltage. The ZBVM1 model number does not include a voltage designator visible at a glance, which means a buyer reviewing a BOM quickly can miss the 230V-only rating and order for a 24V panel without realizing the mismatch. The result is a lamp that does not illuminate, a return-and-reorder cycle, and a panel assembly delay. The fix is a single verification step: check the main panel schematic for supply voltage before the order is placed. If the circuit is 24V or 110V, a different catalog number is required — and a specialist distributor can confirm the correct SKU from the Harmony family catalog in one exchange.

The second recurring issue is terminal compatibility. The ZBVM1 uses screw clamp terminals, and panel shops that have standardized on spring clamp wiring for assembly speed will find no direct conversion available on this model. This is a wiring practice decision that needs to be confirmed with the panel assembly team before specifying the ZBVM1 on the drawing. Similarly, cutout size is a hard mechanical constraint — a 22mm lamp will not retrofit into a 30mm opening, and the reverse requires a different product family entirely. Confirming the cutout diameter against the panel drawing before CNC programming eliminates one of the most costly mechanical rework scenarios in panel fabrication. When community feedback is sparse and the datasheet leaves questions open, the right move is to engage a specialist distributor who can cross-reference the Harmony catalog and confirm fit before the order ships.

Wiring and Installation Overview for the ZBVM1

  • The ZBVM1 connects across two screw clamp terminals — one to the 230V AC phase conductor from the auxiliary circuit, one to the switched control signal (relay output or PLC output); it is not polarity-sensitive as an AC device
  • Wire gauge for screw clamp terminals is typically 0.5-2.5 mm² (AWG 20-12); confirm exact range against the official Harmony XB4/XB5 installation manual before panel production
  • The 22mm cutout must be clean and within tolerance; the lamp body inserts from the front face and is retained by a snap-fit or threaded collar depending on the Harmony station body — confirm the retention method in the installation manual before assembly
  • Multiple ZBVM1 units can be connected to a single auxiliary circuit given the 14-19 mA per lamp draw; verify total circuit loading against the circuit breaker rating in your panel design
  • Before closing the panel, energize the 230V AC supply and apply the control signal to confirm illumination — check with a multimeter at the lamp terminals if no illumination occurs (target reading: approximately 230V AC across the terminals when the control signal is active)

Wrong-Part Prevention Checklist — Confirm Before Ordering the ZBVM1

Run through each item on this checklist against your panel design before placing the order. Every return-and-reorder scenario for this part traces back to at least one of these points being skipped.

  1. Verify panel voltage supply: Does your circuit supply 230-240V AC? (If 24V or 110V, order different SKU)
  2. Confirm cutout size: Is your panel cutout 22mm? (If 30mm, order different model)
  3. Check terminal compatibility: Does your wiring connect to screw clamp terminals? (Spring clamp needs different part)
  4. Confirm color requirement: Is white the correct indication color for your application? (Check against control logic flow diagram)
  5. Verify environmental rating: Will the lamp operate in IP65/IP66 environment? (Standard ZBVM1 is not rated; confirm if harsh environment requires specific SKU variant)
  6. Check series compatibility: Is your panel body Harmony XB4 or XB5? (Ensures mechanical fit)
  7. Verify mounting location: Can you access front mounting for replacement? (Rear-mounted designs require different architecture)

Once all seven items are confirmed, check availability and place your order for the ZBVM1 at LeadTime.ca — or contact the team if you need help verifying the correct variant for your application.

Frequently Asked Questions

Will the ZBVM1 work if my panel voltage fluctuates between 220V and 240V during operation?

Yes. The ZBVM1 has an operating range of 195-264V AC, which fully covers the 220-240V variation typical on European and North American industrial supplies. Supply fluctuations within that window will not affect lamp operation or LED lifespan under normal conditions.

Can I use an adapter ring to fit the ZBVM1 into a 30mm panel cutout?

No standard adapter ring exists for this purpose within the Harmony family. A 22mm lamp body in a 30mm cutout will be mechanically loose, creating vibration risk, potential water ingress, and terminal stress. If your cutout is 30mm, the correct choice is the ZBV30 series, not the ZBVM1.

What happens if I accidentally power the ZBVM1 from a 24V circuit?

At 24V the lamp will not illuminate — the voltage is far below the 195V minimum operating threshold. The lamp is unlikely to be damaged by under-voltage, but it will provide no indication. The correct action is to identify the right voltage variant for your 24V circuit, which is a separate catalog number within the Harmony family.

Does the ZBVM1 require any special wiring for high-vibration environments?

The ZBVM1 uses screw clamp terminals, which are the preferred terminal type in high-vibration panel environments because they can be verified and re-torqued during maintenance. In high-vibration installations, confirm screw torque against the value in the official Harmony XB4/XB5 installation manual and include a periodic torque-check in your preventive maintenance schedule to prevent intermittent connection failures.

Is the ZBVM1 a direct mechanical replacement for an existing incandescent lamp in a Harmony XB4 station?

Yes, provided the existing station is a 22mm Harmony XB4 or XB5 body and the circuit is 230V AC. The 22mm head size is consistent across the Harmony family, so no cutout modification is required. Confirm terminal compatibility (screw clamp) and that the existing wiring gauge falls within the 0.5-2.5 mm² range before completing the swap.

How long will the ZBVM1 last in a panel running 24 hours a day, 7 days a week?

At rated voltage and 25°C ambient temperature, the LED lifespan is 100,000 hours, which equates to approximately 11 years of continuous operation. In practice, panels running 24/7 in environments where ambient temperature near the lamp exceeds 25°C may see reduced lifespan — keep the operating temperature below the 70°C maximum and ensure adequate enclosure ventilation for installations near heat-generating equipment.

Why Order the ZBVM1 From LeadTime.ca

  • LeadTime.ca ships worldwide — whether you are building panels in Canada, the US, or internationally, orders are fulfilled and dispatched globally
  • Specialist distributors confirm voltage, terminal type, and series compatibility before the order ships — preventing the wrong-part returns that cost more than the price difference between channels
  • Stock availability and lead time can be verified before you commit to a panel assembly schedule — contact the team for current status on any quantity
  • Volume pricing is available for bulk orders — contact for current pricing on quantities above standard single-unit orders
  • Technical questions during installation are handled by people who know the Harmony product family, not a generic customer service queue

ZBVM1 At-a-Glance Summary

  • Voltage: 230-240V AC rated; 195-264V AC operating range — not compatible with 24V or 110V circuits
  • Head size: 22mm cutout diameter; Harmony XB4 and XB5 series only — 30mm alternative is ZBV30 series
  • LED color: White — red, amber, green, and blue are separate catalog numbers within the Harmony family
  • LED lifespan: 100,000 hours at rated voltage and 25°C ambient — approximately 11 years continuous operation
  • Current consumption: 14-19 mA at rated voltage — multiple units supportable on a single auxiliary circuit
  • Operating temperature: -25°C to +70°C — suitable for unheated enclosures and factory floor conditions
  • Surge protection: 1 kV per IEC 61000-4-5 — qualified for MCC and VFD-adjacent panel environments
  • Terminal type: Screw clamp only — spring clamp not available on this model
  • Country of origin: France; 18-month manufacturer warranty
  • Order from LeadTime.ca: product page or contact for a quote
