Schneider Electric ZB4BZ102 — 1NC Contact Block Buyer's Guide

By Abdullah Zahid
14 min read

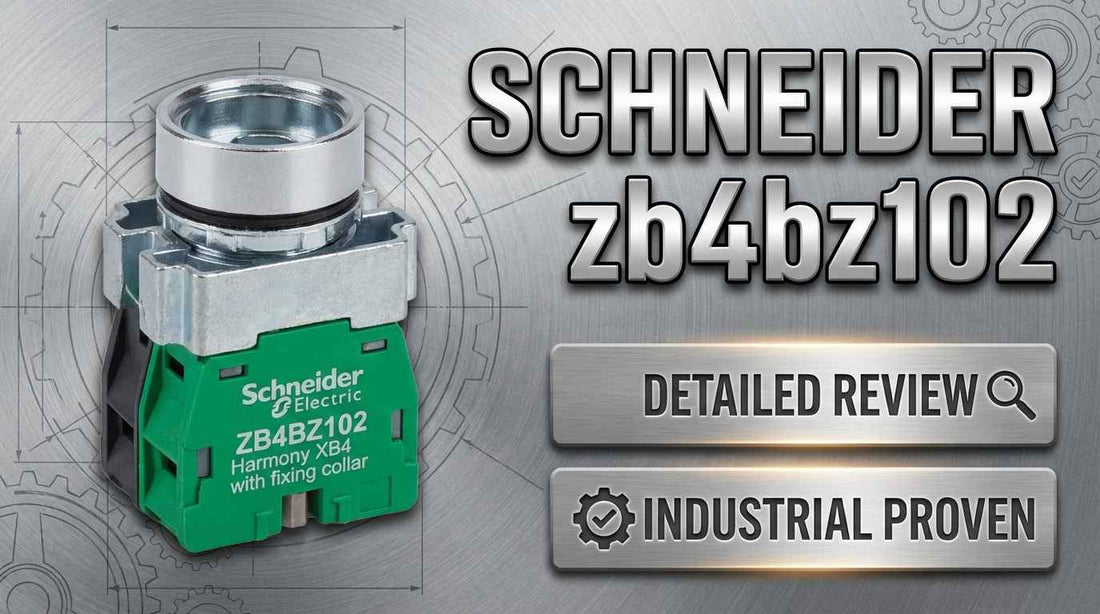

Schneider Electric ZB4BZ102 Harmony 22mm 1NC screw clamp auxiliary contact block for industrial pushbutton panels

Schneider Electric ZB4BZ102 Harmony 22mm Push Button Contact Block with Mounting Collar, 1 NC, Screw Clamp Terminal — Specifications, Compatibility and Ordering Guide

If you are specifying a contact block for an existing Harmony ZB4, ZB5, or ZBE series 22mm pushbutton and your control logic requires a normally closed signal, the Schneider Electric ZB4BZ102 is the direct answer. Rated at 10A and 600VAC with screw clamp terminals and a Zamak fixing collar, this single-pole NC auxiliary block mounts directly to a compatible pushbutton base to deliver clean, slow-break contact switching for PLC inputs, safety relays, and interlock circuits. The single most important decision before ordering is confirming that your circuit requires 1 NC — not 1 NO or changeover — because that determination alone separates the ZB4BZ102 from its sibling variants.

If you have already confirmed this is the right part, check current pricing and availability for the ZB4BZ102 at LeadTime.ca — ships worldwide.

Who Should Buy the ZB4BZ102 — and Who Shouldn't

The Schneider Electric ZB4BZ102 is the right contact block if all of the following apply to your application:

  • Your control logic requires a 1 NC (normally closed) contact — the circuit must be active when the pushbutton is at rest and open when pressed
  • Your pushbutton base is ZB4, ZB5, or ZBE series — the Zamak mounting collar on this block will not fit XB4 round-button or non-Harmony bases
  • Your control circuit operates within 10A maximum at 600VAC — this block is rated for pilot circuits, not power switching
  • You are installing into a panel environment between -40°C and +70°C
  • You need screw clamp terminals for field wiring — not spring-cage or push-in connections
  • You have fewer than 5 contact blocks already mounted to the target pushbutton base (maximum stack is 5)

If your logic requires normally open contact, order the ZB4BZ103 instead. If you need simultaneous NO and NC from a single block, the ZB4BZ104 changeover variant is the correct choice.

On this page:

What the ZB4BZ102 Does in a Real Control System

The Schneider Electric ZB4BZ102 is a single-pole normally closed auxiliary contact block belonging to the Harmony ZB4/XB4 Series. It does not replace a pushbutton — it extends one. Mechanical actuation of the pushbutton base physically opens the NC contact inside the ZB4BZ102, delivering a control-level electrical signal to whatever device is wired to its screw clamp terminals. That signal might feed a PLC digital input, a safety relay coil, an interlock chain, or a status indicator. The block adds this capability without changing the pushbutton head, legend plate, or operator interface.

Slow-break contact operation is a key design detail here. Per EN/IEC 60947-1, slow-break contacts delay the separation moment during the transition, which reduces transient voltage spikes and minimizes arcing at the contact surfaces. In high-cycle applications — emergency stops, mode selectors, start/stop buttons on production machinery — this directly extends contact service life and keeps electrical noise out of logic circuits. The silver alloy contact material and Zamak fixing collar contribute to the block's reputation as a reliable workhorse component in panel shops standardized on the Harmony platform.

The 18-month contractual warranty covers defects in materials and workmanship under normal operating conditions. Short-circuit protection conforming to EN/IEC 60947-5-1 requires a 10A cartridge fuse type gG installed externally in the circuit — this protection is not internal to the block itself, a detail that matters during panel design review.

Typical System Architecture

The ZB4BZ102 sits at the field device layer of a control system, between the operator interface and the PLC or relay logic tier. Understanding its position in the signal chain helps panel builders plan wiring and stacking from the start.

  • Operator presses a ZB4 or ZB5 series 22mm metal pushbutton head mounted in the control panel door
  • Mechanical actuation transfers through the pushbutton base to the ZB4BZ102 contact block mounted on the base collar
  • The NC contact opens, interrupting the control circuit signal at the block's screw clamp terminals
  • That signal change travels via control wiring to a PLC digital input card, safety relay, or interlock relay
  • PLC or relay logic responds — stopping a machine, enabling a mode, triggering an alarm, or lighting a status indicator

Where the ZB4BZ102 Gets Deployed

Emergency stop circuits are the most common deployment. In machine safety design, NC contacts are the standard for E-stop logic because loss of signal — whether from a pressed button, a broken wire, or a failed contact — triggers the safe state. The ZB4BZ102 fits directly into this architecture when mounted to a ZB4 or ZBE emergency stop base.

Interlock circuits on production machinery use NC contact blocks to create logical AND conditions. When multiple ZB4BZ102 blocks are wired in series across guard doors, access hatches, or mode selector switches, all contacts must remain closed for the machine to run. A single pressed or failed button breaks the chain and halts the sequence.

Mode selector and startup sequencing applications in automotive, textile, and timber processing machinery also commonly use this block. The ability to stack up to 5 contact blocks on a single pushbutton base means one physical button can feed multiple PLC inputs or relay coils simultaneously — useful for multi-zone control or dual-redundant input architectures.

Indicator and alarm circuits represent a lighter-duty but equally common use. An NC contact block wired to a status light or alarm horn will activate the indicator whenever the pushbutton is released — useful for machine-running status displays or fault reset acknowledgment circuits.

Application Typical Deployment
Emergency stop pushbutton NC block triggers safety relay on button press; loss of signal is fail-safe
Machine interlock chain Multiple NC blocks in series across guard doors and access points
Mode selector switch NC block disables specific automation sequence when selector is moved
Multi-function pushbutton Up to 5 blocks stacked to feed multiple PLC inputs from one button
Alarm and indicator control NC contact closes circuit to horn or lamp when button is at rest
Automotive and textile OEM panels Standard ZB4 platform component in factory-built control cabinets

Specifications and Variant Comparison

Specification ZB4BZ102 Value
Contact Configuration 1 Normally Closed (1 NC)
Current Rating 10 A maximum
Voltage Rating 600 VAC
Terminal Type Screw Clamp
Contact Operation Slow-break
Contact Material Silver alloy
Operating Temperature -40 to +70°C
Mounting Size 22 mm
Body / Collar Material Zamak (fixing collar)
Short-Circuit Protection 10 A cartridge fuse type gG (EN/IEC 60947-5-1)

Full technical specifications are available on the product page at LeadTime.ca.

Model Number Contact Type Current Voltage Use Case Notes
ZB4BZ102 1 NC 10 A 600 VAC Normally closed logic Primary product reviewed here
ZB4BZ103 1 NO 10 A 600 VAC Normally open logic Direct alternative; same footprint and lead time
ZB4BZ104 1 SPDT (changeover) 10 A 600 VAC Dual-contact logic Eliminates need for two separate blocks
ZB4BZ105 2 NC 10 A 600 VAC Dual NC contacts Higher logic complexity from single block

If your circuit logic requires normally open contact instead of normally closed, the ZB4BZ103 is the direct swap with the same 22mm footprint, screw clamp terminals, and 10A/600VAC rating — check current availability at LeadTime.ca and confirm the correct variant before adding to cart.

Expert Verdict: Is the ZB4BZ102 the Right Block for Your Panel?

The Schneider Electric ZB4BZ102 is exactly what a panel builder standardized on the Harmony platform needs when the logic calls for a normally closed auxiliary contact. The 10A at 600VAC rating comfortably covers pilot circuit duty across the vast majority of industrial control applications — E-stop safety relays, PLC digital inputs, interlock chains, and alarm indicators — without any derating concerns in normal panel environments. Slow-break contact operation per EN/IEC 60947-1 actively works in your favour on high-cycle buttons: less arcing, less electrical noise, longer service life. The Zamak collar and screw clamp terminals mean installation requires no special tools beyond a standard screwdriver, and field repair is straightforward. For OEM equipment manufacturers in automotive, textile, and timber processing who build around the ZB4 platform, this block is a stock component with a proven supply chain and an 18-month contractual warranty behind it.

Where the ZB4BZ102 falls short is equally clear. If your application requires normally open contact — meaning the circuit should activate when the button is pressed rather than when it is released — order the ZB4BZ103 instead. The ZB4BZ102 will produce inverted logic in that scenario, which in a safety circuit is not a minor inconvenience. If you need simultaneous NO and NC from a single physical slot, the ZB4BZ104 changeover block is the efficient answer. For circuits exceeding 10A or 600VAC, the ZB4 series is not the right tool — you need to step up to power contactors or modular relay modules. And if your pushbutton base is an XB4 round-button type or a non-Harmony platform, the Zamak mounting collar on the ZB4BZ102 will not physically seat — compatibility ends at the mounting interface, not at the electrical terminals.

From a procurement standpoint, the ZB4BZ102 is a market-standard stock item at major authorized distributors. For a mission-critical panel build, sourcing through a specialist industrial automation distributor rather than a generic channel gives you access to compatibility confirmation, accurate regional stock data, and rapid response if a substitute is needed mid-build. Pricing is available on the ZB4BZ102 product page at LeadTime.ca — no price estimate is more reliable than live distributor stock data when you are committing to a build schedule.

For volume pricing or to confirm lead time before committing to a control cabinet build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ZB4BZ102

The Schneider Electric ZB4BZ102 is a mature, standardized component with a narrow but precisely defined specification envelope. Because online discussion of this specific model number is minimal — reflecting the product's status as a commodity component in professional panel shop environments rather than any quality concern — the most valuable guidance comes from the technical documentation and the ordering mistakes that specialist distributors encounter repeatedly. The following points consolidate what experienced controls engineers and panel builders verify before every order of this block.

The single most common ordering error in this product family is contact configuration confusion. The ZB4BZ102 is 1 NC. When a buyer is working from an OEM equipment manual or a bill of materials, the shorthand NC and NO can be easy to transpose, especially when the logic description is written in narrative form rather than schematic notation. A normally closed contact means the circuit is complete — continuity exists — when the pushbutton is at rest. Press the button and continuity breaks. In emergency stop logic, this is the correct behaviour: the safety relay is energised by a closed circuit at rest, and pressing the E-stop de-energises it. In a machine-start circuit, this logic would be inverted, and that is when the wrong part creates a fault that is difficult to diagnose in the field. Verify the schematic before ordering, every time.

Stacking limits and base compatibility are the second area where orders go wrong. The maximum stack count on a Harmony ZB4, ZB5, or ZBE base is 5 contact blocks. If the existing installation already has 5 blocks, a sixth ZB4BZ102 will not seat — and discovering this during a panel commissioning visit is an expensive outcome. Photograph or physically count existing blocks before ordering additions. On base series compatibility: the ZB4BZ102 fits ZB4, ZB5, and ZBE series only. XB4 round-button bases use a completely different mounting system and will not accept this block. If you are unsure which base series is installed, check the model number sticker on the pushbutton body — it will begin with ZB4, ZB5, ZBE, or XB4, and that prefix determines which contact block family is compatible. When in doubt, the LeadTime.ca team can confirm compatibility before the order is placed.

Wiring and Installation Overview

  • Confirm the pushbutton base is ZB4, ZB5, or ZBE series and that an empty mounting slot is available before attempting installation — the block's collar tabs must align with the base slot for the block to seat correctly
  • De-energize the control circuit before installation; align the ZB4BZ102 collar with the empty base slot, push straight down until the collar is flush, and verify the block does not rock or move when pressed — no fasteners are required
  • Strip 6–8 mm of insulation from each control wire using a wire stripper; insert into the screw clamp terminal and tighten with a No. 1 Phillips, No. 1 Pozidrive, 4 mm flat, or 5.5 mm flat screwdriver until the wire holds firm under moderate pull — do not over-torque
  • With the circuit de-energized, set a multimeter to continuity mode and probe both terminals: with the button at rest, the meter should show continuity (low resistance) because this is a normally closed contact; press the button and continuity should break
  • For full wiring diagrams, torque values, and mounting procedures, refer to the Schneider Electric product documentation supplied with the block or available on the manufacturer's website

Compatible Modules and System Expansion

The ZB4BZ102 is one element in a stackable Harmony pushbutton assembly. The following components are confirmed compatible with ZB4, ZB5, and ZBE series bases and can be combined with the ZB4BZ102 in a single pushbutton installation:

  • ZB4BZ103 — 1 NO contact block; same 22mm footprint, 10A/600VAC rating; add alongside ZB4BZ102 when mixed NC/NO logic is needed from the same button
  • ZB4BZ104 — 1 SPDT changeover contact block; provides simultaneous NO and NC contacts from a single stacking slot when dual-contact logic is required
  • ZB4BZ105 — 2 NC contact block; doubles NC contact count within a single stacking position for higher logic complexity
  • ZBV series LED lamp modules — signal lamp modules that mount alongside contact blocks on the same pushbutton base to provide illuminated operator feedback without a separate indicator unit

When planning a stacked assembly, remember the maximum of 5 blocks per base applies to the total count of all contact blocks and lamp modules combined on that base.

Wrong-Part Checklist: Verify Before You Order

Before placing your order for the Schneider Electric ZB4BZ102, work through the following checks verbatim — these are the verified prevention steps for the most common ordering errors in this product family:

  1. Verify contact type: This is 1 NC (normally closed). If you need NO (normally open), order ZB4BZ103 instead. If you need changeover, order ZB4BZ104.
  2. Confirm base series: This block fits only ZB4, ZB5, and ZBE series 22mm pushbutton bases. It does not fit XB4 round button or other families.
  3. Check current/voltage limits: 10A maximum at 600VAC. If your circuit draws more than 10A, this block will not provide safe operation.
  4. Count stacking slots: You can stack up to 5 contact blocks on a single pushbutton base. Verify you are not exceeding this limit.
  5. Inspect terminal type: This model uses screw clamp terminals only. If you need spring terminals or push-in connections, order a different model.
  6. Confirm operating temperature: Block rating is -40 to +70°C. If cabinet environment is outside this range, verify thermal derating or use a rated alternative.

If any item on this checklist raises a question before your order is placed, view the full ZB4BZ102 product details at LeadTime.ca or contact the team directly to confirm the right part for your application.

Frequently Asked Questions

Can I stack a ZB4BZ102 alongside a ZB4BZ103 on the same pushbutton base to get both NC and NO contacts?

Yes. The ZB4BZ102 (1 NC) and ZB4BZ103 (1 NO) can be stacked together on the same ZB4, ZB5, or ZBE series pushbutton base. Each occupies one stacking slot, and the maximum of 5 blocks per base applies to the combined total. This is a common configuration when one pushbutton must deliver both an enable signal and a disable signal to different parts of the control circuit simultaneously.

What is the difference between slow-break and fast-break contact operation, and why does it matter for this block?

Slow-break contacts delay the separation moment during the transition, which reduces the transient voltage spike and minimizes arcing at the contact surface. Fast-break contacts snap open quickly, which produces a sharper signal edge but more arc energy per cycle. For pilot circuits in industrial control panels — particularly high-cycle applications like E-stops and mode selectors — slow-break operation per EN/IEC 60947-1 extends contact service life and reduces electrical interference on logic wiring. The ZB4BZ102 uses slow-break operation as documented in its official specification.

Is the ZB4BZ102 a direct replacement for a failed contact block on an existing pushbutton, or do I need to replace the entire pushbutton assembly?

The ZB4BZ102 is designed for field replacement at the contact block level. If the existing base is ZB4, ZB5, or ZBE series and is mechanically intact, the failed block can be removed and a new ZB4BZ102 seated in its place without replacing the pushbutton head, legend, or base. This modular design is one of the practical advantages of the Harmony platform for maintenance technicians working on installed equipment.

What short-circuit protection does the ZB4BZ102 provide, and do I need an external fuse?

The ZB4BZ102 conforms to EN/IEC 60947-5-1 for short-circuit protection, but the protection is not internal to the block. You must install a 10A cartridge fuse type gG externally in the circuit if short-circuit protection is required by your panel design. This is standard industrial practice for pilot circuits and should be reflected in your panel schematic and BOM.

Does the ZB4BZ102 fit a ZB5 pushbutton base, or only ZB4?

The ZB4BZ102 is verified compatible with ZB4, ZB5, and ZBE series 22mm pushbutton bases. The ZB5 series uses the same mounting collar interface as ZB4, making this block a direct fit. It does not fit XB4 round-button bases or third-party pushbutton platforms, which use different mounting systems.

What does the 18-month contractual warranty cover on the ZB4BZ102?

Schneider Electric's 18-month contractual warranty covers defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, terminal damage from over-torquing, physical modification of the block, or use outside the rated electrical and temperature specifications. Operating the block above 10A or below -40°C or above +70°C would fall outside the conditions the warranty is designed to cover.

Why Order From LeadTime.ca

  • Ships worldwide — not limited to any single region or country
  • Stocks Harmony ZB4 series components as part of a complete Schneider Electric ecosystem, not as isolated line items
  • Can confirm base compatibility, contact configuration, and stacking availability before the order is placed — reducing wrong-part shipments
  • Volume pricing available for panel shops and OEM integrators building multiple assemblies
  • Fast response on stock and lead time queries for mission-critical builds

At-a-Glance Summary

  • Contact configuration: 1 NC (normally closed) — circuit active at rest, opens on button press
  • Electrical ratings: 10A maximum, 600VAC — pilot circuit duty only, not power switching
  • Terminal type: Screw clamp — requires wire stripping and screwdriver (Phillips No. 1, Pozidrive No. 1, 4 mm flat, or 5.5 mm flat)
  • Compatible bases: ZB4, ZB5, ZBE series 22mm Harmony pushbuttons only — not compatible with XB4 round-button bases
  • Stacking limit: Maximum 5 contact blocks per pushbutton base
  • Contact operation: Slow-break per EN/IEC 60947-1 — reduces arcing and electrical noise in high-cycle applications
  • Operating temperature: -40 to +70°C
  • Short-circuit protection: Requires external 10A cartridge fuse type gG per EN/IEC 60947-5-1
  • Warranty: 18 months contractual
  • Primary alternatives: ZB4BZ103 (1 NO), ZB4BZ104 (1 SPDT changeover), ZB4BZ105 (2 NC)
