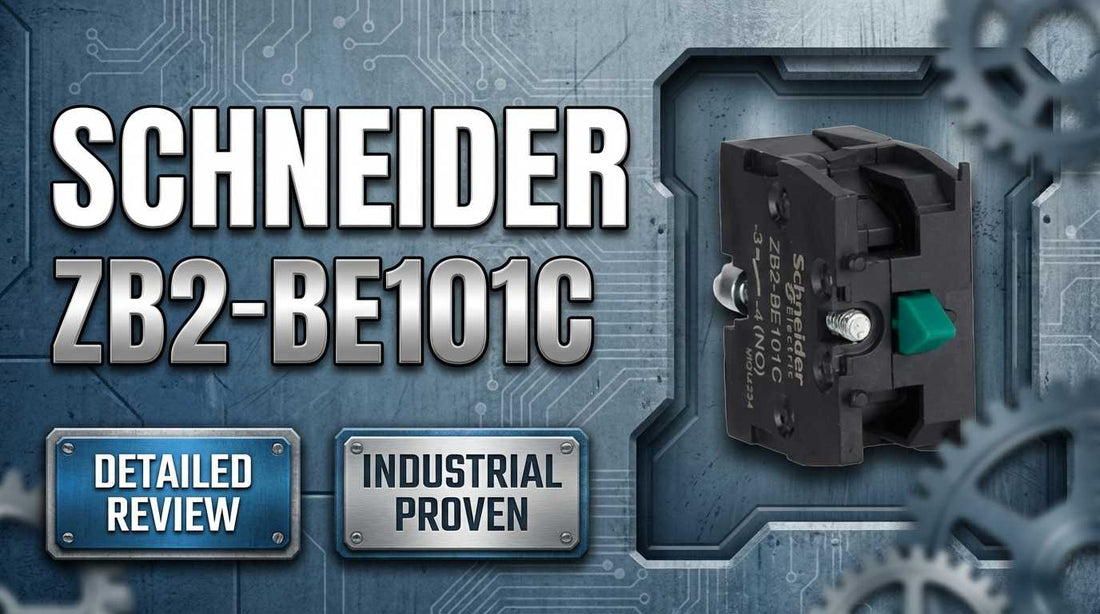

Schneider ZB2-BE101C single contact block 1NO screw clamp terminal for 22mm Harmony XB2 push-button industrial control panel

Schneider ZB2-BE101C Single Contact Block, Easy Harmony XB2, Screw Clamp Terminal, 1NO — Specifications, Wiring & Alternatives Guide

If you are a panel builder, industrial electrician, or controls engineer searching for the correct contact block to complete or replace a 22mm Harmony XB2 push-button assembly, the Schneider ZB2-BE101C is the standard answer for single-pole 1NO momentary switching. Rated at 10 A AC and up to 600 V AC, with an extended operating temperature range of -40°C to +105°C and a mechanical durability rating of 1,000,000 operations, this contact block is the workhorse behind conveyor start buttons, reset controls, and manual override circuits across food processing, packaging, and material handling facilities worldwide.

If you have already confirmed this is the correct part for your application, check current pricing and availability for the ZB2-BE101C at LeadTime.ca — we ship worldwide.

Who Should Buy the ZB2-BE101C — and Who Shouldn't

The ZB2-BE101C is the right contact block when all of the following are true for your application:

  • Your push-button actuator is exactly 22mm bore diameter and is confirmed as Harmony XB2 series — not 30mm, 40mm, or any other brand family
  • Your control circuit requires exactly 1NO (normally open) contact configuration — momentary action, spring return to open on release
  • Your maximum circuit current does not exceed 10 A AC at the contact without upstream protection
  • Your panel wiring approach uses screw clamp terminals, not spring push-in connections
  • Your operating environment stays within -40°C to +105°C throughout the year, including cold-storage, outdoor, or thermally variable conditions

If your control circuit requires both a normally open and normally closed contact simultaneously, the ZB2-BE102C (1NO/1NC dual contact) is the correct selection — not this model. If your load current exceeds 10 A, a higher-rated contact block or a separate contactor arrangement is required.

On this page:

What the ZB2-BE101C Actually Does in a Control Circuit

The Schneider ZB2-BE101C is a single contact block — the electrical switching half of a two-part push-button assembly. The push-button head (actuator) provides the mechanical interface: operator presses it, force is transmitted, and the ZB2-BE101C responds by closing its single normally open (1NO) contact. When the operator releases the button, the spring-return mechanism pulls the contact back to its open state. The circuit is broken. That is the full mechanical logic of this component.

In practice, this snap-action mechanism is what makes the ZB2-BE101C suitable for start, reset, and momentary override functions rather than maintained switching applications. The screw clamp terminals secure the incoming and outgoing control circuit conductors with vibration-resistant clamping force — a critical feature in machinery that generates mechanical vibration during operation. The contact is rated for 1,000,000 operating cycles at specified duty conditions, which translates into years of daily operation on a production line without contact degradation under normal load conditions.

The extended operating temperature range of -40°C to +105°C means the ZB2-BE101C does not require environmental derating in cold-storage warehouses, outdoor enclosures, or food processing areas where wash-down and temperature cycling create conditions that cause lower-rated components to fail prematurely. The 25 MOhm contact resistance in the open state provides reliable electrical isolation between operations.

Typical System Architecture for a Harmony XB2 Push-Button Assembly

The ZB2-BE101C sits between the push-button actuator head above it and the downstream control relay or PLC input below it. Understanding this position in the signal chain helps confirm whether this is the correct component for your panel.

  • Upstream circuit protection — cartridge fuse type gG (gl) rated for your supply voltage, installed before the push-button assembly
  • 22mm Harmony XB2 push-button actuator head — the operator-facing mechanical component that transmits press force to the contact block
  • ZB2-BE101C contact block — snaps onto the actuator, provides the 1NO electrical switching element with screw clamp terminals for conductor attachment
  • Control circuit conductor — carries the switched signal from the ZB2-BE101C output terminal to the next device in the circuit
  • Downstream device — typically a control relay coil, PLC digital input module, or motor starter contactor input receiving the momentary signal

Where the ZB2-BE101C Gets Installed

The most common deployment is as the start button contact block on conveyor belt control panels and packaging line machinery. When the operator presses start, the ZB2-BE101C closes its 1NO contact momentarily, energizing the motor starter contactor coil — the motor runs. The ZB2-BE101C then returns to open, and the contactor self-seals through its own auxiliary contact. This is the textbook industrial start circuit, and the ZB2-BE101C is the standard component for the push-button side of that logic.

In food and beverage processing facilities, the -40°C to +105°C temperature rating makes the ZB2-BE101C appropriate for control panels positioned near freezers, blast chillers, or cooking zones without requiring special enclosure conditioning. Plant maintenance technicians in these environments specify this contact block as their standard replacement part for Harmony XB2 assemblies because stocking one model covers the majority of momentary 1NO control stations throughout the facility.

Material handling and warehouse automation applications use the ZB2-BE101C for manual override controls — situations where an operator needs to momentarily trigger a conveyor segment, lift mechanism, or sortation gate outside of the normal PLC-controlled cycle. The spring-return mechanism ensures the override is momentary only, which prevents accidental continuous operation.

OEM equipment designers specifying new control panels for pump motor start-stop controls, auxiliary equipment on-off circuits, and multi-station signaling panels also rely on the ZB2-BE101C as their default single-contact block precisely because it is a proven, current-production component with no pending obsolescence concerns from Schneider Electric.

Application Typical Deployment
Conveyor start/stop control Momentary start button in motor starter circuit; ZB2-BE101C closes to energize contactor coil
Packaging machinery reset Reset pushbutton after fault clearance; 1NO contact signals PLC input to resume cycle
Food processing control panel Temperature-cycling environment; -40°C to +105°C rating eliminates derating concerns
Manual override in automated material handling Operator-triggered momentary input to conveyor segment or sortation gate outside PLC cycle
Pump and auxiliary equipment on-off control Simple momentary control station; single 1NO contact initiates or signals stop sequence
Multi-station industrial signaling panel Replaces worn contact blocks in existing Harmony XB2 22mm assemblies without panel redesign

Key Specifications for Purchase Decision

Parameter Rating / Value Notes
Contact Configuration 1 NO (Normally Open) Single contact, spring return to open on button release
Electrical Rating 10 A AC Maximum continuous current; exceeding requires external protection upgrade
Operating Voltage Up to 600 V AC Verify for your specific circuit voltage and load
Switching Power 40 W DC-13 At 1,000,000 cycles; operating rate less than 3,600 cycles/hour; load factor 0.5 at 120 V
Fuse Protection Required Cartridge type gG (gl) Install upstream in circuit; size for steady-state load with margin below 10 A
Mechanical Durability 1,000,000 operations At specified duty cycle and operating rate
Operating Temperature -40°C to +105°C Extended industrial rating; verify with manufacturer for your climate zone
Terminal Type Screw clamping terminal Vibration-resistant; not compatible with spring push-in wiring approach
Push-Button Compatibility 22mm Harmony XB2 series only Not compatible with 30mm, 40mm, or non-Harmony actuator families
Contact Resistance (Open) 25 MOhm Electrical isolation when contact is in open (unpressed) state

Full technical specifications are available on the product page at LeadTime.ca.

ZB2-BE101C vs. ZB2-BE102C: Which Contact Block Do You Actually Need?

Feature ZB2-BE101C (1NO Single) ZB2-BE102C (1NO/1NC Dual)
Contact Configuration 1 NO only 1 NO + 1 NC (two separate contacts)
Electrical Rating 10 A AC 10 A per contact
Terminal Count Single 1NO contact pair Two separate contact pairs — more panel wiring required
Cost Position Lower — most economical for simple start/stop Moderately higher — required for complex control logic
Mounting 22mm Harmony XB2 22mm Harmony XB2
Best For Momentary start, reset, simple on/off Control logic requiring NO and NC action simultaneously from one button press
Common Ordering Error Confused with 1NO/1NC dual variant Ordered when only 1NO is needed — cost waste and unnecessary wiring complexity

If your schematic shows both a normally open and normally closed requirement from a single push-button, the ZB2-BE102C is your correct selection — visit the product page at LeadTime.ca or contact us to confirm which variant ships for your application.

Expert Verdict: Is the ZB2-BE101C the Right Specification for Your Project?

The Schneider ZB2-BE101C earns its position as the default single-contact block for 22mm Harmony XB2 push-button systems by doing exactly what most industrial control circuits require without overcomplicating the design or the bill of materials. Its 1NO momentary configuration, 10 A AC rating, screw clamp terminals, and 1,000,000-cycle mechanical durability make it the correct and cost-effective choice for OEM equipment designers, panel builders, and plant maintenance technicians who need reliable momentary switching in food processing, packaging, material handling, and general manufacturing environments. The -40°C to +105°C operating range is a genuine differentiator for facilities subject to thermal cycling, cold-storage conditions, or outdoor installation — it eliminates derating calculations and substitution guesswork that lower-rated components force on the engineer.

The ZB2-BE101C has real limits that should be acknowledged honestly. If your control circuit schematic shows both a normally open and normally closed contact requirement from the same push-button, you need the ZB2-BE102C — the ZB2-BE101C cannot provide that dual-pole logic. If your circuit load exceeds 10 A at the contact, this contact block is not the device handling that current directly; use the ZB2-BE101C to pilot a contactor rated for the actual load. And if your push-button actuator is not Harmony XB2 series with a 22mm bore, mechanical fit is not guaranteed — verify before ordering. None of these limitations are unusual; they simply mean this is a precision-specified component, not a universal contact block.

From a procurement standpoint, the ZB2-BE101C is a current-production component with confirmed ongoing support from Schneider Electric — there is no near-term obsolescence concern. Sourcing through a specialist industrial distributor rather than general online channels gives you direct access to cross-reference tools, compatibility verification before shipment, and compliance documentation when your facility requires it. For emergency replacements or project-critical builds, that combination of technical support and verified stock matters significantly more than marginal price differences. Check current availability and pricing for the ZB2-BE101C at LeadTime.ca — we ship worldwide and carry the technical expertise to confirm correct variant selection before your order is placed.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ZB2-BE101C

The Schneider ZB2-BE101C generates almost no online discussion — no forum complaints, no troubleshooting threads, no mass debates about alternatives. For a mature industrial control component, that silence is meaningful. It indicates a product that installs correctly, performs to specification, and does not generate field problems significant enough to drive engineers to public forums for help. The absence of complaint is, in this case, the strongest performance signal available.

What the lack of community chatter does mean, however, is that engineers specifying or replacing this contact block for the first time cannot rely on crowdsourced wisdom to catch selection errors. The ordering mistakes that do occur with this component are almost entirely preventable — and they follow a consistent pattern: wrong contact configuration (ordering 1NO when 1NO/1NC was needed, or vice versa), wrong actuator compatibility (assuming all 22mm push-buttons accept Schneider Harmony contact blocks), and current rating errors (applying 10 A-rated contacts directly to loads that should be handled by a contactor). These mistakes are not caused by product complexity; they are caused by specifying from memory rather than from the schematic.

When community data is sparse and the selection stakes are high, the right move is direct specialist consultation. The LeadTime.ca technical team handles exactly these queries daily — confirming whether ZB2-BE101C is the correct variant for your push-button assembly, cross-referencing your actuator model against Harmony XB2 compatibility lists, and flagging circuit load concerns before an order ships. A five-minute conversation replaces an hour of research and eliminates the risk of a wrong-part return. Contact us before ordering if any of the compatibility criteria in the checklist below are not fully confirmed for your application.

Wiring and Installation Overview

The ZB2-BE101C uses screw clamp terminals for conductor attachment. The following points cover the key requirements for correct installation — for full wiring procedures, refer to Schneider Electric's official installation documentation for the Easy Harmony XB2 family.

  • Prepare copper conductors to the appropriate gauge for 10 A service — strip approximately 6mm of insulation without nicking the strands before insertion into the screw terminal cavity
  • Insert each stripped conductor fully into its terminal cavity and tighten the screw clamp to the specified torque — verify that no bare copper is exposed outside the terminal and that each wire resists moderate pull-out force without moving
  • Install a cartridge fuse of type gG (gl) upstream of the ZB2-BE101C in the control circuit — size for your steady-state load with appropriate margin below the 10 A contact rating
  • Before applying power, perform a continuity check with a multimeter: contact open (button released) should read infinite resistance; contact closed (button pressed) should read near-zero resistance — confirm spring return restores open state on release
  • Verify the operating environment temperature is within -40°C to +105°C and that the push-button actuator is confirmed as 22mm Harmony XB2 series before completing final installation

Wrong-Part Prevention Checklist

Before placing your order for the ZB2-BE101C, work through every item on this checklist. Each point addresses a documented ordering mistake category for this component.

  1. Verify your push-button actuator is exactly 22mm bore diameter and Harmony XB2 series (not 30mm, 40mm, or other brand families)
  2. Confirm you need exactly 1NO contact configuration — not 1NC, 2NO, 2NC, or any other type
  3. Check that 10 A AC electrical rating is adequate for your circuit load without auxiliary protection
  4. Ensure your panel wiring setup uses screw terminal connection method (not spring push-in terminals)
  5. Verify your operating environment temperature range falls within -40°C to +105°C without requiring environmental derating
  6. Distinguish ZB2-BE101C (1NO single contact) from ZB2-BE102C (1NO/1NC dual contact) — these are not interchangeable
  7. Confirm voltage rating is under 600 V AC and load factor considerations are met for your application
  8. Check that this is truly a replacement for an existing ZB2-BE101C unit or that your control engineer has explicitly specified this model

If any item on this checklist cannot be confirmed before ordering, contact the LeadTime.ca team — we will verify compatibility with your specific push-button assembly and control circuit before your order ships.

Frequently Asked Questions

Will the ZB2-BE101C fit my existing 22mm push-button actuator if it is not labeled as Harmony XB2?

Mechanical compatibility is confirmed only for Schneider Electric Harmony XB2 series 22mm actuators. If your push-button head is from a different manufacturer or is an unlabeled generic unit, physical fit is not guaranteed even if the bore measures 22mm. The snap-on mounting mechanism and internal mechanical linkage are specific to the Harmony XB2 family. Confirm your actuator is Harmony XB2 series before ordering — contact LeadTime.ca with your actuator model number if you are uncertain.

What is the functional difference between the ZB2-BE101C and ZB2-BE102C, and how do I know which one my circuit requires?

The ZB2-BE101C provides a single 1NO (normally open) contact only — when the button is pressed, the circuit closes; when released, it opens. The ZB2-BE102C provides both a 1NO and a 1NC (normally closed) contact simultaneously from the same button press, which allows it to close one circuit while opening another in the same operation. To determine which your circuit needs, locate the push-button symbol on your control schematic — if it shows two contact symbols (one NO, one NC) connected to the same actuator, you need the ZB2-BE102C. A single NO contact symbol means the ZB2-BE101C is correct.

What fuse type and rating should I install upstream of the ZB2-BE101C?

Schneider specifies cartridge fuse type gG (also designated gl) as the required upstream protection device for this contact block. Size the fuse based on your steady-state circuit current with appropriate margin — the fuse must be rated below the 10 A contact maximum. If your circuit includes a motor, account for inrush current when calculating fuse size, and consult your controls engineer to confirm fuse coordination with other upstream protection devices. Never oversize the fuse in an attempt to prevent nuisance tripping, as this removes protection from the 10 A contact block rating.

Can the ZB2-BE101C be used in outdoor enclosures or cold-storage facilities?

Yes — the ZB2-BE101C carries an operating temperature range of -40°C to +105°C, which covers the majority of outdoor and cold-storage environments without derating. The screw clamp terminal design also resists vibration and thermal cycling better than push-in alternatives. However, verify that the complete push-button assembly (actuator head plus contact block) meets the IP rating required for your specific outdoor or washdown application — the contact block's environmental performance is only one part of the overall enclosure system.

Is the ZB2-BE101C still in active production, or should I look for a replacement model?

The ZB2-BE101C is confirmed as a current-production model with ongoing support from Schneider Electric. There is no pending replacement or obsolescence notice based on manufacturer information available at the time of this writing. For the most current production status and stock availability, check the product page or contact your distributor — stocking status can change and your distributor can confirm availability before you commit to a design that depends on this specific model.

Why Order the ZB2-BE101C from LeadTime.ca

  • Ships worldwide — no regional restrictions on sourcing for global projects or facilities outside North America
  • Technical support team available to verify Harmony XB2 compatibility, confirm correct variant selection (ZB2-BE101C vs. ZB2-BE102C), and answer circuit load questions before your order ships
  • Specialist industrial distributor with cross-reference tools — not a generic electronics retailer without automation expertise
  • Volume pricing and lead time confirmation available for OEM or facility-wide stocking orders — contact the team before committing to large quantities
  • Compliance documentation and authorized warranty support available for applications where certification paperwork is required

At-a-Glance Summary

  • Contact configuration: 1NO (normally open), momentary spring-return action — not interchangeable with ZB2-BE102C dual-contact variant
  • Electrical rating: 10 A AC maximum, up to 600 V AC, with cartridge fuse type gG required upstream
  • Switching power: 40 W DC-13 at 1,000,000 cycles, operating rate below 3,600 cycles/hour, load factor 0.5 at 120 V
  • Mechanical durability: 1,000,000 operations at specified duty conditions
  • Operating temperature: -40°C to +105°C — covers cold-storage, outdoor, and thermal cycling environments without derating
  • Terminal type: Screw clamping — vibration-resistant, not compatible with spring push-in wiring
  • Push-button compatibility: 22mm Harmony XB2 series only — verify bore diameter and actuator family before ordering
  • Contact resistance (open state): 25 MOhm electrical isolation
  • EAN code: 3606480975844 — use for inventory management and ordering verification
  • Production status: Current model — no pending obsolescence from Schneider Electric
  • Primary applications: Conveyor start/stop, packaging line reset, cold-storage control panels, manual override circuits, pump motor control stations
