Schneider XS612B1PAM12 — M12 Inductive Sensor Specs & Wiring

By Abdullah Zahid
14 min read

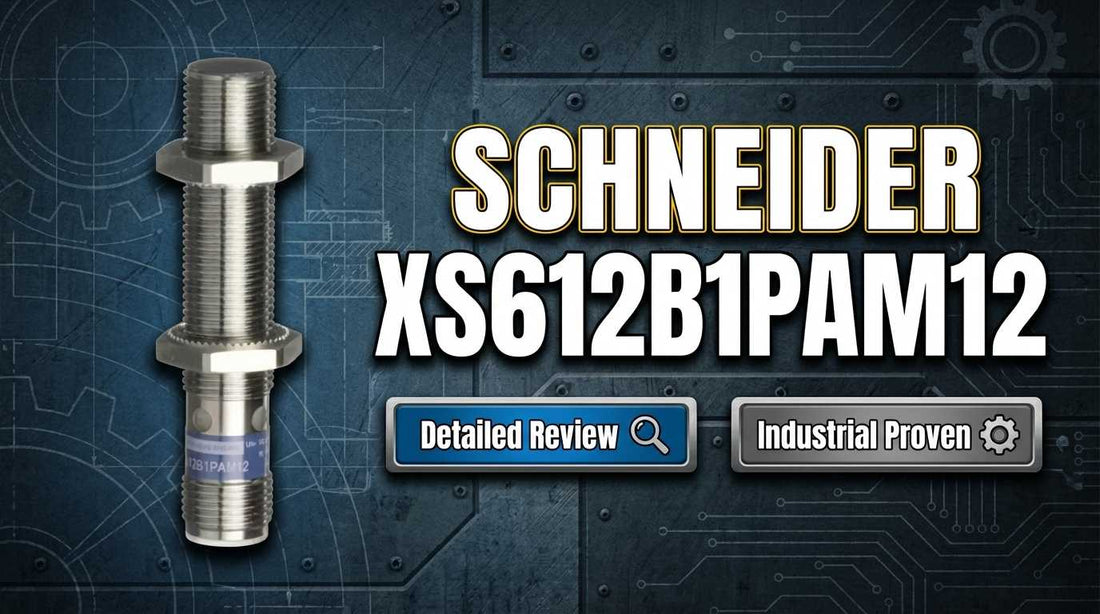

Schneider Electric XS612B1PAM12 Telemecanique M12 inductive proximity sensor for industrial automation and mobile equipment

Telemecanique Inductive Proximity Sensor XS612 — OsiSense XS Series: Specifications, Wiring, and Buying Guide for the Schneider XS612B1PAM12

Controls engineers and procurement specialists searching for the Schneider XS612B1PAM12 are typically at the final stage of a sourcing decision — they have a model number, a mounting location, and a PLC waiting for a discrete input signal. The question is whether this specific variant is the right call. The XS612B1PAM12 is an M12 cylindrical inductive proximity sensor from Schneider Electric's Telemecanique OsiSense XS series, offering a fixed 4 mm sensing distance, PNP discrete output, and dual IP67/IP69K environmental protection on a 12–48 VDC supply. It is a mature, widely deployed sensor that rewards buyers who verify two things before ordering: sensing distance and output logic type.

If you have already confirmed this is the correct part for your system, check current pricing and availability for the XS612B1PAM12 at LeadTime.ca — ships worldwide.

Who Should Buy the XS612B1PAM12 — and Who Shouldn't

This sensor is the right choice for engineers and technicians whose application meets all of the following conditions:

  • Target-to-sensor gap is fixed at 0–4 mm and will not vary beyond that range during operation
  • Control cabinet power supply delivers 12–48 VDC with reverse-polarity protection in place
  • PLC or controller digital input module accepts PNP (positive logic) signals — not NPN
  • Connector interface is M12 male 4-pin A-coded, matching existing cable infrastructure or new M12 cable procurement
  • Environment requires IP67 or IP69K protection — wet, washdown, mobile equipment, or outdoor industrial duty

If your mounting geometry produces a gap larger than 4 mm, or if your PLC input module is NPN-only, this variant is not the correct choice. The XS612D1PAM12 (adjustable 2–8 mm, mechanical dial) or the XS612E1PAM12 (adjustable 2–8 mm, potentiometer) are the appropriate alternatives in those scenarios.

On this page:

What the XS612B1PAM12 Actually Does in a Running System

The Schneider XS612B1PAM12 is a non-contact metal detection device. It does one job with high reliability: it senses whether a ferrous or non-ferrous metal object is present within 4 mm of its sensing face, then switches a PNP discrete output signal that a PLC digital input module reads as a binary 1 or 0. No mechanical contact occurs. No wear accumulates on the detection mechanism. The sensor responds within 0.2 ms and can switch at frequencies up to 2500 Hz, which means it keeps pace with high-speed parts moving on fast conveyors or in CNC tool magazine carousels.

The physical design reinforces its role as an OEM integration component. The M12 x 1 threaded body is 62 mm in total length with a 12 mm body diameter. Its nickel-plated brass housing and PPS front material were selected for environments that punish sensors — metal cutting, food processing, hydraulic systems, vehicle wash lines. The flush-mount design means the sensor can be installed directly into a threaded face without protruding beyond the mounting surface, a critical requirement when passing targets have tight clearances.

Built-in reverse-polarity protection reduces commissioning risk when field technicians connect power supply leads in the wrong orientation — a common enough occurrence during first-time installation that its absence would be a notable gap in a sensor of this type. The 12–48 VDC supply range accommodates both 24 VDC standard control voltage and 48 VDC mobile equipment electrical systems without requiring a separate signal converter.

Typical System Architecture and Signal Chain

The XS612B1PAM12 sits at the field device level of the automation hierarchy, providing a discrete presence signal that travels up to a PLC or relay logic controller. Its position in the signal chain is straightforward:

  • 24 VDC or 48 VDC control power supply feeds Pin 1 of the M12 connector through a fused branch circuit
  • The XS612B1PAM12 body mounts on a fixed bracket or machine frame, sensing face oriented perpendicular to target motion
  • Pin 4 (PNP output) carries the discrete signal via shielded M12 A-coded cable to the PLC digital input card terminal
  • The PLC digital input module reads the signal as a Boolean tag, which ladder logic or function block programs use for sequencing, counting, or safety interlock conditions
  • In safety gate applications, the discrete signal may route through a safety relay module before reaching the controller

Where the XS612B1PAM12 Is Deployed: Industries and Use Cases

Automotive assembly line engineers use the XS612B1PAM12 for conveyor presence and absence detection. The sensor mounts beneath the belt frame and detects metal components passing at production speed, providing the PLC with the part-present signal that gates the next station operation. At 2500 Hz switching frequency and 0.2 ms response time, the sensor keeps pace with even aggressive conveyor cycle rates.

CNC machine tool integrators specify it for tool magazine occupancy sensing. As a metal tool holder rotates into position, the sensor confirms its presence before the spindle actuates. A missed detection at this point could result in a dry run or tool crash — the 4 mm fixed sensing distance is reliable and repeatable in the controlled geometry of a machined magazine housing.

Mobile and heavy equipment OEM designers use it for hydraulic cylinder rod position sensing. The sensor is mounted on a fixed point along the cylinder body; the ferrous rod passes within 4 mm as the cylinder extends or retracts, giving the control system a position reference without encoders or potentiometers. The IP69K and -25°C to +70°C operating range cover the temperature extremes and pressure-wash cycles that mobile equipment routinely experiences.

Packaging and logistics line builders use it for part counting and jam detection on high-speed sorting equipment. Metal hardware passing at precise intervals produces repeatable switching events that the PLC counts against a production rate target. Food and beverage processors use it in washdown environments where IP69K protection eliminates the need for protective enclosures around the sensor body.

Application Typical Deployment
Automotive conveyor detection Under-belt mount detecting metal components at assembly stations
CNC tool magazine sensing Fixed mount in magazine housing confirming tool holder presence before spindle actuation
Hydraulic cylinder position (mobile equipment) Bracket-mounted on cylinder body, sensing ferrous rod extension and retraction
Packaging line part counting Inline mount over conveyor detecting metal hardware at high-speed intervals
Safety gate interlock Fixed mount confirming metal gate plate is fully closed before machinery startup
Food and beverage washdown environments IP69K-rated installation on stainless steel equipment frames, periodic high-pressure cleaning cycles

Purchase-Decision Specifications: What You Need to Know Before You Buy

Parameter Specification
Supply Voltage Range 12–48 VDC
Reverse Polarity Protection Yes
Output Type PNP, 1 Normally Open (NO)
Maximum Switching Capacity 200 mA DC
Switching Frequency Up to 2500 Hz
Response and Recovery Time 0.2 ms
Sensing Distance (fixed) 4 mm (non-adjustable)
Operating Temperature -25°C to +70°C
IP Protection Rating IP67 (IEC 60529) and IP69K (DIN 40050)
Connector M12 male, 4-pin A-coded

Full technical specifications are available on the product page at LeadTime.ca.

XS612B1PAM12 vs. XS612D, XS612E, and XS612G: Which Variant Do You Actually Need?

Feature XS612B1PAM12 XS612D1PAM12 XS612E1PAM12 XS612G1PAM12
Sensing Distance Fixed 4 mm Adjustable 2–8 mm Adjustable 2–8 mm Fixed, greater than 8 mm
Adjustment Method None (fixed) Mechanical dial Potentiometer None (fixed)
Output Type PNP PNP PNP PNP
M12 4-Pin Connector Yes Yes Yes Yes
IP Rating IP67 / IP69K IP67 / IP69K IP67 / IP69K IP67 / IP69K
Typical Use Case Standard OEM fixed-distance Field tuning required Precision alignment Distant detection
Relative Cost Baseline +15–20% +20–25% +10–15%

If your target gap is consistently 4 mm and your installation geometry is fixed, the XS612B1PAM12 is the right choice at the lowest cost in the family. If you need field adjustability or a larger detection range, the XS612D1PAM12 or XS612G1PAM12 are the correct alternatives — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the XS612B1PAM12 the Right Sensor for Your Project?

The Schneider XS612B1PAM12 is the sensor to specify when the application is well-defined, the mounting geometry is fixed, and standardization across multiple installation points matters. Its 0.2 ms response time and 2500 Hz switching frequency make it genuinely capable on high-speed lines, not just adequate. The dual IP67/IP69K certification eliminates the need for protective covers in washdown environments, and the nickel-plated brass housing with PPS front material extends service life in metal cutting and food processing conditions where cheaper sensors degrade quickly. For automotive assembly line engineers, mobile equipment OEM designers, food processing maintenance technicians, and packaging line builders who can confirm a fixed 4 mm target gap, this sensor offers excellent integration simplicity and a proven track record in exactly those applications.

Its real limitation is structural, not a defect: the sensing distance is fixed at 4 mm and cannot be adjusted in the field. If your mounting bracket positions the sensor face more than 4 mm from the target, the sensor will never output a detection signal regardless of how well it is wired. For applications where the gap varies, or where field technicians need to trim the detection threshold during commissioning, the XS612D1PAM12 (mechanical dial, adjustable 2–8 mm) or XS612E1PAM12 (potentiometer trim) are the correct choices despite their modest cost premium. Buyers committed to NPN-only PLC input modules should also select a different variant — there is no field-configurable output polarity switch on the XS612B1PAM12.

From a procurement standpoint, this is a mature, stable part with broad distributor availability and standard 3–5 business day lead times for in-stock units. Ordering through a specialist industrial distributor rather than a generic electronics channel matters for one specific reason: variant confirmation. The XS612 family includes B, D, E, and G variants that share the same physical form and connector but differ in sensing range and adjustment capability. A specialist distributor carries the full family and can confirm the correct suffix before your purchase order is committed — preventing the most expensive scenario in sensor procurement, which is installing the wrong variant and discovering it during commissioning. View current pricing and stock status for the XS612B1PAM12 at LeadTime.ca — available to buyers worldwide.

For volume pricing, project-level BOM support, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the XS612B1PAM12

Community forum discussion specific to the XS612B1PAM12 is sparse — a reliable indicator that this is a stable, low-drama component with predictable field performance. Inductive sensors of this type rarely generate troubleshooting threads because installation is straightforward, failure modes are limited, and most deployments are OEM-integrated into larger machines where the sensor is specified once and replaced in kind. The absence of reported issues reflects reliable performance, not unfamiliarity.

That said, the ordering mistakes that do occur with sensors like this one follow a consistent pattern across the broader controls engineering community. Output logic type confusion is the most common: the XS612B1PAM12 is a PNP output device, and a PLC input module configured for NPN logic will not register detection events even though the sensor is fully functional and correctly wired. This error is discovered at commissioning, not during procurement, and it delays installation by however long it takes to source the correct variant. Verifying PLC input module logic type before placing the order takes two minutes and eliminates this risk entirely.

The second category of pre-order mistakes involves sensing distance assumptions. Engineers familiar with adjustable proximity sensors sometimes assume all M12 sensors offer field-tunable range. The XS612B1PAM12 does not — the 4 mm detection zone is fixed by design, and the operating detection zone spans 0–3.2 mm. If your target object will be 5 mm or 6 mm from the sensor face at any point in its travel cycle, this sensor will not reliably detect it. Measure the gap in the actual installation geometry before specifying the part. The specialist advice LeadTime.ca can provide at the pre-order stage — confirming which variant fits your gap and PLC logic combination — is exactly the kind of support that prevents costly commissioning rework. When community data is sparse and manufacturer datasheets leave room for interpretation, a knowledgeable distributor fills that gap faster than a forum thread ever will.

Wiring and Installation Overview

  • Use an M12 A-coded shielded industrial cable; connect Pin 1 (red) to the positive 12–48 VDC supply rail and Pin 3 (black) to the 0V ground common — verify polarity before applying power, as incorrect polarity on these pins can damage downstream PLC input modules even with the sensor's built-in reverse-polarity protection in place
  • Connect Pin 4 (brown) to the PLC digital input terminal assigned in your I/O map; Pin 2 (white) is not connected and should be left open or capped
  • Ground the cable shield braid at a single point to the machine frame ground — do not ground at both ends in EMI-sensitive environments such as those near VFD drives or welding equipment
  • Mount the sensor body in an M12 x 1 threaded bracket with the sensing face perpendicular to target motion; position the sensor face 0–3.2 mm from the target surface (within the operating detection zone) and verify with a feeler gauge or dial indicator for precision applications
  • After power-up, confirm the LED status indicator illuminates when a metal target approaches within 4 mm, and verify the PLC input tag transitions from 0 to 1; test at both minimum and maximum supply voltage to confirm stable operation across the full 12–48 VDC range

For complete wiring diagrams, connector pinout documentation, and step-by-step installation procedures, refer to the official Telemecanique XS612 datasheet available from Schneider Electric.

Wrong-Part Prevention: Verify These Seven Points Before You Order

Run through this checklist before submitting your purchase order for the XS612B1PAM12. Every item maps to a documented failure mode or ordering mistake that results in commissioning delays or sensor returns:

  1. Verify supply voltage available on control cabinet is within 12–48 VDC range and confirm reverse-polarity protection is in place on your power distribution
  2. Confirm your PLC or controller input module accepts PNP logic signals (not NPN)
  3. Measure the mounting hole thread size and verify M12 x 1 threading matches your fixture or sensor bracket
  4. Confirm the maximum load on the output is within 200 mA DC capacity; do NOT connect heavy relay coils directly without verification
  5. Check that the target metal (ferrous or non-ferrous) will be detected at exactly 4 mm distance in your application; test with sample material before production
  6. Verify the IP rating requirement: if welding splash or compressed-air blow-off is expected, confirm IP69K is specified (not just IP67)
  7. Confirm operating temperature range of -25°C to +70°C covers your environment; if below -25°C or above +70°C, select alternate model

If any item on this checklist is unresolved, contact LeadTime.ca before ordering — our team can confirm compatibility with your PLC, cable infrastructure, and environment before the order is placed.

Frequently Asked Questions

Does the XS612B1PAM12 detect non-ferrous metals like aluminum and copper, or only ferrous steel?

The XS612B1PAM12 detects both ferrous and non-ferrous metals — the inductive sensing principle responds to any electrically conductive metal within the 4 mm sensing zone. However, detection sensitivity varies by material: ferrous metals typically produce stronger signal responses than non-ferrous materials such as aluminum or copper. If your application involves non-ferrous targets exclusively, test with the actual material sample at the intended 4 mm distance before committing to production installation.

My PLC input module uses NPN logic. Can I use the XS612B1PAM12 or do I need a different variant?

The XS612B1PAM12 is a PNP output device only — there is no field-selectable output polarity on this model. Connecting it to an NPN-configured PLC input module will not produce reliable detection signals. If your PLC input module is NPN-only, you must select an NPN output variant from the XS612 family or add an external signal conditioning relay between the sensor output and the PLC input. Confirm your PLC module's input logic type in the module datasheet before ordering.

What is the difference between the XS612B1PAM12 and the XS612D1PAM12, and when should I choose the D variant instead?

The XS612B1PAM12 has a fixed 4 mm sensing distance with no adjustment capability, making it the lower-cost choice for applications where the target gap is precisely defined and will not change. The XS612D1PAM12 adds a mechanical dial that allows sensing distance adjustment between 2 mm and 8 mm in the field, which is useful when mounting tolerance varies or when commissioning requires trimming the detection threshold. Choose the D variant when field technicians need to fine-tune detection without remounting the sensor or modifying the bracket geometry.

The sensor is powered and the LED is lit, but the PLC input never goes active. What should I check first?

Start with output logic: confirm your PLC input module is configured for PNP, not NPN — this is the most common cause of a powered sensor producing no PLC response. Next, measure the actual gap between the sensor face and the metal target; if it exceeds 4 mm, the sensor is functioning correctly but the target is outside the detection zone. Finally, verify Pin 4 (brown) is connected to the PLC input terminal and not left open. If all three checks pass and the sensor still produces no output, inspect Pin 4 voltage with a multimeter when a steel test object is held within 2–3 mm of the face — a functional sensor will show a voltage rise at Pin 4 in that condition.

Can the XS612B1PAM12 directly drive a 24 VDC relay coil, or do I need an intermediate stage?

This depends on the relay coil current draw. The XS612B1PAM12 output is rated for a maximum switching capacity of 200 mA DC. Many small 24 VDC relay coils draw 50–100 mA, which falls within that limit. However, if the relay coil draws close to or above 200 mA, connecting it directly will stress the output transistor and risk permanent sensor failure. As a best practice, use a relay with a coil current well under 200 mA, or add a small solid-state relay buffer between the sensor output and the higher-current load.

Is the XS612B1PAM12 suitable for outdoor use on mobile equipment in cold climates?

The operating temperature range of -25°C to +70°C covers most mobile equipment environments, including cold-climate outdoor applications. The IP69K rating protects against high-pressure washdown and water ingress, which is relevant for equipment exposed to rain, mud spray, and pressure-cleaning cycles. If your application regularly experiences ambient temperatures below -25°C — such as Arctic or cold-storage environments — the XS612B1PAM12 exceeds its rated operating range and an alternate model rated for lower temperatures should be selected.

Why Order the XS612B1PAM12 Through LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships the XS612B1PAM12 and related XS612 family variants to buyers worldwide, not just within a single region
  • Variant confirmation before order — specialist staff can verify whether the B, D, E, or G suffix is correct for your sensing distance requirement and PLC logic type before your purchase order is submitted
  • Full XS612 family stocked — comparing XS612B1PAM12 against XS612D1PAM12 or XS612G1PAM12 requires seeing all options in one place; LeadTime.ca carries the related variants for direct comparison
  • Volume and project pricing available — contact the team for BOM-level orders and project lead time commitments

At-a-Glance Summary

  • Model: Schneider XS612B1PAM12 — Telemecanique OsiSense XS series M12 inductive proximity sensor
  • Fixed sensing distance: 4 mm (non-adjustable); operating detection zone 0–3.2 mm
  • Output: PNP, 1 Normally Open, maximum 200 mA DC — confirm PLC input module accepts PNP logic before ordering
  • Supply voltage: 12–48 VDC with integrated reverse-polarity protection
  • Switching frequency up to 2500 Hz with 0.2 ms response and recovery time
  • Environmental rating: IP67 (IEC 60529) and IP69K (DIN 40050) — suitable for washdown and mobile equipment duty
  • Operating temperature: -25°C to +70°C; storage -40°C to +85°C
  • Housing: nickel-plated brass body, PPS front; M12 x 1 thread, 62 mm total length, 20 g
  • Certifications: UL, CSA, CE — conforming to EN 61010-1
  • Connector: M12 male 4-pin A-coded; Pin 1 supply (+), Pin 3 ground (−), Pin 4 PNP output, Pin 2 not connected
  • If gap exceeds 4 mm or field adjustment is needed: select XS612D1PAM12 (adjustable 2–8 mm) or XS612G1PAM12 (fixed, greater than 8 mm)
