Schneider Electric XPSUAF13AP — Cat.4 Safety Relay Buying Guide

By Abdullah Zahid
14 min read

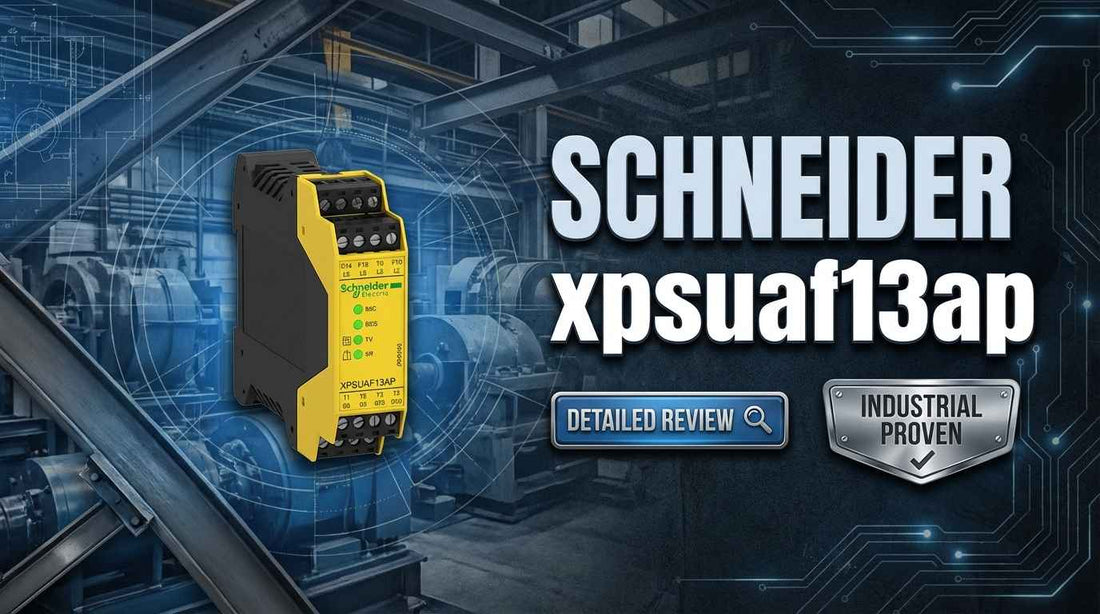

Schneider Electric XPSUAF13AP Cat.4 safety relay module with screw terminals for emergency stop circuits

Schneider Electric XPSUAF13AP Safety Module: Cat.4 Emergency Stop Relay with Potential-Free Outputs and Universal Inputs

When a machinery risk assessment specifies IEC 61508 Category 4 compliance for emergency stop circuits, the specification search typically ends at a short list of proven, diagnostically capable safety relay modules. The Schneider Electric XPSUAF13AP — part of the Harmony XPSU Preventa Safety Automation family — is a compact, DIN-rail-mounted safety relay that accepts both mechanical E-stop buttons and 24 VDC electronic sensors on a universal input, then delivers potential-free output contacts rated at 8 A at 250 V to break the machinery drive circuit. At 22.5 mm wide with screw-terminal wiring and a 24 V AC/DC supply, it fits directly into existing panel infrastructure without redesign.

If you have already confirmed this is the correct part for your application, check current pricing and availability for the XPSUAF13AP at LeadTime.ca — ships worldwide.

Who Should Buy the XPSUAF13AP — and Who Shouldn't

The XPSUAF13AP is the right choice when all of the following are true for your project:

  • Your machinery risk assessment explicitly requires Category 4 under IEC 61508 — not Cat.3
  • Your control supply is 24 V AC or 24 V DC — this module does not accept 110 VAC or 230 VAC
  • Your input devices are mechanical switches, 24 VDC electronic sensors, or a mix of both — not 4-20 mA analog sensors
  • Your shutdown logic requires potential-free (floating) relay contacts — not switched AC mains direct from the module
  • You are mounting to DIN rail with screw-terminal field wiring in a panel bay at least 45 mm wide
  • Your shutdown topology is covered by two NC contacts plus one NO/NC contact — four or more independent NO/NC outputs require the XPSUAF14AP instead

If your risk assessment permits Cat.3, lower-cost Cat.3 alternatives exist. If you need more than four relay output circuits, the XPSUAF14AP is the direct step-up within the same Harmony XPSU product family.

On this page:

What the XPSUAF13AP Actually Does in a Safety Circuit

The XPSUAF13AP sits between the physical safety trigger — an E-stop button array, a magnetic safety gate switch, a light curtain output — and the machinery's shutdown logic. It is not a general-purpose relay. It is a certified safety intermediary that monitors the state of its inputs continuously and switches its output contacts within 20 ms of a trigger event. Because it carries an IEC 61508 Category 4 rating, it provides the highest level of diagnostic coverage available in a discrete safety relay: it can detect single-point component failures within its own monitoring circuit and maintain the safety function even under fault conditions.

That Cat.4 rating has a direct engineering consequence. In many Cat.4 designs, a single XPSUAF13AP replaces what would otherwise require two Cat.3 safety relays wired in redundant series — reducing panel space, bill-of-materials cost, and wiring complexity. The module achieves this through its dual NC (normally closed) output contacts, which operate as two independent shutdown paths. Both contacts must open to interrupt the machinery drive circuit, and both are monitored internally for consistency. The NO/NC contact adds a third independent switching output, typically used for alarm signaling or permissive logic. Two PNP transistor outputs handle status signaling to indicator lights or supervisory systems.

The universal input design is what makes the XPSUAF13AP practical across mixed installation environments. Whether the input source is a traditional mechanical contact E-stop button, a modern 24 VDC electronic safety sensor, or a combination of both, the module accepts them without field reconfiguration or external signal conversion. This matters in retrofit and expansion projects where legacy buttons must coexist with newer safety devices on the same DIN rail bay.

Where the XPSUAF13AP Sits in Your Control System

The XPSUAF13AP occupies the safety-relay layer of the control architecture — between the physical safety input devices and the machinery power or drive control layer. It is not a PLC, a safety controller, or a drive. It is a dedicated switching module that provides certified, traceable isolation between the trigger event and the shutdown action.

  • 24 VDC control power supply feeds the module supply terminals; the supply must be separate from signal ground where possible
  • Emergency stop buttons, safety gate switches, or light curtain signal outputs connect to the module's universal input terminals
  • The XPSUAF13AP monitors input state continuously; on any trigger or internal diagnostic fault, it opens the NC output contacts within 20 ms
  • The two NC potential-free contacts wire in series with the machinery contactor coil or drive enable input; both must close for machine permissive to be active
  • The NO/NC contact feeds alarm beacons, supervisory PLC inputs, or secondary shutdown logic; PNP transistor outputs serve status indicators or electronic downstream loads

Industries and Applications Where This Module Fits

Emergency stop button array monitoring is the most common deployment. A multi-station production floor with E-stop buttons at each operator station connects the entire button network into the XPSUAF13AP, which provides a single, certified Cat.4 control point for the entire array. Any button trigger — or any internal diagnostic fault — immediately opens both NC contacts and drops the drive contactor.

Safety gate interlocks on machine guards are a second high-frequency use case. A magnetic safety switch on the guard door feeds the XPSUAF13AP input. The module verifies gate closure before issuing restart permissive through the NO/NC output, and drops the NC shutdown contacts if the gate opens mid-cycle. This topology is common in food and beverage packaging lines, pharmaceutical processing equipment, and automotive assembly cells.

Light curtain shutdown chains place the XPSUAF13AP as a Cat.4-rated intermediary between the light curtain signal output and the machine drive contactor. The module's 20 ms response time ensures the drive contactor opens before a person can reach the hazard zone after breaking the curtain beam.

Facilities standardizing their safety infrastructure across multiple production lines use the XPSUAF13AP as a consistent, auditable safety relay across all equipment. A single module type across all machines simplifies spare parts inventory, audit documentation, and maintenance training — reducing the compliance overhead that comes with mixed certification levels across a facility.

Application Typical Deployment
Emergency stop button arrays Multi-station E-stop network; XPSUAF13AP as single Cat.4 certification point for entire floor zone
Safety gate interlocks Magnetic safety switch on machine guard; module verifies closure before restart permissive
Light curtain safety chains Light curtain signal into XPSUAF13AP input; NC contacts in series with drive contactor coil
Multi-hazard alarm and shutdown NC contacts trigger drive shutdown; NO/NC contact drives warning beacon independently
Compliance audit standardization Single XPSUAF13AP model deployed across all production lines for simplified safety case documentation

Specifications That Drive the Purchase Decision

Specification Value
Safety Rating IEC 61508 Category 4
Supply Voltage 24 VDC / 24 VAC
Input Type Universal — mechanical switches and 24 VDC electronic sensors
Output Contact Configuration 2 NC, 1 NO/NC, 2 PNP transistor outputs — potential-free
AC Contact Rating 8 A at 250 V
Maximum Output Voltage 250 V (Pollution Degree 2, IEC 60947-1)
Response Time 20 ms from input signal to output switch
Module Width 22.5 mm (DIN rail mounting)
Operating Ambient Temperature 0 °C to 55 °C
Connection Type Screw terminals, 1.5 mm² to 2.5 mm² wire gauge

Full technical specifications are available on the product page at LeadTime.ca.

XPSUAF13AP vs. XPSUAF14AP and XPSUAF12AP: Which Output Count Do You Need?

Model Safety Rating Output Contacts Supply Voltage Best For Typical Lead Time
XPSUAF12AP Cat.4 / IEC 61508 Reduced output count 24 VDC/AC Single-function shutdown circuits 2–4 weeks
XPSUAF13AP Cat.4 / IEC 61508 2 NC, 1 NO/NC, 2 PNP 24 VDC/AC Standard emergency stop and gate interlock circuits 2–4 weeks
XPSUAF14AP Cat.4 / IEC 61508 2 NC, 2 NO/NC, 2 PNP 24 VDC/AC Expanded output requirements — alarm plus permissive plus shutdown 2–4 weeks

If your shutdown topology requires two independent NO/NC switching outputs — for example, a separate alarm circuit and a separate permissive signal running simultaneously — the XPSUAF14AP adds exactly that without any other change to the form factor or supply requirement. If your application needs only a single-function shutdown with minimal contact count, the XPSUAF12AP reduces complexity. The XPSUAF13AP is the correct middle choice for the most common emergency stop and gate interlock configurations. Check current availability for all three variants at LeadTime.ca before finalizing your design.

Expert Verdict: Is the XPSUAF13AP Right for Your Application?

The XPSUAF13AP earns its place on the approved-vendor list for plant engineers and OEM machine builders who need a single, auditable Cat.4 safety relay that does not force a complicated dual-channel Cat.3 workaround. The 22.5 mm form factor fits standard DIN rail bays, the screw-terminal connection accepts typical panel cable gauges from 1.5 mm² to 2.5 mm², and the universal input design means you are not locked into mechanical-only or electronic-only input architectures. The IEC 61508 Category 4 rating is manufacturer-confirmed, which means it satisfies the highest diagnostic coverage requirement available in a discrete safety relay module without requiring external redundancy hardware. For facilities standardizing safety relays across multiple production lines, a single catalog number simplifies spare parts, audit evidence, and maintenance training.

The honest limits are equally important. The XPSUAF13AP is strictly a 24 V AC/DC module — if your facility control supply is 110 VAC or 230 VAC, this part will not power on. If your safety topology requires more than the 2 NC plus 1 NO/NC contact set, you will reach the output limit quickly; the XPSUAF14AP is the correct next step with its additional NO/NC contact. Applications with analog input requirements — 4-20 mA pressure sensors, temperature monitors — are outside the scope of this module entirely and require a modular safety controller. And if your machinery risk assessment concludes that Cat.3 is sufficient, buying a Cat.4 module is over-engineering the solution when lower-cost alternatives exist.

From a procurement standpoint, the XPSUAF13AP is specialist hardware with typical lead times in the 2–4 week range — not a commodity relay available off the shelf at every supplier. That lead time reality makes distributor selection as important as technical selection. Buying through a specialist industrial distributor gives you real-time stock confirmation, voltage and configuration verification before shipment, and access to compliance documentation that a generic online channel cannot provide. View current pricing and lead time for the XPSUAF13AP at LeadTime.ca — we ship to facilities worldwide.

For volume pricing, project-quantity quotes, or to confirm lead time before you commit a build schedule, contact the LeadTime.ca team directly — we ship worldwide and support procurement teams at every stage of the ordering process.

What Engineers Need to Know Before Ordering the XPSUAF13AP

Community forum discussions on the XPSUAF13AP are limited — this is a specialist safety relay that tends to be specified and ordered by controls engineers working from manufacturer documentation and distributor technical support, rather than debated in general automation forums. That absence of public discussion is itself a signal: this is not a module where buyers experiment. The purchase decision is typically driven by a machinery risk assessment document that dictates the safety category, and the ordering process is usually handled through an authorized distributor who can confirm stock, supply voltage, and configuration before the purchase order goes through.

The most consequential pre-order mistakes on specialist safety relays like this one are supply voltage mismatch, output contact misuse, and input type incompatibility — none of which are obvious from a part number alone. The XPSUAF13AP's catalog number does not encode the supply voltage visually in the same way a drive or power supply part number might, which is why controls engineers consistently report supply voltage as the single most common wrong-order error on 24 V safety relay modules. Confirming that the facility control supply is 24 V AC or 24 V DC before generating the PO takes one minute and eliminates the most expensive ordering mistake.

The second area where specialist distributor support adds direct value is in the potential-free output interpretation. Engineers new to safety relay selection occasionally assume that a relay output with a high contact voltage rating — 250 V in the case of the XPSUAF13AP — means the module switches mains voltage directly. It does not. Potential-free contacts carry no module-supplied voltage; they are dry contacts that must be inserted into an external circuit. The machine's main contactor coil circuit provides the voltage; the XPSUAF13AP's NC contacts simply interrupt it. A distributor technical team can confirm this circuit topology before installation begins, avoiding contact welding caused by incorrect load connection. When community feedback is sparse on a specialized part, that is exactly when reaching out to a specialist source — rather than relying on forum consensus — makes the difference between a clean installation and a costly rework.

Wiring and Installation: What to Verify Before You Connect

  • Confirm the external fused 24 VDC supply is available and that the control supply ground is isolated from signal ground where your panel design requires it
  • Use 1.5 mm² to 2.5 mm² cable gauge for all terminal block connections; the screw terminals on the XPSUAF13AP are designed for this range — undersized wire creates high-resistance connections that affect output contact reliability
  • Connect the two NC (normally closed) output contacts in series with the machinery contactor coil or drive enable input — both contacts must be in the shutdown chain for Cat.4 dual-channel coverage
  • Confirm that the output circuit voltage source is external to the XPSUAF13AP; the potential-free contacts switch the external contactor circuit, not a module-supplied voltage rail — do not connect AC mains directly to an output terminal
  • After wiring, verify that the module's status indicator shows no fault before attempting a functional test; apply power, confirm green status, then perform a controlled E-stop trigger and verify contactor de-energization before returning the machine to service

Wrong-Part Prevention: Verify These Seven Points Before Ordering

Run through this checklist before submitting a purchase order for the XPSUAF13AP. Each item represents a confirmed ordering mistake category for this module type:

  1. Confirm supply voltage: XPSUAF13AP is 24V only; do NOT order if facility standard is 110V or 230V control supply
  2. Check output load: verify all outputs are potential-free (contacts must not carry AC mains voltage in the output circuit)
  3. Verify physical space: module is 22.5 mm wide; measure DIN rail bay width to confirm at least 45 mm clear
  4. Confirm input sensor type: if using mechanical buttons only, XPSUAF13AP is correct; if using 4-20mA sensors, this model cannot process them
  5. Ensure terminal block meets your panel design: Schneider screw terminals require 1.5 mm² wire minimum; confirm panel cable gauge
  6. Check whether you need the base unit: XPSUAF13AP is a standalone module; confirm it does not require separate mounting or supply base
  7. Verify Cat.4 is the requirement: if Cat.3 is acceptable per your risk assessment, cheaper Cat.3 alternatives exist

If any item on this list is unresolved, contact the LeadTime.ca team before ordering — our technical team confirms specification compatibility on safety relay orders as a standard part of the quoting process.

Frequently Asked Questions

Does the XPSUAF13AP require two independent input sources to achieve Cat.4 performance, or does a single E-stop button satisfy the rating?

Cat.4 diagnostic coverage requires dual-channel input monitoring — two independent input sources that the module can compare for synchronization and contact wear detection. A single E-stop button feeding one input channel reduces the module's diagnostic capability to Cat.3-equivalent performance. To realize the full Cat.4 rating of the XPSUAF13AP, your design must include two independent safety triggers — for example, two physically separate E-stop buttons, or one E-stop button and one safety gate switch — each wired to a separate input channel on the module.

Can the XPSUAF13AP's NC output contacts switch AC mains voltage directly to power down a motor?

No. The output contacts on the XPSUAF13AP are potential-free (floating contacts), rated at 8 A at 250 V, but they carry no module-supplied voltage. They are dry contacts inserted into an external circuit — typically the coil circuit of a main drive contactor. The contactor itself switches the AC mains load to the motor. Connecting AC mains voltage directly to an XPSUAF13AP output terminal risks contact welding, permanent loss of safety function, and possible equipment damage.

What is the response time from an E-stop trigger to output contact opening on the XPSUAF13AP?

The XPSUAF13AP switches its output contacts within 20 ms of an input trigger event. This response time applies from input signal change to NC contact opening. Engineers designing light curtain or presence-sensing safety chains should verify that this response time meets the stopping performance requirements calculated in their machinery risk assessment, accounting for total system response time including contactor and drive stopping times.

Is the XPSUAF13AP a direct drop-in replacement for older mechanical emergency stop relay assemblies?

The XPSUAF13AP fits standard DIN rail with screw-terminal wiring using 1.5 mm² to 2.5 mm² cable gauge, which aligns with most existing panel wiring standards. However, it is not a functional drop-in replacement for non-certified relay assemblies: its Cat.4 rating requires a dual-channel input configuration, and the output contact topology — two NC, one NO/NC, two PNP — may differ from the legacy relay's contact arrangement. Review the existing wiring diagram against the XPSUAF13AP output configuration before committing to a retrofit.

What happens if only one of the two NC output contacts opens during a fault condition — does the module detect the discrepancy?

Yes. The XPSUAF13AP's Cat.4 diagnostic architecture monitors both NC output contacts for consistency. If one contact fails to open when triggered — a common symptom of contact welding from prior overload — the module detects the discrepancy on the next reset cycle and inhibits restart until the fault is resolved. This internal cross-monitoring is what distinguishes Cat.4 from Cat.3 and eliminates the need for external redundant relay wiring to achieve equivalent fault detection.

What are the typical lead times for the XPSUAF13AP and how do I avoid project schedule risk?

Market-typical lead times for the XPSUAF13AP run 2–4 weeks through authorized distributors, though actual availability varies by current stock levels. The safest approach is to confirm real-time stock with your distributor before finalizing your project timeline rather than relying on website availability indicators. For projects with fixed commissioning dates, ordering with buffer time or confirming warehouse stock — not incoming stock — is strongly recommended. Contact LeadTime.ca for a current availability confirmation before committing your build schedule.

Why Order the XPSUAF13AP Through LeadTime.ca

  • Global shipping — LeadTime.ca fulfills XPSUAF13AP orders to facilities worldwide, not restricted to any single country or region
  • Real stock confirmation — availability is verified against actual warehouse inventory, not estimated lead times from third-party drop-ship sources
  • Pre-order technical support — supply voltage, contact configuration, and input type compatibility confirmed before the order ships
  • Volume and project pricing — multiple-unit orders for facility-wide safety relay standardization can be quoted directly through the contact team
  • Compliance documentation — order traceability and product documentation available to support machinery safety audit requirements

At-a-Glance Summary

  • Model: Schneider Electric XPSUAF13AP — Harmony XPSU Preventa Safety Automation family
  • Safety rating: IEC 61508 Category 4 — highest diagnostic coverage for discrete safety relays
  • Supply voltage: 24 V AC/DC only — not compatible with 110 VAC or 230 VAC control supplies
  • Output contacts: 2 NC potential-free, 1 NO/NC potential-free, 2 PNP transistor outputs
  • AC contact rating: 8 A at 250 V under Pollution Degree 2 conditions per IEC 60947-1
  • Response time: 20 ms from input trigger to NC contact opening
  • Module width: 22.5 mm — DIN rail mounting, screw terminals for 1.5 mm² to 2.5 mm² wire
  • Operating temperature: 0 °C to 55 °C
  • Input compatibility: universal — mechanical switches and 24 VDC electronic sensors accepted without field reconfiguration
  • Typical lead time: 2–4 weeks — verify real-time availability with LeadTime.ca before committing project schedule
  • Step-up variant: XPSUAF14AP adds a second NO/NC contact for expanded output topology requirements
