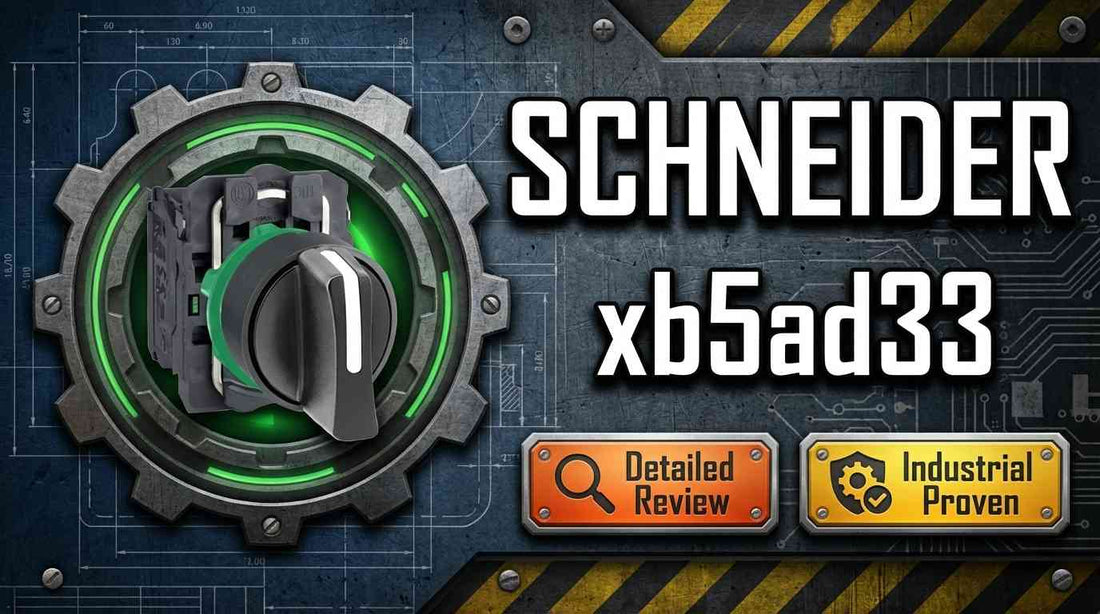

Schneider Electric XB5AD33 Harmony 22mm three-position black selector switch HAND OFF AUTO for industrial control panels

Schneider Electric XB5AD33 — Harmony 22mm Three-Position Selector Switch, Specs, Price, and Alternatives

When a controls engineer or panel builder searches for the Schneider Electric XB5AD33 selector switch, the decision is almost always already in motion — they know they need a 22mm three-position stay-put selector marked HAND OFF AUTO, and they are verifying specs, confirming availability, and checking whether this exact catalog number is the right fit before the purchase order goes out. The XB5AD33 is a non-illuminated, maintained-position selector switch from the Harmony XB5 family, rated for 600 VAC at 1.2A continuous, carrying NEMA 4, 4X, and 13 certification plus an IP69 protection rating — credentials that matter in food processing, carwash, chemical, and washdown environments worldwide.

If you have already confirmed this is the correct part, check current pricing and availability for the XB5AD33 at LeadTime.ca — ships worldwide.

Who Should Buy the XB5AD33 — and Who Shouldn't

The XB5AD33 is the right choice when all of the following apply to your application:

  • Your panel cutout is exactly 22mm in diameter — not 16mm (XB4 family) and not 30mm (XB6 family)
  • Your circuit requires a 2 NO (normally open only) contact configuration with screw clamp terminals
  • Your environment demands NEMA 4, 4X, 13, or IP69 protection — washdown, chemical splash, or high-pressure spray exposure
  • You need a stay-put operator that holds its selected position without spring return until the operator deliberately rotates it
  • Your control circuit operates at 600 VAC with a continuous current draw at or below 1.2A
  • Visual position indication is not required — non-illuminated operation is acceptable in your panel environment

If your application requires illuminated position feedback, select the XB5AV33 (illuminated LED variant). If you need four selector positions, the XB5AK34 is the correct model. If your circuit requires mixed NO and NC contacts, verify the contact block variant before ordering this unit.

On this page:

What the XB5AD33 Actually Does in a Control System

The Schneider Electric XB5AD33 is a manual mode-selection device — not a control relay, not a safety switch, and not a momentary actuator. Its job is to give the panel operator a mechanical, tactile lever that stays exactly where it is placed until someone deliberately moves it. In the context of a motor starter or PLC input circuit, this means the operator rotates the handle to HAND, OFF, or AUTO, and the corresponding contact pair either closes or opens, feeding a discrete signal into the control logic downstream.

The 2 NO contact configuration means both contact blocks are normally open at rest. In a typical three-position Hand/Off/Auto scheme, each position closes one or both of those contacts in a predefined combination defined by the panel logic designer. The silver alloy (Ag/Ni) contacts and compliance with EN/IEC 60947-5-1 short-circuit protection (10A cartridge fuse type gG) make this switch suitable for direct integration into certified control panels without additional contact interface relays in most standard 600 VAC circuits.

What separates the XB5AD33 from a standard push button is the stay-put operator function. The switch does not spring back. When the operator selects AUTO, the circuit remains in AUTO until someone physically rotates the handle. This behavior is essential in motor control applications where unintended mode reversion would cause process disruption — and it distinguishes this unit from the XB4 push-button family, which can include spring-return momentary variants.

Typical System Architecture for the XB5AD33

The XB5AD33 sits at the human-machine interface layer of a control panel — between the operator and the discrete input circuit. Here is where it typically lands in the signal chain:

  • PLC or motor starter control circuit supplies 120 VAC or 600 VAC control voltage to the selector switch input terminals
  • The XB5AD33 is panel-front-mounted at the 22mm cutout, accessible to the machine operator
  • The two NO contacts connect to discrete input channels on a PLC or directly into the contactor control circuit
  • Switch position (HAND, OFF, or AUTO) determines which input channel receives a closed contact signal, driving the corresponding control logic branch
  • Downstream load — motor contactor, solenoid valve, or process relay — responds to the mode selected at the XB5AD33

Where the XB5AD33 Gets Specified: Industries and Use Cases

The XB5AD33 earns its place on panel BOM lists most reliably in environments where the operator works near water, chemical spray, or corrosive atmospheres — and where mode selection must remain in place once set. Food and beverage processing lines are the most common deployment: a technician selects HAND to run a conveyor motor manually during a line changeover, then rotates back to AUTO when the line resumes production. The IP69 rating means the switch survives high-pressure washdown at the end of every shift without seal degradation.

Carwash systems present a textbook application — the XB5AD33 controls whether the wash pump runs in manual test mode or automatic cycle mode, and the panel it lives in gets drenched daily. Chemical manufacturing and pharmaceutical plants specify NEMA 4X for corrosion resistance against airborne caustics, and the XB5AD33 meets that bar without requiring a sealed enclosure upgrade.

Panel shops building OEM machinery for packaging, HVAC, pulp and paper, and water treatment specify the XB5AD33 because it aligns with existing Harmony XB5 hardware already in the panel — same 22mm cutout, same mounting nut, same connector frames — eliminating the cost and time of introducing a second-family selector into an otherwise standardized build.

Application Typical Deployment
Food and beverage processing Hand/Off/Auto mode selector on motor starters in washdown production lines
Carwash and vehicle wash systems Manual/Auto selector on pump control panels exposed to daily high-pressure rinse
Chemical and pharmaceutical manufacturing Process state selector on pump control panels requiring NEMA 4X corrosion resistance
Packaging machinery (OEM builds) Three-position enable/disable/test switch on machine control panels using Harmony XB5 ecosystem
Water treatment and HVAC Auto/Off/Manual selector for fan or pump controls in wet mechanical rooms
Cold storage and meat processing Mode selector operated with heavy gloves in low-temperature environments (-40°C rated)

Key Specifications for Purchase Decision

Specification Value
Contact Configuration 2 Normally Open (NO)
Voltage Rating (AC) 600 VAC
Current Rating at 600 VAC 1.2 A continuous
Current Rating at 120 VAC 6 A continuous
Short-Circuit Protection 10 A cartridge fuse type gG (EN/IEC 60947-5-1)
Mounting Diameter 22 mm (0.9 inches)
Number of Positions 3 (Left / Center / Right, 45-degree throw intervals)
Operator Type Stay-Put (maintained position)
NEMA / IP Rating NEMA 4, 4X, 13 / IP69
Operating Temperature -40 to 158°F (-40 to 70°C)

Full technical specifications are available on the product page at LeadTime.ca.

XB5AD33 vs. XB5AV33 vs. XB5AK34: Which Variant Do You Actually Need?

Feature XB5AD33 (This Model) XB5AV33 (Illuminated) XB5AK34 (4-Position) XB4AV53 (16mm Alt.)
Mounting Diameter 22 mm 22 mm 22 mm 16 mm
Illumination No Yes (LED) No Yes (LED)
Positions 3 3 4 3
Contact Configuration 2 NO 2 NO 2 NO 2 NO
Operator Type Stay-Put Stay-Put Stay-Put Stay-Put
NEMA Rating 4, 4X, 13 4, 4X, 13 4, 4X, 13 4, 4X, 13
IP Rating IP69 IP69 IP69 IP69
600 VAC Current Rating 1.2 A 1.2 A 1.2 A 1.2 A
Best Use Case Non-illuminated mode selection Visual mode feedback in dim environments Applications needing a fourth selector state Compact panels with 16mm cutout constraint

If your panel requires visual position confirmation in low-light conditions, the XB5AV33 adds an LED indicator with minimal cost difference and is the more appropriate specification — check current variant availability at LeadTime.ca and contact the team if you need confirmation on which catalog number matches your panel.

Expert Verdict: Is the XB5AD33 Worth Ordering?

The XB5AD33 earns a straightforward recommendation for the buyer who needs a non-illuminated, stay-put three-position selector in a 22mm cutout within a washdown or harsh-environment control panel. The NEMA 4, 4X, and 13 certifications combined with IP69 protection are the credentials that close the specification for food processing, carwash, dairy, and chemical applications — environments where a NEMA 4 (non-4X) alternative might technically survive but where engineers and safety reviewers want the 4X and IP69 designation in the documentation. The silver alloy (Ag/Ni) contacts and EN/IEC 60947-5-1 compliance round out the compliance picture for panel certification. For panel shops already standardized on the Harmony XB5 family, this switch drops into an existing 22mm cutout with the same mounting hardware and connector frames already in use — that compatibility advantage is real and reduces build time on multi-panel projects.

Where the XB5AD33 has genuine limits: it is the wrong call when visual feedback matters. A poorly lit panel or a control station in a dim processing area will leave operators guessing which mode is active — the XB5AV33 resolves that for a modest price increment and should be the default specification when lighting is uncertain. Similarly, if your circuit logic requires any normally closed contacts, this model will not work as wired — the 2 NO configuration is fixed, and reaching for a different contact block variant or selector family is the correct path. Spring-return momentary action is another hard limit — the XB5AD33 stays put, which is exactly what most mode-selection applications need, but if your application requires the handle to return to neutral on release, the XB4 push-button family is the appropriate choice.

From a procurement standpoint, the XB5AD33 is a regularly stocked industrial component at major distributors, and the Harmony XB5 family's long market presence means replacement availability is reliable. The most important pre-order step — verify this with a caliper, not an assumption — is confirming your panel cutout is exactly 22mm. That single verification prevents the most common and most avoidable ordering error in this product family. For volume orders or projects where lead time needs to be built conservatively into a panel build schedule, ordering through a specialist distributor gives you a faster confirmation of current regional stock status than a generic online channel. View current pricing and availability for the XB5AD33 at LeadTime.ca — we ship worldwide and can confirm stock before your order is committed.

For volume pricing or to confirm lead time before committing to a panel build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the XB5AD33

For industrial selector switches like the XB5AD33, the absence of crowdsourced forum chatter is not a signal of obscurity — it reflects that this class of component gets specified by controls professionals who resolve technical questions through datasheets, distributor pre-sales support, and direct manufacturer documentation rather than public discussion boards. That professional workflow is exactly right for a 600 VAC control component where a wrong-part order creates real rework cost. What follows draws on the manufacturer specification and distributor technical documentation to surface the questions that matter most at the point of ordering.

The single most consequential pre-order check is the mounting diameter. The Harmony family spans 16mm (XB4), 22mm (XB5), and 30mm (XB6) cutout sizes. These are not interchangeable. A panel drilled for 22mm cannot accept an XB4 variant without enlargement, and the reverse requires a reducer or panel rework. Measuring the existing cutout with a caliper before placing the order takes thirty seconds and eliminates the most common return scenario in this product family. If you are drilling a new cutout, verify the 22mm dimension against the XB5AD33 mounting specification before the hole is made.

Contact configuration is the second specification that generates costly mistakes. The XB5AD33 contains 2 NO contacts only — there are no normally closed contacts in this unit. Panel builders who specify a mixed NO/NC contact logic for their selector and order this model will find the circuit does not behave as designed. Verify the required contact logic with the controls engineer or PLC programmer before the purchase order is placed. If the circuit needs a normally closed contact in any position, a different catalog number from the Harmony selector family is required. When community guidance is sparse and the application is unfamiliar, working directly with a specialist distributor who can cross-reference your contact logic against available catalog numbers is the fastest path to a correct first order. LeadTime.ca provides that pre-sales confirmation as part of the ordering process.

Wiring and Panel Mounting: What to Verify Before Installation

  • Confirm panel cutout is 22mm diameter (verify with caliper); insert XB5AD33 from panel front, thread clamping nut from rear, tighten to finger-tight plus one-quarter turn — do not over-torque the dark grey plastic bezel
  • Rotate handle through all three positions before wiring and confirm mechanical detent at each stop; verify handle does not spring-return (stay-put function confirmed when handle holds position under light lateral pressure)
  • Strip wire ends to 5–7mm; insert into screw clamp terminals and tighten with a flat 4mm or 5.5mm screwdriver — maximum cable size is 2 x 1.5mm² (AWG 14–16 approximate); do not exceed this gauge without an external connector block or terminal lug adapter
  • Confirm circuit is de-energized via lockout/tagout before making terminal connections; verify no voltage present at all three terminal positions with a calibrated meter before and after wiring
  • After wiring, verify electrical continuity at each switch position with a multimeter and confirm operating temperature at the switch location does not exceed 70°C (158°F) ambient — if it does, consult the manufacturer datasheet for current derating before energizing the circuit at rated load

Harmony XB5 Ecosystem Compatibility

The XB5AD33 is part of the Harmony XB5 family, which means it shares physical mounting geometry, terminal connector frames, and bezel profiles with other XB5 components. Panel shops standardizing on this family benefit from the following compatible elements confirmed in the product specification:

  • Standard Harmony XB5 mounting frame — same 22mm cutout and clamping nut thread as other XB5 operators
  • Optional external connector block — available separately for applications where screw clamp terminals are not compatible with panel wiring practices (plug-in connector preferred)
  • Series compatibility confirmed for standard XB5 mounting and connector frames across the non-illuminated selector and push button range

Wrong-Part Prevention: Six Checks Before You Order

Before placing any order for the XB5AD33, run through this checklist. These are the six verification points most likely to prevent a wrong-part delivery and the rework that follows:

  1. Confirm mounting hole diameter is 22mm; 16mm and 30mm variants exist but have different part numbers (XB4 vs. XB6)
  2. Verify 2 NO contact configuration required; XB5AD33 does not contain NC (normally closed) contacts
  3. Check terminal type requirement — XB5AD33 has screw clamp; if you need plug-in connectors, order separate connector block
  4. Confirm Stay-Put operator needed (switch stays in selected position); if spring-return is required, order different model
  5. Verify voltage/current ratings match circuit (600 VAC @ 1.2A standard rating; some circuits may need derating at higher temperatures)
  6. Ensure NEMA/IP rating matches environment; if full IP69K required, confirm datasheet rating meets application pressure/temperature

If any of these checks raise a question before you order, contact the LeadTime.ca team for pre-sales technical confirmation — or view the full product page to cross-reference specifications against your application requirements.

Frequently Asked Questions

Does the XB5AD33 stay in the selected position if the operator walks away, or does it return to center?

The XB5AD33 uses a stay-put operator, meaning it holds the selected position — HAND, OFF, or AUTO — until the operator deliberately rotates the handle to a new position. There is no spring-return mechanism. This is the correct behavior for mode-selection applications where the chosen operating state must persist through a shift or process cycle without operator intervention.

Is the 1.2A rating at 600 VAC absolute, or does it derate in high-temperature panel environments?

The 1.2A continuous rating at 600 VAC is valid up to the specified operating temperature limit of 70°C (158°F) ambient. If your panel ambient exceeds 70°C at the switch location, the manufacturer datasheet contains current derating curves that must be consulted before operating at or near the rated current. In thermally challenging installations, if circuit current approaches 1.2A and panel temperature is elevated, adding an external contactor and running the XB5AD33 at reduced coil current is the conservative design choice.

Can I replace an existing 22mm Harmony XB5 selector in my panel with the XB5AD33 without modifying the cutout or wiring terminals?

If the existing switch occupies a 22mm cutout and uses screw clamp terminals, the XB5AD33 is dimensionally compatible with the Harmony XB5 mounting frame and connector system. Verify that the contact configuration of the original switch matches the 2 NO configuration of the XB5AD33 — if the original switch had NC contacts in the circuit logic, substituting the XB5AD33 will change circuit behavior and may require PLC logic revision.

What short-circuit protection does the XB5AD33 require, and is an external fuse mandatory?

The XB5AD33 has a short-circuit protection rating of 10A using a cartridge fuse type gG per EN/IEC 60947-5-1. For circuits approaching or exceeding this protection level, an external fuse or circuit breaker is recommended per applicable electrical code. The switch itself does not contain an internal fuse — protection must be provided externally in the panel design.

Does the IP69 rating cover high-pressure hot water washdown, or only cold water spray?

IP69 is specifically defined as protection against high-pressure, high-temperature water jets — making it appropriate for aggressive washdown applications including hot water and chemical sanitizing cycles common in food and beverage processing. Confirm the specific chemical compatibility of the bezel and seal materials against your cleaning agents by reviewing the manufacturer datasheet from se.com for any chemical resistance limitations specific to your washdown compounds.

My panel uses AWG 12 wire for the control circuit — will it fit in the XB5AD33 screw clamp terminals?

The screw clamp terminals on the XB5AD33 accommodate a maximum of 2 x 1.5mm² conductors, which corresponds approximately to AWG 14–16. AWG 12 (approximately 3.3mm²) exceeds the rated terminal capacity. For larger gauge wiring, an external connector block or terminal lug adapter is required — contact the LeadTime.ca team or review the Harmony XB5 accessory catalog for the appropriate connector solution.

Why Order the XB5AD33 Through LeadTime.ca

  • Ships worldwide — no geographic restrictions on order fulfillment
  • Pre-sales technical support to confirm mounting diameter, contact configuration, and IP rating before the order is placed — catching wrong-part orders before they become rework
  • Volume pricing available for 10+ unit orders — contact for current quote
  • Specialist distributor sourcing for hard-to-find Harmony XB5 variants and accessories including connector blocks and mounting frames
  • Fast response on stock status and regional lead time confirmation

At-a-Glance Summary

  • Catalog number: XB5AD33 — Harmony 22mm three-position stay-put selector switch, non-illuminated, black, marked HAND OFF AUTO
  • Contact configuration: 2 NO (normally open only) with silver alloy (Ag/Ni) contacts
  • Voltage and current ratings: 600 VAC at 1.2A continuous; 120 VAC at 6A continuous; 600 VDC at 0.55A continuous
  • Short-circuit protection: 10A cartridge fuse type gG per EN/IEC 60947-5-1
  • Mounting: 22mm panel front-mount, 1 to 6mm clamping thickness, screw clamp terminals (max 2 x 1.5mm²)
  • Protection ratings: NEMA 4, 4X, 13 and IP69 — rated for high-pressure washdown, corrosive environments, and vibration
  • Operating and storage temperature: -40 to 158°F (-40 to 70°C)
  • Operator type: Stay-Put (maintained position — no spring return)
  • Primary alternatives: XB5AV33 (illuminated version), XB5AK34 (4-position), XB4 family (16mm cutout, spring-return options)
  • Critical pre-order check: Verify panel cutout is exactly 22mm with a caliper; confirm contact logic requires 2 NO only
