Schneider Electric XB5AD21 — 2-Position Selector Switch Buyer's Guide

By Abdullah Zahid
17 min read

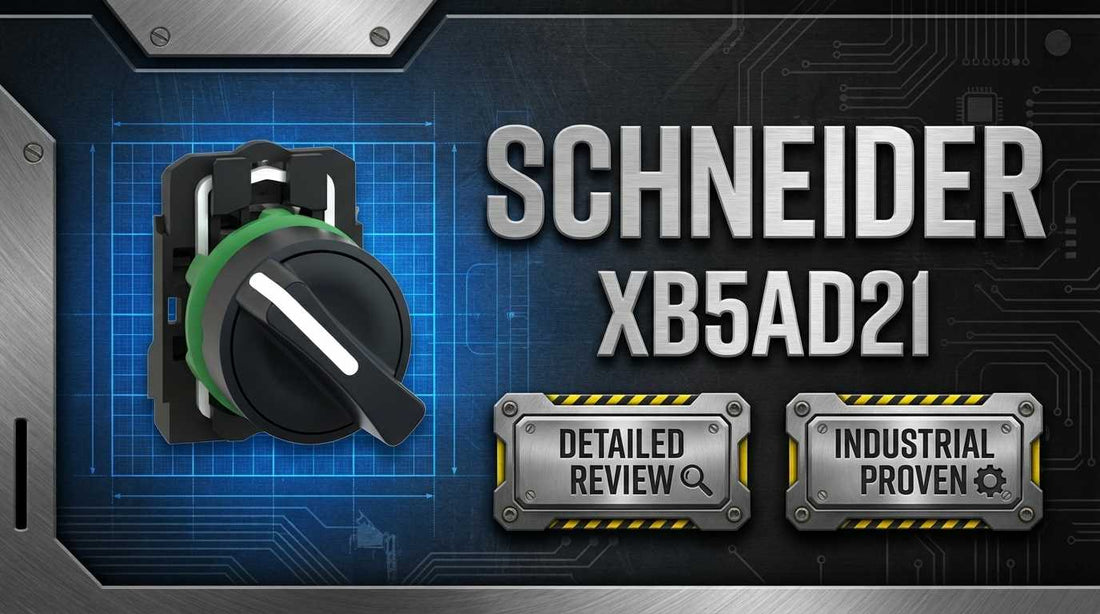

Schneider Electric XB5AD21 Harmony 22mm 2-position maintained selector switch black bezel industrial control panel

Schneider Electric XB5AD21 Harmony 22mm Push Button 2-Position Selector Switch, Black, Maintained, 1 NO, Marked OFF/ON — Specs, Pricing and Buyer's Guide

Controls engineers and panel builders searching for the Schneider Electric XB5AD21 are typically at the final stage of a purchase decision — they have confirmed the part number from a panel label, equipment manual, or a previous build, and now need to verify the specs are correct before committing. The XB5AD21 is a 22mm, 2-position, maintained-operation selector switch from the Harmony XB5 series, carrying a 1 NO contact configuration, screw clamp terminals, and a rated mechanical and electrical cycle life of 1,000,000 cycles. What settles the buy decision is confirming that your installation voltage matches the rated electrical limits and that the maintained (stay-put) operation is what your circuit actually requires — not a spring-return momentary action.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the XB5AD21 — and Who Shouldn't

The Schneider Electric XB5AD21 is the right choice for engineers and panel builders who need a compact, reliable, manually operated two-state selector with no spring-return mechanism and no electronic complexity. Order this model if all of the following apply to your application:

  • Your panel cutout or planned drill location is exactly 22mm in diameter — any deviation renders installation impossible without rework
  • Your circuit logic requires a 1 NO (normally open) contact — the XB5AD21 does not include a normally closed contact or combined NO+NC configuration
  • You need maintained (stay-put) operation — the switch holds the selected position until manually rotated; it does not spring back
  • Your wiring uses screw clamp terminals accepting wire gauges up to 2mm² without cable ends, or up to 1mm² with cable ends
  • Your installation voltage is within the rated limits (120VAC, 240VAC, or 24VDC) — exact current ratings vary by voltage and must be confirmed before ordering
  • Non-illuminated operation is acceptable — the XB5AD21 carries no LED indicator; the operator reads the OFF/ON markings on the black bezel directly

If you need momentary (spring-return) operation, look at the XB5BA21. If you need three positions, the XB5PA21 is the correct Harmony XB5 family member. If illuminated feedback is required, other Harmony variants address that need. This model does two positions, maintained, non-illuminated — and it does that extremely well.

On this page:

What the XB5AD21 Actually Does in a Control Panel

The Schneider Electric XB5AD21 is a rotary selector switch — a panel-mounted operator device that a technician or machine operator turns by hand to choose between two fixed operating states. In practical terms, it is the physical interface between the human operator and the control circuit. Unlike a push button that sends a momentary signal, the XB5AD21 holds its selected position indefinitely until someone deliberately rotates it to the other position. That behavior — maintained, or stay-put operation — is the defining functional characteristic that separates it from spring-return push buttons and momentary rotary switches.

The switch is part of Schneider Electric's Harmony XB5 series, one of three primary rotary switch families in the Harmony range (XB5, XB4, XB1). The XB5AD21 specifically carries a black plastic round bezel, a rotating knob with OFF and ON markings, and a single 1 NO contact block behind the panel surface. When the knob is in the OFF position, the normally open contact remains open — no current flows through the downstream circuit. Rotate to ON, and the contact closes, completing the pilot signal path to whatever relay, contactor, PLC input, or VFD enable terminal sits downstream. The switch carries a 600V insulation rated voltage and a 6 kV impulse withstand voltage, which confirms it meets EN 60947-1 requirements for industrial control circuit switches — exceeding the 3 to 4 kV transient levels common in most manufacturing environments.

The 1,000,000 mechanical and electrical cycle life rating, verified per IEC 60947-5-1, translates to approximately a decade of continuous daily use at typical process control actuation rates. For a selector switch that an operator may turn twice per shift, that means a practical service life measured in generations of control panels. The 18-month manufacturer warranty from Schneider Electric covers defects in workmanship and materials, providing the procurement team with a documented risk backstop on early failures.

Typical System Architecture for the XB5AD21

The XB5AD21 sits at the operator interface layer of a control panel — directly between the human operator and the PLC input, relay coil, or VFD enable terminal it feeds. Understanding where it fits in the signal chain helps confirm whether the 1 NO contact logic is correct for your specific circuit before ordering.

  • Incoming control power (120VAC, 240VAC, or 24VDC from a control transformer or SMPS) feeds Terminal 1 (Common) of the XB5AD21
  • When the knob is rotated to ON, the 1 NO contact closes and Terminal 2 delivers the pilot signal downstream
  • Terminal 2 output connects to a PLC discrete input, relay coil, contactor control circuit, or VFD enable/run terminal depending on the application
  • The PLC or relay logic interprets the closed contact as an ON or ENABLE condition and executes the corresponding machine sequence
  • The switch mounts flush on the panel door or machine fascia, secured by the rear screw clamp nut against panels between 1mm and 6mm thick

Where the XB5AD21 Gets Installed: Industries and Use Cases

The XB5AD21 appears most frequently in discrete manufacturing environments where operators need to select between two machine states without the risk of accidental re-activation. A conveyor line that needs a clear MANUAL/AUTO lockout, a pump station that requires a permanent OFF/ON selector at the local panel, or a packaging machine where the operator must hold a mode selection while maintenance is performed — these are the natural homes for a maintained 2-position selector switch.

In pharmaceutical and food processing facilities, where control panel cleanliness and IP67 dust and water protection matter, the XB5AD21's sealed construction handles regular washdown without contact degradation. The black plastic bezel is UV-resistant for indoor applications, and the IP67 rating (dust-tight, immersible to 1 meter) means incidental water exposure from cleaning cycles or humid process areas will not compromise the contact block behind the panel surface.

Water treatment plants use the XB5AD21 extensively for pump and motor selector circuits, where an operator walking a panel row needs a clear, glove-friendly rotating knob to switch between Pump A and Pump B, or to lock out a pump circuit for maintenance. HVAC systems use it for fan and compressor mode selection. Material handling systems use it on conveyor control panels to toggle between automatic sequencing and manual jog modes without risking the sequence restarting on its own.

Application Typical Deployment
Motor start/stop control Operator panel — selector held in ON/RUN position until deliberately switched OFF; feeds relay coil or PLC input
Auto/Manual mode selection Machine control panel — MANUAL position locks out automatic PLC sequencing for maintenance technician access
Dual-pump selection Pump station local panel — each position energizes a separate downstream control circuit for Pump A or Pump B
Emergency/Normal operation Panel door selector — OFF disconnects all control power for safe access; ON restores normal circuit operation
VFD or PLC pilot signal enable Machine fascia — provides maintained enable signal to a VFD run terminal or PLC digital input for a larger automated sequence
HVAC fan/compressor mode Building mechanical room panel — selects between operating modes without requiring operator presence to maintain the selection

Electrical, Mechanical, and Environmental Specifications

The specifications below cover the purchase-decision-critical parameters for the XB5AD21. One important note before reviewing: multiple authoritative sources show variation in the AC rated current figure — 2A at 230VAC, 3A at 240VAC, and 6A at 120VAC have all appeared in distributor and manufacturer documentation. This is not a data error — it reflects the voltage-dependent de-rating behavior of contact switches and may also reflect minor regional variant differences. Before finalizing your purchase order, confirm the exact rated current at your specific installation voltage with the distributor or Schneider Electric technical support. This single verification step is the most important pre-purchase action for this model.

Specification Value Notes
Mounting hole diameter 22mm (0.87 in) Standard DIN panel cutout; must be exact — 16mm or 30mm cutouts are incompatible
Contact configuration 1 NO (Normally Open) No NC contact included; circuit must be designed around open = OFF, closed = ON logic
AC rated current at 240VAC 3A Sources also show 2A at 230VAC and 6A at 120VAC — verify your voltage before ordering
DC rated current at 125V 0.55A Lower than AC rating; account for voltage drop in DC pilot circuits
Insulation rated voltage 600V Suitable for standard industrial control circuits
Impulse withstand voltage 6 kV Exceeds EN 60947-1 requirements; handles electrical transients in manufacturing environments
Protection rating IP67 (IP69K noted in some sources) Dust-tight and immersible to 1 meter; suitable for washdown environments
Operating temperature -25°C to +70°C Some sources show -40°C lower limit; confirm with distributor for outdoor winter installations
Mechanical and electrical cycle life 1,000,000 cycles Rated per IEC 60947-5-1; approximately 10 years at typical actuation rates
Terminal type and wire capacity Screw clamp; up to 2mm² without cable ends, up to 1mm² with cable ends Hand-tighten only at 0.4 to 0.6 Nm; panel clamp thickness range 1 to 6mm

Full technical specifications are available on the product page at LeadTime.ca.

XB5AD21 vs. XB5BA21 vs. XB5PA21: Which One Do You Actually Need?

The Harmony XB5 selector switch family covers a range of positions, operation types, and contact configurations. The table below shows the most common selection decision points engineers face when specifying a 22mm rotary switch for panel control.

Model Positions Operation Contact Config Key Difference Choose This When
XB5AD21 2 Maintained 1 NO Standard OFF/ON mode selector; stays in position Your application needs a fixed two-state selection held without repeated actuation
XB5BA21 2 Momentary 1 NO Spring-return to off; contact closes only while held You need a brief contact closure — operator presses, releases, and switch returns to OFF automatically
XB5PA21 3 Maintained 1 NO Three-position selection: e.g., OFF / AUTO / MANUAL Your machine requires three distinct operating modes with a maintained selector

If your application requires a spring-return action or three operating positions, the XB5AD21 is not the right selection — check current availability at LeadTime.ca and contact the team to confirm which Harmony XB5 variant ships for your exact requirement.

Expert Verdict: Is the XB5AD21 Worth Specifying?

The Schneider Electric XB5AD21 occupies a clearly defined role in industrial panel design, and it fills that role without unnecessary complexity. For a controls engineer or panel builder standardized on Schneider Electric components — or for a maintenance team replacing an existing Harmony XB5 switch in an established facility — this is a commodity-grade, well-proven component with no meaningful sourcing risk and no learning curve. The 1,000,000-cycle rated life and 18-month manufacturer warranty mean the accounting on replacement costs and unplanned downtime works firmly in the buyer's favor. For OEM machine builders who ship consistent control interfaces across dozens or hundreds of units, the standardized 22mm footprint, predictable availability, and 6 kV impulse withstand voltage make it a natural catalog standard. The IP67 protection rating adds genuine value in food processing, pharmaceutical, and water treatment environments where panel cleaning is routine.

This model has real limits that deserve honest acknowledgment. If your application requires momentary (spring-return) operation, the XB5AD21 will not reset — the XB5BA21 is the correct choice. If you need three operating positions (OFF, AUTO, MANUAL is the classic case), the XB5PA21 addresses that. Engineers needing illuminated position feedback will need a different Harmony family variant, since the XB5AD21 carries no LED indicator. And any engineer working in an environment where temperatures drop below -25°C should verify the exact lower operating limit with the distributor before specifying this model, since source documentation shows some variation between -25°C and -40°C lower limits. For applications standardized on other manufacturer platforms, electrical ratings and terminal configurations differ enough that direct substitution without verification is not advisable.

From a procurement standpoint, the XB5AD21 behaves like the mature industrial component it is — normally stocked at major authorized distributors, with same-day or next-business-day shipping typical for standard order quantities. The single most important pre-purchase verification remains the electrical rating at your specific installation voltage: the variation in documented current ratings (2A at 230VAC, 3A at 240VAC, and 6A at 120VAC across sources) reflects real voltage-dependent behavior, and ordering without confirming your specific voltage rating is the most avoidable project delay in the procurement process. A specialist distributor adds clear value here — not just inventory access, but pre-delivery voltage and current confirmation, warranty coordination with Schneider Electric, and application-specific wiring guidance that a generic e-commerce channel cannot provide. View current pricing and stock status for the XB5AD21 at LeadTime.ca before finalizing your purchase order.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the XB5AD21

Community discussion for the XB5AD21 is minimal across publicly accessible industrial automation forums — searches across Reddit's r/PLC and r/industrialautomation communities, PLCTalk, PLCS.net, MrPLC, the Schneider Electric support forum, and major distributor Q&A sections at DigiKey, Mouser, and Newark returned no specific threads or buyer discussions for this model. That absence is not a reliability signal to worry about. Selector switches are commodity control components with high inherent reliability and straightforward installation — they simply do not generate the troubleshooting traffic that complex devices like PLCs, VFDs, or motion controllers do. A switch that works consistently for a million cycles across a decade of panel service produces no forum posts, because there is nothing to report.

What this means practically for an engineer or buyer approaching their first XB5AD21 order is that you will not find crowd-sourced installation tips or peer warnings in the usual places. The guidance that exists lives in Schneider Electric's technical documentation, in internal facility maintenance records, and in the application knowledge of specialist distributors who have handled these components across hundreds of panel builds. The electrical rating variation documented across sources — 2A at 230VAC, 3A at 240VAC, 6A at 120VAC — is a real issue that buyers encounter silently, not because they discussed it in a forum but because the mismatch between specified and delivered electrical ratings only surfaces during commissioning or, worse, after a contact failure in the field. Confirming this before your purchase order is the one action that separates an engineer who specifies confidently from one who discovers the discrepancy after the panel is assembled.

The ordering mistakes that matter most for this model are not the ones that generate forum threads — they are the quiet misspecifications that arrive on a job site and delay a commissioning date. A 16mm cutout that looked like 22mm without measuring. A circuit designed around a normally closed contact when a normally open contact was ordered. A maintained switch installed in a position that required spring-return. A screw clamp tightened with a power drill until the internal thread stripped. These are the failure modes that experienced distributor teams recognize immediately and that the Wrong-Part Prevention Checklist below is designed to intercept. If you are uncertain about any item on that checklist, reach out to the LeadTime.ca team before placing the order — application verification at the front end of the procurement process costs nothing and prevents the kind of field rework that costs significantly more.

Wiring and Installation: What to Verify Before You Mount It

The XB5AD21 installs in a 22mm panel cutout and uses screw clamp terminals for wiring. The following points cover the key requirements and verification steps before mounting:

  • Confirm the panel door or machine fascia thickness is between 1mm and 6mm — the rear screw clamp nut cannot secure panels outside this range without a mounting spacer or adapter
  • Verify wire gauges: up to 2mm² (AWG 14) without cable ends is the maximum the screw clamp terminals accept; with cable ends the limit drops to 1mm² — stripping 6mm of insulation from the wire end before insertion ensures proper contact with the clamp spring
  • Terminal 1 (left) connects to the incoming Common (power or signal source); Terminal 2 (right) connects to the outgoing NO contact load wire — confirm this matches your circuit diagram before applying power
  • Screw clamp torque should be hand-tight only, approximately 0.4 to 0.6 Nm — over-tightening with a power tool can strip the internal thread or cut through the wire conductor, creating an intermittent connection that may not appear immediately but will fail under vibration
  • After installation, verify continuity using a digital multimeter on the Ohms setting: resistance should read below 1 Ohm with the selector in the ON position and open line (OL) with the selector in the OFF position — any deviation indicates a wiring or seating issue to resolve before energizing the panel

Wrong-Part Prevention Checklist

Before placing your XB5AD21 purchase order, work through every item on this checklist. Each one represents a documented misspecification failure mode for 22mm selector switches in industrial panel builds.

  1. Confirm mounting hole diameter is 22mm — measure existing panel cutout or count mounting holes on panel template
  2. Verify the existing wiring uses 1 NO contact configuration — do not order if existing circuit logic expects NO+NC or 1 NC only
  3. Check that your control voltage (120VAC, 240VAC, or 24VDC) is within rated limits — verify datasheet electrical table for your voltage
  4. Confirm operation must be maintained (stays in position after turning) — if operation must be momentary, order different model
  5. Verify screw clamp terminals are acceptable for your wire gauge and termination tools — do not order if solder terminals required
  6. Check related items ZBE101 and ZBE102 compatibility if replacements or extensions needed for your panel design

If any item on this checklist raises a question you cannot answer from your circuit documentation, contact LeadTime.ca before ordering — confirming the specification takes minutes and prevents a costly wrong-part return.

Frequently Asked Questions

Can I use the XB5AD21 as a direct swap for an XB5BA21 without rewiring the panel?

Not without reviewing your circuit logic first. The XB5BA21 is a momentary (spring-return) switch — it closes the 1 NO contact only while the operator holds it in position, then returns to OFF. The XB5AD21 maintains the selected position indefinitely. If your circuit was designed to respond to a momentary pulse (edge-triggered PLC input, latching relay), substituting a maintained switch will cause the output to remain energized continuously, which may create an unintended operating state or safety issue. Verify your circuit logic before substituting.

What exactly is the electrical rating at 240VAC — sources show different values?

Multiple authoritative sources document 2A at 230VAC, 3A at 240VAC, and 6A at 120VAC for this model family. These values reflect both voltage-dependent de-rating and possible regional variant differences. Before ordering, contact LeadTime.ca or Schneider Electric technical support with your specific installation voltage and required load current to confirm the exact rated value for your configuration. Do not assume the highest published current rating applies at your voltage.

Is the XB5AD21 suitable for an outdoor panel or a washdown environment?

The IP67 protection rating confirms the switch is dust-tight and can withstand immersion to 1 meter under controlled conditions, making it suitable for panels exposed to washdown water jets and humid process environments. Some documentation references IP69K capability for enhanced water jet resistance. The black plastic bezel is UV-resistant but is not specified for extended direct outdoor sunlight exposure. For outdoor enclosure mounting, confirm the enclosure itself provides the primary weather protection and verify the lower operating temperature limit (-25°C per most sources) against your winter ambient conditions.

How many wires can I fit into the screw clamp terminals, and what gauge?

Each screw clamp terminal on the XB5AD21 accepts one wire. The maximum wire gauge is 2mm² (approximately AWG 14) without cable ends, and 1mm² with cable ends. The operating range is 0.5mm² to 2mm² without cable ends. Attempting to fit two wires under one clamp or exceeding the maximum gauge risks an intermittent connection or internal thread damage — each terminal should carry exactly one conductor.

What happens if I exceed the rated current through the XB5AD21 contact?

Operating the switch above its rated current at a given voltage causes the silver alloy (Ag/Ni) contacts to overheat, accelerating contact wear, increasing the risk of contact welding in the closed position, and reducing the 1,000,000-cycle life rating significantly. In severe cases, sustained over-current creates an arcing condition inside the switch housing, which is a fire and electrical shock hazard. The switch is protected by a 10A cartridge fuse type gG per IEC 60947-5-1, but fuse protection does not substitute for operating within the rated contact current. Always verify your pilot signal current is within the rated limit for your specific installation voltage before energizing the panel.

Does the XB5AD21 carry UL or CSA certification for North American installations?

CE mark compliance and IEC 60947-5-1 conformance are confirmed in Schneider Electric datasheet documentation. For installations in jurisdictions requiring UL listing or CSA certification specifically, verify the UL/CSA status directly with Schneider Electric or request confirmation from LeadTime.ca at the time of order. Do not assume IEC compliance is accepted as a substitute for UL/CSA listing without confirming with your local authority having jurisdiction.

Why Order the XB5AD21 Through LeadTime.ca

  • Global shipping on all orders — LeadTime.ca sources and ships Schneider Electric Harmony XB5 components worldwide, not limited to any single region
  • Pre-purchase electrical rating verification — the team can confirm which current rating applies at your specific installation voltage before the order ships, preventing the single most common misspecification for this model
  • Hard-to-find and short-lead-time sourcing — for urgent panel builds or maintenance replacements where standard distribution channels show delays, LeadTime.ca's sourcing network provides an alternative path to confirmed stock
  • Volume pricing available — for OEM panel builders or procurement teams ordering in quantity, contact for current volume pricing before finalizing your purchase order
  • Direct support from automation specialists — not a generic e-commerce transaction; application questions about contact configuration, mounting compatibility, and Harmony XB5 family cross-references are answered before the order is placed

XB5AD21 At-a-Glance Summary

  • 22mm mounting hole diameter — standard DIN panel cutout; no adapter required for existing 22mm openings
  • 1 NO (normally open) contact — open in OFF position, closed in ON position; no NC contact included
  • Maintained (stay-put) operation — holds selected position without spring-return; operator turns once and leaves it
  • AC rated current: 3A at 240VAC per primary sources — verify at your installation voltage before ordering
  • 600V insulation rated voltage; 6 kV impulse withstand voltage per EN 60947-1
  • IP67 protection rating — dust-tight and immersible to 1 meter; suitable for washdown and humid process environments
  • Operating temperature: -25°C to +70°C (some sources indicate -40°C lower limit — confirm for outdoor winter use)
  • 1,000,000 mechanical and electrical cycle life per IEC 60947-5-1 — approximately 10 years at typical actuation rates
  • Screw clamp terminals accepting up to 2mm² wire without cable ends; panel clamp range 1 to 6mm thickness
  • 18-month manufacturer warranty from Schneider Electric covering defects in workmanship and materials
  • Harmony XB5 series — part of Schneider Electric's established industrial panel control component family with broad distributor availability worldwide
