Schneider TM221CE40R — Compact Relay PLC Buyer's Guide

By Abdullah Zahid
14 min read

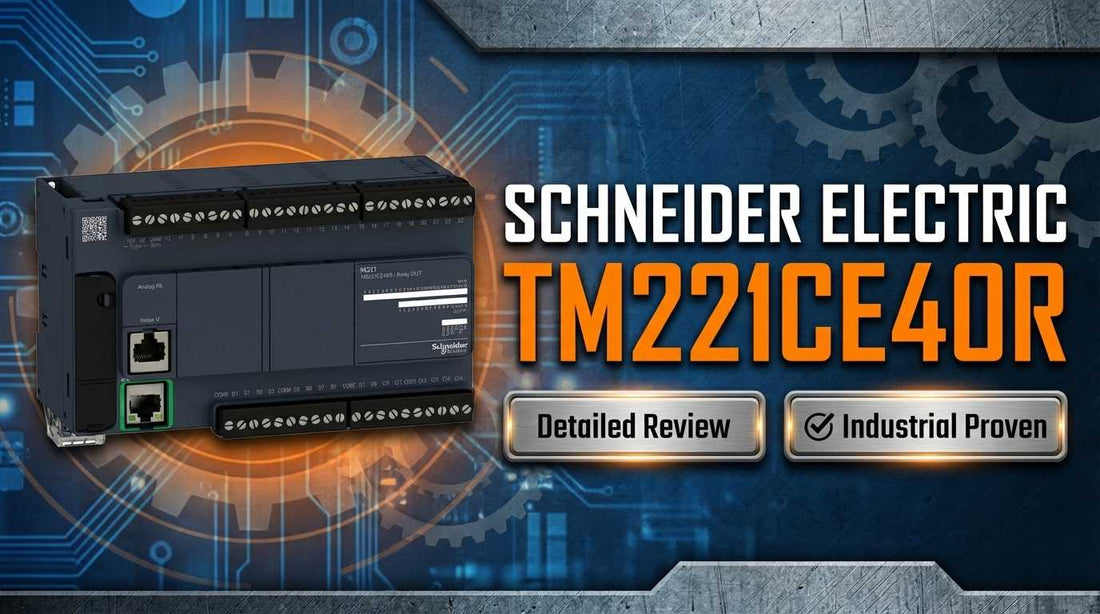

Schneider Electric TM221CE40R Modicon M221 40 I/O relay Ethernet Nano PLC for small machine control

Schneider TM221CE40R Logic Controller, Modicon M221, 40 I/O, Relay, Ethernet — Specs, Price, and Alternatives Guide

If you are specifying a compact PLC for a small machine build, a relay-switching upgrade, or a networked process node, the Schneider TM221CE40R is likely already on your shortlist. This Modicon M221 Nano PLC brings 40 total I/O points — 24 discrete inputs, 16 relay outputs, and 2 analog inputs — together with built-in Ethernet, serial, and USB connectivity in a form factor small enough to retrofit into existing enclosures without redesign. The 256 kB user RAM and 10,000-instruction capacity make it a practical fit for logic-heavy machine control without over-engineering the platform.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the TM221CE40R — and Who Shouldn't

The TM221CE40R is the right controller for engineers and machine builders who need a compact, Ethernet-ready PLC with relay outputs and do not require analog output channels or high-speed motion control. It is a direct fit when all of the following are true:

  • Your application requires 40 or fewer I/O points at base, with possible expansion to 88 via up to 7 cartridge modules
  • Your relay loads operate within 2A max per relay, at voltages no higher than 250V AC or 125V DC
  • Your panel supply is 100–240V AC (the TM221CE40R has no 24V DC input variant under this SKU)
  • Ethernet connectivity is mandatory for remote monitoring, Modbus TCP integration, or data logging via SD card
  • Your program fits within 10,000 instructions and 256 kB of user application RAM

If your application requires analog outputs, more than 88 total I/O after expansion, IP67 environmental protection, or transistor outputs, this base unit is not the right fit — the TM3 series or a larger M221 variant are the appropriate alternatives and are worth reviewing before committing to this SKU.

On this page:

What the TM221CE40R Actually Does in a Control System

The TM221CE40R serves as the central control brain for small machinery, process lines, or remote automation nodes. It reads 24 discrete inputs — four of which support high-speed counting at 100 kHz in 32-bit mode — and 2 analog inputs rated 0–10V at 10-bit resolution. Its 16 normally-open relay outputs switch loads from 5V up to 250V AC or 125V DC at up to 2A per relay, making it a natural replacement for hardwired relay panels where the engineer needs programmatic control without adding external switching hardware for low-to-medium current loads.

The programming environment is SoMachine, available as a free download, which removes runtime licensing cost from the total project budget. The unit supports up to 14 simultaneous PID regulator loops, making it capable of managing multi-zone temperature or pressure control alongside discrete machine logic in the same program. The integrated Ethernet port — 10BASE-T/100BASE-TX with auto-negotiation on an RJ45 connector — supports Modbus TCP and EtherNet/IP via firmware, eliminating the need for a separate network gateway card that would otherwise add both cost and panel space. Three simultaneous communication ports (Ethernet, RS232/RS485 serial, and Mini-B USB 2.0 at 480 Mbit/s) allow programming from a laptop, integration with legacy serial devices, and live network monitoring to occur in parallel without switching connections.

Relay life expectancy is rated at 20,000,000 cycles under AC-12 conditions at 240V and 160 VA resistive load — a manufacturer-verified figure that confirms the unit is rated for frequently-switching applications over a long service life. The cartridge expansion system accepts up to 7 discrete I/O modules, extending the fixed 40-point base to a maximum of 88 I/O without external harness complexity. One critical constraint to carry into system design: analog I/O expansion modules are not compatible with the TM221CE40R base unit. If your application needs analog outputs, the correct path is the TM3 series or a larger M221 variant.

Typical System Architecture for the TM221CE40R

The TM221CE40R sits at the controller layer of a small automation system, sitting between the operator interface or SCADA layer above and the field devices below. A typical deployment chain looks like this:

  • Upstream: Ethernet switch connecting to SCADA, HMI, or engineering workstation running SoMachine for programming and monitoring
  • Controller layer: TM221CE40R mounted on 35mm DIN rail; powered by 100–240V AC supply; SD card installed for program backup and data logging
  • Input side: 24V discrete sensors (proximity switches, pushbuttons, flow switches) wired to 24 discrete inputs; 0–10V analog sensors (pressure transducers, temperature transmitters) wired to 2 analog inputs
  • Output side: 16 relay outputs switching contactor coils, solenoid valves, signal lamps, or small motor starters — each load rated within the 2A per relay limit
  • Optional expansion: up to 7 relay or discrete I/O cartridge modules extending field device count to 88 total I/O; serial RJ45 port connecting legacy instruments or variable frequency drives via Modbus RTU

Typical Applications and Deployment Scenarios

The TM221CE40R finds consistent use in small manufacturing environments where hardwired relay logic has reached its limit. Bottle capping machines, labeling systems, and packaging line sort gates are textbook fits: the relay outputs switch motor starters and solenoid valves directly, counters and timers handle cycle logic, and the built-in Ethernet feeds runtime data back to a supervisor without adding gateway hardware.

In process control and utility applications, the controller manages pump stations, water treatment tank levels, and HVAC damper sequencing. The combination of Ethernet telemetry and SD card data logging makes it practical for remote or unmanned sites — a maintenance team can monitor fault status and runtime hours from a central control room without dispatching a technician for routine checks. Up to 14 simultaneous PID loops make multi-zone temperature or pressure regulation possible alongside the discrete control logic.

Machine builders integrating controllers into OEM equipment value the compact footprint and the absence of a required external power supply — the unit accepts 100–240V AC directly, which matches the supply voltage already present in most small control panels. Seasonal or mobile applications (portable filling cabinets, seasonal packaging systems) benefit from the same characteristic: one SKU handles the wide international voltage range between 85V and 264V AC without ordering a different unit for different regions.

Application Typical Deployment
Bottle capping or labeling machine TM221CE40R managing motor, valve, and counter logic; Ethernet to line SCADA
Remote pump station Controller with SD card logging fault and runtime data; Ethernet to central monitoring
Water treatment tank control Analog inputs reading level and temperature sensors; relay outputs driving pump contactors
HVAC damper and fan sequencing Timer and PID logic for multi-zone control; relay outputs to actuator coils
Retrofit of legacy relay cabinet DIN rail drop-in; existing terminal blocks reused; SoMachine program replaces hardwired logic
Portable seasonal control cabinet 85–264V AC input range handles varying site supply; USB programming at startup

Key Specifications for Purchase Decisions

Parameter Value
Total I/O (Base Unit) 40 (24 discrete inputs, 16 relay outputs, 2 analog inputs)
Maximum I/O with Expansion 88 (up to 7 cartridge modules)
Relay Output Rating 2A max per relay; 5–250V AC or 5–125V DC
Supply Voltage 100–240V AC rated; 85–264V AC operating range; 50/60 Hz
User Application RAM 256 kB; 10,000 instruction maximum
Fast Inputs 4 channels at 100 kHz, 32-bit (subset of 24 discrete inputs)
Analog Inputs 2 x 0–10V, 10-bit resolution
Communication Ports Ethernet RJ45 (10/100BASE-TX), RS232/RS485 RJ45, Mini-B USB 2.0
Operating Temperature -10°C to +55°C
Protection Rating IP20 with protective cover in place

Full technical specifications are available on the product page at LeadTime.ca.

TM221CE40R vs. Compact PLC Alternatives: Which One Do You Actually Need?

The table below positions the TM221CE40R against the compact PLCs engineers most frequently consider at this I/O tier and price level. Each alternative has a legitimate use case; the comparison is intended to help you confirm fit rather than simply validate a prior choice.

Model Total I/O Relay Output Ethernet Compact Form Typical Use Key Trade-off
TM221CE40R (Schneider) 40 base / 88 expanded Yes, 16 relay Built-in Excellent Small machine control, relay switching, remote nodes No analog outputs; relay-only outputs
S7-1200 Compact (Siemens) 24–40 Optional Built-in Good Industrial standard, broad ecosystem Higher cost; TIA Portal ecosystem lock-in
FX3U-16MR/ES-A (Mitsubishi) 16–32 Mixed Optional add-on Compact Proven reliability, high-speed pulse Ethernet not standard; smaller base I/O
AC500 Compact (ABB) 24–48 Relay and transistor Optional Good Smart grid, utility automation Higher price tier; broader than needed for small machines
LOGO! 8 (Siemens) 8 Relay No (Wi-Fi option) Very small Basic relay replacement Limited I/O and program capacity; not a true PLC

If your load count pushes above 40 I/O or you need analog output channels, the TM3 series is the logical next step — check availability and confirm the right variant at LeadTime.ca before committing to a build.

Expert Verdict: Is the TM221CE40R Worth Specifying?

The TM221CE40R earns its place on the specification list for machine builders and integrators who need a compact, Ethernet-capable PLC with relay outputs and minimal installation overhead. The 20,000,000-cycle relay life rating and 256 kB of user RAM with 10,000-instruction capacity confirm this is a genuine industrial controller — not a consumer-grade programmable relay dressed up in PLC language. The correct buyer profile is straightforward: a controls engineer or OEM builder managing 20 to 40 relay-switched loads on a small machine, who needs Ethernet telemetry without the cost or panel space of an external gateway, and who is upgrading from hardwired relay logic without redesigning the enclosure. The fact that the unit accepts 85–264V AC directly — with no external power supply required — is a practical advantage that directly reduces BOM cost and wiring complexity.

The limits are equally clear. There are no analog output channels under this SKU. The IP20 protection rating means this unit belongs inside an enclosure, not mounted in a washdown environment. Analog I/O expansion modules are not compatible with the TM221CE40R base — if your application requires proportional valve control or 4–20mA output signals, the TM3 series is the correct path. Similarly, if your program architecture exceeds 10,000 instructions or you need hot-standby redundancy, this platform has a hard ceiling. The relay-only output architecture also means buyers who need transistor outputs for faster switching or lower-voltage logic signals will need to look at alternative models in the M221 family or the TM3 compact range.

From a procurement standpoint, the TM221CE40R is a mature, stable product with strong documentation and a well-established distributor network. Typical lead times for in-stock units run 2–4 weeks; less common configurations or regional constraints can extend that to 6–8 weeks. Buying through a specialist distributor rather than a generic channel matters specifically for this product class: expansion module compatibility verification, SoMachine software support, and warranty acceleration on field failures are services that save commissioning time on a machine builder's first deployment. Check current pricing and stock status for the TM221CE40R at LeadTime.ca — the team ships worldwide and can confirm lead time before you commit to a project schedule.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the TM221CE40R

Community discussion on the TM221CE40R is sparse — a reflection of the product's stability and strong factory documentation rather than a sign of obscurity. Engineers working with this unit typically resolve questions through Schneider Electric datasheets and direct distributor support rather than peer forums. That means the ordering mistakes that surface with this part tend to come not from community-reported field failures, but from specification misreads at the selection stage. The following points capture the most consequential pre-order errors that specialist distributors encounter when engineers are finalizing this SKU.

The single most common misread involves the relay output power limits. The TM221CE40R relay contacts are rated at 2A per relay and 250V AC maximum. Engineers upgrading from hardwired relay panels sometimes assume the PLC relay output can switch the same 480V motor circuits the old panel contactors handled. It cannot. Any load exceeding 2A or operating above 250V AC needs an external contactor in series; the relay output drives the contactor coil, not the motor directly. This distinction must be confirmed in the I/O design before ordering, not discovered during commissioning.

The second frequent error is the power supply input assumption. The TM221CE40R — this specific SKU — is a 100–240V AC input unit. There is no 24V DC version under the TM221CE40R catalog number. Engineers familiar with the broader M221 family occasionally assume DC input variants exist at this I/O tier; they do not under this model number. If your panel supply is 24V DC, confirm the correct alternative SKU with a specialist distributor before placing the order. Similarly, analog I/O expansion modules are not compatible with this base unit — a constraint that is easy to miss when sourcing expansion cartridges from a general catalog. Confirming the exact expansion module compatibility list before finalizing the BOM avoids a return shipment that delays the machine build by weeks.

Wiring and Installation Overview

The TM221CE40R mounts on a standard 35mm DIN rail. The wiring overview below covers the key requirements engineers need to verify before installation. Full wiring diagrams and terminal assignments are in the manufacturer installation guide.

  • Connect 100–240V AC supply to power input terminals (L, N, PE); size an external breaker or fuse per the manufacturer manual — the unit draws up to 41 VA without modules and up to 70 VA with 7 expansion modules populated
  • Wire 24V discrete inputs from sensor dry contacts or PLC outputs to the 24 input terminals; confirm common voltage reference is consistent across all input wiring
  • Wire relay outputs to load circuits — each relay is normally open, rated 2A max; include a manual disconnect switch in each load circuit for safety; verify combined load per common does not exceed 7A
  • Connect Ethernet RJ45 to network switch; document IP address assignment before powering up; the unit supports Modbus TCP and EtherNet/IP via firmware
  • For programming, connect Mini-B USB 2.0 to a PC running SoMachine; the USB port operates at 480 Mbit/s and is used for initial program download and I/O verification before switching to Ethernet monitoring

Compatible Expansion Modules for the TM221CE40R

The TM221CE40R supports up to 7 cartridge expansion modules through its integrated expansion bus, which supplies 5V at up to 0.52A to the connected modules. The compatible types are discrete I/O only — analog expansion is not supported at this base unit tier.

  • Discrete I/O Relay Modules — multiple SKUs available offering 8–16 additional relay outputs; used for scaling machine control to the 88-point maximum
  • Discrete I/O Transistor Modules — 8 transistor outputs per module; faster switching than relay contacts; lower current per output; suited for applications where relay bounce or cycle speed is a constraint
  • Analog I/O Modules — not compatible with TM221CE40R base unit; if analog outputs or higher-resolution analog inputs are required, the TM3 series or a larger M221 variant must be selected instead

Wrong-Part Prevention Checklist Before You Order

Review every item below against your application requirements before submitting a purchase order. These are the exact specification constraints that generate return shipments and commissioning delays when missed at the selection stage.

  1. Verify relay output voltage range matches your load (5-250V AC only, or 5-125V DC)—confirm max voltage does not exceed 277V AC or 125V DC unit limits
  2. Confirm 16 relay outputs are sufficient (not 16 total outputs—analog inputs separate)
  3. Check that expansion modules ordered are relay or discrete I/O only (analog expansion not compatible with base TM221CE40R)
  4. Ensure power supply input accepts 100-240V AC as standard (special 24V DC version exists as separate SKU)
  5. Verify USB or Ethernet port availability in your network setup before ordering
  6. Confirm reset time (1 second) acceptable for your process cycle
  7. Check 256 kB memory sufficient for your program size and runtime data logging
  8. Do not confuse TM221 with TM3 series (larger, industrial-grade alternative)

If any item on this checklist raises a question, contact the LeadTime.ca team for pre-order technical verification before the purchase is placed — we ship worldwide and can confirm compatibility before the order ships.

Frequently Asked Questions

Can the TM221CE40R be expanded beyond 40 I/O, and what is the hard limit?

Yes. The TM221CE40R supports up to 7 cartridge expansion modules through its integrated expansion bus. Maximum total I/O after full expansion is 88 points. Only relay and discrete I/O modules are compatible with this base unit — analog expansion modules are not supported. If your application will exceed 88 total I/O points, the TM3 series is the appropriate platform.

Is there a 24V DC input version of the TM221CE40R?

No. The TM221CE40R catalog number designates a 100–240V AC input unit with an operating range of 85–264V AC. A separate SKU exists in the M221 family for 24V DC power supply input. If your panel operates on 24V DC, confirm the correct alternative model number with a specialist distributor before ordering — this is one of the most common pre-order mistakes on this product family.

What happens if a relay output is overloaded or the voltage limit is exceeded?

The relay contacts are rated at 2A maximum per output and 250V AC or 125V DC absolute maximum. Exceeding these limits causes contact damage or welding, which is not recoverable without replacing the unit or the affected output module. There is no electronic overload protection at the relay contact level. Always size external contactors for loads above 2A and confirm load voltage before wiring.

What software is required to program the TM221CE40R, and is there a licensing cost?

The TM221CE40R is programmed using SoMachine software, which is available as a free download from Schneider Electric. There is no runtime licensing fee. Initial programming can be done via the Mini-B USB 2.0 port at 480 Mbit/s; ongoing monitoring and program updates can be performed over the Ethernet port using Modbus TCP once the unit is installed in the cabinet.

How do I back up the program and runtime data on the TM221CE40R?

The TM221CE40R includes an integrated SD card slot that supports program backup and data logging. Inserting an SD card allows the program to be stored locally on the card, which also serves as a recovery point if the unit needs replacement in the field. Data logging parameters — time interval and data tags — are configured in SoMachine before deployment.

Does the TM221CE40R support high-speed counting, and what is the maximum pulse frequency?

Yes. Four of the 24 discrete inputs support high-speed counter (HSC) mode at up to 100 kHz with 32-bit counting registers. These inputs are a subset of the total 24 discrete inputs and share the same terminals. This makes the unit suitable for encoder feedback, flow meter pulse counting, or production counter applications without requiring a separate high-speed counter module.

Why Order the TM221CE40R From LeadTime.ca

  • Global shipping — the TM221CE40R ships to customers worldwide, with lead time confirmation available before order placement
  • Expansion module compatibility verification — specialist review of your complete BOM before shipment to catch wrong-cartridge selections that generic channels miss
  • Pre-sales technical support — controls engineers available to confirm I/O count, relay ratings, and power input requirements against your application before the order is placed
  • Volume and project pricing — contact directly for quantity pricing on multi-unit machine builder orders or system integration projects
  • View current pricing and availability for the TM221CE40R at LeadTime.ca
  • Contact the LeadTime.ca team for a quote or technical pre-sales question

TM221CE40R At-a-Glance Summary

  • 40 total I/O base: 24 discrete inputs, 16 relay outputs, 2 analog 0–10V inputs
  • Expandable to 88 I/O via up to 7 relay or discrete cartridge modules (analog expansion not compatible)
  • Relay outputs rated 2A max per contact; 5–250V AC or 5–125V DC per relay
  • Power supply: 100–240V AC rated; 85–264V AC operating range; no 24V DC input under this SKU
  • 256 kB user application RAM; 10,000-instruction program limit; up to 14 simultaneous PID loops
  • 4 fast inputs at 100 kHz, 32-bit, for high-speed counting applications
  • Ethernet 10BASE-T/100BASE-TX built in; Modbus TCP and EtherNet/IP via firmware
  • RS232/RS485 serial and Mini-B USB 2.0 (480 Mbit/s) for legacy integration and programming
  • SD card slot for program backup and data logging in unmanned or remote deployments
  • Relay life expectancy: 20,000,000 cycles at AC-12, 240V, 160 VA resistive load
  • Operating temperature: -10°C to +55°C; IP20 with protective cover; operating altitude 0–2,000 m
  • SoMachine programming software is a free download — no runtime license required
