Schneider TM221CE24T — Modicon M221 PLC Specs & Buyer Review

By Abdullah Zahid
15 min read

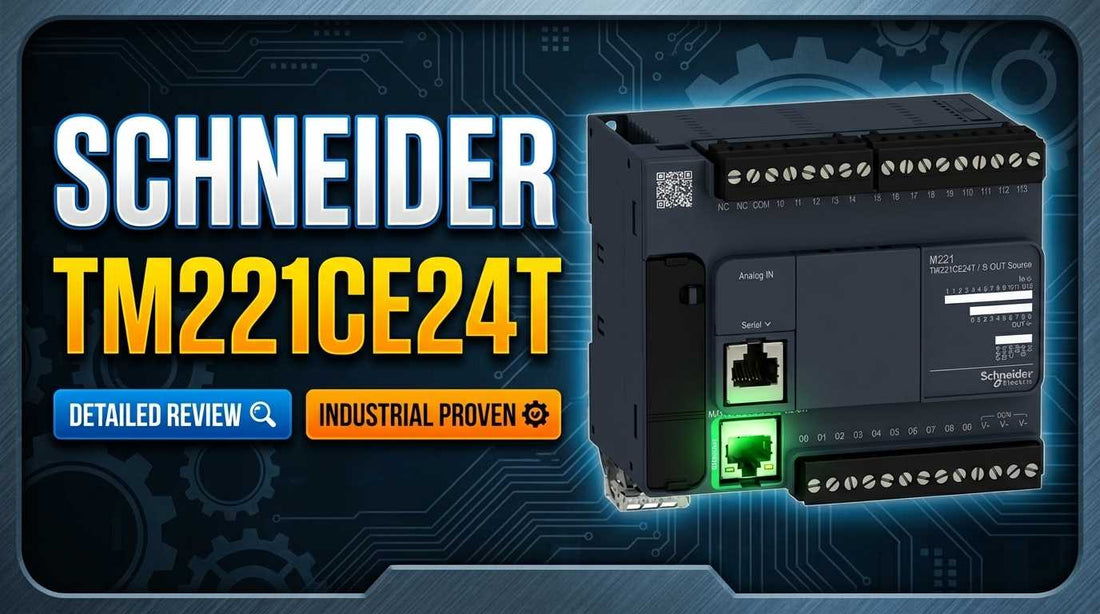

Schneider TM221CE24T Modicon M221 24 IO PNP transistor Ethernet logic controller on DIN rail in industrial panel

Schneider TM221CE24T Logic Controller, Modicon M221, 24 IO, Transistor, PNP, Ethernet — Complete Specs, Review & Configuration Guide

Controls engineers and systems integrators searching for a compact 24-point PLC with built-in Ethernet connectivity often land on the Schneider TM221CE24T as a serious candidate. This Modicon M221 logic controller delivers 14 discrete inputs, 10 PNP transistor outputs, 2 analog inputs, and an RJ45 Ethernet port in a DIN rail form factor that fits even the tightest enclosures. The central question at the bottom of the funnel is simple: does this controller match your I/O count, output type, and expansion plan — or do you need a different M221 variant?

If you have already confirmed this is the right part, check current pricing and availability for the TM221CE24T at LeadTime.ca — ships worldwide.

Who Should Buy the TM221CE24T — and Who Shouldn't

The Schneider TM221CE24T is the right choice for compact machine control and distributed automation nodes where Ethernet connectivity is a hard requirement and the I/O count sits at or below 24 points on the base unit.

  • Your application requires a minimum of 14 discrete inputs and 10 transistor outputs at 24 V DC
  • Your load devices are compatible with PNP source logic — not NPN sink wiring
  • Your cabinet design supports 24 V DC power supply within the 20.4–28.8 V DC operating range
  • You need Ethernet connectivity (Modbus TCP or Ethernet IP) for SCADA integration or remote I/O
  • Your I/O expansion plan stays within 7 expansion modules on the local bus
  • Your programming environment is Schneider SoMachine Studio or EcoStruxure — this controller does not support third-party IDEs

If your application requires relay outputs instead of transistor logic, the TM221CE24R is the correct choice. If you need analog outputs or more than 24 base I/O points with room to grow beyond 7 expansion modules, evaluate a larger platform before committing to this model.

On this page:

What the TM221CE24T Actually Does in a Control System

The Schneider TM221CE24T is the central processing unit of a compact discrete control system. It reads 14 digital input signals from sensors, limit switches, and proximity devices — including 4 fast inputs capable of 100 kHz counting in HSC mode — executes programmed logic, and issues output commands to relays, solenoid valves, motor contactors, and indicator lamps through 10 transistor outputs rated at 0.5 A per channel and 5 A per common group.

Beyond discrete I/O, the TM221CE24T integrates 2 analog inputs with a 0–10 V range and 10-bit resolution, delivering plus or minus 1% of full-scale accuracy. This is sufficient for temperature, pressure, and flow sensor inputs in a typical small machine — though it is not a substitute for a dedicated analog I/O module when you need more channels or higher resolution. The Ethernet port handles Modbus TCP and Ethernet IP for SCADA integration or peer-to-peer communication with remote I/O racks, while the mini-B USB 2.0 port and SD card slot cover local programming, diagnostics, and offline configuration backup.

Power consumption of 4.8 W without expansion modules and no more than 14 W at full I/O expansion means this controller generates minimal heat, eliminating the need for active cabinet cooling in typical industrial environments and making vertical stacking of multiple units practical.

Typical System Architecture for the TM221CE24T

The TM221CE24T sits at the top of a local I/O chain and at the edge of an Ethernet network, reading field signals and issuing commands while communicating upstream to SCADA or HMI platforms over standard industrial Ethernet.

  • 24 V DC industrial power supply (minimum 2 A rated) feeds the controller through an external MCB or fuse — the TM221CE24T has no integrated circuit protection
  • Field sensors and switches wire directly to the 14 discrete inputs and 2 analog inputs on the base unit
  • Load devices (solenoids, contactors, lamps) connect to the 10 PNP transistor outputs through the output common return rail
  • Up to 7 expansion modules attach to the right side of the base unit, extending I/O count for larger machines
  • The RJ45 Ethernet port connects the controller to a facility network or dedicated automation subnet, enabling Modbus TCP communication with SCADA, HMI panels, or remote I/O drops

Typical Applications and Deployment Scenarios

The TM221CE24T is most at home in small to mid-size discrete manufacturing applications where sensor-driven sequencing logic is the core task. Conveyor and assembly line control is a natural fit — the controller handles multiple motor start/stop commands, position sensor inputs, and fault indicator outputs within the 24-point base count, with expansion modules available when the machine grows.

Packaging machine builders frequently specify the M221 family for barcode gate logic, label applicator sequencing, and reject mechanism control. The 4 fast inputs capable of 100 kHz HSC counting allow integration of encoder feedback for line speed monitoring without an external counter module.

The 2 analog inputs cover mixing and blending applications where a pressure or temperature sensor provides process feedback to a solenoid valve or pump output, keeping the logic tight without overspecifying the controller. For OEM equipment builders in printing, labeling, and cutting — where panel space is the binding constraint — the compact DIN rail footprint and low 4.8 W idle power draw make the TM221CE24T a natural embedded controller choice.

Application Typical Deployment
Conveyor and assembly line control Base unit handles motor start/stop, sensor inputs, fault outputs; expansion modules add zone control I/O
Packaging machine logic control Fast inputs for barcode/encoder feedback; transistor outputs drive reject gates and label applicators
Mixing and blending process automation Analog inputs read pressure/temperature sensors; outputs drive solenoid valves and agitator contactors
Distributed remote I/O monitoring Multiple TM221CE24T units networked via Ethernet; each handles a local machine zone, reports to central SCADA
OEM embedded control (printing, labeling, cutting) Single unit embedded in machine panel; USB/SD card port used for field program updates without laptop
Building automation and HVAC control Discrete inputs from status contacts; outputs to damper actuators and fan contactors; Ethernet to BMS

Key Specifications: What Engineers Need to Evaluate

Parameter Value
Total I/O (Base Unit) 24 (14 discrete inputs + 10 transistor outputs)
Analog Inputs 2 channels, 0–10 V, 10-bit resolution, ±1% accuracy
Output Type Transistor, PNP/source logic, 24 V DC
Output Current Rating 0.5 A per output; 5 A per common group
Fast Outputs Q0–Q1: 100 kHz PWM/PLS; Q2–Q3: 5 kHz
Supply Voltage Range 20.4–28.8 V DC (rated 24 V DC)
Power Consumption ≤4.8 W (no expansion); ≤14 W (max 7 modules)
Ethernet RJ45, 10/100 Base-T, Modbus TCP / Ethernet IP
Expansion Modules Supported Up to 7 (local I/O bus)
Enclosure Rating IP20 — requires cabinet or minimum IP20 enclosure

Full technical specifications are available on the product page at LeadTime.ca.

TM221CE24T vs. Other M221 Variants: Which Model Do You Need?

Model I/O Count Output Type Ethernet Best For
TM221CE24T 24 (14 in / 10 out) Transistor PNP Yes Compact machines, fast switching loads, Ethernet-connected systems
TM221CE24R 24 (14 in / 10 out) Relay Yes Applications requiring relay switching; AC or higher-current DC loads
TM221CE20T 20 (12 in / 8 out) Transistor PNP Yes Smaller machines where 24-point count is unnecessary overhead
TM221CE16T 16 (9 in / 7 out) Transistor PNP Yes Minimal I/O nodes, distributed architecture sub-controllers

If your application requires relay outputs for AC loads or high-current DC switching, the TM221CE24R is the correct choice — check current availability and compare variants at LeadTime.ca.

Expert Verdict: Is the TM221CE24T Worth Buying?

For OEM machine builders standardizing on Schneider's platform, systems integrators deploying distributed control nodes across a manufacturing floor, and retrofit projects where cabinet space and Ethernet integration are both hard constraints, the TM221CE24T delivers exactly what the application demands. The 24-point I/O count covers the majority of single-machine control tasks. The transistor outputs rated at 0.5 A per channel with a mechanical durability of 20,000,000 cycles handle high-frequency switching without the wear concerns of relay contacts. The 4 fast inputs at 100 kHz HSC capacity and 2 analog inputs at ±1% accuracy provide real sensor integration capability — not just token specs. The 4.8 W idle consumption means you can stack these in multi-axis panels without worrying about thermal management.

The honest limits are equally clear. If you need analog outputs — even a single channel — the TM221CE24T has none, and there is no workaround within the base unit. If your loads require NPN sink logic, the output architecture is incompatible without external interface relays. The 7-module expansion ceiling on the local bus means projects expecting to grow beyond roughly 80 points will need a second controller and additional Ethernet coordination. For those scenarios, evaluate a larger M221 platform variant or consider whether the TM221CE24R's relay outputs better fit your load types. Engineers transitioning from other PLC platforms should also factor in SoMachine or EcoStruxure licensing as a real project cost — this is not an open IDE environment.

From a procurement standpoint, the TM221CE24T is a mature, actively stocked product with typical availability of in-stock to two weeks at authorized distributors worldwide. Ordering through a specialist industrial distributor rather than a generic channel gives you pre-sales I/O compatibility verification, expansion module pairing advice, and post-sale support that can save multiples of any price difference when the wrong variant reaches the cabinet. View current pricing and stock status for the TM221CE24T at LeadTime.ca — we ship to automation teams worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the TM221CE24T

Public forum discussion on the TM221CE24T specifically — and the Modicon M221 family more broadly — is sparse in indexed communities. This is typical for industrial automation hardware where the real knowledge exchange happens in closed integrator networks, OEM engineering teams, and direct manufacturer support channels. The absence of Reddit threads or forum posts does not reflect a problematic product; it reflects where M221 users actually work. What it does mean is that when you are specifying this controller without a peer reference, the pre-order technical review matters more, not less.

The mistakes that surface repeatedly in this controller class — confirmed by the manufacturer's own documentation and distributor technical support experience — are consistent and preventable. The most consequential is output polarity confusion: the TM221CE24T transistor outputs are PNP source logic, meaning the output terminal goes high when active. Engineers arriving from NPN-dominant platforms wire load devices with positive to the common rail and negative to the output terminal, get zero response, and spend significant troubleshooting time on a controller that is working exactly as specified. The second recurring issue is expansion slot miscounting during the proposal phase — the 7-module limit is clearly documented but frequently overlooked until the build stage, when redesigning around a second controller becomes an expensive schedule problem. The third is omitting external circuit protection: the TM221CE24T has no integrated fuse or MCB, and the 35 A inrush specification means an unprotected installation is a real damage risk during power transients.

When community data is thin and the hardware is specialized, the right move is a direct conversation with a distributor who has pre-sales technical depth on the Schneider M221 platform. LeadTime.ca's team handles these application validation questions — I/O count, expansion compatibility, output type confirmation, power supply sizing — before you place the order, not after the parts arrive. That conversation costs nothing and prevents the ordering mistakes that cost real project time.

Wiring and Installation Overview

The following is an installation overview only. Engineers requiring full wiring diagrams and step-by-step commissioning procedures should refer to the Schneider Electric TM221CE24T hardware guide and applicable electrical codes for their jurisdiction.

  • Mount the controller on a 35 mm symmetric DIN rail (EN 60715) and connect the 24 V DC power supply through an external MCB or fuse rated for the 20.4–28.8 V DC supply range — no integrated protection is present on the controller
  • Wire discrete inputs with sensor signal lines to terminals I0–I13; fast inputs I0–I3 should use shielded twisted pair cable with shield terminated at cabinet frame ground on the controller end only
  • Wire transistor outputs with load device negative terminal to the output common return rail (Q_COM/GND) and load positive terminal to the assigned Q0–Q9 terminal — PNP source logic; reversing this polarity produces no output response
  • For inductive loads (relay coils, solenoids), install a transient suppression diode in parallel with the load to protect the transistor outputs; verify individual output current does not exceed 0.5 A and total common group current stays below 5 A
  • Connect the RJ45 Ethernet port to the facility industrial network or dedicated automation subnet; assign a static IP address through SoMachine before deploying to avoid network conflicts on Modbus TCP or Ethernet IP

Commissioning Overview: First Steps in SoMachine

  • Import the TM221CE24T hardware template into SoMachine Studio or EcoStruxure and configure I/O assignments, data types, and input filtering (0, 3, or 12 ms debounce selectable per channel)
  • Set analog input scaling to map the 0–10 V range to engineering units appropriate for your sensors (temperature, pressure, flow); verify ±1% accuracy is acceptable for your process tolerance
  • Enable the Ethernet interface, assign a static IP address, and configure Modbus TCP or Ethernet IP communication parameters before connecting to the live network
  • Run a discrete I/O test using a simple ON/OFF ladder logic pattern to confirm all 14 inputs and 10 outputs respond correctly before connecting production loads
  • Save the validated configuration to the SD card slot as a backup; this enables emergency controller replacement without a programming laptop on site

Compatible Expansion Modules and System Expansion

The TM221CE24T supports up to 7 expansion modules on the local I/O bus, extending the base 24-point count for machines that grow beyond the base unit capacity. The expansion bus provides 0.52 A at 5 V and 0.2 A at 24 V for external I/O modules.

  • Discrete input expansion modules — extend the 14-base-input count for additional sensor connections
  • Transistor output expansion modules — add PNP source outputs beyond the base 10-channel count
  • Relay output expansion modules — where specific outputs in an expanded system require relay switching alongside the transistor base unit outputs
  • Analog input/output expansion modules — the TM221CE24T has no native analog outputs; expansion modules are required for any analog output requirement
  • For systems exceeding 7 local expansion modules, distribute I/O across additional TM221CE24T controllers on the same Ethernet network rather than exceeding the single-controller local bus limit

Wrong-Part Prevention Checklist

Before placing your order for the Schneider TM221CE24T, verify each of the following against your project design documentation:

  1. Confirm transistor output logic (PNP/source) is compatible with downstream devices (not NPN)
  2. Verify 24 V DC supply availability and capacity (allow minimum 2A margin above device draw)
  3. Check that expansion module slots (≤7 for transistor output) match your I/O expansion plan
  4. Confirm Ethernet infrastructure is available or required; do not order if only legacy serial/analog is available
  5. Verify customer has external fuse/circuit protection rated for 20.4-28.8V DC supply
  6. Confirm programming software availability (SoMachine or EcoStruxure); do not order if using only third-party IDEs
  7. Check input voltage compatibility (24 V DC discrete inputs; 0-10V analog inputs) matches sensor outputs
  8. Verify maximum analog input overload rating (+30 V temporary, +13 V permanent for 10V channels) suits environment

If any item on this checklist raises a compatibility question, contact the LeadTime.ca team before ordering — our team can validate your I/O configuration and confirm the correct M221 variant for your application.

Frequently Asked Questions

Can I use the TM221CE24T with third-party IEC 61131-3 programming tools, or is SoMachine mandatory?

The TM221CE24T is programmed via Schneider Electric's SoMachine Studio or EcoStruxure Machine Expert software. These environments support IEC 61131-3 languages including Ladder (LD) and Structured Text (ST). Third-party IDEs are not supported. If your team is not already on the Schneider programming platform, factor in software licensing and training time as a real project cost before specifying this controller.

What happens if my load current exceeds 0.5 A on a single transistor output — does the controller shut down or is there output damage?

Each transistor output on the TM221CE24T is rated at 0.5 A per channel. Exceeding this rating risks output damage rather than a clean controller shutdown. For inductive loads, always install a transient suppression diode in parallel with the load and verify current draw at the design stage. The 5 A per common group limit is a cumulative constraint — distribute high-current loads across separate common groups where possible.

Can I connect the TM221CE24T directly to a standard office or facility IT network, or does it require a dedicated industrial Ethernet segment?

The TM221CE24T Ethernet port supports 10/100 Base-T with Modbus TCP and Ethernet IP protocols. While it can physically connect to a standard Ethernet switch, industrial practice is to deploy it on a dedicated automation subnet or VLAN isolated from IT traffic to prevent latency, broadcast storms, or cybersecurity exposure. Assign a static IP address through SoMachine before connecting to any network to avoid address conflicts.

Is the TM221CE24T a direct drop-in replacement for the previous Modicon M221 generation, or does it require programming changes?

Migration compatibility between Modicon M221 hardware revisions should be verified against Schneider Electric's hardware migration guide for your specific predecessor model. While the physical form factor and I/O count are consistent across the M221 family, firmware versions and SoMachine project file compatibility require confirmation before treating any replacement as a direct swap. Contact Schneider Electric technical support or a specialist distributor for a migration validation specific to your installed base.

What is the analog input overload protection rating for the TM221CE24T, and will a 0–20 mA sensor damage the inputs?

The TM221CE24T analog inputs are rated for 0–10 V with a permanent overload tolerance of ±13 V DC and a temporary overload tolerance of ±30 V DC for a maximum of 5 minutes. The analog inputs are voltage-type only — they are not compatible with 4–20 mA current-loop sensors without an external signal conditioning resistor to convert current to voltage. Connecting a 4–20 mA source directly without conditioning will produce incorrect readings and potentially damage the input if the load impedance drives voltage above the overload threshold.

How many TM221CE24T controllers can I network together via Ethernet, and is there a practical limit?

The TM221CE24T supports Modbus TCP and Ethernet IP on its RJ45 port, enabling peer-to-peer communication with other M221 controllers and upstream SCADA or HMI systems on the same industrial Ethernet network. The practical limit for a networked M221 architecture is governed by your network infrastructure, cycle time requirements, and SCADA polling capacity — not a hard controller count limit in the hardware specification. For distributed architectures exceeding 7 local I/O modules per node, distributing I/O across multiple networked TM221CE24T units is the supported approach.

Why Order the TM221CE24T From LeadTime.ca

  • Ships worldwide — LeadTime.ca sources and ships industrial automation components to engineering teams and procurement departments globally, not just within a single region
  • Pre-sales technical support — confirm I/O count, output type, expansion compatibility, and power supply requirements before the purchase order is raised, not after parts arrive
  • Hard-to-find and short-lead-time sourcing — specialist distributor relationships give access to stock that generic online channels cannot guarantee
  • Volume pricing available — contact for current pricing at 5-unit or higher order quantities
  • Expansion module and accessory pairing — the TM221CE24T is frequently ordered alongside specific expansion I/O modules; LeadTime.ca can validate compatibility and consolidate the order

At-a-Glance Summary

  • 24-point base I/O: 14 discrete inputs (4 fast, up to 100 kHz HSC) and 10 PNP transistor outputs at 0.5 A per channel, 5 A per common group
  • 2 analog inputs, 0–10 V range, 10-bit resolution, ±1% full-scale accuracy — no analog outputs on the base unit
  • Supply voltage: 24 V DC, operating range 20.4–28.8 V DC; no integrated circuit protection — external MCB or fuse required
  • Power consumption: ≤4.8 W (base unit), ≤14 W (with 7 expansion modules) — no active cooling required
  • Transistor output mechanical durability: ≥20,000,000 cycles; voltage drop less than 1 V at rated current
  • Expansion: up to 7 local I/O modules; systems exceeding this limit require a second networked controller
  • Connectivity: RJ45 Ethernet (Modbus TCP / Ethernet IP), mini-B USB 2.0, SD card slot
  • Programming: Schneider SoMachine Studio or EcoStruxure Machine Expert only — third-party IDEs not supported
  • Enclosure rating: IP20 — cabinet or minimum IP20 enclosure required for all installations
  • Pricing available on the product page; contact LeadTime.ca for volume or project pricing
