Schneider RXM4AB1P7 — 4CO Miniature Relay Specs & Sourcing Guide

By Abdullah Zahid
15 min read

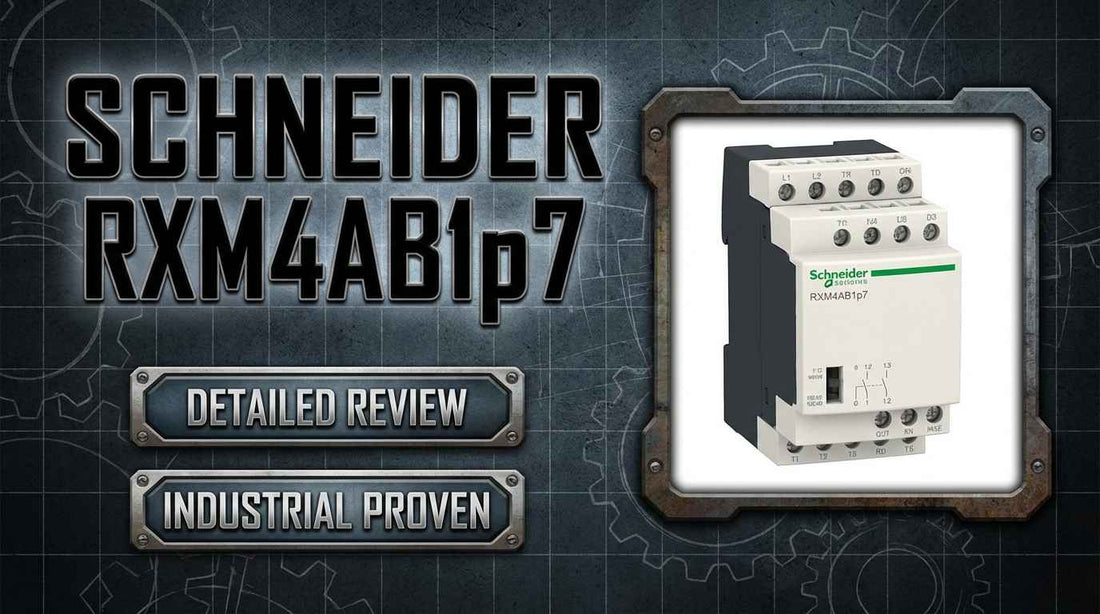

Schneider RXM4AB1P7 Harmony miniature plug-in relay 6A 4CO 230V AC for industrial automation control panels

Schneider RXM4AB1P7 Miniature Plug-in Relay, Harmony Electromechanical Relays, 6A, 4CO, Lockable Test Button, 230V AC 50/60 Hz — Specifications, Sourcing & Selection Guide

Controls engineers specifying a compact 4-changeover relay for a 230V AC automation panel have a clear target: a part that fits a tight enclosure, swaps without rewiring, and carries the certifications demanded by IEC, CSA, and UL compliance requirements. The Schneider RXM4AB1P7 is a miniature plug-in relay rated 6A per contact across four independent changeover circuits, with a fixed 230V AC 50/60 Hz coil — and it plugs into a separately ordered RXZE socket base. At 79mm x 26.9mm x 78.45mm and 37 grams, it is designed for dense panel layouts where relay count is high and replacement speed matters.

If you have already confirmed this is the correct part for your panel, check current pricing and availability for the RXM4AB1P7 at LeadTime.ca — ships worldwide.

Who Should Buy the RXM4AB1P7 — and Who Shouldn't

The RXM4AB1P7 is the right relay if your application meets all of the following conditions:

  • Your control circuit runs at 230V AC 50/60 Hz — this coil voltage is fixed; there is no configurable or interchangeable voltage option on this model
  • You need four independent changeover contacts, each rated for 6A load current
  • You have an RXZE socket base already installed in your panel, or you are ordering one at the same time as this relay
  • Your load circuits fall within the 6A per contact rating — not 3A low-level signal switching, not above 6A motor loads
  • Your application requires a minimum mechanical durability of 1,000,000 cycles, with the Harmony series rated to 10,000,000 mechanical cycles
  • Field commissioning and troubleshooting speed matter — the built-in lockable test button with mechanical status flag is a genuine time-saver during panel bring-up

If your panel uses 24V DC, the RXM4AB1P7 is the wrong part entirely — the correct model for 24V DC is the RXM4AB1BD. If you need higher per-contact current, step up to the RXM2AB1P7 rated at 12A. If your duty cycle demands more than 100,000 electrical cycles, consider a solid-state relay instead.

On this page:

What the RXM4AB1P7 Does in a Real Control System

The RXM4AB1P7 is an electromechanical plug-in relay — it converts a 230V AC coil energisation signal into mechanical switching of four independent changeover contacts, each rated at 6A. Each of the four contacts is a 3-position changeover: a common terminal that can connect to either a normally open or normally closed load circuit depending on the coil state. This makes the relay useful wherever a single logic signal needs to simultaneously route or interrupt multiple independent load circuits — valve control, contactor coil switching, indicator circuits, or interlock routing.

The plug-in design is its operational advantage. The RXZE socket base wires permanently into the panel. The RXM4AB1P7 relay module snaps in and out of that socket without touching a single wire. When a relay fails, a technician pulls the module and inserts a replacement in seconds. The lockable test button adds further value: pressing and locking the red/green button assembly mechanically forces the relay contacts to their energised position without applying coil voltage, allowing contact-level verification with a continuity tester or signal tracer before the machine is live. The mechanical status flag — visible from the front of the panel — confirms coil state at a glance without opening the enclosure.

The silver alloy (AgNi) contact material resists oxidation and surface contamination across the relay's rated 100,000 electrical cycles under resistive load and 10,000,000 mechanical cycles. Power consumption at the coil is 1.2 VA at 60 Hz — low enough that even a dense relay rack running 20 or 30 units does not create meaningful thermal loading on the panel.

Where the RXM4AB1P7 Sits in Your Panel Architecture

The RXM4AB1P7 sits at the interface between the control logic layer and the field load layer — it receives a low-energy switching command and converts it into hard contact closure across load circuits. Here is the typical component chain:

  • PLC digital output module or hardwired control transformer supplies 230V AC to the RXZE socket coil terminals
  • RXZE socket base mounts to DIN rail or panel backplate and accepts field wiring at its screw or push-in terminals
  • RXM4AB1P7 plug-in relay module snaps into the RXZE socket — coil energises when 230V AC is applied
  • Four independent changeover contacts switch field loads: valve solenoids, contactor coils, pilot lamps, interlock relay chains, or motor starter circuits
  • Optional vibration clamp secures the relay-socket assembly in high-vibration machine environments

Typical Applications and Deployment Scenarios

The RXM4AB1P7 sees the most consistent demand in three scenarios. The first is legacy panel retrofit: when an existing Harmony-based control panel needs a failed relay replaced, specifying the same model preserves socket compatibility and eliminates any rewiring or re-commissioning effort. The second is new OEM panel builds where the integrator has standardised on the Harmony ecosystem and needs a compact 4CO relay at 230V AC across multiple machine models. The third is PLC output interfacing, where a PLC digital output drives the relay coil and the four contacts distribute the logic signal to valve positioners, solenoids, or contactor coils operating at field voltage.

In building automation and HVAC zoning, the four changeover contacts are used to route zone valve commands and override signals simultaneously, with the lockable test button providing maintenance technicians a fast way to validate relay state without live control signals during servicing. In motor control panels, the relay bridges the gap between a low-energy PLC output and the 6A coil circuits of downstream contactors or auxiliary relays.

Application Typical Deployment
Legacy panel relay replacement Drop-in swap into existing RXZE socket; no rewiring required
PLC digital output interface PLC 230V AC output drives coil; 4 contacts switch field loads
Machine guard interlock logic Hard-wired safety-adjacent start/stop circuits in industrial machinery
HVAC zone control Zone valve switching and bypass logic in building automation panels
Motor starter bypass Switches between manual and automatic modes in motor control panels
Test stand sequencing Hard-wired relay switching in manufacturing test equipment

Key Specifications for Purchase Decisions

Parameter Value
Contact Configuration 4 C/O (four independent changeover contacts)
Contact Rating (Load Current) 6A per contact
Contact Material Silver Alloy (AgNi)
Coil Voltage 230V AC 50/60 Hz (fixed)
Power Consumption 1.2 VA at 60 Hz
Mechanical Durability 10,000,000 cycles
Electrical Durability 100,000 cycles (resistive load)
Operating Temperature -40°C to +55°C
Dimensions (H x W x D) 79mm x 26.9mm x 78.45mm
Certifications CE, CSA C22.2 No. 14, IEC 61810-1, UL 508, RoHS, REACH

Full technical specifications are available on the product page at LeadTime.ca.

RXM4AB1P7 vs. Related Harmony Variants: Which One Do You Actually Need?

Feature RXM4AB1P7 RXM2AB1P7 RXM3AB1P7 RXM4CO 3A Low-Level
Contact Configuration 4 C/O 2 C/O 3 C/O 4 C/O
Contact Rating Per Circuit 6A 12A 10A 3A at 28V DC
Coil Voltage 230V AC 230V AC 230V AC 230V AC
RXZE Socket Compatible Yes Yes Yes Yes
Lockable Test Button Yes Yes Yes Yes
Best For Standard automation, 4 independent 6A circuits High-current motor loads, fewer contacts needed Multi-way automation at intermediate current PLC output interface, weak-signal switching

If your load current exceeds 6A per circuit, the RXM2AB1P7 at 12A is the correct step up — check current availability for the RXM4AB1P7 at LeadTime.ca and contact the team if you need guidance on the right variant.

Expert Verdict: Is This Relay Worth Specifying?

The RXM4AB1P7 earns its place in industrial panels because it does exactly what a workhorse control relay should: it switches four independent 6A circuits reliably, fits into a compact 79mm x 26.9mm x 78.45mm footprint, and comes backed by IEC 61810-1, CSA C22.2 No. 14, and UL 508 certifications that satisfy the documentation requirements of both machine builders and plant engineers. The 10,000,000 mechanical cycle rating and the plug-in RXZE socket architecture make this relay a low-friction choice for maintenance teams managing dense relay panels — when one fails, replacement is a two-minute socket pull, not a rewiring job. The lockable test button with mechanical status flag is a genuine field advantage that reduces commissioning time, particularly in panels with 20 or more relay positions where individual contact verification would otherwise require external test equipment.

The honest limits are equally clear. The 100,000 electrical cycle rating under resistive load means this relay is not the right tool for high-frequency switching. If a relay position is cycling more than a few hundred times per day, the electrical contact life will be the binding constraint — calculate expected life from your duty cycle before specifying, and consider a solid-state relay for high-frequency positions. The RXM4AB1P7 is also a 230V AC-only device; there is no version of this exact model for 24V DC or 120V AC panels. Engineers working on 24V DC systems must specify the RXM4AB1BD, not this model. And the RXZE socket base is a separate line item — the relay module alone cannot be installed without one.

From a procurement standpoint, the RXM4AB1P7 is classified as non-stock at many distributors, which means lead times of two to four weeks are typical for standard orders. Ordering through a specialist distributor matters here: a knowledgeable supplier will flag socket compatibility during order review, confirm your terminal type (screw clamp, screw connector, or push-in) before the order ships, and can often access regional stock or priority backorder channels that generic electronics platforms cannot. For retrofit projects or scheduled panel maintenance, order early. For urgent replacements, contact your distributor directly for expedite options. View current pricing and availability for the RXM4AB1P7 at LeadTime.ca — we ship worldwide.

For volume pricing, expedited sourcing, or confirmation of lead time before you commit to a build schedule, contact the LeadTime.ca team directly — we ship worldwide and can advise on socket base requirements at the same time.

What Engineers Need to Know Before Ordering the RXM4AB1P7

Because public community discussion of the RXM4AB1P7 is sparse — searches across major automation forums including r/PLC, PLCTalk, PLCS.net, MrPLC, and distributor Q&A sections returned no model-specific threads — the most useful pre-purchase intelligence comes from the engineering details that experienced distributors and panel builders encounter repeatedly. The absence of complaint threads is consistent with a mature, stable product at low failure rates, but it also means engineers specifying this relay for the first time cannot rely on peer forum posts for guidance. That is precisely where specialist distributor knowledge fills the gap.

The most consequential pre-order mistake is coil voltage confusion. The RXM4AB1P7 is a 230V AC fixed-coil device — the model number encodes this, but engineers familiar with configurable relay platforms sometimes assume the coil voltage is selectable. It is not. A panel running 24V DC control logic requires the RXM4AB1BD, an entirely different catalog number. Ordering the wrong coil voltage results in a non-functional installation and a two-to-four-week wait for the correct part. The second most common sourcing mistake is ordering the relay module without the RXZE socket base, either because the buyer assumes the socket is included or because it appears as a separate line item in the distributor catalog and is overlooked. The relay is physically incapable of installation without the socket — these are two distinct products that must ship together or be confirmed as already on-site before the relay order is placed.

A subtler but equally important issue involves the socket terminal type. The RXZE socket is available in screw clamp, screw connector, and push-in terminal variants. The relay itself is indifferent to which socket terminal type is used, but the wiring in your panel is not — specifying the wrong terminal type means the socket cannot be wired to your panel's conductors without additional work. Confirming terminal type is a five-second check against your panel documentation that prevents a meaningful installation delay. LeadTime.ca's team reviews socket compatibility as part of the order process — this is one of the concrete advantages of sourcing through a specialist distributor versus a general electronics marketplace.

Wiring and Installation Overview

  • Coil supply connects to terminals 1 and 2 on the RXZE socket (230V AC 50/60 Hz); verify supply voltage with a meter before inserting the relay module
  • Each of the four changeover contacts has a common (COM), normally open (NO), and normally closed (NC) terminal accessible at the socket face — refer to the Schneider datasheet terminal diagram for exact pin layout before wiring
  • Relay flat-pin terminal shape must align with the socket cavity layout; verify pin geometry matches the installed RXZE socket type before insertion
  • Seat the relay module firmly into the socket until flush — any visible gap between relay body and socket face indicates incomplete seating and will cause intermittent contact
  • In high-vibration environments, install the optional plastic or metal vibration clamp on the RXZE socket assembly to prevent relay movement under mechanical shock

Full wiring diagrams and terminal assignments are published in the Schneider Electric datasheet for the RXM4AB1P7. Engineers requiring step-by-step installation procedures should consult that document directly.

RXZE Socket Compatibility and System Expansion

The RXM4AB1P7 is a module — it has no standalone mounting capability and requires an RXZE series socket base as its installation platform. The RXZE socket line is standardised across the Harmony RXM family, meaning the same socket base accommodates the 2CO, 3CO, and 4CO relay variants. This standardisation is a practical advantage for panel builders and maintenance teams: a single socket type supports the full RXM range, and relay modules can be swapped between positions without socket replacement as long as the contact configuration and coil voltage requirements are met.

  • RXZE socket with screw clamp terminals — standard wiring method for most industrial panel applications
  • RXZE socket with screw connector terminals — for panels using ferrule-terminated conductors
  • RXZE socket with push-in terminals — for rapid wiring in high-volume panel assembly environments
  • Optional plastic vibration clamp for RXZE socket — secures relay module in machinery subject to mechanical vibration
  • Optional metal vibration clamp for RXZE socket — higher-retention alternative for severe vibration environments

Order the socket and relay together. Confirm the socket terminal type matches your panel wiring method before the order is placed. If replacing a relay in an existing panel, inspect the installed socket for contact pitting, discoloration, or physical damage before reusing it — a degraded socket will shorten the life of the new relay module.

Wrong-Part Prevention Checklist

Before placing your order for the RXM4AB1P7, verify every item on this checklist. Each point represents a confirmed sourcing or installation blocker:

  1. Confirm control voltage on existing automation system matches 230V AC 50/60 Hz (not 24V DC, not 120V, not 480V)
  2. Verify you have the RXZE base/socket (do not order relay alone; relay plugs into socket)
  3. Check that 4CO contact configuration is required (not 2CO or 3CO which use same socket)
  4. Confirm 6A contact rating is sufficient for the load circuit (not undersized at 3A, not oversized at 10A)
  5. Verify socket terminal type matches your wiring method (screw clamp, screw connector, or push-in)
  6. Check that the terminal pin arrangement (flat-pin shape per datasheet) aligns with socket cavity layout
  7. Confirm your automation panel or PLC interface supports hard-wired relay contact loops (not a soft I/O only system)

If any item on this checklist raises a question, resolve it before ordering. Contact the LeadTime.ca team to confirm socket compatibility or verify the correct variant for your application — we review these details as part of every order.

Frequently Asked Questions

Can I use the RXM4AB1P7 on a 24V DC control circuit?

No. The RXM4AB1P7 has a fixed 230V AC 50/60 Hz coil. It will not operate on 24V DC. For a 24V DC control circuit with 4CO contacts, the correct Schneider model is the RXM4AB1BD. Ordering the wrong coil voltage is the most common sourcing mistake on this product family — always verify your panel's control voltage against the full model number before confirming the order.

What happens if the load current exceeds 6A on one of the contacts?

Exceeding the 6A contact rating accelerates electrical erosion of the AgNi contact surfaces, reducing the relay's 100,000-cycle electrical durability and increasing the risk of contact welding or failure to break under load. If your load circuit regularly exceeds 6A, the correct step up within the Harmony family is the RXM2AB1P7, rated at 12A per contact, though with only 2 C/O contacts instead of 4. For continuous operation, Schneider recommends applying a 20% utilisation coefficient, meaning typical sustained load should not exceed 1.2A per contact for long-term reliability.

Does the RXM4AB1P7 come with the RXZE socket, or do I need to order it separately?

The socket is a separate product and must be ordered independently. The RXM4AB1P7 is the plug-in relay module only. The RXZE socket base — available in screw clamp, screw connector, or push-in terminal variants — is a distinct catalog item. In replacement scenarios, the existing socket in the panel can typically be reused if it is undamaged. For new installations, both the relay and the correct RXZE socket variant must be ordered together.

How do I use the lockable test button and what does the mechanical indicator show?

The test button on the RXM4AB1P7 face allows mechanical forcing of the relay contacts without energising the coil. Pressing the red button actuates the contacts momentarily; flipping the green lever locks the contacts in their energised position, allowing you to verify all four contact pairs with a continuity tester while the panel is safe. The mechanical status flag is a visual indicator that moves when the coil is energised during normal operation — it confirms relay state from the front of the panel without opening the enclosure or connecting test equipment to live terminals.

How do I calculate whether this relay will last long enough for my application?

The RXM4AB1P7 is rated for 10,000,000 mechanical cycles and 100,000 electrical cycles under resistive load. In practice, electrical contact life is the binding constraint. Divide 100,000 cycles by your application's switching frequency per day, then divide by your annual working days to estimate calendar life. For example, a relay cycling 500 times per day over 250 working days per year reaches 100,000 electrical cycles in under a year. For high-frequency switching positions, plan for earlier replacement or evaluate a solid-state relay alternative. Storage temperature is rated to -40°C to +85°C; operating range is -40°C to +55°C.

Is the RXM4AB1P7 a direct replacement for earlier Harmony relay models, or are there socket compatibility differences?

The RXM4AB1P7 is part of the current Harmony Electromechanical Relay generation and is designed for the standardised RXZE socket platform used across the RXM series. If you are replacing a legacy Harmony relay, verify that your installed socket base is an RXZE type and that the terminal pin arrangement — flat-pin geometry — matches. If upgrading from an older Harmony generation that used a different socket format, consult Schneider's migration documentation before ordering to confirm socket interchangeability.

Why Order Through LeadTime.ca

  • Worldwide shipping — the RXM4AB1P7 can be sourced and shipped to any location, not limited to a single region or market
  • Socket compatibility review at the order stage — LeadTime.ca confirms your RXZE socket type matches your wiring method before the order ships, preventing the most common installation delay on this product
  • Hard-to-find and non-stock parts — Harmony relays classified as non-stock at major distribution channels are a sourcing specialty, not an exception
  • Volume pricing available — contact the team for pricing on orders of 10 or more units; current pricing is displayed live on the product page
  • Direct line to the team for technical confirmation — controls engineers and procurement specialists can get coil voltage and variant guidance before committing to an order

At-a-Glance Summary

  • Model: RXM4AB1P7 — Harmony Electromechanical Relay, miniature plug-in, 4 C/O, 6A per contact, 230V AC 50/60 Hz coil
  • Coil voltage is fixed at 230V AC 50/60 Hz — no configurable voltage options on this model
  • Contact rating: 6A per contact with silver alloy (AgNi) contacts; 100,000 electrical cycles under resistive load
  • Mechanical durability: 10,000,000 cycles; operating cycles rated up to 1,200 per hour under load
  • Dimensions: 79mm x 26.9mm x 78.45mm; net weight 37 grams
  • Operating temperature: -40°C to +55°C; storage temperature: -40°C to +85°C
  • Requires RXZE socket base — ordered separately; available in screw clamp, screw connector, or push-in terminal variants
  • Certifications: CE, CSA C22.2 No. 14, IEC 61810-1, UL 508, RoHS, REACH
  • Availability: non-stock at most distributors; typical order-to-delivery 2–4 weeks
  • Power consumption: 1.2 VA at 60 Hz
