Schneider Electric RXM4AB1BD — 24V 4PDT Relay Buyer's Guide

By Abdullah Zahid
16 min read

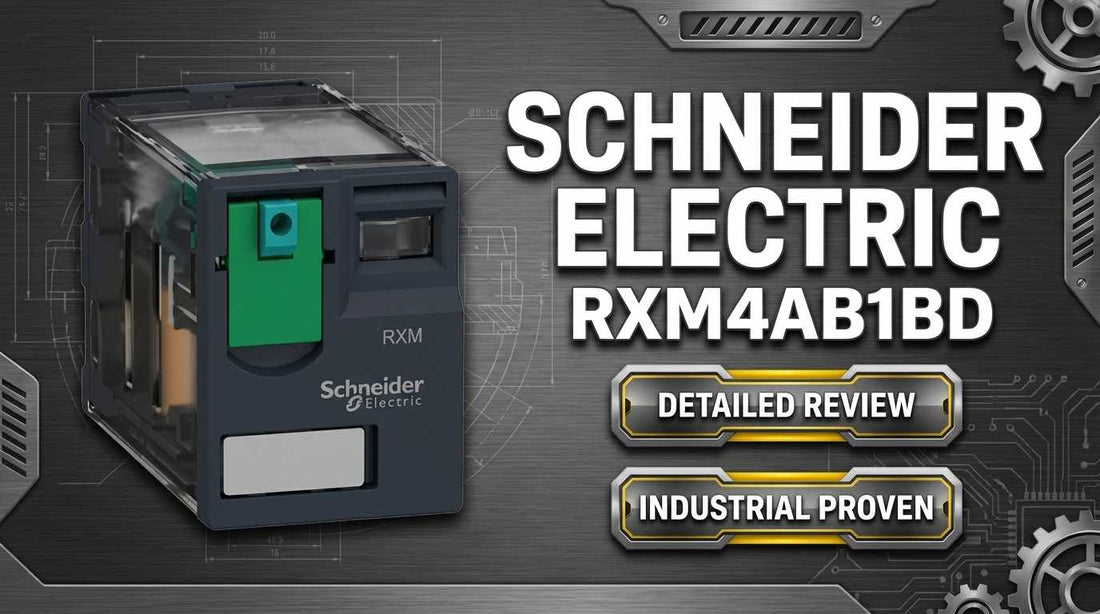

Schneider Electric RXM4AB1BD miniature plug-in relay 24V DC 4PDT for industrial automation control panels

Schneider Electric RXM4AB1BD Miniature Plug-in Relay, Harmony Electromechanical Relays, 6A, 4CO, Lockable Test Button, 24V DC — Specs, Price & Selection Guide

Controls engineers and panel builders searching for the Schneider Electric RXM4AB1BD are typically at the finish line of a design decision: the 24V DC logic voltage is confirmed, four independent switching circuits are required, and the only remaining questions are availability, socket compatibility, and whether this exact variant matches the application. The RXM4AB1BD is a miniature plug-in auxiliary relay in the Harmony RXM Series, rated 6A per contact with 4PDT (4 Form C changeover) configuration, operating on a 24V DC coil, and designed for socket-mount installation using a separately ordered RXZE base. At 21 x 40 x 27 mm, it fits dense automation panel layouts and includes a lockable test button and mechanical contact status indicator for on-panel diagnostics without additional tools.

If you have already confirmed this is the right part, check current pricing and availability for the RXM4AB1BD at LeadTime.ca — ships worldwide.

Who Should Buy the RXM4AB1BD — and Who Shouldn't

The RXM4AB1BD is the right choice for engineers and integrators building or maintaining 24V DC automation panels where four independent switching circuits are needed from a single relay. It is a direct fit when all of the following are true:

  • Your control logic runs on 24V DC — not 24V AC, 12V DC, 110V AC, or 230V AC
  • You need 4PDT (4 Form C changeover) contact configuration for interlocking, indication, or output expansion
  • No individual contact will exceed 6A at 250V AC or 28V DC under worst-case simultaneous load conditions
  • Your panel design uses or can accommodate RXZE socket-mount bases (screw clamp or push-in terminal options)
  • Operating ambient temperature stays within -40 to +55°C
  • You are standardizing on the Harmony RXM ecosystem or replacing an existing RXM relay in a Schneider Electric installation

If your application requires a coil voltage other than 24V DC, switching current above 6A per contact, or an IP rating higher than IP40 for washdown or high-moisture environments, this is not the correct variant. The RXM4AB2BD covers higher switching specifications within the same family, and alternate RXM coil voltage versions address 110V AC and 230V AC panel designs.

On this page:

What the RXM4AB1BD Actually Does in a Control Panel

The Schneider Electric RXM4AB1BD functions as a slave relay — it sits between a PLC output or 24V DC logic circuit and the load circuits that need to be switched. When the coil receives its 24V DC control signal, all four independent changeover contact sets operate simultaneously, allowing the relay to switch up to four separate load circuits at up to 250V AC or 28V DC per contact. Each contact handles 6A, making it suitable for switching solenoids, pilot lights, motor interlock circuits, and alarm outputs without requiring an external protection device for most rated industrial loads.

The 650 ohm coil resistance draws approximately 37 mA from the 24V DC supply, and the 1.1W power consumption per relay is low enough that engineers can calculate total control panel coil load accurately for power supply sizing. The lockable test button allows a technician to manually operate the relay and verify all four contacts without applying a live control signal, and the mechanical indicator displays contact state visually — both features that reduce troubleshooting time during panel commissioning and field maintenance. With 100,000 resistive switching cycles at rated 6A load, the relay supports high-frequency switching applications over an extended service life.

The plug-in socket architecture, using the separately ordered RXZE base, means a failed relay can be swapped in the field in seconds without rewiring the control panel. The 21 x 40 x 27 mm form factor allows dense relay mounting on DIN rail, a practical advantage in panels where space is constrained by safety relays, terminal blocks, and PLC I/O modules competing for the same real estate.

Typical System Architecture for the RXM4AB1BD

The RXM4AB1BD sits in the signal translation layer between the PLC or logic controller and the physical loads in the panel. It receives a 24V DC command and delivers isolated contact closures to downstream devices.

  • PLC or logic controller output module supplies 24V DC signal to the RXZE socket coil terminals
  • RXZE socket base (screw clamp or push-in terminal type) provides the mechanical mounting and electrical connection point for the relay
  • RXM4AB1BD relay plugs into the RXZE socket, with coil energized by the PLC output signal
  • Four independent changeover contact sets switch downstream loads: motor interlock circuits, solenoid valves, pilot lights, alarm relays, or secondary relay coils
  • Load circuits run back to motor control center, field devices, or status indication panel at up to 250V AC or 28V DC per contact

Typical Applications and Deployment Scenarios

The RXM4AB1BD is specified most frequently in machine automation panels where a PLC output module needs to drive multiple load circuits that exceed the PLC's direct output current capability or require electrical isolation. In packaging lines and material handling conveyors, the relay buffers PLC outputs from solenoid banks, preventing noise from inductive loads from feeding back into the controller's digital outputs.

In HVAC and building automation panels, the relay is used for interlock logic — preventing simultaneous operation of conflicting damper actuators or fan starters, and driving status pilot lights for facility monitoring dashboards. The 4PDT configuration gives the engineer maximum flexibility to implement multiple interlock conditions from a single relay footprint.

Motor control centers use the RXM4AB1BD for auxiliary contact expansion on contactor circuits, adding status feedback, remote indication, and hard-wired backup logic paths. In safety-adjacent applications, the relay provides fail-safe backup logic when the PLC is offline, since the changeover contacts can be wired to maintain a known machine state under de-energized conditions.

Maintenance teams replacing failed Zelio RXM relays in existing Schneider Electric installations specify the RXM4AB1BD as a direct socket-compatible replacement, reducing the risk of wiring errors or panel rework during emergency maintenance cycles.

Application Typical Deployment
PLC output expansion in packaging lines Relay buffers PLC 24V output to drive solenoid bank; 4 contacts switch 4 independent solenoid circuits
Motor interlock circuits in MCC panels Relay prevents simultaneous forward/reverse starter commands; NC contact in each direction blocks conflicting command
HVAC building automation control panels Relay switches damper actuators and fan starters; drives pilot lights for facility status indication
Status indication and alarm relay Relay drives remote alarm circuits and pilot light panels based on machine state signal from PLC
Hard-wired backup logic for PLC offline scenarios Relay wired in fail-safe configuration to maintain safe machine state when PLC output is de-energized
Signal isolation in industrial automation panels Relay decouples high-noise inductive load circuits from sensitive PLC analog input circuits

Purchase-Decision Specifications and Variant Comparison

Specification Value
Coil Voltage (Nominal) 24V DC
Coil Resistance 650 ohm (~37 mA pickup current)
Contact Configuration 4PDT — 4 Form C changeover (4CO)
Contact Current Rating (Per Contact) 6A at 250V AC or 28V DC
UL Contact Rating 277V AC / 30V DC under UL standard
Contact Material Silver Nickel (AgNi) — suitable for inductive and resistive loads
Cycle Life (Resistive Load) 100,000 cycles at rated 6A
Power Consumption (Coil) 1.1W per relay
Dimensions (W x H x D) 21 x 40 x 27 mm
Operating Temperature Range -40 to +55°C

Full technical specifications are available on the product page at LeadTime.ca.

Model Coil Voltage Contact Configuration Current Rating When to Choose
RXM4AB1BD 24V DC 4PDT (4CO) 6A per contact Standard 24V DC panels requiring 4 independent switching circuits
RXM4AB2BD 24V DC 4PDT (4CO) Higher switching specification Applications requiring higher contact current than 6A
RXM3AB Multiple coil options 3PDT Higher current rating Fewer contacts needed but higher per-contact switching current required
RXM2LB2BD 24V DC 2PDT (2CO) Lower current rating Simpler applications needing only 2 contact sets at lower current
RXM4AB — 110V AC variant 110V AC 4PDT (4CO) 6A per contact Panels where control voltage is 110V AC, not 24V DC
RXM4AB — 230V AC variant 230V AC 4PDT (4CO) 6A per contact European or legacy North American panels operating on 230V AC control circuits

If your application requires switching current above 6A per contact, the RXM4AB2BD or RXM3AB is the correct upgrade path — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the RXM4AB1BD the Right Relay for Your Project?

The Schneider Electric RXM4AB1BD earns its place as the default 24V DC auxiliary relay in automation panels not because it outperforms every alternative on raw specifications, but because it eliminates specification risk for engineers standardizing on the Harmony RXM ecosystem. The 4PDT configuration gives maximum circuit flexibility from a 21 x 40 x 27 mm footprint, the 100,000 resistive cycle life is adequate for the vast majority of industrial switching duties, and the 1.1W coil consumption makes power supply load calculation straightforward. The lockable test button and mechanical indicator are practical features that experienced panel builders genuinely use during commissioning and field fault-finding — they are not marketing checkboxes. This relay is the right choice for controls engineers designing new 24V DC automation panels, systems integrators maintaining multi-site Harmony RXM standardization, and maintenance teams needing a verified socket-compatible replacement for an existing Zelio RXM installation.

Where the RXM4AB1BD has real limits, honesty matters. The IP40 enclosure rating means it is unsuitable for washdown environments, high-moisture settings, or outdoor installations without additional panel protection. The AgNi contact material is not appropriate for low-level signal switching below 50mA, where contact arcing and noise immunity concerns become relevant — solid-state alternatives are the correct choice for those circuits. If any single contact needs to carry more than 6A, or if your application requires simultaneous energization of all four contacts under loads that sum above safe derating thresholds, the RXM4AB2BD or RXM3AB is the correct upgrade. For projects where coil voltage is 110V AC or 230V AC, the alternate coil voltage variants in the RXM family resolve the mismatch without changing socket base or panel layout. And for cost-driven applications where Harmony RXM ecosystem standardization is not a factor, the price premium of this relay over generic alternatives deserves honest evaluation.

From a procurement standpoint, the RXM4AB1BD is normally stocked through authorized distributors globally, with typical lead times of 1 to 3 weeks for standard orders. The most important procurement discipline is ordering the RXZE socket base as a paired component in the same purchase order — confirmed to the correct terminal type (screw clamp or push-in) matching your panel control wiring method. Ordering the relay without the socket, or with a mismatched socket terminal type, is the single most common mistake that delays panel build timelines. Working with a specialist distributor who verifies socket compatibility at order intake eliminates that risk. View current pricing and availability for the RXM4AB1BD at LeadTime.ca, where the team can confirm socket pairing before your order ships worldwide.

For volume pricing, project-level BOM verification, or to confirm lead time before committing to a panel build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the RXM4AB1BD

Because published community discussion for the specific RXM4AB1BD model is sparse, the most valuable pre-order guidance comes from the technical constraints that generate the most expensive ordering mistakes in practice. The Harmony RXM family spans a wide range of coil voltages — 12V DC, 24V DC, 110V AC, and 230V AC variants all share similar physical form factors but are electrically incompatible with each other. The RXM4AB1BD is specifically the 24V DC coil version. Receiving a 24V AC or 110V AC variant into a 24V DC panel is a non-functional outcome that requires re-ordering, re-testing, and delayed commissioning. Engineers who have worked with this family consistently flag this as the point where procurement discipline matters most: the coil voltage must appear explicitly on the purchase order and be confirmed in the supplier acknowledgment before shipment.

The second area where specialist advice adds genuine value is socket base selection. The RXZE socket base is not included with the relay — it is a separate SKU, and it is available in two terminal configurations: screw clamp and push-in terminal. Neither version is a universal substitute for the other once the panel control wiring method has been committed in the design drawing. New engineers building their first Harmony RXM panel sometimes assume the relay self-mounts on DIN rail, arriving on-site without the socket base and facing an emergency expedited order. Experienced integrators specify both relay and socket as a paired BOM line item, with the terminal type explicitly noted. If the correct socket type for a specific installation is not immediately clear, LeadTime.ca's team can verify the requirement against the panel specification before the order is placed — which is exactly the kind of application support that separates a specialist distributor from a transactional catalogue supplier.

A third technical nuance that catches even experienced engineers is the 6A per-contact rating under simultaneous load conditions. The 6A figure is an individual contact limit, not a total relay capacity figure. An application with four solenoid circuits each drawing 2A appears safely within rating, but if all four contacts energize simultaneously under worst-case logic, the total thermal load on the relay housing and socket connections must be assessed. For applications where simultaneous multi-contact loads are a real operating condition, verifying against the derating guidance in the official Schneider Electric datasheet is the correct step — and if the worst-case scenario exceeds safe limits, upgrading to the RXM4AB2BD or using two relays to distribute the load is the right engineering decision, not an overspec.

Wiring and Installation Overview

Installation of the RXM4AB1BD follows a socket-first, relay-second sequence. The following overview covers the key requirements engineers must verify before and during installation. For full wiring diagrams and terminal pinout details, consult the official Schneider Electric RXZE socket datasheet and RXM4AB1BD technical documentation.

  • Mount the RXZE socket base on DIN rail or panel surface first; confirm the terminal type (screw clamp or push-in) matches the panel control wiring method before securing the socket
  • Connect 24V DC coil supply to the socket coil terminals observing polarity; install a 2 to 4A fuse or circuit breaker in-line on the 24V DC supply upstream of the socket — this is standard industrial practice and is not integral to the relay housing
  • Wire load circuits to the changeover contact terminal pairs (NO, NC, and COM for each of the 4 contact sets); verify no individual contact circuit will exceed 6A at 250V AC or 28V DC under worst-case simultaneous load conditions
  • Insert the RXM4AB1BD relay into the RXZE socket using the keyed alignment guide — no lateral force is required; push straight in until the relay seats flush with the socket face with no visible gap or tilt
  • Use the lockable test button to manually operate the relay before applying live 24V DC control signal; verify audible click, mechanical indicator movement, and correct contact state change on all four contact sets before commissioning load circuits

Compatible Socket Bases and System Expansion

The RXM4AB1BD requires a separately ordered RXZE socket base for all installations. The relay will not mount on alternative Schneider socket types. Two RXZE terminal configurations are available to match panel wiring method:

  • RXZE Screw Clamp Socket Base — standard for retrofit installations and panels using conventional screw terminal wiring; allows field terminal reconfiguration after installation
  • RXZE Push-in Terminal Socket Base — preferred for new panel designs; reduces wiring time and minimizes wiring error risk during panel build
  • 24V DC control supply with over-current protection (2 to 4A fuse or circuit breaker upstream of socket coil circuit) — not supplied with relay; required as standard panel design practice
  • Harmony RXM accessories — including relay marking labels, mechanical locking accessories, and DIN rail mounting clips — are available within the Schneider Electric Harmony RXM ecosystem and are compatible with the RXZE socket base

Wrong-Part Prevention Checklist

Before placing your order for the RXM4AB1BD, verify every item on this checklist. These are the exact points where ordering mistakes occur:

  1. Confirm coil voltage is 24V DC, not 24V AC or other voltages offered by Schneider in RXM family
  2. Verify socket type: this relay requires RXZE base socket (screw-clamp or push-in terminal options); ensure socket is ordered separately
  3. Check contact current requirement: confirm all 4 contacts will not exceed 6A load in worst-case scenario (e.g., if all 4 energized simultaneously)
  4. Confirm switching voltage: validate that no load exceeds 250V AC or 28V DC ratings
  5. Verify minimum order: RXM4AB1BD typically sold in packs of 10 units, not individual units; confirm quantity match
  6. Check contact material compatibility: Silver Nickel (AgNi) contacts suit most industrial loads; if switching low-level signal circuits (<50mA), verify against noise/reliability concerns

If any item on this checklist raises a question about your specific application, contact the LeadTime.ca team before ordering — confirming compatibility at the specification stage costs nothing; reworking a panel after the wrong part arrives costs project days.

Frequently Asked Questions

Can the RXM4AB1BD be installed without the RXZE socket base, or is there a self-mounting version?

The RXM4AB1BD is a plug-in relay and requires the RXZE socket base for all installations — there is no self-mounting or panel-mount variant for this relay. The RXZE socket is a separate SKU available in screw clamp and push-in terminal versions. Both relay and socket must be ordered together for a functional installation. Specifying both as a paired BOM line item is the standard practice among experienced integrators working with the Harmony RXM family.

What happens if all four contacts carry their maximum load simultaneously — is 6A per contact still safe?

The 6A rating applies to each individual contact. Whether simultaneous full-load operation across all four contacts remains within safe thermal limits depends on the specific load type and duty cycle, and engineers should consult the official Schneider Electric derating guidance for multi-contact simultaneous load scenarios. For applications where worst-case simultaneous current across all four contacts is a real operating condition, assessing the derating curve against your specific load profile before finalizing the design is the correct step. If the scenario exceeds safe limits, upgrading to the RXM4AB2BD or distributing load across two relays resolves the issue.

Is the RXM4AB1BD a direct socket-compatible replacement for other Harmony RXM relays already installed in a panel?

The RXM4AB1BD will mount in any existing RXZE socket base, making it a direct plug-in replacement for other Harmony RXM relays using the same socket type. However, before replacing a relay in an existing installation, verify that the coil voltage of the installed relay matches 24V DC — if the existing relay uses a different coil voltage variant, the RXM4AB1BD will not be electrically compatible even though it fits the socket physically. Confirm coil voltage from the existing relay's body label or panel drawing before ordering.

What does the mechanical indicator show, and how do I use it to read a fault condition?

The mechanical indicator on the RXM4AB1BD displays the current contact state visually without requiring a multimeter or diagnostic tool. When the relay coil is energized, the indicator moves to show contacts in the operated position. If the indicator shows operated state but the PLC output shows de-energized, a stuck or welded contact condition may be present. If the coil is energized but the indicator does not move, the relay may have failed mechanically. The lockable test button allows manual operation independent of the control signal, which isolates whether a fault is in the relay itself or in the upstream control circuit.

The RXM4AB1BD is listed as a pack of 10 — can I order a single unit?

The RXM4AB1BD is typically sold in packs of 10 units through standard distribution channels. Single-unit orders may be available through some distributors but can incur a surcharge or require a special order that extends lead time. For project quantities of 10 or more, standard pack pricing applies. For smaller quantities or to confirm current pack options, contact LeadTime.ca directly — the team can advise on current stock pack configurations and volume pricing tiers for larger orders.

Are AgNi contacts appropriate for all industrial switching applications, including low-current signal circuits?

Silver Nickel (AgNi) contacts in the RXM4AB1BD are well suited for resistive and inductive industrial loads in the range of typical automation switching duties. For low-level signal circuits carrying less than 50mA, AgNi contacts present concerns around contact arcing, oxide layer buildup, and noise immunity that can compromise signal reliability over time. For these applications, a solid-state relay or a relay with contacts rated for low-level signal service is the appropriate choice rather than the RXM4AB1BD.

Why Order From LeadTime.ca

  • Global shipping on industrial automation components including the full Harmony RXM relay family — no regional restrictions
  • Socket compatibility verification at order intake — the team confirms RXZE terminal type (screw clamp vs. push-in) matches your panel specification before the order ships
  • Volume pricing available on request for project quantities of 25 or more units — contact for current tiers
  • Sourcing support for hard-to-locate variants, alternate coil voltages, and matched relay-plus-socket kits that generic catalogue distributors do not pre-verify
  • Direct technical support for controls engineers validating specifications before committing to a panel design

At-a-Glance Summary

  • Coil voltage: 24V DC — not compatible with 24V AC, 12V DC, 110V AC, or 230V AC panel designs
  • Contact configuration: 4PDT (4 Form C changeover) — 4 independent switching circuits per relay
  • Contact current rating: 6A per individual contact at 250V AC or 28V DC (277V AC / 30V DC under UL standard)
  • Coil resistance: 650 ohm — approximately 37 mA pickup current from 24V DC supply
  • Power consumption: 1.1W per relay coil — use for control power supply load calculation
  • Cycle life: 100,000 resistive switching cycles at rated 6A load
  • Contact material: Silver Nickel (AgNi) — suitable for inductive and resistive loads; not for signal circuits below 50mA
  • Dimensions: 21 x 40 x 27 mm — compact form factor for dense automation panel layouts
  • IP rating: IP40 — not suitable for washdown or high-moisture environments without additional panel protection
  • Operating temperature: -40 to +55°C — no active cooling required within this ambient range
  • Mounting: plug-in socket — requires separately ordered RXZE base (screw clamp or push-in terminal options)
  • Minimum order quantity: typically sold in packs of 10 units — confirm current pack configuration with distributor
  • Includes lockable test button and mechanical contact status indicator for on-panel diagnostics
