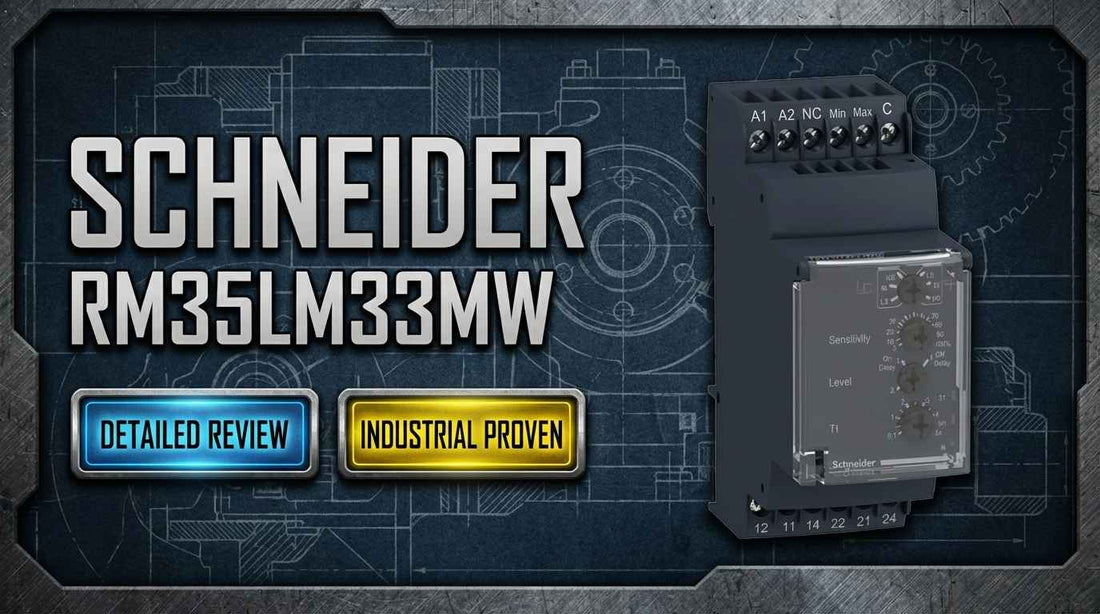

Schneider Electric RM35LM33MW Harmony Control Relay modular level relay mounted on 35mm DIN rail for industrial pump control panel

Schneider RM35LM33MW Level Control Relay — Specifications, Price and Selection Guide

Controls engineers specifying a modular relay for liquid level switching have a specific set of hard constraints to satisfy before a purchase order goes out: probe resistance range, contact rating, supply voltage, and panel footprint. The Schneider RM35LM33MW addresses all four within a single compact SKU — a 5A, 2-changeover-contact modular relay from the Harmony Control Relays series that accepts a 24–240V AC/DC supply and works with resistive probes across a 250 Ohm to 1 MOhm input range. If you are building a pump control panel, a sump alarm circuit, or an overfill prevention system and already know modular relays are your route, this is the model most buyers in that selection bracket end up evaluating first.

If you have already confirmed compatibility and are ready to move, check current pricing and availability for the RM35LM33MW at LeadTime.ca — we ship worldwide.

Who Should Buy the RM35LM33MW — and Who Shouldn't

The RM35LM33MW is the right choice for engineers and panel builders whose project satisfies all of the following criteria:

  • Your resistive probe measures between 250 Ohm and 1 MOhm — this is a hard input boundary, not an approximation
  • Your switching load does not exceed 5A per contact pair across the two changeover outputs
  • Your control panel supplies anywhere from 24V DC to 240V AC — the RM35LM33MW handles the full range under a single catalog number
  • You have a 35mm DIN rail slot available — the relay occupies a standard three-pole breaker footprint, which simplifies space planning in existing enclosures
  • Your process can tolerate a switching response delay adjustable between 0.1 and 5 seconds — this range covers most pump and alarm applications but is not suitable for fast-response safety-critical switching
  • Your control logic requires exactly 2 independent changeover contact pairs — not single-pole, not 4-contact configurations

If your load current exceeds 5A, look at the RM35LM41MX or a higher-capacity family member. If your process needs analog proportional output for continuous level monitoring rather than on/off switching, the RM35LA40U is the correct selection. If your sensors are capacitive, ultrasonic, or optical rather than resistive, you need a different product family entirely.

On this page:

What the RM35LM33MW Actually Does in a Control System

The RM35LM33MW is a modular measurement and control relay in Schneider Electric's Harmony Control Relays — Zelio Control family. Its core function is straightforward: it monitors the resistance presented by a liquid-contact probe, compares that reading against an adjustable threshold, and switches two independent changeover contact pairs to trigger a downstream control action. That action is typically a pump start or stop, a solenoid valve open or close, or an alarm relay activation.

The probe resistance input spans 250 Ohm to 1 MOhm, which covers the majority of standard conductivity probes used in water treatment, chemical storage, and industrial process tanks. The integrated adjustable time delay — set anywhere from 0.1 to 5 seconds — prevents false triggering caused by wave turbulence, splashing, or momentary probe emersion during fill cycles. Three front-panel LED indicators give the installer and maintenance technician an immediate read on power status, relay active state, and timer active state without connecting a meter, which materially reduces commissioning time on first installation and speeds fault diagnosis in service.

The 30-million electrical cycle rating is a specification worth noting at procurement. Many mid-tier modular relays in this footprint class do not publish cycle life at this level, and for continuous-duty applications like sump pumps or condensate drains that cycle multiple times per hour, contact longevity directly affects total panel lifecycle cost.

Typical System Architecture for Level Control Applications

The RM35LM33MW sits between the control power supply and the field output device — it is the switching intelligence layer that responds to a sensor signal and drives an actuator. Here is where it fits in a typical deployment chain:

  • Control power supply (24V DC to 240V AC) feeds the RM35LM33MW supply terminals directly on the DIN rail
  • Resistive liquid level probe connects to the relay's probe input terminals — the relay monitors resistance continuously against the set threshold
  • The RM35LM33MW's two changeover contact pairs connect to downstream devices such as a motor starter contactor, solenoid valve coil, or alarm annunciator
  • Optional: a PLC or SCADA input can monitor one contact pair for remote level status while the second pair drives the local actuator
  • LED indicators on the relay face give local maintenance staff visual confirmation of operating state without additional instrumentation

Where the RM35LM33MW Gets Installed — Industries and Use Cases

Municipal water treatment plants are among the most common deployment sites for the RM35LM33MW. Holding and distribution tank level control using resistive probes is a well-established application, and the relay's dual changeover contacts support separate high-level and low-level switching actions — pump start on low, pump stop or overflow alarm on high — from a single module.

Wastewater collection systems use the RM35LM33MW for sump and wet well level control, where the adjustable 0.1–5 second delay is particularly valuable for filtering out the turbulence caused by incoming flow surges. Chemical storage and batch processing facilities value the relay for overfill prevention logic, where the 5A contact rating is sufficient to drive most standard solenoid valve coils and pilot relay coils.

In industrial machinery, coolant recirculation loops and compressed air condensate drain circuits are common installations. The adjustable delay allows the condensate timer interval to be matched to the compressor duty cycle without requiring a separate timer relay, reducing the module count in the panel.

Application Typical Deployment
Municipal water treatment Holding tank pump start/stop with dual high/low level contacts
Wastewater sump control Wet well level alarm and overflow prevention with delay filtering
Chemical storage tank Overfill prevention and low-level warning in batch process logic
Compressed air system Automatic condensate drain on adjustable timer delay cycle
Industrial machinery Coolant recirculation level monitoring with thermal protection integration
HVAC and building systems Condensate pan overflow detection and alarm switching

Purchase-Decision Specifications and Variant Comparison

Specification RM35LM33MW Value
Product Family Harmony Control Relays — Zelio Control
Supply Voltage Range 24–240V AC/DC
Probe Input Resistance Range 250 Ohm – 1 MOhm
Output Contacts 2 changeover (2CO)
Contact Current Rating 5A
Switching Delay Range 0.1 – 5 seconds (adjustable)
DIN Rail Mounting Width 35mm
Temperature Coefficient 0.5%/°C
Electrical Cycle Rating 30 million cycles
Status Indicators 3 LEDs: power ON, relay active, timer active

Full technical specifications are available on the product page at LeadTime.ca.

RM35LM33MW Variant and Alternative Comparison

Model Contact Rating Output Type Key Differentiator Choose When
RM35LM33MW 5A, 2CO Relay (on/off) Universal 24–240V supply, 35mm width Standard resistive probe switching up to 5A
RM35LM41MX Higher capacity Relay (on/off) Increased contact capacity Load current exceeds 5A per contact pair
RM35LA40U N/A (analog) Analog output Continuous proportional level signal Process requires analog level monitoring, not on/off switching

If your load current exceeds 5A or your application calls for continuous proportional output, neither the RM35LM33MW nor a simple relay variant is the right selection. Check current availability and compare options at LeadTime.ca before finalizing your specification.

Expert Verdict: Is the RM35LM33MW Worth Specifying?

The RM35LM33MW earns its place in a panel builder's standard component library for three concrete reasons. First, the 24–240V AC/DC supply range is genuinely useful — facilities running mixed 24V DC and 230V AC control panels can stock a single SKU and not worry about voltage variant errors at the point of installation. Second, the 35mm DIN rail footprint matching a standard three-pole breaker width means that fitting this relay into an existing enclosure rarely requires panel redesign or enclosure upsizing, which matters when retrofitting level control into a machine that was not originally designed with it. Third, the 30-million electrical cycle rating gives procurement teams a defensible lifecycle argument when a maintenance manager asks why a slightly higher-cost modular relay was selected over a generic alternative. This relay is right for the process control engineer or panel designer specifying a pump control, sump alarm, or overfill prevention circuit where the probe is resistive, the load is under 5A, and the available panel power could be anything from 24V DC to 240V AC.

The RM35LM33MW has real limits that buyers should not overlook. The 0.5%/°C temperature coefficient means that in outdoor installations or unheated buildings where the temperature swing exceeds 20°C between seasons, the resistance threshold will drift measurably and the relay will require recommissioning to maintain accurate switching. The 5A contact rating, while sufficient for most pilot relay and solenoid valve applications, rules out direct switching of larger motor loads — if your pump starter coil or valve actuator draws more than 5A, the RM35LM41MX is the correct part. And if your sensor is anything other than resistive — capacitive, ultrasonic, or optical — this relay's probe input simply cannot accept that signal type and you need a different product family entirely. Honest specification work means acknowledging these constraints before the order is placed, not after site installation.

On the procurement side, the RM35LM33MW is a well-established catalog number with stable global supply through authorized distributors. As a Zelio Control family part, it is not an obscure specialty item, but lead times on industrial automation components can shift with demand cycles, and confirming stock before committing a build schedule is always the right move. Buying through a specialist distributor rather than a gray-market channel ensures you receive a product with full manufacturer traceability and warranty coverage — both relevant when the relay is protecting a pump or process with real downtime consequences. View current stock status and pricing for the RM35LM33MW at LeadTime.ca, where the product ships worldwide from verified inventory.

For volume pricing on multi-unit builds or to confirm lead time before locking in a project schedule, contact the LeadTime.ca team directly — we ship worldwide and can advise on availability across Zelio Control family variants.

What Engineers Need to Know Before Ordering the RM35LM33MW

Community discussion around the RM35LM33MW in forums and distributor review platforms is sparse — this is a specialist modular relay that tends to be specified by engineers who are already familiar with the Zelio Control family and who consult manufacturer documentation and distributor technical support rather than general forums when questions arise. What the limited public discussion does surface consistently is a cluster of ordering and commissioning mistakes that experienced engineers avoid by doing a brief pre-order verification. The details below represent the most important of those, drawn directly from real-world procurement and installation experience with this model.

The most common ordering error is proceeding without physically verifying probe resistance. A digital multimeter reading of the installed probe with the probe immersed in the liquid is a five-minute check that eliminates the single most frequent cause of first-installation failure — discovering that the probe resistance is outside the 250 Ohm to 1 MOhm window only after the relay is mounted and wired. The second most common mistake is calculating load current after the order is placed. At 5A per contact pair, the RM35LM33MW is adequate for a wide range of pilot relay coils and solenoid valves but is not a general-purpose high-current switching relay — the current calculation should happen at the BOM stage, not at the wiring stage.

The temperature coefficient constraint is frequently underestimated in applications where the panel is in an unheated space or outdoors in a northern climate. The 0.5%/°C drift rate is not a nuisance factor — in an environment with a 30°C seasonal swing, it is enough to cause the relay to switch at meaningfully different liquid levels in January versus July unless the threshold is adjusted seasonally or the panel is thermally managed. Engineers who understand this upfront design the commissioning procedure to include a threshold verification at both installation temperature and expected operating temperature extremes. LeadTime.ca's technical team fields pre-order specification questions on exactly these kinds of application-specific constraints — reach out before ordering if your installation environment falls outside standard controlled panel conditions.

Wiring and Installation Overview

The following covers the key requirements for installing the RM35LM33MW. For full wiring diagrams and terminal assignment details, refer to the manufacturer's official product documentation.

  • Mount on a 35mm DIN rail (IEC 60715 compliant) — confirm 35mm width gap plus flanking clearance for terminal screwdriver access before installation
  • Supply voltage (24–240V AC/DC) connects to the designated supply terminals — verify the panel voltage matches the specification before energizing
  • Resistive probe cable connects to the probe input terminals — use shielded cable per manufacturer documentation and observe maximum cable length specifications to minimize electrical noise injection into the resistance measurement circuit
  • Two changeover contact pairs connect to downstream load circuits — verify each connected load does not exceed 5A and is correctly assigned to the intended switching action (pump control, alarm, valve)
  • After wiring, verify the three LED indicators: power ON LED confirms supply connection, relay active LED confirms output switching state, timer active LED confirms delay timing is running — use these as the primary commissioning check before process startup

Wrong-Part Prevention Checklist

Before placing your order for the RM35LM33MW, confirm each of the following points against your project documentation:

  1. Verify supply voltage available in control panel matches RM35LM33MW specification — document exact voltage (24V DC, 110V AC, 230V AC) before ordering and confirm on invoice
  2. Test liquid level probe resistance with digital multimeter — must fall within 250 Ohm - 1000 kOhm range, not outside
  3. Calculate total switching load current — must not exceed 5A per contact pair
  4. Confirm DIN rail mounting space available — measure 35mm gap plus flanking clearance for terminal access
  5. Verify 2 changeover contact configuration matches required control logic (not single pole, not 4-contact)
  6. Check temperature operating environment — 0.5%/C coefficient requires commissioning adjustment in applications with >20C temperature swings
  7. Confirm probe cable shielding and maximum length specifications — account for electrical noise, use shielded cable per documentation
  8. Identify LED indicator access on panel — RM35LM33MW provides 3 status LEDs (power ON, relay active, timer active)

If every item on this list checks out against your project requirements, the RM35LM33MW is your part. Confirm stock and place your order at LeadTime.ca — or contact our team if you need a second opinion on any of these compatibility points before committing.

Frequently Asked Questions

Can the RM35LM33MW work with the same probe at both 24V DC and 230V AC supply without changing any settings?

Yes. The 24–240V AC/DC supply range is handled internally by the relay — the probe input threshold, delay setting, and contact outputs operate consistently across the full supply voltage range. No jumper changes or reconfiguration are required when the same relay type is installed in panels with different supply voltages.

What happens if the probe resistance goes outside the 250 Ohm – 1 MOhm window?

The relay's input circuit is calibrated for the 250 Ohm to 1 MOhm resistance range. A probe presenting resistance outside this range — either a very low-resistance conductive probe or a very high-resistance non-conductive measurement — will not be interpreted reliably and may cause incorrect switching or no response. Test your probe resistance with a multimeter before installation; if it falls outside the window, this relay is not compatible with your sensor.

How do I prevent false triggering on a turbulent surface or splashing liquid?

The RM35LM33MW includes an adjustable time delay settable from 0.1 to 5 seconds. Increasing the delay filters out momentary probe emersion events caused by wave action, splashing, or incoming flow turbulence. Set the delay to the shortest value that eliminates spurious switching in your process — longer delays also extend the relay's response time to genuine level changes, so balance accordingly.

Is the RM35LM33MW a direct replacement for older Zelio Control level relays in an existing panel?

Verify terminal assignments, contact configuration (2CO), and supply voltage compatibility against the existing wiring before treating it as a direct drop-in. The 35mm DIN rail footprint is standard, but terminal numbering and wiring layout should be confirmed against both the new and old product documentation before any panel modification. Do not assume pin-for-pin compatibility without documentation verification.

How do the three LED indicators help during commissioning and fault diagnosis?

The power ON LED confirms the relay is receiving supply voltage — the first check if a relay appears unresponsive. The relay active LED shows whether the output contacts are in their switched state, confirming that the probe has crossed the threshold. The timer active LED illuminates during the adjustable delay period, helping the commissioning technician verify that the delay setting is active and timing correctly before the output switches.

Does the temperature coefficient of 0.5%/°C require any special handling in outdoor or unheated installations?

It requires active awareness during commissioning and seasonal maintenance. A 0.5%/°C drift means that in an installation where ambient temperature varies by more than 20°C between seasons, the effective resistance threshold at which the relay switches will change measurably. In critical level control applications, verify and readjust the threshold setting at both ends of the expected temperature range, or consult the manufacturer documentation for thermal compensation guidance.

Why Order the RM35LM33MW from LeadTime.ca

  • Authorized distributor stocking Schneider Electric Zelio Control components with full manufacturer traceability
  • Global shipping — orders placed from anywhere in the world are fulfilled with the same process and documentation standards
  • Pre-order technical support available for specification questions — contact the team before ordering if your application has edge-case compatibility concerns
  • Volume pricing available for multi-unit panel builds and ongoing MRO requirements — contact LeadTime.ca for a quote
  • View live pricing and current stock for the RM35LM33MW at LeadTime.ca

RM35LM33MW At-a-Glance Summary

  • Modular level control relay in the Schneider Electric Harmony Control Relays — Zelio Control family
  • Probe input range: 250 Ohm to 1 MOhm resistive — not compatible with capacitive, ultrasonic, or optical sensors
  • Supply voltage: 24–240V AC/DC — single SKU covers virtually all standard control panel voltages
  • Output: 2 independent changeover contact pairs rated at 5A each
  • Adjustable switching delay: 0.1 to 5 seconds for false-trigger suppression
  • DIN rail mounting: 35mm width — matches standard three-pole circuit breaker panel footprint
  • Electrical cycle rating: 30 million cycles — suitable for continuous-duty pump and valve switching
  • Temperature coefficient: 0.5%/°C — requires threshold adjustment in high-temperature-swing environments
  • 3 front-panel LEDs: power ON, relay active, timer active — support fast commissioning and fault diagnosis
  • Upgrade path: RM35LM41MX for higher contact current; RM35LA40U for analog proportional output
