Schneider Electric RSL1AB4BD — 24V DC Slim Relay Buyer Review

By Abdullah Zahid
14 min read

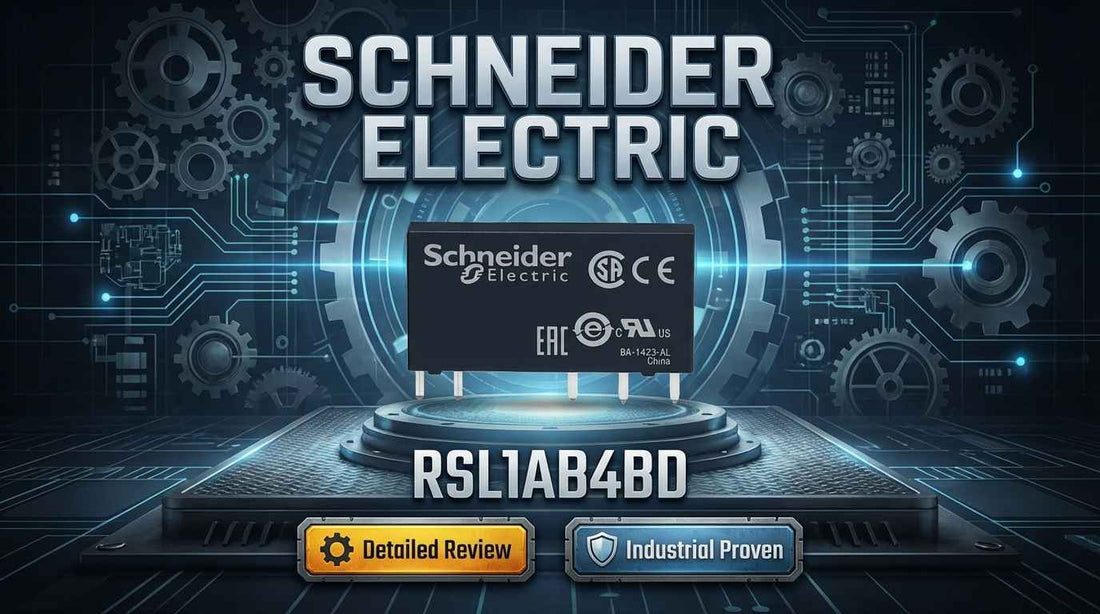

Schneider Electric RSL1AB4BD slim interface plug-in relay 24V DC 6A SPDT for industrial automation control panels

Schneider Electric RSL1AB4BD Slim Interface Plug-in Relay, Harmony Electromechanical Relays, 6A, 1 C/O (Changeover), Standard, 24V DC — Specifications, Availability, and Selection Guide

Controls engineers and panel builders searching for the Schneider Electric RSL1AB4BD typically arrive with a bill of materials in hand and one key question: is this the correct relay for this specific circuit? With a 24V DC coil, a single changeover (SPDT) contact rated at 6A, and a 0.24-inch slim profile that fits directly into the Harmony RSL socket-mount ecosystem, the RSL1AB4BD is one of the most specified slim interface relays in North American industrial automation. The decision hinges on two hard constraints — coil voltage and contact current — and both must be confirmed before the order is placed.

If you have already validated this is the right part for your application, check current pricing and availability for the RSL1AB4BD at LeadTime.ca — ships worldwide.

Who Should Buy the RSL1AB4BD — and Who Shouldn't

The RSL1AB4BD is the right relay when all of the following apply to your application:

  • Your control circuit operates on exactly 24V DC — not 24V AC, not 12V DC
  • You need one changeover contact (SPDT) to switch a single load circuit
  • Your load current does not exceed 6A, including inrush on motor or solenoid startup
  • Your panel uses a socket-mount Harmony RSL relay base and plug-in insertion is required
  • Your application demands UL 508, CSA C22.2 No. 14, or IEC 61810-1 compliance without a secondary approval process
  • Panel space is constrained and a 0.24-inch slim form factor is a design requirement

If you need two independent changeover contacts, the RSL2AB4BD is the correct selection. If your control supply is 24V AC, specify the RSL1AB7BD variant. If your load exceeds 6A, this relay is undersized — move to a contactor or a higher-rated general-purpose relay outside the RSL slim series.

On this page:

What the RSL1AB4BD Actually Does in an Automation Panel

The Schneider Electric RSL1AB4BD is an electromechanical plug-in interface relay — a device that sits between a low-power control signal and the field device it needs to switch. When a PLC output or logic controller energizes the coil at 24V DC, the relay closes or opens its single changeover contact, either completing or interrupting the load circuit up to 250V AC or 24V DC at 6A. It is not a contactor, not a protective device, and not a solid-state switch. It is a mechanically simple, electrically proven bridge between logic-level signals and real-world loads.

What makes the RSL1AB4BD a default specification choice for many integrators is not any single technical attribute — it is the combination of a standardized Harmony RSL slot-mount footprint, a 0.24-inch slim profile that preserves panel real estate, and compliance certifications that cover both the Canadian and US markets without additional approval work. The coil draws only 7.1 mA at 24V DC nominal, consuming 170 mW of operating power. In a panel populated with dozens of relays, that low draw materially reduces the total burden on the 24V DC control supply.

The relay's silver alloy (AgSnO2) contacts are rated for 10,000,000 mechanical cycles — a durability figure that places it well above lower-grade general-purpose alternatives in high-frequency automation duty cycles. Electrical durability ranges from 60,000 cycles at full 6A resistive load to 2,000,000 cycles at lighter loads, which means the actual service life in a given installation depends entirely on what the contacts are switching and how often.

Typical System Architecture for the RSL1AB4BD

The RSL1AB4BD sits between the PLC digital output module and the field device, acting as the electrically isolated switching bridge in a 24V DC control system.

  • PLC or logic controller — provides the 24V DC control signal that energizes the relay coil
  • Harmony RSL socket-mount base (e.g., RSLLZ series) — the panel-mounted base into which the RSL1AB4BD plugs directly
  • RSL1AB4BD relay — coil terminals A1/A2 receive the control signal; contact terminals 11 (common), 12 (NO), and 14 (NC) connect to the load circuit
  • External circuit protection (fuse or circuit breaker) — required on the load side; the RSL1AB4BD provides no internal protection
  • Field device (motor starter, solenoid valve, indicator lamp, HVAC actuator) — switched by the relay contacts at up to 250V AC or 24V DC, 6A maximum

Industries and Applications Where This Relay Is Deployed

In discrete manufacturing environments, the RSL1AB4BD is a standard component in motor starter logic circuits — switching the coil of a starter contactor based on a PLC output signal in pump, fan, and conveyor automation. The 6A contact rating comfortably handles contactor coil currents, and the 10,000,000 mechanical cycle life supports the repetitive switching demands of production line logic.

Process automation and water/wastewater treatment plants use this relay as a PLC output bridge for solenoid valve control, where the 24V DC control signal from a distributed I/O system must switch a 120V AC or 24V DC solenoid. The coil-to-contact dielectric strength of 4000V AC provides the isolation level that process safety requirements demand.

HVAC retrofit projects represent a strong application fit for the RSL1AB4BD precisely because of its 0.24-inch slim profile. Retrofit enclosures rarely have the depth or width budget of a new-build panel, and fitting a conventional full-width relay into a retasked enclosure often requires a larger cabinet. The slim RSL form factor resolves that constraint without sacrificing the UL and CSA compliance that commercial building codes mandate.

In pharmaceutical and food and beverage facilities, the combination of IEC 61810-1 compliance, RoHS compliance, and IP40 environmental protection covers most standard installation environments. Machine guard interlock circuits and alarm output relays in process control cabinets are common deployments in these regulated industries.

Application Typical Deployment
Motor starter logic (pump/fan) PLC output to starter contactor coil in 24V DC control panel
Solenoid valve switching 24V DC PLC output bridged to 250V AC solenoid via relay contact
Machine guard interlock Safety relay circuit with single changeover contact for de-energize-to-trip logic
HVAC building automation Space-constrained retrofit enclosure; on/off switching of damper actuator or lighting circuit
Process alarm output Control cabinet alarm relay for indicator lamp or audible alarm at 250V AC, under 6A
Packaging equipment High-frequency discrete I/O switching in compact machine control panel

Key Specifications and Variant Comparison for the RSL1AB4BD

Parameter Value Notes
Contact Configuration SPDT — 1 C/O (Changeover) Single pole double throw; one common, one NO, one NC
Coil Voltage (Nominal) 24V DC Exact 24V DC only; not compatible with 24V AC
Coil Operating Range 18 to 33.6V DC Acceptable supply variation for reliable coil pickup
Coil Resistance at 23°C 3.39 kOhm (±15%) Coil current 7.1 mA at 24V DC nominal
Operating Power 170 mW (0.17W) Low draw supports multi-relay control panels
Contact Current Rating (Max) 6A Maximum load current; inrush must not exceed this
Contact Voltage (Max) 250V AC / 24V DC Load-side switching voltage limits
Mechanical Durability 10,000,000 cycles Total rated mechanical life
Ambient Operating Temperature -40 to +55°C Full operational range per manufacturer specification
IP Rating / Compliance IP40 / UL 508, CSA C22.2 No. 14, IEC 61810-1 Covers North American and international industrial requirements

Full technical specifications are available on the product page at LeadTime.ca.

RSL1AB4BD vs. Harmony RSL Variants and Alternatives

Model Contact Config Coil Voltage Contact Current Slim Profile Best For
RSL1AB4BD (This Model) SPDT — 1 C/O 24V DC 6A Yes (0.24 inch) Single load switching in space-constrained 24V DC panels
RSL2AB4BD 2 x SPDT — 2 C/O 24V DC 6A Yes (0.24 inch) Dual load switching or interlocking logic; same coil voltage
RSL1AB7BD SPDT — 1 C/O 24V AC 6A Yes (0.24 inch) Single load switching where control power is 24V AC
General-Purpose Relay SPDT — 1 C/O 24V DC 6A No (wider body) Budget applications where panel space is not constrained
Competitor Slim Relay SPDT — 1 C/O 24V DC 6A Yes OEM brand preference; verify UL/CSA certifications before substituting

If your application requires two independent changeover contacts, the RSL2AB4BD is the direct upgrade within the same Harmony RSL base footprint — check current availability and compare variants at LeadTime.ca.

Expert Verdict: Is the RSL1AB4BD Worth Specifying?

The RSL1AB4BD earns its place as a default specification choice for a specific and well-defined buyer profile: panel builders and systems integrators who are working within the Harmony RSL base ecosystem, need 24V DC coil operation, and are switching single loads at or below 6A in space-constrained enclosures. The 10,000,000 mechanical cycle rating and 170 mW coil power consumption are not marketing figures — they translate directly to reduced relay replacement frequency in continuous-duty automation environments and lower aggregate control supply loading in multi-relay panels. The three-standard compliance package (UL 508, CSA C22.2 No. 14, IEC 61810-1) eliminates a paperwork step that can add days to a panel certification timeline. For an OEM designing HVAC retrofit equipment, a facilities team maintaining pump motor starter logic, or an integrator replacing relays in an existing Harmony base without rewiring, this relay is the straightforward, low-risk choice.

Where the RSL1AB4BD has genuine limits: it is a single-contact relay in a world where many interlock and logic circuits require two independently switched outputs. If your schematic calls for two changeover contacts, order the RSL2AB4BD — adding a second RSL1AB4BD to compensate costs more in panel real estate and BOM complexity than the single upgrade. Similarly, if your control voltage is 24V AC, this relay will not energize reliably; the RSL1AB7BD is the correct variant. And if your load current approaches or exceeds 6A including inrush, the RSL1AB4BD will fail — not gradually, but abruptly, with welded or pitted contacts. Inrush current on motor loads can spike two to five times the steady-state draw; always calculate the peak, not just the nameplate current, before finalizing the relay selection.

From a procurement standpoint, the RSL1AB4BD is normally stocked through major industrial distributors in North America, which means project timelines are not typically at risk from this component. That said, confirming live stock before freezing a design is always the right call — supply patterns shift, and a relay that is in stock today may be on a three-week lead time during a surge period. Buying through a specialist distributor like LeadTime.ca adds pre-sales technical validation — socket base compatibility, coil voltage confirmation, load current review — that a general marketplace transaction does not. For automation work where a wrong-part error costs hours of downtime and a field return, that verification step is worth more than any unit cost difference. View current availability and pricing for the RSL1AB4BD at LeadTime.ca.

For volume pricing, project-quantity quotes, or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the RSL1AB4BD

The RSL1AB4BD does not generate a high volume of public forum discussion — and that silence is itself informative. Electromechanical relays with well-documented specifications and proven form factors rarely appear in troubleshooting threads because, when correctly specified, they simply work. The Harmony RSL series has been a fixture in North American automation panels long enough that most experienced integrators treat the selection process as routine. The relay fails predictably when pushed beyond its ratings and operates reliably for years when applied correctly. The 10,000,000 mechanical cycle rating and compliance with UL 508 and CSA C22.2 No. 14 are not claims that require community validation — they are verified manufacturer specifications drawn from official Schneider Electric documentation.

What the absence of community data does mean, practically, is that buyers who encounter a non-obvious application question — an unusual inductive load, a borderline current calculation, a socket base from an older panel series — are unlikely to find a ready answer in a forum thread. In those situations, the value of a technically capable distributor is direct and measurable. LeadTime.ca's team can confirm socket base compatibility for your specific panel configuration, review coil voltage against your control schematic, and flag load current risk before the order ships rather than after the relay fails in the field.

The ordering mistakes that do occur with this relay are not subtle — they are the same three errors that appear across the entire class of interface relays: ordering a 24V AC coil variant when the circuit is 24V DC, specifying a 6A relay for a load whose inrush current exceeds that ceiling, and installing the relay without transient suppression on an inductive load. None of these mistakes require a forum thread to diagnose after the fact. All of them are preventable with a five-minute schematic review before the order is placed. The Wrong-Part Prevention Checklist below covers each one explicitly.

Wiring and Installation Overview for the RSL1AB4BD

  • The RSL1AB4BD is a socket-mount plug-in relay — it inserts into a compatible Harmony RSL relay base (RSLLZ series) and requires no direct wiring to the relay body itself. All field connections are made at the base terminals.
  • Coil terminals A1 and A2 accept the 24V DC control signal; polarity matters — reversed polarity will not energize the coil. Confirm control circuit polarity against the base terminal diagram before insertion.
  • Load contacts are accessed at terminal 11 (common), 12 (normally open), and 14 (normally closed). Connect the load between 11 and 12 for NO operation, or between 11 and 14 for NC operation. Maximum load: 6A at 250V AC or 24V DC.
  • For inductive loads (contactors, solenoids, motors), a transient suppression device — rectifier diode or RC snubber — must be installed in parallel with the load. Without suppression, voltage transients on coil de-energization will arc across contacts and reduce electrical cycle life from millions of cycles to hundreds.
  • Before restoring control power, verify coil terminal connections with a multimeter and confirm continuity between load contact terminals as appropriate for the energized and de-energized states. Operating time from coil energization to contact make is 12 ms — account for this delay in fast-response logic sequences.

Compatible Bases and System Expansion

The RSL1AB4BD is a plug-in relay and requires a compatible Harmony RSL socket-mount base for installation. The relay itself carries no terminal connections — all wiring is completed at the base. Verify base compatibility before ordering the relay, particularly in retrofit applications where existing bases may be from an earlier Harmony series revision.

  • RSLLZ series relay bases — the standard socket-mount base family compatible with the Harmony RSL slim relay series; confirm specific base model against panel wiring diagram
  • RSL2AB4BD — the two-changeover-contact variant that occupies the same Harmony RSL base footprint; upgrade path when a second independent output is required without adding panel width
  • RSL1AB7BD — the 24V AC coil variant within the same RSL form factor; direct swap if control voltage changes from DC to AC

Wrong-Part Prevention Checklist Before Ordering the RSL1AB4BD

Before submitting a purchase order for the RSL1AB4BD, confirm each of the following — a single mismatch at order time is faster to resolve than a field return after commissioning:

  1. Verify coil voltage: this is 24V DC only. Does your control circuit supply exactly 24V DC? Check power supply output and circuit schematic.
  2. Count changeover contacts needed: RSL1AB4BD has exactly 1 C/O (SPDT). If you need 2 contacts, you need RSL2AB4BD, not this model.
  3. Check contact current rating: 6A maximum at 250V AC or 24V DC. Will your load (motor starter, solenoid, light bank) exceed 6A? If yes, this relay will not carry the current safely.
  4. Confirm mounting: this is a socket-mount plug-in relay. Your panel must have a compatible Harmony RSL relay base (e.g., RSLLZ...B). Do not attempt hardwired installation.
  5. Verify contact material compatibility: contacts are silver alloy (AgSnO2). Some low-power, resistive loads are safe; inductive loads (motors) require transient suppression. Confirm with your automation engineer.
  6. Lead time and stock: Normally stocked at major distributors in North America; verify with your distributor before committing to project timeline.

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — we can confirm compatibility and stock status before your order is placed.

Frequently Asked Questions

Can I use the RSL1AB4BD on a 24V AC control circuit?

No. The RSL1AB4BD coil is rated for 24V DC only, with an operating range of 18 to 33.6V DC. A 24V AC supply will not reliably energize this coil. If your control circuit operates on 24V AC, specify the RSL1AB7BD, which shares the same Harmony RSL form factor and 6A contact rating but carries a 24V AC coil.

What is the difference between the RSL1AB4BD and the RSL2AB4BD, and how do I choose?

The RSL1AB4BD provides one changeover contact (SPDT), allowing a single load circuit to be switched. The RSL2AB4BD provides two independent changeover contacts on the same 24V DC coil, enabling two separate load circuits to be switched simultaneously. If your logic requires two independent outputs — such as an interlock that must simultaneously open one circuit and close another — the RSL2AB4BD is the correct selection. If a single load is all that needs switching, the RSL1AB4BD is sufficient and the simpler choice.

How many switching cycles can I expect under a full 6A resistive load?

At the maximum rated load of 6A at 250V AC (AC-1 resistive category), electrical durability is rated at 60,000 cycles. At lighter loads, electrical cycle life extends up to 2,000,000 cycles. Mechanical cycle life — independent of electrical load — is rated at 10,000,000 cycles. The B10d reliability figure of 60,000 cycles means 90% probability of no electrical failure at that threshold under full-load conditions.

Does the RSL1AB4BD include built-in coil suppression or transient protection?

No. The RSL1AB4BD does not include internal transient suppression. For inductive loads — motors, solenoids, contactors — a suppression device such as a rectifier diode or RC snubber must be installed externally in parallel with the load. Omitting this on inductive loads will cause arcing at the relay contacts, drastically shortening electrical cycle life and causing premature contact failure.

What does it mean if the relay does not click when the control circuit is energized?

If 24V DC is confirmed present at coil terminals A1 and A2 but the relay does not produce an audible click and the load does not respond, the coil is likely failed — either open-circuit or shorted internally. Confirm coil voltage with a multimeter at the terminals, then manually press the relay plunger; if the load responds mechanically, the contacts are intact and the coil is the failed component. Replace the relay with a new RSL1AB4BD. Also verify coil polarity — reversed A1/A2 connections will prevent energization.

Is the RSL1AB4BD a direct plug-in replacement for an existing relay in a Harmony RSL base?

If the existing relay occupies a Harmony RSL socket-mount base and was originally a 24V DC, 1 C/O, 6A slim relay, the RSL1AB4BD is a direct plug-in replacement with no rewiring required. Confirm that the original relay's coil voltage and contact configuration match before inserting the replacement. If the original was a different coil voltage or contact count variant, select the matching RSL variant, not a direct substitution of the RSL1AB4BD.

Why Order the RSL1AB4BD From LeadTime.ca

  • Global shipping — LeadTime.ca fulfills orders worldwide, not limited to any single region or country
  • Pre-sales technical support — confirm socket base compatibility, coil voltage, and load current before the order ships, not after commissioning
  • Hard-to-find and normally stocked industrial automation parts sourced through verified channels
  • Volume pricing available — contact for project-quantity quotes and standing order arrangements
  • Fast response on stock status and lead time — critical for design freeze decisions and project scheduling

At-a-Glance Summary: Schneider Electric RSL1AB4BD

  • Coil voltage: 24V DC nominal, operating range 18 to 33.6V DC — not compatible with 24V AC
  • Contact configuration: SPDT, 1 changeover (C/O) — one common, one normally open, one normally closed
  • Maximum contact current: 6A at 250V AC or 24V DC — inrush current on inductive loads must not exceed this limit
  • Coil power consumption: 170 mW (0.17W) at nominal 24V DC; coil current 7.1 mA
  • Mechanical cycle life: 10,000,000 cycles rated; electrical cycle life 60,000 to 2,000,000 cycles depending on load
  • Form factor: 0.24-inch slim profile, socket-mount plug-in — requires compatible Harmony RSL relay base
  • Operating temperature: -40 to +55°C; IP40 protection; dielectric strength coil-to-contact 4000V AC
  • Compliance: UL 508, CSA C22.2 No. 14, IEC 61810-1, RoHS
  • Operating time: 12 ms from coil energization to contact make
  • Maximum switching rate: 72,000 cycles/hour no-load; 360 cycles/hour under full 6A load
  • Two-contact upgrade: RSL2AB4BD; 24V AC coil variant: RSL1AB7BD
