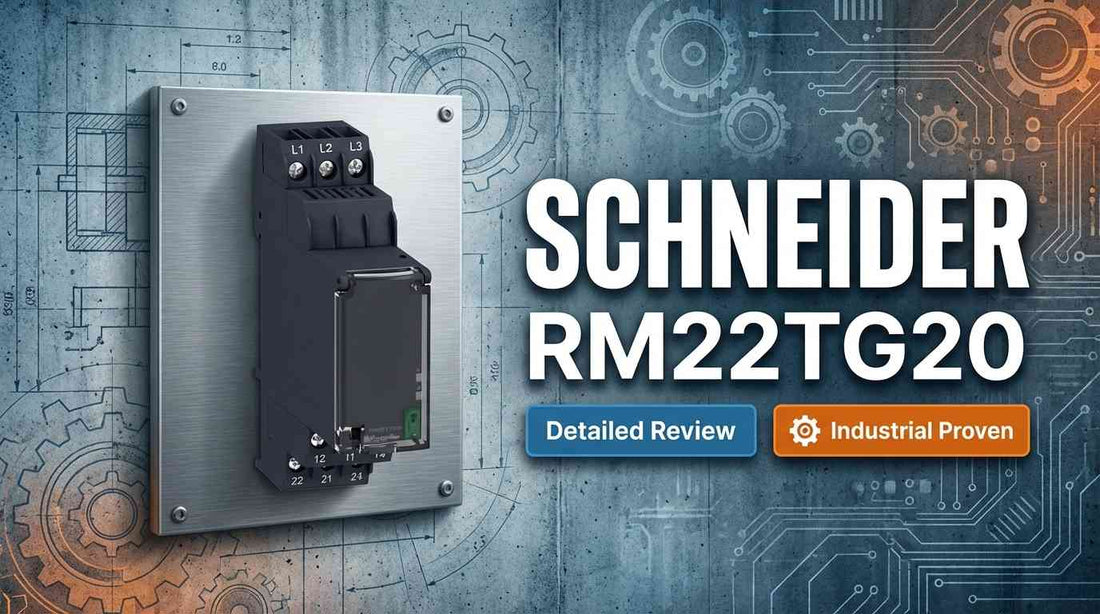

Schneider RM22TG20 Harmony modular 3-phase supply control relay 8A 2 C/O DIN rail mounted in industrial panel

Schneider RM22TG20 Harmony Modular 3-Phase Supply Control Relay, 8A, 2 C/O — Specifications, Selection, and Procurement Guide

Controls engineers and panel builders searching for the Schneider RM22TG20 are almost always solving the same problem: they need compact, reliable 3-phase supply monitoring in a panel where space is already spoken for. The RM22TG20 is a Harmony modular 3-phase supply control relay rated at 8A with 2 changeover contacts, a 183-528V AC input range, and a 22.5mm form factor that fits directly into the space of a standard 2-pole circuit breaker. If you are at the point of confirming specifications before placing an order, this guide covers every purchase-critical detail.

If you have already confirmed this is the right part, check current pricing and availability for the RM22TG20 at LeadTime.ca — we ship worldwide.

Who Should Buy the RM22TG20 — and Who Shouldn't

The RM22TG20 is the right choice for panel builders and controls engineers who need modular 3-phase monitoring with automatic shutdown capability in a space-constrained enclosure. It is the correct selection when all of the following apply:

  • Your 3-phase supply voltage is within the 183-528V AC range at the point of connection
  • You need exactly 2 changeover contacts for fault signaling and shutdown logic
  • The total controlled load through those contacts does not exceed 2000 VA or 8A
  • Panel space limits you to a 22.5mm wide module on a 35mm DIN rail
  • Automatic shutdown management on phase loss, reversal, or imbalance is a circuit requirement
  • A transparent cover for visual status and tamper protection is acceptable or preferred

If your application requires 1 C/O or 3 C/O contacts, operates below 183V AC, or needs integrated thermal overload protection in the same unit, the RM22TG20 is not the correct selection — consult the Harmony relay family for the appropriate variant before ordering.

On this page:

What the RM22TG20 Actually Does in a 3-Phase Control Panel

The RM22TG20 is not a general-purpose switching relay. It is a dedicated monitoring relay whose job is to watch the incoming 3-phase supply continuously and act immediately when something goes wrong. Specifically, it detects phase absence, phase sequence reversal, and voltage imbalance across all three phases. When any of those conditions breach the relay's threshold, its two changeover contacts switch state — triggering downstream alarms, stopping equipment, or activating backup systems depending on how the output circuit is wired.

What distinguishes this from a standard control relay is the automatic shutdown management capability. Rather than requiring PLC logic or a separate monitoring device to interpret a raw voltage signal, the RM22TG20 generates a direct, actionable output the moment a fault is detected. The transparent polycarbonate cover means a technician can read fault status visually without opening the panel door or removing the relay from the rail — a practical advantage in time-sensitive troubleshooting situations where every minute of downtime has a cost.

The 183-528V AC input range is worth pausing on. That span covers the full range of industrial 3-phase supply standards in active use worldwide: 380V used across much of Europe, 415V common in the UK and parts of Asia, and 480V standard in North American industrial facilities. One relay catalog number handles all of them, which simplifies both stocking and specification on multinational projects.

Where the RM22TG20 Sits in a Typical System Architecture

The RM22TG20 monitors the incoming 3-phase supply upstream of the equipment it protects, sitting between the main disconnect and the motor control or drive equipment it safeguards. Its changeover contacts feed downstream into the control logic.

  • Main 3-phase supply (incoming feeder) connects to the distribution panel
  • RM22TG20 taps L1, L2, L3 directly from the 3-phase bus or dedicated monitoring fuse set
  • Changeover contacts (2 C/O) wire to PLC digital inputs, alarm relays, or contactor coil trip circuits
  • Motor drives, variable frequency drives, or direct-on-line starters sit downstream of the monitoring point
  • On fault detection, relay outputs signal the control system to halt motor start or trigger emergency stop sequence

Industries and Applications Where This Relay Earns Its Place

In textile mills, the RM22TG20 monitors 3-phase supply to motor drives on looms and spindles. A single phase loss that goes undetected can overheat single-phasing motors within minutes. The relay's phase absence detection and automatic shutdown output stops the drive before thermal damage occurs.

Water treatment and pump station engineers specify this relay because pump motors are particularly vulnerable to phase reversal — running a three-phase pump in reverse can cause immediate mechanical damage. The RM22TG20's phase sequence reversal detection catches this condition at the incoming supply before the motor ever starts.

On packaging lines protecting servo drives and vision systems, the voltage imbalance threshold detection catches degraded supply conditions — not just outright phase loss — that would otherwise cause intermittent faults and difficult-to-diagnose production quality issues.

Lift and elevator applications use the relay to verify phase presence and sequence before the drive is permitted to start. If the main supply has a fault, the relay signals the door lock and alarm circuit rather than allowing an unsafe start. Industrial HVAC systems use it to prevent compressor start-up during voltage sag conditions that would stress the compressor motor from the first revolution.

Application Typical Deployment
Textile mill motor drives Phase absence detection on loom and spindle motor supply; automatic shutdown on single phase loss
Water treatment pump stations Phase sequence reversal detection before pump start; automatic failover relay output to standby pump
Packaging line equipment Voltage imbalance detection protecting servo drives; changeover contact triggers line stop signal to PLC
Lift and elevator systems Phase presence verification before drive enable; alarm and door lock circuit driven by C/O contact
Industrial HVAC compressors Voltage sag detection inhibiting compressor start-up; maintenance alert via second changeover contact
Material handling and hoisting Crane and hoist safety shutdown on phase loss; fault output to safety relay or PLC safety input

Purchase-Decision Specifications and Variant Comparison

Parameter Value Notes
Input Voltage (3-phase) 183-528V AC Covers 380V, 415V, and 480V industrial standards worldwide
Rated Switching Current 8A Continuous rating on changeover contacts
Switching Capacity 2000 VA Maximum combined load through changeover contacts
Maximum Switching Voltage (Output) 250V AC Do not exceed with controlled circuit voltage
Contact Configuration 2 Changeover (2 C/O) Fixed; not field-adjustable
Module Width 22.5mm Equivalent to standard 2-pole circuit breaker footprint
Height / Depth 80mm / 90mm Verify panel depth before installation
Net Weight 0.09 kg Per unit, without wiring
Mounting 35mm DIN rail Standard symmetrical rail; snap-on modular mount
Cover Type Transparent polycarbonate Tamper protection and visual fault status without relay removal

Full technical specifications are available on the product page at LeadTime.ca.

Requirement RM22TG20 Alternative (1 C/O variant) Alternative (3 C/O variant)
Number of changeover contacts 2 C/O 1 C/O 3 C/O
Input voltage range 183-528V AC Depends on variant Depends on variant
Switching capacity 2000 VA / 8A Varies by variant Varies by variant
Module width 22.5mm 22.5mm 22.5mm
Integrated thermal overload No (monitoring only) No No
Best for Dual fault signal and shutdown logic Single trip circuit Multi-trip or redundant outputs

If your application requires more than two changeover contacts or a different contact count, select the appropriate Harmony family variant before ordering — check current availability and confirm the correct model at LeadTime.ca.

Expert Verdict: Right Part, Wrong Part, and Procurement Reality

The RM22TG20 does one thing exceptionally well: it solves the compact 3-phase monitoring problem in space-constrained retrofit panels without requiring enclosure redesign. Its 22.5mm form factor, 2 changeover contacts, and 183-528V AC input range make it the natural specification for panel builders working on textile, packaging, lift, water treatment, and material handling projects where 3-phase motor protection is mission-critical and panel real estate is limited. The transparent polycarbonate cover and automatic shutdown management output mean commissioning time is shorter and fault diagnosis in service is faster than with traditional monitoring approaches requiring separate signal conditioning. Controls engineers designing safety-critical circuits where both fault detection and safe shutdown sequencing are requirements will find this relay reduces component count compared to using separate monitoring and control relays.

Where the RM22TG20 has real limits: it is strictly a monitoring relay, not an integrated protection and control unit. If the downstream load through the changeover contacts exceeds 2000 VA or 8A, a contactor must be inserted between the relay output and the load — this relay alone cannot handle heavy-duty switching duty. If your application is genuinely single-phase, this relay will nuisance trip on the absent phases and is the wrong choice entirely; a single-phase monitoring relay from the same Harmony family is the correct substitute. Applications below 183V AC or above 528V AC fall outside the rated input range and require a different relay family. Finally, if an integrated solution combining protection and control in one module is preferred, the RM22TG20's monitoring-only architecture means additional components are always required, which may not suit customers optimizing for minimal part count.

From a procurement standpoint, the RM22TG20 is a normally stocked item at specialist industrial automation distributors with typical lead times of 1 to 5 business days for in-stock orders. The 183-528V AC input range means a single SKU covers the voltage standards used across North America, Europe, and most of Asia — simplifying international sourcing. Ordering through a specialist distributor rather than a generic channel matters here because the most common ordering mistakes — wrong contact count, wrong voltage range, load exceeding 2000 VA — are exactly the kind of application-level mismatches a knowledgeable distributor catches before shipment rather than after installation. View current pricing and stock status for the RM22TG20 at LeadTime.ca — we ship worldwide and can confirm application fit before your order ships.

For volume pricing, project quantities, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the RM22TG20

Because the RM22TG20 is a specialist industrial component rather than a commodity relay, it generates minimal public forum discussion — experienced panel builders and integrators who use it typically do so as a confirmed specification, not as a topic for open debate. That pattern also means the common ordering mistakes come not from community-reported errors but from application mismatches that occur when buyers work from partial specifications. Based on the product's technical constraints and buyer profile, here is what knowledgeable distributors and integrators consistently flag as the critical points to resolve before placing an order.

The contact count is fixed at 2 C/O and is not field-adjustable. Engineers accustomed to specifying general-purpose relays where contact blocks can be added sometimes overlook this. If the application logic was drawn up expecting 3 trip outputs, the RM22TG20 requires either a rethink of the logic or selection of a 3 C/O variant from the Harmony family. Similarly, the 2000 VA and 8A switching capacity on those contacts is a hard ceiling — not a derating guideline. Engineers who route a contactor coil, a PLC input, and an alarm relay all through a single changeover contact without auditing the combined VA load risk contact erosion and nuisance dropout within months of commissioning.

The single most consequential pre-order check is confirming that all three phases of the incoming supply are genuinely present and within 183-528V AC at the intended monitoring point. The relay monitors what it sees at L1, L2, and L3 — if the supply at that point is already degraded, phase-absent, or outside range at the time of commissioning, the relay will respond to site reality, not the design intent. Running a live-site voltage measurement before wiring the relay prevents the majority of nuisance trip complaints reported during initial startup. When community data is sparse and application stakes are high, consulting a specialist distributor who can cross-reference your panel design against the relay's actual specifications is the most efficient path to a correct first-time installation.

Wiring and Installation Overview

  • Mount on standard 35mm symmetrical DIN rail — the 22.5mm module width seats alongside existing 2-pole circuit breakers without modification; verify the 90mm panel depth is available before snapping the relay onto the rail
  • Connect L1, L2, and L3 of the 3-phase supply to the labeled input terminals; ensure supply is de-energized and main disconnect is open before making any connections; use wire rated for the circuit (1.5-2.5mm² is typical for an 8A circuit)
  • Wire each changeover contact set using Common (Com), Normally Open (NO), and Normally Closed (NC) terminals per the application schematic; verify which contact state is active-normal and which is fault-active before commissioning
  • Verify that the total VA load connected through both changeover contacts combined does not exceed 2000 VA and that no single contact path carries more than 8A
  • After wiring, verify continuity with a multimeter before energizing — confirm NO contacts are closed under normal supply conditions and switch open on a simulated fault; consult the official Schneider RM22TG20 installation guide for full wiring diagrams and terminal assignments

Wrong-Part Prevention Checklist

Before finalizing your order for the RM22TG20, run through every item on this checklist. Skipping any one of these is the most common source of wrong-part returns and commissioning delays on this relay.

  1. Verify three-phase input voltage matches 183-528V AC range; wrong model if single-phase input required
  2. Confirm 2 changeover contacts (2 C/O) are sufficient; wrong model if 1 C/O or 3 C/O needed
  3. Check that 2000 VA switching capacity supports the controlled load; undersized if load exceeds this
  4. Verify DIN rail mounting compatible with panel (standard 35mm symmetrical rail assumed)
  5. Confirm modular width of 22.5mm fits available panel space (does not require custom bracket adapter)
  6. Check transparency requirement of cover (if tamper-evident design is non-negotiable, this model qualifies; transparent cover is standard)
  7. Confirm automatic shutdown logic is required; wrong choice if monitoring-only (output-only) function is needed
  8. Verify no integrated thermal overload protection required (this is a monitoring relay, not a thermal relay)

If any item on this checklist raises a question you cannot answer from your panel design documents, contact the LeadTime.ca team before ordering — we can cross-reference your application requirements against the full Harmony relay family and confirm the correct part number.

Frequently Asked Questions

Can the RM22TG20 be used on a 480V North American 3-phase supply without modification?

Yes. The 183-528V AC input range explicitly covers 480V, the standard industrial 3-phase voltage in North America, as well as 380V and 415V used in European and Asian markets. No modification, jumper selection, or voltage tap adjustment is required — the same relay catalog number operates across all of these supply voltages.

What happens if the load connected to the changeover contacts exceeds 2000 VA?

Exceeding the 2000 VA or 8A switching capacity rating causes contact arcing, accelerated contact erosion, and eventual nuisance dropout or contact welding. The relay does not derate gracefully — it degrades. If your downstream circuit exceeds this rating, insert a contactor between the relay's changeover contact output and the load; the relay then controls the contactor coil rather than the load directly.

Is the RM22TG20 a direct replacement for older Harmony RM22 series relays with the same contact count?

The RM22TG20 belongs to the Harmony modular relay family and shares the 22.5mm DIN rail form factor that has been consistent across the product line. Whether it is a direct drop-in replacement for a specific predecessor model depends on terminal layout and contact wiring — verify against the original wiring diagram before assuming a direct swap. Contact a Schneider-authorized distributor or consult the official Schneider compatibility documentation for the specific predecessor part number.

Can both changeover contacts be wired to independent circuits, or must they operate together?

Both changeover contacts switch simultaneously on a fault condition — they share the same monitoring input but provide two independent output circuits. This allows one contact to drive a PLC fault input while the second simultaneously triggers an alarm or contactor trip coil, without requiring additional relay logic. Each contact path is independently rated to the 2000 VA / 8A limit.

Does the RM22TG20 detect voltage imbalance as well as complete phase loss?

Yes. The relay monitors for phase absence, phase sequence reversal, and voltage imbalance across the three supply phases — not just complete phase loss. This makes it suitable for applications where degraded supply quality (unequal voltages between phases) needs to be caught before it causes motor overheating or drive faults, not only for hard fault conditions where a phase is entirely absent.

What does the transparent cover provide beyond aesthetics?

The transparent polycarbonate cover serves two functional purposes: tamper protection (the cover seals the relay settings from accidental or unauthorized adjustment) and visual fault status readout without removing the relay from the panel. A technician can read the relay's status indicator through the cover during a live-panel inspection, reducing mean time to diagnosis during troubleshooting without requiring panel shutdown.

Why Order From LeadTime.ca

  • LeadTime.ca ships the RM22TG20 worldwide — no single-region sourcing restriction
  • Specialist industrial automation focus means application-level support before shipment, not just order processing
  • Volume pricing available for project and panel builder quantities — contact for current pricing on multi-unit orders
  • Related components (terminal blocks, DIN rail, contactors) stocked to reduce secondary supply chain delays on complete panel builds
  • Pre-order application verification available — confirm the RM22TG20 is the correct Harmony variant for your voltage range and contact requirement before the part ships

RM22TG20 At-a-Glance Summary

  • Harmony modular 3-phase supply control relay rated at 8A with 2 changeover contacts
  • Input voltage range: 183-528V AC 3-phase — covers 380V, 415V, and 480V industrial standards worldwide
  • Switching capacity: 2000 VA maximum through changeover contacts; 250V AC maximum output switching voltage
  • Module width: 22.5mm — fits standard 2-pole circuit breaker space on 35mm DIN rail
  • Dimensions: 22.5mm wide, 80mm high, 90mm deep; net weight 0.09 kg
  • Detects phase absence, phase sequence reversal, and voltage imbalance — not limited to complete phase loss
  • Automatic shutdown management outputs fault signal directly to changeover contacts without external logic
  • Transparent polycarbonate cover provides tamper protection and visual fault status without relay removal
  • Not suitable for single-phase applications, loads exceeding 2000 VA, supply voltages outside 183-528V AC, or applications requiring integrated thermal overload protection
  • Verified application areas: textile mills, water treatment pump stations, packaging lines, lifts and elevators, industrial HVAC, material handling and hoisting equipment
