Schneider Electric RM17TG20 — 3-Phase Relay Selection Guide

By Abdullah Zahid
13 min read

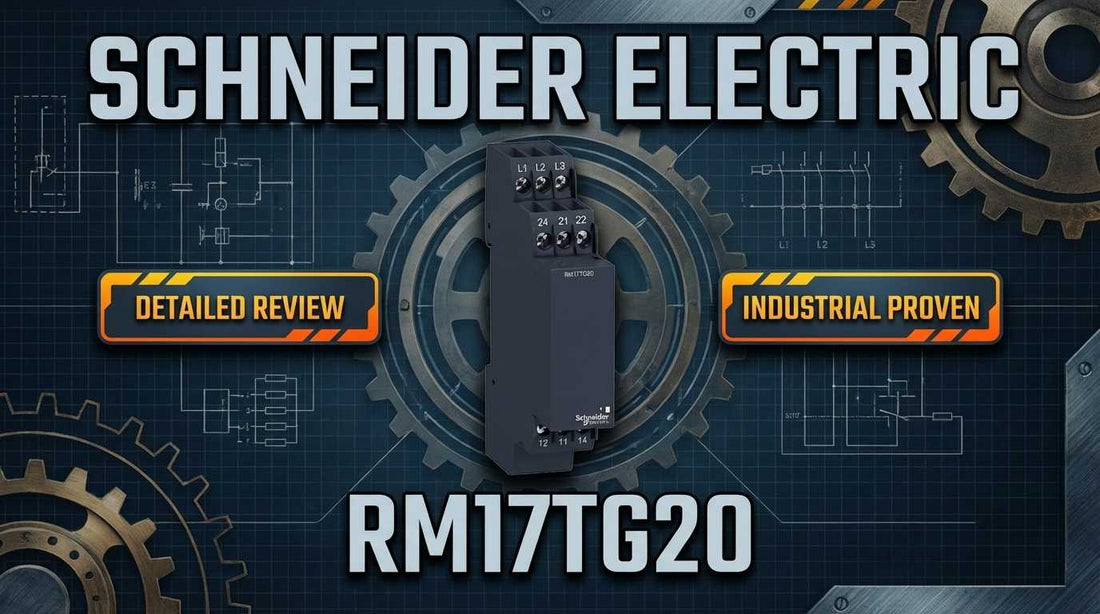

Schneider Electric RM17TG20 3-phase control relay DIN rail mounted in industrial control panel

Schneider Electric RM17TG20 3-Phase Control Relay, Harmony Control Relays, 5A, 2CO, 208-480V AC — Specifications, Pricing and Selection Guide

Control systems engineers and panel designers searching for the Schneider Electric RM17TG20 are typically at a decisive moment: they need to confirm that this specific relay matches their three-phase supply voltage, output contact requirements, and DIN-rail footprint before cutting a purchase order. The RM17TG20 is a modular 3-phase control relay in the Harmony Control Relays family, rated for 208-480V AC three-phase input, with a 5A 2CO output contact and a 0.69-inch DIN-rail width that matches a single-pole circuit breaker — making it one of the most space-efficient phase monitoring solutions available for crowded industrial panels.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the RM17TG20 — and Who Shouldn't

The Schneider Electric RM17TG20 is the right choice for panel designers, OEM machine builders, and maintenance teams who need integrated phase loss and phase sequence monitoring in a single compact DIN-rail module. It is specifically suited when all of the following apply:

  • Three-phase supply voltage falls within the 208-480V AC range (50/60 Hz)
  • Downstream load current does not exceed the 5A output contact rating
  • DIN-rail space of 0.69 inches is available without obstruction from adjacent modules or breaker covers
  • Panel enclosure supports IP20 or IP30 rated equipment
  • Application requires phase loss detection, phase sequence monitoring, or both in a single module
  • Screw clamp terminals are acceptable for the wiring gauge and installation team skill level

If your supply voltage falls outside 208-480V AC, if your load exceeds 5A, or if your application requires a plug-in contactor or field-swappable monitoring card approach, a different RM17 variant or a separate monitoring card plus external contactor configuration is the more appropriate solution.

On this page:

What the RM17TG20 Actually Does in Your Panel

The Schneider Electric RM17TG20 is a modular control relay from the Harmony Control Relays family whose specific job is to monitor three-phase power supply status and act on it. When the relay detects either a complete loss of one phase or an incorrect phase sequence, its output contacts de-energize immediately — triggering whatever downstream action the panel logic requires: shutting down a motor starter coil, activating an alarm circuit, or disabling a safety-critical load. This is not a general-purpose relay; it is a dedicated protective device for three-phase power integrity.

Two characteristics make the RM17TG20 a practical choice for panel designers working under space pressure. First, the 0.69-inch width matches the footprint of a standard single-pole circuit breaker, meaning it slots into an existing DIN-rail layout without forcing a panel re-design or a larger enclosure. Second, the integrated 2CO output contacts — rated at 5A — eliminate the need for a separate monitoring card and downstream contactor in the majority of motor protection applications, reducing wiring labor and the number of connection points that could introduce failure.

The relay accepts 208-480V AC three-phase at 50 or 60 Hz, covering the full range of North American industrial supply voltages as well as international 380-415V systems. Operating temperature range is -20 to +50 degrees C, and the transparent cover provides IP20 or IP30 protection without adding panel depth. Compliance certifications include CE, CSA, UL, RoHS, REACH, and IEC 60255-1, confirming it meets international safety and protective relay performance standards.

Typical System Architecture for Phase Monitoring

The RM17TG20 sits between the incoming three-phase supply and the motor starter or load circuit it protects, acting as the gatekeeper that validates power quality before allowing the downstream load to energize.

  • Incoming three-phase supply (208-480V AC, 50/60 Hz) connects to the main distribution panel or sub-panel
  • Circuit breaker or disconnect switch feeds the RM17TG20 coil input terminals directly from the three-phase bus
  • RM17TG20 continuously monitors phase presence and sequence; output contacts are held closed under normal conditions
  • Output contacts (5A, 2CO) drive the motor starter coil, alarm relay, or safety circuit — opening immediately on any detected fault
  • Thermal overload relay and contactor (separate devices) handle the main power switching downstream; the RM17TG20 controls the enable signal, not the load current itself

Where Engineers Deploy the RM17TG20

Pumping and circulation systems are among the most common applications. A phase loss on a three-phase pump motor without protection causes single-phase operation, rapid overheating, and winding failure. The RM17TG20 detects the missing phase and de-energizes the starter coil before damage occurs — a direct cost avoidance for any facility running continuous-duty pumps in water treatment, HVAC, or industrial process environments.

Multi-motor assembly lines and packaging systems use the phase sequence detection function. If three-phase phases arrive in the wrong order following maintenance or utility work, motors run in reverse. The RM17TG20 detects the incorrect sequence and prevents the line from starting, protecting both equipment alignment and product quality without requiring a separate phase sequence monitor.

Hoisting and lifting equipment integrates the RM17TG20 as a standard safety component. Reverse rotation in a hoist is a safety hazard, not just an equipment problem. Phase sequence protection at the panel level adds a hardware safeguard that operates independently of the PLC or controller logic.

OEM machine builders specify the RM17TG20 as a standard bill-of-materials component for motor protection circuits. Its wide supply voltage range (208-480V) means a single relay variant covers multiple customer site voltages, reducing the number of SKUs a machine builder must manage across their product line.

Application Typical Deployment
Three-phase pump motor protection RM17TG20 coil on incoming supply; output drives motor starter coil enable circuit
Multi-motor production line phase sequence check RM17TG20 monitors ABC phase order; prevents motor start on incorrect sequence
Hoist and lifting equipment safety Phase sequence detection prevents reverse rotation; integrates with emergency stop circuit
Building automation mains monitoring RM17TG20 on incoming three-phase supply; output enables load switching panel
OEM machine builder standard component Single relay variant covers 208-480V site voltages; reduces SKU count in machine BOM
Retrofit panel upgrade Screw clamp terminals allow integration into existing wiring with minimal rework

Key Specifications and How the RM17TG20 Compares to Alternatives

Parameter Value Notes
Coil Voltage 208-480V AC, 3-phase 50/60 Hz; covers North American and international supply voltages
Output Contact Rating 5A, 2CO form Two changeover contacts; apply actual load voltage to terminals
Output Power 0 to 22 VA Self-monitoring relay; minimal power consumption
Frequency 50/60 Hz Compatible with worldwide utility standards
Operating Temperature -20 to +50 degrees C Wide industrial range for harsh environments
Enclosure Rating IP20/IP30 Transparent cover included; dust protection without added panel depth
Mounting Type DIN rail Width: 0.69 inches (17.5mm); same footprint as single-pole circuit breaker
Terminal Type Screw clamp Field-serviceable; compatible with 12-18 AWG wire
Operating Position Any position Installation flexibility; no orientation constraint
Compliance CE, CSA, UL, RoHS, REACH, IEC 60255-1 Verified across manufacturer and authorized distributor sources

Full technical specifications are available on the product page at LeadTime.ca.

RM17TG20 vs. Alternative Phase Monitoring Approaches

Feature Schneider Electric RM17TG20 Phase Monitor Card Only Separate Monitoring Card + Contactor
Integration Single module — monitoring and switching combined Monitoring only; no switching Two separate components required
Output Contact Rating 5A (2CO) N/A — switching via external contactor Varies by contactor selection
DIN-Rail Footprint 0.69 inches — matches single-pole breaker Variable; often larger Approximately 2-3x the footprint
Phase Monitoring Function Built-in: phase loss and phase sequence Yes — monitoring only Requires separate device
Installation Complexity Moderate; direct DIN-rail mount Higher; external integration required Higher; multiple terminal connections
Total System Cost Baseline single-module cost Lower component cost; higher integration labor Higher total system cost
Maintenance Transparent cover; field-serviceable screw terminals Replacement required on failure Multiple failure points to inspect

If your load current exceeds the 5A output contact rating of the RM17TG20, the correct approach is to use the relay output to drive an external contactor rated for the higher current — check current availability and confirm fit at LeadTime.ca before committing your design.

Expert Verdict: Is the RM17TG20 Worth Specifying?

The Schneider Electric RM17TG20 is the right specification for panel designers, OEM machine builders, and maintenance engineers who need phase loss and phase sequence protection in a single, compact module that fits into a standard DIN-rail layout without demanding additional space. Its 0.69-inch width — matching a single-pole circuit breaker footprint — is a genuine, measurable advantage in panels where every millimeter of rail is accounted for. The 208-480V AC coil voltage range means one SKU covers North American 208V, 240V, and 480V systems as well as international 380V and 415V installations, reducing the specification burden for OEMs building machines for multiple markets. For pump protection, hoist control, and multi-motor line safety where single-phase operation is a known damage risk, the RM17TG20 performs its core function with IEC 60255-1 certified reliability.

Where the RM17TG20 has real limits: the 5A output contact rating is the primary constraint. If your motor starter coil draws close to or above 5A — unusual for standard IEC contactors but possible in older or non-standard equipment — you will need to add an external interposing relay or contactor downstream. The RM17TG20 is also the wrong choice if your supply is 12V or 24V DC, single-phase, or outside the 208-480V band; those applications require a different RM17 variant entirely. Buyers whose primary driver is the lowest possible component price and who are comfortable assembling a separate monitoring card plus contactor solution may find marginally lower component cost that way, though the wiring labor and additional failure points typically offset the saving at system level.

From a procurement standpoint, the RM17TG20 is a normally stocked item in North American industrial distribution, with typical availability ranging from same-day to two weeks depending on the distributor channel. For project-critical timelines, confirming stock status before committing your build schedule is essential — a distributor showing a listing is not the same as a distributor holding physical inventory. Ordering through a specialist industrial automation distributor gives you access to technical pre-sales support, lead time confirmation, and warranty handling that a generic channel cannot match. View current pricing and availability for the RM17TG20 at LeadTime.ca — stocking and shipping worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the RM17TG20

Community discussion of the Schneider Electric RM17TG20 is minimal across the major industrial automation forums — a pattern consistent with a mature, stable product in a component class that tends to work quietly and reliably when installed correctly. The absence of troubleshooting threads is not a knowledge gap; it reflects a relay that does not generate surprises when specified and installed properly. What it does mean is that the most useful pre-order intelligence comes not from community war stories, but from the specification discipline that separates a clean installation from a project delay.

The ordering mistakes that cause the most disruption with this product category are well documented by engineers who work with RM17-family relays regularly. Confusing the coil voltage rating is the most common: the RM17TG20 requires 208-480V AC three-phase at the coil input. Buyers occasionally request this model when their installation site runs 12V or 24V DC, or when they need single-phase monitoring — those are different RM17 variants entirely, and discovering the mismatch on delivery is an avoidable project delay. Similarly, misreading the output contact form (2CO, or two changeover contacts) versus a simpler form A or form B relay creates wiring problems that take time to diagnose after the fact.

The screw clamp terminal connection is the single most installation-critical detail. In vibration-heavy environments — hoisting equipment, pump skids, packaging machinery — a terminal that was hand-tight at commissioning can work loose within weeks under thermal cycling and mechanical vibration. The RM17TG20's screw terminals accept 12-18 AWG wire, and the correct practice is to crimp IEC wire ferrules onto all stranded conductors before insertion, then torque each terminal to approximately 1-2 Nm. Engineers who skip the ferrule step or rely on feel rather than torque measurement frequently encounter intermittent phase-loss response that is misdiagnosed as a relay fault. When community data is sparse on a specific model, the LeadTime.ca team serves as the pre-sales technical resource — available to cross-reference your panel single-line diagram against the RM17TG20 spec before your order is placed.

Wiring and Installation Overview for the RM17TG20

  • De-energize and lock out the three-phase supply at the main breaker before mounting the relay or connecting terminals; verify de-energization with a non-contact voltage tester
  • Connect the three-phase coil input leads (A, B, C phase order) to the corresponding coil input terminals using 12-18 AWG wire with IEC ferrules crimped on stranded conductors; torque each screw terminal to approximately 1-2 Nm
  • Connect output contact leads to the appropriate contact pair (NO, NC, or common) based on your control logic — confirm whether the application requires energize-to-operate or de-energize-to-alarm wiring before routing conductors
  • After energizing, verify the relay indicator confirms coil energization; simulate phase loss by temporarily opening one phase breaker and confirm the output contact responds as expected; repeat for all three phases
  • Inspect all terminals visually after commissioning to confirm no bare copper is visible outside the terminal housing; schedule a re-torque inspection at one week and one month post-installation in vibration environments

Wrong-Part Prevention Checklist Before You Order

Before placing your purchase order for the Schneider Electric RM17TG20, verify each of the following without exception:

  1. Confirm three-phase power supply coil voltage matches 208-480V AC range
  2. Verify output contact rating (5A) supports downstream load current
  3. Check DIN-rail width space (0.69 inches); confirm adjacent breakers or modules will not block cover
  4. Confirm panel enclosure type supports IP20 or IP30 rating
  5. Verify monitoring requirement: phase loss, phase sequence, or both needed
  6. Ensure terminal type (screw clamp) matches panel wiring gauge and installer skill level

If any item on this checklist cannot be confirmed, do not order until it is resolved. Contact the LeadTime.ca team to cross-reference your application requirements against the RM17TG20 spec — we can confirm fit before your order ships.

Frequently Asked Questions

Can the RM17TG20 directly drive a motor starter coil, or does it always require an external contactor?

The 5A output contact rating is sufficient to directly drive the coil of a standard IEC motor starter in most single-motor applications, as motor starter coils typically draw 1-2A at 208-480V. For larger multi-motor systems or any downstream load exceeding 5A, an external interposing contactor is required between the RM17TG20 output and the load circuit. Confirm the starter coil current draw against the 5A limit before finalizing your wiring design.

What is the practical difference between phase loss detection and phase sequence detection — do I need both?

Phase loss detection triggers the output relay when any single phase drops out completely, protecting motors from single-phase operation and the overheating and winding damage it causes. Phase sequence detection confirms that the three phases arrive in the correct A-B-C order, preventing reverse rotation in directional equipment such as pumps, hoists, and multi-motor lines. Pumping applications typically need phase loss protection; assembly lines and hoisting equipment often require both. Confirm which function your application demands before ordering — the RM17TG20 provides both in a single module.

Is the RM17TG20 rated for both 50 Hz and 60 Hz supplies?

Yes. The RM17TG20 is rated for operation at both 50 Hz and 60 Hz within the 208-480V AC three-phase coil voltage range. This makes it suitable for installations across North America, Europe, and other international markets. Confirm the local supply voltage falls within the 208-480V band as the primary check; frequency is not a limiting factor for most global deployments.

What happens if the output contact load exceeds 5A — does the relay shut down or does the contact simply fail?

Exceeding the 5A output contact rating does not cause a controlled shutdown — it risks contact welding or accelerated contact wear, which can result in the output contacts failing in either the open or closed position depending on load type. The correct practice is to keep the total connected load on the output contacts within the 5A rating at all times. If your load exceeds this, add an external contactor rated for the higher current and use the RM17TG20 to drive the contactor coil only.

What wire gauge and terminal torque does the RM17TG20 screw clamp accept?

The screw clamp terminals are compatible with 12-18 AWG wire. For stranded conductors, crimp IEC wire ferrules onto the stripped end before insertion to prevent individual strands from causing poor contact. Torque each terminal screw to approximately 1-2 Nm (0.7-1.5 ft-lbs). Avoid over-tightening, which can damage the terminal housing. Performing a final tug test on each lead and a visual check for exposed copper outside the terminal are both recommended steps before energizing.

Is the RM17TG20 a direct replacement for a failed phase monitoring relay from another RM17 variant?

Not automatically. The RM17 family includes variants with different coil voltages, contact configurations, and monitoring functions. Before treating the RM17TG20 as a direct swap, verify that the failed relay's coil voltage (208-480V AC three-phase), output contact form (2CO), and monitoring function (phase loss and/or phase sequence) match the RM17TG20 specification exactly. If the original relay was a different variant, the RM17TG20 may not be a direct electrical or functional equivalent. Contact LeadTime.ca to cross-reference your original part number.

Why Order the RM17TG20 From LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships the Schneider Electric RM17TG20 to customers worldwide, not limited to any single region
  • Pre-sales technical support — confirm model fit against your panel diagram before your order ships, avoiding the cost of wrong-part returns
  • Volume pricing available — contact for current pricing on multi-unit orders or OEM machine builder programs
  • Hard-to-find and normally stocked parts — specialist distributor with direct access to Harmony Control Relays inventory
  • Fast response on lead time confirmation — ask before committing your project timeline to a delivery date

At-a-Glance Summary

  • Model: Schneider Electric RM17TG20 — Harmony Control Relays family
  • Function: 3-phase control relay with integrated phase loss and phase sequence detection
  • Coil voltage: 208-480V AC three-phase, 50/60 Hz
  • Output contacts: 5A, 2CO (two changeover contacts)
  • Output power range: 0 to 22 VA
  • DIN-rail width: 0.69 inches (17.5mm) — matches single-pole circuit breaker footprint
  • Operating temperature: -20 to +50 degrees C
  • Enclosure rating: IP20/IP30 with transparent cover
  • Terminal type: Screw clamp, 12-18 AWG, torque approximately 1-2 Nm
  • Certifications: CE, CSA, UL, RoHS, REACH, IEC 60255-1
  • Primary applications: Pump motor protection, hoisting equipment, multi-motor assembly lines, building automation mains monitoring, OEM machine panels
  • Key constraint: Output contact limited to 5A — loads above this rating require an external contactor
  • Availability: Normally stocked in North American industrial distribution; ships worldwide through LeadTime.ca
