Schneider Electric RGZE1S48M — RXG2 Relay Socket Buyer Review

By Abdullah Zahid
13 min read

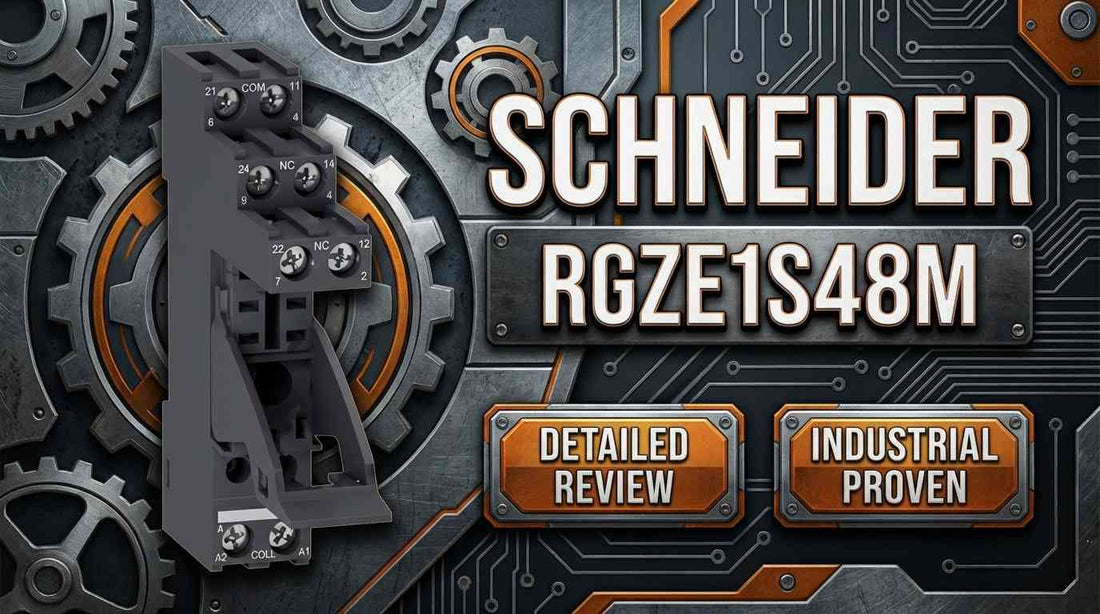

Schneider Electric RGZE1S48M DIN rail relay socket for RXG2 plug-in relays, 5A 250V screw terminal, Harmony series

Schneider Electric RGZE1S48M Socket RGZ — Separate Contact, 5 A, 250 V, Screw Connector for RXG2 Relays: Specifications, Compatibility, and Selection Guide

When a relay socket fails in a running motor control panel, the clock starts immediately. Engineers and technicians searching for the Schneider Electric RGZE1S48M need one thing fast: confirmation that this is the exact right part before they release a purchase order. The RGZE1S48M is a DIN rail relay socket in the Harmony Electromechanical Relays family, rated at 5 A and 250 V (IEC) with screw terminals, designed exclusively for RXG2 two-pole changeover plug-in relays. At 15.8 mm wide, it fits dense panel layouts where space is a hard constraint.

If you have already confirmed this is the correct part, check current pricing and availability for the RGZE1S48M at LeadTime.ca — ships worldwide.

Who Should Buy the RGZE1S48M — and Who Should Not

This socket is the right choice when all of the following conditions apply to your application:

  • Your plug-in relay is confirmed RXG2 (2-pole changeover) from the Harmony or Zelio relay family — not RXG1 or RXG4
  • Your circuit load current stays at or below 5 A per contact
  • Your circuit voltage is within 250 V (IEC) or 300 V (UL) rating
  • Your panel wire gauge falls within the screw terminal clamping range: 0.25–2.5 mm² flexible or 0.5–1.5 mm² solid
  • Your enclosure ambient temperature remains within the -40 to +70 C operating range
  • Your environment is dry and non-dusty, consistent with IP20 protection

If your load exceeds 5 A, the RGZE2M88 (10 A rated) is the correct Harmony line upgrade. If you need four-pole changeover logic, the RGZE4M88 is the appropriate alternative. Socket families across manufacturers are not cross-compatible — if your facility has standardized on a different relay brand, this socket will not accept those relays.

On this page:

What the RGZE1S48M Actually Does in a Control Panel

A relay socket is not a passive terminal block — it is the fixed, field-wired half of a two-part relay assembly. The RGZE1S48M mounts to a DIN rail and accepts all field wiring permanently through its screw terminals. The RXG2 plug-in relay clips into it from above, completing the electrical circuit. When a relay fails, the technician pulls the relay out and inserts a replacement in under five minutes without touching a single field wire. That is the core value proposition: the socket stays wired, the relay gets swapped.

The RGZE1S48M uses separate contact terminals, meaning the coil circuit and the load contact circuits are brought out to independent, clearly identified terminals. This arrangement allows a technician to probe each contact independently during troubleshooting without disconnecting live load wiring. The 6 kV impulse withstand voltage rating provides transient protection in environments with motor drives and switching loads — a realistic requirement in most manufacturing panels where voltage spikes are routine.

UL 508 and CSA C22.2 No 14 certification confirms this socket meets North American safety standards for industrial control panels, which eliminates compliance risk in regulated facilities and simplifies UL-listed panel documentation. The 15.8 mm width means you can fit multiple sockets side by side on a standard DIN rail without exceeding typical enclosure footprints.

Typical System Architecture for RXG2 Relay Sockets

The RGZE1S48M sits between the control signal source and the field load, acting as the mechanical and electrical interface that makes relay replacement non-destructive to field wiring.

  • PLC digital output or control logic device supplies the coil voltage signal (24 V DC, 110 V AC, or 230 V AC depending on RXG2 relay selected)
  • RGZE1S48M socket receives permanent field wiring at its coil terminals and contact terminals via screw connections
  • RXG2 plug-in relay inserts into the socket and completes the switching logic between coil activation and load contact closure
  • Load device (motor starter, solenoid valve, signal lamp, or alarm circuit) connects to the normally-open or normally-closed contact terminals on the socket
  • Multiple RGZE1S48M sockets mount side by side on DIN rail at 15.8 mm pitch, allowing high-density multi-channel relay logic in a single enclosure section

Where the RGZE1S48M Gets Deployed

In manufacturing and process automation, the RGZE1S48M appears most frequently in motor control panels handling pump sequencing, conveyor logic, and alarm annunciation. A typical installation runs several sockets side by side on a sub-rail, each controlling a discrete output channel. The tool-free relay swap capability is specifically valued here because maintenance windows are short and production restarts are time-critical.

Building automation and HVAC control panels use this socket for fan sequencing, damper control, and zone switching. The -40 to +70 C operating range covers the temperature extremes found in mechanical rooms and rooftop equipment enclosures, provided the IP20 rating is acceptable for the specific installation location.

OEM machinery builders — particularly in packaging equipment and test systems — specify the RGZE1S48M during new panel design when standardizing on the Harmony relay ecosystem. The compact 15.8 mm footprint allows high relay density in machine-mounted control boxes where cabinet space is a hard engineering constraint.

Field technicians carrying emergency spares for relay replacement at customer sites frequently stock this socket alongside RXG2 relays. Because the socket accepts all RXG2 coil voltages — 24 V DC, 48 V DC, 110 V AC, and 230 V AC — a single socket SKU covers most coil voltage scenarios encountered in the field, with the specific RXG2 relay selected separately to match coil voltage.

Application Typical Deployment
Motor control panel retrofit Replacing failed socket in existing 3-phase panel without panel decommissioning
New control enclosure design Modular socket bank for quick relay swap during commissioning and troubleshooting
OEM packaging machinery High-density DIN rail relay array at 15.8 mm pitch in space-constrained machine cabinet
Building automation / HVAC Fan and damper control circuits in mechanical room enclosures
Field service spares kit Emergency relay replacement at customer site without rewiring field terminals
Facility-wide panel standardization Upgrading mixed relay fleet to uniform Harmony RXG2 architecture across production floor

Key Specifications That Drive the Purchase Decision

Specification Value Notes
Rated Current 5 A Hard limit; contact overheating and welding occur above this
Rated Voltage (IEC) 250 V AC Standard international industrial voltage
Rated Voltage (UL) 300 V AC North American panel standard
Impulse Withstand Voltage 6 kV Surge and transient protection in motor-drive environments
Contact Configuration 2-pole changeover (DPDT) Normally-open and normally-closed per pole; RXG2 only
Terminal Type Screw (M3) Manual tightening; do not over-torque
Terminal Clamping (Flexible) 0.25–2.5 mm² (AWG 22–14) Use ferrule crimp on flexible wire ends
Terminal Clamping (Solid) 0.5–1.5 mm² (AWG 20–16) Standard industrial solid wire
Enclosure Rating IP20 Dry indoor use only; not suitable for wet or dusty environments
Dimensions (W x D x H) 15.8 x 73 x 77.5 mm DIN rail mount; compact for high-density panel layouts

Full technical specifications are available on the product page at LeadTime.ca.

RGZE1S48M vs. Other Harmony Sockets: Which One Do You Actually Need?

Feature RGZE1S48M RGZE2M88 RGZE4M88
Current Rating 5 A 10 A 5 A (dual)
Pole Configuration 2-pole changeover 2-pole changeover 4-pole changeover
Rated Voltage (IEC / UL) 250 V / 300 V 250 V / 300 V 250 V / 300 V
Footprint 15.8 mm width — smallest Larger than RGZE1S48M Larger than RGZE1S48M
Terminal Type Screw Screw Screw
Certifications UL 508, CSA C22.2 No 14, CE UL 508, CSA C22.2 No 14, CE UL 508, CSA C22.2 No 14, CE
Best For Standard motor control, relay replacement at ≤5 A High-current loads exceeding 5 A Multi-channel four-pole automation logic
Cross-Manufacturer Replacement Harmony family only Harmony family only Harmony family only

If your load current exceeds 5 A, the RGZE2M88 is the correct selection — confirm which socket fits your application and check availability at LeadTime.ca.

Expert Verdict: Is the RGZE1S48M Right for Your System?

The RGZE1S48M earns its place as the standard-choice socket in Harmony-based control panels by delivering exactly what the buyer profile needs: a compact, certified, tool-free-swappable receptacle for RXG2 relays in everyday industrial loads. At 15.8 mm wide, it is the smallest socket in the Harmony line, making it the natural choice for panel designers working within tight DIN rail budgets. The 6 kV impulse withstand voltage and full UL 508 plus CSA C22.2 No 14 certification mean it passes panel submittal review without re-engineering. Automation technicians replacing failed sockets during a production outage, OEMs standardizing their machine relay architecture, and facilities managers building spares inventory for Harmony-based panels are all squarely in the right buyer profile for this part.

Where the RGZE1S48M falls short is equally clear. The 5 A contact rating is a firm ceiling — exceeding it risks contact welding and relay coil damage, not a gradual derating. The RGZE2M88 is the direct upgrade for higher-current loads, and the RGZE4M88 handles four-pole changeover applications. The IP20 rating eliminates this socket from outdoor, washdown, or high-dust environments without additional enclosure protection. Buyers who have not yet standardized on the Harmony relay family should evaluate whether locking into RXG2-specific sockets aligns with their facility's long-term relay strategy — socket families from other manufacturers are not interchangeable with this unit.

From a procurement standpoint, the RGZE1S48M is straightforward to source when you buy through a specialist industrial distributor. The part is marked normally in stock at major distributors with typical lead times of one to three business days for stock units. Ordering through a generic online channel introduces counterfeit risk and removes the technical support needed to confirm relay-to-socket compatibility before the order ships — a mistake that costs the full reorder lead time to correct. Check current stock status and pricing for the RGZE1S48M at LeadTime.ca, where specialist sourcing support is available for compatibility questions worldwide.

For volume pricing, lead time confirmation before a scheduled maintenance window, or to verify compatibility with your specific RXG2 relay variant, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the RGZE1S48M

Because community discussion of this specific socket is sparse in public automation forums, the most reliable pre-purchase intelligence comes from the technical constraints baked into the product itself — and from the ordering mistakes that the manufacturer's documentation and distributor experience consistently surface. The RGZE1S48M is not a complex component, but it sits at the intersection of relay family selection, wire sizing, and voltage rating where a single wrong assumption costs two to four weeks of replacement lead time.

The most consequential mistake engineers encounter is ordering an RXG1 or RXG4 relay for this socket. The physical pin configuration differs between relay families, and a mismatched relay will not seat correctly. This is not a matter of forcing the fit — the mechanical mismatch is immediate and obvious, but only after the part has already shipped. The second most common issue involves wire gauge: the screw terminal clamping range of 0.25–2.5 mm² for flexible wire and 0.5–1.5 mm² for solid wire is narrower than some engineers assume when selecting control wire from a standard cable schedule. Attempting to insert wire outside this range results in either a loose connection that causes intermittent faults or a wire that physically will not enter the terminal cavity.

Engineers specifying this socket for a UL-listed panel should also confirm that the RGZE1S48M is documented in the panel submittal. The socket carries UL 508 and CSA C22.2 No 14 certification, which satisfies North American panel compliance requirements — but panel builders must explicitly list certified components in their documentation. When sourcing through a specialist distributor like LeadTime.ca, the distributor can confirm current certification status and provide documentation support for your submittal package, which is a genuine advantage over sourcing through a general-purpose online marketplace that offers no technical follow-up after the transaction.

Wiring and Installation Overview

The following bullets summarize the key requirements for installing the RGZE1S48M. Engineers needing full step-by-step procedures should refer to the official Schneider Electric installation documentation for the Harmony RXG series.

  • De-energize and lock out the control circuit before handling any socket or relay; hot-swap is mechanically possible but electrically hazardous due to arcing risk
  • Prepare wire ends correctly: strip 5–7 mm of insulation; apply ferrule crimp to flexible wire before inserting into the screw terminal hole
  • Tighten M3 screw terminals to hand-tight plus one-quarter turn clockwise — over-torquing strips the M3 thread and renders the terminal non-repairable in the field
  • Connect coil voltage to the two coil terminals (upper position) and load circuit to the contact terminals (lower position), observing normally-open versus normally-closed assignment from your control diagram
  • Insert the RXG2 relay straight into the socket without tilting until the relay clips seat fully; verify the relay is flush and stable before restoring power

Wrong-Part Prevention Checklist Before You Order

Before submitting your purchase order for the RGZE1S48M, verify each of the following items against your application requirements. This checklist is drawn directly from the technical constraints of the product and from the ordering errors that result in returns and delays:

  1. Verify your relay is RXG2 (2-pole changeover); RXG1 (1-pole) or RXG4 (4-pole) relays physically do not fit.
  2. Confirm your control voltage matches 250 V (IEC) or 300 V (UL) rating; do not attempt to use on 110 V or 24 V circuits without external step-down.
  3. Check your wire gauge falls within screw terminal clamping range: 0.25–2.5 mm² (AWG 22–14) flexible or 0.5–1.5 mm² (AWG 20–16) solid.
  4. Ensure your panel temperature stays within -40 to +70 C operating range during normal operation; outdoor or thermal process applications may exceed limits.
  5. Verify IP20 enclosure rating is sufficient for your environment; wet, dusty, or washdown environments require IP65+ and a different socket type.
  6. Confirm number of poles: this socket handles 2-pole changeover (one normally-open + one normally-closed per coil); if you need independent single-pole or four-pole logic, select a different model.

If any item on this checklist does not match your application, contact the LeadTime.ca team to identify the correct Harmony socket variant before ordering — we ship worldwide and can confirm compatibility before your order is released.

Frequently Asked Questions

Does the 250 V voltage rating on this socket refer to the coil voltage or the load contact voltage?

The 250 V (IEC) and 300 V (UL) ratings refer to the contact side — meaning the load circuit voltage that passes through the relay contacts. The coil voltage is determined entirely by the RXG2 relay you plug in, and can be 24 V DC, 48 V DC, 110 V AC, or 230 V AC depending on which RXG2 variant is selected. Always confirm coil voltage from the relay datasheet, not from the socket specification.

What happens if my load current exceeds 5 A through the RGZE1S48M?

Exceeding the 5 A contact rating causes contact resistance to increase, generating heat that damages the relay coil and surrounding socket components. Sustained over-current can cause contact welding — the contacts fuse shut in the closed position, making the relay inoperable without replacement. If your load exceeds 5 A, the RGZE2M88 with a 10 A rating is the correct Harmony line alternative.

Is the RGZE1S48M certified for use in a UL-listed control panel?

Yes. The RGZE1S48M carries UL 508 and CSA C22.2 No 14 certification, confirming its suitability for certified North American industrial control panels. Panel builders must document this socket in the panel submittal under the component listing. The socket also carries CE, RoHS, REACH, EAC, and China RoHS certifications, covering international regulatory requirements across markets.

Can I use this socket with any screw terminal wire gauge, or are there strict limits?

There are strict limits. The screw terminal accepts flexible wire with ferrule from 0.25 to 2.5 mm² (AWG 22–14) and solid wire from 0.5 to 1.5 mm² (AWG 20–16). Wire outside these ranges will either fail to seat properly or sit loose in the terminal, creating intermittent contact faults that are difficult to diagnose. Strip exactly 5–7 mm of insulation and use a ferrule crimp on all flexible wire ends before insertion.

Will an RXG1 or RXG4 relay physically fit into the RGZE1S48M socket if I force it?

No. The pin configuration of RXG1 (1-pole) and RXG4 (4-pole) relays differs from the RXG2 (2-pole changeover) configuration that the RGZE1S48M is designed for. Attempting to force a mismatched relay risks damaging both the relay pins and the socket contact springs, rendering both parts unusable. Always confirm your relay is explicitly labeled RXG2 before ordering this socket.

What is the storage temperature range if I am stocking this socket as a maintenance spare?

The RGZE1S48M has a storage temperature range of -40 to +85 C, which covers standard warehouse and vehicle storage conditions. Relative humidity during storage and operation should remain between 10 and 85%, non-condensing. Avoid storing sockets in humid, tropical, or unventilated spaces where condensation could affect the contact surfaces before installation.

Why Order the RGZE1S48M From LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships the RGZE1S48M to customers worldwide, not limited to any single region
  • Specialist compatibility support — confirm RXG2 relay-to-socket compatibility before your order ships, avoiding the cost of a mismatched return
  • Hard-to-find industrial parts — access to Harmony relay sockets including less common variants that generic online channels frequently show as unavailable
  • Volume pricing available — contact for current pricing on orders of 10 or more units, with negotiable lead time for larger quantities
  • Current stock and lead time confirmation before you commit — critical for planned maintenance windows where timing matters

RGZE1S48M At-a-Glance Summary

  • Rated current: 5 A — hard ceiling; upgrade to RGZE2M88 for loads above this
  • Rated voltage: 250 V (IEC) / 300 V (UL) on contact side; coil voltage is set by the RXG2 relay, not the socket
  • Contact configuration: 2-pole changeover (DPDT) — RXG2 relays only; RXG1 and RXG4 are physically incompatible
  • Terminal type: Screw (M3); clamping range 0.25–2.5 mm² flexible, 0.5–1.5 mm² solid
  • Impulse withstand voltage: 6 kV — suitable for motor-drive and switching-load environments
  • Enclosure rating: IP20 — dry indoor environments only; not rated for washdown or high-dust locations
  • Operating temperature: -40 to +70 C; storage temperature: -40 to +85 C
  • Certifications: UL 508, CSA C22.2 No 14, IEC 61984, CE, RoHS, REACH, EAC, China RoHS
  • Dimensions: 15.8 mm W x 73 mm D x 77.5 mm H — smallest footprint in the Harmony relay socket line
  • Tool-free relay swap in under 5 minutes without disconnecting field wiring — the primary maintenance advantage over hardwired relay configurations
