Schneider RE17RMMU — Timing Relay Specs & Selection Guide

By Abdullah Zahid
16 min read

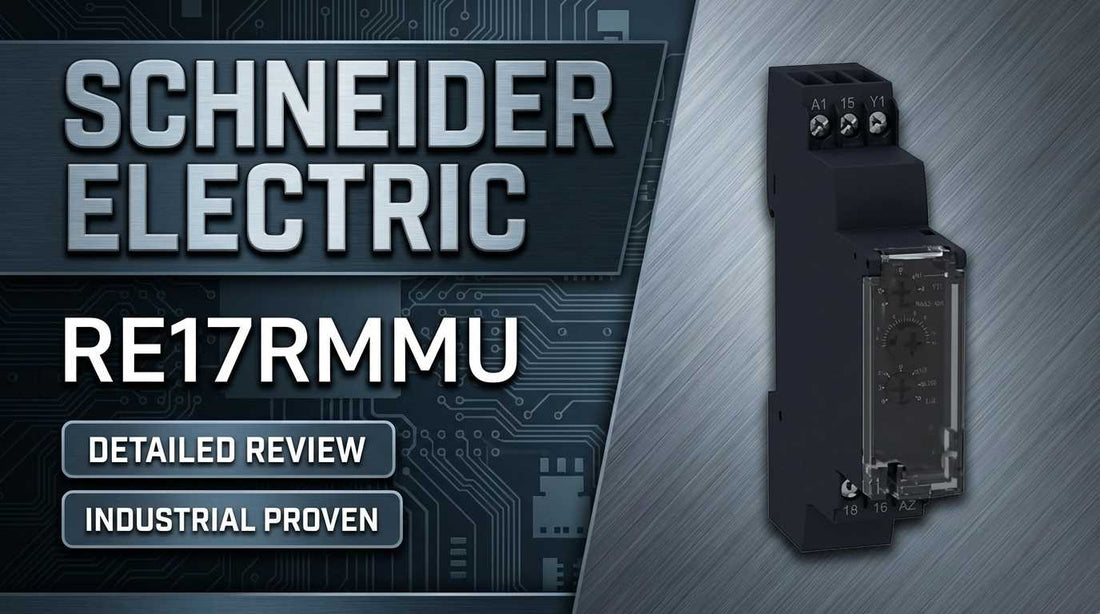

Schneider Electric RE17RMMU Zelio multifunction timing relay module mounted on 35mm DIN rail in industrial control panel

Schneider RE17RMMU Zelio Multifunction Relay — Timing Relay with 8A SPDT Output, 0.1s to 100h Delay, 24–240V AC/DC

Controls engineers and panel builders searching for the Schneider RE17RMMU timing relay are typically at the same decision point: they need a compact, hardwired timer that handles multiple voltages, covers a wide delay range, and commissions quickly without PLC overhead. The RE17RMMU is a modular DIN-rail timing relay from the Zelio Harmony Timer Relays family, rated at 8A with an SPDT output, 10 selectable operation modes, and a delay range spanning 0.1 seconds to 100 hours — all in a 17.5mm-wide module that accepts supply voltages from 24VAC through 240VAC and 24VDC.

If you have already confirmed this is the right part, check current pricing and availability for the RE17RMMU at LeadTime.ca — ships worldwide.

Who Should Buy the RE17RMMU — and Who Should Not

The RE17RMMU is the right choice for panel builders, systems integrators, and maintenance technicians who need a proven, standalone hardwired timing solution across a variety of panel voltages. It is specifically suited when:

  • Your panel supply voltage is one of the four accepted inputs: 24VAC, 24VDC, 110VAC, or 240VAC — and you have confirmed which one before ordering.
  • Your required time delay falls within the 0.1 second to 100 hour range across seven selectable ranges.
  • Your switched load does not exceed 8A at 250VAC; loads above this threshold require an external contactor in series.
  • Your application needs one of the 10 available operation modes — on-delay, off-delay, pulse, symmetrical cyclic, and others — verified against the mode table before specifying.
  • Your panel has at least 17.5mm of free width on a standard 35mm DIN rail for snap-on installation.
  • You are working in a hardwired relay logic scheme or a PLC-adjacent panel where standalone timing is preferable to software-based timers.

If your load exceeds 8A, if you require a solid-state output without contact bounce, or if your system demands centralized remote monitoring and PLC integration, the RE17RMMU is not the correct fit. In those cases, consider a larger timing relay with contactor assist, a solid-state timer module, or a small programmable controller such as a Siemens LOGO — all of which are discussed in the variant comparison section below.

On this page:

What the RE17RMMU Actually Does in a Control Circuit

The RE17RMMU is a modular, DIN-rail-mounted timing relay that intercepts an input signal, applies a user-selected time delay, and then switches its output contact to control a downstream load. In practice, it replaces the kind of hardwired relay ladder logic that older panel designs used to achieve timing functions — sequences that required multiple relays, interposing contacts, and careful ladder rung sequencing just to produce a simple on-delay or off-delay. With the RE17RMMU, a single 17.5mm module handles that entire function with front-panel selectors for both mode and time range.

What makes this module stand out in the Zelio Harmony Timer Relays family is the combination of breadth and simplicity. Ten selectable operation modes in a single SKU — including on-delay, off-delay, pulse, symmetrical cyclic with pulse first, symmetrical cyclic with pause first, and combination dual-delay modes — means one module can serve radically different circuit requirements depending on how the front selector is set. Paired with seven timing ranges from 0.1 seconds to 100 hours, the RE17RMMU covers motor soft-start logic at sub-second precision through multi-hour batch process dwell times without changing the hardware.

The on-board diagnostic LED and push-button test feature are worth calling out directly. In field commissioning environments where panel reassembly after testing costs real time, the ability to trigger and verify output state without full circuit energization reduces service time and eliminates a common source of commissioning delays. This is a concrete operational advantage over basic fixed-function timer relays that offer no on-board diagnostics.

Typical System Architecture: Where This Module Sits

The RE17RMMU sits between the control signal source and the downstream switched load — functioning as the timing intermediary in the panel's control circuit. A typical deployment looks like this:

  • Panel supply voltage (24VAC, 24VDC, 110VAC, or 240VAC) feeds directly into the RE17RMMU supply terminals.
  • A control input signal — from a PLC discrete output, pushbutton, sensor NPN/PNP output, or pilot relay contact — connects to the module's input terminal and triggers the timing sequence.
  • The RE17RMMU's internal timing logic counts the user-selected delay against the active input condition.
  • At delay expiration, the SPDT output contact (1 Form C, rated 8A at 250VAC) switches state, energizing or de-energizing the downstream device — a contactor coil, solenoid valve, indicator lamp, or auxiliary relay.
  • If the downstream load exceeds 8A, an external contactor is wired in series with the RE17RMMU output contact; the relay drives the contactor coil, and the contactor handles the heavy load.

Typical Applications and Deployment Scenarios

The RE17RMMU appears across a wide range of hardwired industrial control applications. In food and beverage processing, it is used to synchronize bottling line sequences — timed pulses control cap placement and labeling relative to bottle motion, where a fixed 0.1-second to 1-second pulse output keeps machine cadence consistent without PLC involvement. In material handling, the module provides door delay logic: a sensor triggers the input, and the configurable on-delay (typically 0.5 to 3 seconds) prevents premature lock release, protecting personnel and equipment during travel.

HVAC and building automation panels use the RE17RMMU for compressor cycling and fan ramp-up delays. The 1-to-10-minute timing range covers the typical compressor restart lockout period, preventing short-cycling without requiring a dedicated PLC module or software timer block. In manufacturing machine control, the module handles pneumatic actuator dwell time — holding an actuator extended for exactly 5 seconds before retracting — using the on-delay or pulse mode at the 1-to-10-second range.

Water treatment and wastewater installations use the longer timing ranges (0.1 to 1 hour, 1 to 10 hours) for pump cycling and tank fill-drain sequencing, where a simple hardwired timer is more maintainable than a PLC program change for operations staff. Automotive assembly and educational training environments round out the application profile, with the RE17RMMU appearing in conveyor indexing circuits and demonstration panels alike.

Application Typical Deployment
Automatic door delay On-delay mode, 0.5–3s range; sensor input triggers timed lock release
Motor soft-start logic On-delay mode, 0.1–2s range; delays coil energization after main contactor closes
Pump cycling / tank fill-drain Cyclic mode, 1–10 minute or 0.1–1 hour range; timed on/off intervals
Bottling line sequencing Pulse mode, 0.1–1s range; fixed-duration output pulse synchronizes station timing
Pneumatic actuator dwell On-delay or pulse mode, 1–10s range; holds actuator extended for set interval
HVAC compressor restart lockout On-delay mode, 1–10 minute range; prevents short-cycling after shutdown

Specifications That Matter at Purchase Decision Time

Parameter Value Notes
Supply Voltage Options 24VAC, 24VDC, 110VAC, 240VAC Must match panel supply exactly — no auto-selection
Output Contact Configuration SPDT (1 Form C) One changeover contact: NO + NC combined
Output Rated Current 8A at 250VAC External contactor required if load exceeds 8A
Timing Range 0.1 seconds to 100 hours Seven selectable ranges; see delay range table
Operation Modes 10 selectable modes On-delay, off-delay, pulse, cyclic, flashing, dual-delay, and others
Module Width 17.5mm Standard modular width on 35mm DIN rail
Module Height / Depth 90mm / 72mm Verify clearance depth behind DIN rail before installation
Operating Temperature -20°C to +60°C Confirm panel ambient falls within this range
Terminal Type Screw clamp Spring terminals not available on RE17RMMU
Enclosure Rating IP20 Standard; IP40/IP50 available with different housing — consult distributor

Full technical specifications are available on the product page at LeadTime.ca.

RE17RMMU vs Other Zelio RE17 Variants and Timing Alternatives

Understanding where the RE17RMMU sits relative to other options prevents the most common specification error: selecting the right product family but the wrong part number or technology type.

Model Voltage Options Timing Range Output Contact Best For
RE17RMMU (Schneider) 24VAC, 24VDC, 110VAC, 240VAC 0.1s–100h, 10 modes SPDT, 8A General-purpose industrial hardwired timing
RE17RSGU (Schneider) 24VAC, 24VDC, 110VAC, 240VAC 0.1s–100h, 10 modes SPDT, 8A Variant with different connector style; confirm connector type with distributor
Siemens LOGO (small PLC) 24VDC Unlimited (software) Varies, 2+ I/O Applications requiring multiple coordinated timers, remote access, or HMI
Omron H3CR (solid-state timer) 24V / 100V / 240VAC Varies by model SSR output High-speed or electrically noise-critical circuits requiring no contact bounce
Rockwell AB 700-CF740 24VAC/DC Varies by module Varies Integrated Allen-Bradley / ControlLogix panel environments
Eaton/Moeller DILM series 24–240VAC/DC Varies Varies European panel designs standardized on Eaton ecosystem

If your application requires output current above 8A or a solid-state switching output, the RE17RMMU is not the correct selection — check current availability and related Zelio Harmony variants at LeadTime.ca or contact the team for a specification cross-reference.

Expert Verdict: Is the RE17RMMU Worth Specifying?

The RE17RMMU earns its place in the controls engineer's standard toolkit because it solves a real problem without introducing unnecessary complexity. For integrators and panel builders who maintain multiple customer sites running different panel voltages — 24V in one facility, 110V in another, 240V in a third — the single-SKU multi-voltage support (24VAC, 24VDC, 110VAC, and 240VAC) is a genuine inventory simplification. Ten operation modes in one 17.5mm module replace what would otherwise be a drawer full of purpose-built fixed-function timers, each with its own part number and stocking requirement. Add the on-board LED and push-button diagnostic test, and you have a module that commissions and troubleshoots faster than a bank of discrete relay rungs. OEM designers in food and beverage, HVAC, material handling, and machine control — facilities running proven hardwired relay logic — will find the RE17RMMU a reliable, maintainable choice.

That said, the RE17RMMU has real limits worth acknowledging before specifying. It carries no remote connectivity, no predictive maintenance output, and no integration with cloud-based monitoring systems — and that is by design. If your panel environment demands timing accuracy better than the typical tolerance band for electromechanical timing relays, or if multiple timers must be coordinated through centralized logic, a small PLC such as the Siemens LOGO will serve you better at a higher upfront cost. Applications already standardized on a competing timer ecosystem — Eaton, Rockwell AB 700-series, or Omron H3CR solid-state modules — will face spare-parts overhead by introducing a Schneider Zelio module into the mix, and that restocking cost should factor into the total cost of ownership calculation. For loads above 8A, plan for an external contactor from the beginning; retrofitting one after installation adds cost and panel space.

On the procurement side, the RE17RMMU is stocked by major authorized distributors globally, and availability is generally reliable for standard orders. The single most important step before generating a purchase order is confirming the exact panel supply voltage in writing — 24VAC, 24VDC, 110VAC, or 240VAC — and documenting it on the order. Voltage mismatch is the leading installation failure mode for this module, and it is entirely preventable at the ordering stage. Buying through a specialist distributor rather than a generic online marketplace matters here: specialist distributors confirm voltage at point of sale, provide access to wiring diagrams and mode selection tables, and maintain verified stock of the exact variant. View current pricing and stock status for the RE17RMMU at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the RE17RMMU

Community feedback specifically dedicated to the RE17RMMU is sparse in public automation forums — a pattern common to well-established, functionally straightforward modules that simply work as described when installed correctly. In the absence of widespread online discussion threads, the most useful pre-order intelligence comes from the documented error patterns that specialist distributors and field engineers encounter repeatedly. The three mistakes that cause the most rework are worth understanding in detail before this module reaches your panel.

The most common and costly error is voltage mismatch. The RE17RMMU part number does not encode the supply voltage — a 24VDC version and a 240VAC version share the same base catalog number with voltage differentiated only at the variant level. Engineers ordering without explicitly stating the required supply voltage in the purchase order frequently receive the default variant (often 24V) and attempt installation in a 110VAC or 240VAC panel. The module either fails to energize or is damaged. The fix is simple: state the required supply voltage explicitly on every purchase order, confirm it against the physical label on receipt, and cross-reference the distributor's datasheet before the item ships. Specialist distributors ask this question at point of sale; generic marketplaces do not.

The second recurring problem is operation mode mismatch during commissioning. With 10 selectable modes available, a technician who sets the mode selector to position 1 when the application requires position 2 — on-delay instead of off-delay, for example — will see behavior that appears to work correctly during initial power-up but fails in production when the input signal drops. Because the error is behavioral rather than electrical, it does not trigger any immediate fault indication. The prevention is straightforward: before installation, locate the operation mode diagram in the RE17RMMU technical manual, define the required mode in writing on the panel documentation, and run a complete input-on/input-off test cycle verifying both the delay and the output contact response before closing the panel.

The third issue is screw terminal wiring error — either over-torqued terminals that damage conductor insulation, under-torqued terminals that pull loose under panel vibration, or reversed input polarity that inverts the trigger logic. The RE17RMMU uses screw clamp terminals throughout; the module has no spring-terminal variant. A gentle tug-test on each wire after termination and a polarity verification before full energization catch both of these failure modes before they become field problems. When specialist pre-sales advice is not available from a community forum, it is available directly from a distributor's technical team — which is precisely when contacting LeadTime.ca before ordering adds real value to your commissioning process.

Wiring and Installation Overview

The following points summarize key installation requirements for the RE17RMMU. For full terminal diagrams, pin assignments, and step-by-step wiring procedures, refer to the official Schneider Electric RE17RMMU installation manual.

  • Mount on a standard 35mm DIN rail using the snap-on base; ensure at least 17.5mm of unobstructed rail width is available and that clearance depth of 72mm exists behind the rail before installation.
  • Supply voltage connections (two terminals) must match one of the four accepted inputs exactly: 24VAC, 24VDC, 110VAC, or 240VAC — verify the physical module label against the panel supply before energizing.
  • Input signal terminal accepts a control contact from a PLC discrete output, pushbutton, sensor output, or pilot relay; verify input polarity against the terminal diagram in the datasheet to avoid inverted trigger logic.
  • Output SPDT contact terminals (NO and NC available) connect to the downstream load; confirm load current does not exceed 8A at 250VAC — if it does, wire the output contact to an external contactor coil instead of directly to the load.
  • Use 1.5mm² to 2.5mm² copper conductor on screw terminals; perform a firm tug-test on each wire after termination, and confirm mode selector and time range selector positions match the documented application settings before full circuit energization.

Compatible Accessories and System Expansion

The RE17RMMU is part of the Zelio RE17 series / Harmony Timer Relays family. Related modules and accessories worth confirming with your distributor include:

  • RE17RSGU — Zelio RE17 variant with a different connector style; confirm connector type matches your panel wiring harness before substituting.
  • External contactors — Required when the switched load exceeds 8A; the RE17RMMU output contact drives the contactor coil, and the contactor handles the high-current load circuit.
  • DIN rail terminal blocks and end stops — Standard 35mm DIN rail accessories for securing and isolating modules adjacent to the RE17RMMU in the panel layout.
  • Panel labeling and documentation inserts — Many integrators laminate the RE17RMMU operation mode diagram and affix it to the inside panel door to prevent mode mismatch during maintenance interventions.

Wrong-Part Prevention Checklist

Before adding the RE17RMMU to your cart or purchase order, confirm every item on this checklist. These are the exact conditions that cause failed installations, return shipments, and commissioning delays.

  1. Confirm panel supply voltage matches one of the four supported options (24VAC, 24VDC, 110VAC, 240VAC); RE17RMMU does NOT auto-select.
  2. Verify the specific time delay mode needed (on-delay, off-delay, pulse, etc.) is available in the module's 10-mode library; check the operation mode table.
  3. Confirm load current does not exceed 8A; if higher, an external contactor must be added.
  4. Verify contact type is SPDT (1 Form C); if NO or NC contacts only are needed, this is the wrong model.
  5. Check DIN rail availability: module requires a standard 35mm DIN rail with at least 17.5mm free width.
  6. Confirm the module is truly modular (snap-on DIN rail base) and not hardwired or permanently mounted in your target panel.
  7. Verify terminal type: RE17RMMU uses screw terminals; if spring terminals are preferred, confirm with distributor if variant exists.
  8. Check operating temperature range (-20 to 60 degrees C); confirm this spans your panel's ambient conditions.

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — our technical team confirms voltage variants, mode availability, and stock status before the order ships.

Frequently Asked Questions

The RE17RMMU says it supports 24VAC through 240VAC — does that mean it auto-detects and works at any voltage in that range?

No. The RE17RMMU accepts four specific supply voltage options — 24VAC, 24VDC, 110VAC, and 240VAC — but it does not auto-select between them. The voltage variant must match your panel supply exactly. Applying the wrong voltage will prevent the module from energizing or may damage it. Always confirm the required voltage in writing on the purchase order and verify the physical module label on receipt before installation.

What happens if my switched load exceeds the 8A output contact rating?

The RE17RMMU output contact is rated at 8A at 250VAC. Exceeding this rating risks contact damage, welding, or premature failure of the output contact. The correct approach is to wire the RE17RMMU output contact to drive an external contactor coil — the timing relay switches the contactor, and the contactor handles the high-current load. Plan for this in the panel layout before installation, as it requires additional DIN rail space and wiring.

Can I use the RE17RMMU diagnostic push-button to test timing without energizing the full load circuit?

Yes. The on-board push-button test feature is specifically designed to let technicians verify timer operation and output contact state during commissioning without requiring the full downstream load to be connected or energized. The LED indicator changes state to confirm mode activation. This feature reduces commissioning time and allows bench testing before final panel installation. Refer to the RE17RMMU technical manual for the exact LED behavior expected in each of the 10 operation modes.

Is there a solid-state output version of the RE17RMMU for noise-sensitive circuits?

The RE17RMMU uses an electromechanical SPDT relay output contact — it is not available in a solid-state output version within this specific module. If your application requires a DC solid-state output with no contact bounce, such as high-speed motion control or noise-sensitive electronic circuits, a dedicated solid-state timer module from the appropriate product family would be the correct specification. Contact LeadTime.ca to discuss available alternatives if a solid-state output is a hard requirement.

Does the RE17RMMU work in a panel that is already standardized on PLC-based timing — can it be added alongside a PLC output?

Yes. The RE17RMMU can coexist with a PLC in the same panel. A common deployment uses a PLC discrete output to trigger the RE17RMMU input terminal, with the timing relay's output contact handling the downstream switching. This approach offloads timing logic from the PLC program and maintains hardwired backup timing independent of the controller. Verify that the PLC output signal voltage and current are compatible with the RE17RMMU input requirements before wiring.

What does the LED indicator on the RE17RMMU front face tell me during normal operation?

The on-board LED indicates the active state of the timing relay — its exact behavior (steady, flashing, or off) varies depending on the selected operation mode and the current phase of the timing cycle (counting, timed out, or reset). The LED is also used during diagnostic push-button testing to confirm output contact activation. For the specific LED behavior map across all 10 operation modes, consult the RE17RMMU technical datasheet or installation manual from Schneider Electric.

Why Order the RE17RMMU Through LeadTime.ca

  • Ships worldwide — no regional restrictions on sourcing, regardless of where your panel is being built or delivered.
  • Voltage variant confirmation at point of sale — specialist pre-sales support prevents the most common and costly RE17RMMU ordering error before it happens.
  • Access to hard-to-source Zelio RE17 family variants, including related modules and accessories, through a single distributor contact.
  • Volume pricing available for panel builders and OEMs ordering in quantity — contact for current pricing on multi-unit orders.
  • Fast response on stock status and lead time confirmation before you commit to a build schedule.

RE17RMMU At-a-Glance Summary

  • Module type: Zelio Multifunction Relay / Harmony Timer Relay — modular, snap-on 35mm DIN rail installation.
  • Supply voltage: 24VAC, 24VDC, 110VAC, or 240VAC — must match panel supply exactly; no auto-selection.
  • Output: SPDT (1 Form C), 8A at 250VAC — add external contactor for loads above 8A.
  • Timing range: 0.1 seconds to 100 hours across 7 selectable ranges.
  • Operation modes: 10 selectable modes including on-delay, off-delay, pulse, symmetrical cyclic, and dual-delay combinations.
  • Physical footprint: 17.5mm wide, 90mm tall, 72mm deep — verify DIN rail space and panel depth clearance before ordering.
  • Operating temperature: -20°C to +60°C — confirm panel ambient falls within range.
  • Terminals: Screw clamp only — spring terminal variant not available on RE17RMMU.
  • Certifications: cULus, CSA, RoHS, REACH, IEC 61812-1, EN 61000-6 series, ECCN EAR99.
  • On-board diagnostics: LED indicator and push-button test — enables commissioning and fault verification without panel disassembly.
  • Key ordering rule: Confirm and document supply voltage explicitly on every purchase order — voltage mismatch is the leading installation failure mode for this module.
