Schneider Electric LUB12 — TeSys U Power Base Buyer's Guide

By Abdullah Zahid
14 min read

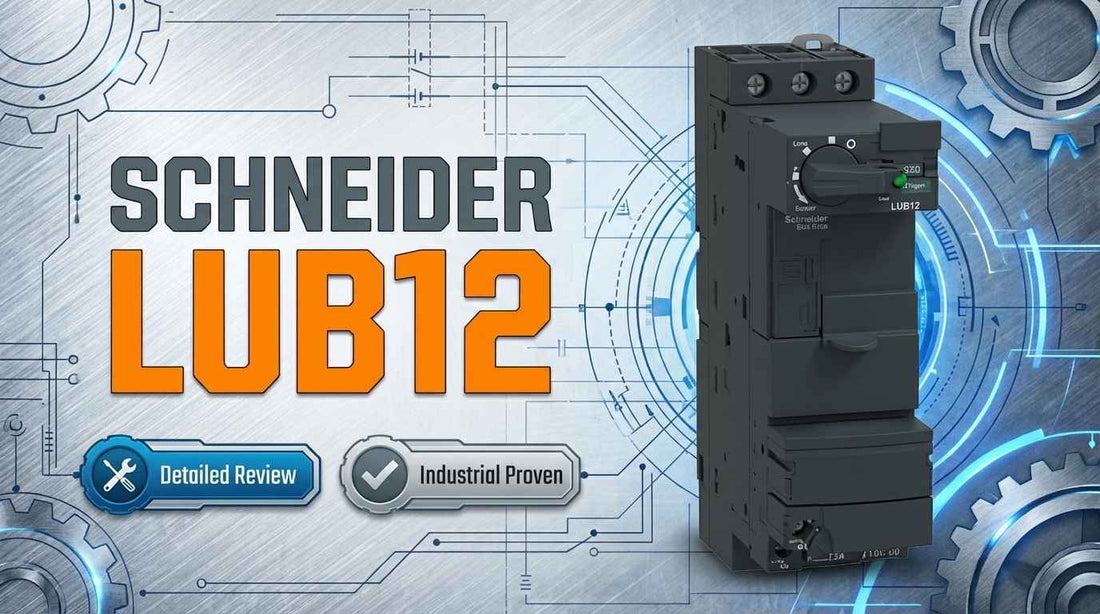

Schneider Electric LUB12 TeSys U 3-pole 12A non-reversing power base module for industrial motor starters

Schneider Electric LUB12 Power Base, TeSys U, 3P, 12A/690V (Non-Reversing, Screw Clamps) — Specifications, Compatibility, and Selection Guide

When a 3-phase motor starter base fails or a new motor installation calls for a TeSys U modular architecture, the Schneider Electric LUB12 is the part most engineers reach for first. It is a 3-pole, non-reversing power base rated at 12A continuous and 690V maximum, with a 50 kA breaking capacity at 400V — enough to handle most industrial motor circuits without supplementary protection. Before ordering, there is one critical detail that catches buyers off guard: the LUB12 is a base module only. It must be paired with a separate LUC control unit to function as a complete motor starter.

If you have already confirmed the LUB12 is the correct part for your system, check current pricing and availability at LeadTime.ca — we ship worldwide.

Who Should Buy the LUB12 — and Who Should Not

The Schneider Electric LUB12 is the right choice for engineers and technicians who need a standards-compliant, non-reversing power base for a TeSys U modular starter installation. It is right for you if all of the following apply:

  • Your motor is 3-phase and draws 12A or less at operating voltage (690V maximum supply)
  • Motor rotation is fixed in one direction — no forward/reverse requirement
  • Your installation uses or will use a separate TeSys U LUC control unit (already on hand or ordered)
  • Screw clamp terminal connections are acceptable for your site wiring method and cable gauges
  • Your facility is standardized on TeSys U or you are replacing an existing LUB12 base directly

If your motor exceeds 12A full-load amperage, select the LUB16 (16A) or LUB22 (22A) instead. If the motor must run in both directions, the LUB12R is the correct reversing variant. If you need a complete plug-and-play starter with no separate control unit to source, the LUB12 base alone will not fulfill that requirement.

On this page:

What the LUB12 Actually Does in a Motor Starter System

The Schneider Electric LUB12 is the power-switching foundation of a TeSys U modular motor starter. It houses three normally open main contacts rated at 12A continuous, handles incoming three-phase power up to 690V, and provides the mechanical framework into which a LUC control unit and optional auxiliary modules are installed. The base itself contains no start/stop logic, no overload protection, and no electronic intelligence of any kind — those functions are delivered by the LUC control unit, which plugs into the base and must be ordered separately.

What the LUB12 does contribute is the breaking capability. Its 50 kA interrupting capacity at 400V means it can safely clear fault currents common in industrial facilities running motors below 30 kW, without requiring external fusing in most configurations. The base also includes a rotary handle for manual emergency stop or bypass operation — a mechanical override that does not depend on the control unit being functional. This is particularly valued in maintenance scenarios where the control unit is being swapped or the circuit needs to be isolated quickly.

The modular design is a deliberate engineering choice. The same LUB12 base can accept different LUC control units — covering direct-on-line, manual, or automatic control modes — meaning the base does not need to be replaced if the control strategy changes. The non-reversing configuration is a fixed hardware constraint, not a software setting. If reversing is ever needed, the base itself must be replaced with a LUB12R.

Typical System Architecture for a TeSys U Starter

The LUB12 sits at the power-switching layer of the motor starter chain, positioned between the incoming three-phase supply and the motor terminals. Understanding where it fits helps clarify what else needs to be ordered.

  • Three-phase supply (690V AC maximum) feeds into the LUB12 base via screw clamp input terminals (L1, L2, L3)
  • The LUB12 base mounts on standard DIN rail in the control panel and mechanically accepts the LUC control unit on top
  • The LUC control unit (ordered separately) provides start/stop logic, control coil connections, and the interface for overload relay mounting
  • An overload relay (sized to motor full-load amperage) mounts on the LUC and provides thermal protection — it is not integrated into the LUB12 base
  • Output terminals (T1, T2, T3) on the LUB12 feed directly to the motor leads; auxiliary contact modules can be added to the assembly for remote status signals or interlock logic

Industries and Applications Where the LUB12 Is Deployed

The LUB12 is most commonly found wherever 3-phase motors in the 5–10 kW range need reliable, code-compliant switching in a modular panel format. Food and beverage processing plants rely on it for pump motors, mixer drives, and conveyor starters where standardized components simplify spares management. Water and wastewater treatment facilities use it on centrifuge and pump motor circuits, where the 50 kA breaking capacity provides confidence on shared bus systems with high available fault current.

Chemical and pharmaceutical facilities favor the TeSys U modular architecture for batch process motors because the base can be serviced or upgraded without rerouting power wiring. HVAC applications — including large chiller compressor starters and cooling tower fan drives — also represent a consistent deployment scenario, particularly where space in the panel is constrained and the compact TeSys U footprint is an advantage. Pulp and paper mills and general manufacturing facilities running standard 3-phase motor control round out the primary application base.

Maintenance technicians stocking spare parts programs will typically hold one or two LUB12 bases alongside matched LUC control units, given that a failed starter base is one of the higher-frequency unplanned replacement events in facilities running large numbers of small motors.

Application Typical Deployment
Food and beverage processing Pump motors, mixer drives, conveyor starters up to 10 kW
Water and wastewater treatment Centrifuge and pump motor starters, shared bus systems
Chemical and pharmaceutical Batch process motor control, modular panel installations
HVAC systems Chiller compressor starters, cooling tower fan drives
Pulp and paper mills Process motor drives, standardized starter architecture
General manufacturing Spare parts stocking, new production line motor starters

Key Specifications and How the LUB12 Compares to Other TeSys U Bases

Specification Value
Motor Poles 3-phase (3 NO contacts), non-reversing fixed configuration
Rated Current 12A continuous thermal rating
Maximum Voltage 690V AC
Breaking Capacity (Icu) 50 kA at 400V
Terminal Type Screw clamps (flathead screwdriver and torque wrench required)
Manual Operation Rotary handle (emergency stop or bypass; not electronic)
Control Coil Connection Via integrated control terminal block on base
Weight 0.81 kg
Manufacturing Origin France
Certifications IEC 60947-4-1, UL, CSA, CCC, EAC

Full technical specifications are available on the product page at LeadTime.ca.

Model Current Rating Reversing Typical Motor Size When to Choose
LUB12 12A Non-reversing only 5–10 kW Standard 3-phase, single-direction application
LUB12R 12A Reversing 5–10 kW Forward/reverse control required at same current rating
LUB16 16A Non-reversing only 10–15 kW Motor FLA exceeds 12A, no reversing needed
LUB16R 16A Reversing 10–15 kW Larger motor with reversing control required
LUB22 22A Non-reversing only 15–22 kW Large industrial motors, higher inrush tolerance needed

If your motor's full-load amperage exceeds 12A, the LUB16 or LUB22 is the correct base — selecting the wrong current rating risks contact overheating and unplanned downtime. Check current availability of all TeSys U base variants at LeadTime.ca.

Expert Verdict: Is the LUB12 Worth Ordering?

The Schneider Electric LUB12 earns its place as a workhorse component in facilities running 3-phase motors up to approximately 10 kW in non-reversing applications. Its 50 kA breaking capacity at 400V satisfies most industrial fault-level requirements without the cost of supplementary protection, and its IEC 60947-4-1 certification alongside UL, CSA, CCC, and EAC listings means it meets safety standards across virtually every major industrial market. The modular TeSys U footprint is a genuine advantage for facilities that have standardized on this family — the same base accepts different LUC control units, so upgrading from manual to automatic control does not require rewiring the power circuit. For a maintenance technician replacing a failed starter base or a controls integrator specifying a new panel, the LUB12 is a straightforward, reliable choice when the application matches the rating.

The LUB12 is not without its constraints, and being honest about them matters. It is strictly non-reversing — that is a fixed hardware characteristic, and if there is any chance the motor will ever need to run in both directions, the LUB12R must be specified instead. The 12A rating is a hard ceiling; installing this base on a motor drawing 14A or 15A will result in contact overheating over time, regardless of the upstream breaker size. For motors exceeding 12A FLA, the LUB16 handles loads up to 16A and the LUB22 extends coverage to 22A. And critically, the LUB12 is not a complete starter — it is half the solution. Buyers who receive the base expecting to run a motor will find themselves waiting for the LUC control unit and overload relay before anything operates.

From a procurement standpoint, the LUB12 is generally available through authorized Schneider distributors with typical in-stock delivery timelines from North American distribution centers — though supply chain conditions vary and lead times should always be confirmed before committing to an installation schedule. The single most important reason to buy through a specialist distributor rather than a generalist online channel is the guidance on what else to order. A specialist ensures the LUC control unit, overload relay, and control voltage all match before anything ships. View current pricing and availability for the LUB12 at LeadTime.ca — we stock common TeSys U module combinations and can advise on the complete starter assembly.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LUB12

Community forums and peer discussion threads for the LUB12 specifically are sparse — this is a mature, standard industrial component that experienced engineers tend to order without posting about it. That absence of forum debate is not cause for concern, but it does mean that buyers who are new to the TeSys U modular architecture cannot easily find peer-sourced guidance on common mistakes. That is exactly where a specialist distributor provides value that a search result cannot.

The most consequential mistake in ordering the LUB12 is treating it as a complete motor starter. The base provides power contacts and a rotary handle — nothing more. Without the LUC control unit, there is no start/stop logic, no overload protection, and no coil to energize. Engineers familiar with older non-modular starters sometimes assume the base is self-contained, particularly when a distributor listing shows only the LUB12 SKU without prominently flagging the mandatory control unit dependency. The practical consequence is a non-functional installation until the LUC arrives, which can add one to two weeks to a project timeline if the control unit was not in the original purchase order.

A second pattern worth flagging: control voltage mismatches between the LUC and the site supply. The power circuit rating (12A, 690V) and the control circuit voltage (typically 120V, 230V, or 415V AC on the LUC) are entirely separate specifications. It is straightforward to verify motor power voltage and overlook the control unit voltage entirely. Before the purchase order is placed, confirm the LUC control unit voltage rating matches the available control power at the panel. Specialist distributors who stock TeSys U combinations routinely ask this question during the order process — generalist online resellers typically do not.

Wiring and Installation Overview

  • Mount the LUB12 on standard DIN rail in the control panel; seat it firmly until the spring-clip locks onto the rail, and verify it does not slide before making any terminal connections
  • Connect incoming three-phase supply conductors to screw clamp input terminals (L1, L2, L3); connect motor leads to output terminals (T1, T2, T3) — do not interchange input and output sides
  • Tighten all screw clamp terminals with a calibrated torque wrench; the brief specifies a recommended torque range of 0.8–1.2 Nm for the 12A contacts — verify final tightness on all three phases equally
  • Route control wiring to the LUC control unit (installed on top of the base); ensure control voltage wiring matches the LUC's rated control voltage before energizing
  • Before applying power, cycle the rotary handle through its full range to confirm smooth mechanical operation, verify that the overload relay is mounted on the LUC, and confirm all blanking shutters are in place on any unused module slots

Full wiring diagrams, terminal assignment details, and commissioning procedures are contained in the Schneider Electric manufacturer documentation for the TeSys U family. Do not substitute this overview for those procedures on a live installation.

Compatible Modules and System Expansion

The LUB12 base is designed to work within the TeSys U modular ecosystem. The following components are typically ordered alongside it or added to the assembly as the application requires:

  • LUC control unit — mandatory for operation; provides start/stop logic, overload protection interface, and manual/auto control modes (sold separately, multiple variants available by control voltage)
  • Overload relay — sized to motor full-load amperage; mounts on the LUC module and provides thermal protection for the motor; must be explicitly specified and ordered
  • Auxiliary contact module — adds remote start/stop status signals or interlock logic outputs; snaps onto the TeSys U assembly without rewiring the power circuit
  • DIN rail and panel accessories — required for new panel builds; verify DIN rail spacing is compatible with TeSys U module dimensions before mounting

Wrong-Part Prevention Checklist — Verify Before You Order

Run through every item on this checklist before placing your purchase order. Each point corresponds to a real ordering mistake that results in non-functional installations or delayed commissioning:

  1. Confirm LUC control unit is already on hand or ordered separately — LUB12 base alone cannot start a motor
  2. Verify motor is 3-phase and 12A or smaller at operating voltage (690V maximum)
  3. Confirm your supply voltage is 690V or below (most North American industrial is 480V or 120V/240V — verify buck transformer or step-down is available if needed)
  4. Check that rotary handle operation is acceptable (not using electronic start/stop only)
  5. Ensure screw clamp wiring tools and method match site standards (no spring-clamp retrofit possible)
  6. Verify no reversing requirement (if motor must run forward/reverse, order LUB12R instead)

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — we can confirm compatibility, recommend the complete assembly, and verify stock before your purchase order is placed.

Frequently Asked Questions

Can the LUB12 operate as a standalone motor starter without a separate control unit?

No. The LUB12 is a power base module only. It provides the main power contacts and a manual rotary handle, but has no start/stop logic, overload protection, or control coil function of its own. A separate LUC control unit must be ordered and installed on the base before the assembly can start or stop a motor. Ordering the base without the control unit results in a non-functional component until the LUC is procured.

What happens if a motor drawing 14A or 15A is connected to the LUB12 rated at 12A?

The base contacts will carry current above their rated 12A thermal limit continuously. Over weeks or months, this causes contact overheating, premature wear, and eventually contact welding — meaning the motor may run continuously even when a stop command is issued. The upstream circuit breaker does not protect the base contacts from this degradation. If motor full-load amperage exceeds 12A, select the LUB16 (16A) or LUB22 (22A) before ordering.

Is the LUB12 a direct swap for an existing TeSys U base without rewiring the power circuit?

Yes, if the failed unit being replaced is also a LUB12 (same model, same screw clamp terminal type). The TeSys U modular footprint is consistent across the base family, and the LUC control unit from the original assembly can typically be remounted on the new base. Verify the replacement unit is not a reversing variant (LUB12R) and that the terminal type matches — a spring-clamp variant, if one is present in the field, would require different wiring tools and method.

Does the LUB12 include overload protection, or is that handled elsewhere?

Overload protection is not built into the LUB12 base. The base provides main power contacts only. Overload protection is delivered by a separate overload relay that mounts on the LUC control unit and must be explicitly selected, sized to the motor's full-load amperage, and ordered as a separate line item. A system assembled without an overload relay provides no thermal protection for the motor.

What certifications does the LUB12 carry and are they valid for North American installations?

The LUB12 is certified to IEC 60947-4-1 and also holds UL (United States), CSA (Canada), CCC (China), and EAC (Eurasia) certifications. UL and CSA listings confirm compliance with North American electrical safety requirements, making the unit acceptable for installation under the NEC and Canadian Electrical Code in most jurisdictions. Verify with the authority having jurisdiction (AHJ) for any application-specific requirements.

Can a DIN rail mounting system in an existing panel accept the LUB12 without modification?

In most cases, yes — the LUB12 mounts on standard DIN rail, which is the predominant panel rail format in industrial installations worldwide. However, DIN rail spacing and panel depth should be verified against TeSys U dimensional specifications before installation, particularly in retrofit scenarios where the panel was originally built for a different starter family. New panel builds should confirm DIN rail compatibility as part of the panel design review.

Why Order the LUB12 From LeadTime.ca

  • Ships worldwide — not limited to any single region or distribution territory
  • Specialist distributor guidance on complete TeSys U assemblies — LUB12 base, LUC control unit, overload relay, and control voltage matching reviewed before the order ships
  • Hard-to-find and low-stock industrial parts sourced through authorized distributor networks
  • Volume pricing available — contact for current pricing on quantities above single units
  • Fast response on lead time inquiries — confirm availability before committing to an installation schedule

LUB12 At-a-Glance Summary

  • Schneider Electric LUB12 — Power Base, TeSys U, 3P, 12A/690V, Non-Reversing, Screw Clamps
  • 3-pole normally open contacts, 12A continuous rated current, 690V AC maximum supply voltage
  • 50 kA breaking capacity (Icu) at 400V — sufficient for most industrial motor circuits without supplementary protection
  • Certified to IEC 60947-4-1, UL, CSA, CCC, and EAC — valid for North American and international installations
  • Weight: 0.81 kg; manufactured in France; mounts on standard DIN rail
  • Rotary handle provides manual emergency stop or bypass independent of the control unit
  • LUC control unit is mandatory and must be ordered separately — LUB12 base alone cannot start a motor
  • Overload relay must also be specified and ordered separately — not integrated into the base
  • Non-reversing configuration is fixed hardware — order LUB12R for forward/reverse applications
  • For motors exceeding 12A FLA, select LUB16 (16A) or LUB22 (22A) instead
  • EAN: 3389110362770 — use for cross-reference when confirming the part with distributors
