Schneider Electric XB4BA21 — Harmony Push Button Selection Guide

By Abdullah Zahid
13 min read

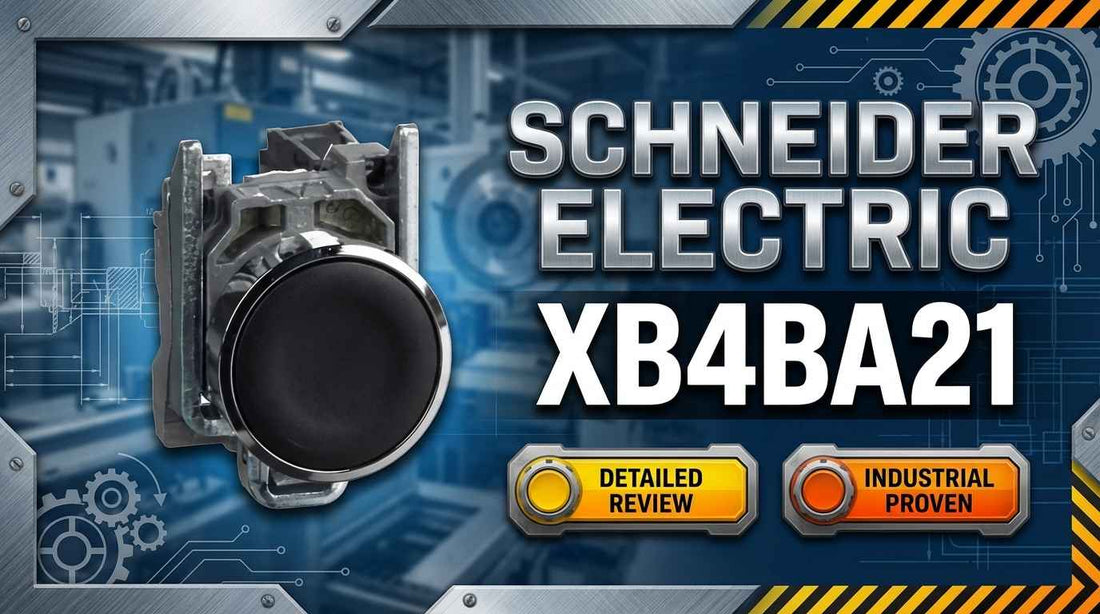

Schneider Electric XB4BA21 Harmony 22mm black flush push button spring-return for industrial control panel

Schneider Electric XB4BA21 Harmony 22mm Push Button, Black Flush, Spring Return, 1 NO, Unmarked — Specifications, Alternatives and Selection Guide

Controls engineers and panel builders searching for the Schneider Electric XB4BA21 are typically at one of two moments: replacing a worn button in an existing Harmony XB4 panel or specifying a momentary input device for a new control system build. Either way, the decision hinges on three things — confirming spring-return (momentary) operation is actually what the circuit requires, verifying the contact rating covers the actual load current, and ensuring the 22mm mounting footprint matches the panel cutout. The XB4BA21 is a flush-mount, unmarked black push button with a single normally-open contact, screw clamp terminals, and a NEMA 4X / IP66 base enclosure rating, placing it squarely in the workhorse tier of the Harmony XB4 modular series.

If you have already confirmed this is the correct part, check current pricing and availability for the XB4BA21 at LeadTime.ca — ships worldwide.

Who Should Buy the XB4BA21 — and Who Should Not

The Schneider Electric XB4BA21 is the right choice for panel builders, maintenance technicians, and OEM machine builders who need a proven momentary input device that integrates directly into the Harmony XB4 modular platform. Confirm all of the following before ordering:

  • Your control circuit requires spring-return (momentary) operation — button returns to neutral the instant it is released
  • A single normally-open (1 NO) contact is sufficient for your circuit logic
  • The contact rating of 6A at 120V AC (or applicable rated value) covers your actual control circuit load
  • Your panel has a 22mm mounting hole — not 16mm or 30mm
  • Screw clamp terminals are acceptable for your wiring gauge (12 AWG to 20 AWG range) and installation method
  • An unmarked black button fits your labeling scheme and facility standards

If your application requires maintained (latched) contact operation, select the XB4BL21 instead. If visual status feedback is needed at the operator interface, the illuminated XB4BP21 or XB4BN21 variants are the correct choice.

On this page:

What the XB4BA21 Actually Does in a Control System

The Schneider Electric XB4BA21 is a 22mm flush-mount momentary push button from the Harmony XB4 modular series. It delivers a single pulse signal — one closure of a normally-open contact — each time an operator presses and releases the actuator. The spring-return mechanism ensures the contact returns to its open state the instant hand pressure is removed. There is no latching, no maintained contact, and no integrated illumination. What the XB4BA21 provides is a clean, repeatable momentary signal from a screw-clamp-terminated, field-wireable operator device rated for demanding environments.

In practice, this button is found on production floor start circuits, manual cycle initiation inputs to PLC digital input cards, pilot valve solenoid trigger circuits, and operator confirmation inputs in process control systems. Its unmarked black face is intentional — facilities using custom legend plates or adhesive labels prefer an unmarked actuator so they control the labeling standard. The NEMA 4X / IP66 base enclosure rating, confirmed across multiple official distributor datasheets, makes it viable in food processing washdown environments, water and wastewater treatment panels, and outdoor utility enclosures, not merely dry indoor control rooms.

The modular design of the Harmony XB4 platform is a practical advantage here. The XB4BA21 body, head, and contact block are all field-replaceable without removing the entire panel assembly, which is why integrators standardizing on the Harmony XB4 series treat this part as a stock item rather than a project-specific order.

Where the XB4BA21 Sits in a Typical Control Architecture

The XB4BA21 occupies the operator interface layer — the point where human intent becomes an electrical signal that the control system acts on. It sits between the operator's hand and the control circuit it activates.

  • PLC or relay-based controller receives the digital input from the button's NO contact closure
  • Control voltage supply (typically 24V DC or 120V AC) feeds one terminal of the XB4BA21
  • The second terminal connects to the PLC digital input card, relay coil, or solenoid pilot circuit
  • When the button is pressed, the NO contact closes, completing the circuit and registering the input signal
  • On release, the spring-return mechanism opens the contact, dropping the signal — the PLC or relay ladder logic handles the resulting pulse as programmed

Typical Applications and Deployment Scenarios

In manufacturing automation, the XB4BA21 is used as a manual cycle start button on production machinery where an operator must physically initiate each machine cycle. The momentary contact sends a single pulse to the PLC, which then executes the programmed cycle sequence independently.

In food and beverage processing, the NEMA 4X / IP66 rating makes the XB4BA21 a natural fit for clean-in-place (CIP) system controls, where panels are routinely exposed to high-pressure water and chemical sprays. The sealed construction prevents moisture ingress that would corrode unrated contacts.

In water and wastewater treatment facilities, the XB4BA21 serves as a manual start or confirmation button for pump control circuits and valve actuator pilot circuits. Outdoor panel installations benefit from the -40 to 70°C operating temperature range documented across official specification sources.

For maintenance teams performing like-for-like replacements in existing Harmony XB4 panels, the XB4BA21 is a direct plug-in swap — same 22mm mounting hole, same screw clamp terminal, same contact block interface — reducing planned maintenance downtime to minutes rather than hours of panel rework.

Application Typical Deployment
Production machinery cycle start 22mm panel mount, momentary input to PLC digital input card, 24V DC control circuit
Food and beverage CIP panel NEMA 4X / IP66 rated panel, washdown environment, operator manual confirmation input
Water treatment pump control Outdoor enclosure, -40 to 70°C ambient, manual start input to motor starter relay
HVAC control panel Indoor panel, 120V AC control circuit, manual override or mode selection input
Harmony XB4 panel replacement Like-for-like swap in existing modular panel, no panel rework required, 22mm hole confirmed
Solenoid pilot valve activation Spring-return input to solenoid coil, low-current DC control circuit, industrial machinery

XB4BA21 Specifications Every Buyer Needs to Confirm

Specification Value
Contact Configuration 1 NO (Normally Open) SPST
Contact Rating AC (typical) 6A at 120V AC
Contact Rating AC (alternate source) 3A at 240V AC; 10A at 600V AC (verify with distributor)
Contact Rating DC (typical) 0.55A at 125V DC
Enclosure Rating NEMA 1/2/4/4X/12/13; IP66/IP67/IP69K
Operating Temperature -40 to 70°C (one source: -25 to 70°C — confirm with distributor)
Actuator Type Flush mushroom head, black, unmarked legend
Mounting Hole Diameter 22mm
Terminal Type Screw clamp, 12 AWG to 20 AWG
Compliance RoHS compliant; UL/CSA certified

Full technical specifications are available on the product page at LeadTime.ca.

XB4BA21 vs. Related Harmony XB4 Variants — Which One Do You Actually Need?

Model Mechanism Illumination Best For
XB4BA21 Spring-return (momentary) None Pulse inputs, start buttons, pilot signals
XB4BL21 Latched (maintained) None Toggle on-off, selector switches, mode control
XB4BP21 Spring-return LED (selectable color) Illuminated status feedback, operator confirmation
XB4BN21 Spring-return LED (green/red) Illuminated YES/NO or CONFIRM input
XB4BC21 Spring-return None Emergency stop, 60mm mushroom head, large hand operation
XB4BY21 Spring-return None Yellow button for caution or mode indication
XB4BG21 Spring-return None Green button for proceed or enable signal

If your application requires maintained contact or integrated LED feedback, the XB4BA21 is not the right choice — review the full Harmony XB4 variant range at LeadTime.ca to confirm the correct model before ordering.

Expert Verdict: Is the XB4BA21 Worth Ordering?

The XB4BA21 earns its place as a standard stock item for any integrator or maintenance team operating within the Harmony XB4 ecosystem. Its NEMA 4X / IP66 / IP69K enclosure rating covers the demanding environments — food processing washdown, outdoor utility panels, water treatment — where many cheaper push buttons fail within a season. The screw clamp terminal design is field-proven and does not require specialty tooling. The modular Harmony XB4 architecture means contact blocks, heads, and bodies can be swapped independently without panel rework, which is a genuine labor-saving advantage during preventive maintenance cycles. The unmarked black actuator suits facilities that manage their own legend labeling. For panel builders standardizing on a single operator interface platform, the XB4BA21 is a safe, consistent, well-supported component with wide distributor availability across multiple continents.

Where the XB4BA21 is not the right answer: if your ladder logic or relay circuit expects a maintained signal rather than a momentary pulse, you need the XB4BL21 — ordering the wrong variant here is the single most common specifying mistake in this product family. If operator feedback through an integrated LED is a design requirement, the XB4BP21 or XB4BN21 eliminates the need for a separate pilot light and should be evaluated before committing to the non-illuminated XB4BA21. For applications where the control circuit current runs above 6A, the contact rating requires either an external relay or contactor buffer, or verification that the 10A at 600V rating cited by some sources applies to your specific configuration — confirm with your distributor before finalizing the design.

From a procurement standpoint, the XB4BA21 is one of the easier parts to source in the Harmony XB4 line. Multi-distributor stock presence across North America and international distribution channels reduces single-source dependency risk, and lead times for standard stock are typically measured in days rather than weeks. Buying through a specialist industrial distributor rather than a generic marketplace channel matters here: the XB4BA21 is a Schneider Electric OEM part with specific ratings, and a specialist source provides access to current datasheets, variant selection support, and the assurance of traceable product sourcing. Check current availability and pricing for the XB4BA21 at LeadTime.ca — ships worldwide from stock.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the XB4BA21

The Harmony XB4 series occupies a mature position in the industrial push button market — stable specifications, well-documented ratings, and consistent distributor availability. Because of that maturity, it rarely generates active community discussion on automation forums or distributor Q&A sections. What it does generate is a predictable set of specification mistakes made at the point of ordering, almost all of which come down to assumptions rather than verification.

The most consequential assumption engineers make is treating spring-return as a universal default. The XB4BA21 is a momentary device — it generates a pulse, not a sustained signal. In PLC ladder logic that uses edge-triggered instructions this is correct and intentional. In circuits expecting a maintained contact to hold a relay or motor contactor closed, it causes a hard fault the first time the system runs. The second assumption involves contact rating. The XB4BA21 is documented at 6A at 120V AC in typical distributor listings, but some sources cite 10A at 600V for specific configurations. If your control circuit load sits at 7A or 8A, neither assumption is safe — the load needs to be measured and the rating confirmed with the distributor before the purchase order is raised.

Panel hole diameter is a third area where ordering mistakes concentrate. The Harmony XB4 line spans 16mm, 22mm, and 30mm actuator sizes. The XB4BA21 is a 22mm device. An existing panel with a 30mm hole requires rework; a 16mm hole also requires rework. Neither is a five-minute fix on a live production floor. Physically measuring the panel cutout — or pulling the original drawing — before ordering is the minimum verification step. When community feedback is sparse and online discussion does not surface these failure modes organically, the right resource is a specialist distributor who has fielded these questions across hundreds of similar projects. The LeadTime.ca team can confirm variant selection, rating adequacy, and mounting compatibility before the order ships.

Wiring and Installation Overview

  • A 22mm panel cutout is required — deburr the hole edges before inserting the button to prevent insulation damage on control wiring
  • The button head snaps into the panel cutout and is secured with a single mounting screw; tighten to snug (finger-tight plus approximately one-quarter turn) without over-torquing the plastic body
  • Screw clamp terminals accept 12 AWG to 20 AWG conductors — strip approximately 9 to 10mm of insulation, insert the conductor fully, and tighten the clamp screw with a standard flat-head screwdriver
  • One terminal connects to the control voltage supply (24V DC or 120V AC depending on your control system); the second terminal connects to the PLC digital input card, relay coil, or solenoid pilot circuit
  • After wiring, verify the spring-return function manually (press and release confirms NO contact closes and opens), then confirm continuity with a multimeter — open circuit at rest, near-zero ohms when pressed

Wrong-Part Prevention Checklist

Before finalizing your order for the Schneider Electric XB4BA21, verify every item on this checklist against your application requirements:

  1. Confirm spring-return (momentary) operation is required — XB4BA21 is NOT a latching switch
  2. Verify 1 NO contact count matches your circuit logic (single normally-open, not dual contacts or NC)
  3. Check that 6A @ 120V AC or equivalent rating meets your actual load current and voltage
  4. Confirm 22mm mounting hole diameter matches your panel cutout (not 16mm or 30mm XB4 variants)
  5. Verify screw clamp terminals are acceptable for your wiring gauge and installation method
  6. Ensure black color / unmarked legend matches your labeling scheme (some facilities require marked buttons)
  7. Confirm NEMA 4X / IP66 rating is sufficient for your enclosure environment

If any item on this checklist does not match your application, contact LeadTime.ca before ordering — the team can confirm the correct XB4 variant for your requirements or identify the nearest equivalent if a different specification is needed.

Frequently Asked Questions

What is the functional difference between the XB4BA21 and the XB4BL21, and how do I know which one my circuit needs?

The XB4BA21 is spring-return — it produces a momentary pulse and the contact returns to open the instant pressure is removed. The XB4BL21 is latched — the contact stays closed after the button is pressed and remains closed until the operator manually releases it. To determine which is correct for your circuit, check your PLC ladder logic or relay schematic: if the input instruction is edge-triggered or uses a one-shot coil, XB4BA21 is correct. If the circuit requires a sustained closed contact to hold a device energized, XB4BL21 is required.

The contact rating listed by one distributor shows 6A at 120V AC, but another shows 10A at 600V — which is correct and which should I design to?

Both figures appear in official distributor documentation for the XB4BA21 and reflect different rating conditions rather than a specification error. The 6A at 120V AC figure represents the typical control circuit rating most commonly referenced for panel-mount operator devices. The 10A at 600V figure applies at higher voltage conditions. Design to the 6A at 120V AC figure unless your application is specifically a 600V circuit, and if your load current runs above 6A at your operating voltage, add an external relay or contactor to protect the button contacts. Confirm the applicable rating with LeadTime.ca or the official Schneider Electric datasheet before finalizing the design.

Can the XB4BA21 be used in an outdoor panel or a food processing washdown environment?

Yes. The XB4BA21 carries a NEMA 4X / IP66 / IP69K base enclosure rating, which is confirmed across multiple official distributor datasheets including Standard Electric Supply, TME, and SuperBreakers. This rating supports outdoor installation and high-pressure washdown environments including food processing and CIP (clean-in-place) applications. The documented operating temperature range extends to -40°C on the low end, supporting cold-storage and outdoor installations in demanding climates. Verify that the panel enclosure itself carries a matching or higher rating for complete system protection.

Is the XB4BA21 a direct replacement for a legacy Telemecanique push button in an existing panel?

The Harmony XB4 series is Schneider Electric's current-generation replacement for legacy Telemecanique XB-series push buttons, and the 22mm mounting footprint is consistent across the platform. In most existing Telemecanique installations, the XB4BA21 will drop into the same 22mm panel hole. However, terminal configuration and wiring gauge compatibility should be verified against the original part before assuming a direct swap — screw clamp terminal position and depth may differ between generations. Contact LeadTime.ca to confirm compatibility with your specific legacy part number if panel rework time is a constraint.

What happens if I accidentally over-tighten the screw clamp terminal during installation?

Over-tightening the screw clamp can damage the wire strands or strip the terminal thread, resulting in an intermittent connection that is difficult to diagnose after the panel is closed. If a terminal screw rotates without gripping, the terminal is damaged and the button should be replaced rather than repaired. The correct installation technique is to tighten until the wire cannot be pulled free under a firm tug — approximately finger-tight plus one-quarter turn with a standard flat-head screwdriver. Do not use a power driver on screw clamp terminals.

How do I confirm the XB4BA21 is in stock and what lead time should I plan for?

The XB4BA21 is stocked by multiple major industrial distributors including Mouser, Newark, SuperBreakers, Standard Electric Supply, and TME, which reduces single-source supply risk. For current availability and lead time committed to your order quantity and delivery location, contact LeadTime.ca directly — stock levels and lead times fluctuate and real-time confirmation is the only reliable method before committing a build schedule.

Why Order From LeadTime.ca

At-a-Glance Summary

  • Schneider Electric XB4BA21 is a 22mm flush-mount, spring-return push button with 1 NO contact — momentary action only, not latching
  • Contact rating: 6A at 120V AC (typical), 3A at 240V AC, 0.55A at 125V DC; 10A at 600V AC/DC per some sources — verify with distributor for your voltage and load
  • Enclosure rating: NEMA 1/2/4/4X/12/13; IP66/IP67/IP69K — suitable for washdown, outdoor, and corrosive environments
  • Operating temperature: -40 to 70°C (confirm lower bound with distributor; one source documents -25 to 70°C)
  • Terminal type: screw clamp, accepts 12 AWG to 20 AWG conductors
  • Mounting: 22mm panel cutout — confirm panel hole diameter before ordering; XB4 series also available in 16mm and 30mm
  • Actuator: black, unmarked flush head — specify alternate color (XB4BG21 green, XB4BY21 yellow) or illuminated variant (XB4BP21, XB4BN21) if required
  • For maintained contact: order XB4BL21; for E-stop 60mm mushroom head: order XB4BC21
  • RoHS compliant; UL/CSA certified; part of the Harmony XB4 modular series
  • Multi-distributor stock availability confirmed; specialist sourcing through LeadTime.ca ships worldwide
