Schneider Electric LC1D09P7 — 9A Contactor Specs & Buyer Guide

By Abdullah Zahid
14 min read

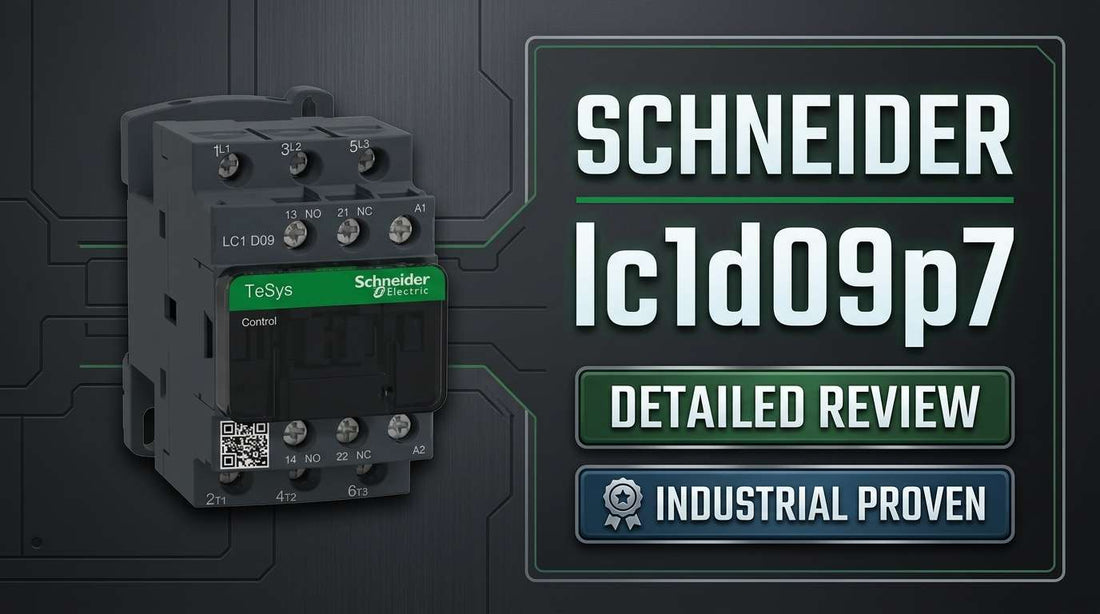

Schneider Electric LC1D09P7 TeSys Deca 3-pole 9A direct on-line IEC contactor for three-phase motor control on 35mm DIN rail

Schneider Electric LC1D09P7 TeSys Deca Direct On-Line Standard IEC Contactor, 3-Pole, 3 Normally Open (3NO) — Specifications, Selection Guide, and Sourcing

When a three-phase motor starter fails in a production facility, the maintenance technician typically has a part number already written on a work order and needs one question answered fast: is this the right unit and can it ship today? The Schneider Electric LC1D09P7 is a 9A AC-3 rated, three-pole direct-on-line contactor from the TeSys Deca line, controlled by a 230V AC 50/60Hz coil, rated for motors up to 5 HP at 460–480V. Before committing to a purchase order, the single most critical verification is coil voltage — 230V AC is hardwired into this model and cannot be substituted or field-modified.

If you have already confirmed this is the correct part, check current pricing and availability for the LC1D09P7 at LeadTime.ca — ships worldwide.

Who Should Buy the LC1D09P7 — and Who Shouldn't

The LC1D09P7 is the right contactor for engineers and technicians whose application satisfies all of the following criteria:

  • Control circuit voltage is confirmed at 230V AC 50/60Hz — this is non-negotiable for this model
  • Main circuit load is a three-phase motor rated at 5 HP maximum at 460–480V, or 2 HP maximum at 230V
  • Motor full-load current does not exceed 9A AC-3 as shown on the motor nameplate
  • Installation space accommodates standard 35mm DIN rail mounting at approximately 45mm contactor width
  • Application is direct-on-line motor starting — no reversing, no soft-start, no variable frequency drive bypass

If your control circuit runs on 24V DC, specify the LC1D09F7 instead. If your motor exceeds 5 HP at 480V, the LC1D18P7 or LC1D32P7 is the correct frame. If reversing motor control is required, the LC1D09U7 is the appropriate selection. This model will not perform correctly outside its rated parameters.

On this page:

What the LC1D09P7 Actually Does in a Motor Control Circuit

The LC1D09P7 is classified as a direct-on-line (DOL) IEC contactor under the TeSys Deca product family, conforming to IEC 60947-4-1. Its function is straightforward: it acts as a high-cycle switching device between a three-phase power source and a connected motor or resistive load, with all switching commanded through the 230V AC coil at terminals A1 and A2. The three main contacts are configured as 3 Normally Open (3NO), meaning the power circuit is open at rest and closes only when the coil is energized.

The distinction between its AC-1 and AC-3 ratings is critical for specifiers. The 20A AC-1 rating applies to resistive loads such as heaters and lamps, where inrush current is minimal. The 9A AC-3 rating governs motor starting and running duty, where inrush current at startup creates far higher contact stress. Applying an AC-1 rating to size a motor circuit is one of the most common specification errors — the contactor will be undersized for actual motor duty and will fail prematurely. The LC1D09P7 handles motor starting inrush under the AC-3 category with an electrical durability of 2 million cycles at 9A and a main circuit voltage up to 440V nominal (690V insulation).

One performance characteristic that distinguishes the TeSys Deca line is mechanical durability: 15 million cycles of ON/OFF operation with no electrical load. In standard industrial environments, this translates to a typical operational life of 5 to 10 years before contact inspection is warranted. The B10d safety rating of 20 million mechanical cycles and 1,369,863 cycles under nominal load is documented under EN/ISO 13849-1, providing the reliability data OEM machine builders need for safety-rated system design.

Where the LC1D09P7 Sits in a Typical System

The LC1D09P7 occupies the switching layer between the motor branch circuit protection and the motor terminal box. Understanding its position in the signal and power chain helps OEM designers and field technicians confirm correct application before installation.

  • Upstream: Three-phase power source or main distribution panel supplies L1, L2, L3 to the contactor input terminals
  • Branch protection: A motor branch circuit breaker or fused disconnect sits between the panel and the contactor input
  • Contactor main circuit: The LC1D09P7 switches T1, T2, T3 output to the motor or load on command from the 230V AC control circuit
  • Control layer: A 230V AC control transformer, PLC output relay, or hardwired pilot device energizes coil terminals A1/A2 to pull in or drop out the contactor
  • Downstream protection: A separate overload relay (not included with the LC1D09P7) must be installed in series with the output to provide motor thermal protection

Industries and Applications Where the LC1D09P7 Is Used

Food and beverage processing facilities deploy the LC1D09P7 in conveyor systems, agitators, and pump stations where compact DIN rail enclosures and 230V AC control circuits are standard. The contactor's IEC 60335-1 Clause 30.2 fire resistance certification and IEC 60335-2-40 Annex JJ environmental compliance make it suitable for environments with refrigerant exposure or hygiene-critical material requirements.

Water and wastewater treatment plants use it in demand-response and load-shedding circuits, where pump motors are cycled on and off by building automation systems. The 3600 cycles-per-hour maximum operating rate at 60°C ambient defines the thermal limit for high-frequency switching applications — beyond that rate, enclosure cooling or a larger frame must be considered.

OEM machine builders in packaging, light manufacturing, and compressed air systems specify the LC1D09P7 as a standard bill-of-materials component for 5 HP motor starters. Its approximately 45mm DIN rail width and snap-fit mounting simplify panel layout and reduce assembly time. Maintenance technicians in automotive production and HVAC systems rely on it as a drop-in replacement for failed starters in existing enclosures where 230V AC control is already present, avoiding any redesign of the pilot circuit.

Application Typical Deployment
Direct motor starter replacement Swap failed unit in existing DIN rail enclosure with 230V AC control
OEM machine design Standard 5 HP starter in packaging, assembly, or conveyor equipment
Water and wastewater pump control Demand-response or duty-cycling circuit with PLC or relay control
HVAC compressor switching Compressor duty cycling in commercial or industrial climate systems
Preventive maintenance spares Stocked unit for 24-hour availability in facility maintenance programs
Energy load shedding Facilities manager-controlled motor switching for peak-demand reduction

Electrical Ratings, Durability, and Certifications

Parameter Rating / Value Notes
Contact Configuration 3-Pole, 3 Normally Open (3NO) 1 NO / 1 NC auxiliary available as optional add-on
AC-3 Rating (motor duty) 9A at up to 440V nominal Standard motor starting and running; 2 million cycle electrical durability
AC-1 Rating (resistive load) 20A Lamps, heaters, pure resistive loads; 0.6 million cycle durability at 25A
Motor HP Capacity 5 HP @ 460–480V / 2 HP @ 230V (3-phase) UL-certified at 600V; verify motor FLA against 9A AC-3 limit
Coil Voltage 230V AC, 50/60Hz No built-in surge suppressor; external diode or RC network recommended
Main Circuit Insulation 690V IEC / 600V UL-CSA 690V insulation is for transient overvoltage; nominal operating max is 440V
Mechanical Durability 15 million cycles ON/OFF with no electrical load; B10d 20 million cycles per EN/ISO 13849-1
Max Operating Rate 3600 cycles/hour at 60°C Thermal limit; assess enclosure cooling for high-frequency applications
Mounting 35mm DIN rail, approx. 45mm width Snap-fit; verify enclosure space before ordering
Certifications IEC 60947-4-1, UL 508, CSA 22.2 #14 IEC 60335-1 Clause 30.2 fire resistance; IEC 60335-2-40 Annex JJ environmental

Full technical specifications are available on the product page at LeadTime.ca.

LC1D09P7 vs. LC1D09F7 vs. LC1D18P7 — Which Frame Do You Need?

Model AC-3 Rating Coil Voltage Max HP @ 480V Best For
LC1D09P7 9A 230V AC 50/60Hz 5 HP Legacy or new 230V AC control systems, compact DIN rail enclosures
LC1D09F7 9A 24V DC 5 HP Modern PLC output cards, 24V DC pilot control architectures
LC1D18P7 18A 230V AC 50/60Hz 7.5–10 HP Larger motors exceeding 9A FLA; same 230V coil, larger DIN rail footprint
LC1D32P7 32A 230V AC 50/60Hz 15–20 HP High-power industrial motors; frame upgrade required
LC1D09U7 9A 230V AC 50/60Hz 5 HP Reversing motor control; separate forward/reverse coil arrangement

If your motor nameplate shows a full-load current above 9A, the LC1D18P7 is the correct next step — check current availability and pricing at LeadTime.ca and confirm the right frame before placing your order.

Expert Verdict: Is the LC1D09P7 Worth Specifying?

The LC1D09P7 earns its place on the bill of materials for any application running three-phase motors up to 5 HP at 460–480V with a native 230V AC control circuit. Its 9A AC-3 rating, 15 million cycle mechanical durability, and 2 million cycle electrical endurance under motor starting conditions reflect the kind of long service life that maintenance teams need in facilities where downtime is measured in production losses, not just labor costs. The approximately 45mm DIN rail footprint, snap-fit mounting, and UL 508/CSA 22.2 #14 dual certification make it a practical, compliance-ready choice for OEM machine builders across food and beverage, water treatment, HVAC, and general manufacturing. The TeSys Deca line's established track record across millions of installed units in North American industrial facilities is the most persuasive argument for standardizing on this model.

The LC1D09P7 has genuine limits that deserve honest attention. This is not the right contactor if your control system runs on 24V DC — the coil is hardwired for 230V AC and cannot be field-retrofitted to a different voltage; the LC1D09F7 is the correct selection in that case. If your motor exceeds 5 HP at 480V or 2 HP at 230V, the contacts will be undersized for the actual full-load current and the contactor will degrade faster than its rated durability suggests — step up to the LC1D18P7 at minimum. Applications requiring reversing motor control or safety integrity level compliance without additional circuitry are outside the scope of this model; the LC1D09U7 handles reversing duty, and redundant contactor arrangements must be engineered separately for safety-rated circuits.

From a procurement standpoint, the LC1D09P7 is a well-distributed part with typical lead times of 2 to 4 weeks through general industrial channels. Specialist distributors with localized inventory can reduce that to 24 to 48 hours for stocked units — a meaningful difference when a failed contactor is holding up a production line. Ordering through a distributor who verifies coil voltage and load ratings before shipment eliminates the most common wrong-part return scenario: a 24V contactor shipped in place of a 230V unit. View current pricing and availability for the LC1D09P7 at LeadTime.ca — stock status is displayed live on the product page.

For volume pricing, expedited sourcing, or technical confirmation before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the LC1D09P7

Unlike high-profile PLC modules or HMI platforms with active forum communities, the LC1D09P7 generates relatively little online discussion — which is itself informative. IEC contactors of this class tend to work quietly in the background of motor control panels for years, rarely triggering the kind of failure-mode discussions that generate forum threads. When problems do arise with TeSys D-frame contactors in general, they almost always trace back to three root causes: coil voltage mismatch, motor load exceeding the AC-3 rating, or failure to install a separate overload relay for thermal motor protection. The absence of visible community complaints for this specific model is consistent with its application profile — it's a standard workhorse part that fails only when misapplied.

That said, the low volume of user-generated feedback means buyers ordering the LC1D09P7 for the first time should rely on distributor expertise rather than peer reviews to validate their specification. The most important pre-order confirmation is coil voltage. The 230V AC 50/60Hz coil is hardwired into this model — there is no field modification path, no plug-in coil swap, and no workaround if the control circuit delivers a different voltage. A 24V DC source will not pull in the coil; a 110V AC source will cause the coil to underperform or fail; directly connecting the coil to a 480V main power feed will destroy it instantly. Distributors who specialize in industrial automation components can cross-reference your control circuit documentation against the part number before the order ships — a step that costs nothing and eliminates the most expensive ordering mistake in this product category.

The coil suppression question is also worth addressing before commissioning. The LC1D09P7 does not include a built-in surge suppressor module. In applications where the contactor coil switches frequently alongside other inductive devices — additional contactors, relay coils, solenoid valves — voltage transients on the control bus can shorten coil life. Adding an external 1N4007 diode across the A1/A2 coil terminals or an RC snubber network is standard IEC contactor installation practice and is explicitly recommended in Schneider Electric technical literature for this product family. Procurement teams sourcing spare units for high-cycle applications should factor this accessory into the installation kit from the outset.

Installation and Wiring Overview

  • Mount the contactor on a standard 35mm DIN rail using the snap-fit mechanism; verify the approximately 45mm contactor width clears adjacent devices and terminal blocks before snapping in place
  • Apply LOTO to the three-phase source before connecting main circuit cables to L1/L2/L3 input and T1/T2/T3 output terminals; tighten all screw terminals to 1.5–2.5 Nm and perform a pull test on each conductor
  • Connect the 230V AC control supply to coil terminals A1 (command wire from pilot device) and A2 (control return/neutral); do not connect the coil directly to the three-phase main power circuit
  • If the control circuit switches inductive loads at high frequency, install an external 1N4007 diode or RC snubber network across A1/A2 to suppress voltage transients and protect coil life
  • Verify 230V AC appears across A1/A2 with a calibrated multimeter before energizing the main circuit; confirm the contactor pulls in audibly and releases cleanly before placing the system in service

Full installation procedures, torque specifications, and wiring diagrams are available in Schneider Electric's official product documentation. Always follow manufacturer documentation and applicable electrical codes for your region.

Auxiliary Contacts and Expansion Modules

The LC1D09P7 includes a base-mounted 1 NO / 1 NC auxiliary contact block as standard, providing status feedback and interlocking signals for control logic. The TeSys Deca frame accepts additional front-mounted and side-mounted auxiliary contact modules from the LADN series, allowing engineers to expand logic signaling without changing the contactor frame or rewiring the main circuit.

  • LADN series auxiliary contact blocks — front and side-mount options for expanding NO/NC contact combinations to support interlocking, PLC feedback, or safety relay circuits
  • External coil surge suppressor accessories — diode modules or RC network accessories compatible with the TeSys D coil terminal configuration
  • Overload relay accessories — separate overload relays mount directly in series for complete motor starter assembly; required for motor thermal protection, not included with the LC1D09P7

Wrong-Part Prevention Checklist

Before submitting a purchase order for the LC1D09P7, verify every item on this checklist against your application documentation:

  1. Confirm control circuit voltage is 230V AC 50/60Hz — do NOT substitute 24V or 110V coils
  2. Verify motor nameplate horsepower is 2 HP maximum at 230V or 5 HP maximum at 460–480V
  3. Check main circuit voltage class does not exceed 440V nominal (690V insulation is for transient overvoltage only)
  4. Confirm DIN rail space is available for contactor width (standard TeSys width approximately 45mm)
  5. Verify no conflict with safety control circuits requiring redundant contactors or fail-safe logic
  6. Check that 9A AC-3 load rating matches motor full-load current from motor nameplate FLA
  7. Ensure power distribution supports the switching speed (3600 cycles per hour maximum at 60°C)

If any item on this checklist cannot be confirmed, contact the LeadTime.ca team before ordering — our technical team can verify coil voltage, load ratings, and DIN rail compatibility against your application data before the part ships.

Frequently Asked Questions

Does the LC1D09P7 include overload protection, or do I need a separate overload relay?

The LC1D09P7 is a switching device only — it does not include overload protection. A separate overload relay must be installed in series with the output terminals to provide motor thermal protection. This is standard practice for IEC direct-on-line motor starters, and the TeSys D frame is designed to accept compatible overload relays as a direct mounting accessory.

Can I use a 110V AC or 24V DC control source with the LC1D09P7?

No. The coil in the LC1D09P7 is hardwired for 230V AC 50/60Hz and cannot be field-modified or substituted. Connecting a 24V DC source will result in the contactor failing to pull in; connecting a 110V AC source will cause the coil to underperform or fail. If your control circuit operates at 24V DC, specify the LC1D09F7 instead.

What is the practical difference between the AC-1 and AC-3 ratings when sizing this contactor?

The AC-1 rating of 20A applies to resistive loads such as heaters and incandescent lamps, where inrush current is minimal and contact stress is low. The AC-3 rating of 9A applies to motor starting and running, where startup inrush current is several times the running current and creates significantly higher contact erosion. Sizing a motor circuit using the AC-1 figure instead of AC-3 will lead to contact overheating and premature failure — always use the AC-3 rating for motor applications.

How often does the LC1D09P7 require maintenance or contact inspection?

In standard industrial duty, IEC contactors of this class are typically maintenance-free between scheduled inspections. Contact erosion is worth checking every one to two years in high-cycle applications. The electrical durability is rated at 2 million cycles at 9A AC-3 and the mechanical durability at 15 million cycles, which corresponds to a typical operational life of 5 to 10 years in standard environments. Applications approaching 3600 cycles per hour at 60°C ambient should assess contact condition more frequently.

Is the LC1D09P7 a direct drop-in replacement for an existing LC1D09-series contactor in my enclosure?

If the failed unit was also a 230V AC coil variant in the LC1D09 frame, the LC1D09P7 is dimensionally compatible and will mount on the same 35mm DIN rail footprint at approximately 45mm width. Verify the coil voltage on the original unit's label before ordering — LC1D09 variants are available in multiple coil voltages and only the P7 suffix designates 230V AC. A coil voltage mismatch on replacement requires a full swap to the correct variant.

What is the warranty on the LC1D09P7, and does it transfer with the equipment?

The standard contractual warranty is 18 months from invoice date. The warranty is non-transferable — it applies to the original purchaser and does not carry over when equipment changes ownership. Verify warranty terms with your distributor at the time of purchase, as distributor terms may vary.

Why Order From LeadTime.ca

  • LeadTime.ca ships the LC1D09P7 and related TeSys Deca accessories worldwide — no single-region sourcing restriction
  • Technical team verifies coil voltage and load ratings against your application data before the order ships, reducing wrong-part returns
  • Specialist inventory sourcing for hard-to-locate variants (specific coil voltages, auxiliary contact combinations) that generic online retailers may not stock
  • Volume pricing available for OEM BOM quantities and facility maintenance spares programs — contact for current pricing
  • Direct access to Schneider Electric technical resources for installation support and compatibility confirmation

At-a-Glance Summary

  • Model: LC1D09P7 — TeSys Deca Direct On-Line Standard IEC Contactor, 3-Pole, 3 Normally Open (3NO)
  • AC-3 motor duty rating: 9A at up to 440V nominal main circuit voltage
  • Maximum motor load: 5 HP at 460–480V three-phase; 2 HP at 230V three-phase
  • Coil voltage: 230V AC 50/60Hz — hardwired, no field modification possible
  • Mechanical durability: 15 million cycles; electrical durability AC-3: 2 million cycles at 9A
  • B10d safety rating: 20 million cycles mechanical; 1,369,863 cycles at nominal motor load per EN/ISO 13849-1
  • Maximum operating rate: 3600 cycles per hour at 60°C ambient
  • AC-3 total heat dissipation (3 poles): 4.68W — relevant for enclosure thermal calculations
  • Mounting: Standard 35mm DIN rail, approximately 45mm width, snap-fit
  • Certifications: IEC 60947-4-1, UL 508 (600V), CSA 22.2 #14 (600V), IEC 60335-1 Clause 30.2, IEC 60335-2-40 Annex JJ
  • Overload protection: Not included — separate overload relay required for motor thermal protection
  • Surge suppression: Not built-in — external 1N4007 diode or RC network recommended for inductive switching applications
