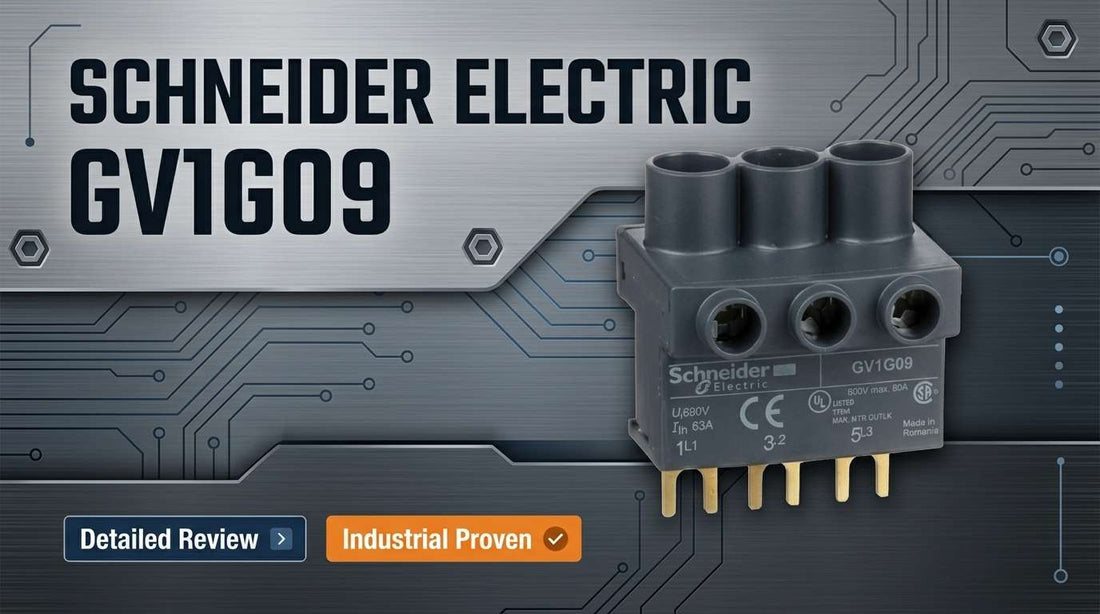

Schneider Electric GV1G09 TeSys 3-pole top-feed terminal block for GV2G busbar incoming power connection

Schneider Electric GV1G09 TeSys Top Feed Terminal Block for Busbars, 3-Pole — Specifications, Pricing, and Compatibility Guide

If you are specifying or sourcing an incoming power terminal block for a TeSys busbar system, the Schneider Electric GV1G09 is likely already on your shortlist. This 3-pole, top-feed terminal block is rated at 63 A and 690 V AC with screw clamp terminations accepting 14-6 AWG conductors — covering the vast majority of motor control applications built around TeSys D, TeSys U, and GV2G busbar architecture. The decision usually comes down to confirming three things: busbar model match, voltage, and conductor gauge. This guide covers all three, plus compliance, ordering, and the most common specification mistakes buyers make at the procurement stage.

If you have already confirmed this is the right part, check current pricing and availability for the GV1G09 at LeadTime.ca — ships worldwide.

Who Should Buy the GV1G09 — and Who Shouldn't

The GV1G09 is the right incoming power terminal block when all of the following apply to your installation:

  • Your installed or planned busbar is a GV2G, TeSys D, or TeSys U platform — confirmed on the nameplate or system drawing
  • Your incoming power voltage is 690 V AC or lower (480 V and 575 V systems are fully supported without derating)
  • Your incoming conductors are 14-6 AWG solid — the screw clamp termination is rated for this range directly, without ferrules
  • Your continuous and peak system current does not exceed 63 A
  • Screw clamp connection method is acceptable under your facility wiring standard
  • Your installation is in an IP20-minimum controlled environment — not washdown, outdoor, or corrosive atmosphere without an additional IP-rated enclosure

If your voltage exceeds 690 V AC, your load exceeds 63 A, or your incoming conductors fall outside the 14-6 AWG range, the GV1G09 is not the correct component. You will need a larger TeSys busbar system, a higher-voltage busbar family, or an alternative terminal architecture — consult your Schneider distributor before ordering.

On this page:

Where the GV1G09 Fits in Your Motor Control System

The GV1G09 is not a protective device, a contactor, or a starter — it is the electrical entry point for incoming field power into a TeSys busbar assembly. Its specific function is to receive the incoming three-phase conductors from the power distribution system and transfer that power onto the GV2G busbar rail, from which individual TeSys D or TeSys U motor starters draw their supply. Without a correctly specified incoming terminal block, the busbar architecture has no properly rated connection point for field power.

The top-feed design means power conductors enter the terminal block from above, which is the standard orientation for GV2G busbar systems. Screw clamp termination at each of the three poles allows direct insertion of 14-6 AWG solid conductors without the added step of crimping ferrules or compression lugs, which reduces assembly time during commissioning and eliminates an additional component from the bill of materials. The IP20 protection rating means the GV1G09 is designed for enclosed panel environments — not for exposure to liquids or contaminants without an additional rated enclosure around it.

Two certifications matter most for North American installations: UL Listed File E89451 and CSA Certified File 164581. Both are confirmed on the GV1G09, which means electrical inspectors and facilities compliance teams can accept this part without requesting additional third-party test documentation. The GV1G09 is also RoHS and REACH compliant, which matters for facilities operating under environmental procurement requirements or exporting equipment to regulated markets.

Typical System Architecture for TeSys Busbar Installations

The GV1G09 sits between the incoming power supply and the busbar distribution rail — acting as the rated, code-compliant entry terminal for the entire starter group.

  • Upstream: Three-phase power source (utility feed, transformer secondary, or MCC section) protected by a dedicated circuit breaker or disconnect upstream of the busbar assembly
  • GV1G09 terminal block: Receives incoming 14-6 AWG conductors via screw clamp; transfers power onto the GV2G busbar rail at up to 63 A, 690 V AC
  • GV2G busbar rail: Distributes supply voltage across multiple TeSys D or TeSys U motor starters mounted along the busbar
  • TeSys D or TeSys U starters: Individual motor protection and control devices fed from the busbar; each with its own overload and short-circuit protection
  • Downstream: Motor loads (pumps, fans, conveyors, compressors) connected at the load terminals of each individual starter

Typical Applications and Deployment Scenarios

The GV1G09 is most commonly encountered in multi-motor control applications where centralizing power distribution onto a busbar reduces panel wiring complexity and saves space. Integrators building skid-mounted motor control panels for pump stations, conveyor systems, or HVAC mechanical rooms specify this terminal block as the standard power entry point when the panel architecture is based on TeSys D or TeSys U starters arranged on a GV2G busbar.

Facilities engineers executing equipment upgrades from individual starter installations to centralized busbar architecture encounter the GV1G09 as a required component in the new design. Rather than running separate power feeds to each starter, the busbar approach consolidates the incoming supply through a single rated terminal block — the GV1G09 — and distributes from there. This is a common scenario in light manufacturing, water treatment pump controls, and process automation upgrades.

In emergency repair and replacement situations, the GV1G09 is ordered as an exact replacement for a failed or damaged incoming terminal block. Thermal cycling, over-tightening of screw clamps, or conductor vibration can cause premature failure; in these cases, sourcing the identical part number is the fastest path to restoring system operation without enclosure rework or wiring changes.

Application Typical Deployment
New TeSys busbar panel build Integrator specifies GV1G09 as incoming power entry per design drawings; screw clamp accepts field wiring during commissioning
Replacement after thermal failure Technician orders exact GV1G09 replacement; swaps part to restore busbar power without enclosure modification
Individual-to-busbar system retrofit Facility replaces distributed starters with TeSys busbar; GV1G09 connects existing field power conductors to new busbar architecture
Emergency production line repair Loose or arced terminal block causes outage; GV1G09 ordered for same-day or next-day delivery through stocking distributor
Busbar capacity expansion Second GV2G busbar section added; GV1G09 provides rated incoming power connection for the new section

GV1G09 Key Specifications

Specification Value Notes
Rated Current 63 A Continuous duty; do not exceed in normal or peak operation
Rated Voltage 690 V AC 575 V, 480 V, and lower applications fully supported without derating
Number of Poles 3 Incoming power connection only; not a switching or protective device
Connection Method Screw Clamp Direct conductor insertion; no ferrule required per rating
Wire Gauge Accepted 14-6 AWG (solid) Outside this range requires a different terminal block
Protection Grade IP20 Requires enclosed panel for washdown or outdoor environments
Dimensions (L x W x H) 15.6 in x 11.7 in x 5.8 in Verify enclosure space before ordering
UL Listed Yes — File E89451 Accepted in North American installations without additional compliance documentation
CSA Certified Yes — File 164581 Accepted for Canadian market installations
RoHS / REACH Compliant Acceptable for regulated environments and equipment exported to restricted-substance markets

Full technical specifications are available on the product page at LeadTime.ca.

GV1G09 vs. Other TeSys Terminal Block Options

The GV1G09 occupies a specific position in the TeSys GV1G series as the 3-pole, top-feed, 63 A incoming power terminal block for GV2G busbar systems. Understanding where it sits relative to adjacent options prevents the most common ordering error in this family — selecting the wrong feed orientation or the wrong current tier.

Parameter GV1G09 Side-Feed Variants Higher-Current Busbar Options
Feed Orientation Top Feed Side Feed Varies by model
Current Rating 63 A Varies Above 63 A
Voltage Rating 690 V AC Varies Varies
Poles 3 3 3
Compatible Busbar GV2G, TeSys D/U GV2G (side-entry models) Larger TeSys busbar families
UL/CSA Yes (E89451 / 164581) Verify per model Verify per model
Use Case Standard new installation and replacement Panels where top-entry space is restricted Applications exceeding 63 A continuous

If your busbar layout physically restricts top-entry wiring, confirm whether a side-feed variant is the correct solution before ordering — the GV1G09 is top-feed only and cannot be reoriented in the field. If your load exceeds 63 A, you need a larger busbar system entirely — check the GV1G09 product page at LeadTime.ca or contact the team to confirm which variant fits your current tier.

Expert Verdict: Is the GV1G09 the Right Part for Your Build?

The GV1G09 delivers exactly what a controls integrator or panel builder needs when working within TeSys D or TeSys U busbar architecture: a standards-confirmed, directly compatible incoming power terminal block that installs without adapters, workarounds, or additional compliance paperwork. Its 63 A continuous rating at 690 V AC covers the full voltage range of standard industrial motor control systems — 480 V and 575 V applications run comfortably within spec. The screw clamp termination accepting 14-6 AWG solid conductors eliminates the ferrule step from the assembly process, which matters on a commissioning timeline. UL Listed File E89451 and CSA Certified File 164581 are confirmed credentials, not unverified claims, which means facilities compliance sign-off on this part is straightforward. This terminal block is the right choice for electrical contractors replacing a failed block in an existing TeSys installation, for OEMs standardizing motor control panel designs on Schneider busbar architecture, and for facilities engineers converting from individual starters to a centralized busbar system.

The limits of the GV1G09 are real and worth stating directly. If your system current exceeds 63 A at any point during normal or peak operation, this terminal block is undersized — there is no field derating or workaround; you need a larger busbar system. If your supply voltage exceeds 690 V AC, the GV1G09 is not rated for that application and must not be used. Installations in washdown, outdoor, or corrosive environments require an IP-rated enclosure around the terminal block; the GV1G09's own IP20 rating provides no protection against moisture or contamination on its own. And critically, this is a top-feed terminal block — if your busbar installation uses side-feed entry or if you are working with a legacy pre-TeSys D busbar where compatibility is undocumented, verify fit before placing your order.

On the procurement side, the GV1G09 is generally available from stocking industrial distributors with 1-5 business day lead times for standard orders. For emergency repairs where production downtime is the immediate concern, sourcing through a specialist distributor with confirmed stock is the faster and lower-risk path compared to a generic online marketplace that may not validate application fit or ship from nearby inventory. Check current availability and pricing for the GV1G09 at LeadTime.ca — the team can confirm stock status and compatibility before your order ships, worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the GV1G09

Community discussion specific to the GV1G09 is sparse — this is a focused accessory component within a well-established product family, and most experienced integrators who work with TeSys busbar systems order it without needing to post questions in forums. That absence of community noise is, in some ways, a positive signal: the part does its job without generating the kind of recurring compatibility complaints or failure patterns that drive online discussion. However, the technical mistakes that do occur in this category are worth understanding before you place an order.

The most consequential ordering error in the TeSys terminal block family is selecting the wrong feed orientation. The GV1G09 is a top-feed terminal block — power conductors enter from above. Side-feed variants exist for installations where top-entry wiring space is restricted, and they are not interchangeable with the GV1G09 in the field. If you are replacing an existing block and are not certain which orientation is installed, photograph the terminal block and busbar inlet from multiple angles before ordering. This single step eliminates the most common wrong-part return scenario in this product category.

Wire gauge is the second frequent specification gap. The 14-6 AWG conductor range is the rated spec — not a guideline. Conductors smaller than 14 AWG may not seat properly in the screw clamp; conductors larger than 6 AWG will not fit without modification, which is not acceptable on a safety-rated connection. If your incoming power conductors are 8 AWG or larger, the GV1G09 is not the correct terminal block for your application. Measure your conductors before ordering, not after the part arrives. When community data is limited and manufacturer documentation requires interpretation, the most reliable path is to contact a specialist distributor with your busbar model number, voltage, current load, and conductor gauge in hand — and get a confirmed match before the purchase order is issued. That conversation takes less time than a wrong-part return.

Wiring and Installation Overview

The following points cover the key requirements and verification steps for a standard GV1G09 installation. For full wiring diagrams, torque specifications, and step-by-step commissioning procedures, refer to the official Schneider Electric installation documentation for the GV1G09 and GV2G busbar system.

  • De-energize and lock out the power source before making any connections; verify absence of voltage with a calibrated meter before touching terminals
  • Incoming conductors must be 14-6 AWG solid; strip to the length specified in Schneider documentation before inserting into the screw clamp — do not over-strip or under-strip
  • The top-feed design requires conductors to enter from above the terminal block; confirm this orientation is physically achievable in your enclosure layout before installation
  • Tighten screw clamp terminals to the torque value specified in official Schneider documentation; over-tightening causes conductor strand damage and loose connections cause arcing — both are common installation errors that result in premature failure
  • After energizing, verify voltage at the busbar output terminals using a calibrated meter; schedule a follow-up inspection within 30 days to confirm screw clamp connections have not relaxed due to thermal cycling

Compatible Systems and Expansion

The GV1G09 is confirmed compatible with the following Schneider Electric systems. Use this list to cross-check your installed equipment before ordering.

  • GV2G Busbar — primary application; GV1G09 is the rated incoming power terminal block for this busbar series
  • TeSys D Starters — fully compatible; top-feed design matches the TeSys D busbar architecture
  • TeSys U Starters — fully compatible; confirmed for incoming power connection in TeSys U installations
  • PowerPact Manual Starters — compatible in verified configurations; consult the specific PowerPact model documentation to confirm before ordering
  • Legacy TeSys (pre-TeSys D) — compatibility not confirmed; verify directly with Schneider Electric or a specialist distributor before specifying GV1G09 for a legacy system

Wrong-Part Prevention Checklist

Before placing your order, work through this checklist item by item. Every point corresponds to a real procurement or installation error that results in returns, delays, or safety issues.

  1. Confirm installed busbar model is GV2G or TeSys D/U compatible (check manual or nameplate).
  2. Verify incoming power voltage is 690 V AC or lower (GV1G09 rated to 690 V; higher voltages require upgrade).
  3. Confirm incoming power conductor size is 14-6 AWG (outside this range requires alternative block).
  4. Confirm screw clamp connection is acceptable in your wiring standard (some sites mandate compression lugs; verify).
  5. Check part number on existing terminal block if replacing—GV1G09 is top-feed only; do not confuse with side-feed variants.
  6. Verify current load does not exceed 63 A during normal or peak operation (oversizing requires larger busbar system).
  7. Confirm installation location has IP20 protection or better (GV1G09 rated IP20; no washdown or outdoor exposure without enclosure).

If any item on this checklist does not match your application, stop before ordering. Contact the LeadTime.ca team with your busbar model number, voltage, current load, and conductor gauge — we can confirm the correct part before your order ships, anywhere in the world.

Frequently Asked Questions

Is the GV1G09 compatible with older TeSys busbar systems predating TeSys D?

Compatibility with pre-TeSys D legacy busbar systems is not confirmed in official documentation. The GV1G09 is verified for TeSys D, TeSys U, and GV2G busbar platforms. If your system predates these families, verify directly with Schneider Electric or a specialist distributor before ordering to avoid a wrong-part purchase.

Can I use the GV1G09 on a 575 V or 480 V system?

Yes. The GV1G09 is rated at 690 V AC maximum, and both 575 V and 480 V applications fall within that rating without any derating required. The 63 A current rating applies regardless of the supply voltage within this range.

What is the largest conductor I can terminate in the GV1G09 screw clamp?

The screw clamp is rated for 14-6 AWG solid conductors. The 6 AWG size is the maximum; conductors larger than 6 AWG will not fit and must not be forced. If your incoming power conductors are 4 AWG or larger, the GV1G09 is not the correct terminal block — specify an alternative with a larger termination range.

Does the GV1G09 include overcurrent or short circuit protection?

No. The GV1G09 is a terminal block — a passive electrical connection device only. It provides no overcurrent protection, short circuit interruption, or switching function. A dedicated circuit breaker or disconnect must be installed upstream of the GV1G09 and busbar assembly; this protection is not integrated and cannot be omitted.

How do I know if my existing installation uses a top-feed or side-feed terminal block?

Observe the direction from which the incoming power conductors enter the terminal block. If they enter vertically from above, the installed block is top-feed — the GV1G09 configuration. If conductors enter horizontally from the side, the installed block is a side-feed variant, and the GV1G09 is not a direct replacement. When in doubt, photograph the installation and confirm with a distributor before ordering.

What should I do if a screw clamp terminal on my GV1G09 becomes loose during operation?

De-energize the system completely and lock out the power source before touching the terminal. Inspect the screw clamp visually and retighten to the torque specification in the Schneider Electric installation manual. Check the conductor for signs of arcing, discoloration, or thermal damage at the clamp point — a conductor showing visible damage should be replaced before re-energizing. Screw clamps can relax due to thermal cycling; schedule periodic re-torque inspections as part of your preventive maintenance program.

Why Order From LeadTime.ca

  • Ships worldwide — customers across North America, Europe, Asia-Pacific, and beyond order through LeadTime.ca without regional restrictions
  • Specialist industrial focus — the team understands TeSys busbar architecture and can confirm compatibility before your order ships, reducing wrong-part risk
  • Stocking and lead time visibility — real-time availability information and responsive lead time confirmation before you commit to a purchase order
  • Volume and project pricing — contact for multi-unit or project-quantity pricing on GV1G09 and related TeSys accessories
  • Hard-to-find and replacement parts — experienced at sourcing components for emergency repair and retrofit scenarios where speed and part accuracy matter equally

At-a-Glance Summary

  • Schneider Electric GV1G09 is a 3-pole, top-feed incoming power terminal block for TeSys GV2G busbar systems
  • Rated 63 A continuous at 690 V AC — supports 480 V and 575 V applications without derating
  • Screw clamp termination accepts 14-6 AWG solid conductors directly — no ferrules required per rating
  • IP20 protection rating — requires enclosed panel or IP-rated enclosure for any washdown, outdoor, or corrosive environment
  • UL Listed File E89451 and CSA Certified File 164581 — accepted in North American installations without additional compliance documentation
  • RoHS and REACH compliant — acceptable for regulated procurement environments and export equipment
  • Confirmed compatible with TeSys D starters, TeSys U starters, GV2G busbar, and verified PowerPact Manual Starter configurations
  • Dimensions: 15.6 in L x 11.7 in W x 5.8 in H — verify enclosure space before ordering
  • Not suitable for loads exceeding 63 A, voltages above 690 V AC, or conductors outside the 14-6 AWG range
  • Generally available from stocking distributors with 1-5 business day lead times; emergency replacement orders benefit from specialist distributor sourcing
