Schneider Electric EGX150 — Modbus Ethernet Gateway Buying Guide

By Abdullah Zahid
14 min read

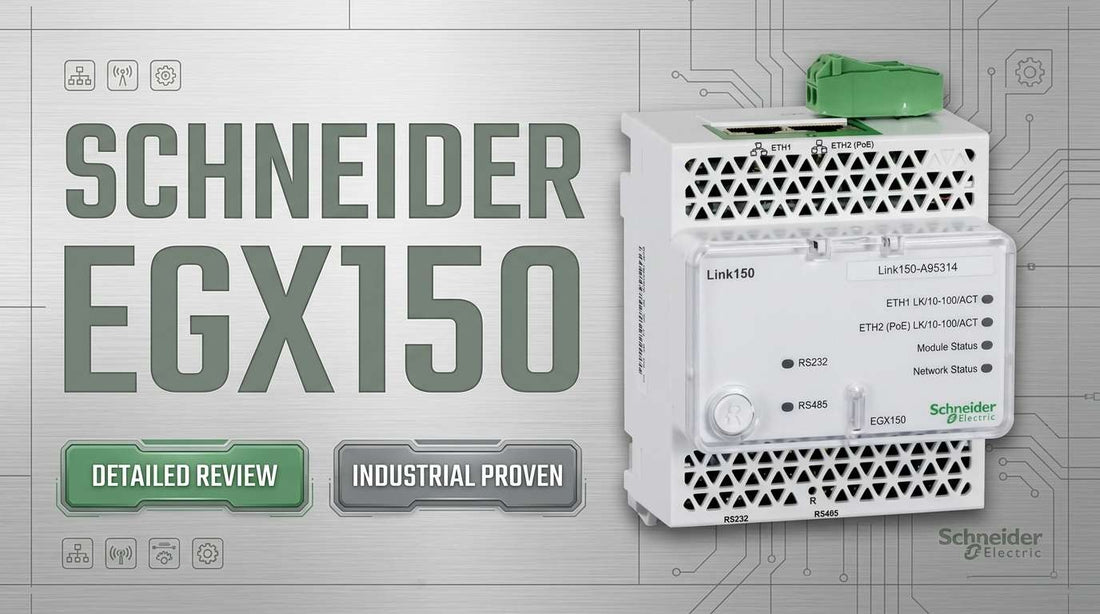

Schneider Electric EGX150 Link 150 Ethernet Gateway DIN-rail mounted for Modbus serial to TCP/IP network integration

Schneider Electric EGX150 Link 150 Ethernet Gateway (2 Ethernet Port, 24 V DC and PoE) — Specifications, Alternatives & Procurement Guide

Controls engineers retrofitting building automation systems, manufacturing plants, or power distribution networks to modern Ethernet infrastructure face a persistent problem: legacy Modbus serial devices — power meters, protective relays, motor controllers — cannot speak natively to TCP/IP supervisory platforms. The Schneider Electric EGX150 Link 150 Ethernet Gateway addresses that gap directly, bridging RS232 or RS485 Modbus serial devices to Ethernet networks at a compact 2.83 in x 4.13 in x 2.79 in DIN-rail footprint, with support for Modbus TCP/IP, HTTP, FTP, and SNMP (MIB II) on a 24 V DC or PoE power budget. If you are evaluating this gateway for a retrofit project and need to confirm specifications, pricing, and availability before placing a purchase order, the information below will help you make that call with confidence.

If you have already confirmed this is the right part, check current pricing and availability for the EGX150 at LeadTime.ca — ships worldwide.

Who Should Buy the EGX150 — and Who Shouldn't

The Schneider Electric EGX150 is the right gateway for engineers with an existing Modbus serial installed base who need to bring that equipment onto a modern Ethernet network without wholesale device replacement. Confirm all of the following apply to your application before ordering:

  • Your legacy Modbus devices operate at baud rates within the 2400–57600 bps supported range
  • You require RS232 or RS485 serial interface (2-wire or 4-wire selectable) — not a different physical layer
  • Your installation environment is IP20 (indoor control room) or IP30 (light splash/dust tolerance)
  • A 24 V DC power supply at 5 W minimum is available in the cabinet, or PoE injection is available at the switch
  • Your network infrastructure supports Modbus TCP/IP and you need HTTP, SNMP, or FTP management alongside it
  • You require 2 Ethernet ports (with 1 active at a time) — not simultaneous dual-port operation

If your application requires more than 2 simultaneous serial connections, deterministic real-time communication, or native Ethernet protocol devices on a greenfield installation, this is not the correct gateway — evaluate higher-capacity or protocol-native alternatives before ordering.

On this page:

What the EGX150 Actually Does in a Real System

The Schneider Electric EGX150 is a protocol converter — not a PLC, not a network switch, and not a standalone data logger. Its specific function is translation: it takes Modbus serial communications from legacy devices and presents them as Modbus TCP/IP traffic on an Ethernet network. From the perspective of a SCADA platform, energy management system, or building automation controller sitting upstream, the serial devices behind the EGX150 appear as native Ethernet-addressable Modbus TCP/IP nodes.

The gateway supports Modbus RTU and ASCII over RS232 or RS485 serial ports (configurable between 2-wire and 4-wire modes), with baud rates selectable from 2400 to 57600 bps. The default factory baud rate is 19200 bps — a detail that matters during commissioning if your installed devices use a different rate. Beyond Modbus protocol translation, the EGX150 includes HTTP for browser-based configuration, FTP for file transfer, and SNMP (MIB II) for enterprise network monitoring — a combination that supports integration into building automation systems, SCADA environments, and IT-managed facility networks without requiring separate management tools for each protocol layer.

Power is supplied at 24 V DC with a 5 W typical draw (approximately 208 mA at 24 V DC), with Power over Ethernet as a secondary option where a dedicated DC supply is impractical. The enclosure is rated IP20 for indoor control room environments or IP30 for light industrial spaces with minor splash or dust exposure. Operating temperature range spans -13°F to 158°F (-10°C to 70°C), and the unit mounts on a standard 35 mm DIN rail in a 2.83 in H x 4.13 in W x 2.79 in D footprint.

Typical System Architecture for the EGX150

The EGX150 sits in the middle of the signal chain — between the legacy serial device layer and the Ethernet supervisory layer — acting as the translation point where the two protocol worlds meet. Here is how a typical deployment looks from controller to field device:

  • Ethernet network (switch or router) connects upstream to SCADA, energy management software, or building automation system via Modbus TCP/IP
  • EGX150 Ethernet port (primary, 10/100 Base TX) connects to that network switch via CAT5e or better cabling
  • EGX150 serial port (RS232 or RS485, configured to match site cabling) connects downstream to legacy Modbus slave devices
  • Legacy devices — power meters, protective relays, motor controllers, circuit monitors — communicate over serial Modbus RTU or ASCII at their configured baud rates (2400–57600 bps)
  • Web browser or SNMP management tool accesses EGX150 HTTP interface directly on the Ethernet network for configuration, diagnostics, and firmware management

Where the EGX150 Gets Deployed: Applications and Industries

Building automation engineers use the EGX150 most frequently to retrofit existing energy management systems. Power meters, trip units, and protective relays installed years earlier with RS485 Modbus connections can be brought into a modern Ethernet-based monitoring platform without being pulled and replaced — a significant capital savings in buildings with large installed bases of Schneider Electric or third-party Modbus metering equipment.

In manufacturing environments, plant operations teams deploy the EGX150 to consolidate serial data feeds from legacy motor control centers, variable frequency drives, and process instruments into a centralized SCADA system. The gateway's support for multiple baud rates across the 2400–57600 bps range accommodates equipment from different generations and vendors on the same serial bus, provided slave addresses (1–247 range) do not conflict.

Facilities managers overseeing multi-site operations use the EGX150 to standardize remote monitoring across buildings where each site may have different vintages of Modbus equipment. The SNMP (MIB II) management capability allows enterprise IT teams to include the gateway in their network monitoring infrastructure alongside switches and routers, reducing the operational boundary between OT and IT monitoring domains.

Data center and critical facility engineers deploying the EGX150 typically target power distribution unit monitoring, UPS integration, or transfer switch status aggregation — scenarios where legacy serial ports on power infrastructure equipment need to report into a centralized facility management platform without disrupting existing hardware.

Application Typical Deployment
Building Energy Management Retrofit of RS485 power meters and circuit monitors into Ethernet BMS or EMS platform
Manufacturing Plant Monitoring Consolidation of legacy motor controller and drive serial feeds into SCADA system
Power Distribution Integration Protective relay and metering data aggregation into centralized Modbus TCP/IP monitoring
Multi-Site Facilities Management Standardized remote monitoring gateway across distributed buildings with mixed Modbus device vintages
Data Center Infrastructure Serial UPS, PDU, and transfer switch integration into facility management software

EGX150 Specifications: What Engineers Need to Confirm Before Ordering

Parameter Specification
Dimensions (H x W x D) 2.83 in x 4.13 in x 2.79 in
Mounting Standard 35 mm DIN-rail
Enclosure Rating IP20 (indoor control room) / IP30 (light splash/dust)
Power Supply 24 V DC, 5 W typical (approx. 208 mA); PoE supported as secondary option
Operating Temperature -13°F to 158°F (-10°C to 70°C)
Relative Humidity 5–95% non-condensing
Serial Interface RS232 or RS485 (2-wire or 4-wire selectable); default baud rate 19200 bps
Supported Baud Rates 2400, 4800, 9600, 19200, 38400, 56000, 57600 bps
Ethernet Ports 2 ports (1 active at a time), 10/100 Base TX
Protocols Supported Modbus RTU/ASCII, Modbus TCP/IP, HTTP, FTP, SNMP (MIB II)

Full technical specifications are available on the product page at LeadTime.ca.

EGX150 vs. Alternative Modbus Ethernet Gateways

The EGX150 is the right fit for a specific use case. Understanding where it sits relative to alternative options prevents over-specification or under-specification for your application.

Criterion Schneider Electric EGX150 Higher-Capacity Gateway (General) Native Ethernet Protocol Device
Serial Ports Configurable RS232 or RS485 (2-wire / 4-wire) Multiple independent serial ports Not applicable (Ethernet-native)
Baud Rate Range 2400–57600 bps Varies by model; often wider range Not applicable
Ethernet Ports 2 ports (1 active at a time) Often 2+ simultaneous ports 1–2 native Ethernet ports
Power Options 24 V DC or PoE Varies; some include battery backup Varies by device class
Protocol Support Modbus RTU/ASCII, Modbus TCP/IP, HTTP, FTP, SNMP Often broader multi-protocol coverage Native Ethernet protocols only
Best For Retrofit of existing Modbus serial installed base High-device-count or multi-port serial networks Greenfield deployments without legacy devices

If your application involves more than 2 simultaneous serial connections, requires on-board battery backup, or demands real-time deterministic communication, the EGX150 is not the correct selection — review current availability at LeadTime.ca and contact the team to discuss the right gateway for your port count and protocol requirements.

Expert Verdict: Is the EGX150 Right for Your Project?

The Schneider Electric EGX150 solves a well-defined problem for a well-defined buyer: a controls engineer or facilities manager with an existing inventory of Modbus serial devices — power meters, protective relays, motor controllers — who needs to connect that installed base to a modern Ethernet supervisory network without replacing hardware that still functions correctly. For that buyer, the EGX150 delivers straightforward protocol conversion, a compact DIN-rail footprint at 2.83 in x 4.13 in x 2.79 in, multi-protocol management via HTTP, FTP, and SNMP (MIB II), and proven compliance with IEC 60950, UL 60950, and the EN 61000-4 series electromagnetic immunity standards. The value proposition is incremental network modernization without capital expenditure on device replacement — a realistic priority for organizations managing capital depreciation cycles and retrofit budgets.

Where the EGX150 has genuine limits: it is not a multi-port gateway. With 2 Ethernet ports where only 1 is active at a time, it is unsuitable for applications requiring simultaneous dual-network operation or high-device-count serial aggregation. It is equally wrong for greenfield projects without a Modbus installed base — in those cases, native Ethernet protocol devices eliminate the gateway layer entirely and reduce commissioning complexity. Applications requiring deterministic or real-time communication will find that an Ethernet gateway introduces latency that disqualifies it from motion control or fast-loop process control. For any of those scenarios, specify a higher-capacity protocol gateway or native-Ethernet field device instead.

From a procurement standpoint, the EGX150 is available through authorized industrial automation distributors with North American stock positions that support rapid commissioning windows. The single most important pre-order step is documenting the baud rate and serial interface type of every Modbus device that will connect to the gateway — baud rate mismatch between the gateway's default 19200 bps and a device running at a different rate is the leading cause of commissioning delays and is easily prevented before the order is placed. Buying through a specialist distributor means access to pre-sale compatibility consultation, not just product fulfillment. View current pricing and availability for the EGX150 at LeadTime.ca — ships worldwide.

For volume pricing, lead time confirmation ahead of a project build schedule, or to discuss multi-gateway deployments, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the EGX150

Public forum discussion on the Schneider Electric EGX150 is limited — the product appears primarily in enterprise building automation and industrial retrofit deployments where implementation details stay in private project documentation rather than public communities. That absence of community noise is actually informative: this is not a hobbyist device or a product with well-known quirks circulating on Reddit or PLC forums. It is a commercially deployed protocol converter specified by engineers who generally have internal support channels. What that means for a buyer evaluating the EGX150 without community benchmarks is that the specification and ordering decision rests entirely on getting the technical baseline right before purchase — and that is where specialist distributor consultation becomes genuinely valuable.

The most common pre-purchase errors with gateways in this class are not about the gateway itself — they are about incomplete device inventory documentation on the buyer's end. An engineer who assumes all legacy serial devices run at 19200 bps (the EGX150 factory default) and discovers post-installation that three out of six devices run at 9600 bps is facing a commissioning delay that was entirely preventable. Similarly, assuming RS232 and RS485 connectors are interchangeable — because both carry serial data — leads to configuration errors and potential signal integrity issues that appear as random intermittent faults rather than obvious hardware failures. The EGX150 requires you to know your serial device ecosystem before installation, not during it.

Power supply sizing is another pre-order checkpoint that buyers in the brief's target profile — controls engineers specifying for retrofit cabinet additions — occasionally underestimate. The EGX150 draws approximately 208 mA at 24 V DC at 5 W typical, but if the same 24 V DC rail also powers Modbus slave devices, the upstream supply must be sized for the total combined load with margin. A supply that works at ambient temperature may sag below reliable operating voltage under thermal stress or during network traffic bursts. Verify the full 24 V DC load budget — not just the gateway's 5 W nameplate — before specifying the power supply for the cabinet. If any of these pre-order checks surface uncertainty about compatibility, LeadTime.ca's team can assist with verification before the order is placed.

Wiring and Installation Overview

The EGX150 is a DIN-rail-mounted device requiring a 35 mm standard rail with adequate clearance for the 2.83 in height profile. Engineers should review the Schneider Electric technical manual for complete wiring diagrams and pinout specifications — the following covers the key installation checkpoints:

  • Mount the gateway on a 35 mm DIN rail in a location with adequate ventilation for the -13°F to 158°F (-10°C to 70°C) operating temperature range; confirm no adjacent device introduces thermal loading beyond this envelope
  • Connect 24 V DC power to the terminal block at the specified polarity; supply must deliver a minimum of 5 W with ripple within industrial tolerance — never apply AC mains directly to this terminal
  • Select RS232 or RS485 (2-wire or 4-wire) serial cable based on legacy device interface type — verify physical connector type and pinout against both the device manual and the EGX150 technical manual before terminating any cable
  • Connect the primary Ethernet port using CAT5e or better cabling to the network switch; confirm 10/100 Base TX compatibility; if using PoE as the power source, verify injector compliance with the gateway's PoE specification
  • Access the gateway web interface via browser at the configured IP address; confirm baud rate settings match every connected Modbus slave device before completing commissioning — the factory default of 19200 bps must be explicitly changed if legacy devices operate at a different rate

Compatible System Components and Expansion Context

The EGX150 operates within the Schneider Electric PowerLogic and Link150 product ecosystem. Typical compatible upstream and downstream components include:

  • Schneider Electric PowerLogic power meters and circuit monitors with RS485 Modbus output — primary downstream devices for energy management retrofit applications
  • Schneider Electric trip units and protective relays with Modbus RTU serial communication — integrated via RS485 or RS232 serial port depending on device generation
  • Modbus TCP/IP-compatible SCADA and energy management software platforms — upstream supervisory systems that the EGX150 presents serial devices to as Ethernet-addressable Modbus TCP/IP nodes
  • 24 V DC DIN-rail power supplies — upstream power source required in cabinet; must be sized for the EGX150's 5 W draw plus any additional powered devices on the same rail
  • CAT5e or CAT6 Ethernet patch cables and managed industrial Ethernet switches — network infrastructure connecting the EGX150 to the supervisory system
  • PoE-capable network switches or midspan injectors — secondary power option where dedicated 24 V DC supply is impractical

Wrong-Part Prevention Checklist

Before submitting a purchase order for the Schneider Electric EGX150, verify all six points below against your project documentation. These checks prevent the most common post-purchase ordering and commissioning errors:

  1. Verify installed Modbus devices operate at baud rates within 2400–57600 bps range; non-standard rates require external converter
  2. Confirm RS232 or RS485 interface required; do not assume all serial ports are plug-compatible
  3. Check environmental enclosure rating: IP20 (indoor office/control room) vs. IP30 (light splash/dust tolerance)
  4. Confirm 24 V DC supply is available in cabinet; do NOT order if only AC mains present without separate power supply
  5. Validate existing Modbus TCP/IP network infrastructure; device acts as gateway only, not a standalone network device
  6. Verify Ethernet port count requirement: EGX150 has 2 ports (1 available at a time); do NOT exceed serial device group size per port

If any of these checks raise questions about compatibility, contact the LeadTime.ca team before ordering — pre-sale technical consultation is available and prevents costly post-delivery issues.

Frequently Asked Questions

Can the EGX150 operate with both Ethernet ports simultaneously, or is only one active at a time?

The EGX150 has 2 Ethernet ports, but only 1 is active at a time. The second port is typically configured as a redundant failover connection rather than for simultaneous dual-network operation. If your application requires simultaneous multi-network Ethernet connectivity, you will need to evaluate a different gateway solution.

What happens if my legacy Modbus device runs at a baud rate not in the EGX150's supported list?

The EGX150 supports 2400, 4800, 9600, 19200, 38400, 56000, and 57600 bps. If a device operates at a rate outside this range, the gateway cannot establish serial communication with it, and no data will pass regardless of other configuration settings. You will need either an external rate converter between the device and the gateway, or a different gateway model that supports the non-standard rate.

Is the EGX150 a direct replacement for earlier Link150 series units without cabinet rewiring?

The EGX150 belongs to the Link150 product family and is designed for the same DIN-rail mounting and serial-to-Ethernet bridging role. However, before treating any gateway as a direct swap, verify that serial port pinout, IP address configuration, and baud rate settings from the outgoing unit are documented and replicated on the EGX150. Never assume factory defaults match the predecessor unit's working configuration.

Does the EGX150 support SNMP alerting for enterprise IT network monitoring integration?

Yes. The EGX150 includes SNMP (MIB II) support, allowing enterprise network management tools to monitor the gateway alongside standard IT infrastructure such as switches and routers. This is one of the features that makes it practical for OT/IT convergence deployments where the building automation or industrial network must be visible to a centralized IT operations team.

What is the storage temperature range if the unit is held in spare parts inventory?

The EGX150 storage temperature range is -40°F to 185°F (-40°C to 85°C), which accommodates standard warehouse and cabinet storage conditions in virtually all climates. Units held in spare inventory do not require climate-controlled storage beyond avoiding condensation — relative humidity tolerance in storage follows the same 5–95% non-condensing specification.

Why Order the EGX150 from LeadTime.ca

  • Ships worldwide — not restricted to a single region or country
  • Pre-sale technical consultation available to confirm compatibility before the order is placed
  • Sourcing support for hard-to-locate SKUs and time-sensitive commissioning windows
  • Volume pricing available — contact for project quantities and multi-unit deployments
  • Authorized industrial automation distributor with access to specialist product knowledge beyond standard catalog fulfillment

At-a-Glance Summary

  • Schneider Electric EGX150 is a Link 150 Ethernet Gateway bridging Modbus RTU/ASCII serial devices to Modbus TCP/IP Ethernet networks
  • Dimensions: 2.83 in H x 4.13 in W x 2.79 in D; standard 35 mm DIN-rail mount
  • Power: 24 V DC at 5 W typical (approx. 208 mA); PoE supported as secondary option
  • Serial interface: RS232 or RS485 (2-wire or 4-wire selectable); baud rates 2400–57600 bps; factory default 19200 bps
  • Ethernet: 2 ports (1 active at a time), 10/100 Base TX; CAT5e or better required
  • Protocols: Modbus RTU/ASCII, Modbus TCP/IP, HTTP, FTP, SNMP (MIB II)
  • Operating temperature: -13°F to 158°F (-10°C to 70°C); storage: -40°F to 185°F (-40°C to 85°C)
  • Enclosure rating: IP20 (indoor) or IP30 (light splash/dust)
  • Certifications: IEC 60950, UL 60950, EN 61000-4 series EMC immunity, C-Tick, Green Premium, ECCN EAR99
  • Right for: Modbus serial device retrofit to Ethernet networks; wrong for: greenfield Ethernet-native projects, multi-port serial aggregation, real-time motion control
