Omron Z-15GW22-B Basic Switch — Specs, Review & Alternatives

By Abdullah Zahid
16 min read

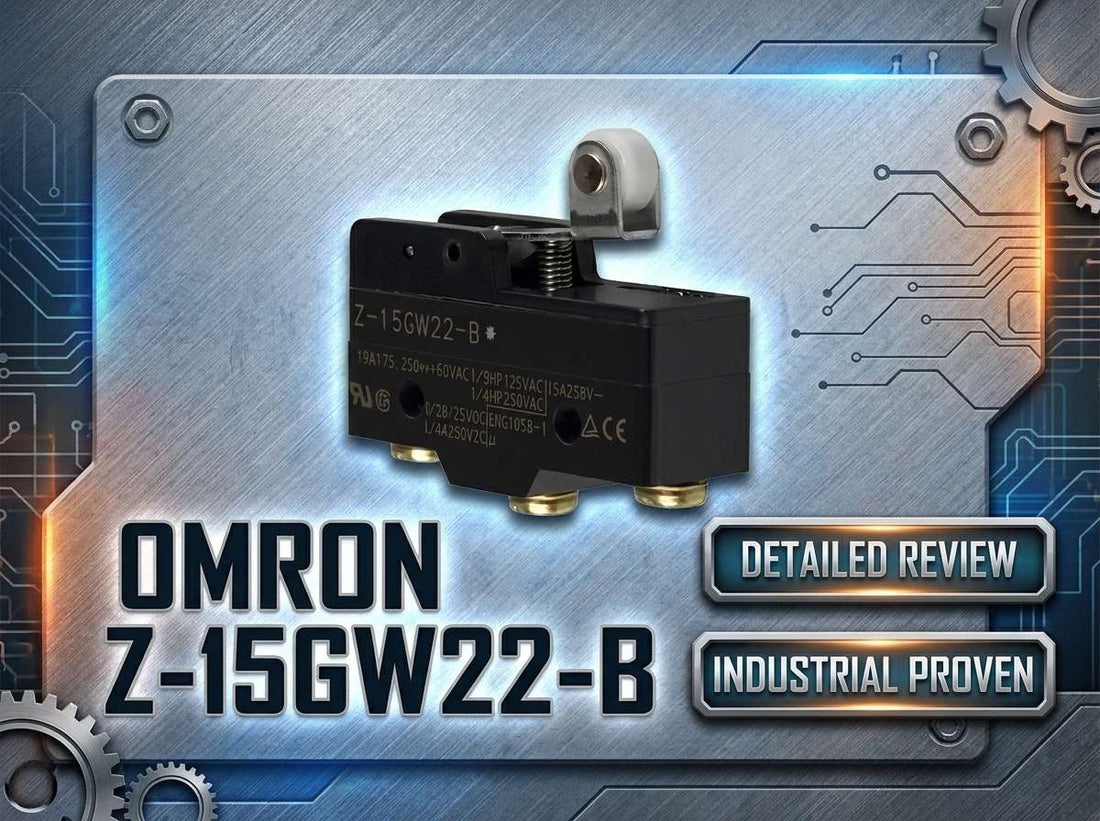

Omron Z-15GW22-B general-purpose basic switch with short hinge roller lever for industrial position sensing applications

Omron Z-15GW22-B Z General-Purpose Basic Switch, Short Hinge Roller Lever Type — Specs, Review and Buying Guide

When a conveyor stops responding, a guard door signal drops out, or a cam follower stops reporting position, maintenance teams and controls engineers reach for a known quantity: the Omron Z-15GW22-B, a general-purpose SPDT snap action switch with a short hinge roller lever, rated up to 15 A at 250 VAC with M4 screw terminals and an IP40 enclosure. The decision is usually simple — provided you confirm you have the right actuator style and terminal configuration before the part ships. This review covers exactly that, so you can order with confidence.

If you have already confirmed this is the correct part, check current pricing and availability for the Omron Z-15GW22-B at LeadTime.ca — we ship worldwide.

Who Should Buy the Omron Z-15GW22-B — and Who Should Not

The Z-15GW22-B is the right choice when all five of the following are true for your application:

  • Your load is within the switch's rated 15 A at 250 VAC (resistive) or 6 A at 30 VDC (resistive) — with appropriate external protection for inductive loads
  • You need a short hinge roller lever actuator specifically — not a plunger, long lever, or adjustable lever style
  • Your control scheme requires SPDT contacts with ON-(ON) momentary snap action
  • Your installation uses side mounting with M4 screw terminal wiring
  • The installation environment is clean to moderately dusty indoor use within -25 °C to 80 °C ambient — IP40 is adequate, no washdown or outdoor exposure

If your environment requires IP65 or higher sealing, if you need a different actuator geometry, or if the application demands a safety-rated interlock function, the Z-15GW22-B is not the correct choice. Sealed limit switch families and dedicated safety switch products are the appropriate alternatives in those cases.

On this page:

What the Omron Z-15GW22-B Actually Does in a Control System

The Omron Z-15GW22-B belongs to the Z-15 series of general-purpose basic switches — the industrial category sometimes called snap action switches or microswitches, depending on the audience. Its core function is mechanical position and end-of-travel detection: a cam, actuator, pallet, or machine component depresses the short hinge roller lever, the internal snap action mechanism transfers the contacts instantaneously, and a discrete SPDT signal reaches the PLC input or relay coil downstream. The transition back occurs when mechanical force is removed, completing the ON-(ON) cycle.

What distinguishes the Z-15GW22-B within its family is the short hinge roller lever geometry. The roller reduces point contact wear on the actuating surface, and the hinge geometry provides a defined mechanical advantage and travel profile suited to cam-following and stop-sensing applications. The 15 A at 250 VAC contact rating means it can directly switch small motor loads or solenoid coils within that rating, rather than being limited to purely signal-level use — a meaningful advantage over lower-rated miniature microswitches in the same footprint class. The IP40 protection level covers solid particle ingress down to 1 mm but provides no liquid ingress protection, which defines the boundary of appropriate environments clearly.

It is important to note that the Z-15GW22-B is a general-purpose position sensing device, not a safety-rated interlock switch. Applications requiring IEC 60947-5-1 or PLd/PLe safety interlock functions require a dedicated safety switch family with positive opening contacts and the appropriate certification documentation.

Where the Z-15GW22-B Sits in a Typical Machine Architecture

The Z-15GW22-B occupies the field device layer of the control architecture — the point where mechanical motion becomes an electrical signal. Here is a typical component chain for a conveyor or packaging machine installation:

  • PLC or relay controller (upstream signal consumer) receives the discrete input from the switch
  • Field wiring from the control panel carries 24 VDC or 120/240 VAC to the switch COM terminal through appropriate overcurrent protection
  • Omron Z-15GW22-B mounted to the machine frame on a bracket, short hinge roller lever aligned to intercept the cam, pallet, or actuating surface
  • NO terminal wired to the PLC digital input or relay coil that must energize on actuation; NC terminal available for opposite-logic or auxiliary indication
  • Mechanical actuating surface — cam profile, dog, adjustable stop, or door frame — triggers the lever at the defined position

Typical Applications and Deployment Scenarios

End-of-travel detection on linear slides, pneumatic cylinders, and small actuators is among the most common deployments. The short hinge roller lever engages a fixed stop or cam surface at the travel limit and feeds the signal back to the PLC to stop motion or initiate the next sequence step.

Position feedback on machine guards and removable panels is another frequent use — specifically for non-safety interlock functions such as cycle inhibit or status indication where a full safety-rated switch is not required by the risk assessment. The Z-15GW22-B is suitable here provided the safety classification allows a general-purpose switch.

Presence detection of mechanical components including pallets, tooling pins, and indexing stops suits the roller lever well. The roller reduces surface wear on both the switch lever and the contacting part during high-frequency cycling applications such as indexing conveyors.

Cam-driven switching on packaging, printing, and light machine tool equipment — where a rotating cam shaft drives the switch lever in a timed pattern — is a classic Z-15 series application. The short lever geometry provides a defined cam engagement profile and reliable snap action throughout the cam rotation.

MRO replacement of worn or failed Omron Z-15 series switches in legacy equipment is a large driver of Z-15GW22-B demand. The consistent footprint and terminal arrangement across the Z-15 family means a correctly identified Z-15GW22-B drops directly into the existing bracket without drilling new holes or modifying wiring.

Application Typical Deployment
Conveyor end-of-travel Mounted to frame, lever contacts pallet or carrier dog at stop position
Guard door position feedback Bracket-mounted at door frame, lever depressed by door closed — non-safety function
Cam-driven sequence switching Lever rides cam profile on rotating shaft in packaging or printing machinery
Cylinder end-of-stroke detection Lever actuated by cylinder rod or clevis at fully extended or retracted position
Indexing presence detection Lever contacts tooling pin or pallet stop at each index position on rotary table
MRO replacement in legacy machines Direct bracket and wiring swap for failed Z-15 series switch on existing equipment

Key Specifications for Purchase Decisions

Parameter Value Notes
Series / Family Omron Z-15 series General-purpose basic switch family
Contact Form SPDT (1 NO + 1 NC), ON-(ON) Momentary snap action; contacts return on lever release
Rated Current — AC 15 A at 250 VAC (resistive) Derate for inductive loads; use external protection
Rated Current — DC 6 A at 30 VDC (resistive) Lower inductive DC ratings apply; verify from datasheet
Actuator Type Short hinge roller lever Roller reduces surface wear in cam-following applications
Terminal Style M4 screw terminals Side mounting; do not confuse with solder or quick-connect variants
Protection Rating IP40 Solid particle protection only; no liquid ingress protection
Operating Temperature -25 °C to 80 °C Indoor clean to moderately dirty environments
Body Dimensions (W x D x H) Approx. 49.2 x 17.45 x 24.2 mm Verify mounting hole pattern against existing bracket before ordering
Approvals UL, CSA, CE Confirm current regional approvals from latest official datasheet

Full technical specifications are available on the product page at LeadTime.ca.

Omron Z-15GW22-B vs Other Z-15 Variants: Which One Do You Actually Need?

The Z-15 series uses a structured part numbering system where each segment of the model number encodes a specific mechanical or electrical attribute. Confusing these segments is the single most common ordering mistake reported across distributor and community channels. The table below captures the most purchase-relevant comparisons:

Model Actuator Style Contact Rating (AC) IP Rating Terminal Style Key Differentiator
Z-15GW22-B Short hinge roller lever 15 A / 250 VAC IP40 M4 screw This model — short lever, roller tip
Z-15GW2-B Short hinge roller lever 15 A / 250 VAC IP40 M4 screw Different roller or sensitivity variant — verify before substituting
Z-15HW22-B Short hinge lever (no roller) 15 A / 250 VAC IP40 M4 screw Lever without roller — suits different actuating surface contact
Z-15EW22-B Short hinge roller lever variant 15 A / 250 VAC IP40 M4 screw Different operating characteristics — check datasheet for travel and force
Z-15G (plunger variants) Plunger / pin 15 A / 250 VAC IP40 M4 screw No lever — incompatible with cam-following applications
Sealed limit switch families Various Various IP65 / IP67 Various Required for washdown, outdoor, or heavy contamination environments

If your machine uses a cam or follower that engages a short roller lever specifically, and your environment is clean indoor use, the Z-15GW22-B is the correct selection. For any other actuator geometry, cross-check the actuator code characters carefully — check current availability and confirm your variant at LeadTime.ca.

Expert Verdict: Is the Omron Z-15GW22-B the Right Switch for Your System?

The Z-15GW22-B earns its place as a dependable, go-to basic switch for maintenance teams and OEM machine builders who need a reliable SPDT roller-lever position sensor in general industrial environments. Its 15 A at 250 VAC rating puts it above the threshold of many miniature microswitches, allowing it to directly switch small solenoids or motor controls within rating — a genuinely practical advantage for panel builders looking to simplify circuit architecture. The consistent Z-15 footprint, body dimensions of approximately 49.2 x 17.45 x 24.2 mm, and M4 screw terminal arrangement mean it drops into existing brackets and wiring schemes with minimal rework, which is exactly what a maintenance team needs when a line is down at 2 AM.

Where the Z-15GW22-B has real limits is equally clear. The IP40 rating stops at solid particle protection — there is no water ingress protection of any kind, which rules out washdown, outdoor, or heavily oil-contaminated environments. For those applications, sealed limit switch families with IP65 or IP67 ratings are the correct path. The switch is also not a safety-rated device; applications requiring positive opening contacts and PLd or PLe compliance need a dedicated safety interlock switch. And if your application calls for a plunger, a long lever, or an adjustable lever actuator, the Z-15HW22-B, Z-15EW22-B, or a plunger-type Z-15G variant should be specified instead — the actuator geometry differences are real and will affect mechanical engagement reliability.

From a procurement standpoint, the Z-15GW22-B is widely stocked across North America and available to buyers worldwide through specialist distributors. That availability matters most when a machine is stopped and the wrong part has already been installed once. A specialist distributor can validate your full part number against the mechanical drawing, confirm actuator and terminal compatibility with your existing installation, and surface in-stock alternatives if a specific variant faces a supply constraint — reducing the risk of a second wrong-part event. View current pricing and stock status for the Omron Z-15GW22-B at LeadTime.ca.

For volume pricing, project quantities, or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Pricing, Availability, and How to Order From Anywhere in the World

The Omron Z-15GW22-B sits in a price tier that makes it practical for both single-piece MRO replacement and OEM volume purchasing. Current pricing is available directly on the product page, where LeadTime.ca displays live pricing to visitors — no need to contact for a quote on standard quantities, though volume pricing is available on request.

Within North America, the Z-15 series is among the more commonly stocked Omron basic switch families. That said, specific variants including the Z-15GW22-B can occasionally show extended lead times when distributor stock runs low or when a product line shift affects regional availability. Buyers in Canada should account for the fact that cross-border sourcing from U.S. distributors introduces duty and brokerage costs that can affect total landed cost on small quantities — sourcing through a Canadian-capable distributor with domestic stock eliminates that friction. LeadTime.ca ships worldwide, so international buyers outside North America can order through the same channel.

For critical spares, the standard recommendation is to hold at least one or two Z-15GW22-B units on the shelf in facilities where the switch appears in multiple machines. The low unit cost relative to potential downtime makes this straightforward to justify at the MRO level.

What Engineers Need to Know Before Ordering the Omron Z-15GW22-B

Community discussion specific to the Z-15GW22-B model is limited — most forum commentary on PLC Talk, PLCS.net, Reddit automation forums, and distributor Q&A sections addresses the Z-15 family broadly rather than this exact variant. What does emerge from those discussions at the family level carries directly applicable lessons for anyone ordering the Z-15GW22-B today.

The most consistent praise across the Z-15 family centers on three things: reliability under sustained cycling when kept within rated electrical and environmental parameters; the consistent footprint and lever geometry that makes mechanical replacement predictable; and availability through multiple distributor channels, which maintenance teams cite as a genuine contributor to reduced downtime. These are earned reputation points for the Z-15 series, and they apply to the Z-15GW22-B specifically because it shares the same platform and design heritage.

The most consistent warnings are equally instructive. Part number confusion within the Z-15 family is the dominant ordering mistake reported across every forum and distributor Q&A channel reviewed. The codes that differentiate actuator styles — GW22 versus GW2, HW22 versus EW22 — are visually similar enough that ordering errors occur even among experienced buyers. A second recurring warning is environmental misapplication: IP40 protection has been tested against solid objects larger than 1 mm, but users report accelerated failure when Z-15 switches are installed in environments with frequent oil misting, chip splash, or incidental water contact. The datasheet boundary is clear; the field sometimes is not. Third, community discussions highlight contact damage from switching inductive loads near or above rating without adequate arc suppression — the 15 A at 250 VAC rating is a resistive rating, and inductive loads impose higher transient stress that can weld or erode contacts prematurely without external protection. When in doubt on these questions, contacting a specialist distributor before ordering — rather than after receiving the wrong part — is the decision that saves the most time.

Wiring and Installation Overview

The Z-15GW22-B uses three terminals: COM (common), NO (normally open), and NC (normally closed), identified by markings on the switch body and in the Omron datasheet terminal diagram. Installation and wiring follow standard practice for SPDT snap action switches:

  • Identify COM, NO, and NC terminals using the body marking or datasheet diagram before connecting any conductors; do not assume terminal positions match other switch families
  • Connect the supply or control voltage to COM through appropriately rated overcurrent protection — external fusing or circuit breaker sized to the circuit, not simply to the switch rating
  • Connect NO to the PLC input or relay coil that should energize on lever actuation; connect NC for opposite-logic sensing or auxiliary indication as required by the control scheme
  • Tighten M4 terminal screws to the recommended torque specified in the Omron datasheet — under-torqued screws cause intermittent contact; over-torqued screws damage the terminal block
  • After installation, manually actuate the roller lever and verify correct logic state at the PLC or relay before returning the machine to service; confirm that the switch is not being used as a mechanical stop — the lever and housing are not designed to absorb end-of-travel impact forces

For full wiring diagrams, terminal torque specifications, and mechanical installation drawings, refer to the official Omron Z-15 series datasheet available from the manufacturer.

Wrong-Part Prevention: Confirm These Eight Points Before You Order

The Z-15 family's part number structure means small differences in the model code correspond to significant differences in physical and electrical characteristics. Before placing your order for the Omron Z-15GW22-B, verify all eight of the following:

  1. Confirm the series: Z-15 basic switch, not other Omron Z or D4N/D4A limit switch families.
  2. Verify the exact actuator: short hinge roller lever (Z-15GW22-B), not plunger, long lever, or different roller style.
  3. Check contact form: SPDT (1 NO + 1 NC) with ON-(ON) operation; ensure this matches the control scheme.
  4. Confirm terminal style: screw (M4) terminals; do not mix up with solder lug or quick-connect variants.
  5. Verify electrical ratings against your actual load (voltage, AC/DC, current, resistive/inductive); ensure inrush and fault currents are adequately protected with external protection.
  6. Check IP rating (IP40) and ambient temperature range (-25 to 80 °C) against the installation environment.
  7. Match mounting dimensions and mounting hole pattern with existing bracket or panel before ordering.
  8. Cross-check similar Omron part numbers (Z-15GW2-B, Z-15HW22-B, Z-15EW22-B, etc.) to avoid confusing lever length or sensitivity variants.

If any of the eight checks raises a question, contact the LeadTime.ca team before ordering — we can validate your part number against your application details and confirm the correct variant ships the first time.

Frequently Asked Questions

Is the Omron Z-15GW22-B a limit switch or a basic microswitch — and does the distinction matter for my application?

The Z-15GW22-B is a general-purpose basic switch, sometimes called a snap action switch or microswitch in industry. A full-size limit switch typically refers to a housed, IP-rated assembly with an integrated operator and a separate switching element inside. The Z-15GW22-B is the bare switching element itself, rated at IP40. For most general-purpose position sensing on clean indoor machinery the distinction is a packaging difference rather than a functional one, but for harsh environments the housed, sealed limit switch family provides the ingress protection the Z-15GW22-B does not.

Can I install the Omron Z-15GW22-B outdoors or in a washdown area?

No. The IP40 rating on the Z-15GW22-B provides protection against solid objects larger than 1 mm but offers zero liquid ingress protection. Outdoor exposure, washdown, and environments with regular water or oil contact will lead to accelerated failure. For those environments, select a sealed limit switch family rated IP65 or IP67 — the Z-15GW22-B is not suitable regardless of how it is mounted or enclosed.

What is the practical difference between the Omron Z-15GW22-B and the Z-15HW22-B?

The actuator style is the critical difference. The Z-15GW22-B uses a short hinge roller lever — the roller tip reduces surface wear and suits cam-following applications. The Z-15HW22-B uses a short hinge lever without a roller, making direct flat-surface contact. If your machine has a cam or follower that rolls against the actuator, the GW22 (roller) variant is the correct choice. Substituting the HW22 in a cam application will increase wear on both the lever and the cam surface over time.

How do I correctly wire the SPDT contacts of the Omron Z-15GW22-B to a PLC digital input?

Connect the PLC's 24 VDC supply through appropriate overcurrent protection to the COM terminal of the switch. Connect the NO terminal to the PLC digital input that should read high when the lever is actuated. The NC terminal can be left unused or connected to a second PLC input for opposite-logic monitoring. Always confirm terminal identification from the body markings or official Omron datasheet before making connections, and manually actuate the lever to verify logic behavior before commissioning.

Can I directly switch a motor or solenoid load with the Omron Z-15GW22-B, or do I need an interposing relay?

The Z-15GW22-B is rated at 15 A at 250 VAC for resistive loads and 6 A at 30 VDC resistive. For small resistive loads within those ratings it can switch directly. However, inductive loads — motors and solenoids — present higher transient currents at make and break that accelerate contact wear and can cause contact welding if adequate arc suppression is not applied. For anything other than small signal-level or clearly resistive loads within rating, using the switch to drive an interposing relay or contactor coil rather than the load directly extends contact life and reduces risk of premature failure.

Is the Omron Z-15GW22-B a direct drop-in replacement for a competitor's 15 A roller-lever microswitch?

Functionally — SPDT contacts, 15 A AC rating, roller lever geometry — the Z-15GW22-B is equivalent to many competitor 15 A basic switches. However, mounting hole spacing, body dimensions, lever travel, operating force, and terminal arrangements can vary between brands. Before substituting any competitor part with the Z-15GW22-B, compare the mechanical drawing dimensions and mounting hole pattern against the existing bracket, and verify that actuator travel and operating force are compatible with your cam profile. A functional equivalent is not guaranteed to be a mechanical drop-in without that verification.

Why Order the Omron Z-15GW22-B From LeadTime.ca

  • Global shipping — LeadTime.ca ships the Omron Z-15GW22-B worldwide, with no restriction to any single region or country
  • Specialist distributor support — our team can validate your full part number, confirm actuator and terminal compatibility, and identify the correct Z-15 variant before an incorrect part ships
  • Hard-to-find and constrained stock — when a specific Z-15 variant is backordered at generalist channels, LeadTime.ca sources across multiple supply paths to reduce waiting time
  • Volume and project pricing — contact us for pricing on MRO quantities, OEM blanket orders, and spare parts programs

At-a-Glance Summary

  • Model: Omron Z-15GW22-B — Z General-Purpose Basic Switch, short hinge roller lever type
  • Contact form: SPDT (1 NO + 1 NC), ON-(ON) snap action
  • AC rating: 15 A at 250 VAC (resistive load)
  • DC rating: 6 A at 30 VDC (resistive load)
  • Operating temperature: -25 °C to 80 °C
  • Protection: IP40 — suitable for clean indoor environments only; no liquid ingress protection
  • Body dimensions: approximately 49.2 x 17.45 x 24.2 mm
  • Terminals: M4 screw terminals, side mounting
  • Approvals: UL, CSA, CE (confirm current status from official Omron datasheet)
  • Critical ordering check: verify the full part number including actuator code (GW22) and suffix (-B) against the installed switch markings and mechanical drawing before ordering
  • Not suitable for: washdown, outdoor, IP65+ environments, safety interlock functions
