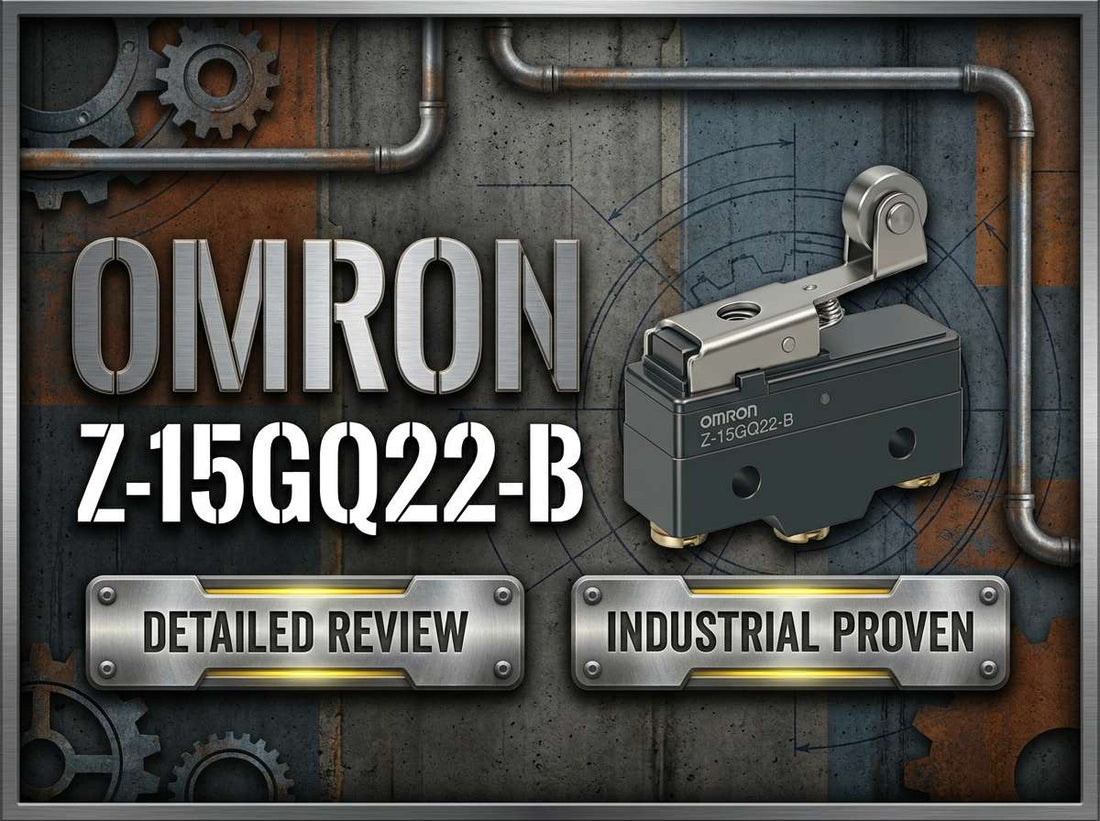

Omron Z-15GQ22-B Z Series general-purpose basic switch with roller plunger and screw terminals for industrial limit sensing

Omron Z-15GQ22-B: Z Series General-purpose Basic Switch, Roller Plunger, 15 A — Specs, Wiring, and Best Alternatives

If you are specifying or replacing a snap-action microswitch for an industrial limit or position-sensing application, the Omron Z-15GQ22-B is a frequently searched part for good reason. This SPDT roller-plunger basic switch carries a 15 A AC rating, screw terminals for straightforward field wiring, and snap-action contacts that deliver repeatable actuation on cam-driven mechanisms — everything a controls technician or OEM engineer needs in a standard-duty limit switch. The single most important thing before ordering: confirm the full part number maps exactly to your actuator type, terminal style, and mounting requirements, because the Z-15 family has many closely related variants that are not interchangeable.

If you have already confirmed this is the right part, check current pricing and availability for the Omron Z-15GQ22-B at LeadTime.ca — ships worldwide.

Who Should Buy the Omron Z-15GQ22-B — and Who Shouldn't

This switch is the right choice for maintenance teams and OEM engineers who need a reliable 15 A SPDT roller-plunger microswitch for machinery operating in relatively clean, protected environments. It fits directly into existing Z-15 installations as a drop-in replacement and suits any application where the cam or actuating dog engages a roller plunger with repeatable travel.

  • Your application requires a 15 A AC switching capacity for resistive loads at the rated voltage
  • You need a roller plunger actuator style for cam-operated or linear-target engagement
  • Screw terminals are required for field wiring with ring or fork lugs
  • SPDT contact form is required — one common, one normally open, one normally closed
  • The switch will be installed inside a panel or enclosure that provides external environmental protection (this is an unsealed basic switch)
  • You are replacing an existing Z-15GQ22-B or equivalent Z series variant and the mounting dimensions and hole pattern are already confirmed

If you need a sealed or washdown-rated switch, a different actuator style (plain plunger, lever, or hinge roller), quick-connect or solder terminals, or a safety-rated interlock device, a different Z-15 variant or an enclosed limit switch is the correct choice — not the Z-15GQ22-B.

On this page:

What the Omron Z-15GQ22-B Actually Does in a Machine

The Omron Z-15GQ22-B is a general-purpose snap-action basic switch from Omron's Z Series, combining a roller plunger actuator with screw terminals and an SPDT contact block rated at 15 A for AC loads. In practical terms, it sits at the point in a machine where mechanical motion needs to be converted into an electrical signal — the end of a cylinder stroke, the closed position of a guard door, the indexed position of a conveyor, or the reference position of a linear axis.

Unlike an enclosed limit switch (which packages the basic switch inside a rugged metal housing with a conduit entry), the Z-15GQ22-B is a bare basic switch intended for installation inside a panel, machine enclosure, or protective bracket. It is not a PCB microswitch — its screw terminals and 15 A rating place it firmly in the industrial field-wiring category, not the circuit-board signal-level category. The snap-action mechanism delivers high repeat accuracy, meaning the electrical switching point stays consistent across the mechanical life of the switch, which is critical for position confirmation and end-of-travel logic.

The SPDT contact form gives the user both a normally closed and a normally open output from a single common terminal. This means one device can simultaneously signal a PLC digital input, hold a relay in a safe state, and break a circuit on actuation — without additional contact multiplication hardware.

Typical System Architecture for a Z-15GQ22-B Installation

The Z-15GQ22-B sits between the moving mechanical element of a machine and the control logic that needs to know its position. Here is where it appears in a typical signal chain:

  • PLC or relay logic panel — receives the discrete on/off signal from the switch as a digital input or interlock condition
  • Overcurrent protection device (fuse or circuit breaker) — required upstream of the switch to protect within the 15 A AC rating
  • Protective enclosure or machine panel — houses the bare Z-15GQ22-B body, providing the environmental protection the unsealed switch requires
  • Omron Z-15GQ22-B — roller plunger engaged by a cam, dog, or actuating surface on the moving machine element
  • Downstream load or input — contactor coil, relay input, PLC digital input card, or directly switched load within rating

Where the Z-15GQ22-B Gets Used: Industries and Applications

End-of-travel limit sensing is the most common role for the Z-15GQ22-B. On pneumatic cylinders, linear actuators, and machine slides, the roller plunger is contacted by a fixed cam or adjustable dog on the moving element, signaling the PLC when the axis has reached its home, extend, or retract position. The snap-action mechanism ensures this happens at a consistent point every cycle.

On conveyor and indexing mechanisms, the Z-15GQ22-B is used in cam-operated configurations where a rotating or translating cam surface contacts the roller at a specific point in the machine cycle, generating a timing or position signal. The 15 A AC rating gives headroom to switch contactor coils or small motor circuits directly in simpler relay-logic installations.

Guard door and access panel position confirmation is another frequent application. While the Z-15GQ22-B is not a safety-rated device and cannot substitute for a certified safety interlock, it is widely used in non-safety-rated position feedback roles where the control system monitors door state for operational logic rather than for functional safety compliance.

MRO replacement is a significant portion of Z-15GQ22-B orders. The Z Series has been in Omron's catalog for many years, meaning a large installed base of machinery uses these switches. When one fails, technicians search by part number to restore operation quickly — making exact part-number verification especially important to avoid an incorrect actuator or terminal style arriving on the bench.

Application Typical Deployment
End-of-travel limit sensing Cam or dog on cylinder or linear slide contacts roller plunger; signal to PLC digital input
Conveyor indexing position Rotating cam engages roller at defined machine cycle point; used for timing or count signals
Guard door position feedback Door edge or striker contacts roller plunger; NC output holds operational interlock open when door is ajar
OEM machinery feedback Mounted in machine panel bracket; roller engages actuator surface to confirm position to relay or PLC logic
MRO replacement in legacy equipment Direct replacement of failed Z-15GQ22-B in existing bracket with matching mounting dimensions

Key Specifications and Variant Comparison for the Z-15GQ22-B

Parameter Value Notes
Brand Omron Z Series general-purpose basic switch
Model / Catalog Number Z-15GQ22-B Roller plunger, screw terminals
Contact Configuration SPDT (1C) One common, one NO, one NC
Actuator Type Roller plunger Cam-operated snap-action
Terminal Type Screw terminals Suitable for ring and fork lugs in field wiring
Rated Current (AC) 15 A at rated AC voltage (resistive) Confirm exact voltage from datasheet; DC rating is lower — verify from datasheet
Operating Temperature Approx. -25 °C to +80 °C Confirm exact range and conditions from Omron datasheet
Mechanical Operation Snap-action High repeat accuracy in actuation position
Protection Rating Unsealed basic switch Requires external enclosure; not washdown-rated
Standards Approvals UL / CSA / EN (where listed) Confirm applicable marks on current Omron datasheet

Full technical specifications are available on the product page at LeadTime.ca.

The Z-15 family includes a range of variants that share the same 15 A snap-action body but differ in actuator type, terminal style, and whether a cover is fitted. Understanding these differences is the single most important factor in avoiding an incorrect order.

Variant Feature Z-15GQ22-B Plain Plunger Variant Lever Variants Covered Variant (e.g., -B7 suffix)
Actuator Roller plunger Plain plunger (no roller) Short, standard, or long lever options Roller plunger with protective cover
Best for Cam or dog engagement requiring rolling contact Direct linear push without cam profile Wide approach angle or paddle actuation Same cam applications with added dust/chip protection
Terminal Style Screw terminals Varies by catalog code Varies by catalog code Screw terminals (same body)
Environmental Protection Unsealed — needs enclosure Unsealed — needs enclosure Unsealed — needs enclosure Partial body protection from cover only
Drop-in swap for Z-15GQ22-B — No — actuator geometry differs No — mounting and actuation differ Check dimensional match before specifying

If your application involves a cam profile that requires rolling contact, the Z-15GQ22-B is the correct actuator choice within this family — check current availability at LeadTime.ca.

Expert Verdict: Is the Omron Z-15GQ22-B Worth Ordering?

The Omron Z-15GQ22-B earns its place as a go-to basic switch for standard industrial machinery. The 15 A AC snap-action SPDT contact block covers the majority of industrial limit and position-sensing loads — contactor coils, relay inputs, PLC digital inputs, and directly switched small loads — without requiring upsizing or derating calculations for typical resistive applications. The roller plunger actuator integrates naturally with cam-operated mechanisms where a plain plunger would wear prematurely or mistrack, and the screw terminals mean field technicians can terminate ring or fork lugs quickly and reliably. The operating temperature range of approximately -25 °C to +80 °C covers virtually all standard plant environments. This is the right switch for maintenance teams doing MRO replacements in existing Z-15 installations, and for OEM engineers designing new machines that operate in clean or panel-protected environments.

Where the Z-15GQ22-B falls short is equally clear. The unsealed body construction is the most important constraint: in dusty, oily, or wet machine environments, this switch will fail prematurely if installed without adequate external protection. For those environments, a covered Z-15 variant (such as a -B7 suffix version that adds body protection) or a fully enclosed, IP-rated limit switch is the correct choice. Similarly, this is not a safety-rated interlock — applications that require functional safety compliance, SIL certification, or dedicated safety relay compatibility need a device specifically certified for that purpose. And if your cam or actuating target requires a lever, hinge lever, or plain plunger geometry rather than a roller, a different Z-15 variant is required regardless of the electrical ratings being identical.

From a procurement standpoint, the Z-15GQ22-B is a widely stocked commodity switch, but ordering mistakes in this family are common because so many variants look similar and carry nearly identical part numbers. A specialist automation distributor can validate the full part number, confirm mechanical compatibility with your existing bracket or cam, and suggest verified in-stock alternatives when the exact variant faces extended lead time. For pricing and current stock, view the Z-15GQ22-B product page at LeadTime.ca — ordering through a specialist channel also reduces the risk of receiving counterfeit or non-genuine product that has been reported in generic marketplace channels.

For volume pricing, blanket order discussions, or lead time confirmation before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the Z-15GQ22-B

Community feedback around the Omron Z Series basic switches — gathered from forums including Reddit r/PLC, PLCTalk, PLCS.net, MrPLC, and distributor Q&A sections — is consistently positive at the product-family level. Technicians and controls engineers repeatedly describe Z Series switches as dependable workhorses that last many years when they are correctly enclosed and the cam engagement is properly set. The snap-action mechanism draws specific praise for its repeatability: users note that these switches hit the same actuation point cycle after cycle, which is exactly what is needed for end-of-travel and position-confirmation roles. Broad distributor availability also comes up frequently, with maintenance teams noting that Z-15 variants are generally fast to source compared with more obscure switch families.

The complaints and warnings that appear in community discussion, however, are worth taking seriously because they point directly to the most common failure modes. The first is environmental misuse: users in multiple threads report premature contact pitting and mechanical fouling when Z Series switches are installed without adequate enclosures in dusty, oily, or moist environments. The switch itself provides no sealing — it relies entirely on the installer to provide that protection. The second recurring issue is part-number confusion. The Z-15 family contains many nearly identical catalog codes differing by actuator geometry, terminal style, or cover presence, and several forum contributors mention receiving the wrong variant because a full part number was not verified digit by digit before ordering. A third warning worth noting: a small number of community posts flag counterfeit or low-quality lookalike switches appearing through non-authorized distribution channels, with inconsistent switching force and premature contact failure reported. Sourcing through an authorized specialist distributor eliminates that risk.

When model-specific community discussion is limited — as it is for the exact Z-15GQ22-B catalog number — the right approach is to lean on the Wrong-Part Prevention Checklist below and consult a specialist distributor who can validate the part number against your mechanical and electrical requirements. That consultation takes minutes and prevents the kind of downtime that comes from an almost-correct replacement arriving at the machine.

Wiring and Installation Overview for the Z-15GQ22-B

  • Isolate all power to the circuit before working on terminals; the Z-15GQ22-B carries a 15 A AC rating and terminals must be treated as live until confirmed de-energized
  • Identify the COM, NO, and NC terminals using the markings on the switch body and the Omron Z Series datasheet — NC is closed at rest and opens on plunger actuation; NO is open at rest and closes on actuation
  • Terminate field wires using ring or fork lugs appropriate for the conductor size; tighten screw terminals to the torque specified in the datasheet and verify no exposed conductor strands are present
  • Align the roller plunger with the cam or actuating surface so that actuation occurs within the specified operating position range — verify that mechanical stops prevent overtravel beyond the rated plunger travel to avoid mechanical damage
  • After installation, use a multimeter to confirm continuity changes between COM–NO and COM–NC as the plunger is manually actuated before restoring power to the circuit

Full wiring diagrams and torque values are available in the Omron Z Series Basic Switch datasheet from omron.com. Engineers requiring complete installation procedures should refer to that documentation.

Wrong-Part Prevention Checklist Before Ordering the Z-15GQ22-B

Before placing an order, run through every item on this checklist against your application requirements and existing equipment. Each point represents a documented source of incorrect orders in the Z-15 family.

  1. Confirm actuator type: must be roller plunger (not plain plunger, lever, or hinge).
  2. Verify terminal style: screw terminals are required (no mismatch with solder lug or quick-connect types).
  3. Check contact form: SPDT required (one common, one NO, one NC).
  4. Validate electrical ratings vs. application: 15 A AC at the required voltage; confirm DC rating from datasheet if switching DC.
  5. Confirm mechanical mounting dimensions and panel cutout match existing bracket or design.
  6. Ensure ambient temperature range and enclosure design suit the operating environment (switch itself is unsealed and needs external protection).

If any of these items cannot be confirmed from your existing documentation, contact LeadTime.ca before ordering — our team can cross-reference part numbers and verify compatibility to prevent a costly incorrect shipment.

Frequently Asked Questions

Is the Z-15GQ22-B normally open or normally closed at rest, and how do I identify which terminal is which?

The Z-15GQ22-B is an SPDT switch with both a normally open and a normally closed contact sharing one common terminal. At rest (plunger not actuated), the NC terminal is electrically connected to COM, and the NO terminal is open. When the roller plunger is fully actuated, the NC opens and the NO closes. Terminal identification markings are on the switch body; always cross-reference with the Omron Z Series datasheet and verify with a continuity test before energizing the circuit.

Can the Z-15GQ22-B switch DC loads, and what current limit applies?

The Z-15GQ22-B can switch DC loads, but the DC current rating is lower than the 15 A AC resistive rating. DC switching is more demanding on contacts due to arc energy, and Omron provides separate DC ratings in the Z Series datasheet that must be observed. Do not assume the 15 A AC rating applies to DC applications — confirm the applicable DC voltage and current limits from the current datasheet before using this switch in a DC circuit.

What is the difference between the Z-15GQ22-B and a variant with a different suffix, such as a -B7 designation?

Suffix characters in Z-15 catalog numbers indicate differences in actuator style, terminal type, cover presence, or other construction details. A -B7 or similar suffix typically indicates the addition of a protective cover over the switch body, providing partial environmental protection while retaining the same basic switch internals. The roller plunger actuator geometry and mounting dimensions may also vary between suffix variants. Always compare the full part number digit by digit against the Omron catalog drawing to confirm a variant is a true drop-in replacement.

Will a Honeywell or other-brand basic switch drop in mechanically as a direct replacement for the Z-15GQ22-B?

Functional equivalents exist from other manufacturers with similar SPDT roller-plunger 15 A ratings, but they are not guaranteed drop-in replacements. Actuator height, roller position, mounting hole pattern, and terminal layout vary between brands and must be individually verified against the Omron Z Series mechanical drawing. An apparently similar switch that differs in actuator height by even a few millimetres may fail to actuate correctly or may overstress the mechanism on the first engagement.

How much overtravel is safe for the Z-15GQ22-B roller plunger?

Omron specifies overtravel limits for the Z Series in the datasheet — exceeding these limits will mechanically overstress the plunger assembly and lead to premature failure or switch damage. The mechanical stop in the machine design should be set to prevent the cam or dog from driving the plunger beyond the maximum overtravel value stated in the datasheet. During commissioning, verify this by jogging the machine slowly and checking that the cam engagement point and stop position stay within the specified operating and overtravel range.

Can the Z-15GQ22-B be used in an outdoor enclosure?

The switch body itself is unsealed and cannot withstand direct moisture or particulate exposure. If installed inside an enclosure that provides adequate IP-rated protection against the outdoor environment — including temperature cycling, condensation, and ingress — the switch can function in that location provided the operating temperature range of approximately -25 °C to +80 °C is not exceeded. The enclosure selection and its seal integrity carry full responsibility for environmental protection; the switch contributes none on its own.

Why Order the Omron Z-15GQ22-B From LeadTime.ca

  • Ships worldwide — not limited to any single region or country
  • Specialist automation distribution with the ability to validate part numbers and confirm mechanical compatibility before your order ships
  • Access to authorized stock reduces the risk of counterfeit or non-genuine product that has been reported through generic marketplace channels
  • Volume pricing and blanket order support available — contact the team for project quantities
  • Sourcing support for hard-to-find or temporarily out-of-stock Z-15 variants with verified equivalent suggestions

At-a-Glance Summary: Omron Z-15GQ22-B

  • Product: Z Series General-purpose Basic Switch, roller plunger, 15 A — catalog number Z-15GQ22-B
  • Contact form: SPDT with one common, one normally open, and one normally closed terminal
  • Rated current: 15 A AC (resistive) — DC rating is lower; confirm from Omron datasheet before DC use
  • Actuator: roller plunger, snap-action, designed for cam or dog engagement with high repeat accuracy
  • Terminals: screw terminals compatible with ring and fork lugs for industrial field wiring
  • Operating temperature: approximately -25 °C to +80 °C
  • Environmental protection: unsealed basic switch — requires installation inside a protective enclosure
  • Not a safety-rated interlock — general-purpose position and limit sensing only
  • Key ordering risk: many nearly identical Z-15 variants exist; verify full part number including actuator code, terminal code, and any cover suffix before ordering
  • Approved to UL, CSA, and EN standards where listed — confirm applicable marks on current Omron datasheet
