Omron S8VS-12024A — 24V 5A DIN Rail Power Supply Review

By Abdullah Zahid
13 min read

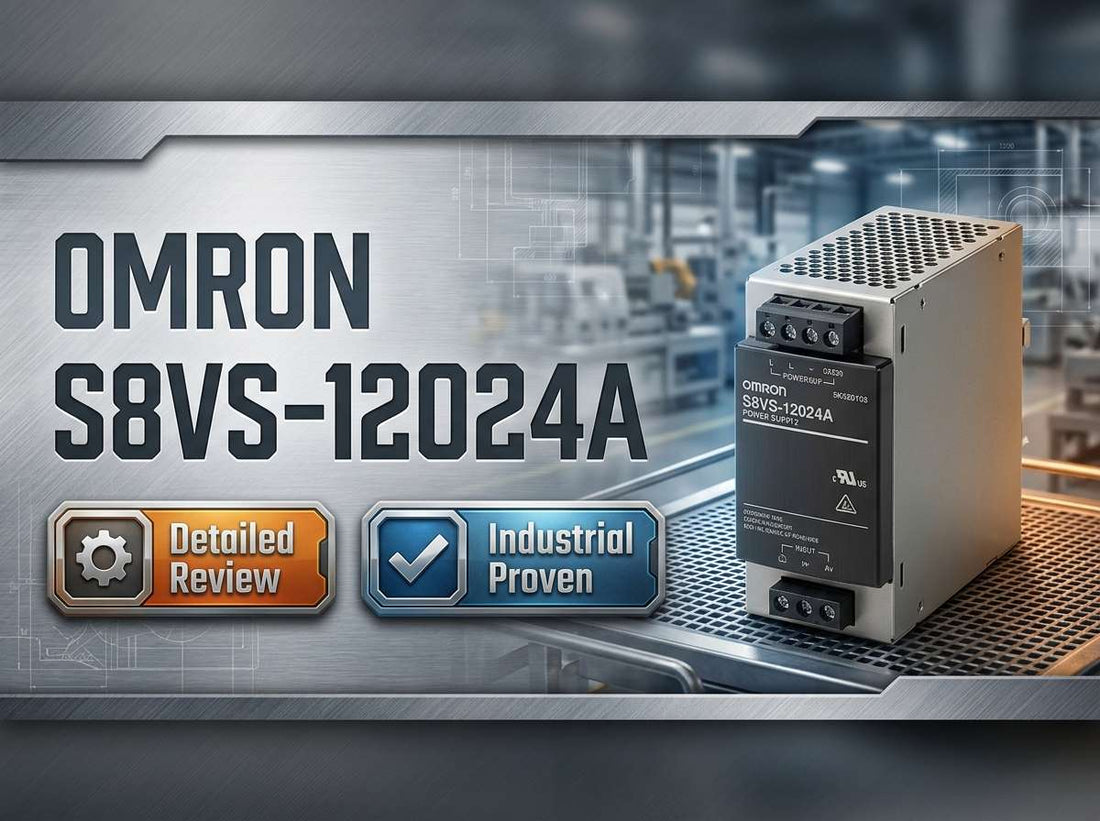

Omron S8VS-12024A 120W 24VDC 5A DIN rail switch mode power supply for industrial control panels

Omron S8VS-12024A Switch Mode Power Supply, 120 W, 24 VDC, DIN Rail Mounting — Specs, Review & Alternatives

Controls engineers and panel builders searching for a dependable 24 VDC DIN rail power supply for small to medium automation panels consistently land on the Omron S8VS-12024A — a 120 W, 5 A, single-phase switch mode supply with a wide 85–264 VAC allowable input range and natural air-cooling in a compact covered enclosure. If you are finalizing a BOM, verifying a substitution, or replacing a failed unit under time pressure, this review covers the specs, sizing traps, and sourcing realities you need to make a confident decision.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the Omron S8VS-12024A — and Who Shouldn't

The S8VS-12024A is the right choice for engineers and panel builders who meet all of the following criteria:

  • Your application requires a regulated 24 VDC output — not 5 V, 12 V, or 48 V.
  • Your summed 24 VDC load current, including inrush margin, sits comfortably below 5 A continuous (120 W total).
  • Your input supply is single-phase 100–240 VAC, or falls within the allowable 85–264 VAC / 80–370 VDC range.
  • You are mounting to a standard DIN rail inside a control panel with adequate depth and clearance for natural air-cooling.
  • Your enclosure ambient temperature remains within the S8VS operating range, accounting for any derating at elevated temperatures.
  • Screw terminal connections match your conductor sizes and wiring standards.

If your load approaches or exceeds 5 A, if you need integrated monitoring or alarm contacts, or if your enclosure runs hot with minimal airflow, the S8VS-12024A is not the correct choice — consider the S8VS-18024 or S8VS-24024 for more headroom, or an S8VS variant with display and alarm output functionality.

On this page:

What the Omron S8VS-12024A Actually Does in a Control System

The S8VS-12024A is a DIN rail-mounted switch mode power supply from Omron's S8VS series, delivering a regulated 24 VDC output at up to 5 A continuous — 120 W total — from a single-phase AC or DC input source. It converts the incoming mains voltage, which can range from 85 to 264 VAC or 80 to 370 VDC, into a stable 24 VDC rail that feeds PLCs, I/O modules, HMIs, sensors, solenoid valves, relays, and panel indicators. The unit uses a covered, naturally air-cooled enclosure and connects via screw terminals, making it straightforward to integrate into standard industrial control panel builds without special tools or accessories.

Within the S8VS family, the 120 W model sits in the middle of a range that spans from 15 W up to 480 W. The 120 W / 5 A rating is the most common single-supply choice for compact PLC panels, covering a typical machine control load without requiring parallel supplies or an oversized unit. The output voltage is adjustable via an onboard V.ADJ potentiometer across an approximate range of −10% to +15% of the 24 V nominal, allowing fine-tuning to compensate for long cable runs or tight device tolerances.

Two proof points anchor the S8VS-12024A's real-world reputation: the S8VS family is documented with a typical design life on the order of 10 years under specified conditions — rated input, 50% load, 40 °C ambient — and the rated output is a verified 24 VDC at 5 A, providing exactly 120 W of available power for the connected load.

Typical System Architecture and Signal Chain Position

The S8VS-12024A sits between the panel's incoming mains protection and the 24 VDC distribution bus, converting AC supply voltage into the regulated DC rail that every low-voltage control device depends on. A typical component chain looks like this:

  • Incoming single-phase 100–240 VAC mains feeds through a panel disconnect and upstream fuse or circuit breaker to the S8VS-12024A input terminals.
  • The S8VS-12024A converts AC to a regulated 24 VDC output, available at the output screw terminals with polarity-marked connections.
  • A 24 VDC distribution terminal block receives the supply output and fans power to individual protected branches.
  • Branch circuits feed PLC CPU and I/O modules, HMI panels, sensors, relay coils, and solenoid valves — all operating from the same regulated 24 VDC rail.
  • A protective earth connection from the supply PE terminal ties into the panel earth bus, completing the safety ground path per installation requirements.

Where the S8VS-12024A Gets Installed: Industries and Use Cases

The S8VS-12024A's 120 W, 24 VDC output covers the standard load profile of a compact machine control panel: a small PLC CPU, several I/O cards, an operator panel or HMI, a set of proximity or photoelectric sensors, and a bank of relay outputs driving solenoids or pilot lights. For OEM machine builders standardizing on a single 24 VDC supply across a product line, the 5 A rating provides reliable headroom for typical small-machine loads without committing to a larger, more expensive supply.

In packaging machinery and conveyor systems, the S8VS-12024A frequently appears as the primary control power supply feeding the PLC and distributed I/O, with motor drives carrying their own power electronics independently. Material handling lines with moderate sensor density — photoelectric eyes, inductive proximity switches, encoder inputs — fit comfortably within the 5 A budget when loads are calculated correctly.

For MRO and maintenance teams, the S8VS-12024A is a practical replacement candidate for aging 24 V supplies in existing panels. Its DIN rail mounting and screw terminal connections match the physical standards most panels already use, reducing rewiring time during a repair window. Small pump control stations, building automation control panels, and process skids with modest 24 VDC loads are also well-served by this unit, provided the enclosure thermal environment stays within specification.

Application Typical Deployment
Compact PLC machine panel Primary 24 VDC supply for CPU, I/O, HMI, and sensors in a single enclosure
Packaging and conveyor machinery Control power rail for PLC and distributed sensors; drives on separate supply
OEM standard machine build Standardized 120 W supply across a product line for consistent BOM and sparing
MRO panel replacement Drop-in swap for failed or aging 24 V DIN rail supply in existing control cabinet
Small pump or process skid 24 VDC control power for solenoid valves, relays, and control logic in field enclosure
Building automation control panel Low-current 24 VDC supply for controllers, actuators, and monitoring devices

Key Electrical and Mechanical Specifications for Purchase Decisions

Parameter Value
Brand / Series Omron S8VS
Model S8VS-12024A
Rated Input Voltage 100–240 VAC (single-phase, 50/60 Hz)
Allowable Input Range 85–264 VAC / 80–370 VDC
Rated Output Voltage 24 VDC
Rated Output Current 5 A continuous
Output Power 120 W
Output Voltage Adjustment Approx. −10% to +15% via V.ADJ potentiometer
Operating Temperature Approx. −10 °C to 60 °C (verify derating curve in datasheet)
Cooling / Mounting Natural air cooling, covered type, DIN rail mounting, screw terminals

Full technical specifications are available on the product page at LeadTime.ca.

S8VS-12024A vs. Other S8VS Models: Which Power Rating Do You Need?

Model Output Power Output Current Output Voltage Best For
S8VS-06024 60 W 2.5 A 24 VDC Very small panels with minimal I/O and sensor count
S8VS-09024 90 W 3.75 A 24 VDC Compact panels with moderate sensor and relay loads
S8VS-12024A 120 W 5 A 24 VDC Standard small-to-medium PLC panels; OEM baseline supply
S8VS-18024 180 W 7.5 A 24 VDC Panels with solenoid-heavy loads or inrush-prone devices
S8VS-24024 240 W 10 A 24 VDC Larger machine panels or where redundancy margin is needed
S8VS-48024 480 W 20 A 24 VDC High-load panels, multi-axis systems, or shared bus supplies

If your summed load current is approaching 5 A or you have devices with significant inrush current, the S8VS-18024 or S8VS-24024 is the more conservative choice — check current availability at LeadTime.ca and contact the team to confirm the right model for your load profile.

Expert Verdict: Is the Omron S8VS-12024A Worth Specifying?

The S8VS-12024A earns its place in standard PLC panel designs because it does exactly what a 24 VDC control power supply should do — quietly and reliably. Its 120 W, 5 A output covers the realistic load budget of a compact machine control panel: a PLC CPU, a few I/O cards, an HMI, a set of sensors, and a relay bank, with enough margin left over for the occasional inrush spike when sized correctly. The S8VS platform's documented typical design life on the order of 10 years at 40 °C and 50% load, combined with the wide 85–264 VAC allowable input range, makes it a practical choice for OEM builders who need a consistent, globally-usable supply across a product line. For MRO teams replacing an aging 24 V supply in an existing panel, the familiar DIN rail mounting and screw terminal layout minimize rewiring time and reduce the risk of installation errors under pressure.

The S8VS-12024A has real limitations that a responsible specifier should acknowledge. It does not offer integrated monitoring, display, or alarm contact outputs — if your application requires networked diagnostics, a visual output voltage indicator, or a relay signal for PLC-based power supply fault monitoring, you will need a different S8VS sub-variant or a supply from another product family with those features. At 5 A continuous, it also has no room for error in hot, crowded enclosures running near full load; if ambient temperatures are elevated or ventilation is restricted, the S8VS-18024 or S8VS-24024 provides the thermal and electrical headroom that protects service life. Applications with large inrush-prone loads — banks of solenoid valves energizing simultaneously, or motor contactors with high coil inrush — warrant moving up a size rather than relying on the overload protection to handle repeated excursions.

From a procurement standpoint, the S8VS-12024A benefits from broad distributor stocking across North America and globally, which matters most when a panel is down and a replacement is needed quickly. Working with a specialist distributor rather than a generic catalog channel gives buyers access to sizing validation, cross-reference support across S8VS variants, and alternative sourcing options when a specific model is constrained — reducing the downtime risk that comes from ordering the wrong part or waiting on a factory backorder. View current pricing and stock status at LeadTime.ca to confirm availability before committing to your build schedule.

For volume pricing, lead time confirmation, or help validating your load calculations against S8VS models, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the Omron S8VS-12024A

Community feedback on the Omron S8VS series — drawn from automation forums including PLCTalk, PLCS.net, Reddit r/PLC, and distributor Q&A sections — describes these power supplies as "reliable" and "boring in a good way." Users who size them correctly and provide adequate enclosure ventilation report years of trouble-free operation. Maintenance staff frequently note that S8VS units are easy to swap during downtime windows and that sourcing replacements from multiple distributors is straightforward. Panel builders appreciate the standard DIN rail mounting, screw terminal connections, and compact footprint that fit directly into established control panel layouts without modification.

The recurring issues in community discussions are almost entirely self-inflicted rather than product flaws. Heat buildup and shortened service life appear when units are run close to full rated load in hot, densely packed enclosures without adequate spacing or airflow. Nuisance trips and output voltage sag come up when buyers do not account for inrush current from solenoid banks or motor contactors, selecting 120 W when the transient load profile actually demands 180 W or more. Catalog number confusion is a consistent ordering trap — engineers copying a BOM sometimes pick up an S8VS variant with or without monitoring and display features, or confuse a 60 W model with a 120 W model, only discovering the discrepancy when the unit arrives. Because the S8VS family spans a wide power range, assuming identical physical dimensions and terminal layouts across wattage steps causes panel fit problems during MRO replacements.

Because S8VS-12024A-specific community discussion is limited compared to the broader family, the wrong-part prevention checklist below is the most practical tool for avoiding the ordering mistakes that do appear in forum threads. If you have any uncertainty about output voltage selection, load margin, enclosure thermal conditions, or variant differences, reaching out to a specialist distributor before placing the order is the most effective way to resolve those questions quickly — particularly when time pressure is a factor.

Wiring and Installation Overview for the S8VS-12024A

  • Mount the unit on a standard DIN rail in the recommended orientation, leaving sufficient clearance above and below the supply for natural air-cooling — do not pack adjacent components tightly against the top and bottom ventilation areas.
  • Connect single-phase AC line and neutral to the designated input terminals and protective earth to the PE terminal using conductor sizes and tightening torques specified in the Omron datasheet; never omit the PE connection.
  • Do not use the output of a variable frequency drive (VFD) or inverter as the input source — the S8VS-12024A is designed for mains AC or the specified DC input range, and VFD outputs can damage the supply or cause unsafe operation.
  • Connect the 24 VDC output and 0 V return to the load distribution terminals with correct polarity; verify terminations before energizing, and consider a star distribution topology to minimize voltage drop to sensitive devices.
  • After energizing, verify the output indicator LED status, measure DC output voltage at no-load and under representative load, and use the V.ADJ potentiometer for minor correction within the specified −10% to +15% range if needed.

Wrong-Part Prevention Checklist Before You Order

Run through every item on this checklist before placing your order — these are the most common points where engineers and procurement teams select the wrong part under time pressure:

  1. Confirm required output voltage is 24 VDC (not 5 V, 12 V, or 48 V).
  2. Sum load currents and verify 5 A (120 W) is sufficient with margin; upsize if close to limit.
  3. Verify input supply is single-phase 100–240 VAC within the specified allowable range.
  4. Check that DIN rail space and panel depth match the physical dimensions and cooling clearance.
  5. Confirm that ambient temperature inside the enclosure stays within the S8VS operating range, including derating if applicable.
  6. Ensure screw terminal style and conductor sizes match your wiring standards and tools.

If any item on this list raises a question, contact the LeadTime.ca team before ordering — confirming these details takes minutes and prevents days of downtime from a wrong-part return.

Frequently Asked Questions

Can the S8VS-12024A be used directly on both 120 VAC and 230 VAC mains without any selector switch or rewiring?

Yes. The S8VS-12024A accepts a rated input range of 100–240 VAC with an allowable range of 85–264 VAC, covering both 120 VAC North American mains and 230 VAC international mains without any voltage selector switch. This makes it suitable for OEM equipment shipped to different regions and for panels supplied from either standard voltage level.

How much current headroom should I leave above my calculated 24 VDC load?

A commonly applied practice is to target a continuous load no higher than 70–80% of rated output current, leaving headroom for inrush spikes, future load additions, and thermal derating at elevated enclosure temperatures. If your calculated load is close to 5 A after applying that margin, moving to the S8VS-18024 at 7.5 A is the lower-risk choice.

What happens when the S8VS-12024A is overloaded — does it shut down permanently or recover automatically?

The S8VS-12024A incorporates overload protection that is designed to reset automatically once the overload condition is cleared. Overvoltage protection, by contrast, typically requires cycling the input power to recover normal operation. Repeated overload cycling is a sign of an undersized supply or a fault in the load — it should be investigated rather than accepted as normal operation.

Can two S8VS-12024A units be connected in parallel to achieve 10 A of 24 VDC output?

Paralleling switch mode power supplies for increased current output is not a straightforward operation — most units in this class are not designed for active load sharing without specific support for that feature. Consult the Omron S8VS datasheet and installation manual before attempting any parallel configuration; using a single higher-rated S8VS model such as the S8VS-24024 is typically the simpler and more reliable approach for 10 A loads.

What are the signs that an S8VS-12024A is approaching end of life and needs proactive replacement?

Common indicators include output voltage that is difficult to hold at nominal under load, increased output ripple, unusual warmth from the enclosure of the unit itself, discoloration or heat marks around terminals, or intermittent trips under loads that previously ran without issue. For critical systems, proactive scheduled replacement at intervals aligned with the documented typical design life — on the order of 10 years at 40 °C and 50% load — reduces the risk of unplanned downtime.

Is it safe to use the S8VS-12024A with a VFD output as the input source?

No. Manufacturer documentation cautions against using variable frequency drive or inverter outputs as the input source for this type of power supply. The S8VS-12024A should be connected to standard single-phase AC mains or a DC source within the specified 80–370 VDC allowable range — not to the output of a VFD, which produces a modified waveform that can damage the supply or cause unsafe behavior.

Why Order the Omron S8VS-12024A from LeadTime.ca

  • Ships worldwide — not limited to any single country or region.
  • Specialist distributor knowledge of the full S8VS family, including variant differences and sizing guidance across power ratings.
  • Support for cross-referencing alternative S8VS models when the specific variant you need is constrained or on backorder.
  • Volume pricing available for OEM builds and panel shops — contact for current quotes on multi-unit orders.
  • Fast response for MRO and emergency replacement scenarios where lead time matters.

At-a-Glance Summary

  • Model: S8VS-12024A — Switch Mode Power Supply, 120 W, 24 VDC, DIN rail mounting, from Omron's S8VS series.
  • Rated output: 24 VDC at 5 A continuous, 120 W total.
  • Rated input: 100–240 VAC single-phase (50/60 Hz); allowable range 85–264 VAC / 80–370 VDC — no selector switch required.
  • Output voltage adjustable approximately −10% to +15% via onboard V.ADJ potentiometer.
  • Typical design life on the order of 10 years at rated input, 50% load, 40 °C ambient.
  • Operating temperature approximately −10 °C to 60 °C — verify derating requirements at elevated enclosure temperatures.
  • Natural air-cooling, covered enclosure, screw terminal connections, standard DIN rail mounting.
  • Best fit: compact PLC panels, OEM machine builds, MRO replacements — when 5 A at 24 VDC provides sufficient headroom.
  • Move up to S8VS-18024 (7.5 A) or S8VS-24024 (10 A) when load is close to the 5 A limit or inrush loads are significant.
  • Available through LeadTime.ca with worldwide shipping — check current stock and pricing on the product page.
