Omron S8VS-12024 Power Supply — 24V 5A DIN Rail Buying Guide

By Abdullah Zahid
15 min read

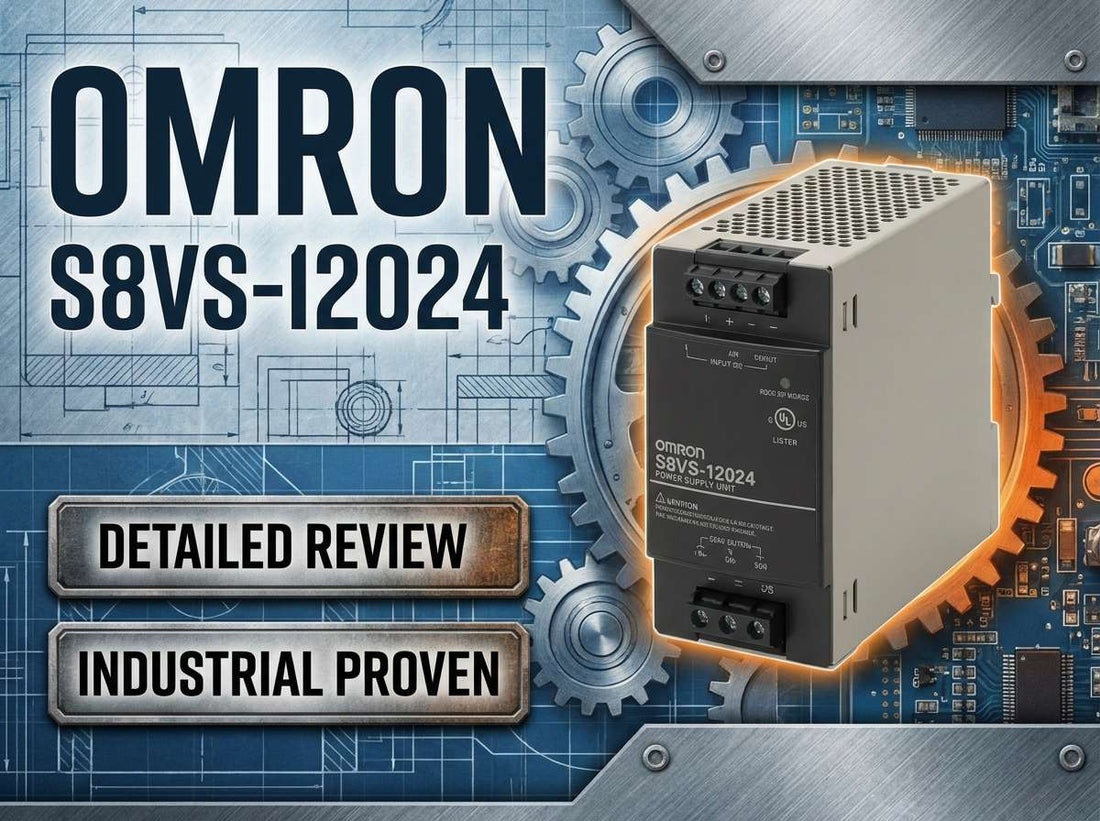

Omron S8VS-12024 120W 24VDC 5A DIN rail switch mode power supply for industrial control panels

Omron S8VS-12024 Switch Mode Power Supply, 120 W, 24 VDC — Complete Review, Specs and Buying Guide

Controls engineers specifying 24 VDC power for a new machine panel or retrofitting an aging linear supply face the same pressure every time: get the wattage right, confirm the mounting fits, and choose a brand the plant will support for the next decade. The Omron S8VS-12024 is a DIN rail switch mode power supply delivering 24 VDC at 5 A continuous — 120 W total — from an input range of 85 to 264 VAC or 80 to 370 VDC, making it suitable for virtually any global mains voltage without manual range selection. If you already know this is your part, skip to the specs and order now.

If you have already confirmed this is the right part, check current pricing and availability for the Omron S8VS-12024 at LeadTime.ca — ships worldwide.

Who Should Buy the Omron S8VS-12024 — and Who Shouldn't

This supply is the right choice for controls engineers and panel builders designing small to medium OEM or plant control panels that need a reliable single-output 24 VDC source with clear certifications and a long service track record. It is a fit when all of the following apply:

  • Your total 24 VDC load is 5 A or less, ideally running at 80% or below for continuous operation — that means 4 A maximum in most steady-state designs
  • Your plant mains fall within 85 to 264 VAC or 80 to 370 VDC, covering North American 120 V, European 230 V, and most industrial DC bus arrangements
  • DIN rail mounting on a standard 35 mm rail with IP20 protection inside a closed enclosure is acceptable for your installation environment
  • Ambient temperature inside the enclosure stays within -10 to 60 °C, accounting for heat from neighbouring devices
  • You need a basic, single-output supply — no front-panel LCD runtime display, no built-in redundancy switching
  • UL and CE compliance approvals are required and sufficient for your end-market

If your load exceeds 5 A, or you need lifetime display diagnostics, look at the S8VS-18024, S8VS-24024, or the monitored S8VS variants with front displays before ordering this model. Specific part numbers for those alternatives are covered in the variant comparison section below.

On this page:

What the Omron S8VS-12024 Actually Does in a Control Panel

The Omron S8VS-12024 is a single-output AC/DC switch mode power supply in the S8VS series, which spans 15 W to 480 W across multiple current and voltage variants. This specific model converts mains AC — or an appropriate DC bus — into a stable 24 VDC rail for downstream control equipment. It is not a programmable device and carries no communication interface; its job is to maintain a clean, regulated 24 VDC output under varying load conditions while protecting itself and the load through automatic overload reset and overvoltage shut-off.

Within the S8VS family, the 120 W / 5 A model occupies the middle of the standard power range and is the most commonly specified size for general machine control panels. It covers a typical PLC with a moderate I/O complement, an HMI, a handful of analog modules, and a relay bank — without the excess capacity and cost of stepping up to a 180 W or 240 W unit. Omron states a life expectancy of around 10 years at rated input, 50% load, and 40 °C ambient with standard mounting, which positions it well for OEM designs where the supply is expected to outlast a machine service interval.

The output voltage is adjustable from -10% to +15% via the V.ADJ trimmer, giving installers the ability to compensate for long cable runs or loads with tight voltage tolerance windows without adding external regulation. The wide input range of 85 to 264 VAC eliminates the need for a tap-selectable transformer and makes the S8VS-12024 directly suitable for machines sold into both North American 120 V and international 230 V markets from a single BOM line item.

Typical System Architecture for a 24 VDC Rail Supply

The S8VS-12024 sits between the panel main disconnect and the 24 VDC distribution bus, converting mains voltage into the control power rail that feeds every low-voltage device in the cabinet. A typical installation chain looks like this:

  • Plant mains (100–240 VAC, single phase) feed through a main circuit breaker and isolation transformer if required
  • An upstream fuse or MCB on the AC input side feeds the S8VS-12024 input terminals (L, N, PE)
  • The 24 VDC output feeds a 24 V distribution terminal block or directly to individual loads via branch fusing
  • Downstream devices — PLC CPU, I/O modules, HMI, sensors, relays, and safety modules — draw from the 24 VDC rail at or below the 5 A rated output
  • A DC load fuse or miniature circuit breaker on each branch protects individual circuits and isolates faults without tripping the entire 24 VDC bus

Where the Omron S8VS-12024 Is Deployed

In factory automation, the S8VS-12024 is the standard panel-level supply for small to mid-size machine controllers — a PLC cabinet running a packaging cell, a conveyor drive panel with proximity sensors and photoelectric eyes, or a stand-alone pump skid with a small HMI. Its 120 W rating fits the majority of single-machine control panels without requiring parallel supplies or a larger unit.

OEM panel builders frequently specify the S8VS-12024 as a standard BOM item for globally sold machines precisely because the 85 to 264 VAC input range means the same panel ships to North America, Europe, or Asia without hardware modification. The combination of DIN rail mounting, conventional screw terminals, and well-known certification marks also simplifies third-party panel inspection and customer acceptance testing.

Retrofit applications are another strong use case. Older control panels running aging linear 24 VDC supplies can swap to the S8VS-12024 for improved efficiency, reduced heat output, and a reset clock on service life — particularly relevant in food and beverage facilities or HVAC mechanical rooms where the original supply may be 15 or more years old and showing capacitor degradation.

Application Typical Deployment
OEM machine panel (packaging, assembly) Single supply for PLC, HMI, I/O, and sensor bus on 100–240 VAC mains
Conveyor and material handling control Powering distributed 24 VDC sensors, photoeyes, and solenoid valves from one DIN rail unit
Retrofit of legacy linear supplies Drop-in 24 VDC upgrade in existing enclosures; verify depth and terminal alignment
Small MCC or motor starter subpanel Control circuit power for relay logic, contactors, and safety interlocks
HVAC and building automation panels 24 VDC control power for controllers, sensors, and damper actuators
Food and beverage production line panel Compact, certified 24 VDC source in washdown enclosures (supply in IP54 cabinet)

Key Electrical and Mechanical Specifications

Parameter Value Notes
Model S8VS-12024 Omron S8VS series, single output
Rated input voltage 100–240 VAC Allowable range: 85–264 VAC or 80–370 VDC
Input frequency 47–63 Hz AC input only; DC input bypasses frequency specification
Output voltage 24 VDC, adjustable -10% to +15% Adjust via V.ADJ trimmer on unit
Rated output current 5 A continuous Target ≤80% (4 A) for continuous service
Power rating 120 W Total DC output power
Overload protection Automatic reset External branch protection still required
Overvoltage protection Shuts off input; restart to recover Cycle input power as per datasheet
Operating temperature -10 to 60 °C Apply derating at high ambient or tight spacing
Enclosure / Mounting IP20, 35 mm DIN rail, screw terminals Approx. 116 x 115 x 50 mm, approx. 550 g

Full technical specifications are available on the product page at LeadTime.ca.

S8VS-12024 vs Other S8VS Variants: Which One Do You Actually Need?

The S8VS family covers a wide range of power ratings and feature levels. Choosing the wrong variant is one of the most common ordering mistakes in this product line — particularly the confusion between basic and monitored models.

Model Output Power Output Current Display / Monitoring Best Fit
S8VS-06024 60 W 2.5 A at 24 VDC None Very small panels, sensor-only circuits
S8VS-09024 90 W 3.75 A at 24 VDC None Small PLC with limited I/O, no HMI
S8VS-12024 120 W 5 A at 24 VDC None Standard machine panel — PLC, HMI, I/O, sensors
S8VS-12024A 120 W 5 A at 24 VDC Front display (runtime, lifetime) Same loads plus maintenance forecast visibility
S8VS-18024 180 W 7.5 A at 24 VDC None Medium panels, multiple drives or solenoid banks
S8VS-24024 240 W 10 A at 24 VDC None Larger panels, distributed loads, high inrush demand
S8VS-48024 480 W 20 A at 24 VDC None High-load panels, multi-axis systems

The most important variant distinction is between S8VS-12024 and S8VS-12024A. Both are electrically identical at 120 W / 5 A, but the S8VS-12024A adds a front-panel display showing total run time and a maintenance forecast indicator — a meaningful difference if your maintenance team uses proactive replacement schedules. Ordering the wrong variant affects both panel layout and the customer's expectation of available diagnostics. If your load comfortably exceeds 4 A continuous, step up to the S8VS-18024 rather than running the S8VS-12024 at its ceiling — check the current availability of the S8VS-12024 and adjacent variants at LeadTime.ca.

Expert Verdict: Is the Omron S8VS-12024 Worth Buying in 2024?

The Omron S8VS-12024 earns its place in the specification list of controls engineers who value predictability over novelty. It delivers a stable 24 VDC at 5 A across a wide global input range, carries the certification marks industrial end-users expect, and Omron's stated 10-year life expectancy at 40 °C and 50% load is a figure that OEM design engineers can actually use in their reliability calculations. The right buyer for this supply is a controls engineer or panel builder designing a standard 24 VDC control bus for a machine panel in the 60 W to 100 W continuous load range — especially in a plant or fleet already standardized on Omron controls, where spares management and technical support are simplified by brand consistency.

The honest limits: the S8VS-12024 is not the most compact supply at approximately 116 x 115 x 50 mm, and in very shallow enclosures or densely packed DIN rail layouts, the depth can become a hard constraint. If your panel design requires a front-panel runtime display for maintenance compliance, the S8VS-12024A is the correct model — not this one. If your project is cost-sensitive and the panel will never see a brand-certified inspection, there are generic 24 V / 5 A DIN rail supplies at lower price points. The tradeoff is long-term support, certified documentation, and the confidence that comes with a supply that thousands of panel builders have commissioned without surprises. For applications requiring redundancy, a dedicated redundancy module paired with two supplies is the correct architecture — the S8VS-12024 is a single-output, non-redundant device.

From a procurement standpoint, the S8VS-12024 is a standard stocked model at major North American distributors, which typically means shorter lead times than specialty or lower-volume parts in the S8VS family. That said, supply chain conditions shift, and confirming stock before committing to a build schedule is always the right call. A specialist distributor can also identify whether a compatible higher-power or monitored variant is available sooner if the exact S8VS-12024 is on extended lead time — a conversation that a generic e-commerce channel simply cannot have with you. View current pricing and stock status for the Omron S8VS-12024 at LeadTime.ca, or read on for the full wrong-part checklist before finalizing your order.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the Omron S8VS-12024

Community feedback on the S8VS series — drawn from controls forums including PLCTalk, PLCS.net, MrPLC, and Reddit's automation and PLC communities — skews consistently positive on reliability and ease of integration, with most complaints tracing back to selection or ordering errors rather than product failures. Panel builders familiar with the S8VS family frequently cite long service life in standard control panels when the unit is properly sized and adequately cooled. The straightforward DIN rail mounting and conventional screw terminals are mentioned as practical advantages in established wiring environments, and in plants already standardized on Omron controls, the brand consistency simplifies both approvals and spare parts stocking.

The recurring frustration is size. Engineers working in very shallow enclosures or retrofitting tight legacy panels report that S8VS units are bulkier than some newer compact supply families, and the depth dimension at approximately 115 mm deserves a careful check against door clearance before ordering. The second most common complaint is the confusion between standard S8VS units and the monitored variants with front-panel displays — specifically, buyers ordering S8VS-12024 expecting runtime and maintenance forecast indicators, then discovering the basic model has none. This is an ordering mistake, not a product deficiency, but it creates real project delays when the panel has already been cut and labelled.

A third pattern worth noting: some buyers acknowledge that the S8VS-12024 carries a higher per-unit cost than generic no-name DIN rail supplies of the same rating. In cost-driven OEM projects, this creates internal pressure to justify brand selection. The counterargument heard in the community is consistent — long-term reliability data, manufacturer support, and certified documentation reduce total cost of ownership when measured across the machine's service life, not just the initial BOM line. For procurement teams evaluating this trade-off, the right call is to get an accurate current price from a specialist distributor rather than comparing against an unknown-brand price pulled from a general marketplace — and that starts with the specification and ordering verification steps below.

Wiring and Installation Overview

The S8VS-12024 is designed for standard DIN rail installation inside a closed enclosure. Before wiring, confirm the panel disconnect is locked out. Key installation points:

  • Mount on a 35 mm DIN rail in the correct orientation and confirm the unit is mechanically secured before connecting conductors
  • Connect AC input L, N, and PE (protective earth) conductors to the designated terminals; use wire size and torque values from the manufacturer datasheet and provide an upstream fuse or MCB for input circuit protection
  • Connect 24 VDC positive and negative output terminals to the load distribution rail or terminal block; apply branch fusing on individual load circuits downstream
  • If output voltage adjustment is required for long cable runs or specific load tolerance, use the V.ADJ trimmer while monitoring output with a calibrated multimeter — restore to nominal 24 VDC before final commissioning
  • Do not connect the supply input to a variable frequency drive output; use only mains AC or an appropriate DC source within the 85–264 VAC or 80–370 VDC allowable range

For complete conductor sizing, torque specifications, and spacing diagrams, refer to the official Omron S8VS installation manual and datasheet.

Wrong-Part Prevention: Verify These 8 Points Before You Order

This checklist is drawn directly from Omron application guidance and common ordering errors reported in the field. Work through every item before placing your order:

  1. Confirm output voltage is 24 VDC and that load current is ≤ 5 A with reasonable margin (ideally ≤ 80% of rated current).
  2. Verify input supply (VAC or VDC) falls within 85–264 VAC or 80–370 VDC and is not taken from an inverter output.
  3. Check that DIN rail mounting and IP20 open-frame style are acceptable for the panel environment and safety standards.
  4. Confirm ambient operating temperature range (-10 to 60 °C) fits the cabinet's internal temperature, including derating if mounted closely with other heat sources.
  5. Verify that screw-terminal connection type is acceptable and matches wiring practices (no need for pluggable terminals).
  6. Make sure you do not need display/monitoring features; S8VS-12024 is a basic variant without LED run-time or lifetime display.
  7. Check physical size (height and depth) against available panel space and rail layout to avoid interference with doors or other devices.
  8. Confirm compliance requirements (UL, CE, etc.) are covered by this S8VS variant for your end-market.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we can confirm the correct variant, check current stock, and suggest alternatives if needed. Ships worldwide.

Frequently Asked Questions

Can the Omron S8VS-12024 accept a DC input and still deliver full rated output?

Yes. The S8VS-12024 accepts a DC input within the allowable range of 80 to 370 VDC in addition to the standard 85 to 264 VAC input range, making it compatible with DC bus supplies or battery-backed DC systems within those limits. Confirm your specific DC source voltage falls within this range before wiring. The rated output of 24 VDC at 5 A applies across the specified input range — always verify against the official datasheet for any specific derating at your operating voltage.

Can I parallel two S8VS-12024 units to get 10 A of 24 VDC output?

Paralleling switch mode power supplies for increased current is not a straightforward operation and is not recommended without a dedicated load-sharing or redundancy module. Without proper current sharing, one supply tends to carry the majority of the load while the other idles, potentially triggering overload protection on the loaded unit. If you need more than 5 A, the correct approach is to step up to a higher-power S8VS variant such as the S8VS-18024 or S8VS-24024, or to use a redundancy module designed for this purpose.

What happens when load exceeds 5 A — does the S8VS-12024 shut down permanently or recover automatically?

The S8VS-12024 uses automatic reset overload protection, meaning it attempts to recover once the overload condition clears — it does not require manual intervention to reset from an overload trip. Overvoltage protection is different: it shuts the unit off and requires cycling the input power to restore operation, as documented in the Omron datasheet. External branch fusing remains the responsibility of the system designer and is not replaced by the internal protection mechanisms.

How much clearance does the S8VS-12024 need from adjacent devices in the panel?

Omron provides specific spacing and derating guidance in the S8VS installation manual, covering minimum clearance above, below, and beside the unit for adequate airflow and thermal performance. Mounting in tight enclosures without the recommended spacing reduces the life expectancy below Omron's stated 10 years at 40 °C and 50% load. Always apply the datasheet derating curve if the internal ambient temperature exceeds 40 °C or if the unit is mounted close to other heat-generating devices such as drives or large relays.

Is the S8VS-12024 a direct replacement for an older linear 24 VDC supply without rewiring the panel?

In most cases, the terminal labelling and rail mounting are compatible with standard panel wiring practices, but a direct drop-in replacement requires confirming that the physical dimensions — approximately 116 x 115 x 50 mm and approximately 550 g — fit the existing DIN rail position and that the door or adjacent devices are not obstructed by the depth of the new unit. Switch mode supplies also have different inrush and output impedance characteristics compared to linear supplies, so verify that any downstream loads with tight voltage tolerance are compatible with the adjustable -10% to +15% output range of the S8VS-12024.

What is the realistic service life of the S8VS-12024 in a 24/7 industrial environment?

Omron states a life expectancy of around 10 years under conditions of rated input, 50% load, and 40 °C ambient with standard mounting. In a 24/7 environment at higher continuous load percentages or elevated cabinet temperatures, the actual service life will be shorter. For critical systems, many maintenance engineers schedule proactive replacement before the stated life expectancy is reached, or keep a spare unit in inventory to minimize replacement lead time if an unexpected failure occurs.

Why Order the Omron S8VS-12024 from LeadTime.ca

  • Global shipping — LeadTime.ca fulfils orders worldwide, not limited to any single country or region
  • Specialist sourcing for industrial automation components, including hard-to-find or on-allocation Omron parts across the full S8VS family
  • Variant confirmation support — the team can verify whether you need S8VS-12024 or S8VS-12024A and flag alternative models if your required variant is on extended lead time
  • Volume pricing available — contact directly for project quantities or recurring OEM BOM orders
  • Fast response for lead time confirmation before you commit to a project delivery schedule

At-a-Glance Summary

  • Omron S8VS-12024 is a 24 VDC, 5 A, 120 W DIN rail switch mode power supply in the S8VS series
  • Allowable input range: 85–264 VAC or 80–370 VDC — no manual voltage tap selection required for global use
  • Output voltage adjustable from -10% to +15% via front-panel V.ADJ trimmer
  • Overload protection is automatic reset type; overvoltage protection requires input power cycling to restore
  • Omron states a life expectancy of around 10 years at rated input, 50% load, and 40 °C ambient
  • Approximate dimensions: 116 x 115 x 50 mm; approximate weight: 550 g; IP20 open-frame for enclosed panel use
  • Operating temperature range: -10 to 60 °C; apply derating at elevated ambient or tight mounting
  • S8VS-12024A is the monitored variant with front-panel run-time and lifetime display — electrically identical but a different part number
  • Do not connect input to a VFD or inverter output; use mains AC or a DC bus within the specified input range
  • External input and output circuit protection (fuse or MCB) is required; the S8VS-12024 is not a circuit breaker
