OMRON E3Z-T61 2M — NPN Through-Beam Sensor Review

By Abdullah Zahid
15 min read

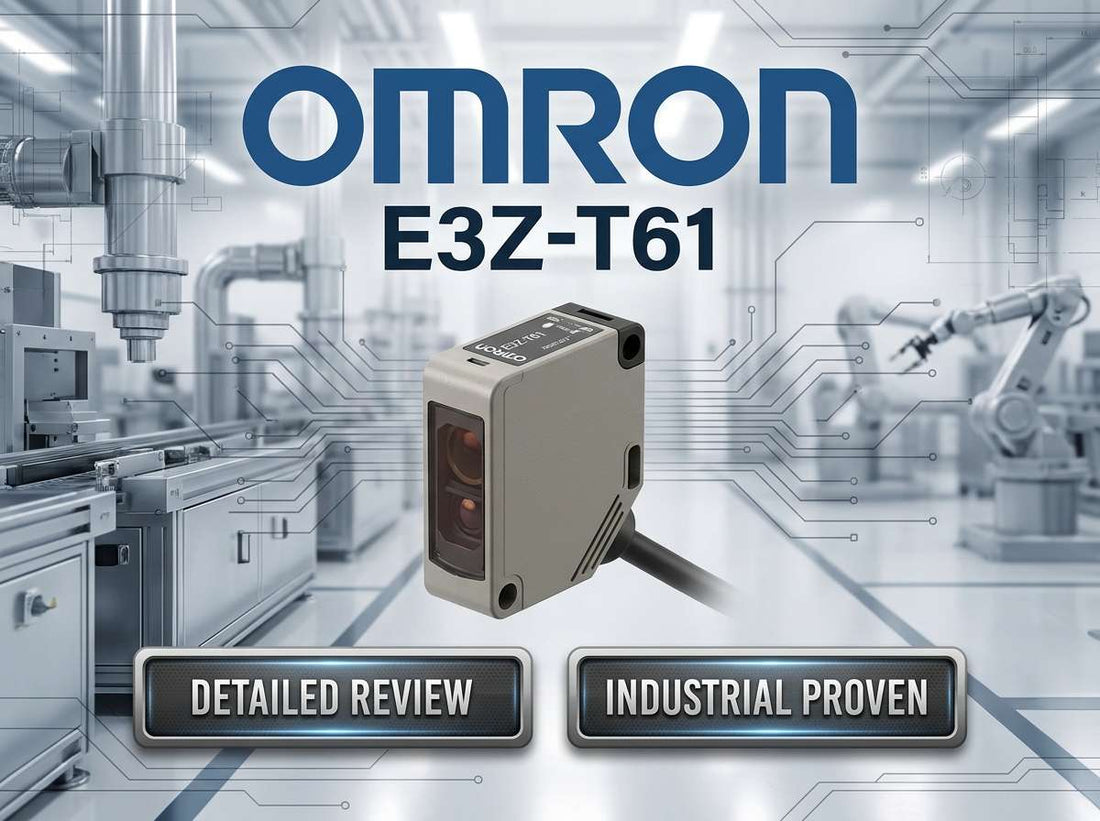

OMRON E3Z-T61 2M compact through-beam photoelectric sensor with NPN output and 2 m pre-wired cable for conveyor detection

OMRON E3Z-T61 2M Photoelectric Sensor with Built-in Amplifier, Through-beam, NPN Output, Pre-wired 2 m — Specs, Review, and Selection Guide

Controls engineers and machine builders specifying a through-beam photoelectric sensor for conveyor detection, assembly interlocks, or part counting often land on the OMRON E3Z-T61 2M after narrowing the field to compact DC sensors with NPN output and long-range capability. This is a pre-wired, built-in-amplifier through-beam sensor from the E3Z Compact Photoelectric Sensor series, rated IP67, with a sensing distance up to approximately 15 m and a response time under 1 ms — the kind of specifications that fit comfortably across packaging, material handling, and general machine-building applications. The decision that remains at this stage is whether the E3Z-T61 2M is precisely the right catalog number, or whether an adjacent variant — PNP output, retro-reflective, or connector type — is the correct call for your system.

If you have already confirmed this is the right part, check current pricing and availability for the OMRON E3Z-T61 2M at LeadTime.ca — ships worldwide.

Who Should Buy the OMRON E3Z-T61 2M — and Who Shouldn't

The OMRON E3Z-T61 2M is the right sensor when all of the following apply to your project:

  • Your application genuinely requires through-beam sensing — separate emitter and receiver — and mounting access exists on both sides of the detection zone.
  • Your PLC input card uses sinking (NPN) inputs, consistent with an NPN transistor output signal from the receiver.
  • The detection distance falls within approximately 0–15 m using infrared through-beam technology.
  • Your installation environment is covered by IP67 protection and an operating temperature range of approximately -25 to 55 °C.
  • A pre-wired 2 m cable is adequate for your panel layout and cable routing — no quick-disconnect connector is needed.
  • DC supply voltage in the 12–24 VDC range is available at the sensor installation point.

If your control system uses PNP (sourcing) inputs, the E3Z-T81 series is the correct choice. If mounting a separate receiver is impractical, the E3Z-R series (retro-reflective) or E3Z-D series (diffuse) simplifies installation considerably. For high-pressure washdown or chemically aggressive environments, consider the E3ZM or a higher-rated family.

On this page:

What the OMRON E3Z-T61 2M Actually Does in a Control System

The OMRON E3Z-T61 2M is a through-beam photoelectric sensor with a built-in amplifier, meaning the detection circuitry is housed directly inside the sensor body — there is no separate amplifier box wired into the cabinet. The receiver produces an NPN transistor switching output, selectable between Light-ON and Dark-ON modes, which connects directly to a sinking PLC input channel or an intermediate relay. When an object interrupts the infrared beam between the emitter and receiver, the output switches state, giving the controller a discrete presence signal.

The E3Z family as a whole has achieved a track record of approximately one million units sold per year, a figure Omron cites at the family level — which tells you something practical about parts availability, replacement stock, and the body of field experience behind this platform. For the E3Z-T61 2M specifically, the compact PBT housing measures approximately 10.8 × 20 × 31 mm, the pre-wired cable is 2 m, and the response time is specified under 1 ms — fast enough for high-throughput counting and indexing on most conveyor systems. IP67 protection means the sensor handles splash and dust exposure, though it is not rated for direct high-pressure jet cleaning.

Typical System Architecture for Through-Beam Photoelectric Sensing

The E3Z-T61 2M sits in the discrete input layer of a machine control system, feeding a binary presence signal upstream to the controller that drives machine logic. Understanding where it fits helps during both design and troubleshooting.

  • DC power supply (12–24 VDC) provides regulated voltage to both the emitter and receiver via their Brown and Blue wires.
  • Emitter unit projects an infrared beam across the detection zone — it has no signal output, only power connections.
  • Receiver unit detects the infrared beam; its Black wire carries the NPN transistor output signal.
  • Black wire connects to a sinking PLC digital input channel, which reads the on/off state of the beam.
  • PLC processes the input and triggers downstream logic: conveyor stop, counter increment, interlock enable, or diverter activation.

Where the E3Z-T61 2M Gets Specified: Industries and Applications

Packaging machinery is one of the most common deployments for the E3Z-T61 2M. Boxes, cartons, and totes moving along conveyor lines require reliable detection for counting, diverting, and gating — tasks where through-beam sensing outperforms diffuse reflection on dark, matte, or inconsistently surfaced packaging materials. The approximately 15 m sensing range covers most conveyor widths with margin to spare.

Material handling and intralogistics operations use the sensor at accumulation zones, merge points, and exit gates where knowing whether a pallet or tote is present drives conveyor logic. The compact 10.8 × 20 × 31 mm housing fits into tight frame sections and standard sensor mounting channels without custom brackets in most cases.

Assembly stations and pick-and-place systems use the E3Z-T61 2M for component presence verification at nests and fixtures. Because both the emitter and receiver need line-of-sight access to each other, this sensing method is particularly effective where the target must interrupt a well-defined beam path — confirming a part is fully seated or a guard is closed, for example.

Counting applications — parts dropping through a chute, items passing a fixed opening, or discrete objects on a belt — benefit from the under-1 ms response time, which keeps pace with high-cycle-rate processes without missing counts.

Application Typical Deployment
Conveyor box and tote detection Emitter and receiver mounted on opposite conveyor frame rails, beam crossing the conveyor width
Assembly station part presence Emitter and receiver flanking a fixture nest, confirming component is fully inserted before cycle start
Chute and gate part counting Beam crossing the chute opening; receiver output wired to PLC high-speed counter input
Guard door interlock (non-safety) Emitter fixed to frame, receiver on door side, beam broken when door opens — NPN signal to machine controller
Wide conveyor detection (up to ~15 m) Long-span through-beam across sorting or accumulation conveyors where diffuse sensing would be unreliable

Key Specifications for the OMRON E3Z-T61 2M

Parameter Value Notes
Sensing method Through-beam, infrared, separate emitter and receiver Both units required; neither works alone as a complete sensing solution
Sensing distance Approx. 0–15 m Confirm exact range in the current Omron datasheet for your application
Supply voltage DC, typically 12–24 VDC Confirm allowable ripple and exact range from official datasheet
Output type NPN transistor, Light-ON/Dark-ON selectable Receiver side only; emitter has no switching output
Max load current Typically up to 100 mA Verify in datasheet; do not exceed for direct PLC input wiring
Response time Under 1 ms Suitable for high-speed counting and fast conveyor detection
Housing material PBT plastic Compact rectangular form factor
Dimensions Approx. 10.8 × 20 × 31 mm From Omron datasheet; verify before designing mounting brackets
Protection rating IP67 Suitable for splash and dust; not rated for high-pressure jet cleaning
Operating temperature Approx. -25 to 55 °C Standard E3Z range; confirm for your specific installation environment

Full technical specifications are available on the product page at LeadTime.ca.

E3Z-T61 vs E3Z-T81 vs E3Z-R61 — Which Variant Do You Actually Need?

The most consequential choice in the E3Z family is output polarity. Getting this wrong means the sensor arrives, gets wired, and produces no usable signal — a frustrating and avoidable delay on a build or a maintenance call.

Model Sensing Method Output Type Key Differentiator Choose When
E3Z-T61 2M Through-beam NPN (sinking) Long range, separate emitter + receiver PLC uses sinking inputs; both-side mounting is available
E3Z-T81 Through-beam PNP (sourcing) Same form factor and range, sourcing output PLC uses sourcing inputs; plant standardized on PNP
E3Z-R61 Retro-reflective NPN (sinking) Single-side mounting using a reflector Only one side of the detection zone is accessible for mounting
E3Z-D61 Diffuse-reflective NPN (sinking) No reflector needed; shorter range Targets are nearby and accessible from one side only; range is not critical

If your system uses sourcing PLC inputs and you have been specifying E3Z-T61 2M units, the E3Z-T81 is the correct replacement — same housing, same range, different output polarity. Mixing NPN and PNP sensors in the same panel without careful documentation is one of the most common causes of commissioning delays on conveyor and assembly projects. Check current availability for all E3Z variants at LeadTime.ca before placing your order.

Expert Verdict: Is the OMRON E3Z-T61 2M the Right Sensor for Your System?

The OMRON E3Z-T61 2M earns its place on BOMs and spare-parts lists because it does one thing consistently well: reliable, long-range through-beam detection with a compact form factor, fast response, and predictable NPN switching behavior. Machine builders designing conveyor systems, assembly stations, or counting applications with NPN-based PLC I/O will find this sensor straightforward to specify, wire, and replace. The fact that the E3Z family reaches approximately one million units sold per year at the family level means replacement stock is rarely a sourcing crisis, and most installers already know the Brown-Blue-Black wiring convention by heart.

Where the E3Z-T61 2M genuinely is not the right answer: facilities that have standardized on PNP I/O should be ordering E3Z-T81 units — swapping output polarity after installation costs far more than getting the catalog number right before the order ships. Applications in high-pressure washdown zones or chemically aggressive environments should look at the E3ZM family or a higher-rated alternative with IP69K or stainless construction. And wherever mounting a separate emitter and receiver on opposite sides of the detection zone is impractical — tight enclosures, single-access machinery, or retrofit situations where only one bracket position exists — an E3Z-R61 retro-reflective model or an E3Z-D61 diffuse model will save considerable installation time.

From a procurement standpoint, the E3Z-T61 2M is typically held in stock by specialist automation distributors, which keeps lead times short for standard orders. The risk in this product category is not usually availability — it is wrong-part selection at the point of ordering, driven by output-type confusion or incomplete understanding of through-beam versus single-body sensing methods. Ordering through a specialist distributor who can cross-check your PLC input type, confirm emitter and receiver pairing, and catch catalog-number errors before the shipment leaves saves real time and cost on the build. View the OMRON E3Z-T61 2M product page at LeadTime.ca to confirm current pricing and lead time for your project.

For volume pricing or to confirm availability before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the E3Z-T61 2M

Community discussion across forums including PLCTalk, PLCS.net, MrPLC, and r/PLC on Reddit consistently describes Omron E3Z sensors as dependable, easy-to-source workhorses that hold up well in standard factory environments over years of continuous operation. The wiring convention — Brown to positive supply, Blue to common, Black to the NPN output — is well understood by most installers, and the wide distribution network means replacements are rarely hard to find. Users frequently cite the compact housing and the platform's track record as reasons for standardizing on E3Z across multiple machines and plants.

The complaints that come up repeatedly are almost entirely about selection and installation errors rather than product failures. The single most common recurring issue in community posts is ordering E3Z-T61 (NPN) when the PLC input card expects a PNP (sourcing) signal, and discovering the incompatibility only after installation. A related problem — and one that catches new users of through-beam sensing in particular — is purchasing only one device when a complete emitter and receiver pair is required for a new installation. The E3Z-T61 2M designation covers the receiver with NPN output; the emitter is a separate catalog item, and ordering two receivers or two emitters by mistake is a documented recurring ordering error. Additionally, some users report nuisance trips and intermittent detection at the longer end of the sensing range in dusty or oily environments, where lens contamination disrupts the beam gradually without producing an obvious fault condition until detection reliability degrades noticeably.

Strong ambient light and highly reflective backgrounds have also appeared in forum discussions as sources of false triggers, particularly when sensors are installed near large windows or polished conveyor guides. These are manageable with correct positioning and shielding, but they represent installation decisions that need to be made at design time rather than discovered during commissioning. When community feedback on a specific catalog number is limited — as it often is for variants within a well-established family — the practical value of a specialist distributor who can cross-reference your exact application requirements against the full E3Z lineup before the order is placed becomes significant. The LeadTime.ca team can verify NPN versus PNP compatibility, confirm emitter and receiver pairing, and flag cable length or connector mismatches against your drawings before shipment.

Wiring and Installation Overview for the OMRON E3Z-T61 2M

  • Identify the emitter and receiver units by housing markings before installation — the emitter has only power connections (Brown and Blue wires); the receiver has the NPN output on the Black wire in addition to Brown (positive) and Blue (common) supply connections.
  • Connect the receiver's Brown wire to the DC positive supply within the rated 12–24 VDC range, Blue to the supply common, and Black to the sinking PLC input channel — verify that the PLC input common is tied correctly for NPN wiring practice per your controller documentation.
  • Mount emitter and receiver on stable, vibration-resistant brackets with optical axes aligned; use the receiver's indicator LEDs to confirm correct alignment before tightening mounting hardware.
  • Verify Light-ON or Dark-ON configuration matches the intended control logic before commissioning — incorrect mode selection produces an inverted output that can look like a wiring fault.
  • After installation, pass a representative target through the beam path and confirm the PLC input toggles reliably at the expected detection point; document mounting positions and logic configuration for future maintenance reference.

Engineers requiring full wiring diagrams, detailed electrical specifications, and commissioning procedures should refer to the official Omron E3Z series instruction manual available from omron.com.

Compatible Accessories and System Expansion

The E3Z-T61 2M is designed to work within the broader E3Z Compact Photoelectric Sensor ecosystem. Omron offers dedicated mounting brackets and accessories sized for the E3Z housing footprint, which simplifies installation on standard conveyor frames and machine profiles. When building a new installation, confirm accessory compatibility against the E3Z series mounting documentation to avoid bracket mismatch. Key compatible items from the E3Z platform include:

  • E3Z-series mounting brackets — designed for the compact rectangular housing, available in multiple orientations for side and bottom mounting holes.
  • Matching E3Z emitter unit — required for all through-beam installations; ordered as a separate catalog item from the receiver; confirm the correct emitter code before purchasing.
  • Extension cables and connectors — for installations where the pre-wired 2 m cable does not reach the control panel; verify connector type compatibility with the E3Z-T61 2M housing.

Wrong-Part Prevention Checklist Before You Order

Use this checklist verbatim before placing a purchase order for the OMRON E3Z-T61 2M. Each point addresses a documented ordering or installation error in the field.

  1. Confirm the control system requires an NPN output; choose PNP (E3Z-T81 series) if the PLC input expects sourcing signals.
  2. Verify the sensing distance requirement and available mounting space really favor a through-beam pair (emitter + receiver) rather than retro-reflective or diffuse.
  3. Check cable length: E3Z-T61 is pre-wired 2 m; if you need longer runs or quick disconnect, select the matching connector type or longer cable variant.
  4. Make sure the supply voltage is compatible with your control panel DC supply (typical 12–24 VDC) and that available current meets the sensor's load requirements.
  5. Confirm IP67 rating and ambient temperature range cover the installation environment (temperature extremes, liquids, dust).
  6. Verify the part codes for emitter and receiver if ordered separately; ensure you are not buying two emitters or two receivers by mistake.
  7. Check Light-ON/Dark-ON configuration needs and that personnel know how to set or wire for the required mode.
  8. Ensure mounting brackets and reflectors (if used elsewhere) are compatible with the E3Z housing footprint and optical axis.

If any item on this checklist raises a question, review the full product details at LeadTime.ca or contact our team before ordering — getting the catalog number right the first time is the fastest path to a working installation.

Frequently Asked Questions

How do I wire the OMRON E3Z-T61 2M receiver to a sinking PLC input?

Connect the Brown wire to the DC positive supply (within the 12–24 VDC rated range), the Blue wire to the supply common (0 V), and the Black wire — the NPN output — to the sinking PLC input channel. Ensure the PLC input common is connected correctly for NPN (sinking) input wiring as specified in your controller's hardware manual. The emitter unit requires only power connections (Brown and Blue) and has no output wire.

What is the reliable real-world detection range of the E3Z-T61 2M on a dusty conveyor?

The specified sensing distance is approximately 0–15 m under standard conditions. In dusty or oily environments, lens contamination gradually reduces effective range, so installations at the longer end of the distance range require a scheduled lens cleaning program to maintain reliable detection. Position the emitter and receiver to use the minimum distance necessary for your application, which leaves margin against environmental degradation.

How do I tell the emitter from the receiver, and does the emitter need power?

Both units are labeled on the housing — check the physical markings before installation. The emitter requires DC power (Brown to positive, Blue to common) to project the infrared beam, but it has no switching output wire. The receiver also requires DC power and produces the NPN transistor output on the Black wire. Both units must be powered for the system to function; an unpowered emitter is a common cause of a receiver showing no output signal.

What is the difference between the E3Z-T61 and E3Z-T81, and are they direct swaps?

The E3Z-T61 produces an NPN (sinking) output; the E3Z-T81 produces a PNP (sourcing) output. The housing form factor and sensing distance are the same, making them dimensionally interchangeable. They are not electrically interchangeable without wiring changes — connecting a PNP output to a sinking PLC input wired for NPN (or vice versa) will not produce a valid signal and can damage the output stage. Confirm your PLC input type before selecting between the two.

My E3Z-T61 indicator is on but the PLC input never changes state — what should I check first?

Start with the Light-ON versus Dark-ON configuration — if the sensor is in the wrong mode, the output logic is inverted relative to what the PLC expects. Next, verify that the Black wire is connected to a sinking input and that the PLC input common is correctly wired for NPN practice. Also confirm the emitter is powered and that neither lens is contaminated or blocked. A stable indicator on the receiver means the beam is established, so the issue is typically in the wiring or PLC input configuration rather than the sensor itself.

Can the OMRON E3Z-T61 2M be used outdoors or near bright ambient light sources?

The E3Z-T61 2M is specified for an operating temperature of approximately -25 to 55 °C and carries IP67 protection, which provides tolerance to outdoor environmental conditions within those limits. Strong ambient light — direct sunlight or high-intensity artificial lighting near the optical axis — can affect detection reliability. Position the emitter and receiver so the beam path is shielded from direct competing light sources where possible, and verify performance under the actual lighting conditions at the installation site during commissioning.

Why Order the OMRON E3Z-T61 2M from LeadTime.ca

  • Global shipping — LeadTime.ca ships OMRON E3Z-T61 2M sensors worldwide, with no geographic restriction on orders.
  • Specialist verification — our team can cross-check NPN versus PNP output requirements, confirm emitter and receiver pairing, and flag catalog-number errors against your system drawings before the order ships.
  • Hard-to-find variants — when specific E3Z cable lengths, connector types, or regional-approval variants are needed, we source them rather than substituting incorrectly.
  • Volume pricing — quantity orders for plant standardization or machine-builder BOMs are handled with appropriate pricing; contact us for current volume rates.
  • Lead-time transparency — we provide real-time availability and lead-time information so your build schedule is not disrupted by unexpected stock gaps.

At-a-Glance Summary

  • Sensing method: through-beam infrared, separate emitter and receiver — both must be ordered and powered.
  • Sensing distance: approximately 0–15 m — suitable for most conveyor-width and machine-span detection tasks.
  • Output: NPN transistor, Light-ON/Dark-ON selectable — compatible with sinking PLC input cards only.
  • Supply: DC, typically 12–24 VDC — confirm exact rated range and ripple tolerance in the current Omron datasheet.
  • Response time: under 1 ms — adequate for high-throughput counting and fast-cycle conveyor detection.
  • Housing: PBT plastic, approximately 10.8 × 20 × 31 mm — compact rectangular form, side and bottom mounting holes.
  • Cable: 2 m pre-wired — plan cable routing and terminations at design time; connector versions available if quick-disconnect is required.
  • Environmental rating: IP67, approximately -25 to 55 °C — splash and dust resistant, not rated for high-pressure washdown.
  • Choose E3Z-T81 instead if PLC inputs are PNP (sourcing); choose E3Z-R61 or E3Z-D61 if single-side mounting is required.
  • Family track record: approximately one million E3Z sensors sold per year — broad distributor availability and strong field support.
