Omron E3Z-R61 Photoelectric Sensor — NPN Retro-Reflective Review

By Abdullah Zahid
16 min read

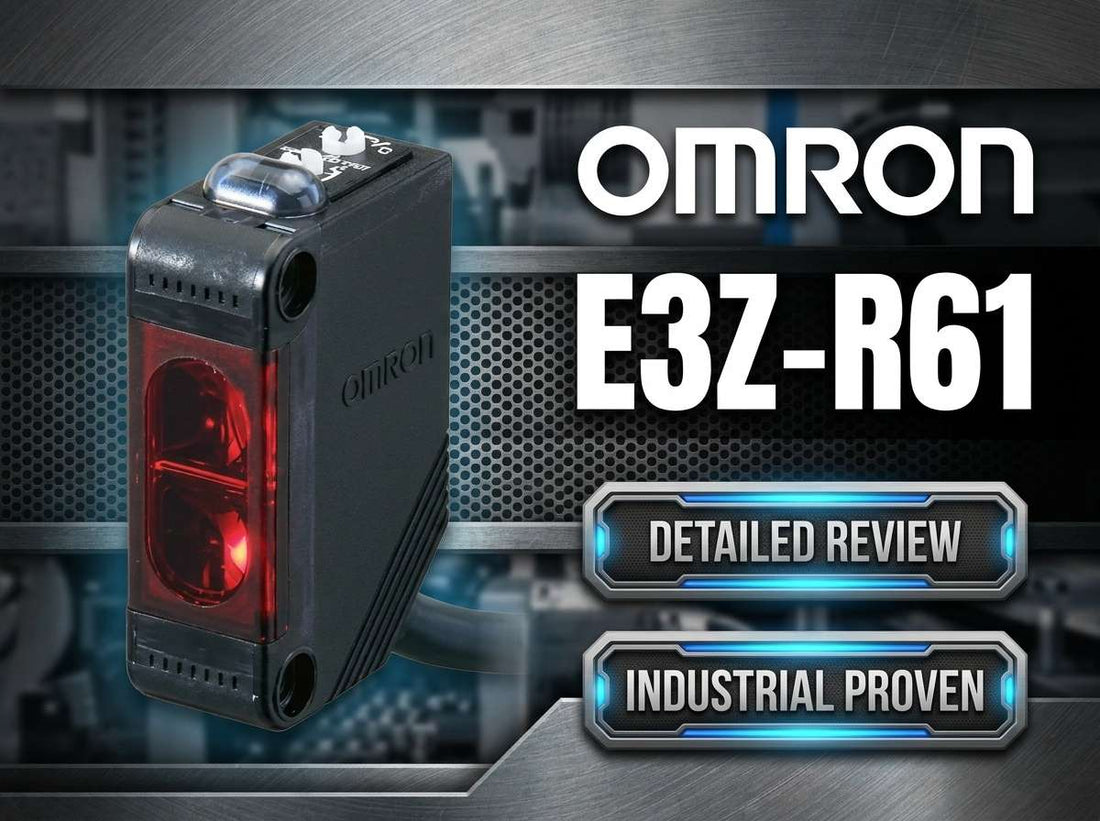

Omron E3Z-R61 compact retro-reflective photoelectric sensor with NPN output and pre-wired cable for conveyor detection

Omron E3Z-R61 Compact Photoelectric Sensor, Retro-reflective, NPN Output, Pre-wired — Specs, Review and Alternatives

Controls engineers specifying sensors for conveyor and packaging lines frequently land on the Omron E3Z-R61: a compact, DC-powered, retro-reflective photoelectric sensor with a built-in amplifier, NPN open-collector output, and a pre-wired 2 m cable. It operates from a 12–24 VDC supply, achieves a rated sensing distance of up to approximately 4 m with the correct E39-series reflector, and carries an IP67 degree of protection — enough to cover the majority of general-purpose object detection tasks in industrial automation without over-engineering the solution.

If you have already confirmed the E3Z-R61 is the right part for your system, check current pricing and availability at LeadTime.ca — we ship worldwide.

Who Should Buy the Omron E3Z-R61 — and Who Shouldn't

The E3Z-R61 is the right sensor if all of the following are true for your application:

  • Your PLC input cards use NPN (sinking) inputs — the E3Z-R61 provides an NPN open-collector switching output and is not interchangeable with PNP input cards without adaptation.
  • Retro-reflective sensing is mechanically feasible — you need a clear line of sight to mount an E39-series reflector opposite the sensor within the rated distance.
  • Your required detection range is within approximately 4 m using a specified Omron E39 reflector.
  • Supply voltage is 12–24 VDC — this sensor is not rated for 110 or 230 VAC mains power.
  • The pre-wired 2 m cable format is acceptable — plant standards allow fixed cable rather than a quick-disconnect M8 connector.
  • IP67 protection meets your environmental demands — dust-tight and protected against temporary immersion, suitable for most dry industrial and light-exposure environments.

If your control system uses PNP (sourcing) inputs, the E3Z-R81 is the correct variant. If you need a connector-style termination for easier field replacement, look at the E3Z-R66. If through-beam or diffuse sensing better fits the target geometry or background conditions, the E3Z-T or E3Z-D series are the appropriate choices.

On this page:

What the Omron E3Z-R61 Actually Does on a Machine

The E3Z-R61 is a retro-reflective photoelectric sensor with a built-in amplifier — meaning the sensing electronics, light emitter, and receiver are all housed in a single compact body, with no separate amplifier box required. The sensor emits an infrared LED beam that travels to a separately mounted E39-series reflector and returns to the receiver in the same housing. When an object interrupts that beam path, the NPN output switches state, delivering a sinking signal to whatever PLC input, relay coil, or counter is connected downstream.

This operating principle places the E3Z-R61 in the retro-reflective category — distinct from diffuse sensors that bounce light off the target itself, and from through-beam sensors where emitter and receiver are in separate housings. The key practical implication is that the reflector must be mounted opposite the sensor at a fixed location, which is straightforward on most conveyor and machine guard applications but requires planning at the mechanical design stage. The reward is reliable detection that is largely independent of the target's color or surface finish, which is a meaningful advantage over diffuse sensing in mixed-product environments.

Light-ON and Dark-ON operating modes are selectable, allowing the engineer to configure whether the output activates when the beam is clear (reflector visible, no object) or when the beam is blocked (object present), matching the control logic without rewiring the PLC program.

Typical System Architecture for E3Z-R61 Deployments

The E3Z-R61 sits at the sensor level of a standard automation hierarchy, feeding a discrete switching signal upward to a PLC or relay logic controller. A typical component chain looks like this:

  • 24 VDC control power supply — provides regulated DC power to the sensor via the brown and blue wires of the pre-wired cable.
  • Omron E3Z-R61 sensor body — mounted to the machine frame, aimed at the E39-series reflector; outputs NPN signal on the black wire.
  • E39-series reflector — mounted opposite the sensor at a fixed distance within the rated range, on the far side of the product path.
  • PLC discrete input module (NPN/sinking type) — receives the black output wire signal and maps the sensor state to a PLC tag for use in the control program.
  • Machine logic / HMI — uses the sensor signal for accumulation control, jam detection, part counting, or interlock logic in the application program.

Where the E3Z-R61 Gets Used: Applications and Industries

The most common deployment is object detection on belt and roller conveyors in packaging and material handling environments. A carton, tray, or container passes through the beam path between the sensor and reflector; the NPN output switches and the PLC registers the presence event for accumulation, diverting, counting, or spacing logic. The approximately 4 m rated sensing distance is generous enough to span most conveyor widths and many end-of-line gate positions without requiring a special long-range model.

Bottling and container lines use the E3Z-R61 extensively at infeed and outfeed stations, where the consistent detection behavior regardless of container color or label finish is valued. For clear or highly transparent bottles and films, however, the retro-reflective principle has limits — if the target allows too much infrared light to pass through to the reflector, the sensor may not reliably detect the object, and a through-beam model or a dedicated clear-object sensor variant becomes the better specification.

In assembly and general factory automation, the compact E3Z housing fits into machine frames, fixture panels, and jig assemblies where larger sensor bodies would not clear surrounding tooling. Part presence or absence at pick-and-place stations, mechanical stop confirmation, and indexing position checks are all typical tasks. It is important to note that the E3Z-R61 is not a safety-rated device and must not be used as the primary interlock in a safety function — those applications require certified safety sensors or light curtains.

Food and beverage facilities use E3Z sensors in dry-area and lightly exposed zones. The IP67 rating provides dust-tight sealing and protection against temporary water immersion, covering most splash and cleaning scenarios. Aggressive washdown with high-pressure hot water or chemical sanitizers, or applications demanding stainless-steel hygienic housings, require a higher protection specification than IP67 provides.

Application Typical Deployment
Carton detection on conveyor Sensor mounted to frame, E39 reflector opposite; NPN output to PLC accumulation logic
Bottle/container infeed detection Retro-reflective across conveyor width at infeed gate; mixed container colors handled reliably
Part presence at assembly station Compact E3Z body integrated into fixture; confirms part seated before cycle start
Jam detection on chute or hopper Sensor aimed across chute opening; blocked beam signals backup condition to PLC
Object spacing on packaging line Sensor at fixed position reads product gaps; feeds counter or timing logic
Machine guard position monitoring Non-safety interlock use only; confirms guard closed before motion enable (not a safety-rated function)

E3Z-R61 Key Specifications for Purchase Decisions

Parameter Value Notes
Sensing method Retro-reflective Requires separate E39-series reflector
Rated sensing distance Up to approximately 4 m With specified Omron E39 reflector; verify reflector model for exact range
Light source Infrared LED Non-visible infrared wavelength
Supply voltage 12–24 VDC Not rated for AC mains power
Output type NPN open-collector Sinking output; not compatible with PNP sourcing inputs without adaptation
Operation modes Light-ON / Dark-ON selectable Selectable by wiring configuration
Protection circuits Reverse polarity and output short-circuit protection Built-in
Degree of protection IP67 per IEC 60529 Dust-tight; protected against temporary immersion
Connection style Pre-wired 2 m cable Fixed cable; use E3Z-R66 for M8 quick-disconnect
Reflector compatibility Omron E39 series Reflector must be specified separately; not included with sensor

Full technical specifications are available on the product page at LeadTime.ca.

E3Z-R61 vs E3Z-R81, E3Z-R66, and Other Family Variants

The single most consequential choice in the E3Z retro-reflective family is output type: NPN or PNP. The E3Z-R61 provides NPN (sinking) output, which is the correct match for NPN-compatible PLC input cards commonly found in Asian-market control systems and many legacy panels. The E3Z-R81 provides PNP (sourcing) output, which is the correct match for the sourcing input cards dominant in many North American and European PLC installations. Ordering one when you need the other results in either a wiring workaround or unusable stock — a mistake that appears repeatedly in community forums for this product family.

The connection style is the second differentiator. The E3Z-R61 uses a fixed pre-wired 2 m cable — economical and reliable in permanent installations where the sensor is rarely swapped out. The E3Z-R66 uses an M8 quick-disconnect connector, which adds a field-removable interface that many plants with high-turnover maintenance or strict standardization policies prefer. If your plant standard requires plug-in sensors, specify the R66 from the outset rather than retrofitting later.

For sensing method decisions: the E3Z-T through-beam series is the correct choice when detection range must exceed the retro-reflective limits, when the environment is heavily contaminated (through-beam tolerates partial lens fouling better), or when the target path does not allow mounting a reflector. The E3Z-D diffuse series eliminates the reflector entirely and is well-suited to close-range detection or situations where background suppression is needed, but diffuse sensing is sensitive to target color and surface finish in ways that retro-reflective sensing is not.

Model Sensing Method Output Type Connection Typical Range IP Rating
E3Z-R61 Retro-reflective NPN Pre-wired 2 m Up to ~4 m with E39 reflector IP67
E3Z-R81 Retro-reflective PNP Pre-wired 2 m Up to ~4 m with E39 reflector IP67
E3Z-R66 Retro-reflective NPN M8 connector Up to ~4 m with E39 reflector IP67
E3Z-T (series) Through-beam NPN/PNP variants Pre-wired / M8 Longer range; model-dependent IP67
E3Z-D (series) Diffuse NPN/PNP variants Pre-wired / M8 Short range; model-dependent IP67

If your input cards are PNP sourcing type, the E3Z-R81 is the direct swap with identical mechanical and environmental specs — check current availability for both variants at LeadTime.ca before committing to a BOM.

Expert Verdict: Is the E3Z-R61 the Right Sensor for Your System?

The Omron E3Z-R61 earns its place as a standard-issue sensor on a wide range of conveyor and packaging systems because it delivers exactly what most general-purpose retro-reflective applications require: a compact IP67 body, a practical sensing range of up to approximately 4 m with E39 reflectors, stable NPN switching output, and a field record backed by an E3Z family that Omron describes as moving around one million units per year. For controls engineers and OEM machine builders who are already working with NPN sinking input cards and need a proven, easily sourced retro-reflective sensor, the E3Z-R61 is a low-risk specification that integrates without surprises.

Where the E3Z-R61 genuinely falls short is not in its hardware performance but in the breadth of applications it cannot cover. Facilities standardized on PNP sourcing inputs should specify the E3Z-R81 from the start — there is no practical wiring workaround that does not add cost or complexity. Applications involving clear or highly transparent targets such as glass bottles or stretch films may find retro-reflective sensing unreliable, and a through-beam E3Z-T or a dedicated clear-object variant is the correct path. Aggressive washdown environments or chemical exposure that demands a higher ingress protection class than IP67, or a hygienic stainless-steel housing, are also outside the E3Z-R61's design envelope and should be addressed with an appropriately rated product.

From a procurement standpoint, the E3Z series is genuinely well-stocked across major automation distributors, and lead times when stock is available are typically short. The more significant sourcing risk is not availability but ordering accuracy — the NPN/PNP split and the pre-wired versus connector style variants look nearly identical in catalog listings and are easy to confuse at the purchasing stage. Working with a specialist distributor that validates your part number against your declared PLC input type and application before the order ships is the practical way to avoid receiving the wrong variant. View current pricing and availability for the E3Z-R61 at LeadTime.ca — we ship worldwide and can confirm compatibility before you commit.

For volume pricing, lead time confirmation ahead of a production build, or help selecting the correct E39 reflector to pair with your order, contact the LeadTime.ca team directly — we serve procurement teams and engineers worldwide.

What Engineers Need to Know Before Ordering the Omron E3Z-R61

Model-specific discussion for the E3Z-R61 in automation forums is limited — most community conversation happens at the E3Z family level — but the patterns that do emerge paint a consistent picture. Across communities including PLCTalk, PLCS.net, MrPLC, Reddit's r/PLC and r/automation threads, and major distributor Q&A sections, the E3Z family earns a reputation as a dependable default for general-purpose photoelectric work. Forum users regularly describe E3Z sensors as workhorses that run for years in conveyor and packaging environments without intervention. Integrators specifically mention the compact housing and simple wiring as advantages in retrofit projects where space is constrained and installation time must be minimized. Noise immunity is another recurring positive note — engineers who have moved from no-name alternatives to E3Z sensors frequently comment on improved resistance to electrical interference and ambient light conditions.

The complaints that do surface are almost entirely about part selection rather than sensor performance. The NPN versus PNP variant confusion — ordering the E3Z-R61 when the PLC uses sourcing inputs — is the single most frequently cited ordering mistake in this product family. The fix is always the same: confirm the PLC input card type before placing the order, and cross-check the part number suffix (R61 for NPN, R81 for PNP) explicitly in the BOM. The second recurring issue is reflector selection: engineers who specify the sensor without identifying the correct E39-series reflector model and verifying it fits the physical installation sometimes find themselves with reduced sensing distance or mechanical interference with product flow. The third pattern is cable damage and inadequate strain relief in high-motion or high-vibration installations — the pre-wired cable requires proper routing and support, and where frequent sensor replacement is expected, the M8-connector variant E3Z-R66 is a better long-term choice.

Because model-specific community data is sparse, the practical replacement for forum consensus is getting the specification verified by someone who handles these sensors regularly. A specialist distributor with industrial automation focus can review your PLC input type, target characteristics, mounting geometry, and reflector requirements before the order is placed — reducing the risk of receiving a variant that does not work in your application. This matters more for a sensor like the E3Z-R61, where the variants look identical in a catalog listing but deliver opposite output polarities, than it does for commodity electrical components where the only variable is voltage rating.

Wiring and Installation Overview for the Omron E3Z-R61

The E3Z-R61 uses a standard pre-wired 2 m cable. The key points engineers need to verify before installation are:

  • The brown wire connects to the positive supply terminal (12–24 VDC) and the blue wire to the 0 V common; always isolate power before making connections and protect the supply with appropriate overcurrent protection per applicable installation standards.
  • The black wire is the NPN open-collector output — connect this to the PLC discrete input terminal configured for sinking (NPN) input type; confirm the input card configuration before applying power.
  • Light-ON or Dark-ON operating mode is selected by wiring configuration — consult the Omron E3Z datasheet for the exact wire assignment relevant to your desired logic before wiring, as this determines whether the output activates on object presence or object absence.
  • Reverse polarity and output short-circuit protection are built in, but proper cable routing and strain relief are still required — support the cable within 100 mm of the sensor body in vibrating installations and avoid sharp bends near the cable exit.
  • Before powering up, verify mounting clearances around the sensor and reflector, confirm the reflector is within the rated sensing distance, and check that no background surfaces are within the beam path that could cause false reflection.

For complete wiring diagrams, indicator LED behavior, and detailed installation procedures, refer to the official Omron E3Z series datasheet and instruction sheet available from the manufacturer.

Wrong-Part Prevention Checklist Before Ordering the E3Z-R61

Before adding the E3Z-R61 to your BOM or purchase order, verify every item on this checklist — it covers the most common and costly ordering mistakes for this sensor family:

  1. Confirm control system expects NPN (sinking) output; do not order E3Z-R61 if PNP (sourcing) input cards are used without adaptation.
  2. Verify retro-reflective sensing is appropriate; do not use where through-beam or diffuse sensing is required.
  3. Check required sensing range and select correct reflector model (E39 series) to achieve the specified distance.
  4. Ensure 12–24 VDC power is available; this sensor is not designed for 110/230 VAC mains.
  5. Validate environmental demands: temperature range, exposure to washdown/chemicals, and IP67 suitability.
  6. Confirm pre-wired 2 m cable is acceptable; if quick-disconnect is needed, choose an M8-connector variant.
  7. Check mounting space and bracket compatibility around the sensing area for proper alignment to reflector.
  8. Verify object characteristics (size, color, transparency) are within retro-reflective detection capability; consider clear-object versions if detecting transparent bottles/films.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — confirming the right variant up front costs nothing and prevents stock that cannot be used.

Frequently Asked Questions

What is the difference between the Omron E3Z-R61 and E3Z-R81, and how do I know which one I need?

The E3Z-R61 provides NPN (sinking) output, while the E3Z-R81 provides PNP (sourcing) output. All other mechanical and environmental specifications are the same. To determine which you need, check whether your PLC input card is wired as a sourcing (PNP) or sinking (NPN) input — this is typically documented in the PLC hardware manual or on the input module wiring label. Ordering the wrong variant means the sensor output and the PLC input work against each other electrically, which is a wiring rework, not a configuration fix.

Which E39 reflector do I need with the E3Z-R61, and does it come included?

The reflector is not included with the E3Z-R61 and must be ordered separately. The correct E39-series reflector model depends on the required sensing distance and the physical mounting constraints of your installation — Omron's E3Z series selection guide maps reflector models to sensing distances. Specifying the wrong reflector size or type is a common ordering mistake that results in reduced range or mechanical interference with product flow, so confirm the reflector part number at the same time you order the sensor.

Why does my E3Z retro-reflective sensor sometimes fail to detect clear or highly reflective objects?

Retro-reflective sensors work by detecting the interruption of an infrared beam that returns from the reflector. If the target is transparent — such as a clear glass or plastic bottle — a significant portion of the beam passes through the object rather than blocking it, and the sensor may not register a change in state. Highly polished metallic surfaces can redirect enough light back to the receiver to prevent beam interruption from registering. In both cases, the correct solution is to either use a through-beam E3Z-T model (which detects any interruption regardless of target transparency) or to select a sensor variant specifically designed for clear-object detection rather than standard retro-reflective.

Can I replace an older or competing brand's compact photoelectric sensor directly with the E3Z-R61 without changing brackets or wiring?

Physical interchangeability depends on the housing diameter and mounting style of the sensor being replaced — the E3Z body uses an M18-style footprint, so it fits directly into brackets designed for that form factor. Wiring compatibility requires verifying that the replacement system also uses 12–24 VDC supply, NPN output, and the same cable color coding or connector type. These are not guaranteed across brands or even across older Omron models, so always cross-reference the mechanical drawing and electrical characteristics before committing to a direct swap on a running production line.

What does the indicator LED on the E3Z-R61 tell me, and how do I use it during commissioning?

The E3Z-series indicator LED provides a visual confirmation of output state — it illuminates to show whether the sensor is in the ON or OFF condition based on the selected Light-ON or Dark-ON wiring. During alignment and commissioning, monitoring the indicator while adjusting sensor and reflector positions is the practical way to confirm stable detection without a live PLC connection. A stable indicator response at the edges of the expected detection zone confirms that the alignment is within the reliable operating region rather than at a marginal point that could cause intermittent detection in production.

Is the Omron E3Z-R61 suitable for safety interlock applications?

No. The E3Z-R61 is a standard industrial photoelectric sensor and is not a safety-rated device. It must not be used as the primary interlock element in a machine safety function. Applications requiring a certified safety response — such as guarding a hazardous motion zone — require dedicated safety sensors, safety light curtains, or other components certified to the applicable functional safety standards, with appropriate safety-rated control architecture.

Why Order the Omron E3Z-R61 Through LeadTime.ca

  • LeadTime.ca ships worldwide — whether your facility is in Canada, the United States, or internationally, we can fulfill your order and confirm lead times before you commit.
  • We stock and source across the Omron E3Z family, including E3Z-R61, E3Z-R81, E3Z-R66, E3Z-T, and E3Z-D variants, so variant comparisons and substitution questions can be handled in a single conversation.
  • Our team can validate your output type, reflector selection, and application requirements before the order ships — reducing the risk of receiving the wrong variant and the downtime that follows.
  • Volume and OEM pricing is available — contact us for project quantities or blanket order arrangements.

Omron E3Z-R61 At-a-Glance Summary

  • Sensing method: retro-reflective with separately ordered E39-series reflector — not included with sensor.
  • Rated sensing distance: up to approximately 4 m with specified E39 reflector.
  • Output type: NPN open-collector (sinking) — for PNP output, specify E3Z-R81.
  • Supply voltage: 12–24 VDC — no AC mains variant in this model.
  • Degree of protection: IP67 per IEC 60529 — dust-tight and protected against temporary immersion.
  • Connection: pre-wired 2 m cable — for M8 quick-disconnect, specify E3Z-R66.
  • Operation modes: Light-ON and Dark-ON selectable by wiring configuration.
  • Protection circuits: reverse polarity and output short-circuit protection built in.
  • Not a safety-rated device — do not use as primary interlock in certified safety functions.
  • E3Z family: Omron describes approximately one million units sold per year, indicating broad field adoption and parts availability.
